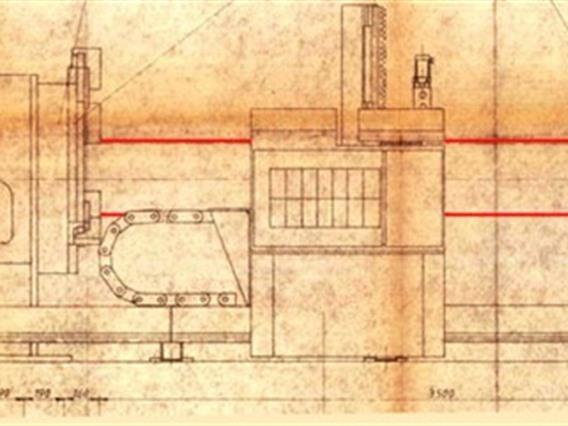

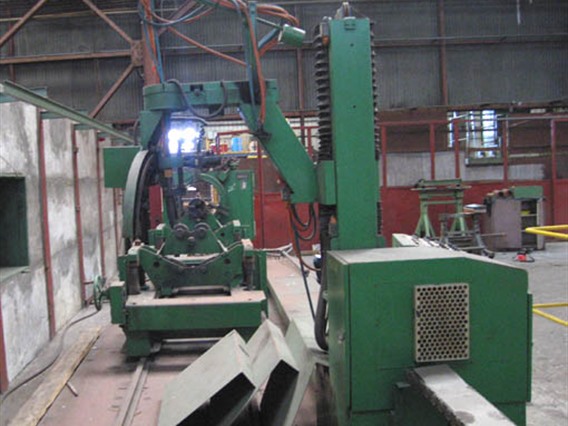

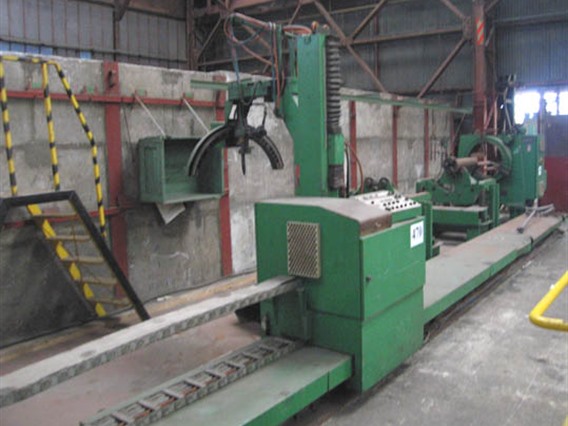

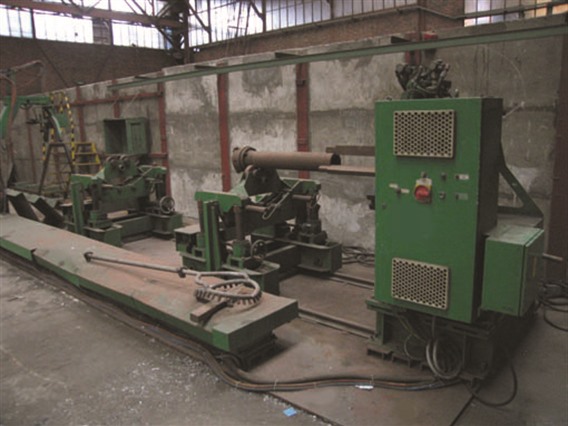

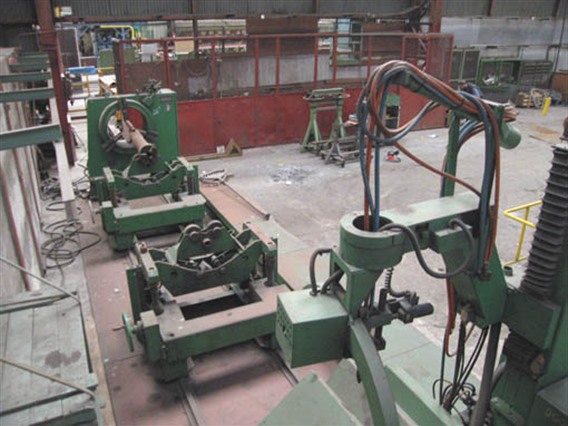

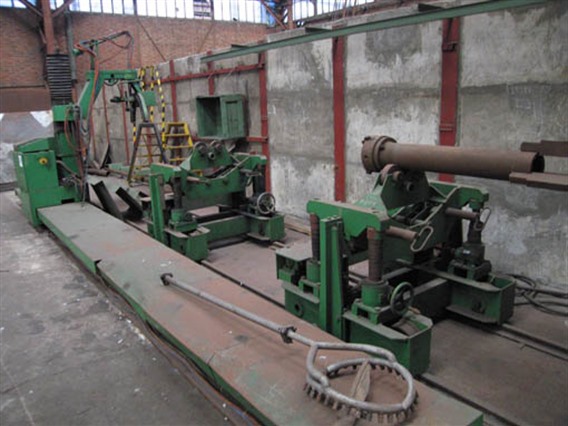

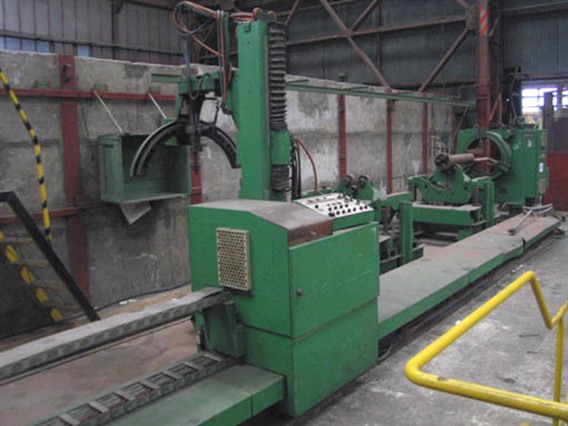

Müller Opladen 3D profile cutting

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Ek bilgi

type: RB 650-1200 AGD

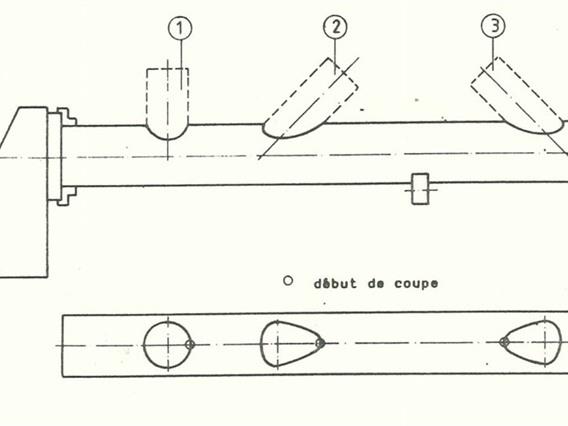

5-axis simultanous gas-cutting (plasma) for tubes

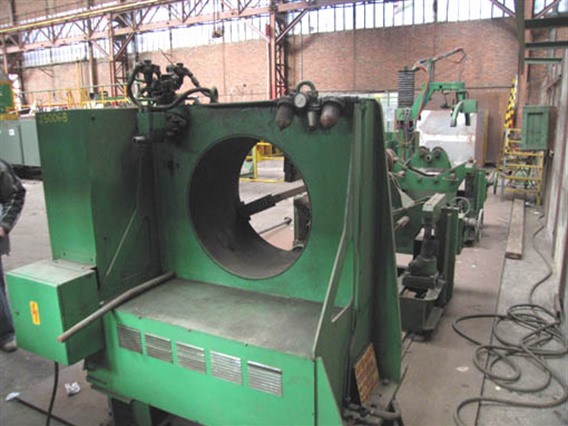

min/max workpiece dia through chuck : 80/650 mm

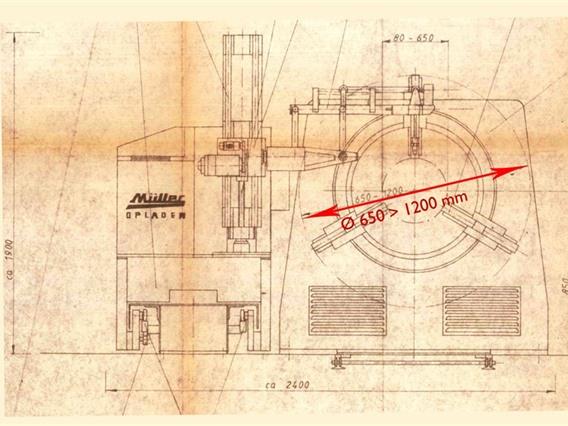

min/max workpiece dia: 650 > 1200 mm

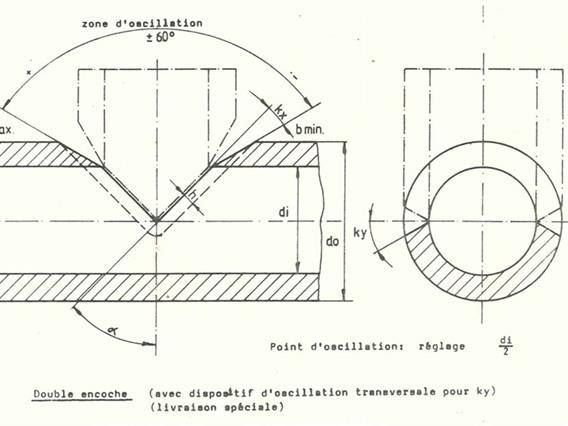

diameter range of oscillation: 80 > 1200mm

chuck speed in manual position: 0 > 4m/min

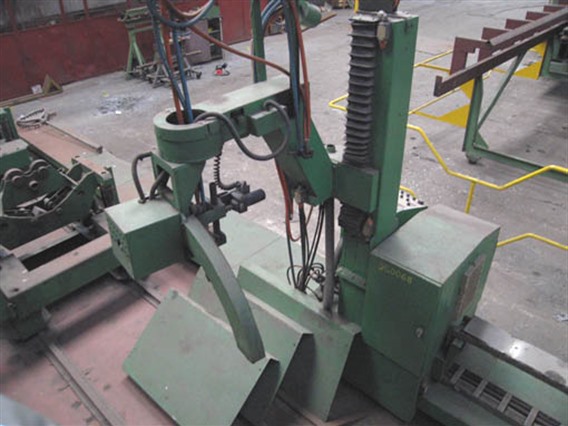

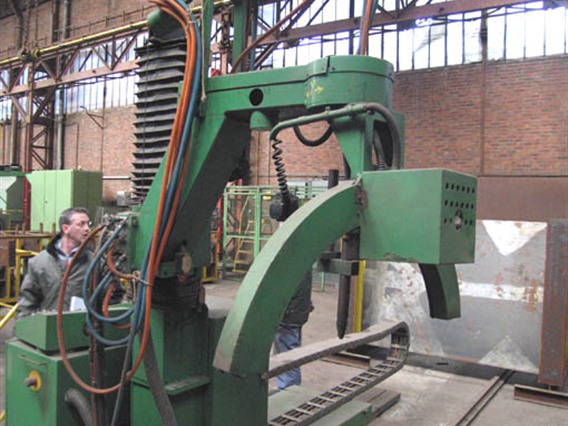

speed of cuttinghead in manual position: 0 > 1400 mm/min

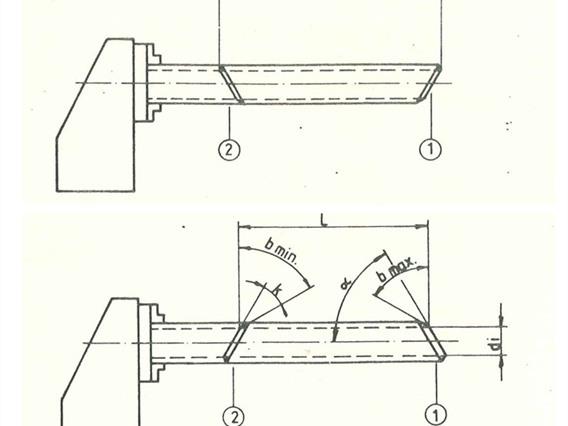

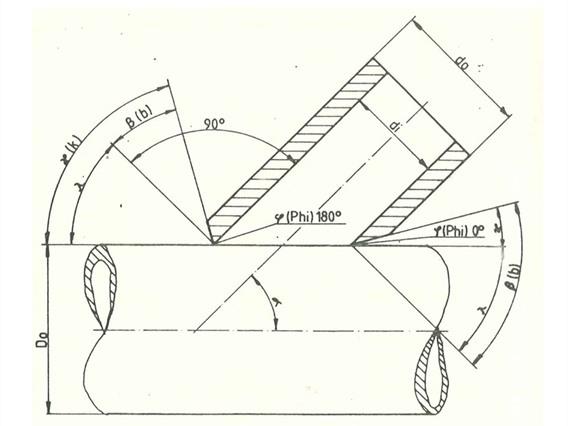

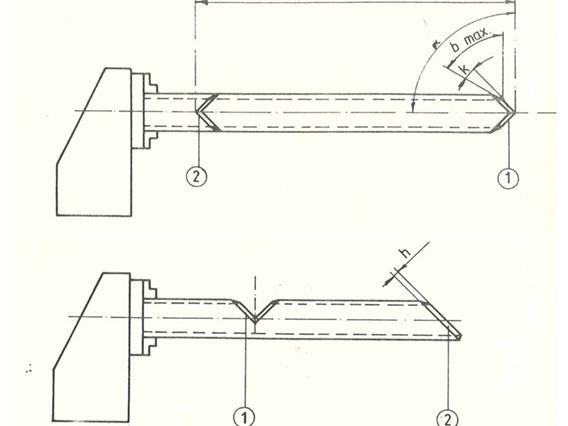

max torch angle: +/- 60° & 45°

The CNC axes are as follows:

700 mm > Rotation of the workpiece inside the chuck system (Y-axis)

13 000 mm > Longitudinal movement of the cutting head along the workpiece axis (X-axis)

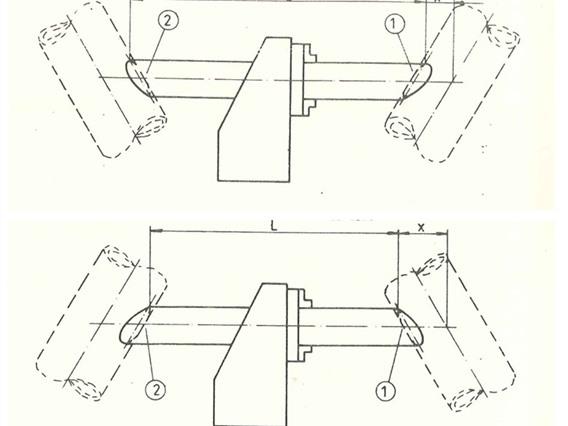

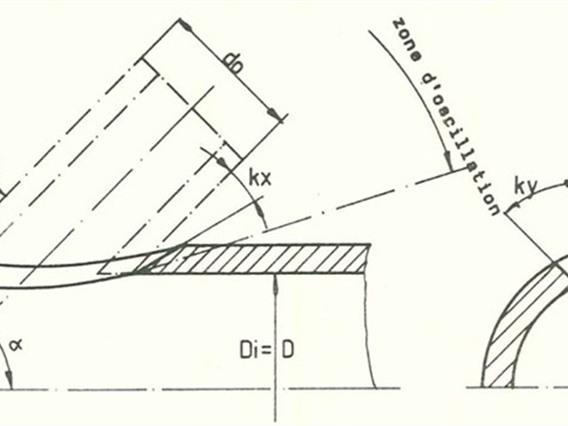

180° > Oscillatory movement of the cutting head (B-axis)

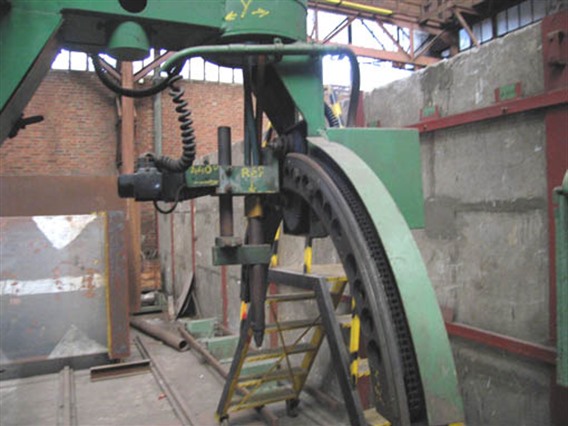

360° > Rotation of the cutting head (C-axis)

Transverse movement of the cutting head at 90° to the workpiece axis (V-axis)
Tip/Model: 3D profile cutting
Stok numarası: O.16 9535
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.16] Brandsnijmachines - Gasbrandsnijmachines & Plasmabrandsnijmachines
Marka: Müller Opladen

» Kişisel fiyat talep edin

Stok numarası: O.16 9535

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
