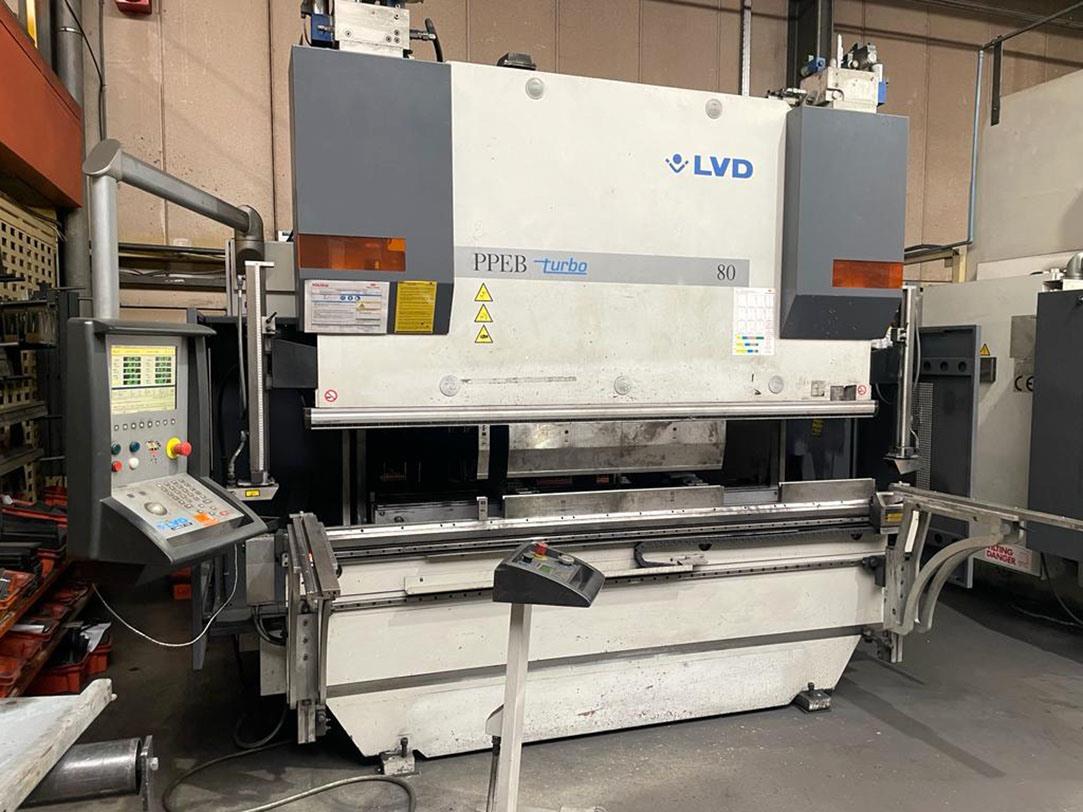

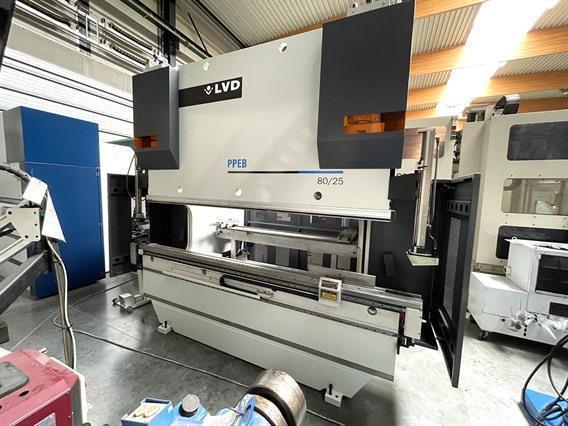

LVD PPEB Turbo 80 ton x 2500 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity80 ton x 2500 mm
BackgaugeCNC
ControlCadman B + Touch
Passage between uprights2050 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat400 mm
Table width150 mm
Locking speed130 mm/sec
Working speed11 mm/sec
Returning speed113 mm/sec
Electric motor (power)20 kW
Length4355 mm
Depth2525 mm
Height3000 mm
Weight6,5 ton

Informazioni supplementari

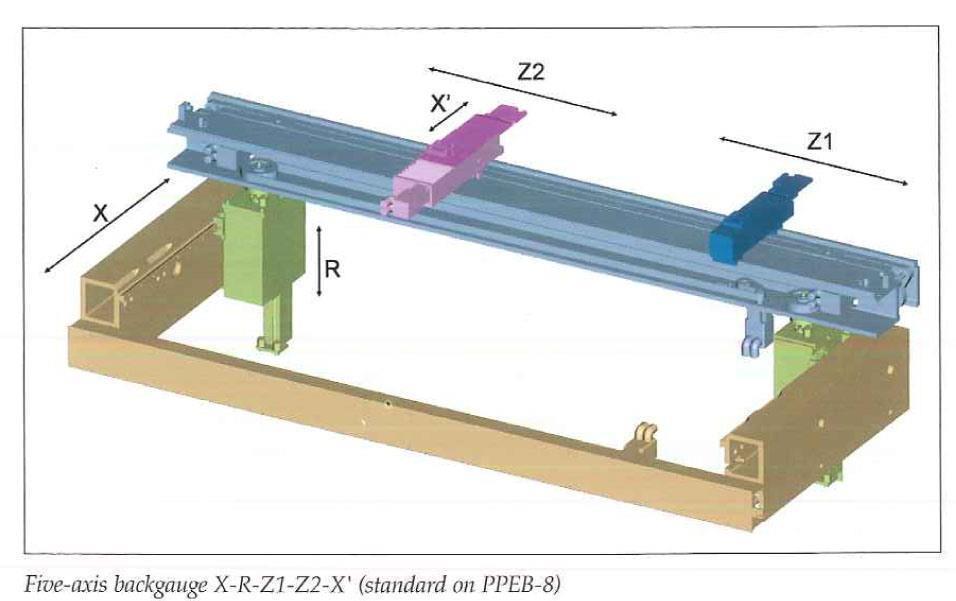

8 axes: Y1 - Y2 - X - X' - Z1 - Z2 - R - V
easy form

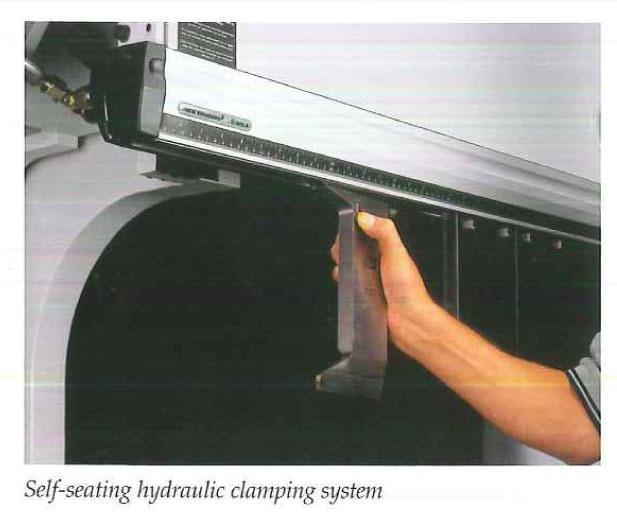

Wila modufix tooling (upper and lower hydraulic clamping)
lasersafe security

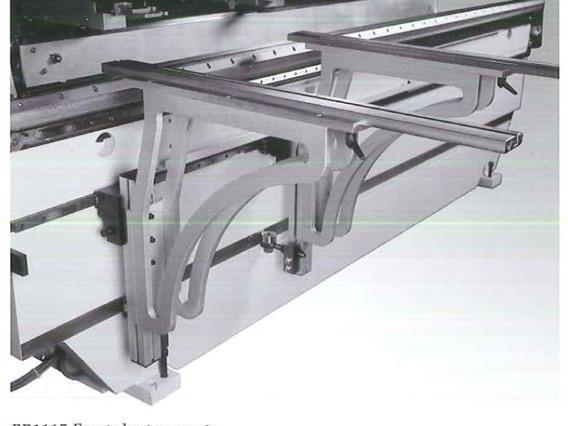

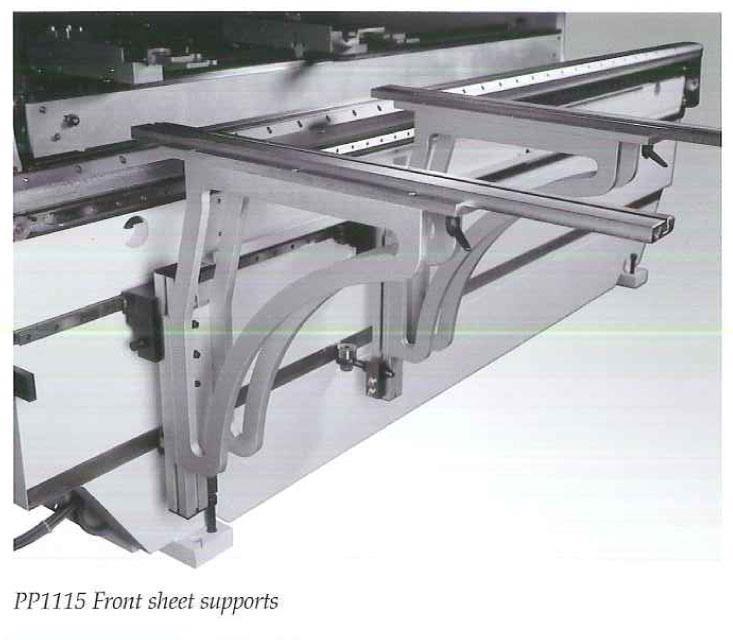

2 movable platesupports
Tipo/Modello: Turbo 80 ton x 2500 mm CNC
Numero di magazzino: O.01 13933
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: LVD PPEB

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 13933

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
