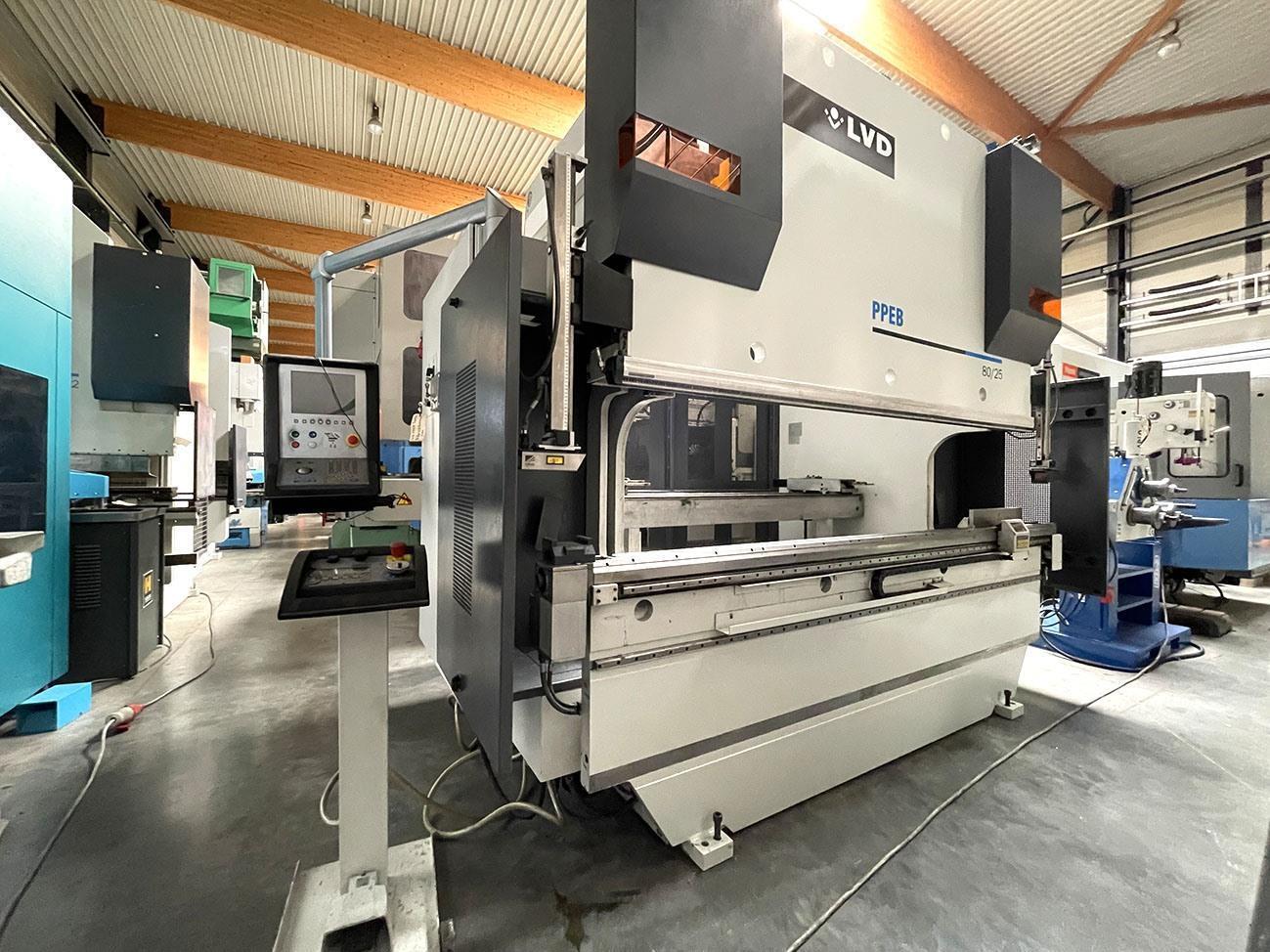

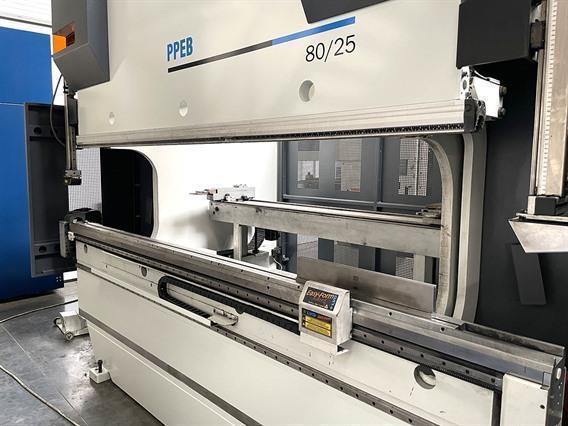

LVD PPEB Turbo 80 ton x 2500 mm CNC

Der Produkt ist zu Ihren Favoriten hinzugefügt

» Fragen Sie ein individuelles Angebot

Technische Informationen

Kapazität x Max arbeitslänge80 ton x 2500 mm
Hinten anschlag:Manu(1)-Elektr-(2)CNC(3)CNC
SteuerungCadman B + Touch
Durchgang zwischen Ständer2050 mm
Max Stossel200 mm
Abstand zwichen Tisch -- Stössel400 mm
Ausladung400 mm
Tischbreite150 mm
SchlieBschnelligkeit130 mm/sec
Arbeitsschnelligkeit11 mm/sec
Zurücklaufschnelligkeit113 mm/sec
Elektromotor (kraft)20 kW
Länge L -- R4355 mm
Tieffe F -- H2525 mm
Höhe3000 mm
Gewicht6,5 ton

Zusätzliche Informationen

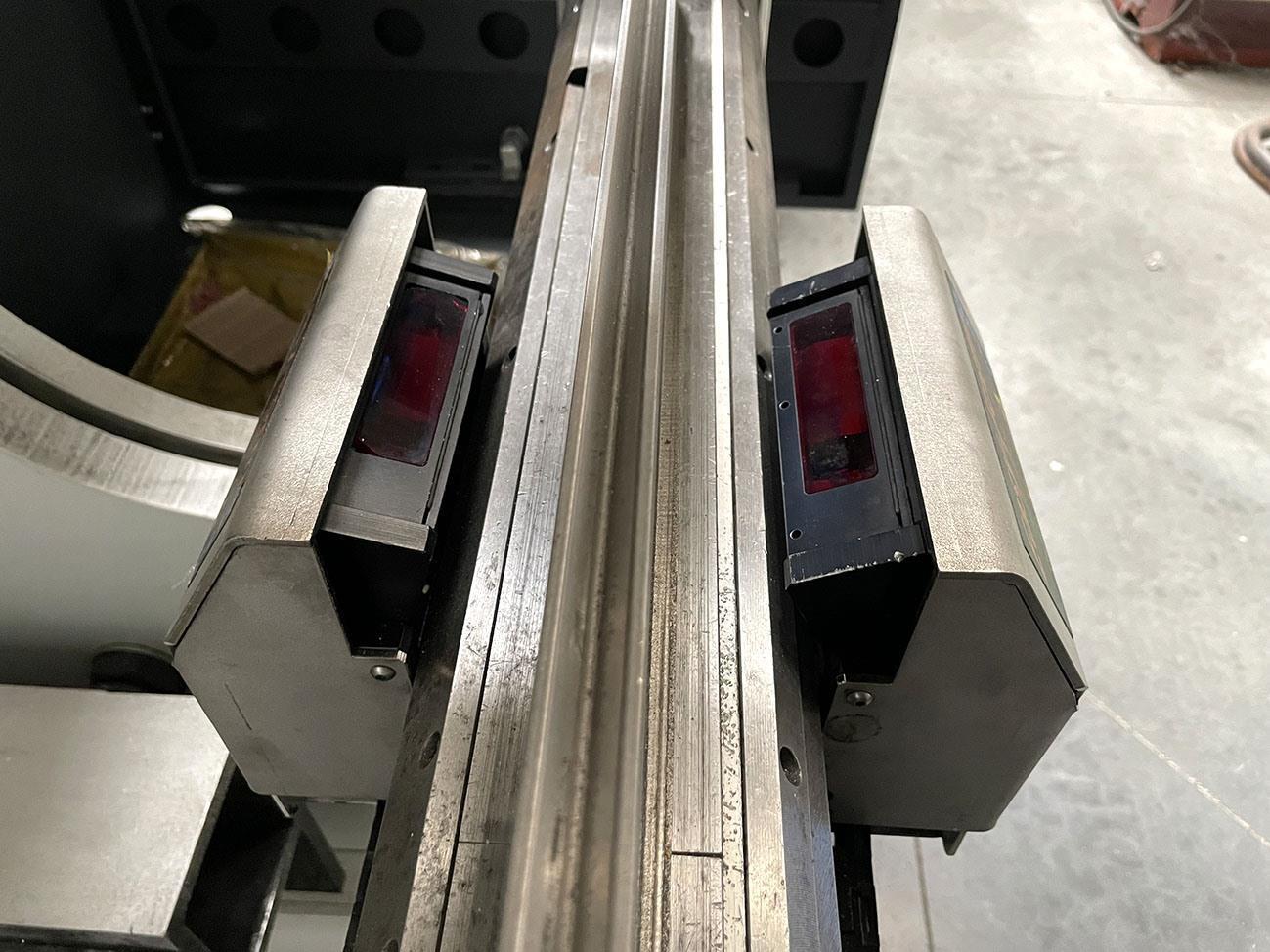

8 axes: Y1 - Y2 - X - X' - Z1 - Z2 - R - V

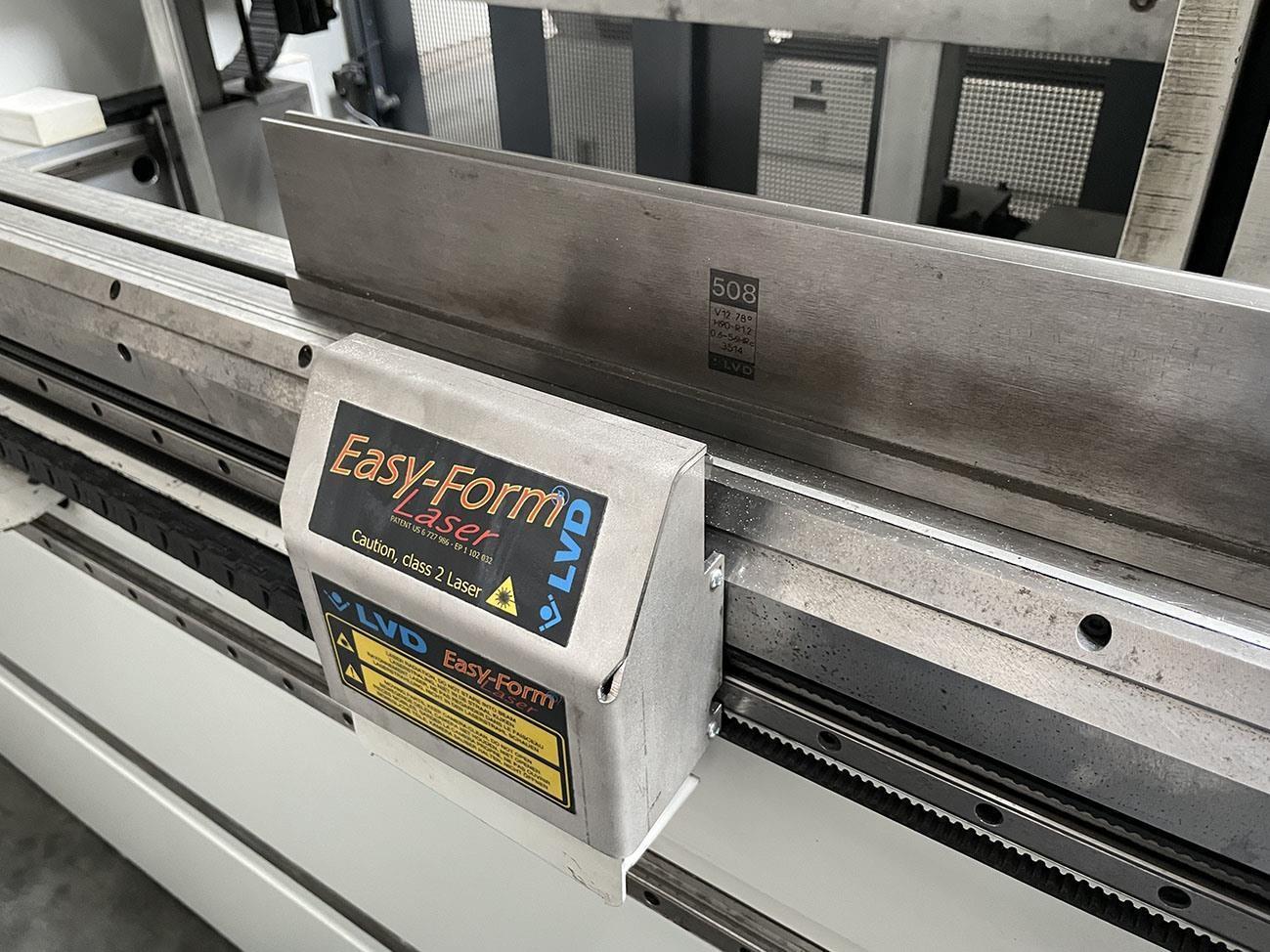

easy form
Wila modufix tooling (upper and lower hydraulic clamping)
lasersafe security

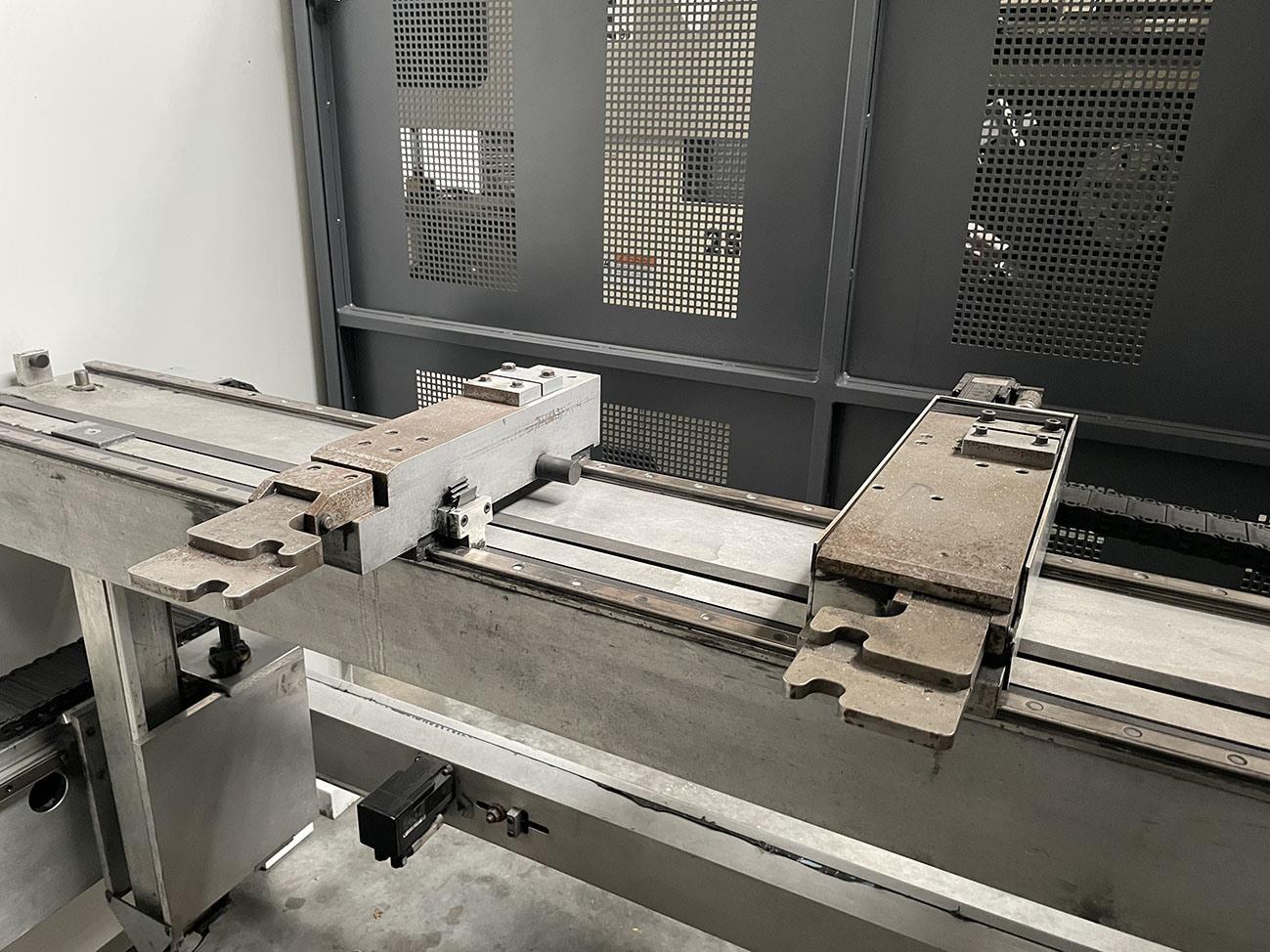

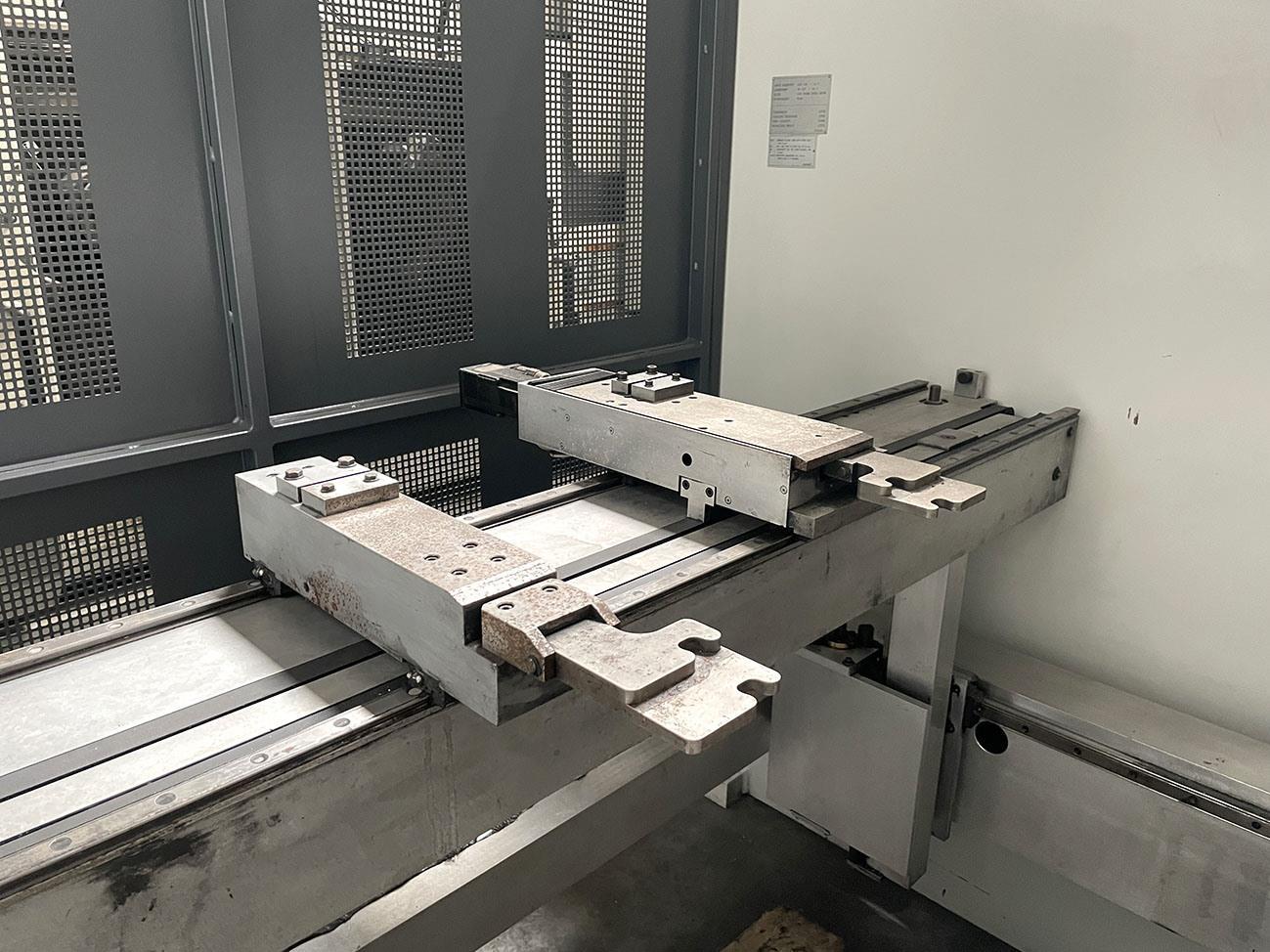

2 movable platesupports
Typ/Modell: Turbo 80 ton x 2500 mm CNC
Stocknummer: O.01 13933
Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
Unterkategorie: [O.01] Hydraulische Abkantpressen
Markenname: LVD PPEB
