Fresatrici universali e CNC Niigata 2UMD CNC X:870 - Y:370 - Z:400 mm

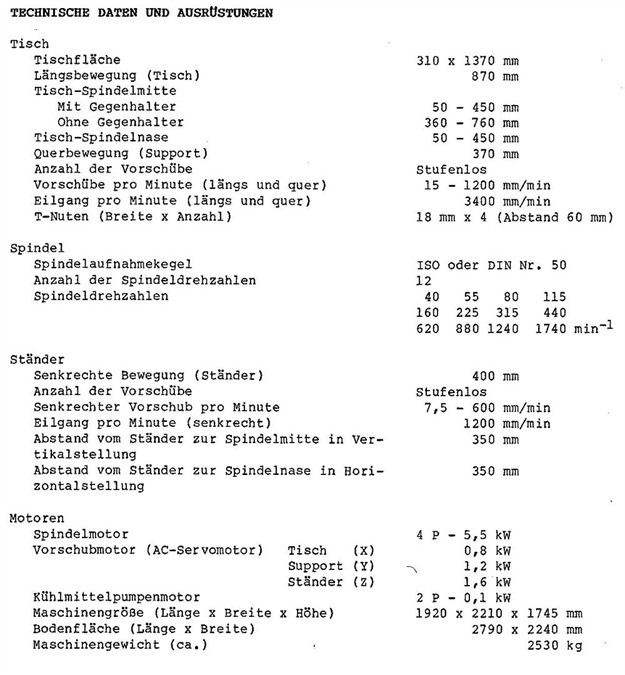

Informazione tecniche

Max longitudinal travel X-axe870 mm
Max cross-travel Y-axe370 mm
Max travel Z-axe400 mm
Max height workpiece450 mm
Power on spindle5.5 kW
Admission in boring head (ISO)ISO 50
Spindlespeeds40 -> 1740 rpm
Table size1370 x 310 mm
ControlHeidenhain TNC
Length1920 mm
Depth 2210 mm
Height1745 mm
Weight2530 kg
Coolant pumpYes

Informazioni supplementari

rate adjustment elements
solid table
coolant system
Tipo/Modello: 2UMD CNC X:870 - Y:370 - Z:400 mm
Numero di magazzino: B.01 6463
Categoria: [B] Fresatrici
Sottocategoria: [B.01] Fresatrici universali e CNC
Il marchio: Niigata

Numero di magazzino: B.01 6463

Venduto
Venduto
Venduto
Venduto
Venduto
Venduto
Venduto
Venduto

Niigata 2UMD CNC X:870 - Y:370 - Z:400 mm

Scaricare tutte le foto in ZIP
