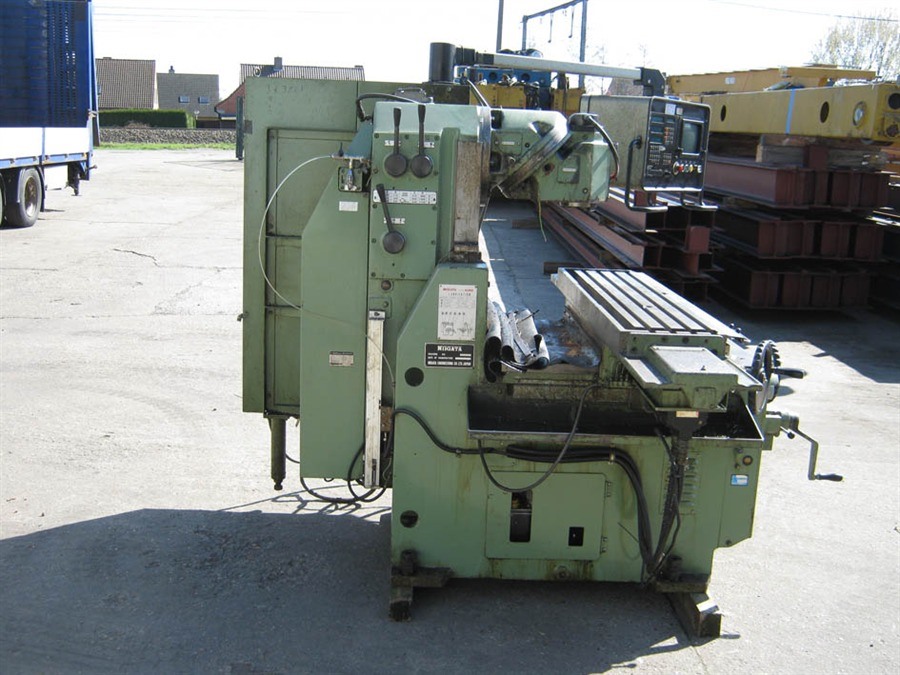

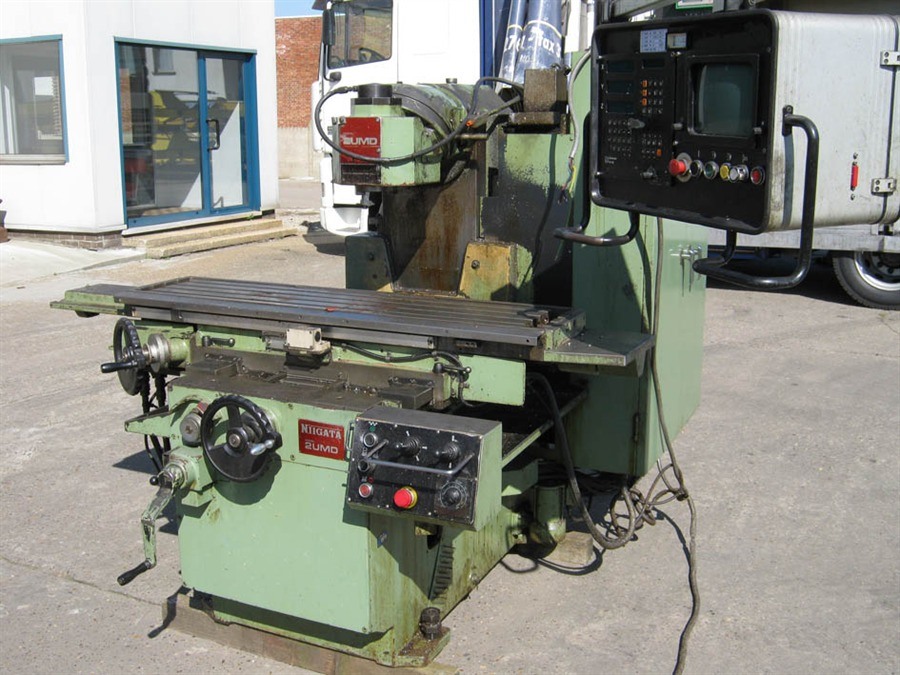

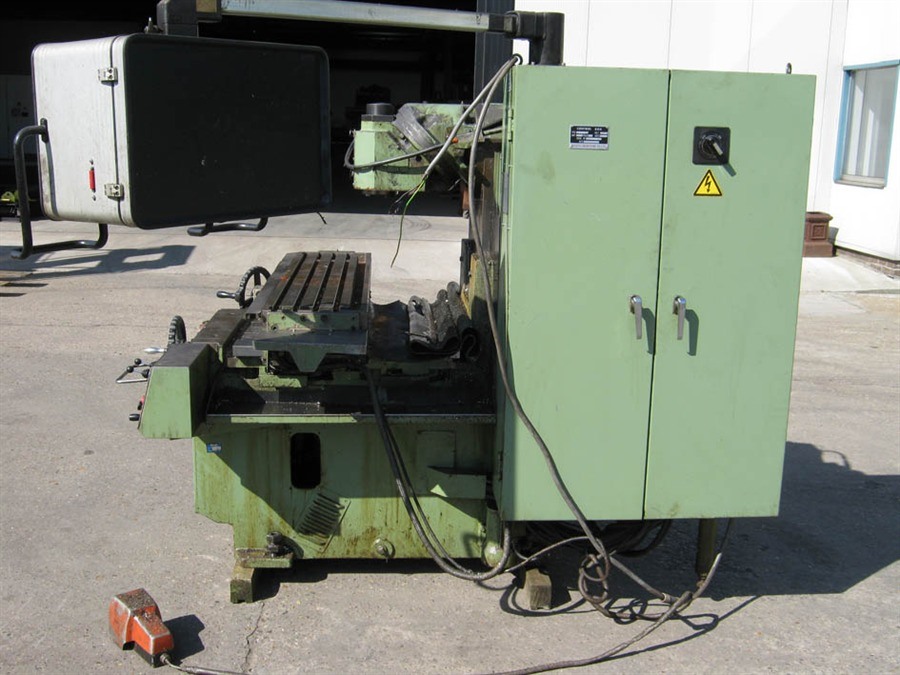

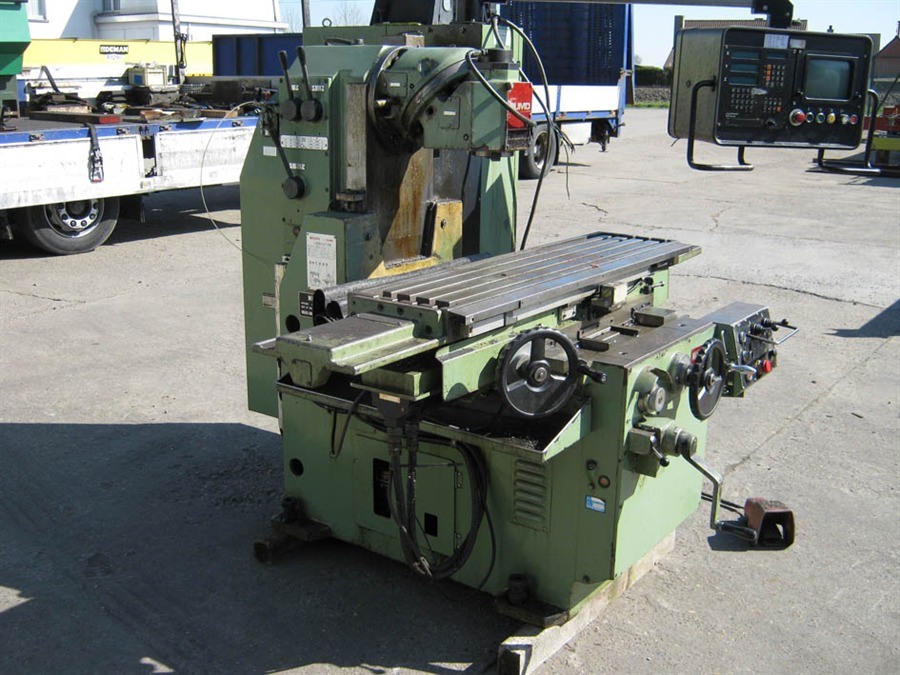

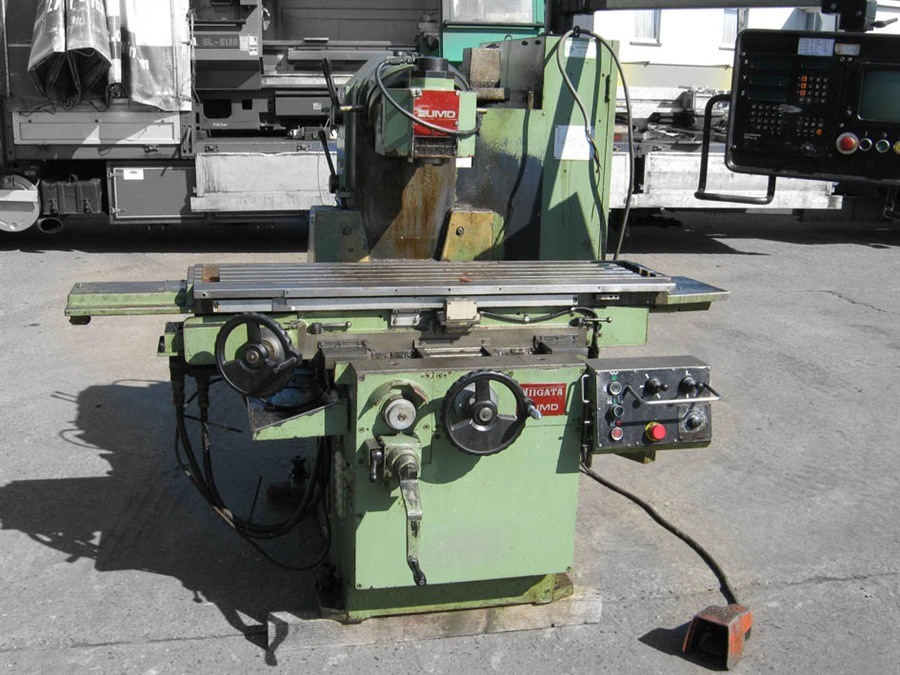

Universal Milling machines & CNC Niigata 2UMD CNC X:870 - Y:370 - Z:400 mm

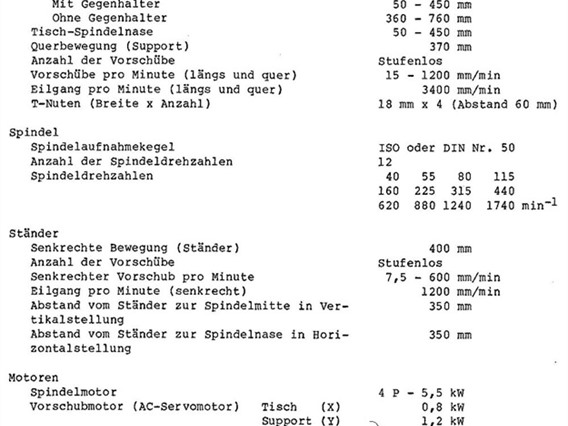

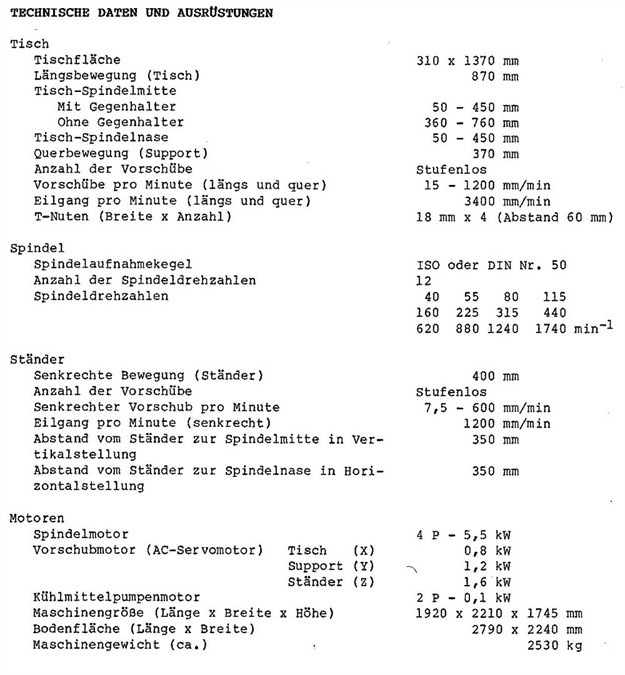

Technical information

Max longitudinal travel X-axe870 mm
Max cross-travel Y-axe370 mm
Max travel Z-axe400 mm
Max height workpiece450 mm
Power on spindle5.5 kW
Admission in boring head (ISO)ISO 50
Spindlespeeds40 -> 1740 rpm
Table size1370 x 310 mm

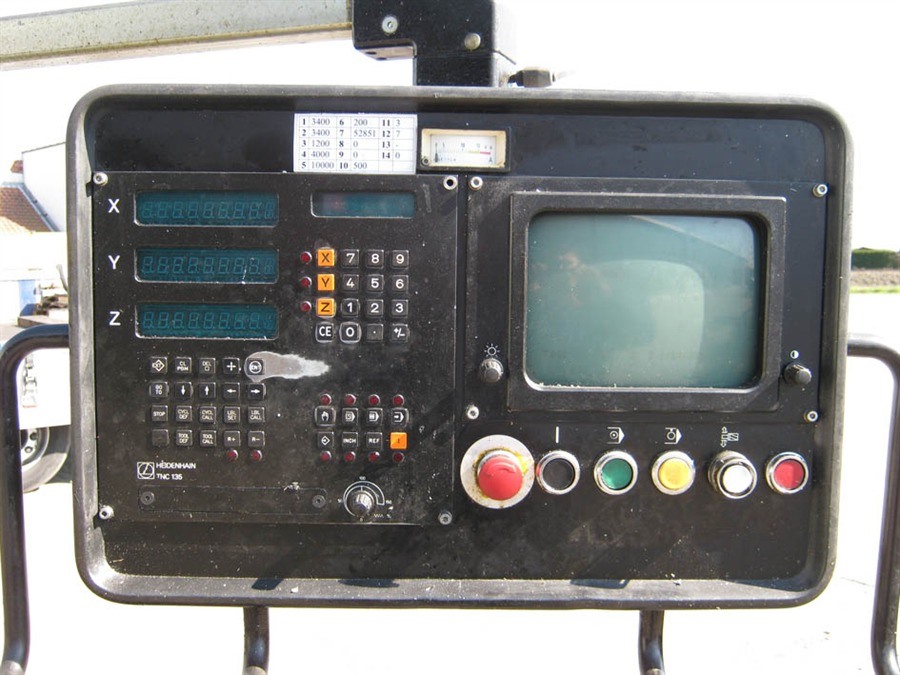

ControlHeidenhain TNC
Length1920 mm
Depth 2210 mm
Height1745 mm
Weight2530 kg
Coolant pumpYes

Additional info

rate adjustment elements
solid table
coolant system
Type/Model: 2UMD CNC X:870 - Y:370 - Z:400 mm
Stocknumber: B.01 6463
Main category: [B] Milling machines
Sub category: [B.01] Universal Milling machines & CNC
Brand: Niigata

Stocknumber: B.01 6463

Sold
Sold
Sold
Sold
Sold
Sold
Sold
Sold

Niigata 2UMD CNC X:870 - Y:370 - Z:400 mm

Download all pictures in ZIP
