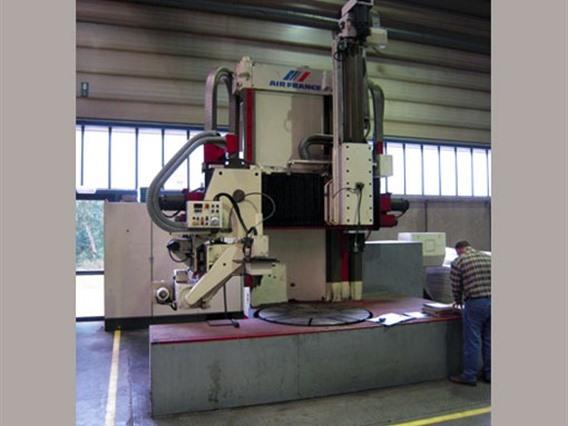

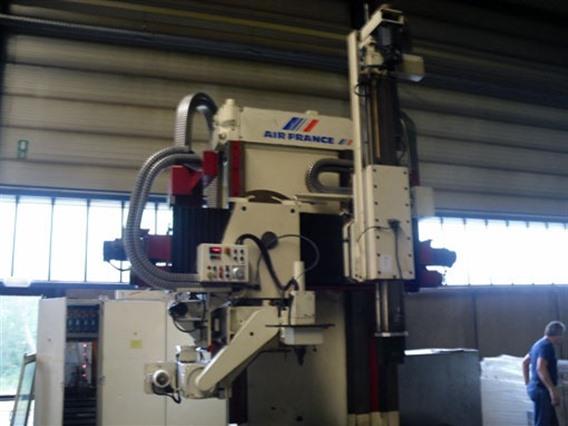

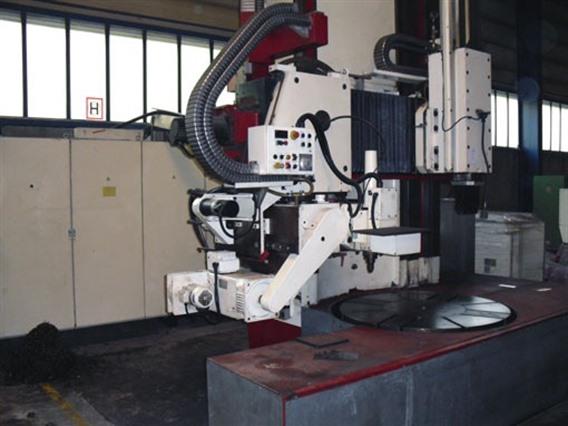

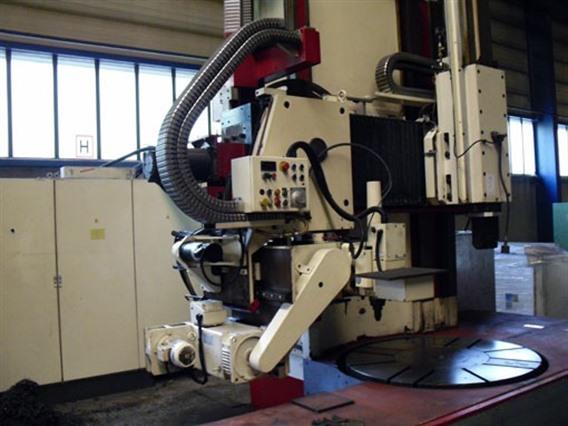

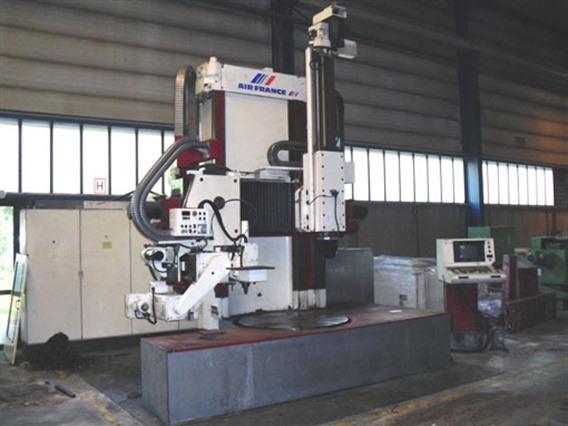

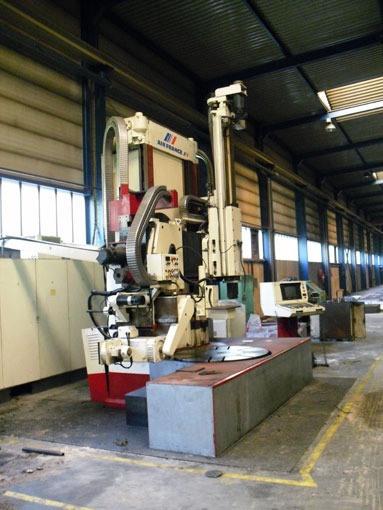

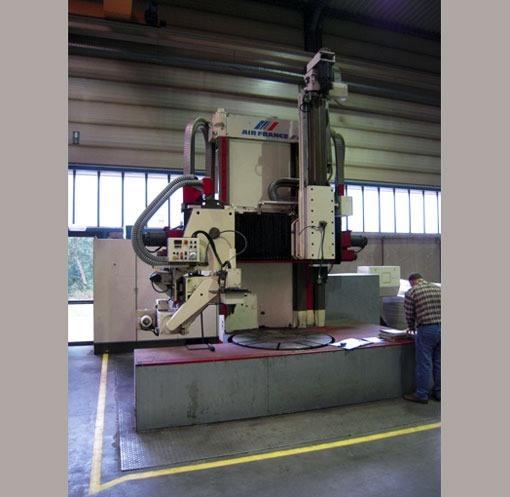

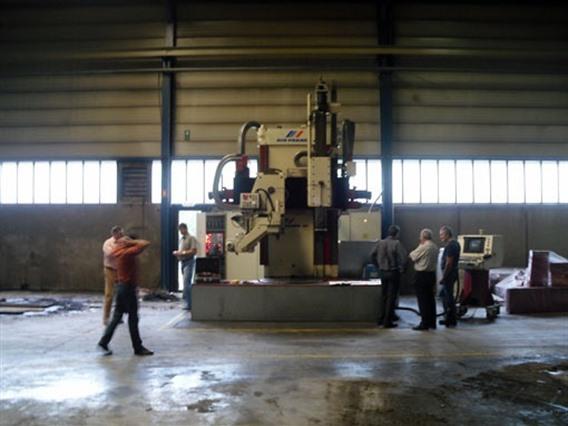

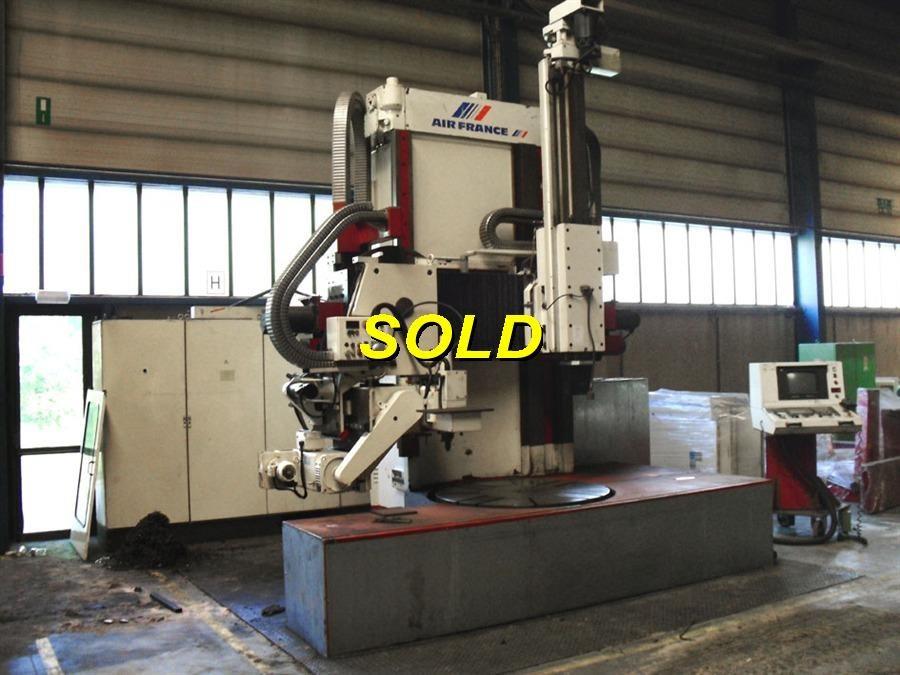

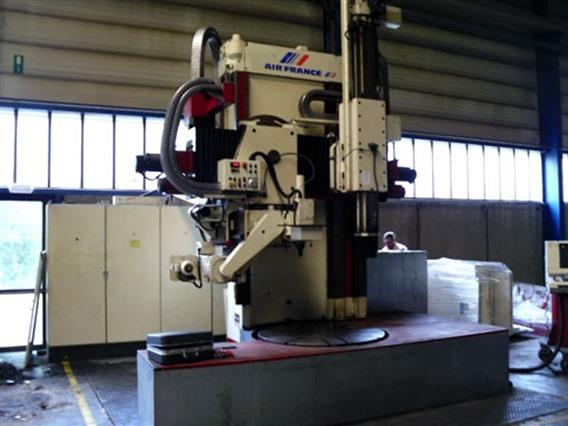

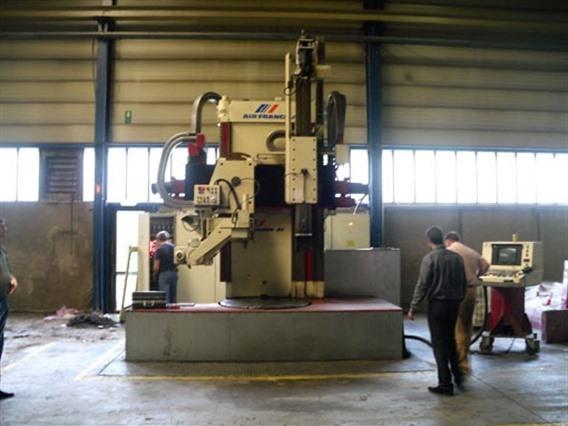

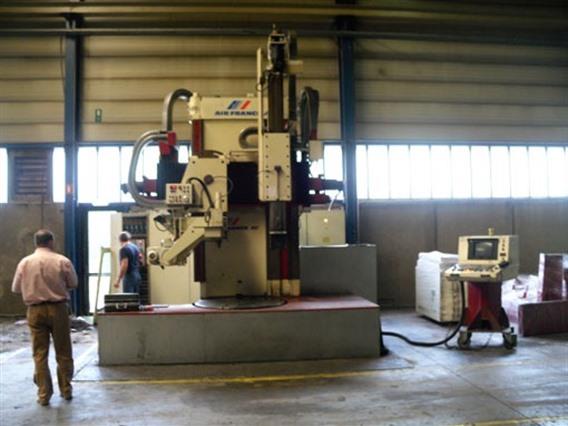

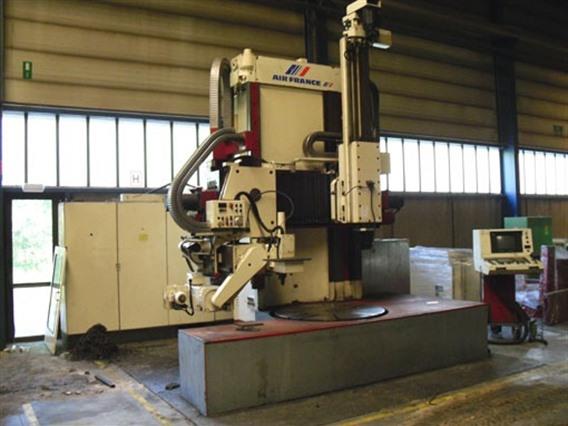

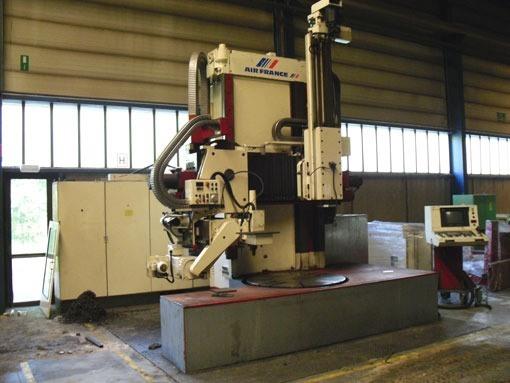

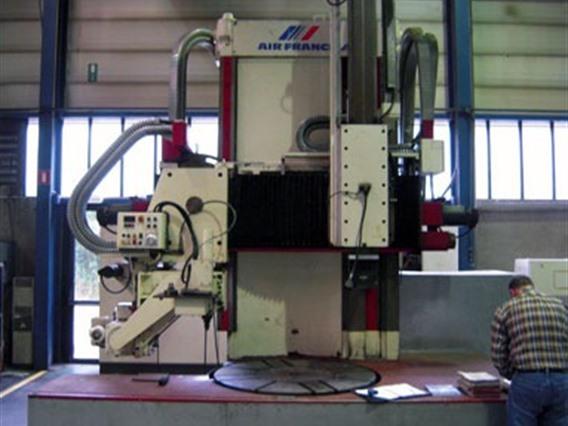

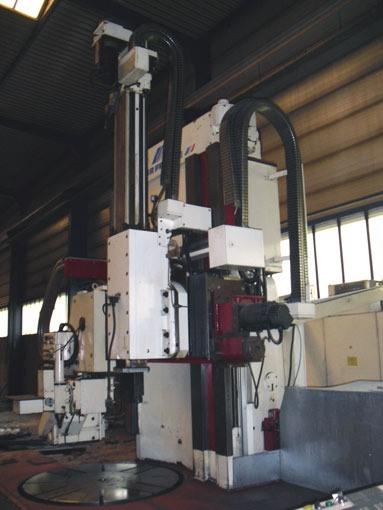

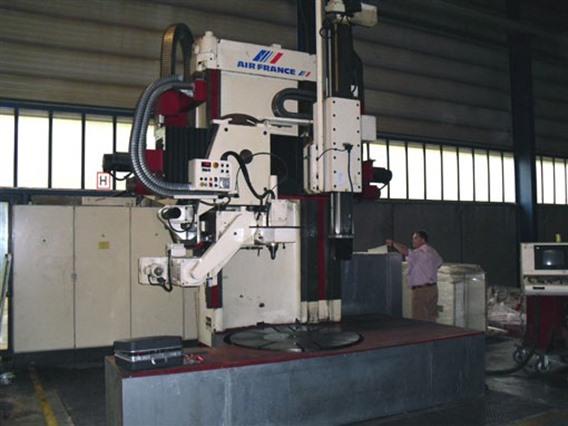

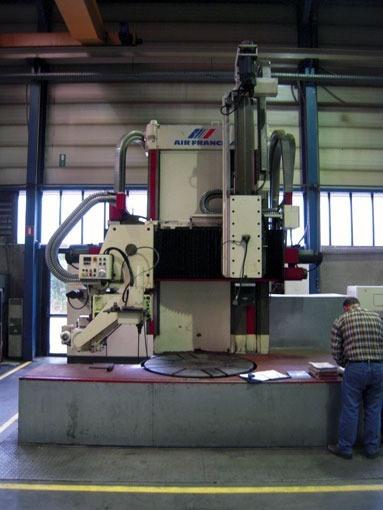

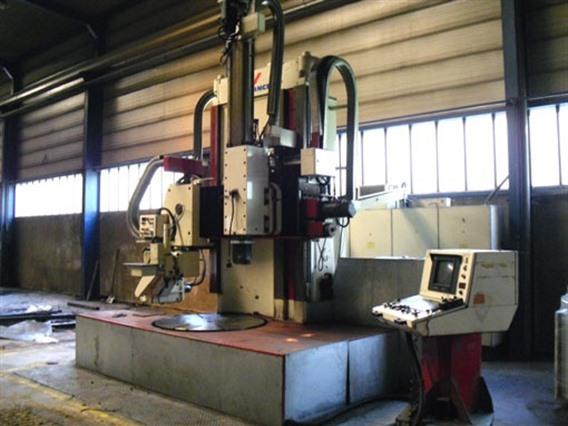

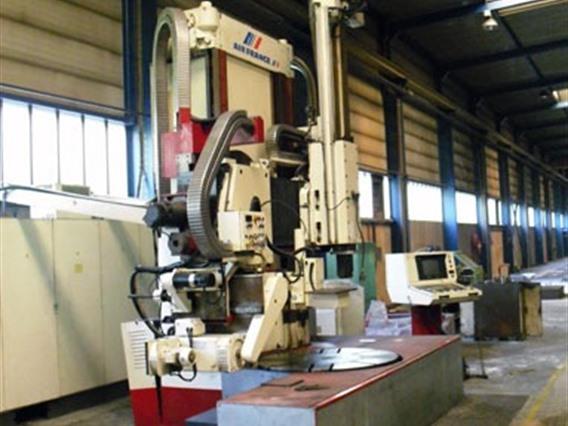

Morando HTF 650 CNC Ø 1560 x H 2000 mm
Información téchnico
- Chuck dia.Ø 1300 mm
- Max turningdia -- passage1560 mm
- Power on the spindle33 kW
- Max hight of workpiece Z-axis2000 mm

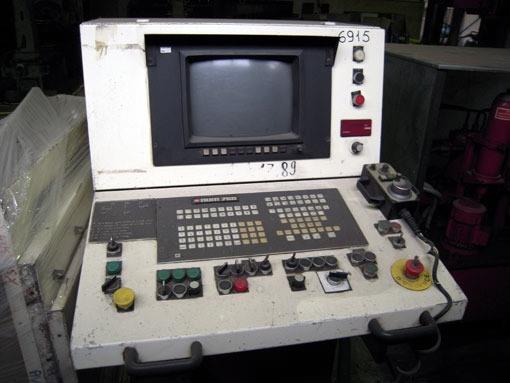

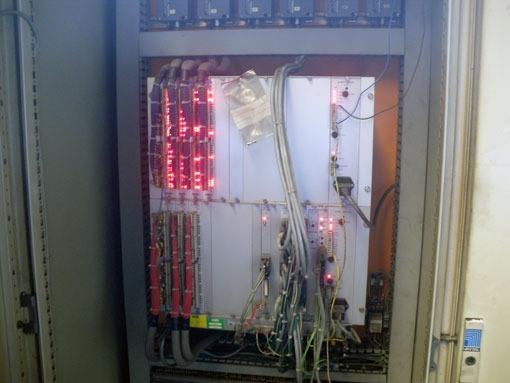

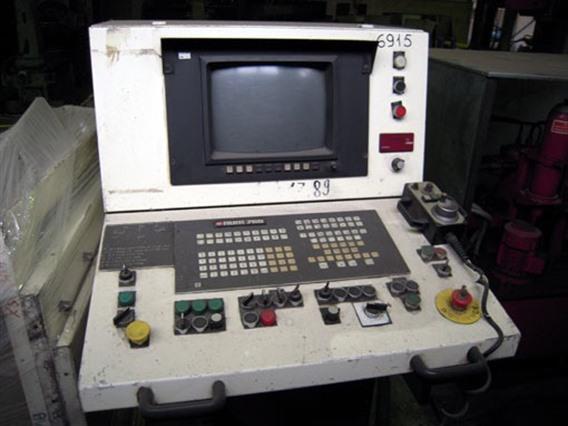

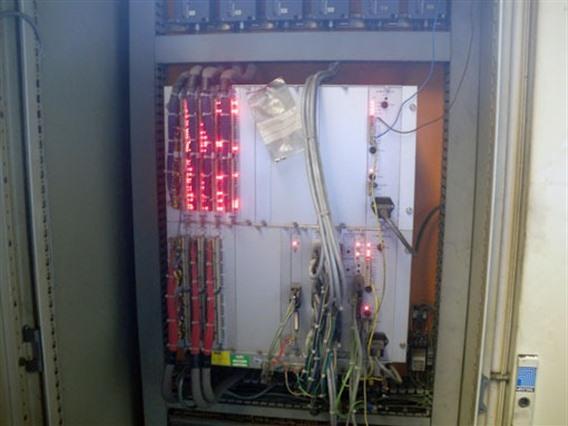

- Command6 axes CNC NUM 760 FMX
- Heightmax 6530 mm
Información adicional

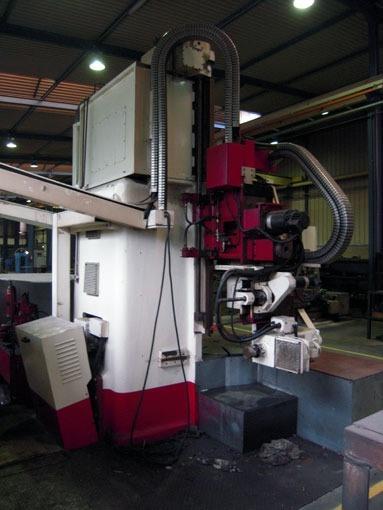

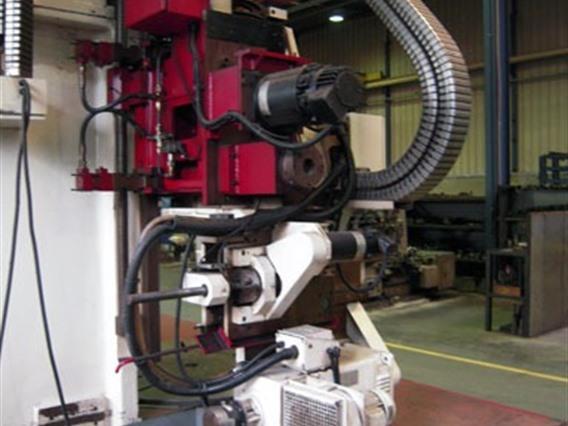

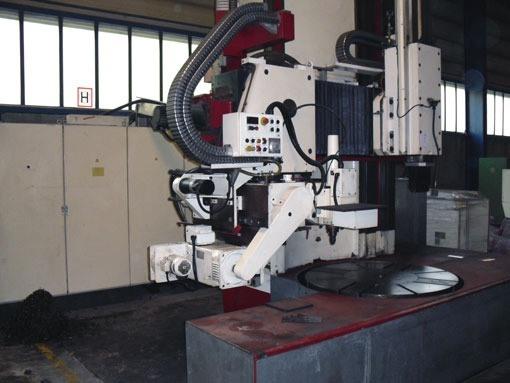

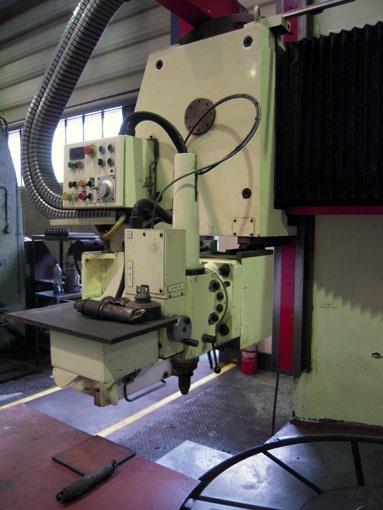

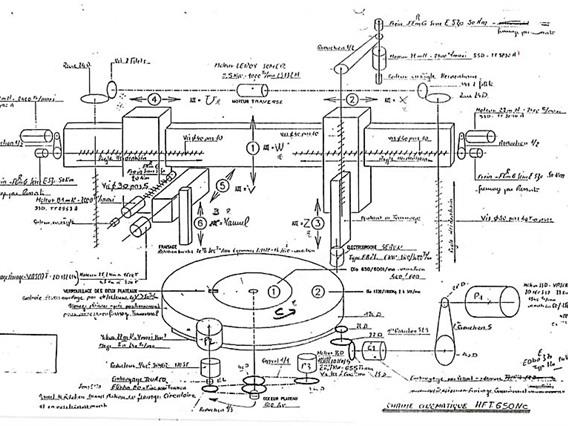

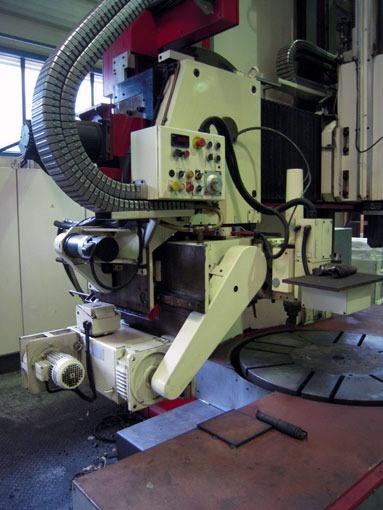

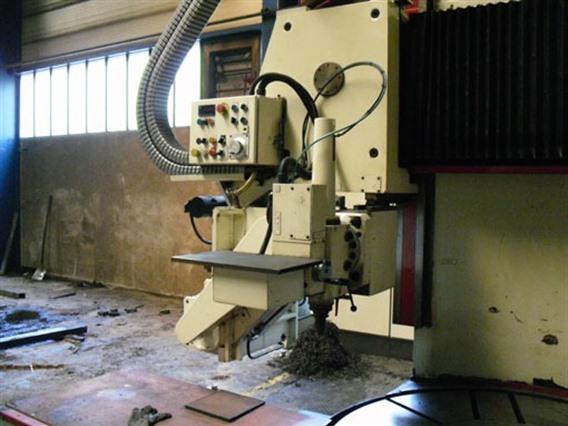

Milling support can work Vertical & Horizontal & under corner. Also possible for milling, equipped with U-axis, flat surfaces.

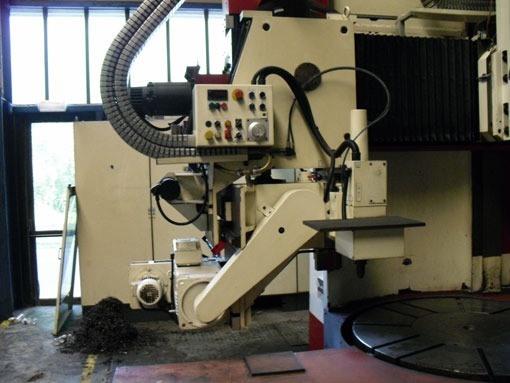

Z1 movement (turning support): 1200 mm

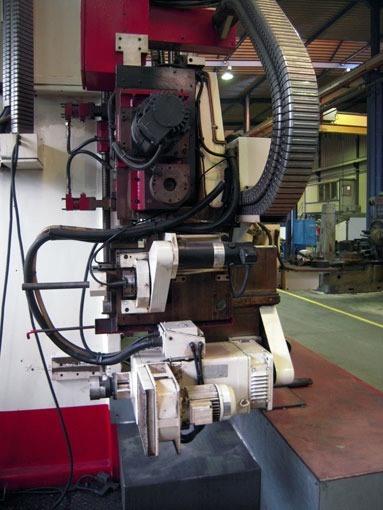

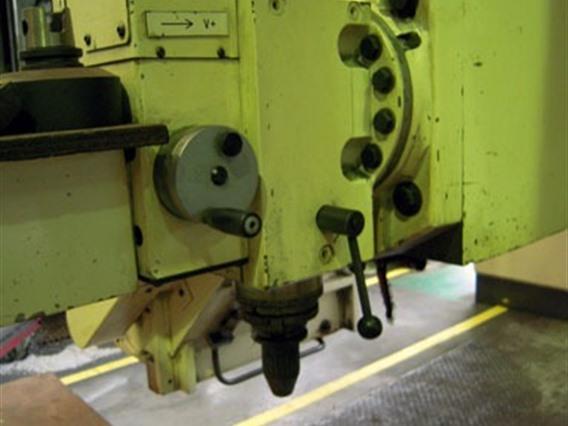

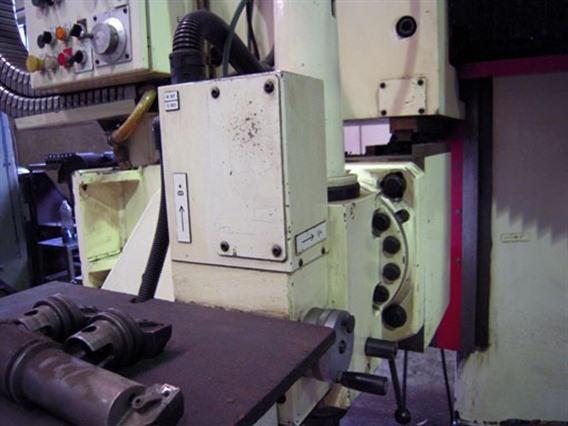

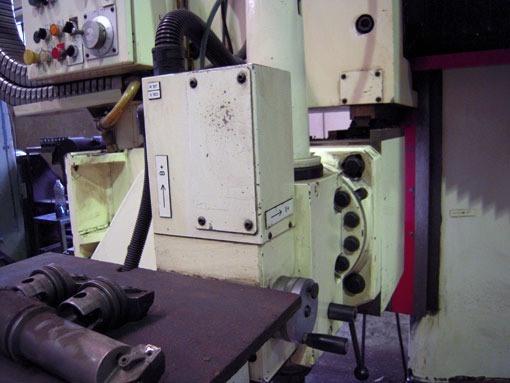

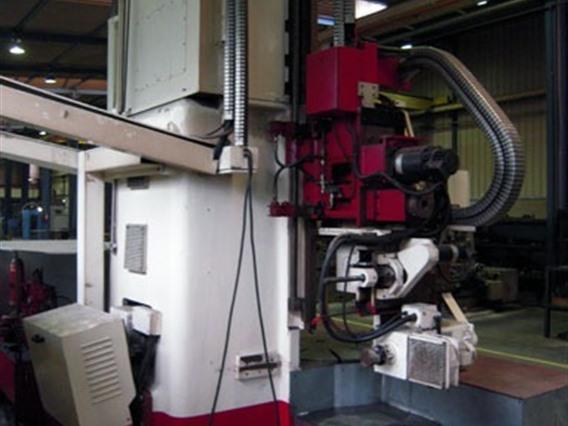

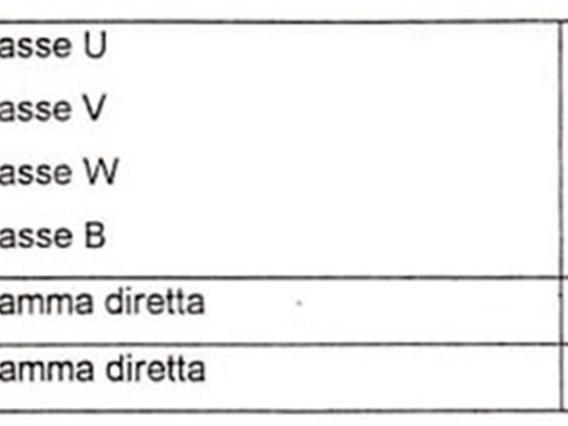

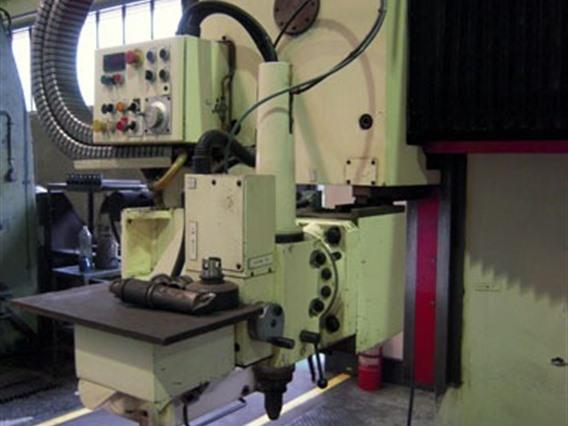

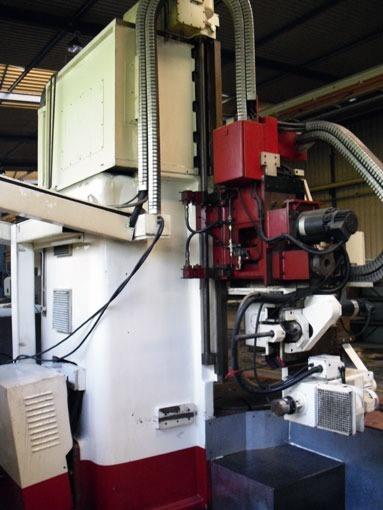

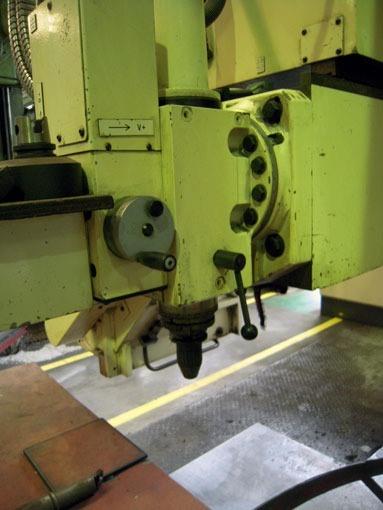

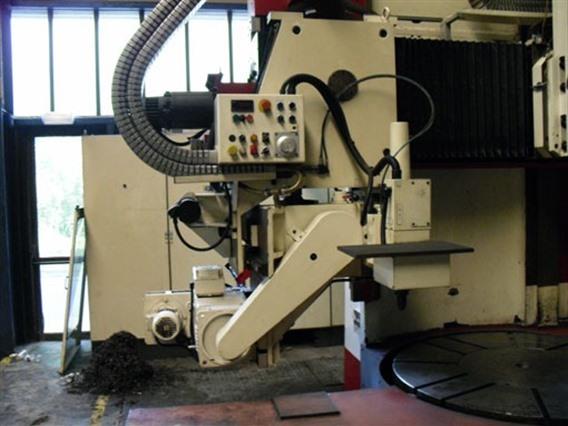

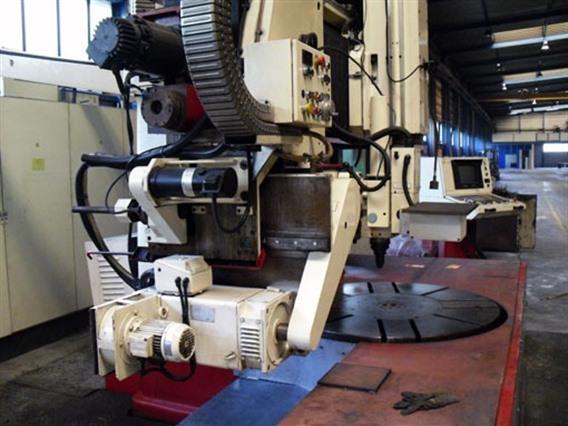

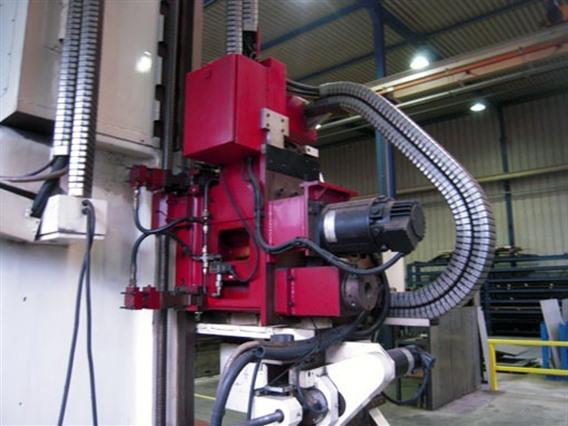

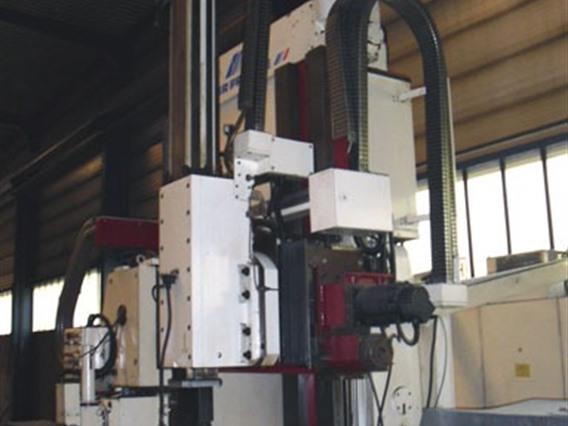

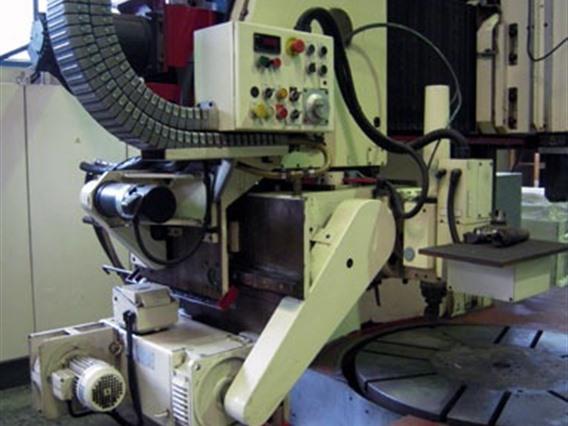

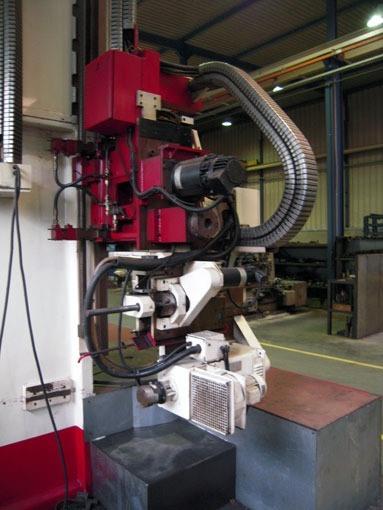

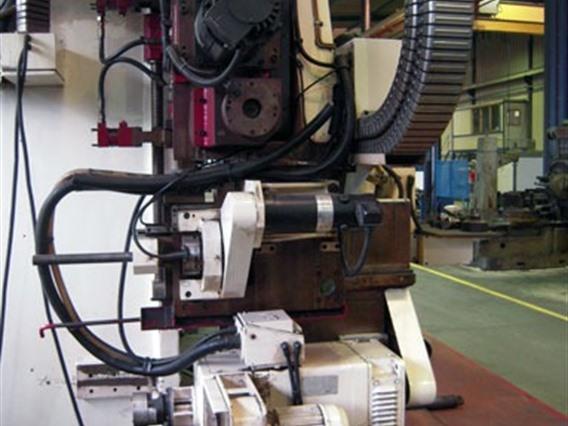

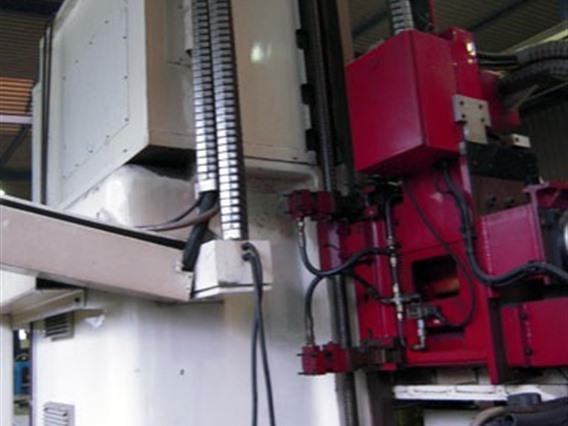

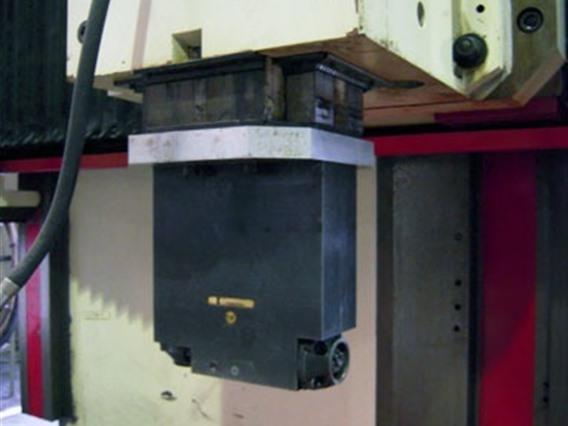

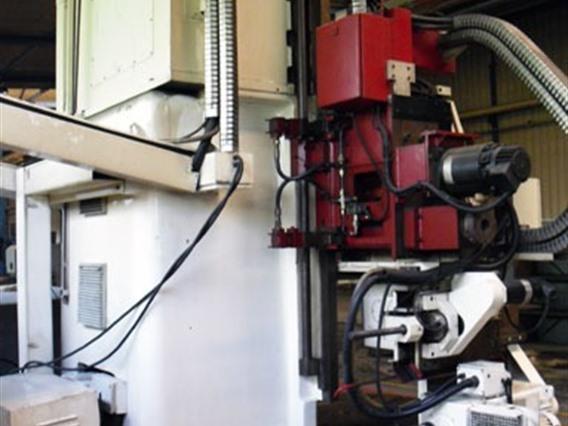

2nd support-milling: 3 axes U-V-B ISO 40 tools Bridge (portal) movement (W-axis): 1160 mm
max workpiece under bridge: 2000 mm
max workpiece under milling support: 1400 mm

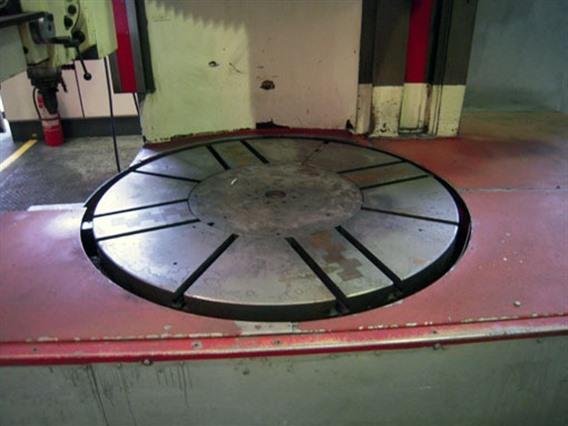

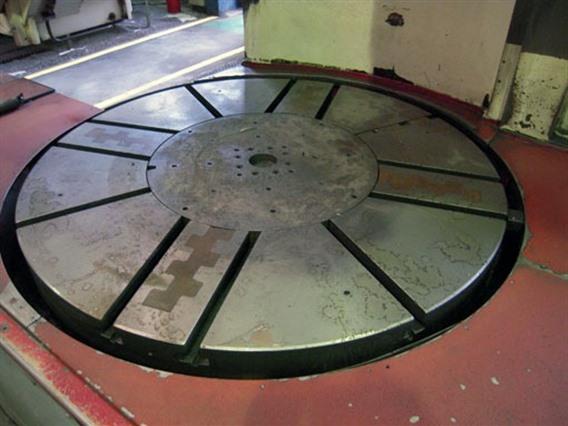

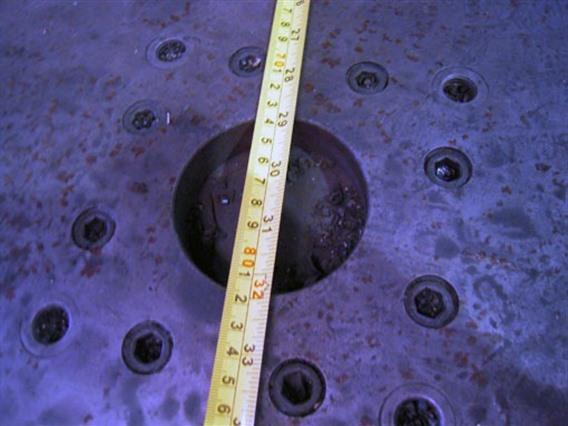

Clawplate Ø 1300 mm with inserted 2nd clawplate Ø 650mm both clawplates can be synchronised/coupled

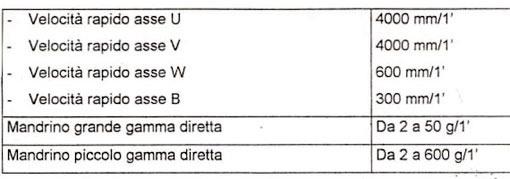

Speed external faceplate: 2 -> 50 rpm
Speed internal faceplate: 2 -> 600 rpm
Face plates are CNC control indexed

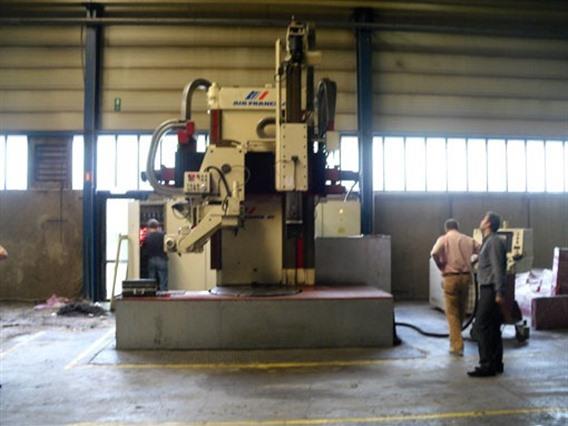

Machine is practically unused, built for aircraft industrie, highly qualified Lathe
- Tipo/Modelo: HTF 650 CNC Ø 1560 x H 2000 mm
- Numéro stock: A.12 4852
- Categoría principal: [A] Tornos
- Subcategoría: [A.12] Tornos verticales convencionales y CNC
- Marca: Morando
