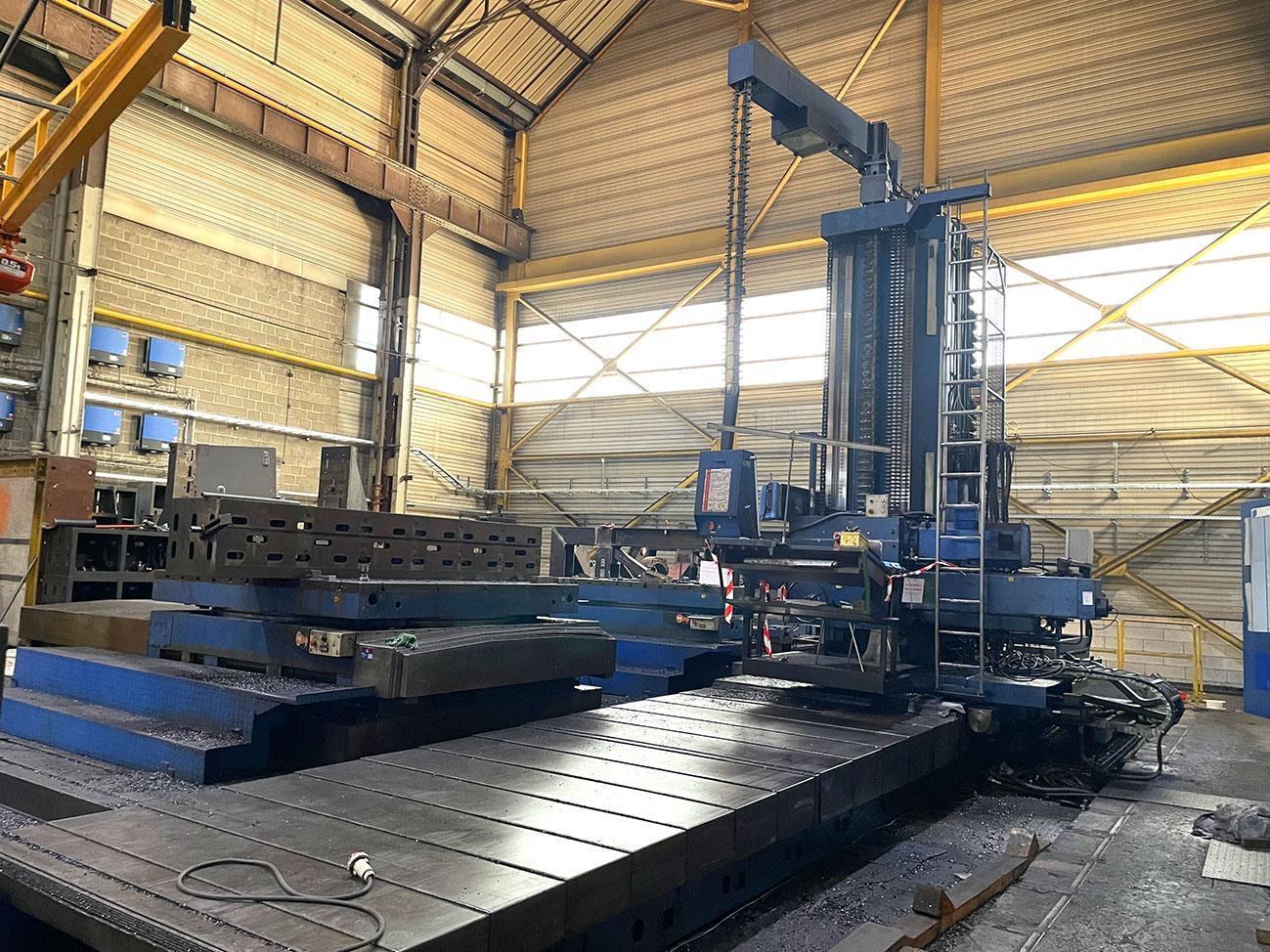

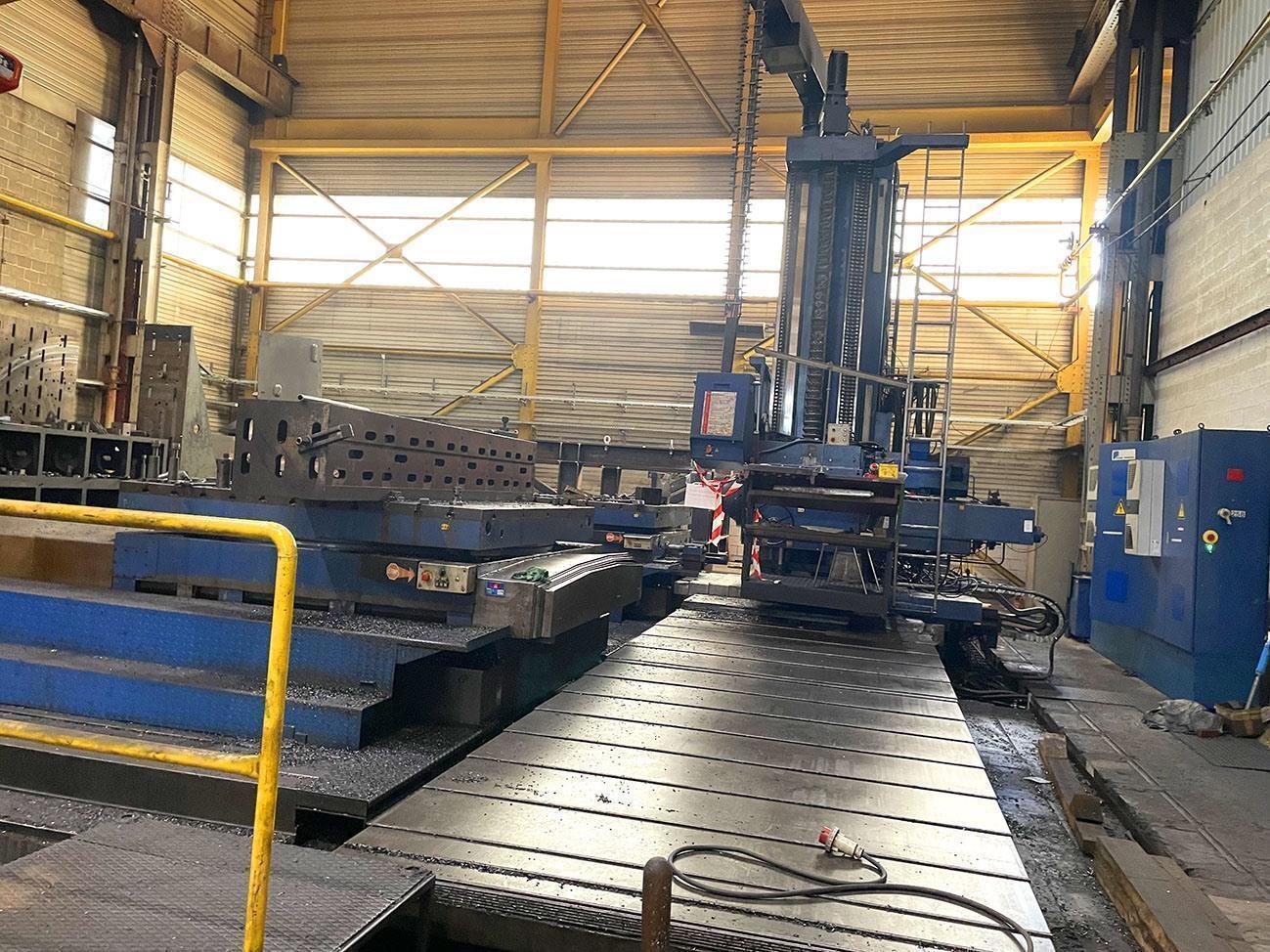

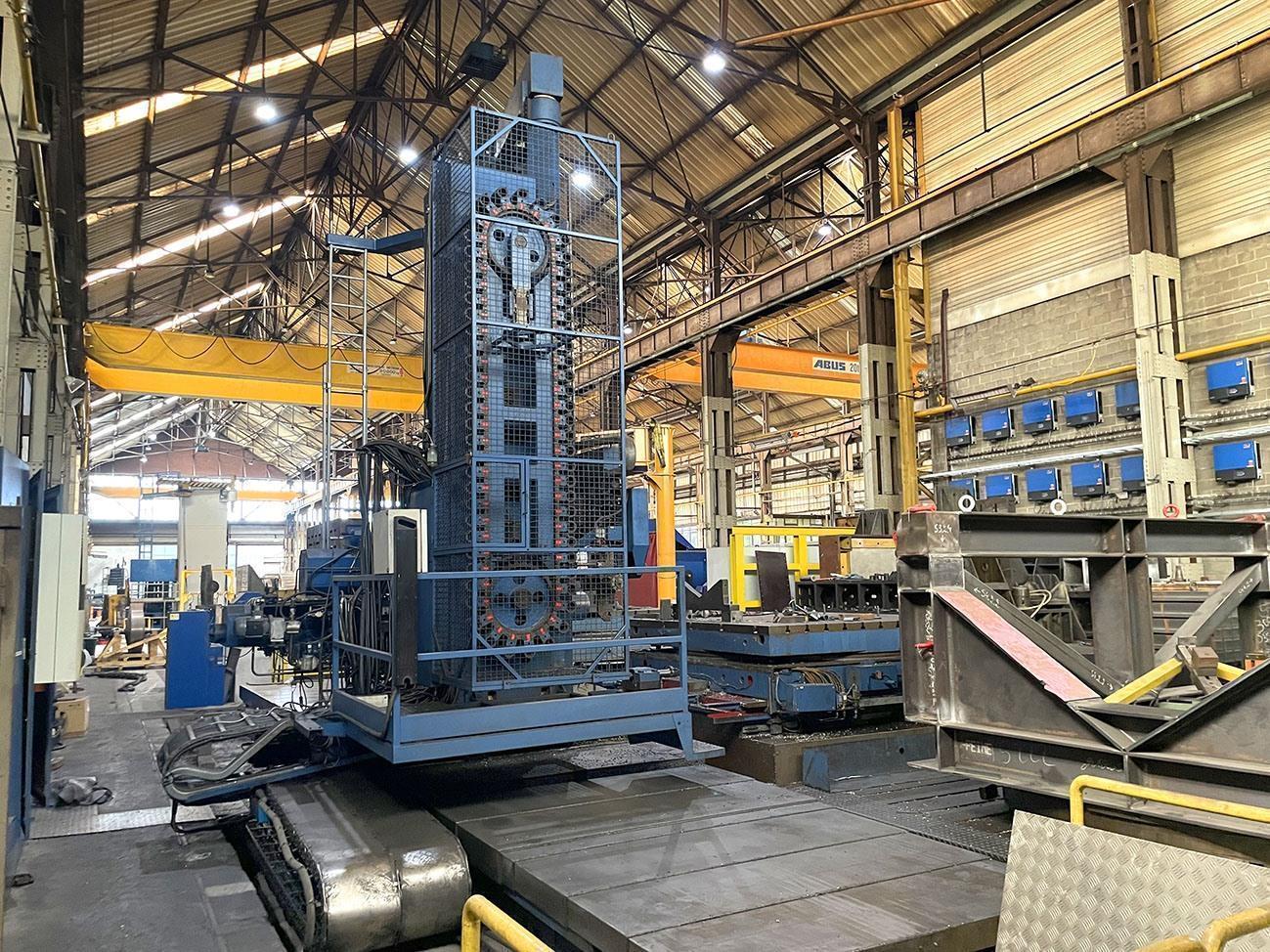

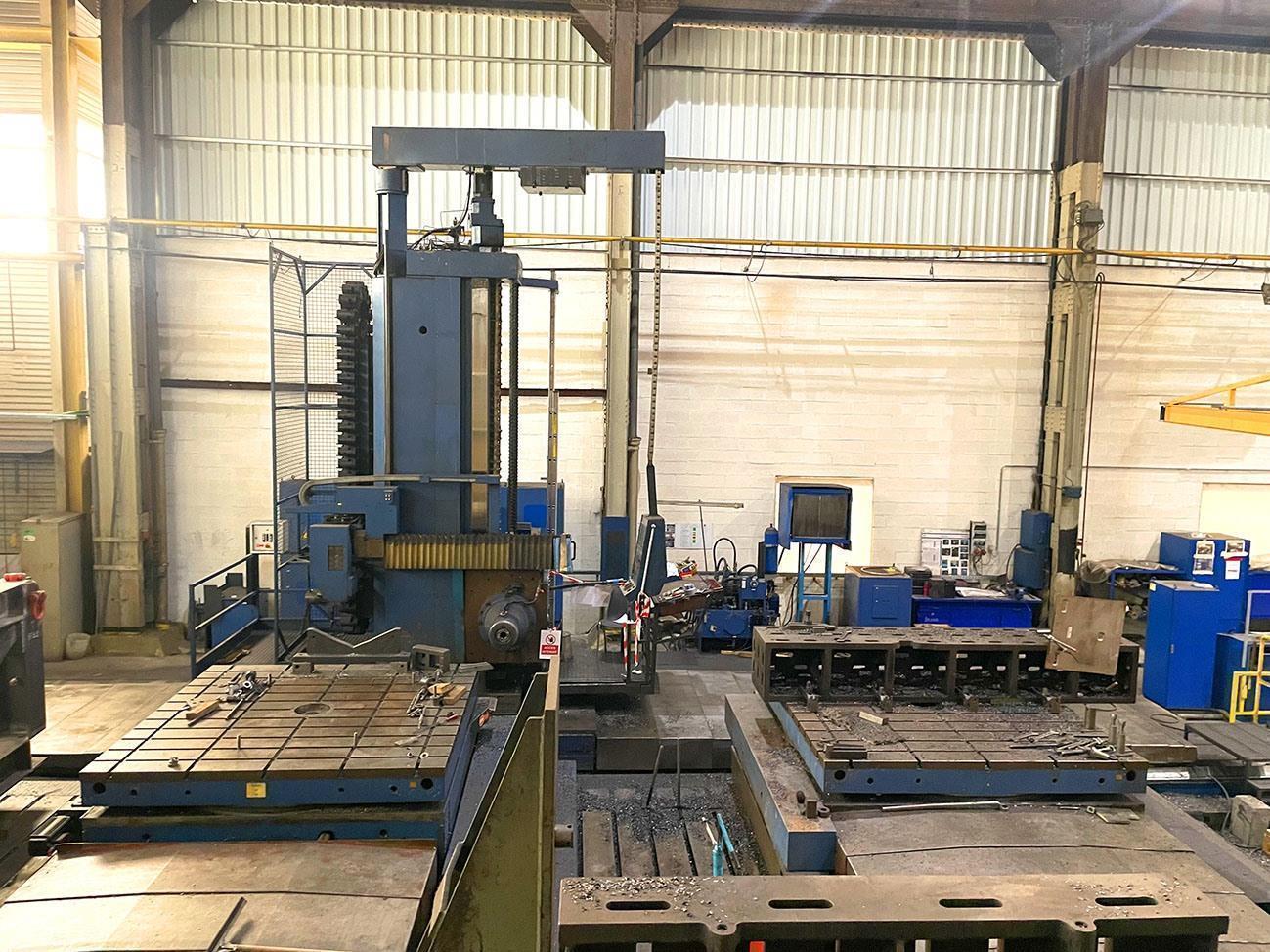

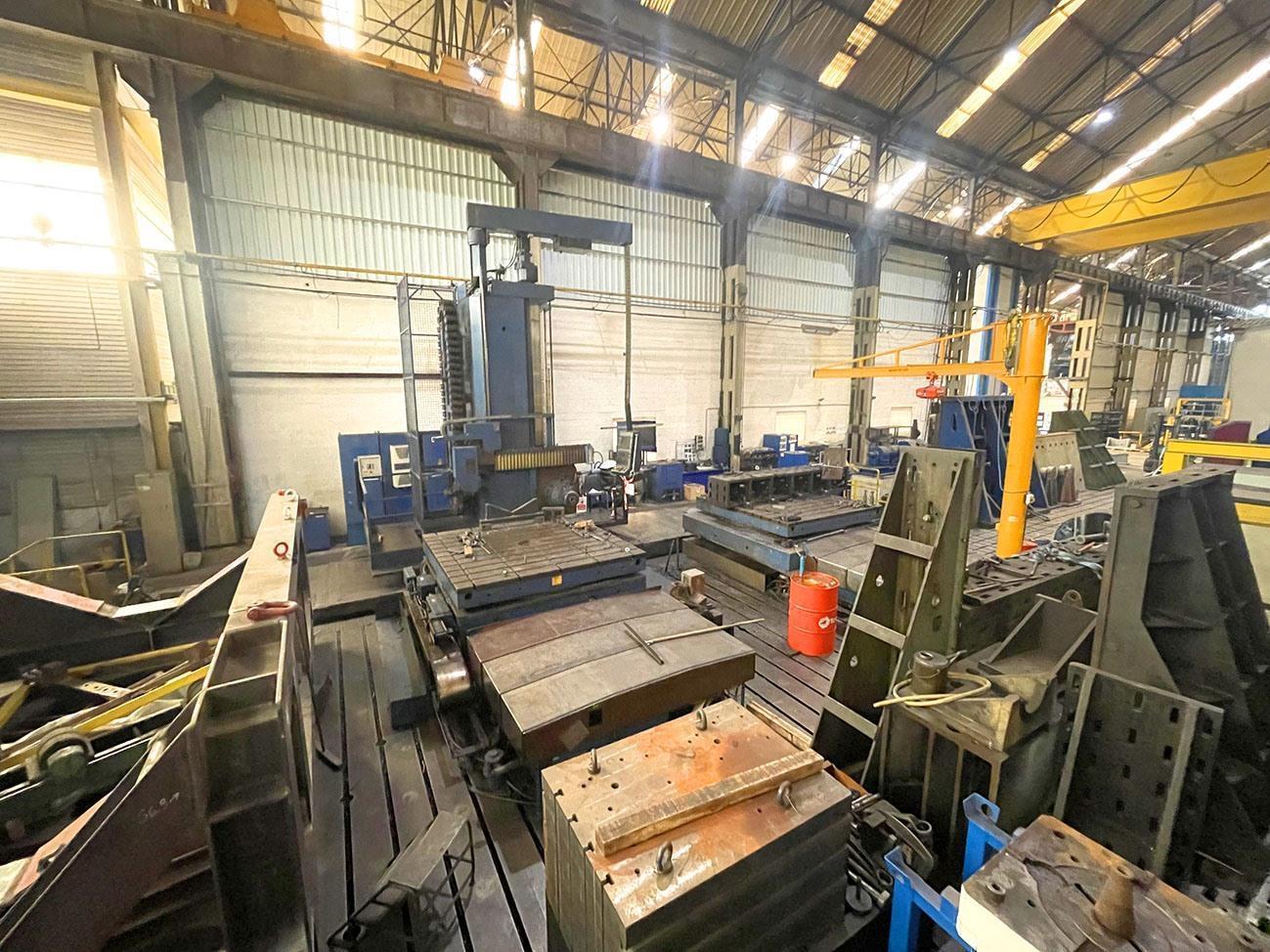

Pegard 160 - X: 9000 - Y: 650 - Z: 3000 - W: 1200 mm CNC

Technical information

  • Longitudinal travel X-axis9000 mm
  • Cross traverse Y-axis (table/column)650 mm (column)
  • Vertical traverse Z-axis3000 mm

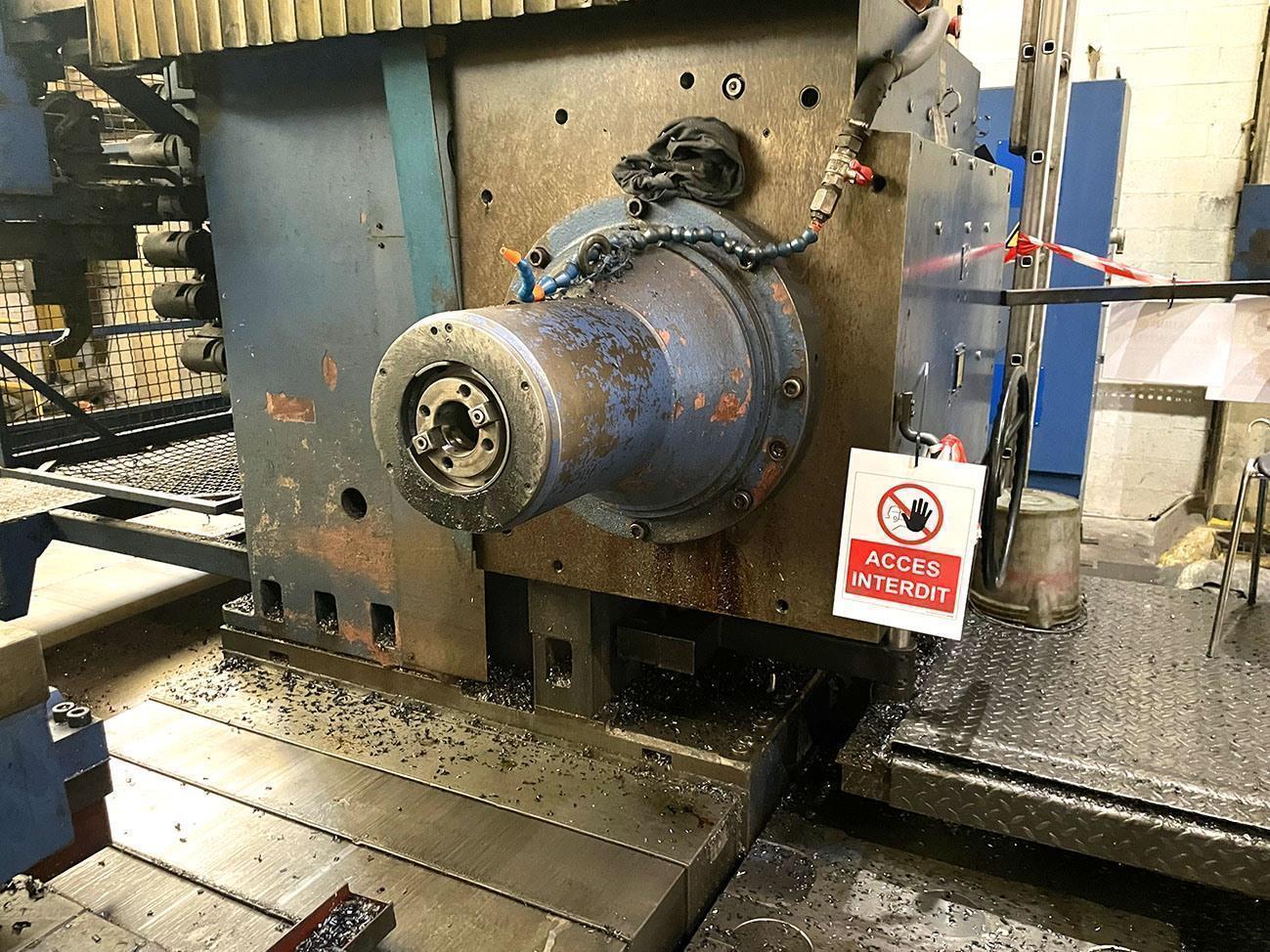

  • Spindle traverse W-axis1200 mm
  • Milling spindle taper (ISO)ISO 50
  • Dia spindle -- Spindle bore160 mm

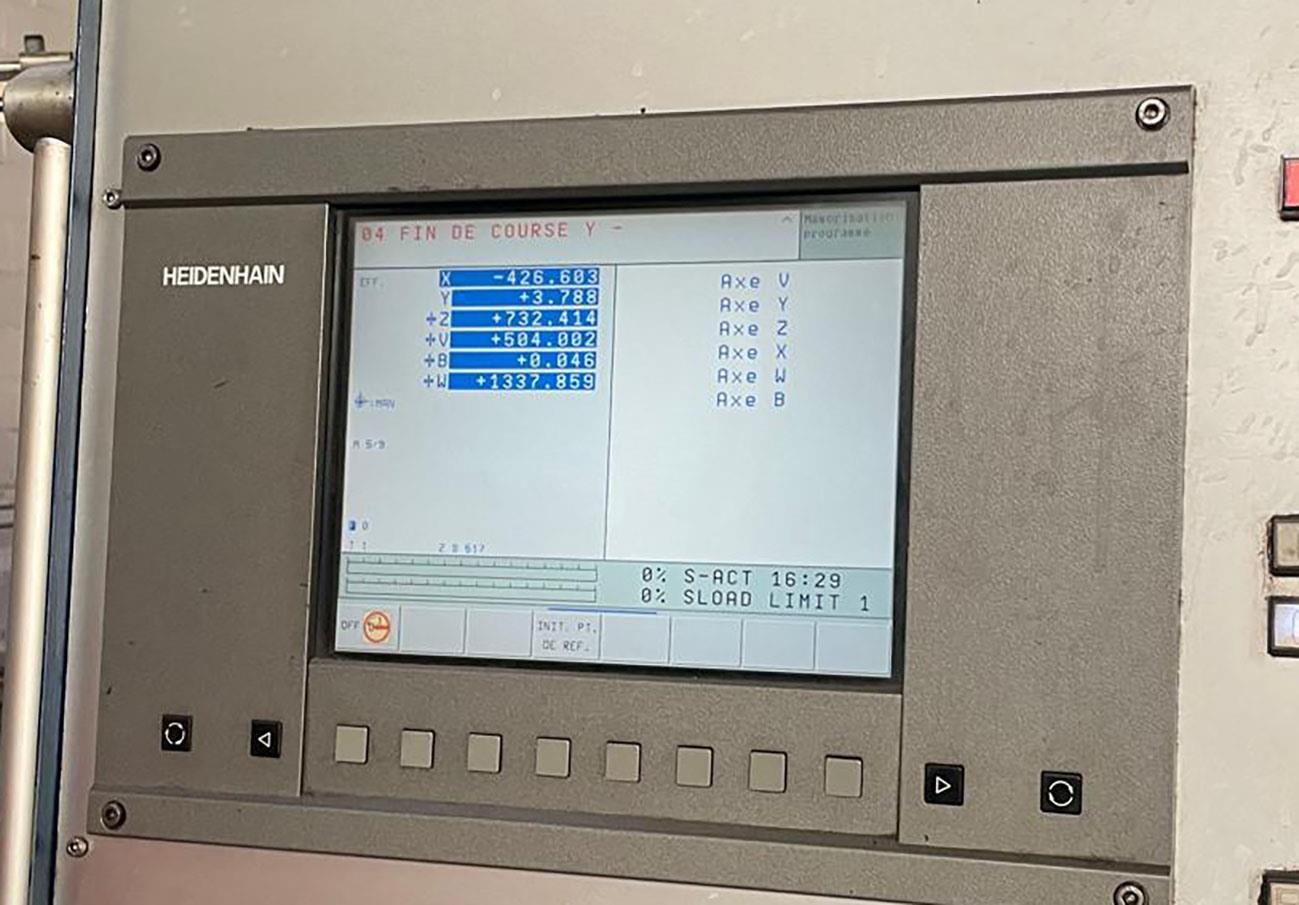

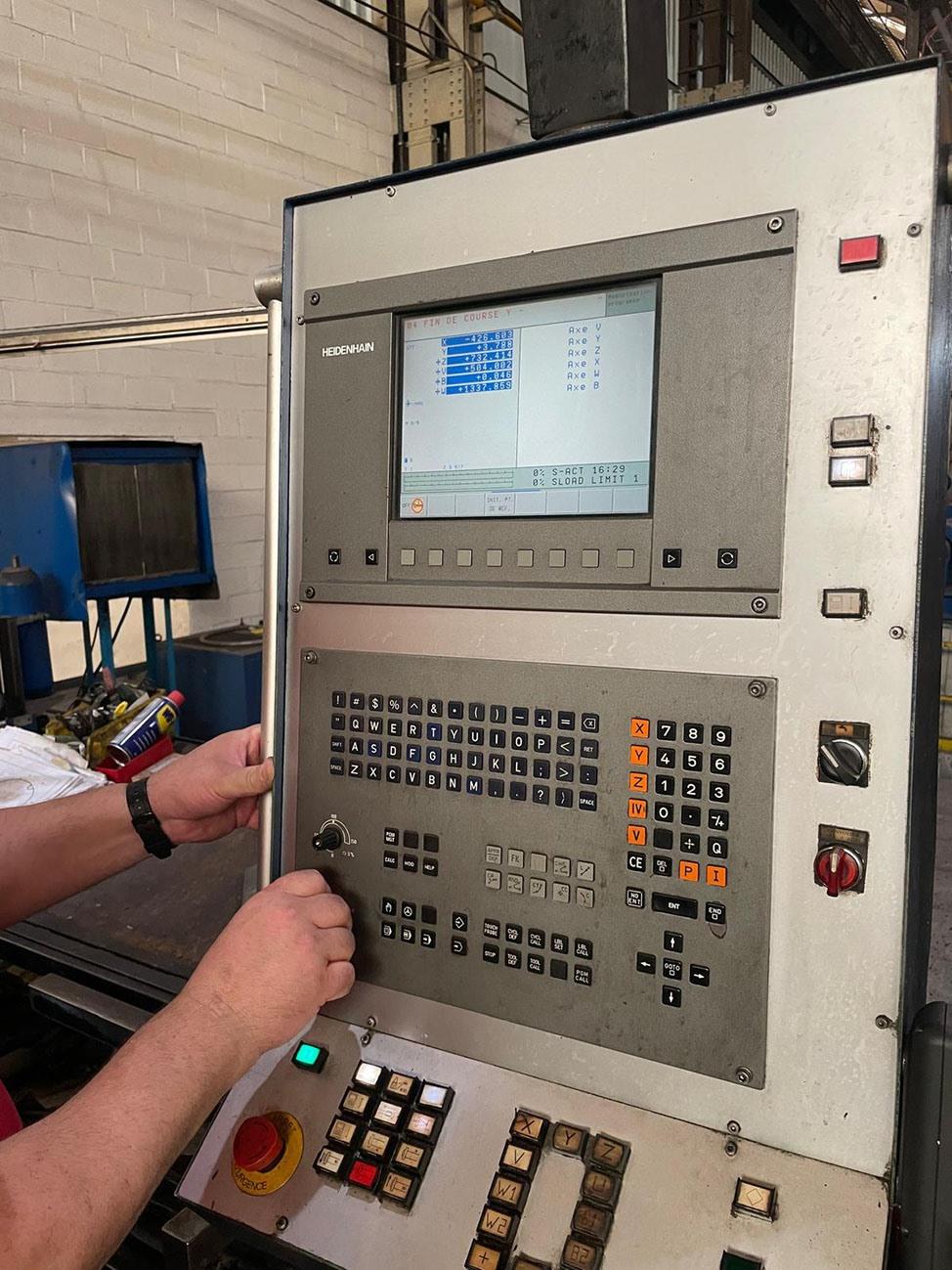

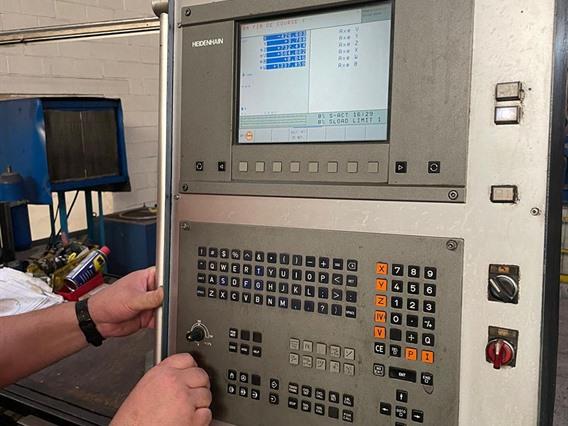

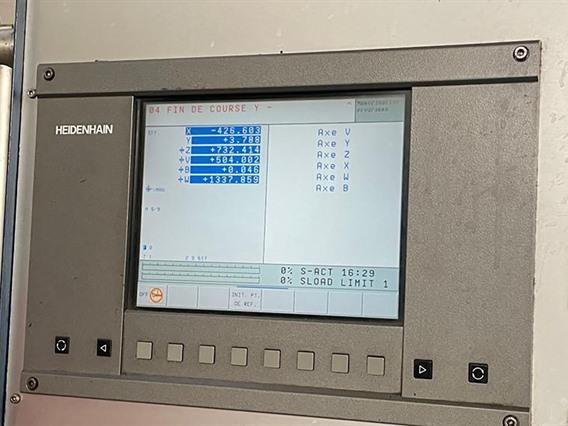

  • Digital read-out (1) CNC(2)Heidenhain TNC 530
  • Rotary table dimensions2 tables 2380 x 2380 mm
  • Max weight on table2 tables x 30 ton

Additional info

  • Type: 6055-AF16SMM
    Milling, boring and turning!
    Longitudinal X-travel of column: 9000 mm
    Cross Y-travel of column: 650 mm
    Vertical Z-travel of millinghead: 3000 mm
    Horizontal W-travel of millinghead: 1200 mm

    Machine can working with 6 axes simultaneous

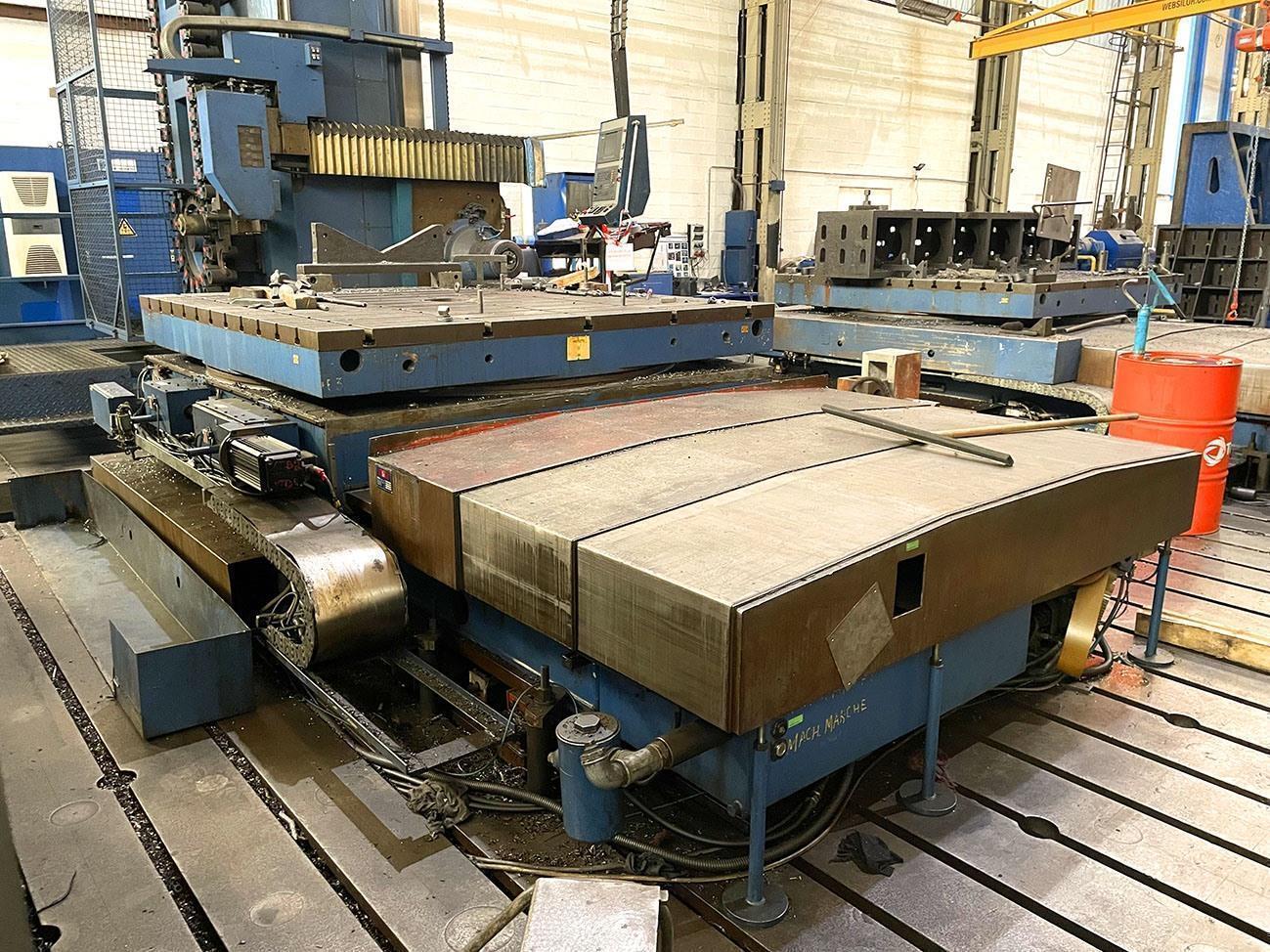

    2 hydrostatic tables CNC controlled - Weight on the table: 30 ton - Continueous 360° - Cross travel of table: 2500 mm
    Toolchanger with 60 positions

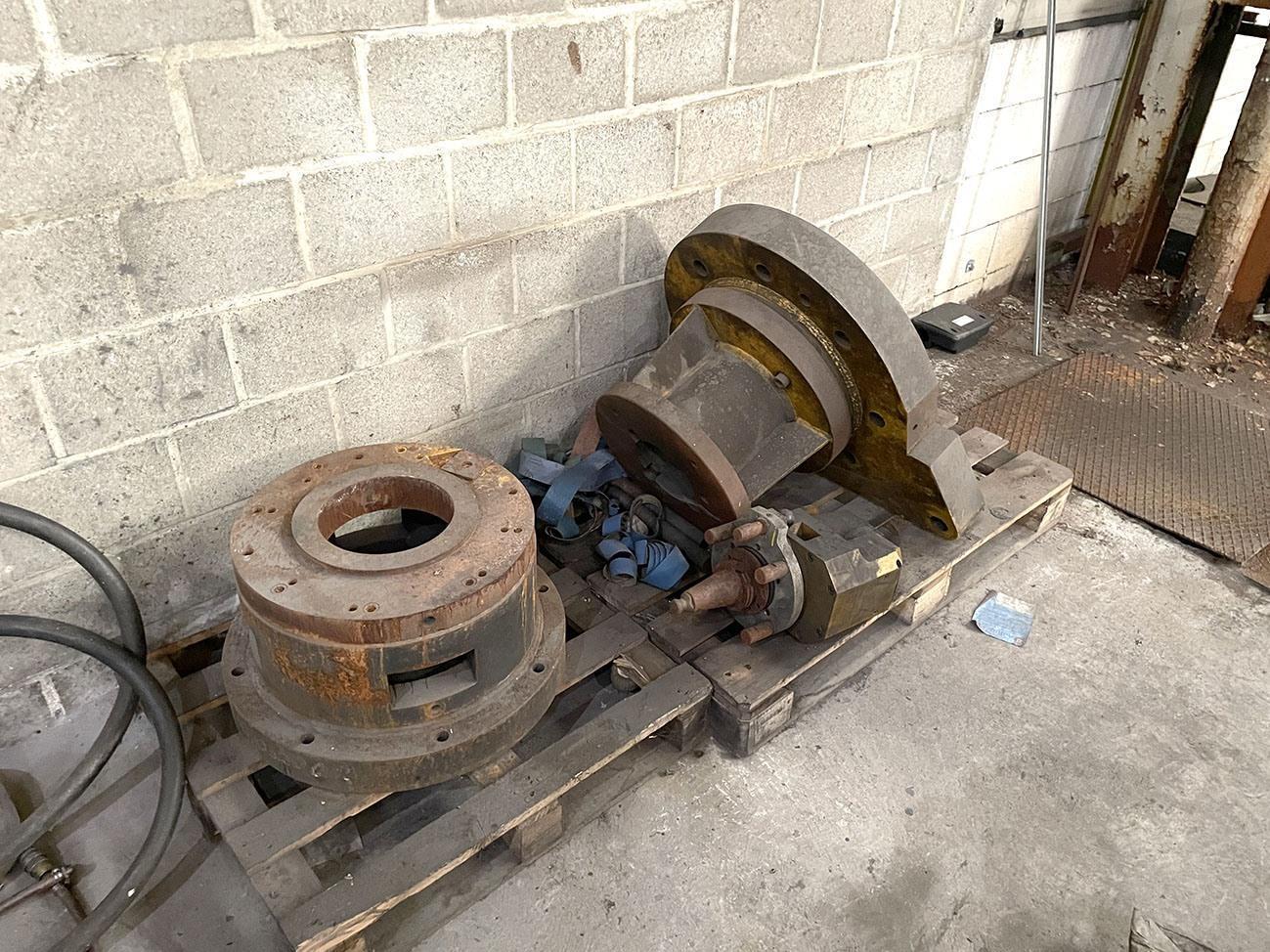

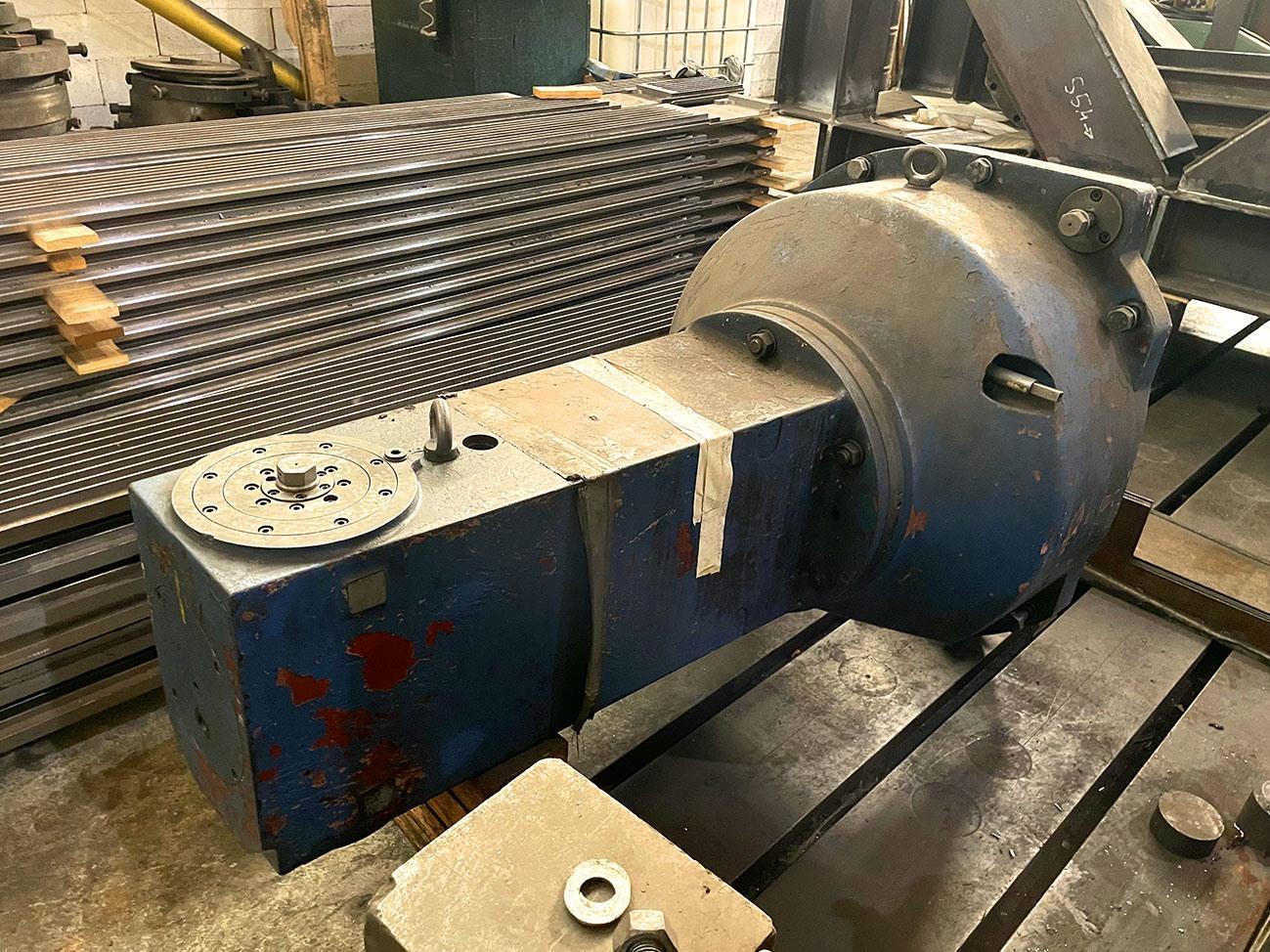

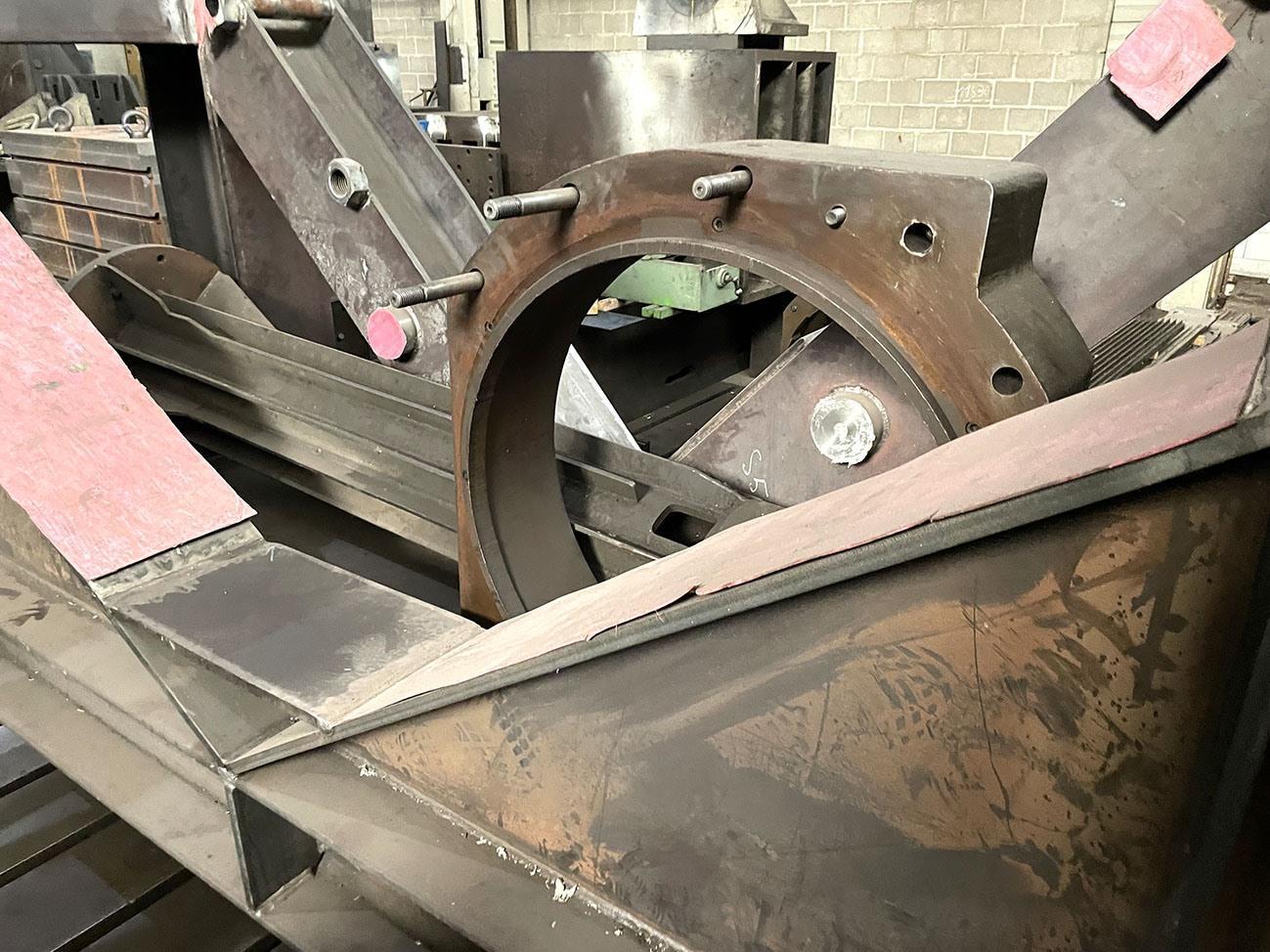

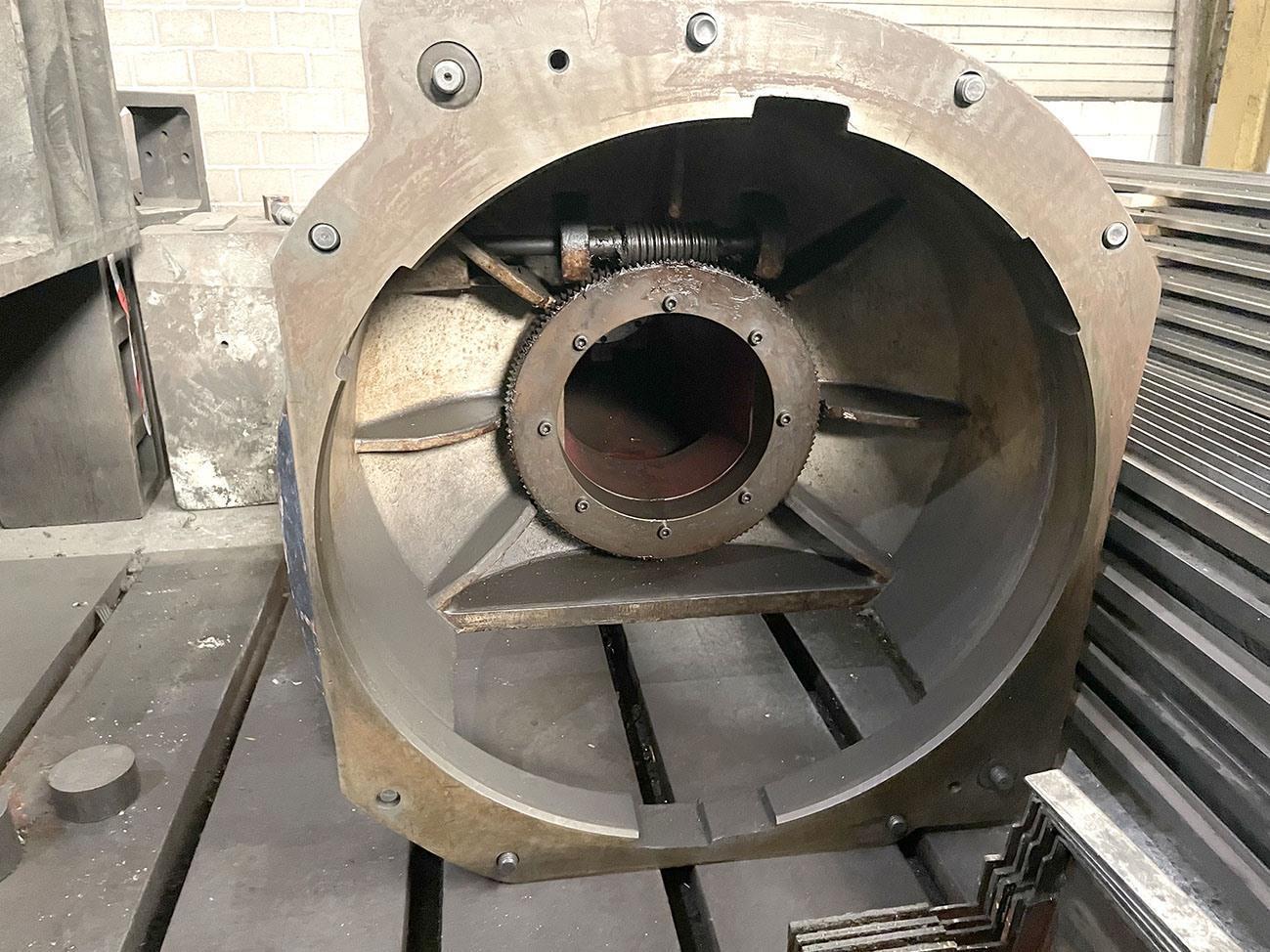

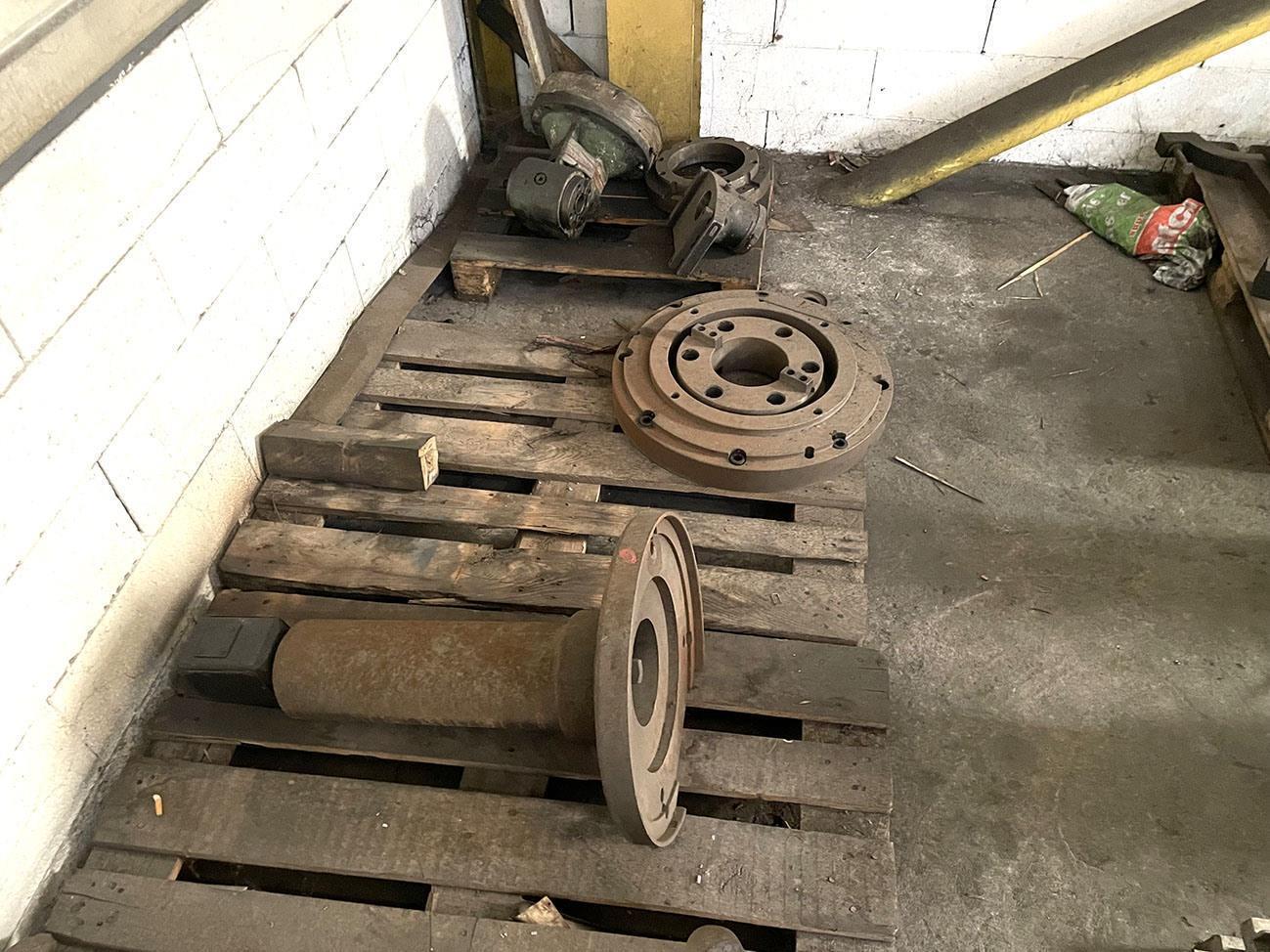

    • Milling head support / support de renforcement de la broche

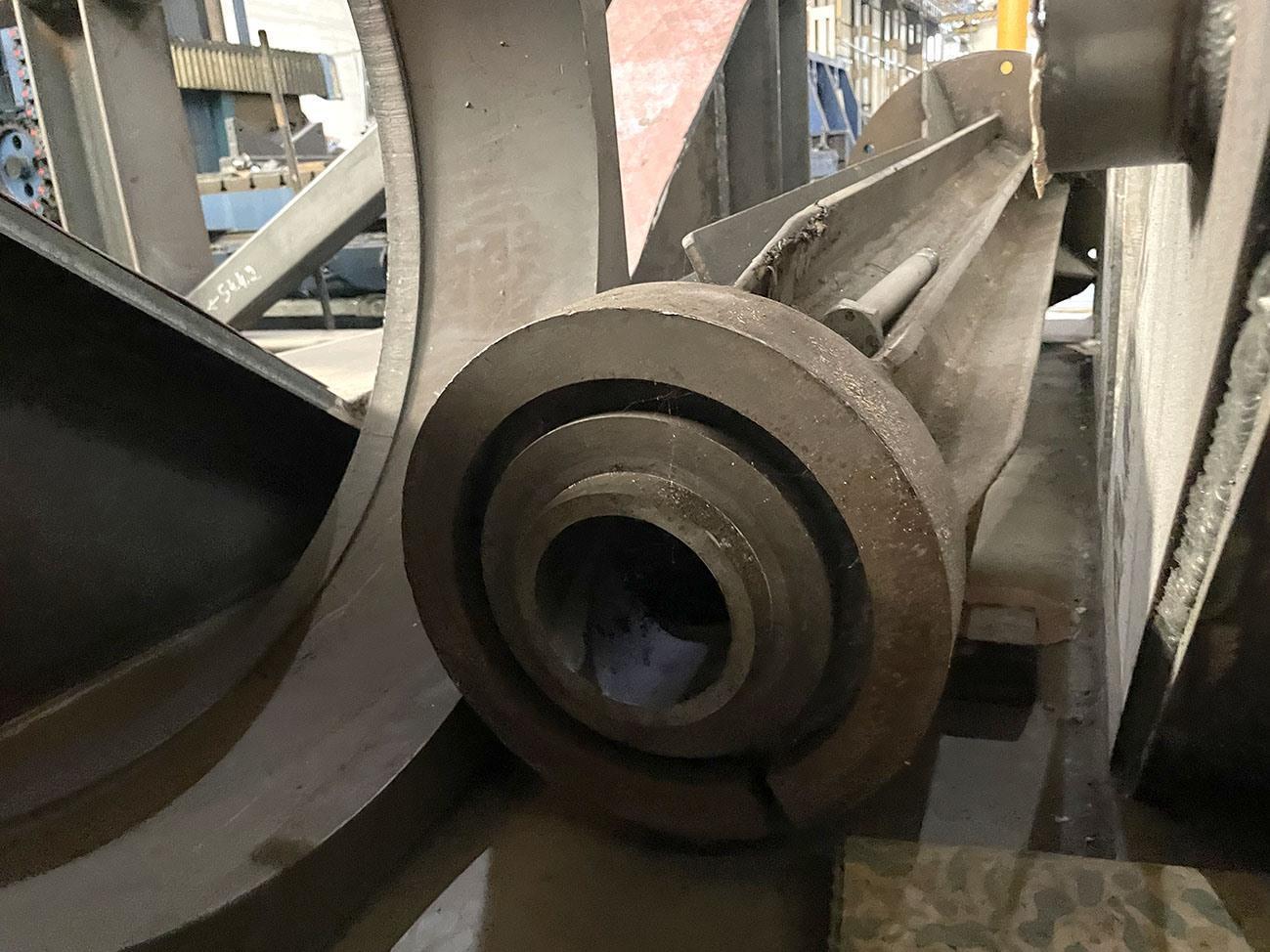

    • Drill spindle support / support portefraises


  • Type/Model: 160 - X: 9000 - Y: 650 - Z: 3000 - W: 1200 mm CNC
  • Stocknumber: F.02 14162
  • Main category: [F] Borers & Turningtables
  • Sub category: [F.02] Borers with travelling column, floor type
  • Brand: Pegard

Stocknumber: F.02 14162

Watch video of working machinery
