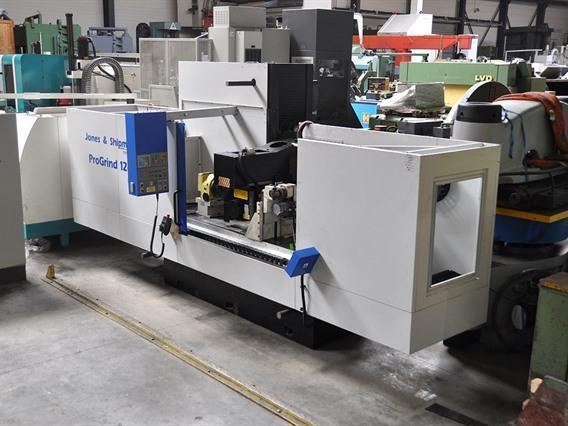

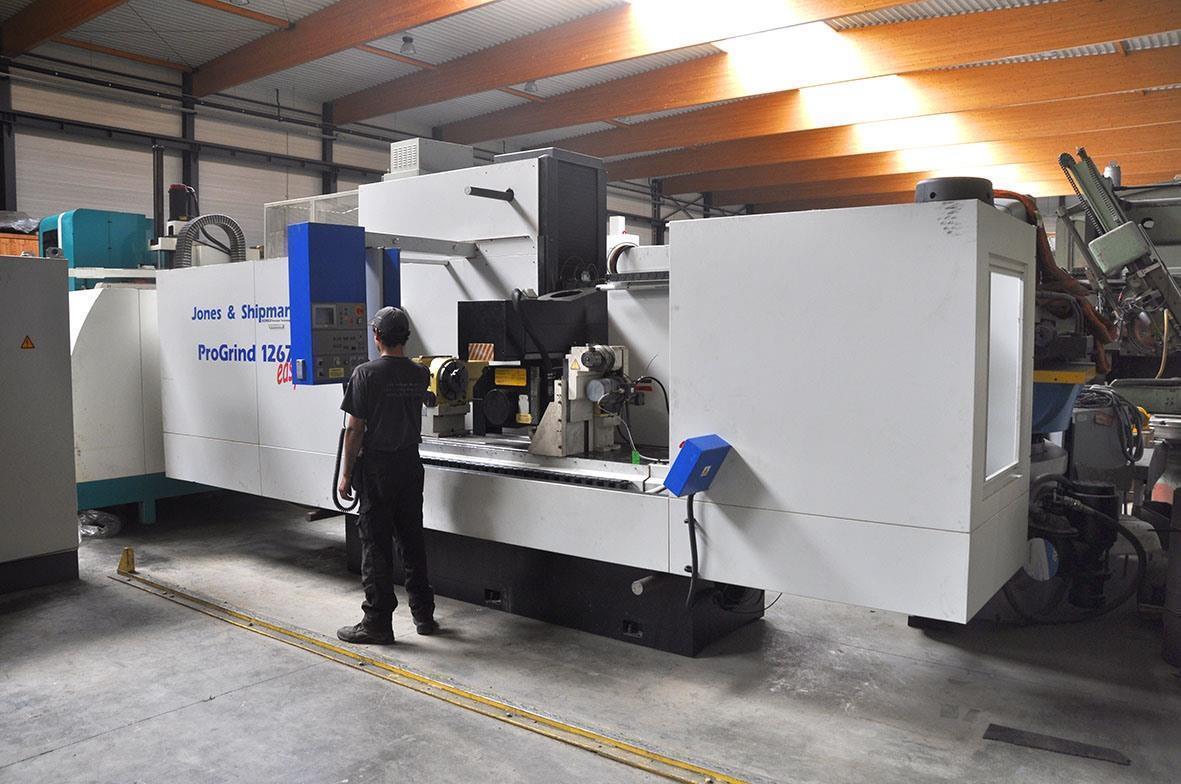

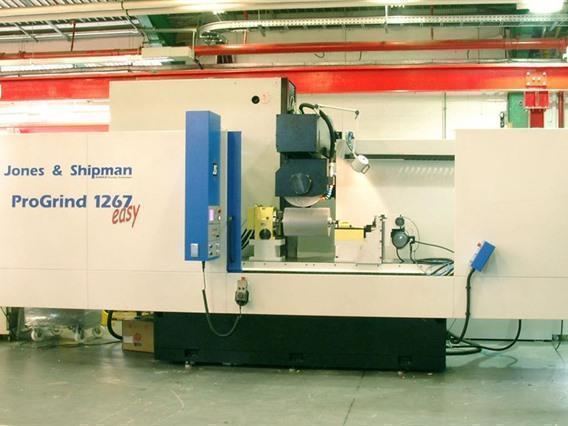

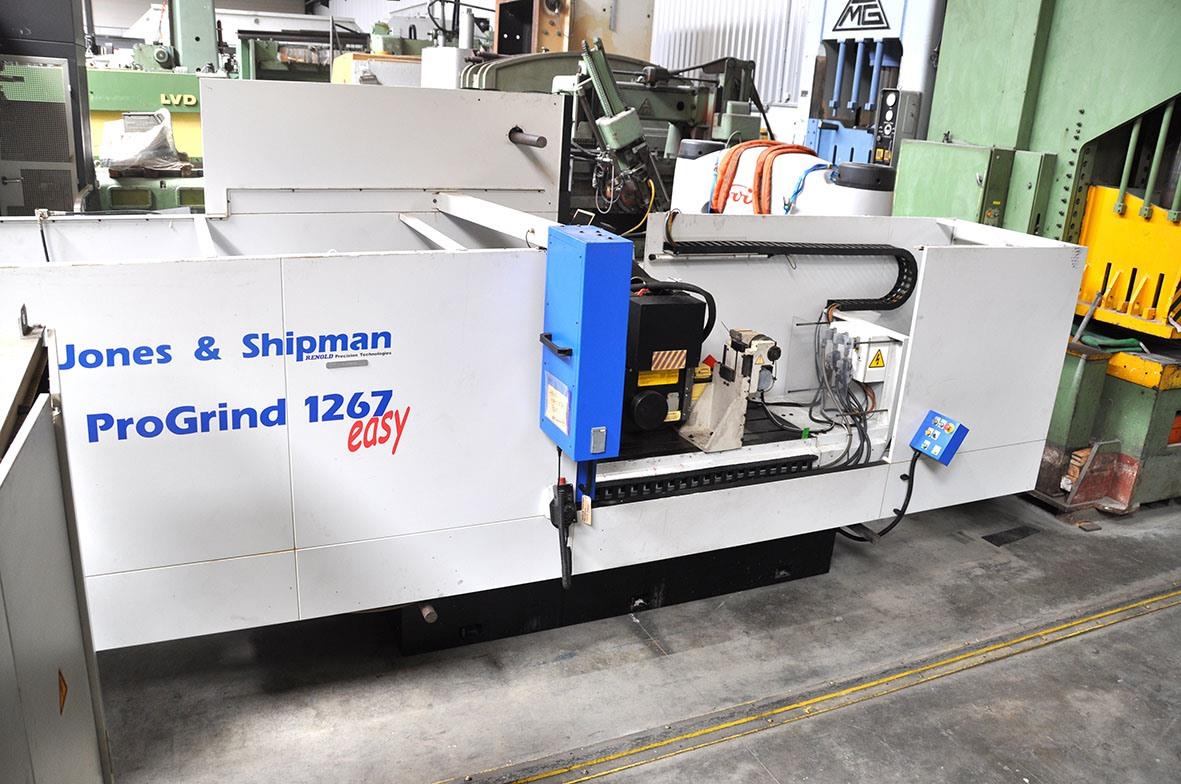

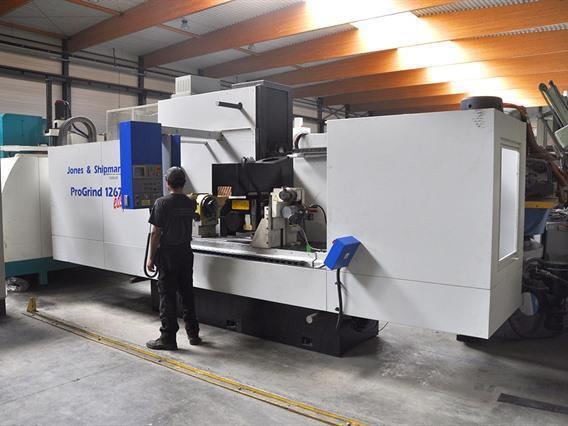

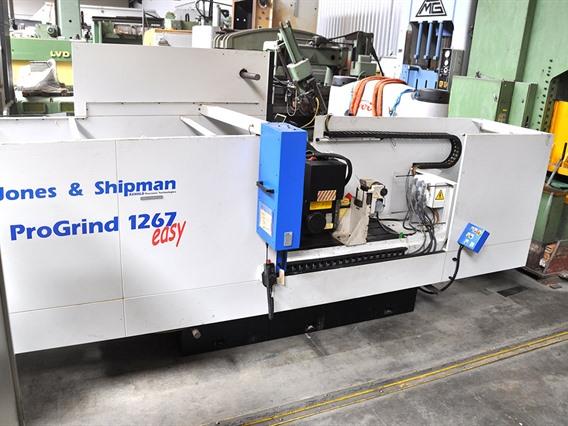

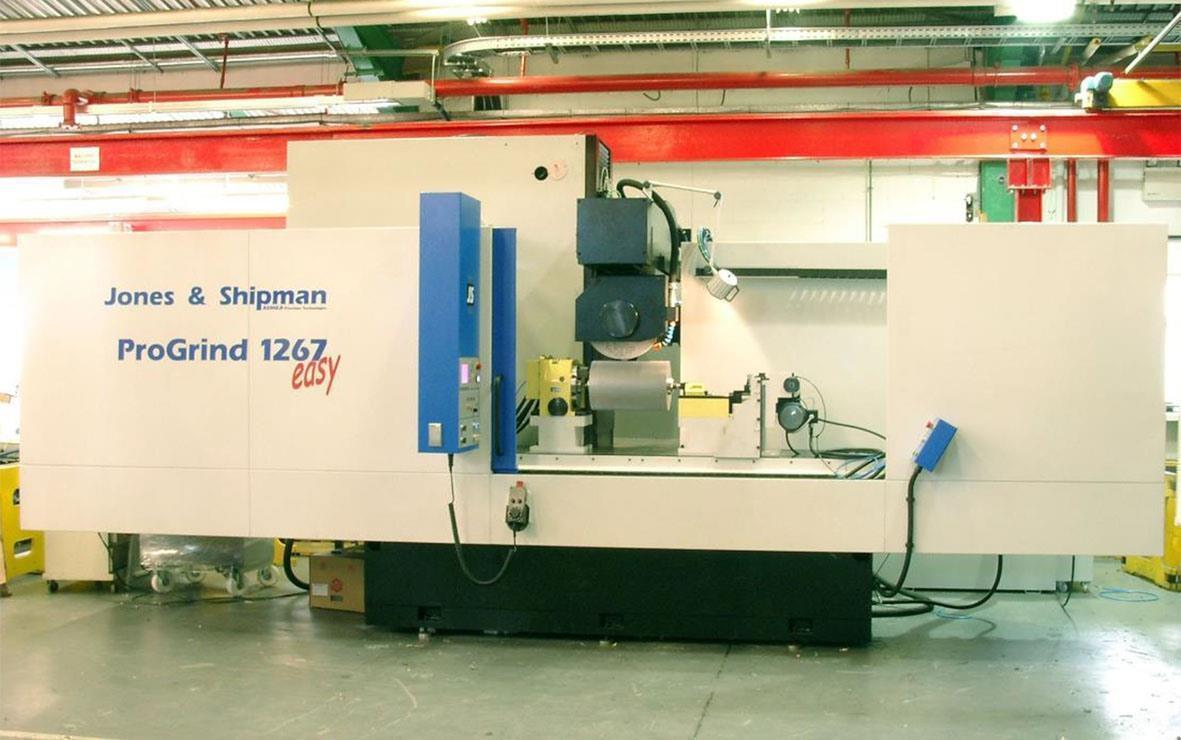

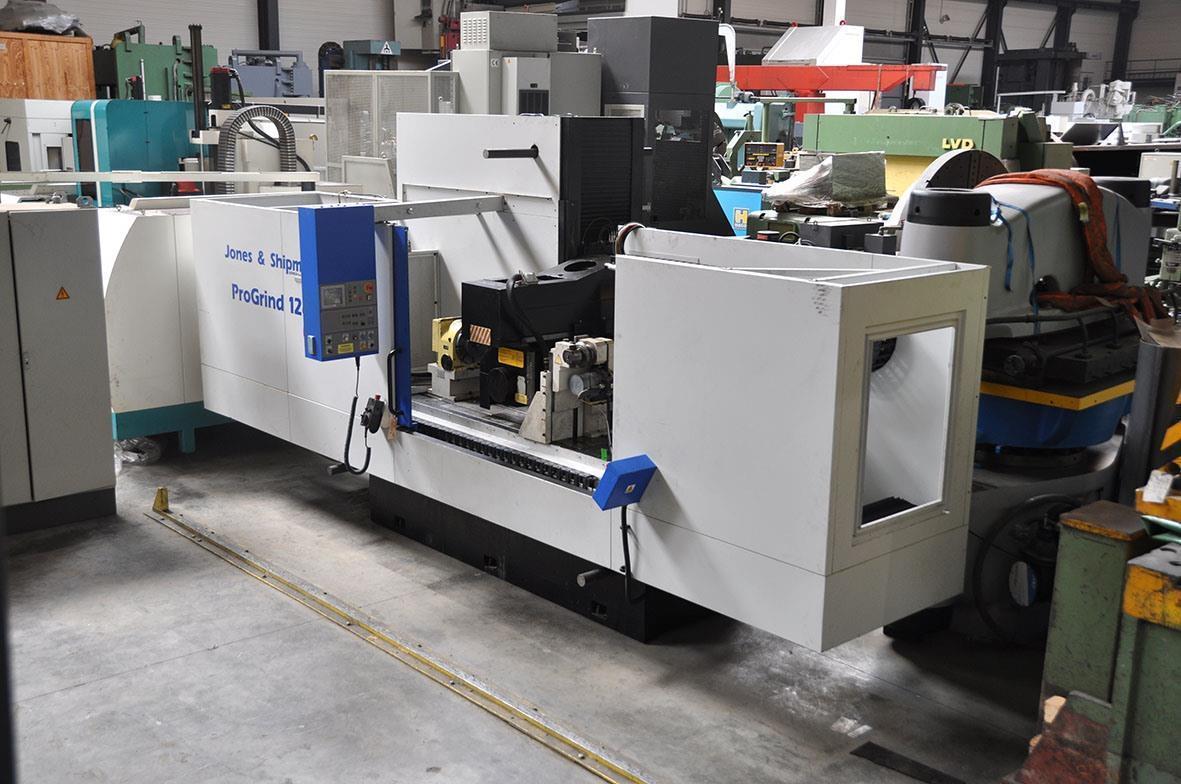

Jones & Shipman ProGrind 1267 Easy
Technische Informationen
- Abmessungen des tisches1200 x 600 mm
- Max durchmesser schleifscheibe457 x 100 x 203,2 mm
- Umdrehungen der schleifspindel 1400 and up to 3000 rpm
- Motorleistung22 kW

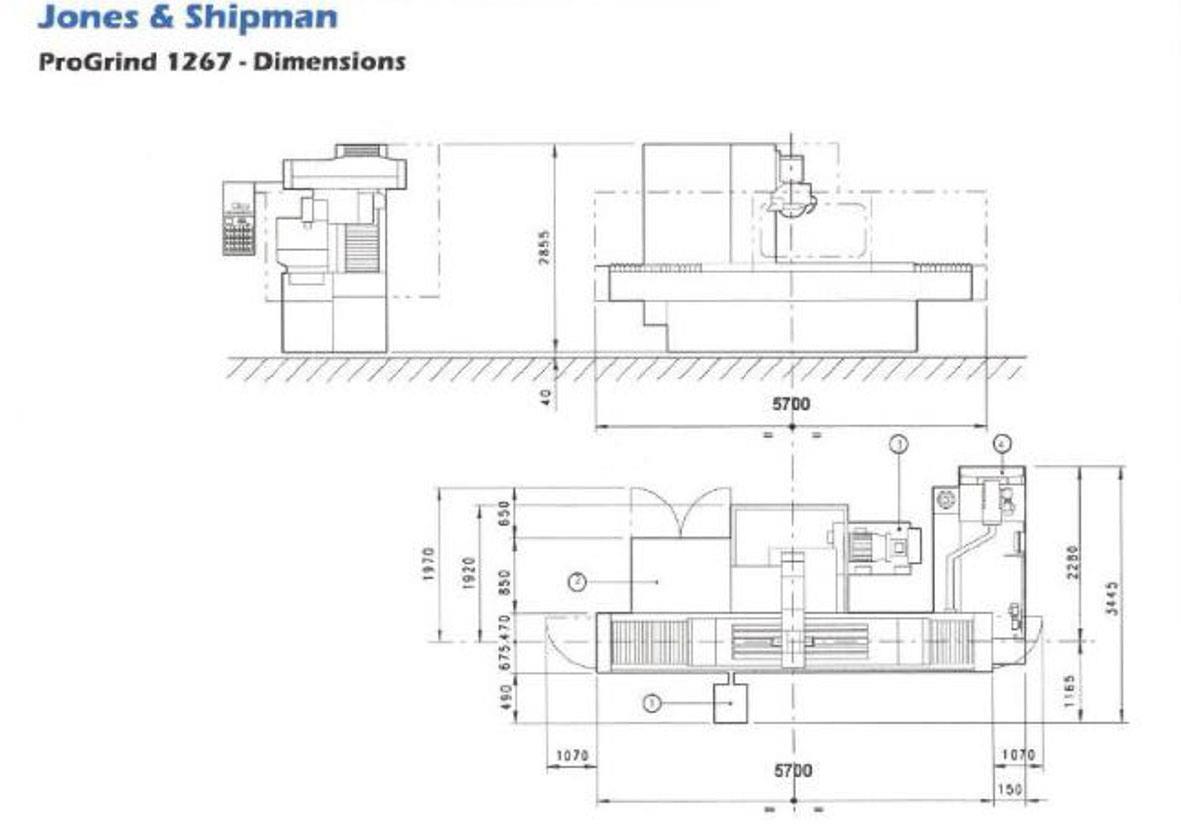

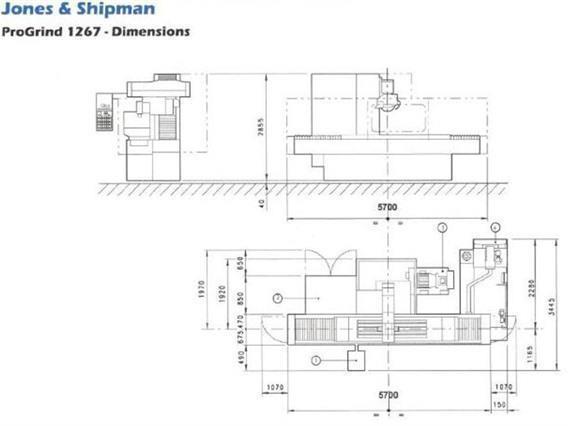

- Länge L -- R6202 mm
- Tieffe V -- H3445 mm
- Höhe2855 mm
- Gewicht11,8 ton
Zusätzliche Informationen
- Movement of table: 1610 mm (manual) / 1420 mm (hydraulic)
Vertical movement: 850 mm
Transverse movement: 750 mm
Max distance between table and grinding wheel: 750 mm

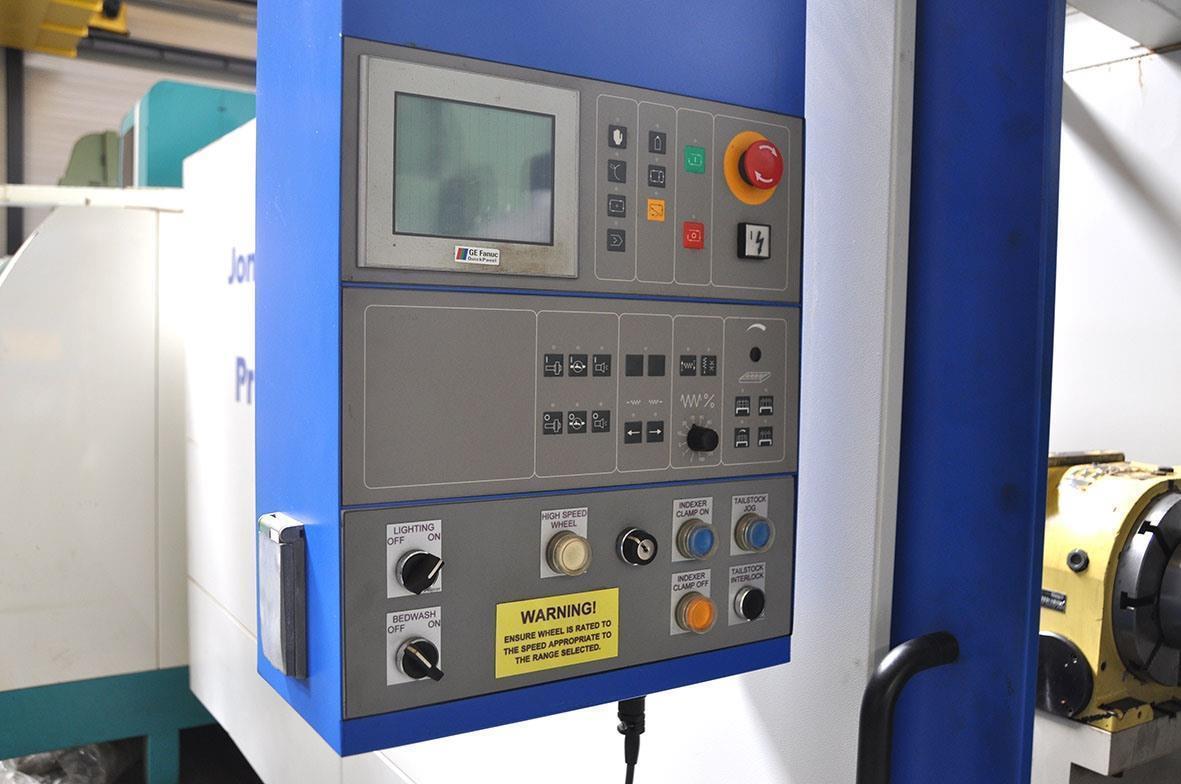

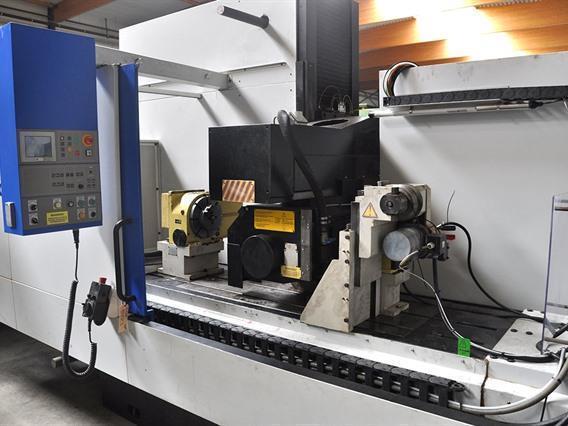

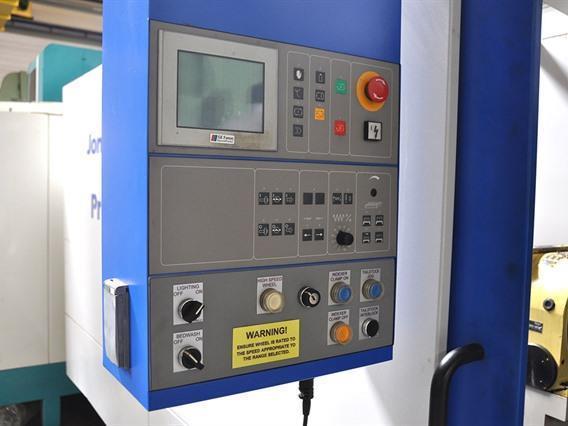

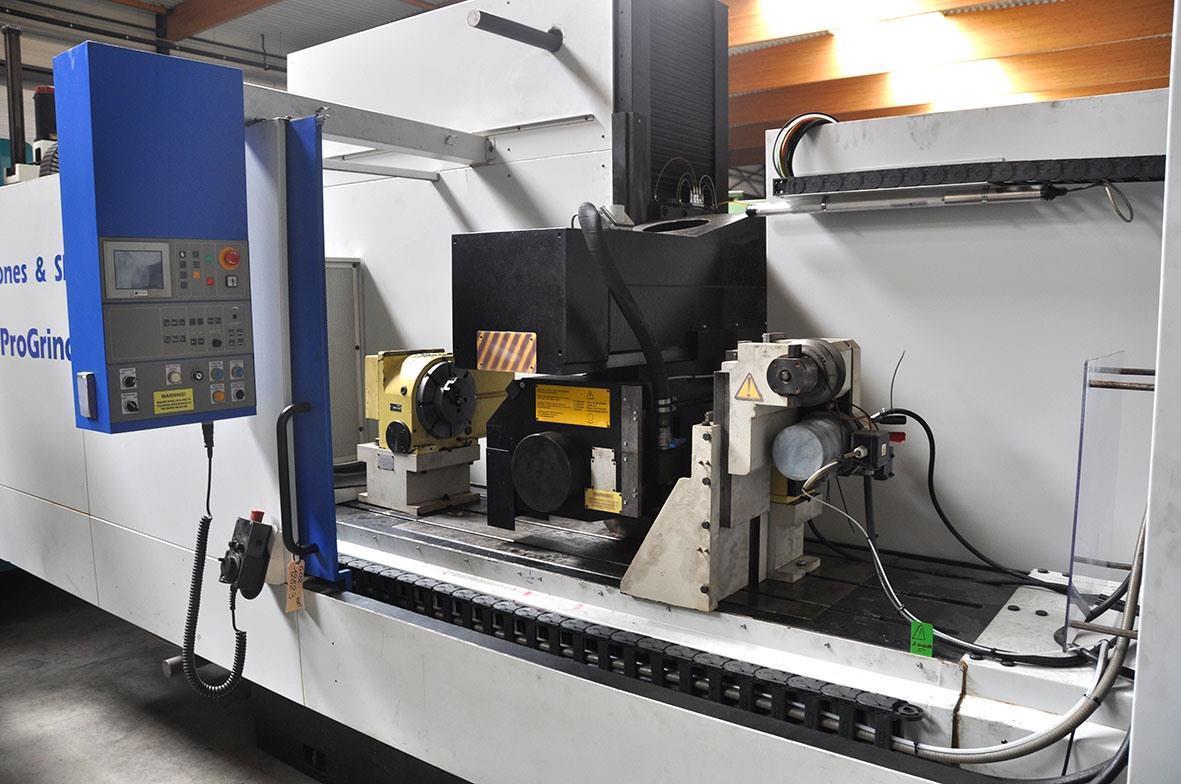

Fanuc touchscreen control

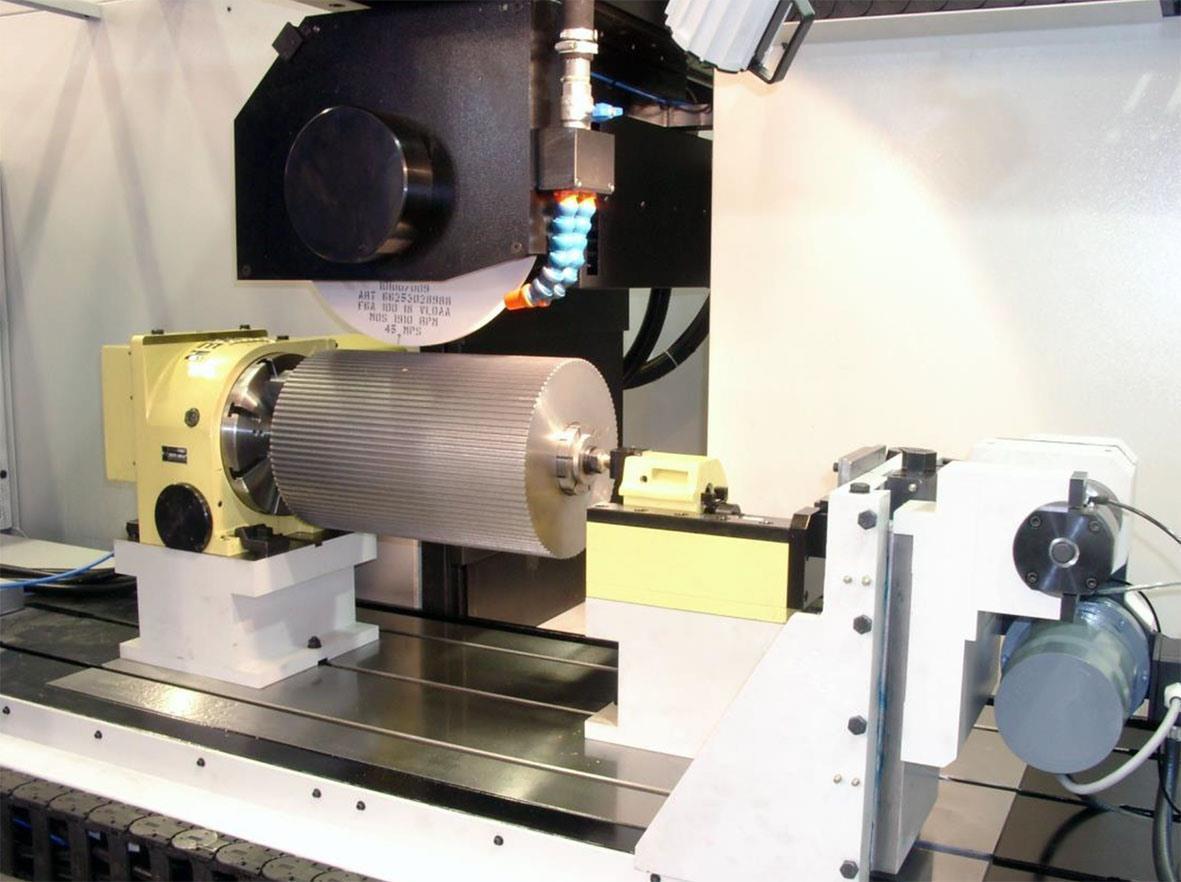

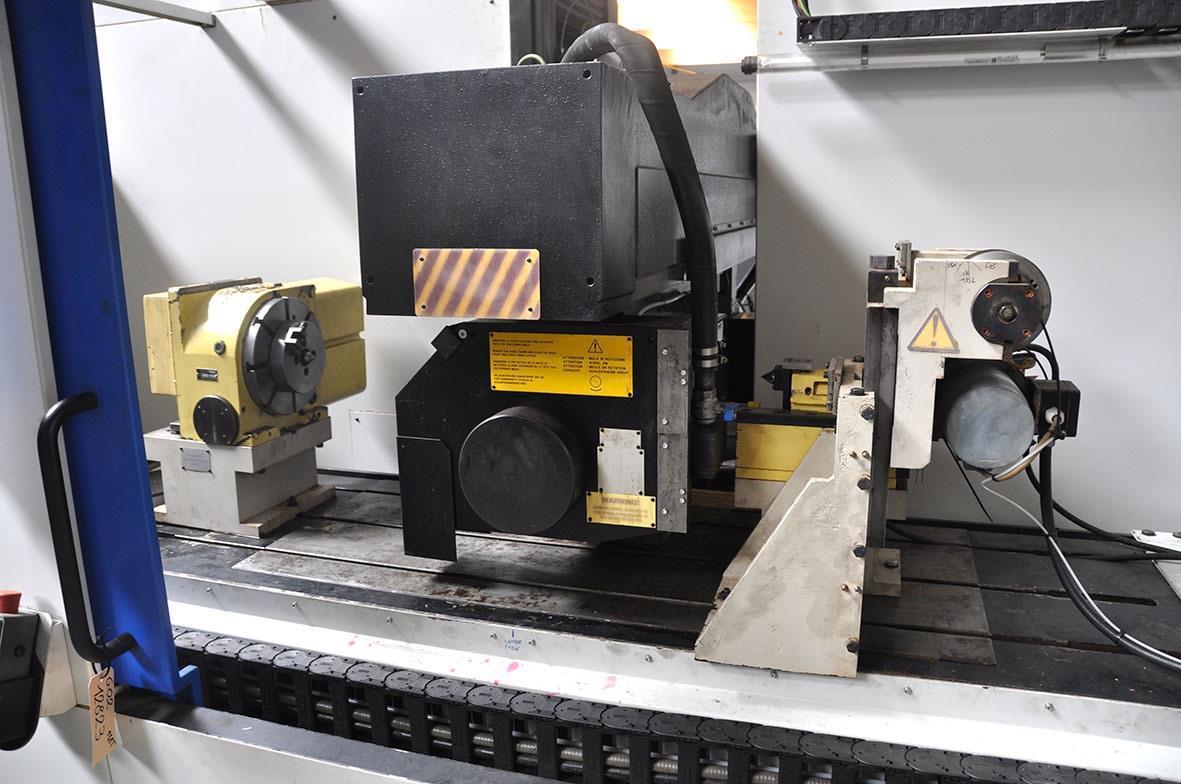

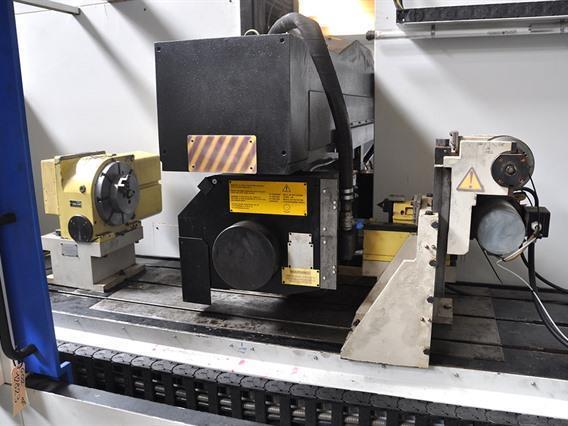

Nikken 4th axis

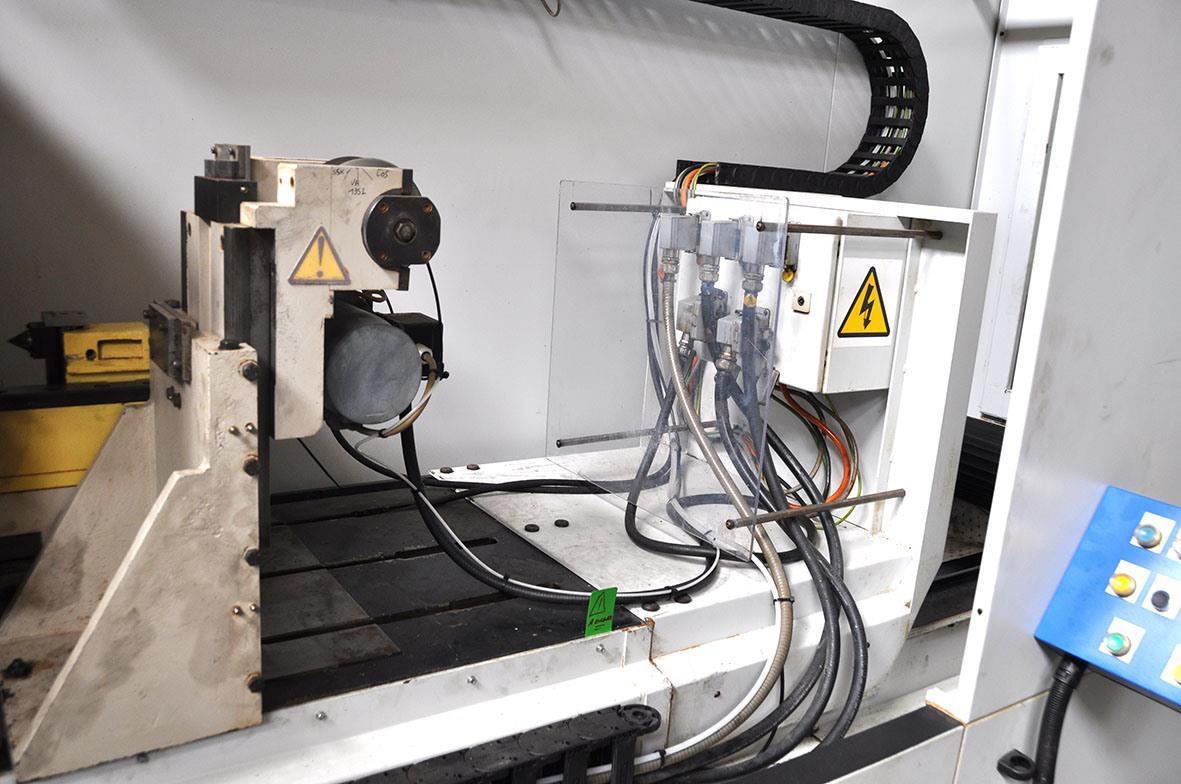

Twin rotary diamond disc unit - this unit is mounted vertically with a slide-way adjustment to cater
for the differing grind heights. The unit is designed to mount twin opposing
discs to support dressing in both directions and provide support for the 6 thou
diamond tip radius.
- Typ/Modell: ProGrind 1267 Easy
- Stocknummer: G.02 12823
- Hauptkategorie: [G] Schleifmaschinen
- Unterkategorie: [G.02] Flachschleifmaschine mit Waagerechte Schleifspindel
- Markenname: Jones & Shipman
