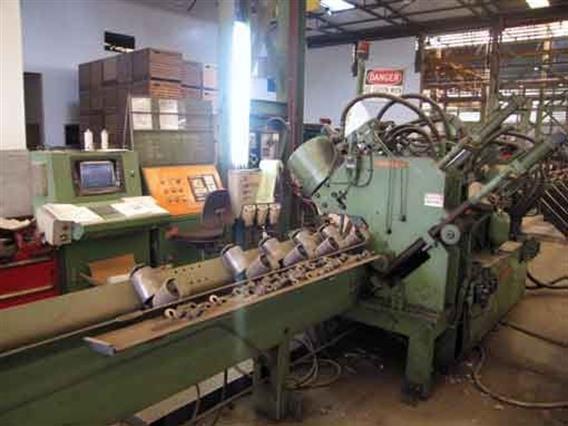

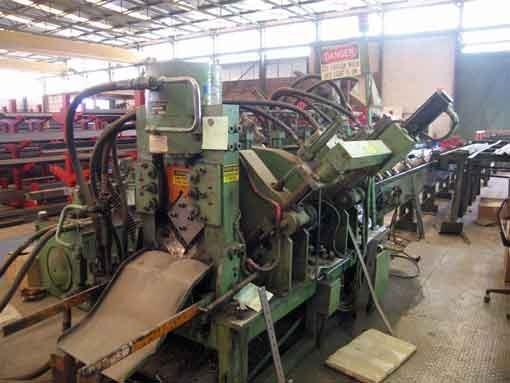

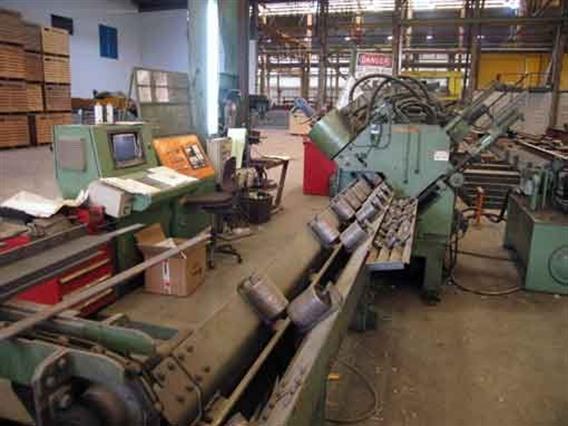

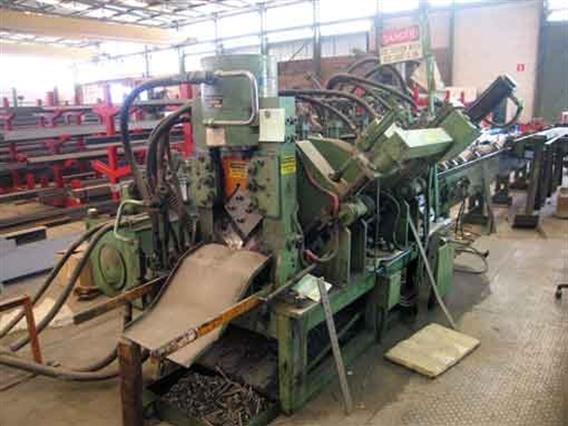

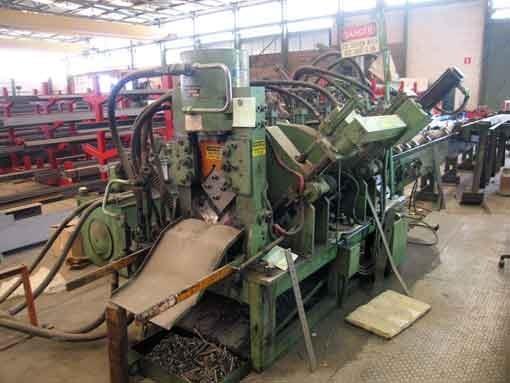

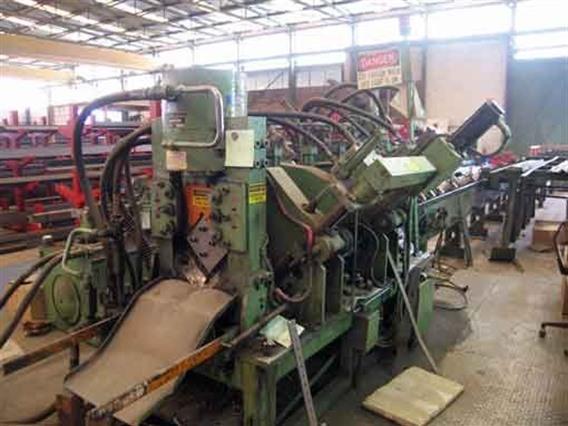

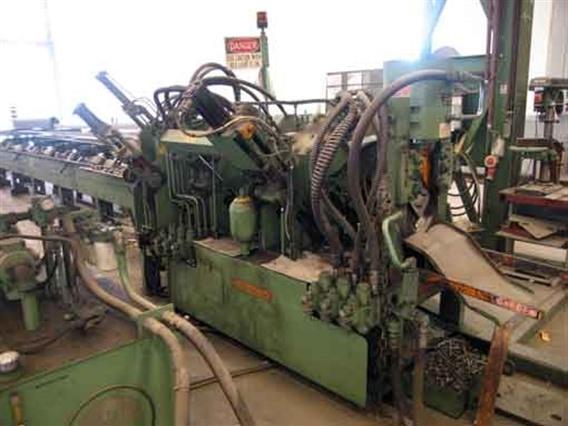

Peddinghaus Angelmaster AFPS 643 CNC
Teknik Bilgiler
- Max sawingwidth160 mm
- Max sawingheight15 mm
Ek bilgi

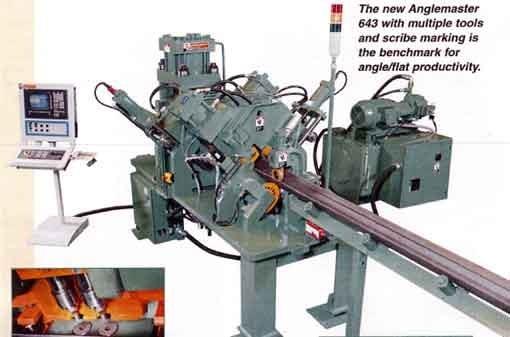

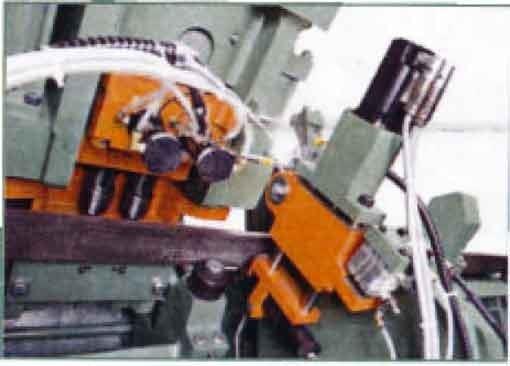

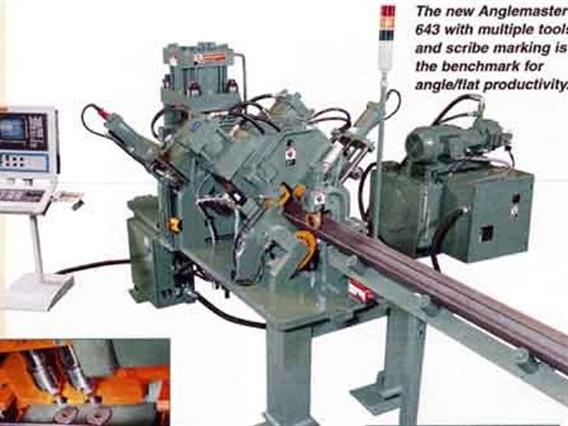

- Peddinghaus Anglemaster is engineered for a comprehensive range of products for the automatic positioning, punching, shearing to length, and marking of typical miscellaneous shapes such as angle, flats, and channel.

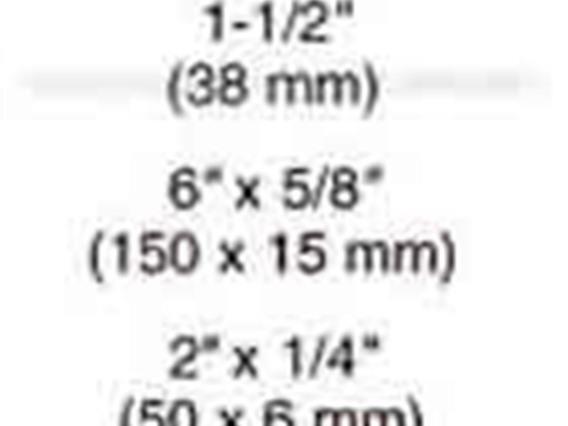

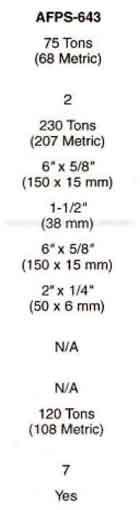

Angle Maximum 160 x 160 x 15mm
Angle Minimum 40 x 40 x 3mm
Flat Maximum 160 x 15mm
Flat Minimum 50 x 6mm

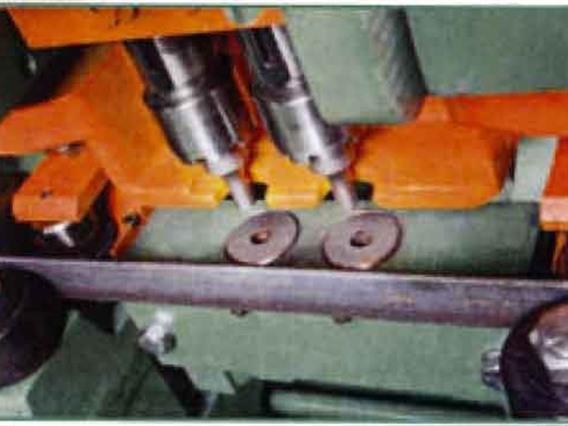

Punch Capacities 75 Tons
Throat 133 mm
Stroke 44 mm
Maximum Material Thickness 15 mm
Maximum Hole Size 31.75 mm
Shear Capacities 230 Tons
Tooling Style Single Cut (Single Cut)

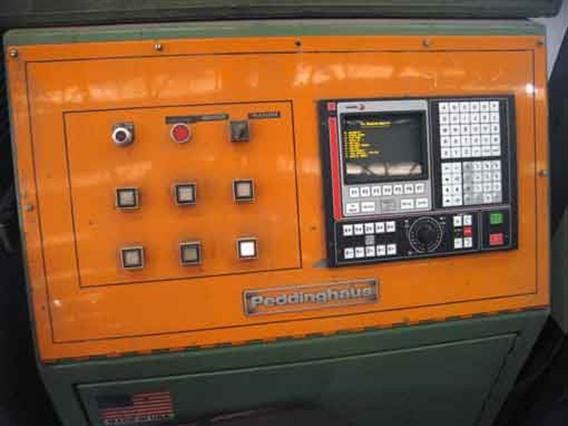

contol: FAGOR
- Tip/Model: AFPS 643 CNC
- Stok numarası: P.14y 4207 *07
- Kategori: [P] metal plaka makası, üniversal metal yarma kesme makinesi, yarma, kilitleme ve testereleme
- Alt kategori: [P.14y] Zaagstraten & Boorstraten
- Marka: Peddinghaus Angelmaster
