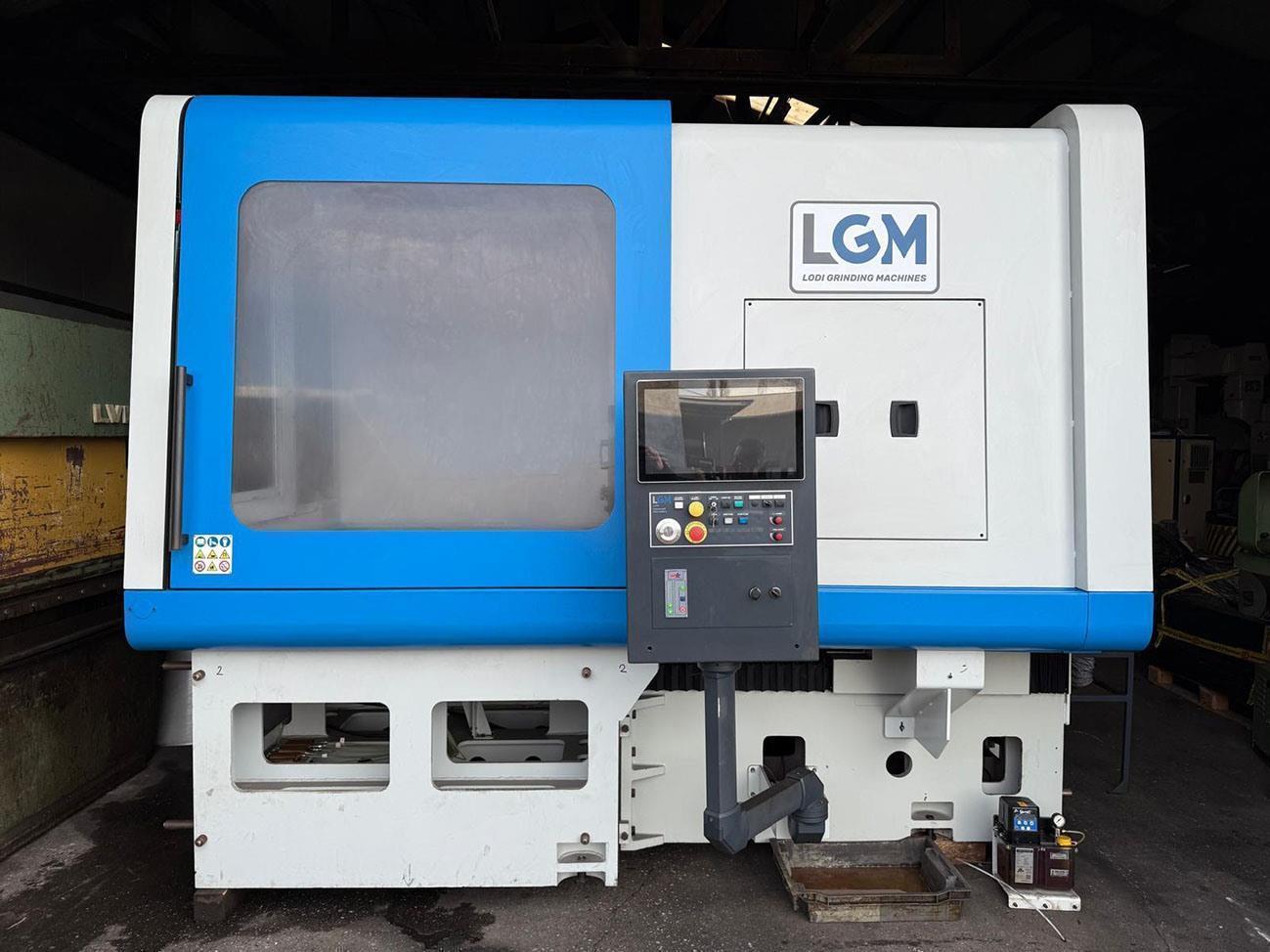

Vlakslijpmachines met vertikale spil Lodi Ø 1000 mm R10NC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

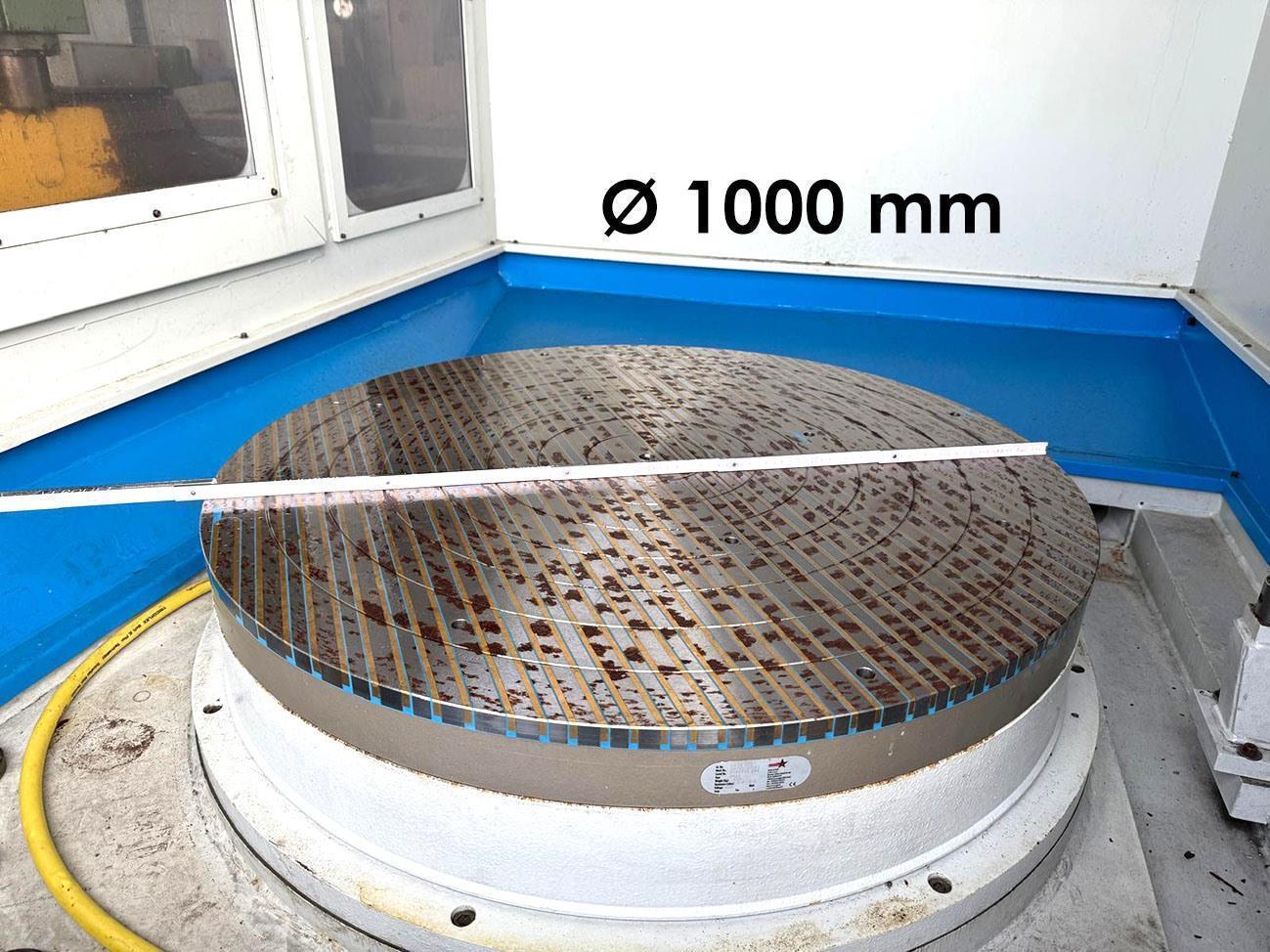

Magnetic table dimensions1000 mm
Dia ceramic grindstone500 x 203 x 80 mm
Motorpower37 kW
Tension needed400 V
Length L -- R2370 mm
Depth Fw -- Bw2200 mm
Height2500 mm
Weight8000 kg

Ek bilgi

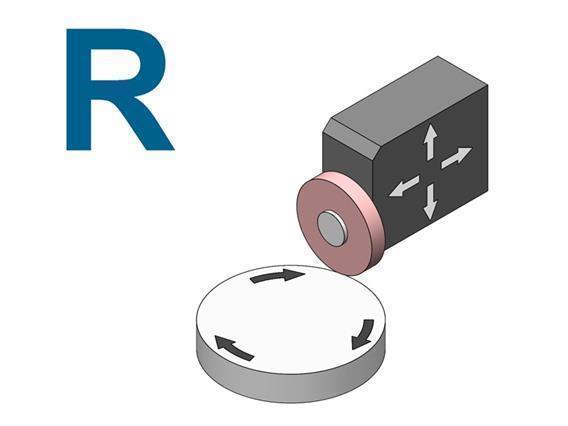

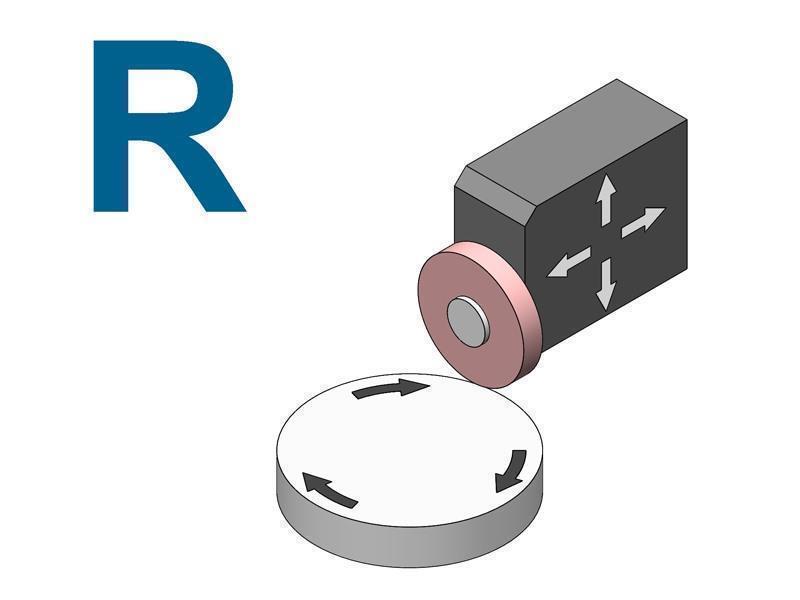

Model R grinding machines are tangential rotary table grinding machines that are used where micro-metric precision machining of parts such as flanges, spacers, rings, circular blades etc is required.

The rotary table model can be equipped with precision bearings or hydrostatic support in which case the hydraulic unit is placed outside the machine to prevent it from transmitting heat to the structure and to facilitate maintenance.

max workpiece weight: 2000 kg
grinding speed: 1000 > 1900 rpm
speed of magnetic table: max 120 rpm

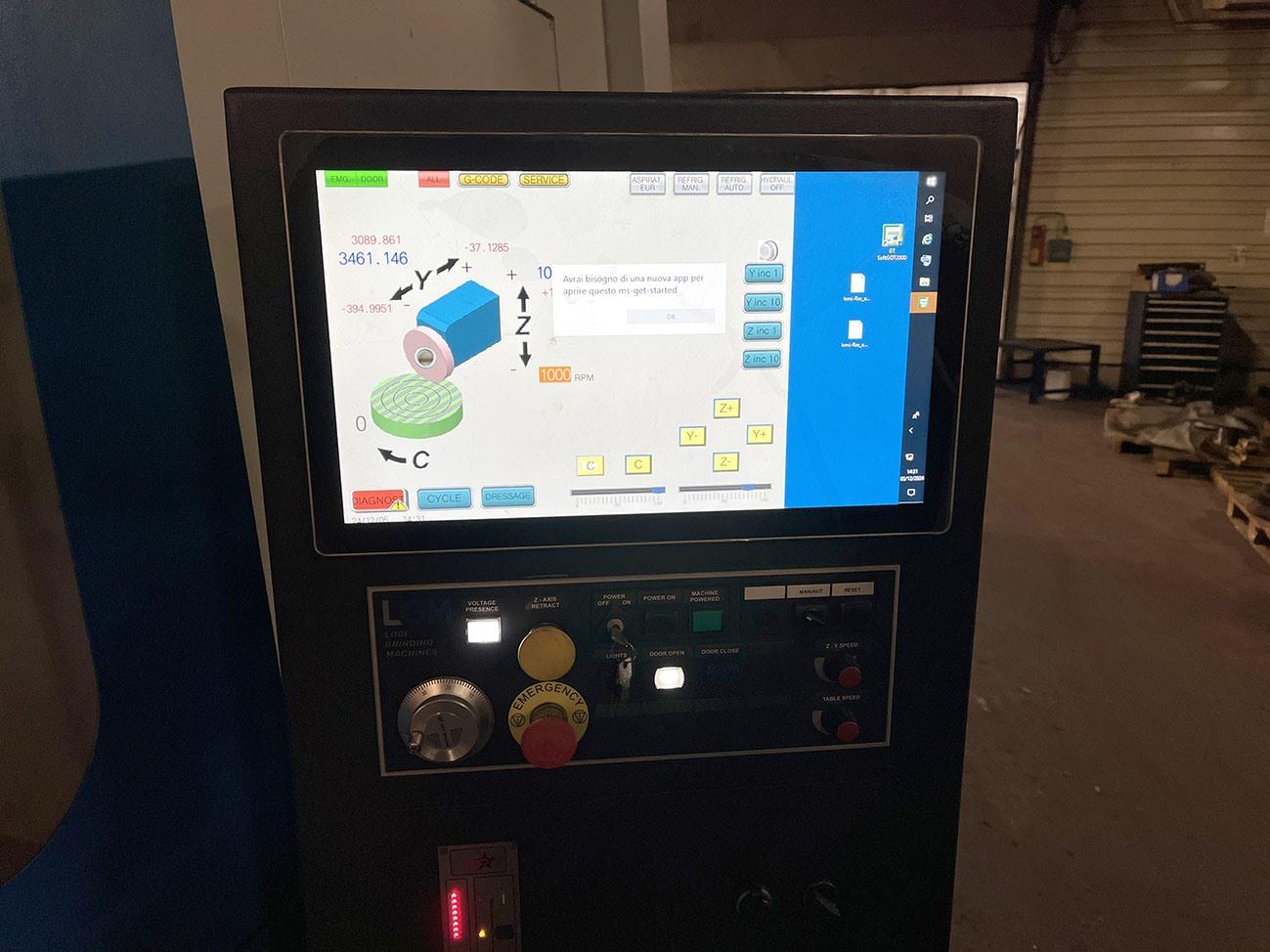

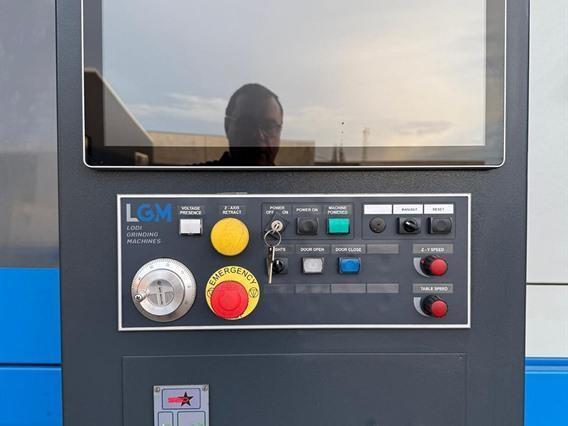

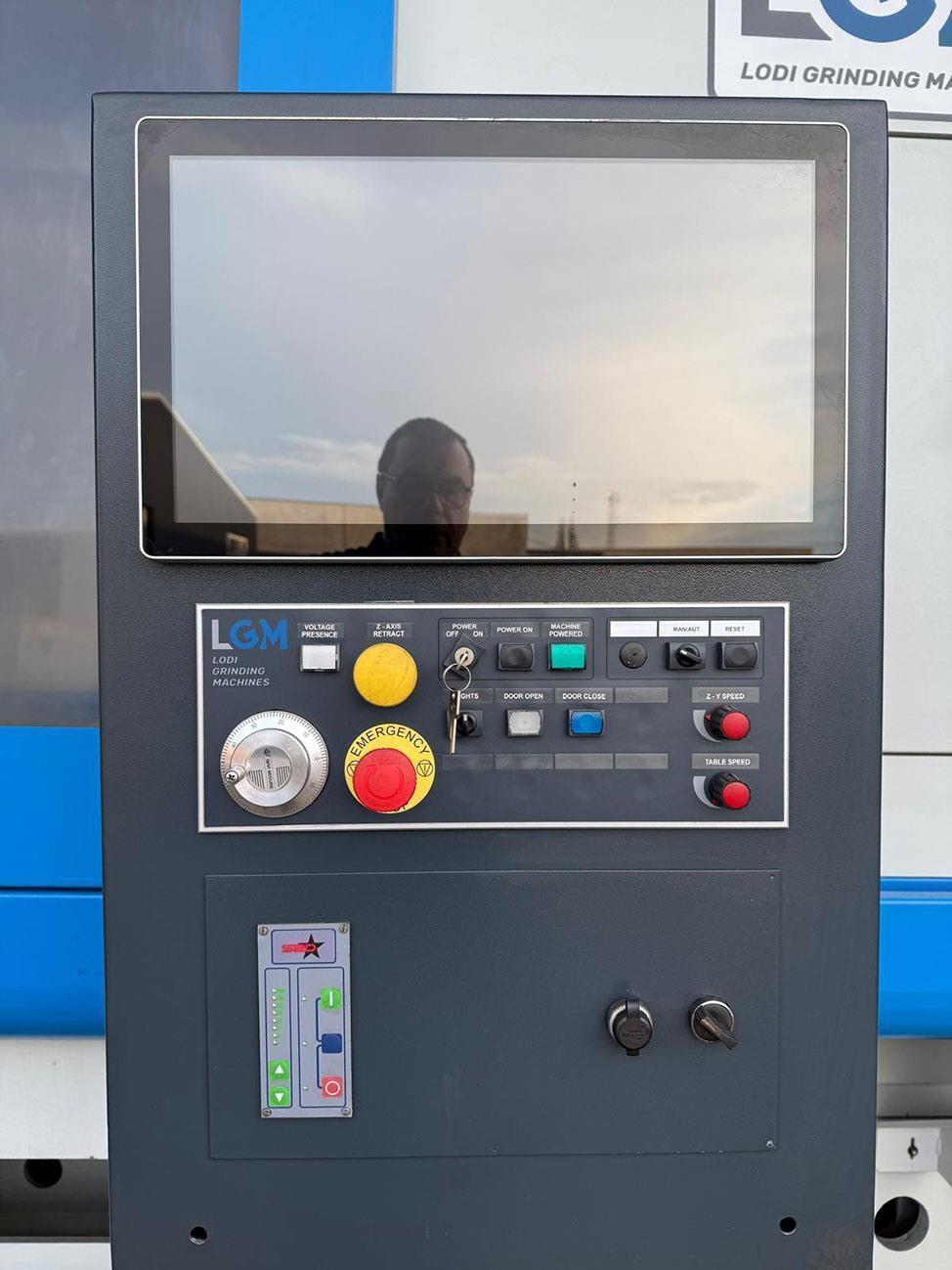

CNC touchscreen control

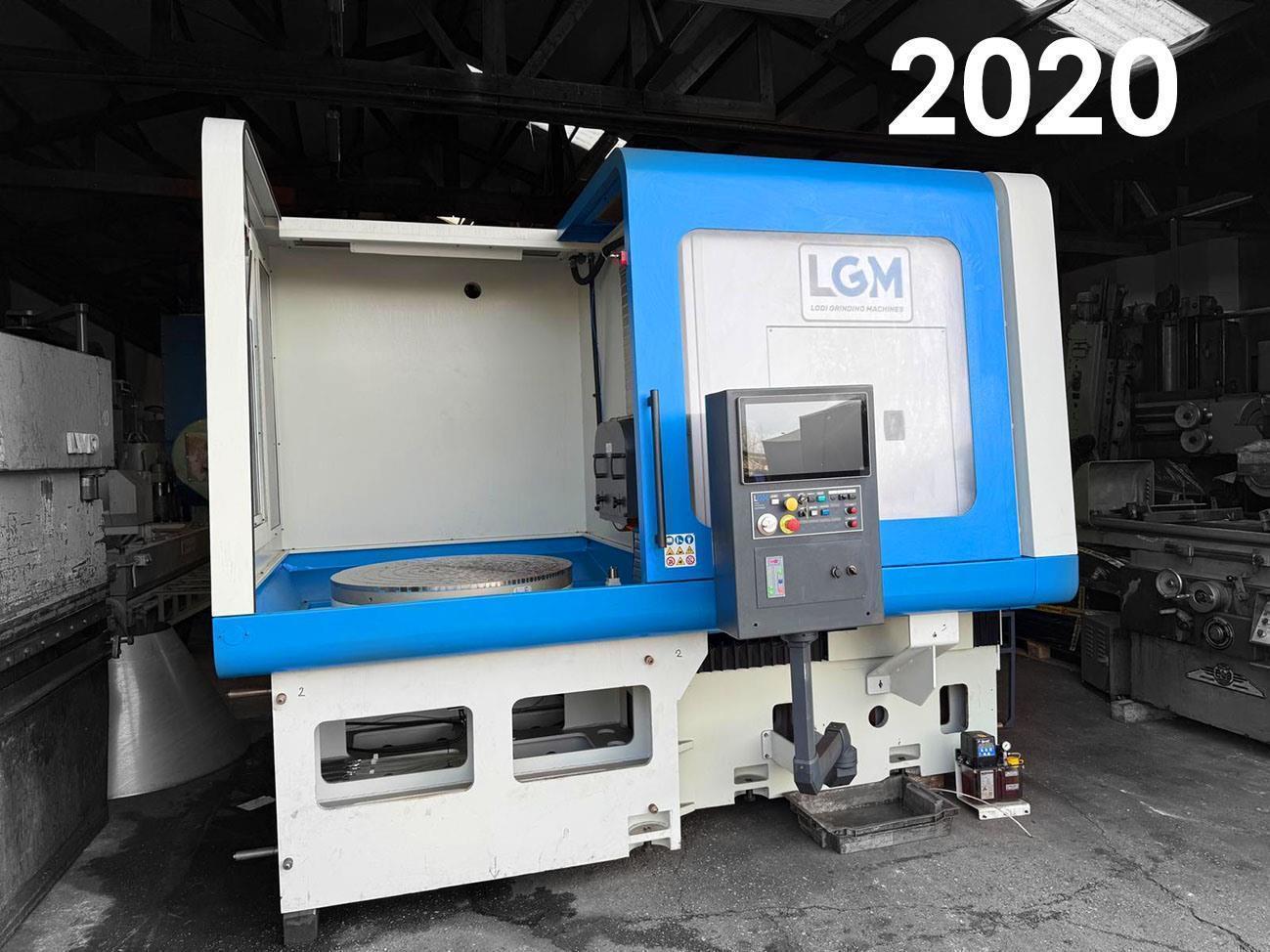

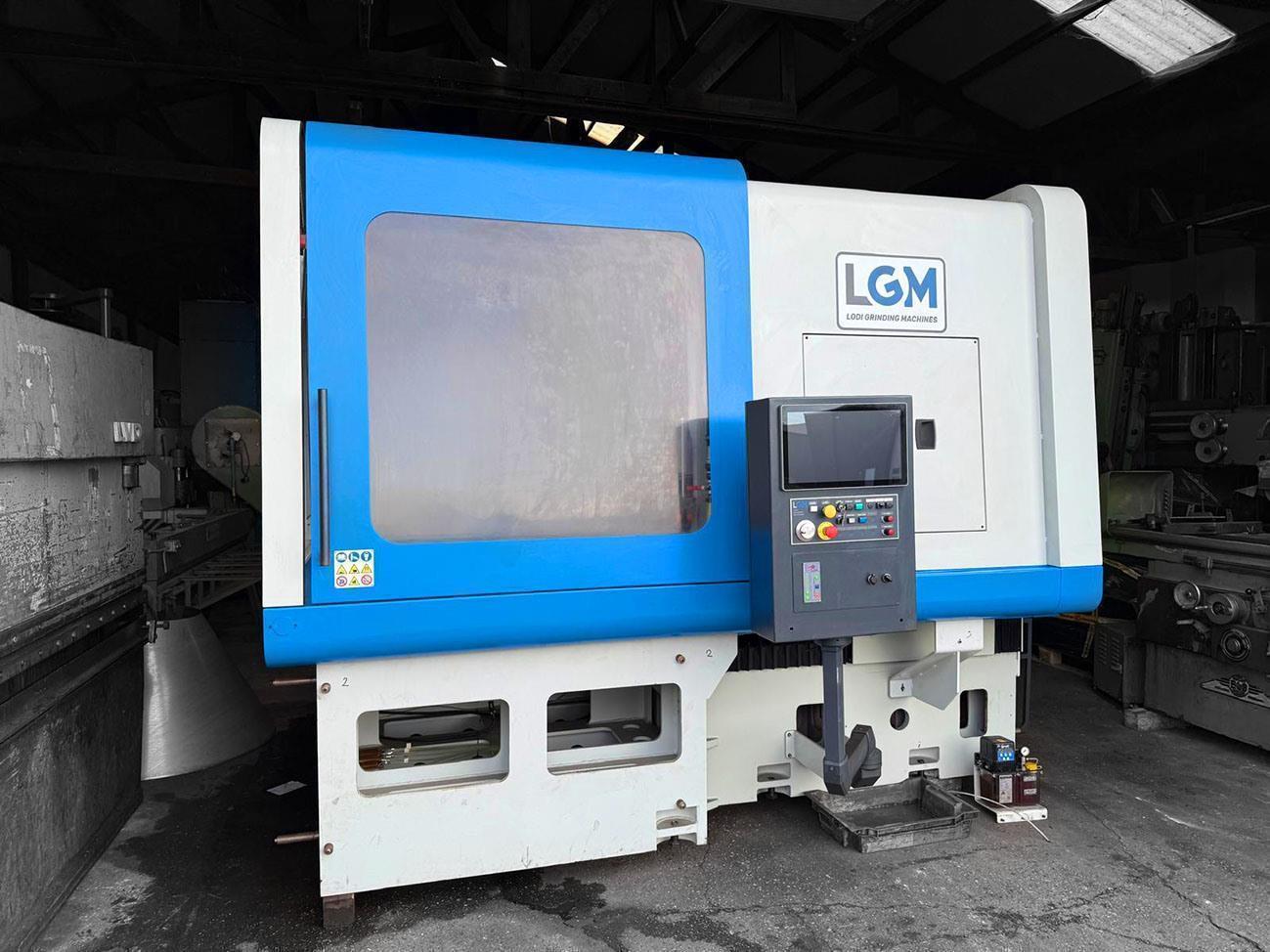

Surface grinding machine with rotary table
Rundtisch-Flachschleifmaschine
Tip/Model: Ø 1000 mm R10NC
Stok numarası: G.01 15080
Kategori: [G] Törpü makineleri
Alt kategori: [G.01] Vlakslijpmachines met vertikale spil
Marka: Lodi

» Kişisel fiyat talep edin

Stok numarası: G.01 15080

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
