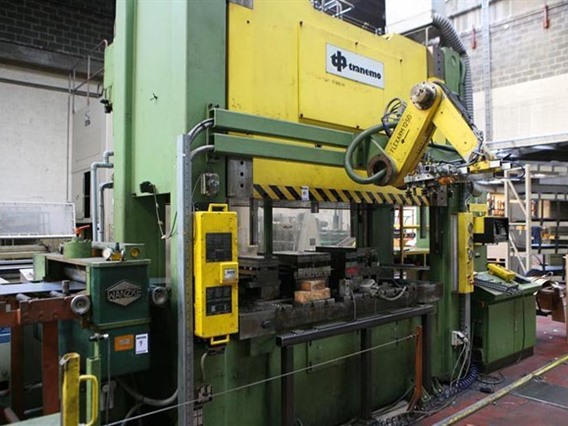

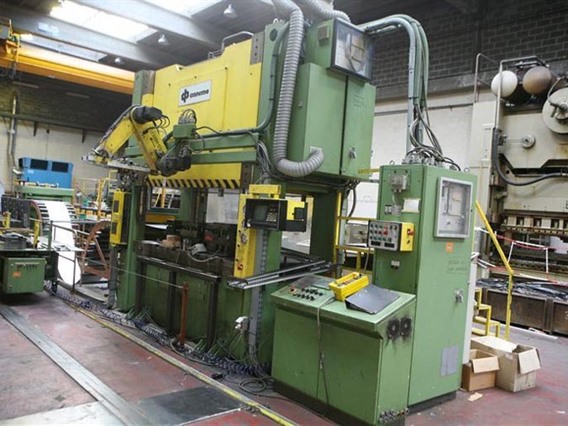

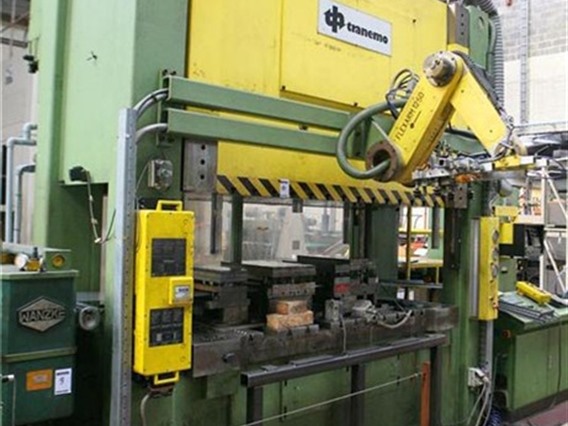

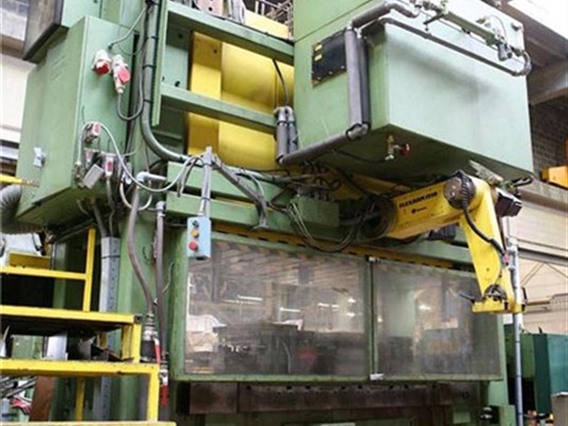

Vierkolomspersen – Enkelslag Tranemo DPA 250-25 CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Capacity250 ton
Passage between uprights2500 mm
Max ram adjustment500 mm
Drawning speed354 mm/sec
Distance between table -- ram800 mm

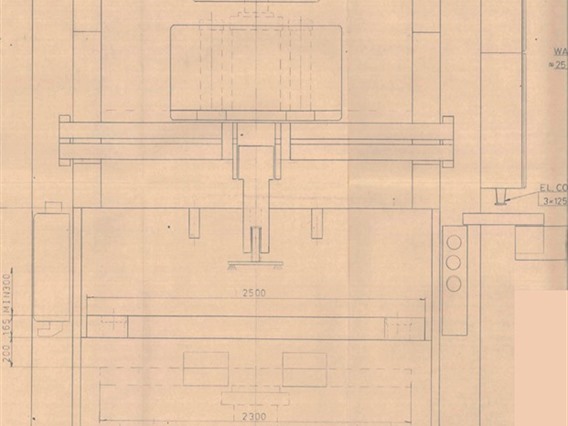

Table area2500 x 1000 mm
Table height fixed (1) -- sliding (2)1055 mm
Ram area2500 x 1000 mm
Electric motor (power)45 kW
Length L -- R4200 mm
Depth Fw -- Bw2600 mm
Height4000 mm
Weight28 ton

Ek bilgi

2 axis

speed at 250 ton: 15 strokes/min

speed at 88 ton: 36 strokes/min

between columns long side: 2500 mm

between columns short side: 800 mm

This Tranemo features:

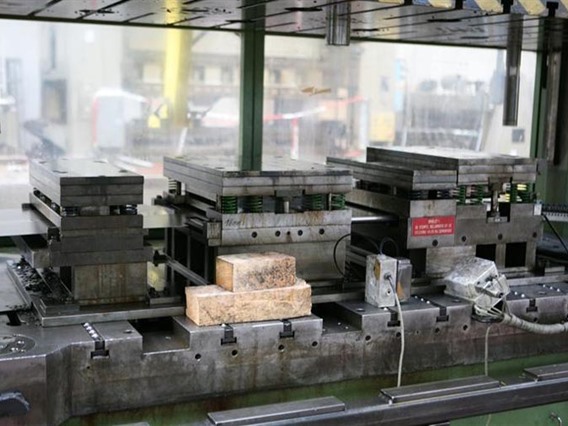

- automatic hydraulic clamping system for the tooling

- table with T-slots

- hydraulic cutting stroke damper

- double acting triple-cylinder in the press ram

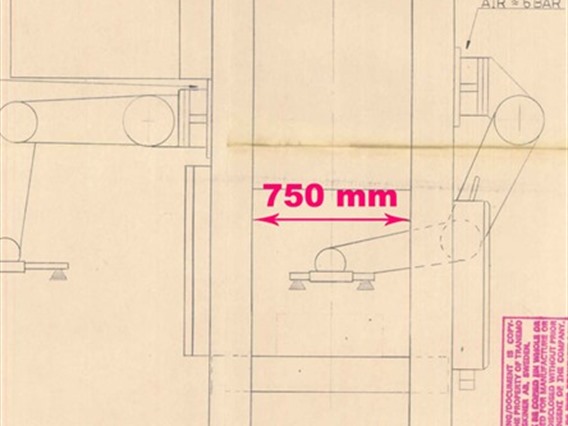

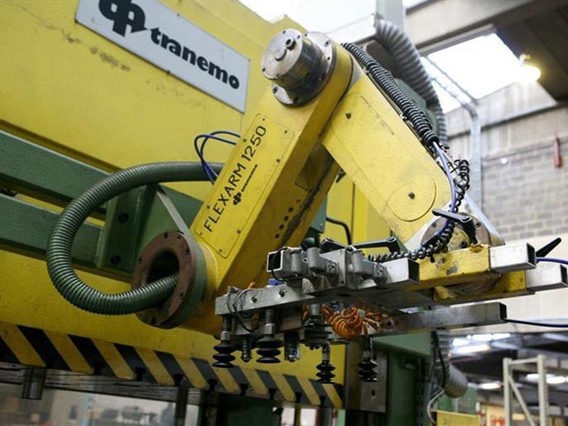

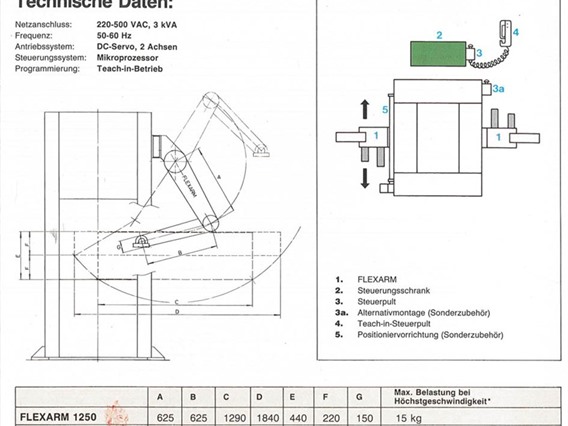

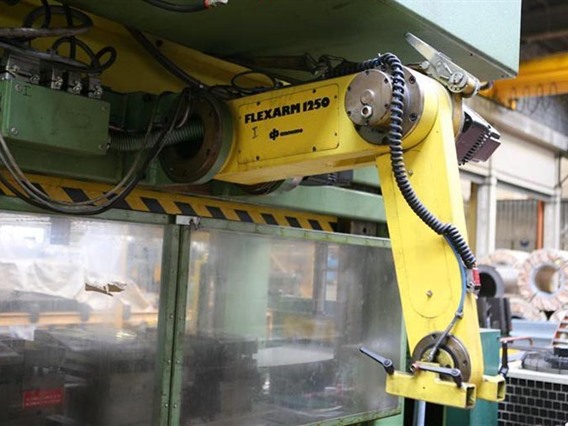

- two flexarm 1250 robots for (un)loading
Tip/Model: DPA 250-25 CNC
Stok numarası: M.06 6495
Kategori: [M] Hidrolik basınç
Alt kategori: [M.06] Vierkolomspersen – Enkelslag
Marka: Tranemo
