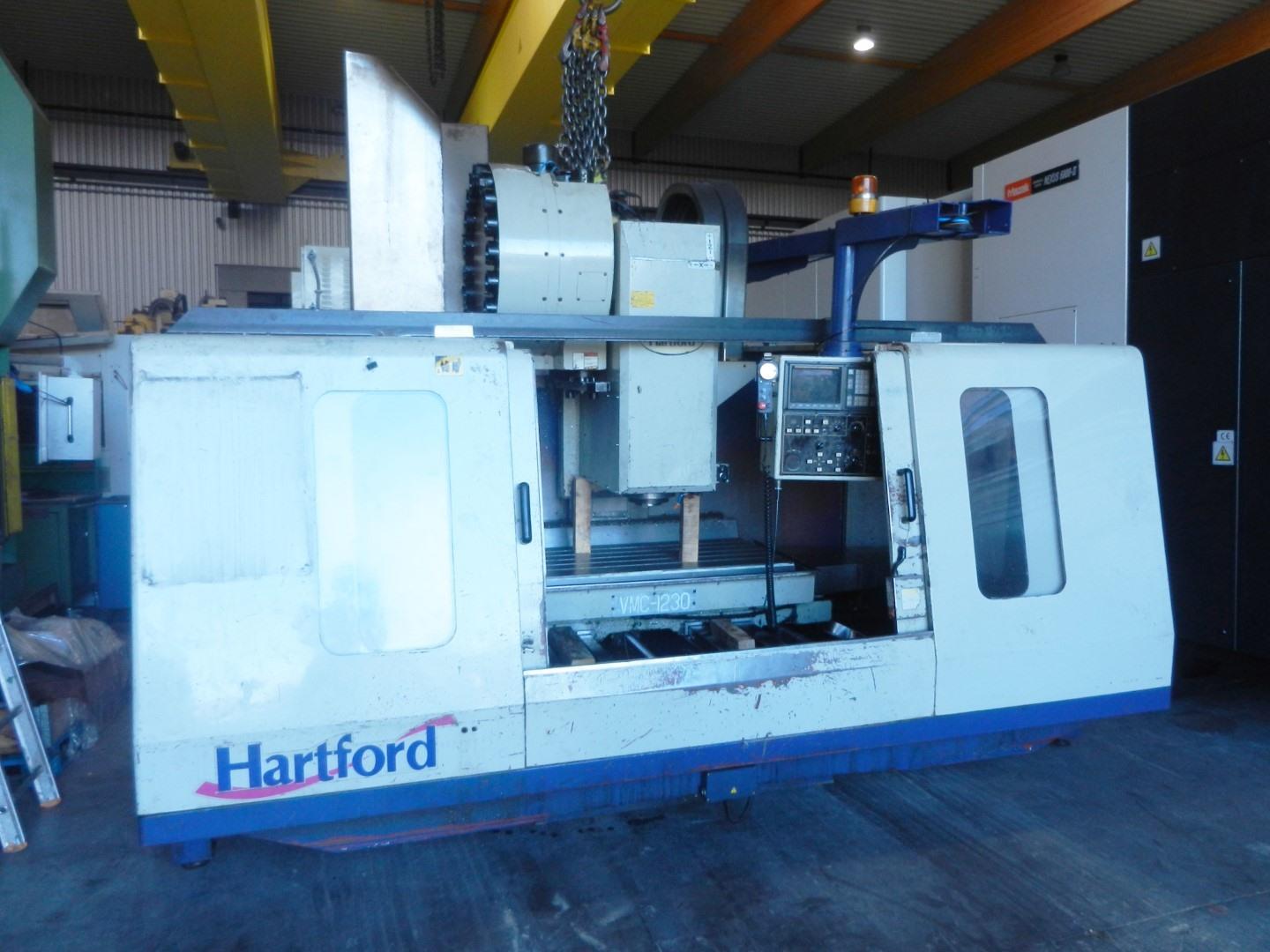

Hartford VMC1230A X: 1230 - Y: 610 - Z: 610mm
Teknik Bilgiler
- Table longitudinal travel (X-axis)1230 mm
- Cross travel head (Y-axis)610 mm
- Height travel head (Z-axis)610 mm
- Table dimensions1270 x 630 mm
- Max weight on the table1200 kg
- Depth of throat (uprights-spindlecenter)610 mm
- Admission in spindle (ISO)ISO 50
- Power on the spindle15 kW / 20 hp
- Control (type)Fanuc
- Number of axes3
- Toolchangeryes
- Number of toolholders20 tools
- Number of rotations (from X to Y rpm)50 - 6000 rpm
- Power principal motor 25 kVa
- Length L -- R3800 mm
- Depth Fw -- Bw2800 mm
- Height2800 mm
- Weight9700 kg
