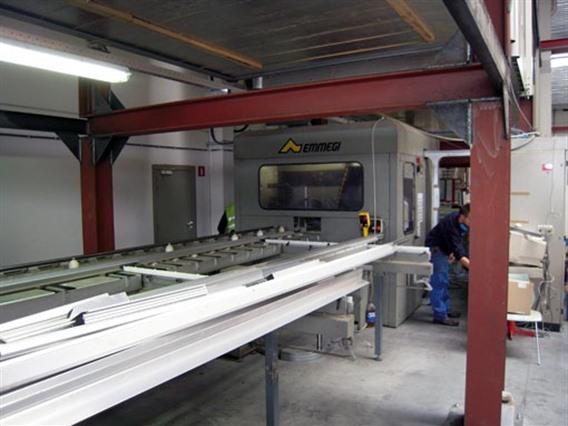

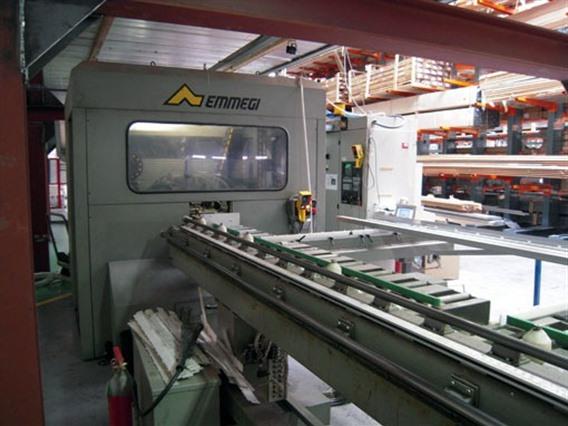

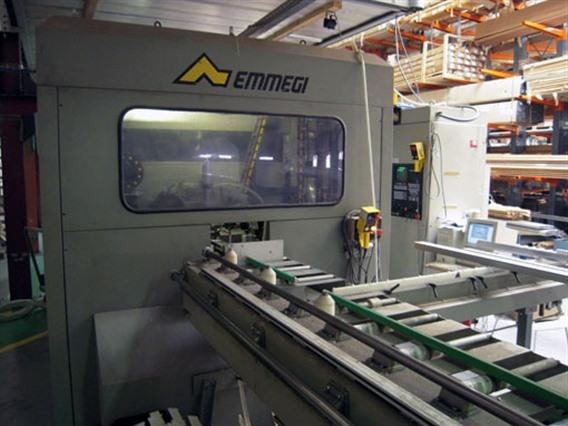

Emmegi Quadra ST 7000

Ürün favorilere eklendi

Teknik Bilgiler

Table longitudinal travel (X-axis)240 mm
Cross travel head (Y-axis)350 mm
Height travel head (Z-axis)350 mm
Max weight on the table500 kg
Admission in spindle (ISO)ISO 25
Power on the spindle4,5 kW

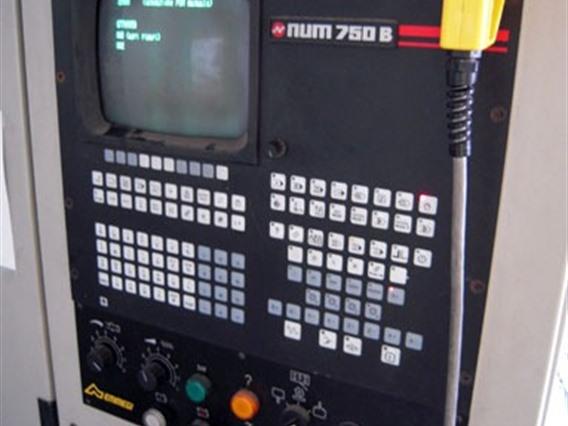

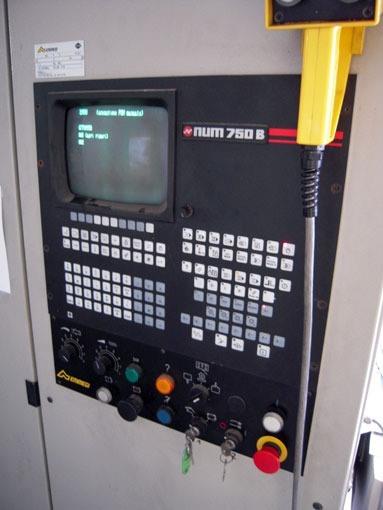

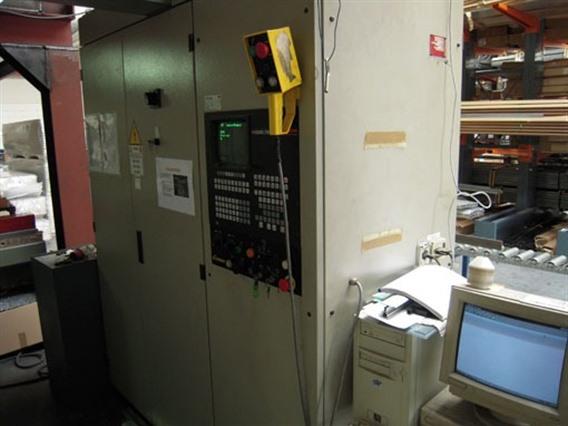

Control (type)NUM 750 B
Number of axes6 axes
Number of rotations (from X to Y rpm)500 -> 20000 rpm
Power principal motor 35 kW

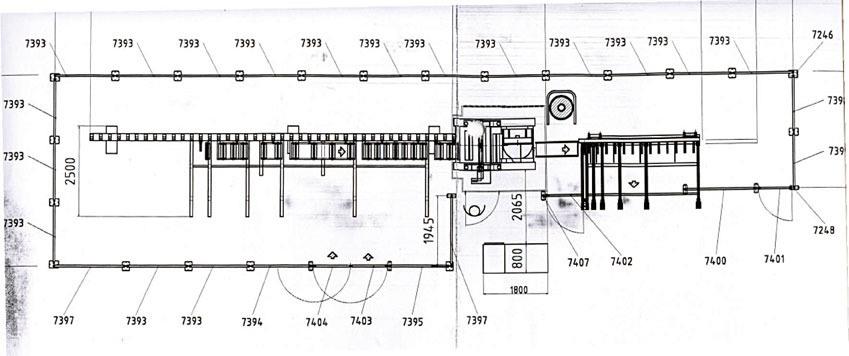

Length L -- R19400 mm
Depth Fw -- Bw5250 mm
Height2500 mm
Weight7400 kg

Ek bilgi

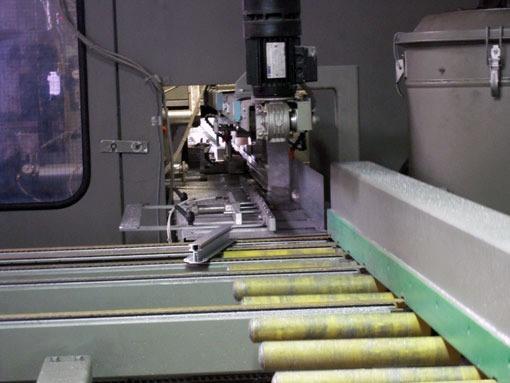

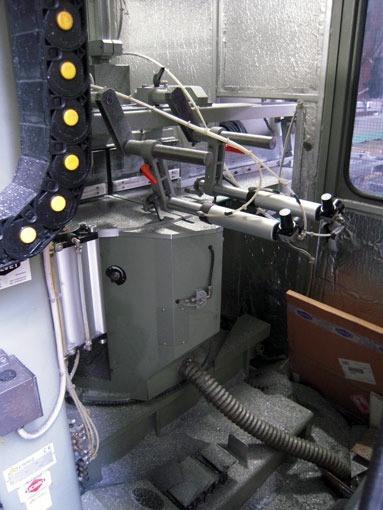

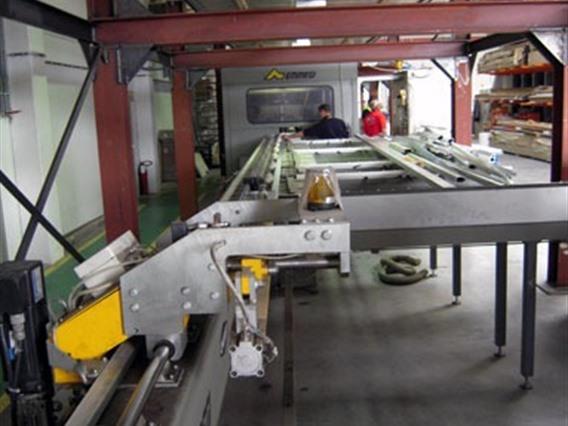

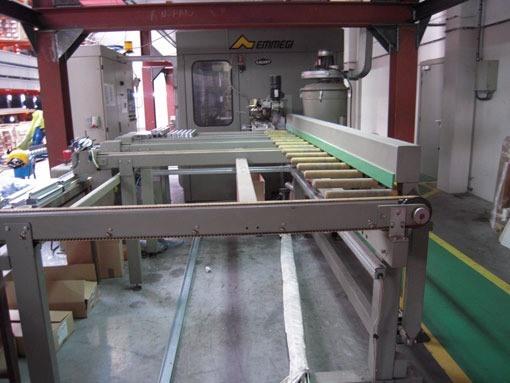

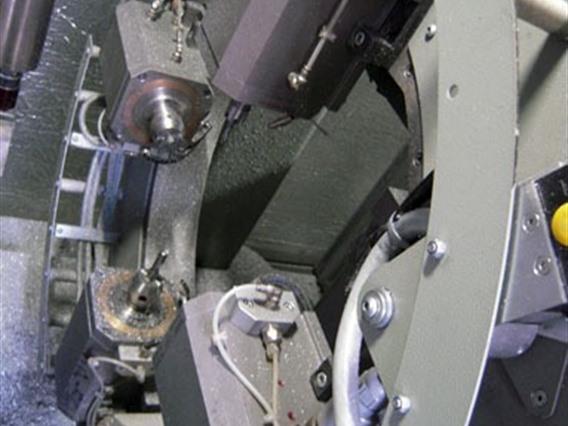

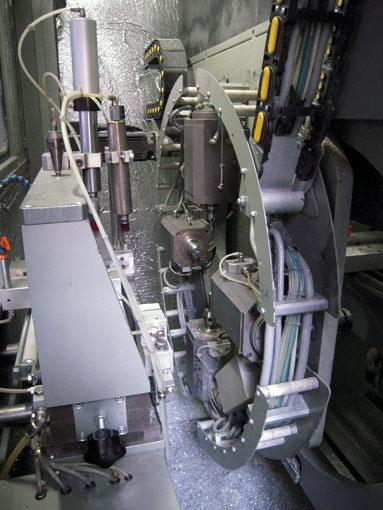

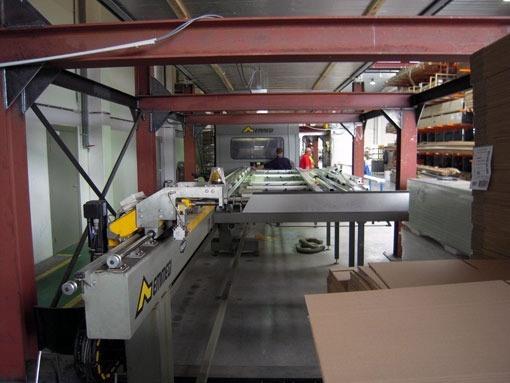

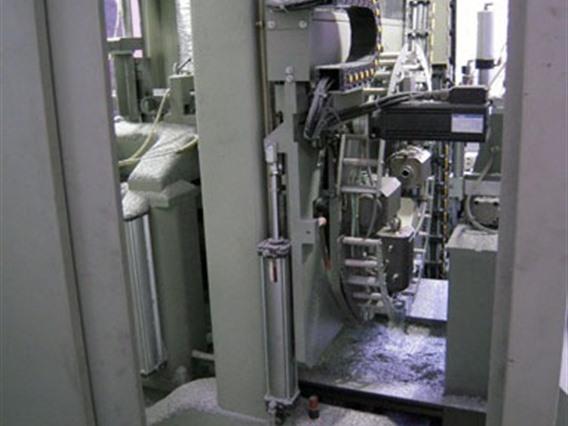

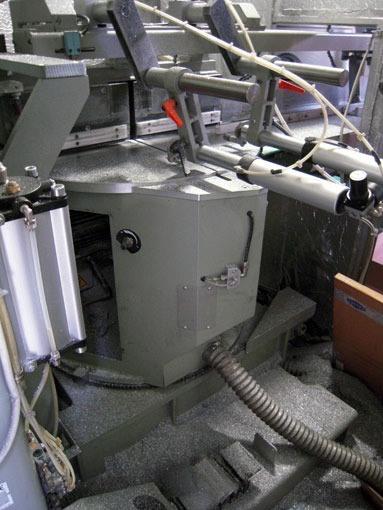

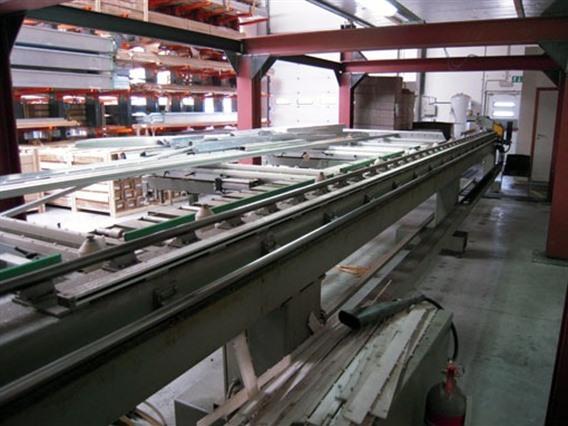

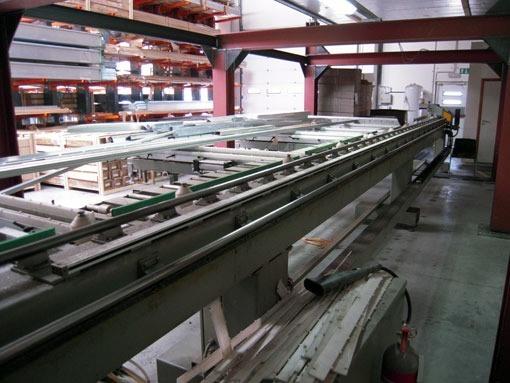

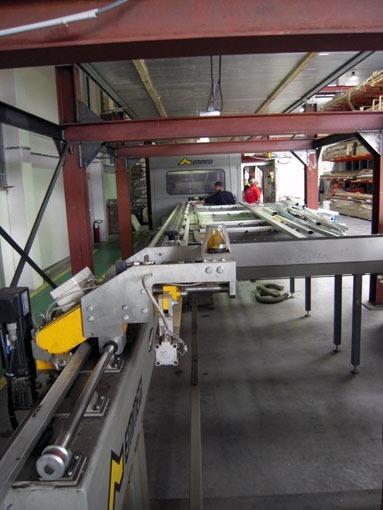

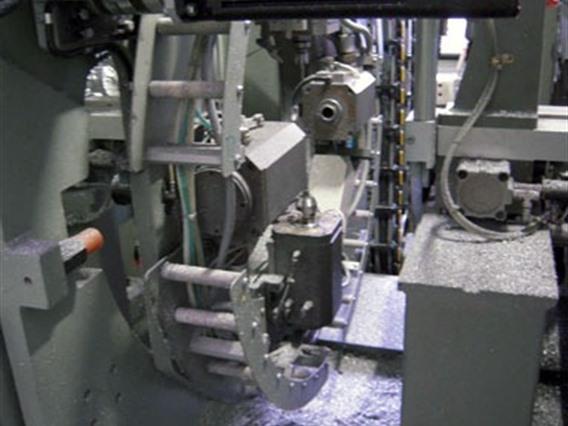

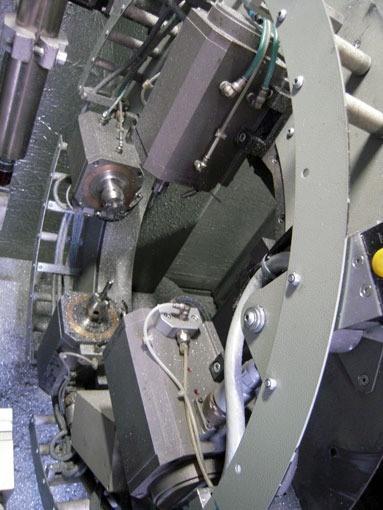

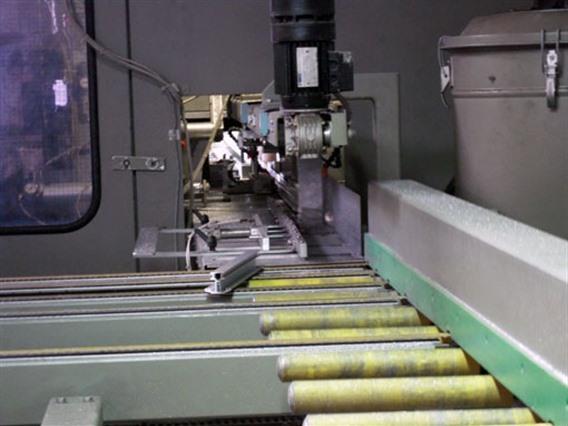

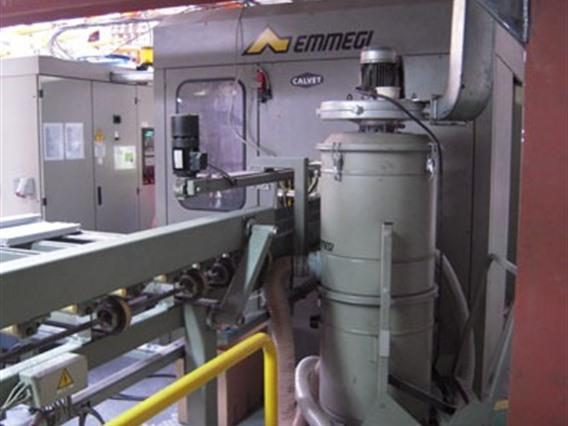

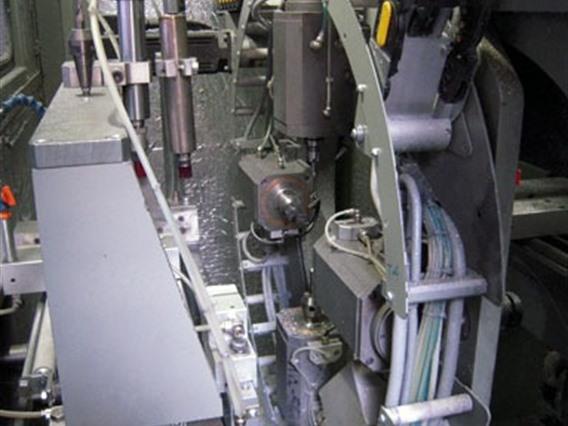

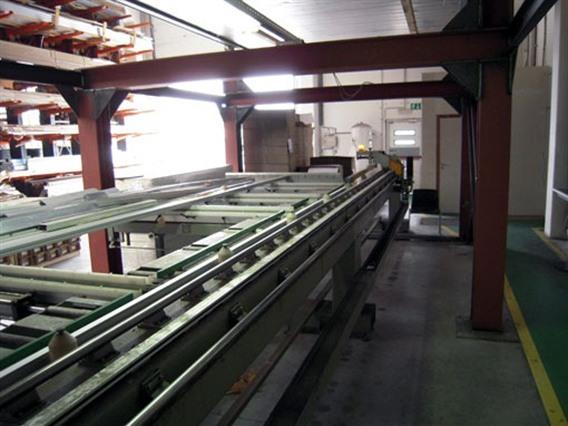

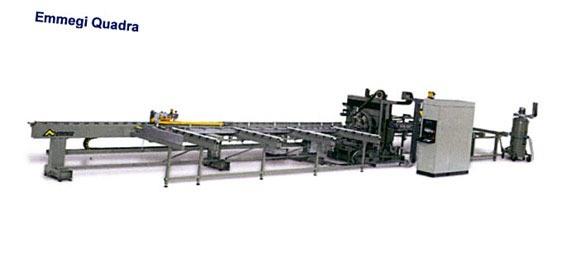

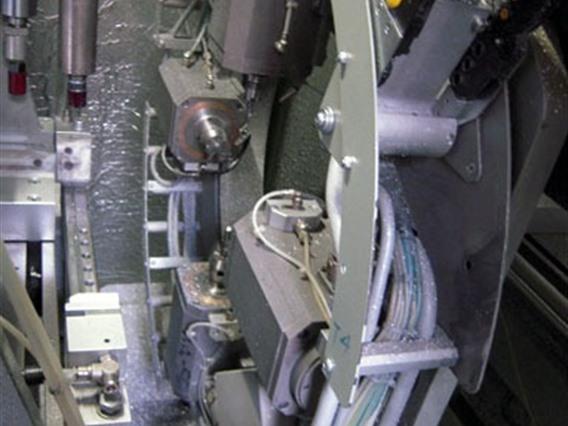

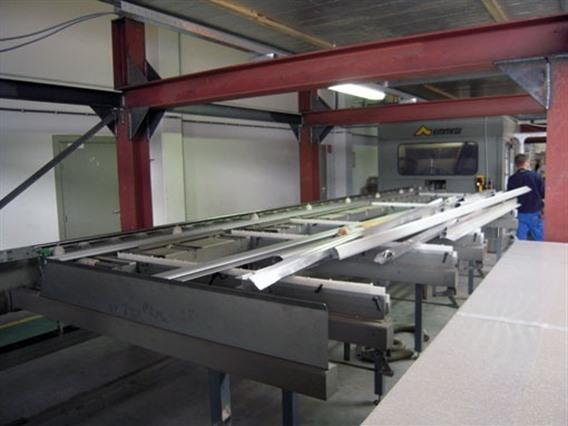

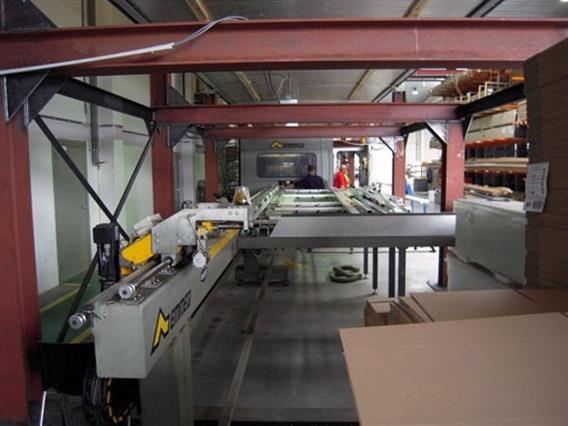

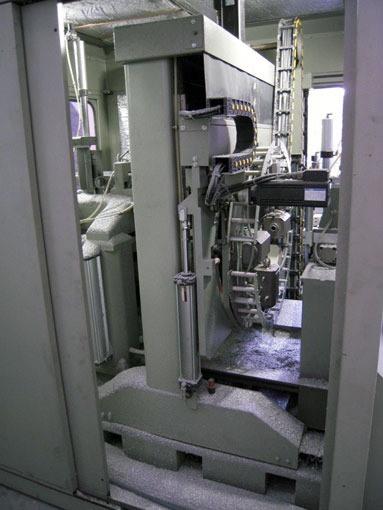

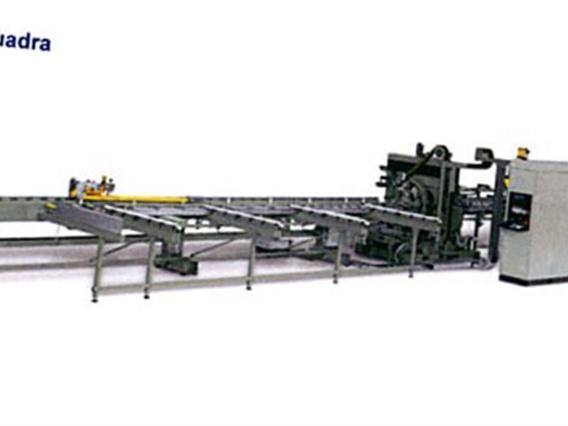

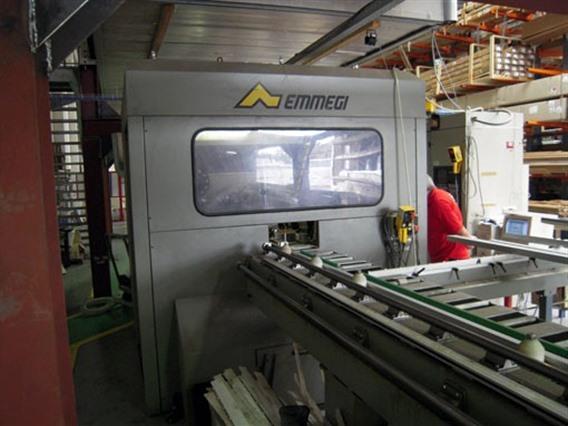

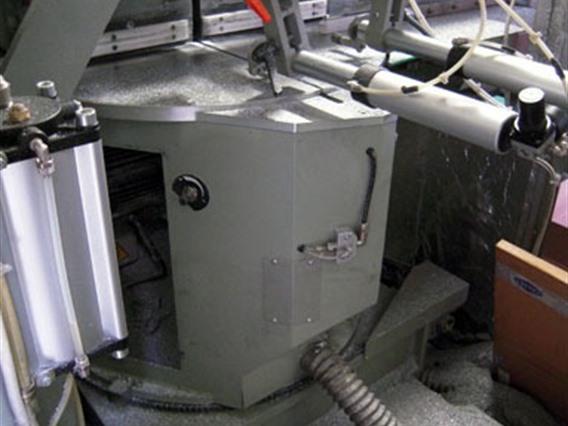

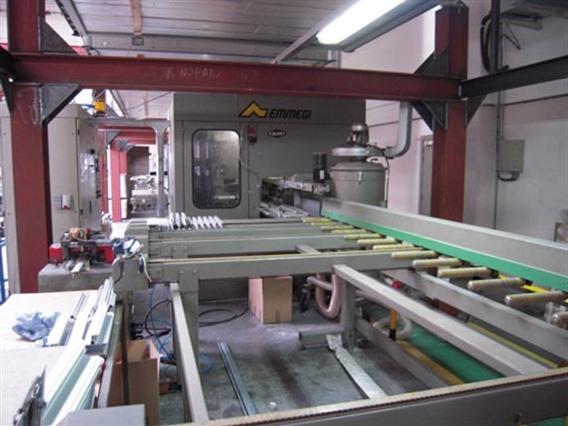

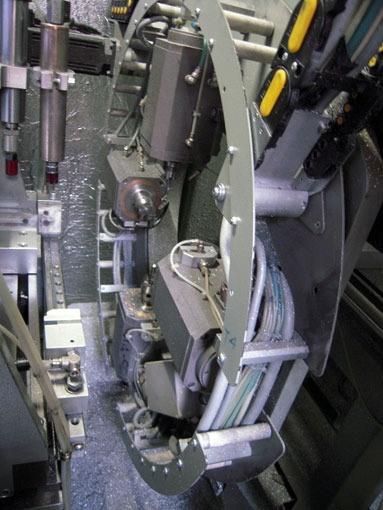

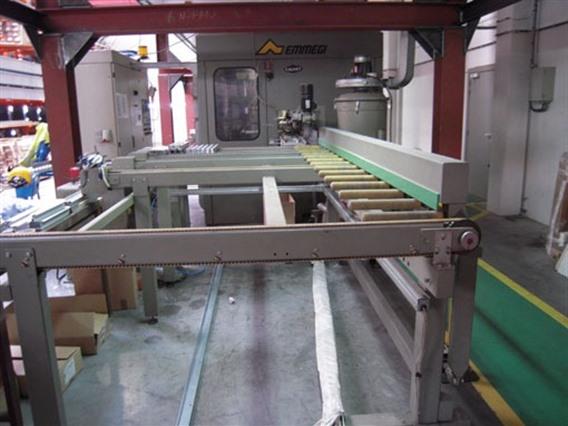

Complete 6-axis CNC machining centre, designed for milling, drilling, thread-cutting and slotting operations on bars or workpieces made of aluminium, PVC, light alloys to in general. It is provided with an automatic magazine for feeding unmachined bars the system without requiring operator attendance. The 4-axis CNC milling module with 4 electro-spindles, located in the centre, is able to machine along the entire contour of the workpiece regardless of its orientation. The N/C cutting module with continuous rotation allows cutting angles in the range 22°30’ and 157°30’ with rising blade dia. 600 mm. The final part of the system consists of a storage unit for finished parts with cross-belt conveyor. The central operating part is provided with a sound- damped enclosure which, besides protecting the operator, also allows reducing the environmental noise impact. Movements: X axis: 240 mm Y axis: 350 mm Z axis: 350 mm A axis: 0° -> 360° B-axis: -22,5° -> 157,5°
Tip/Model: Quadra ST 7000
Stok numarası: D.01 4929 *09
Kategori: [D] Uygulama merkezi
Alt kategori: [D.01] Vertikale bewerkingscentra CNC
Marka: Emmegi

Stok numarası: D.01 4929 *09
