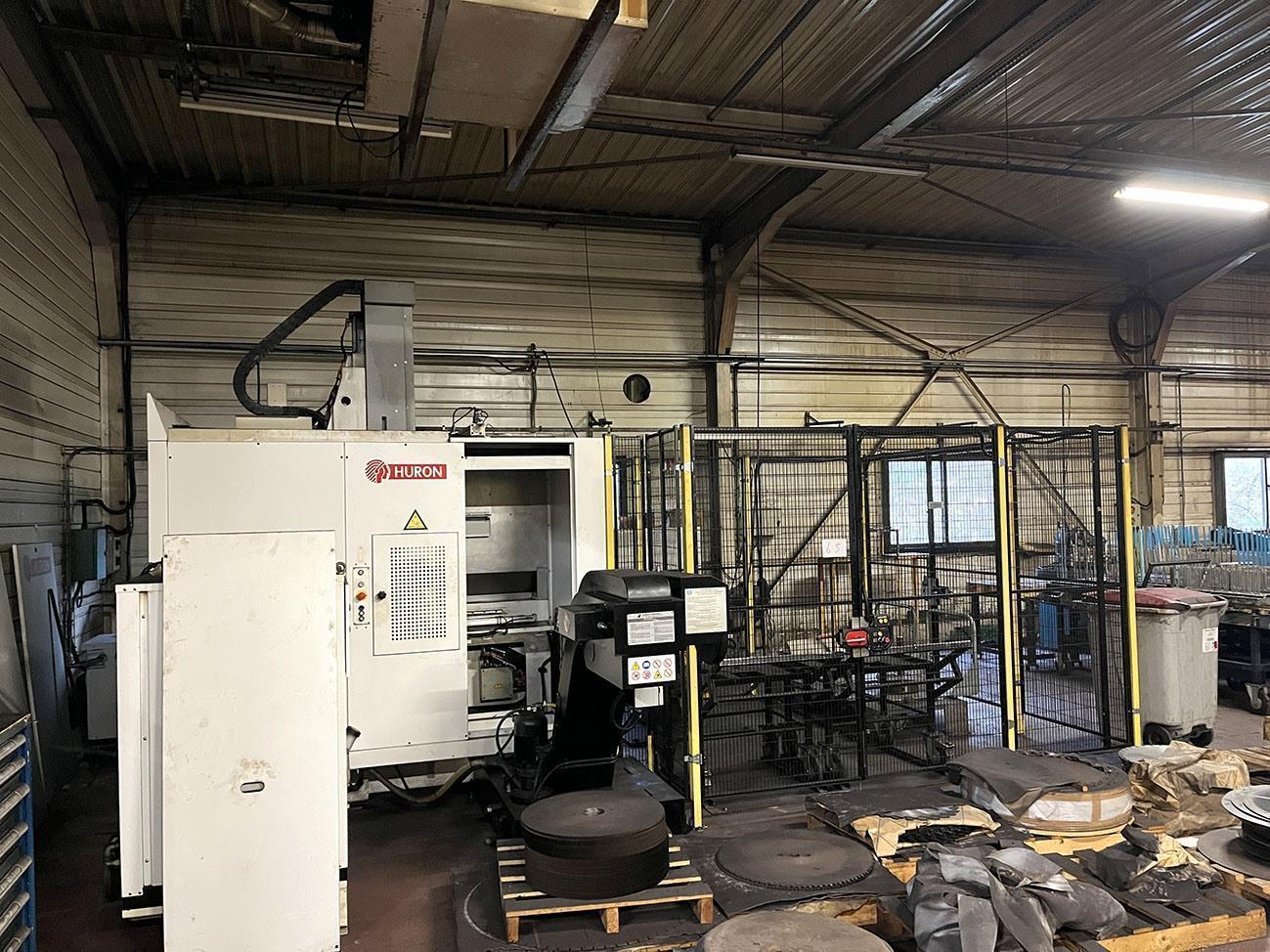

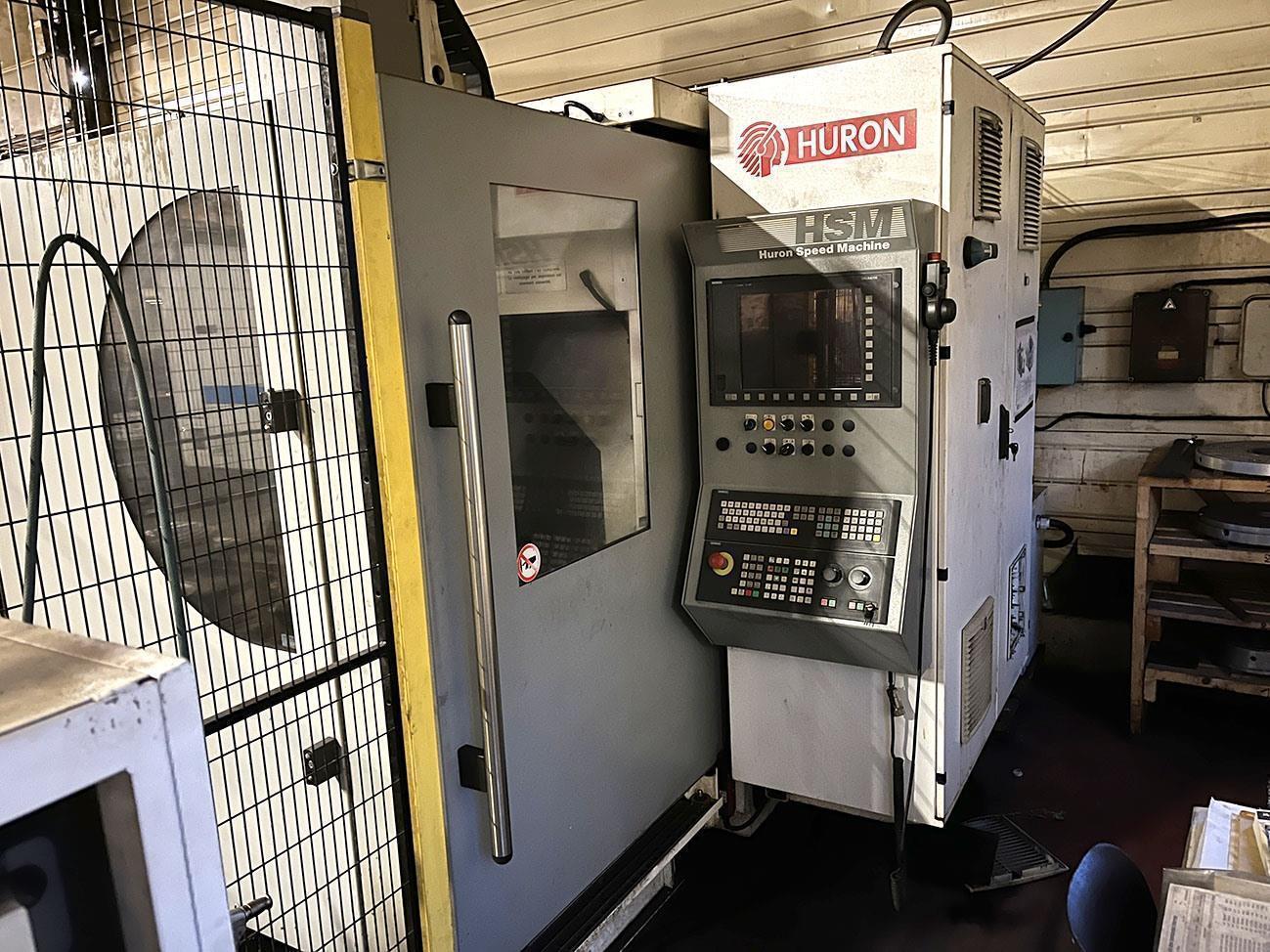

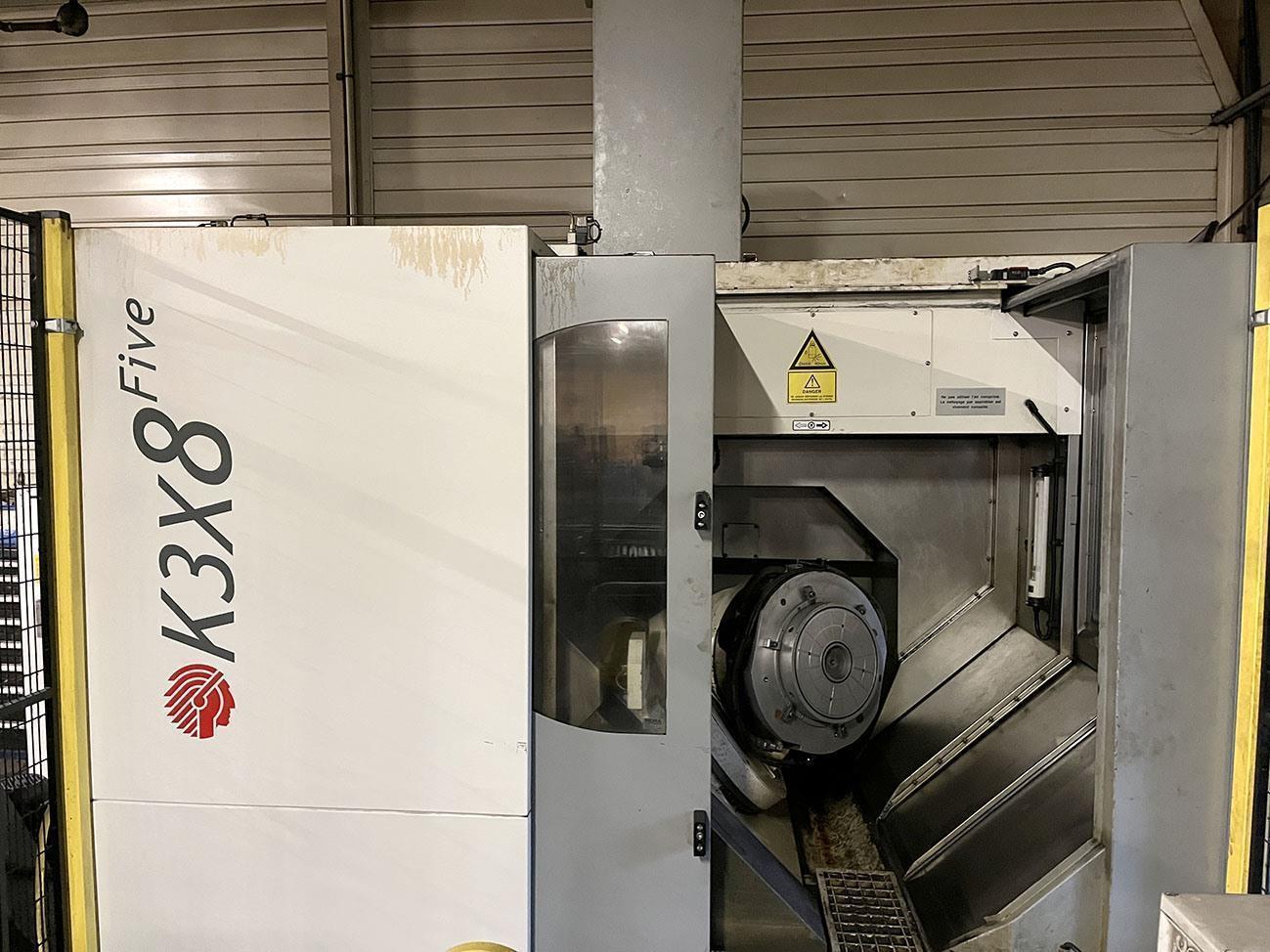

Huron K3X8F X: 780 - Y: 700 - Z: 500 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

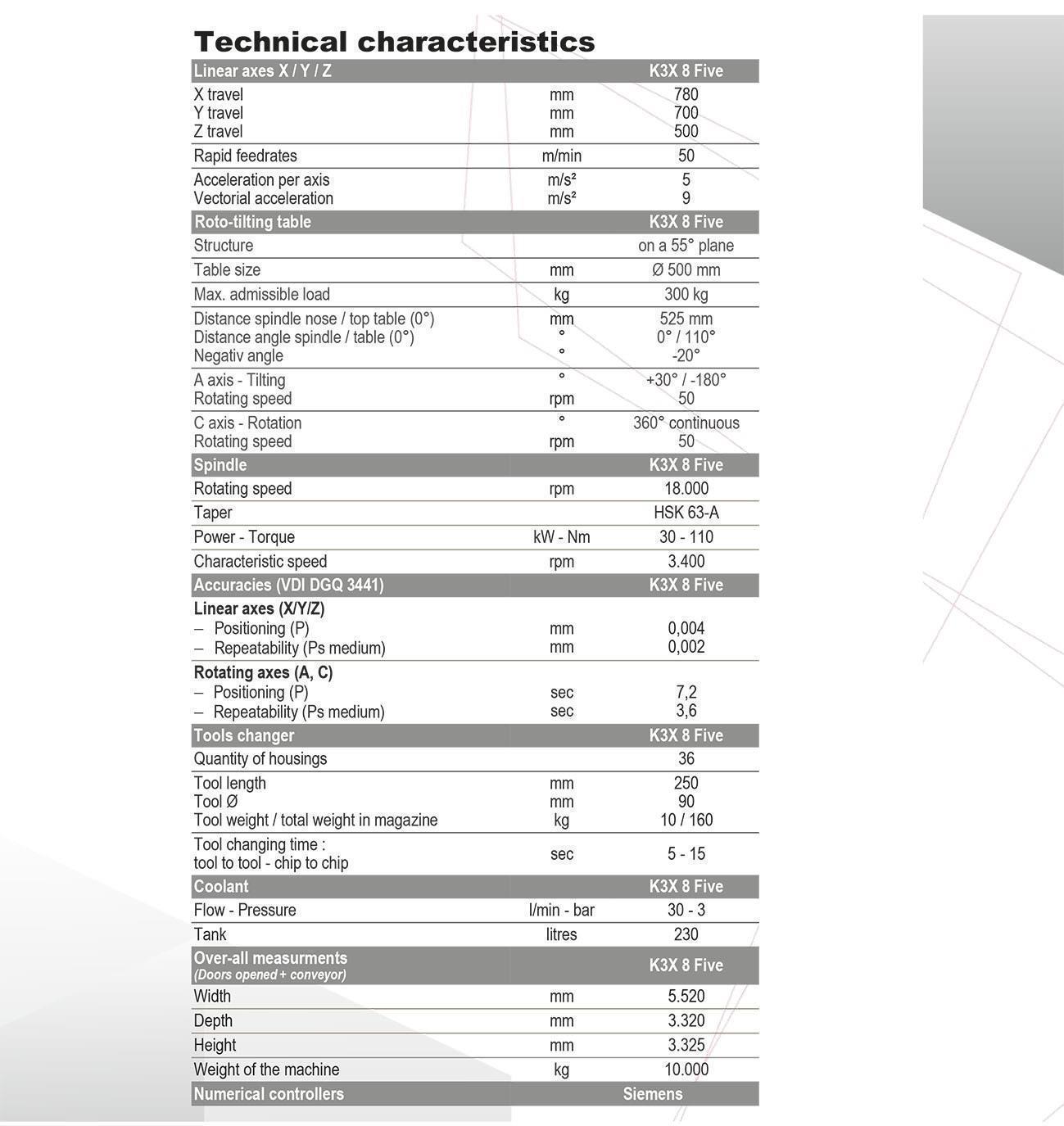

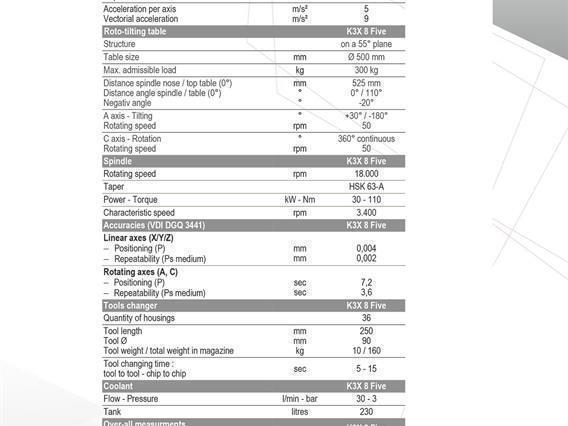

Teknik Bilgiler

Max longitudinal travel X-axe780 mm
Max cross-travel Y-axe700 mm
Max travel Z-axe500 mm
Admission in millingheadHSK 63A

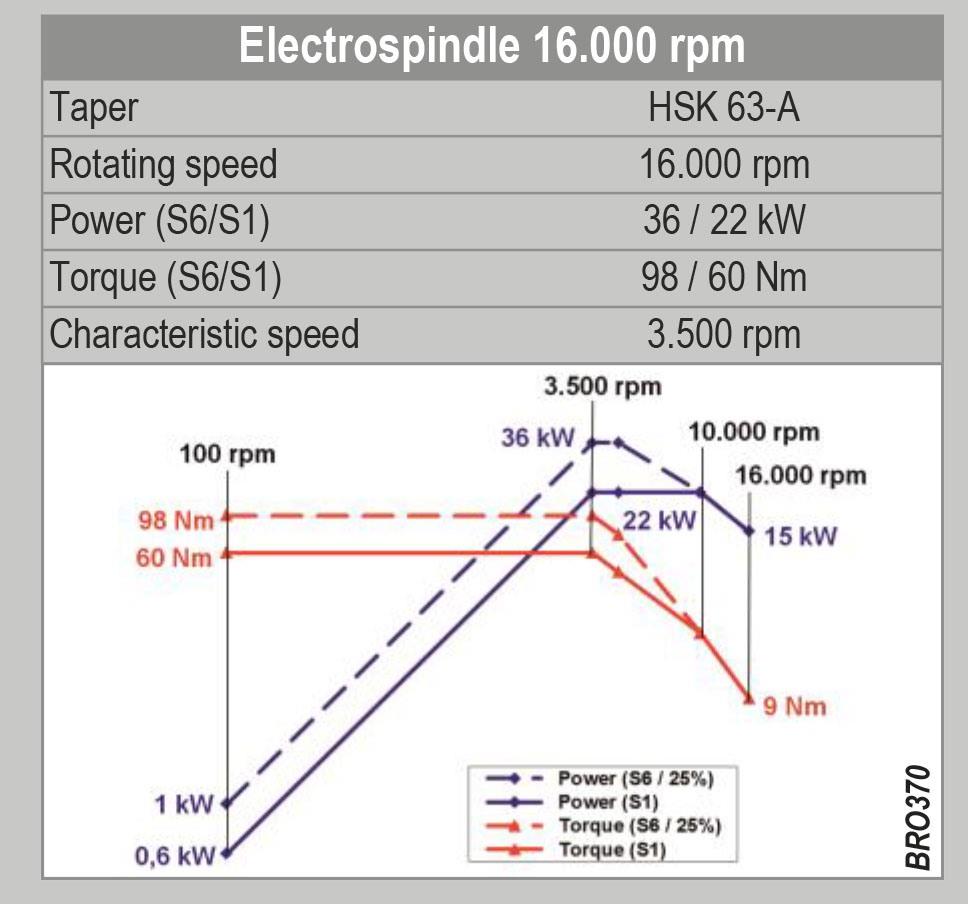

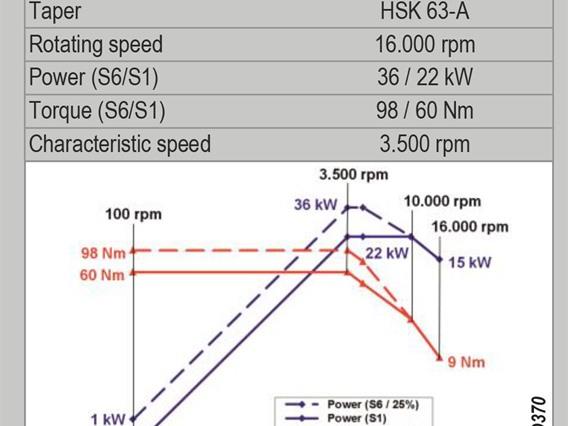

Spindlespeeds16 000 rpm

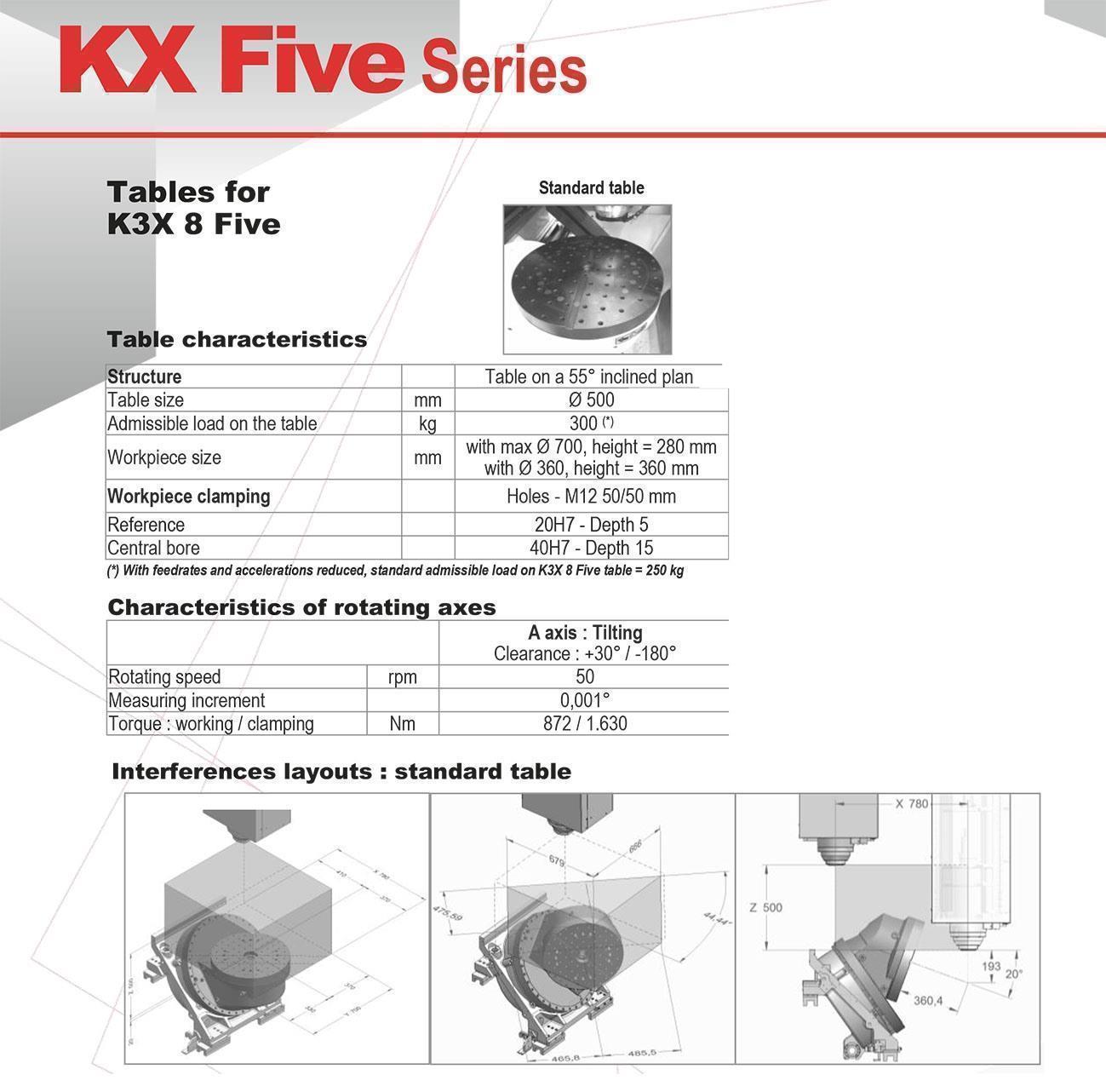

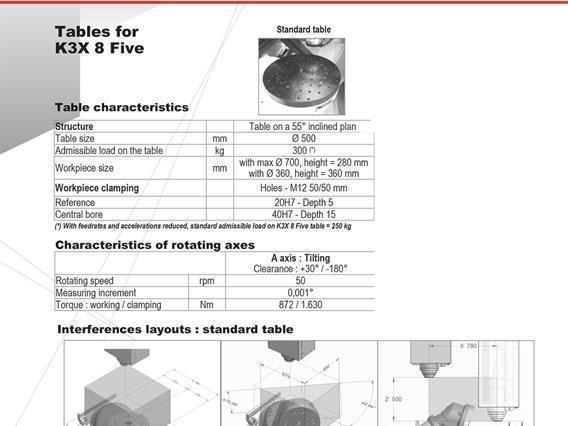

Table sizedia 500 mm

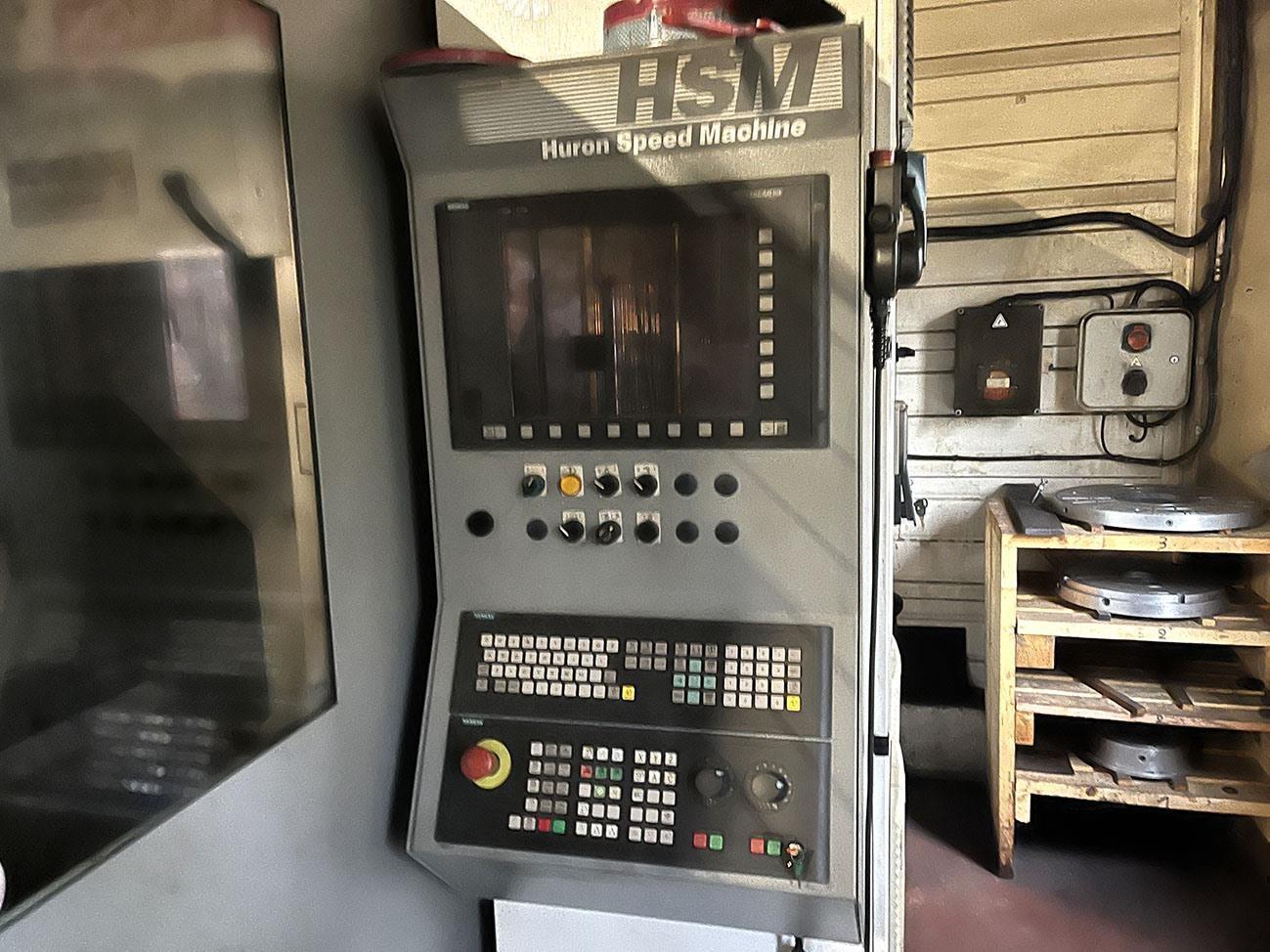

ControlSiemens
Power needed50 kW

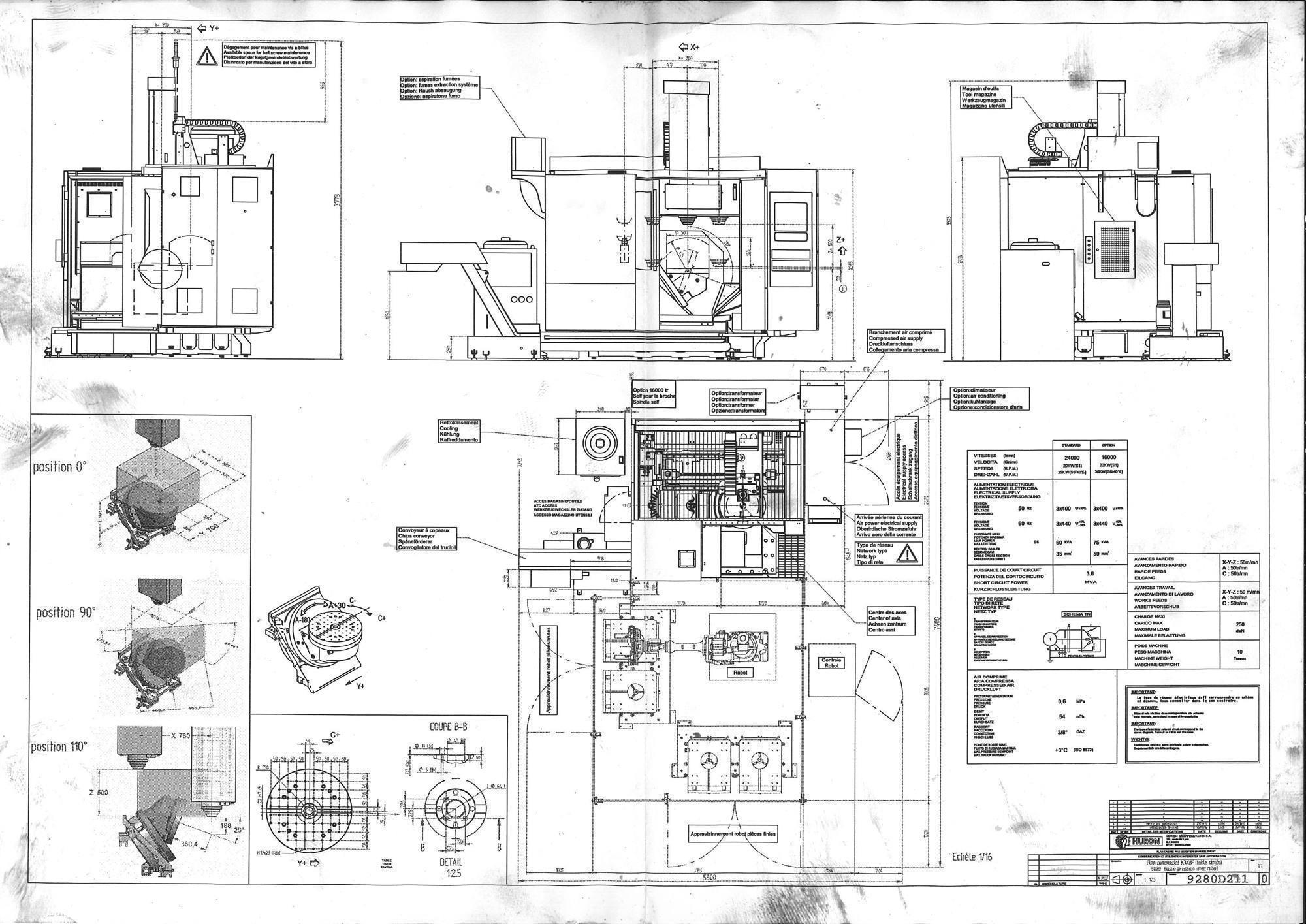

Length L -- R5520 mm
Depth Fw -- Bw3320 mm
Height3325 mm
Weight10 ton
Toolholderyes
Number of tools36 toolpositions

Ek bilgi

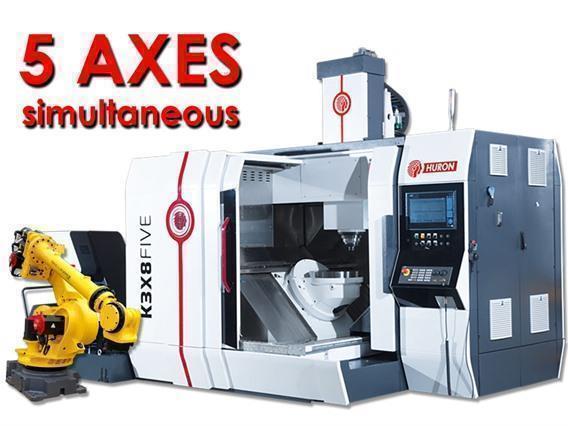

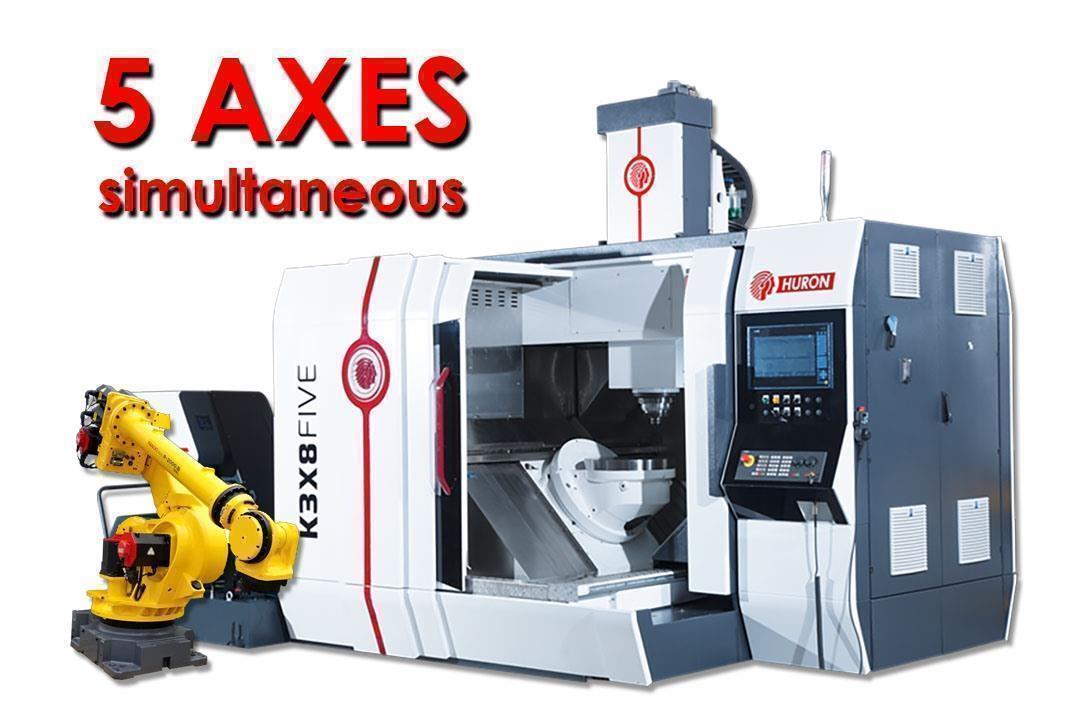

5 axis simultaneous machining center
Type: K3X8F
max workpiece: dia 700 mm
max workpiece weight: 300 kg
distance spindle nose / top table: 525 mm

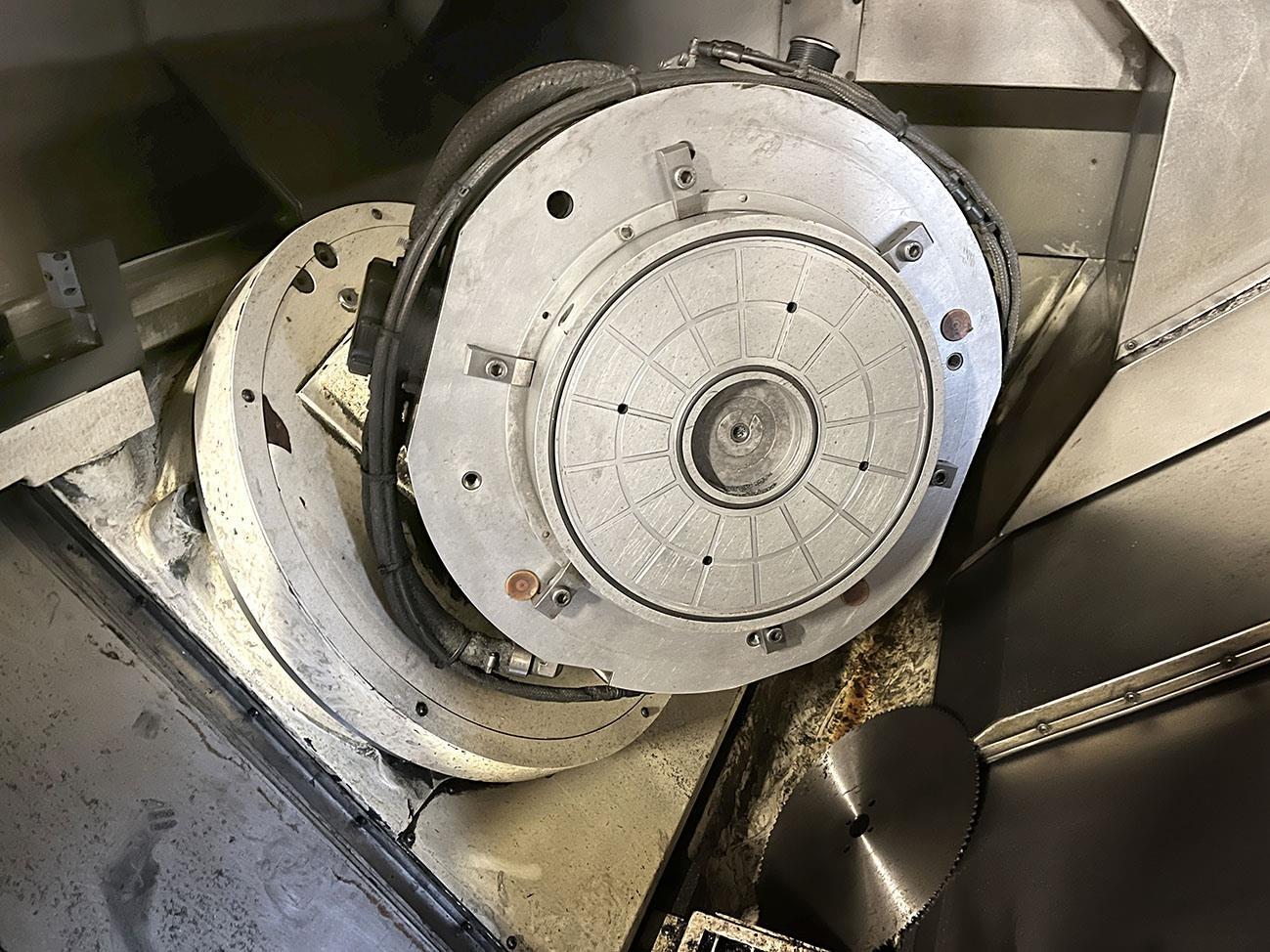

A-axis (tilting): +30°/-180°
C-axis (rotation): 360° continuous
high pressure cooling through spindle
chipconveyor

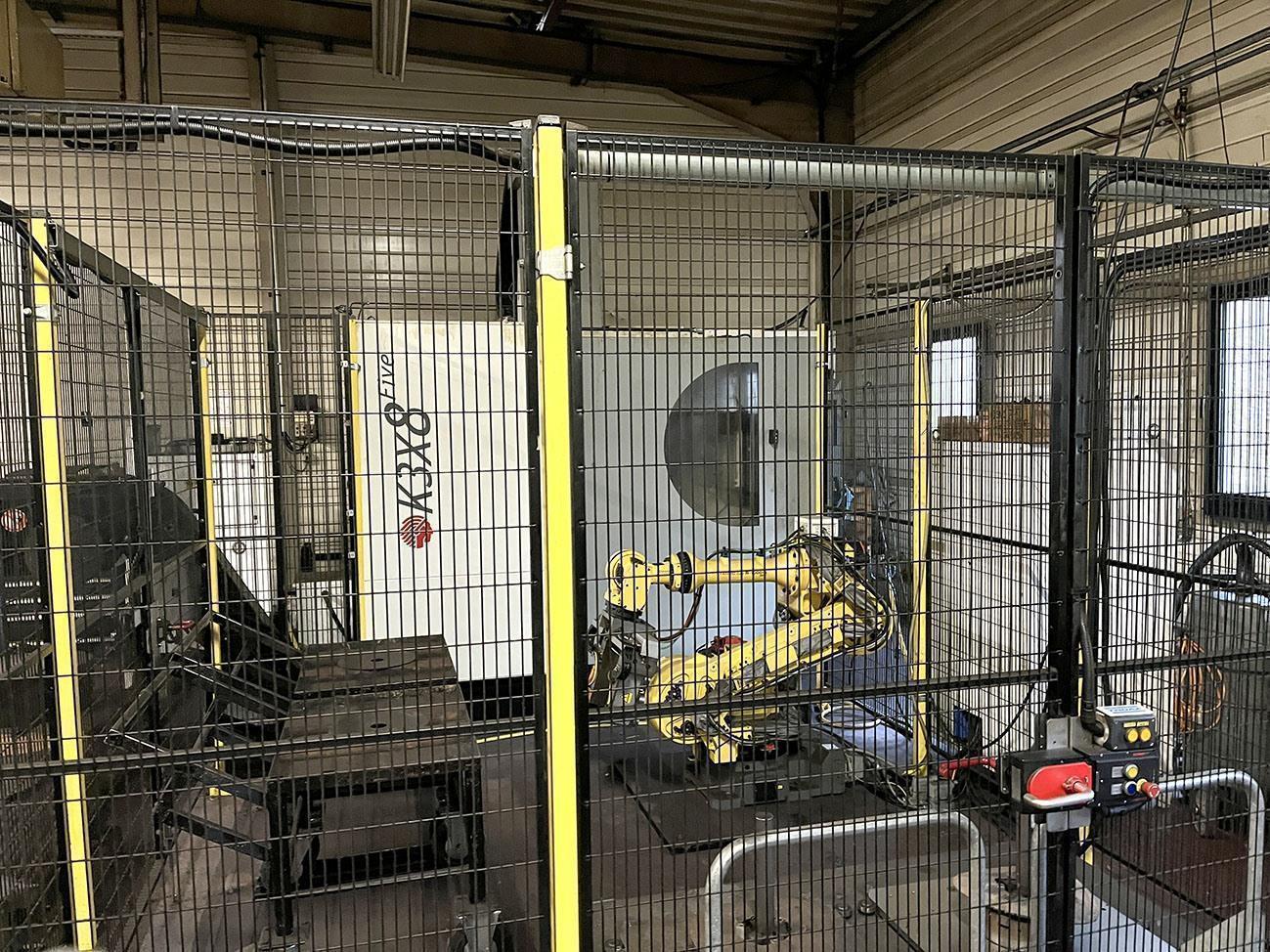

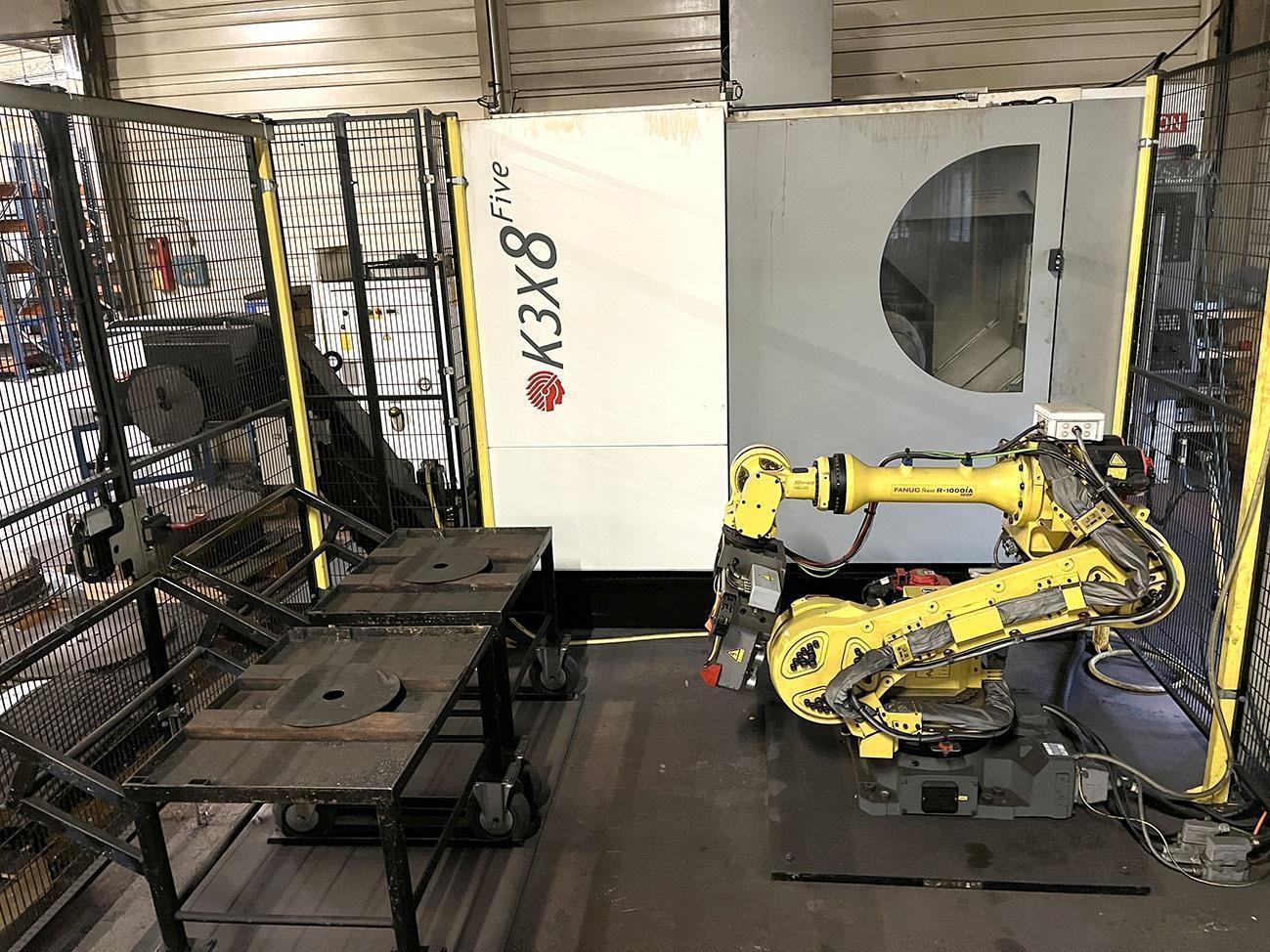

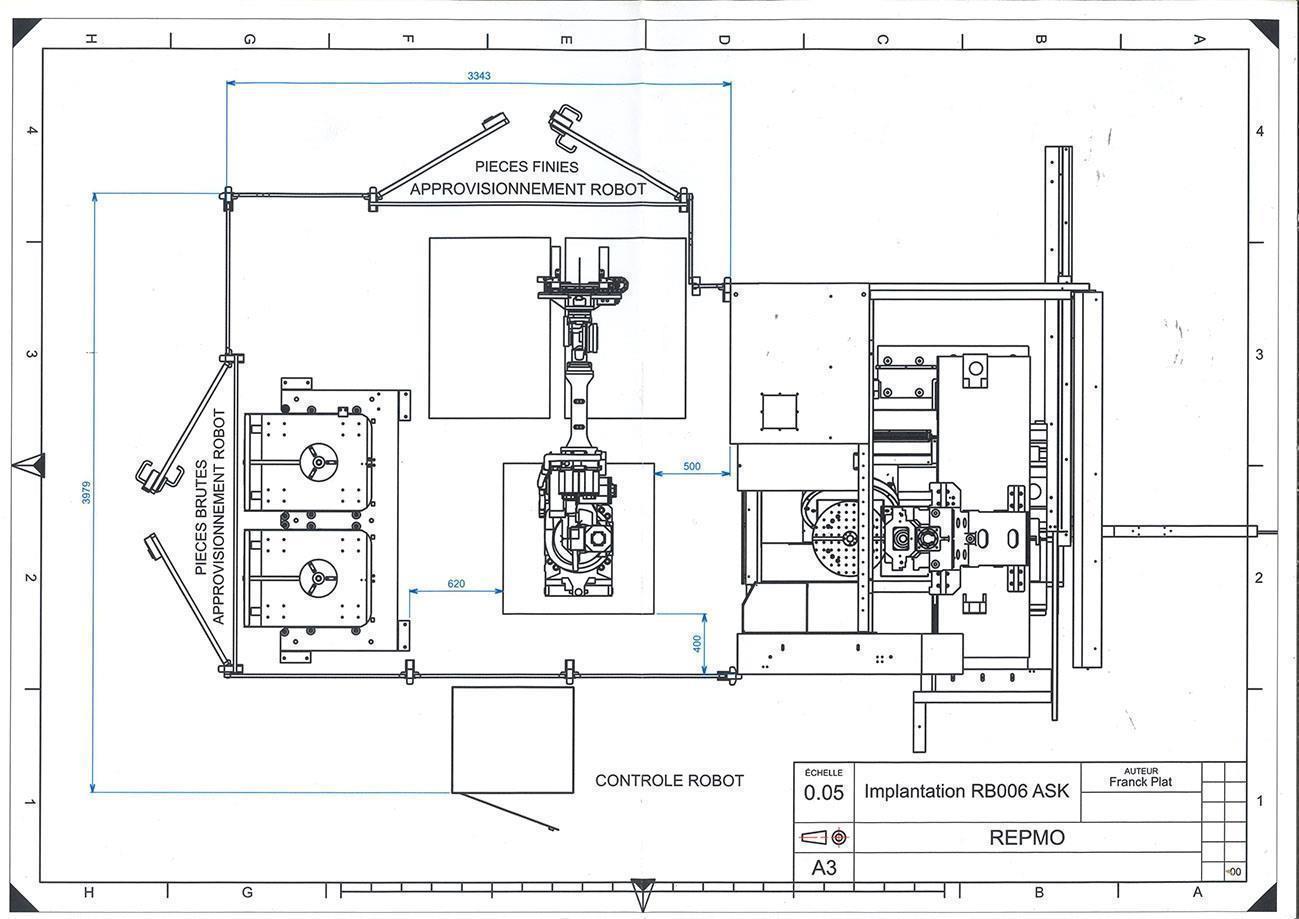

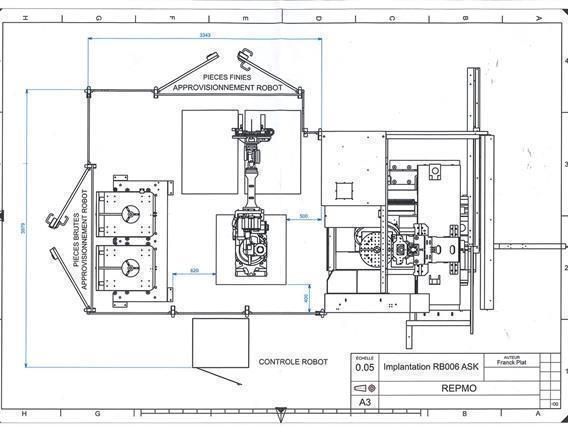

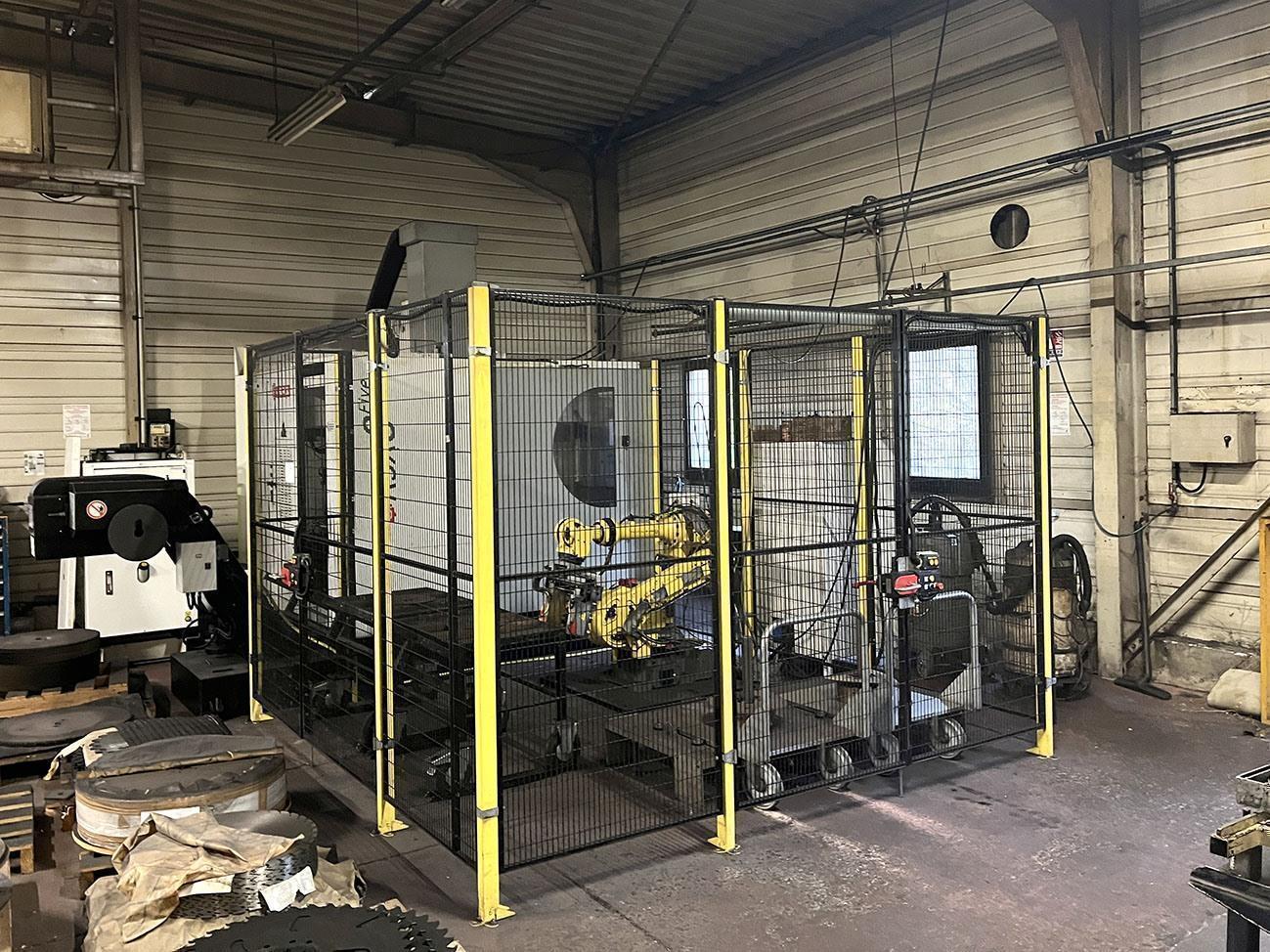

with Fanuc Robot loading system RB:

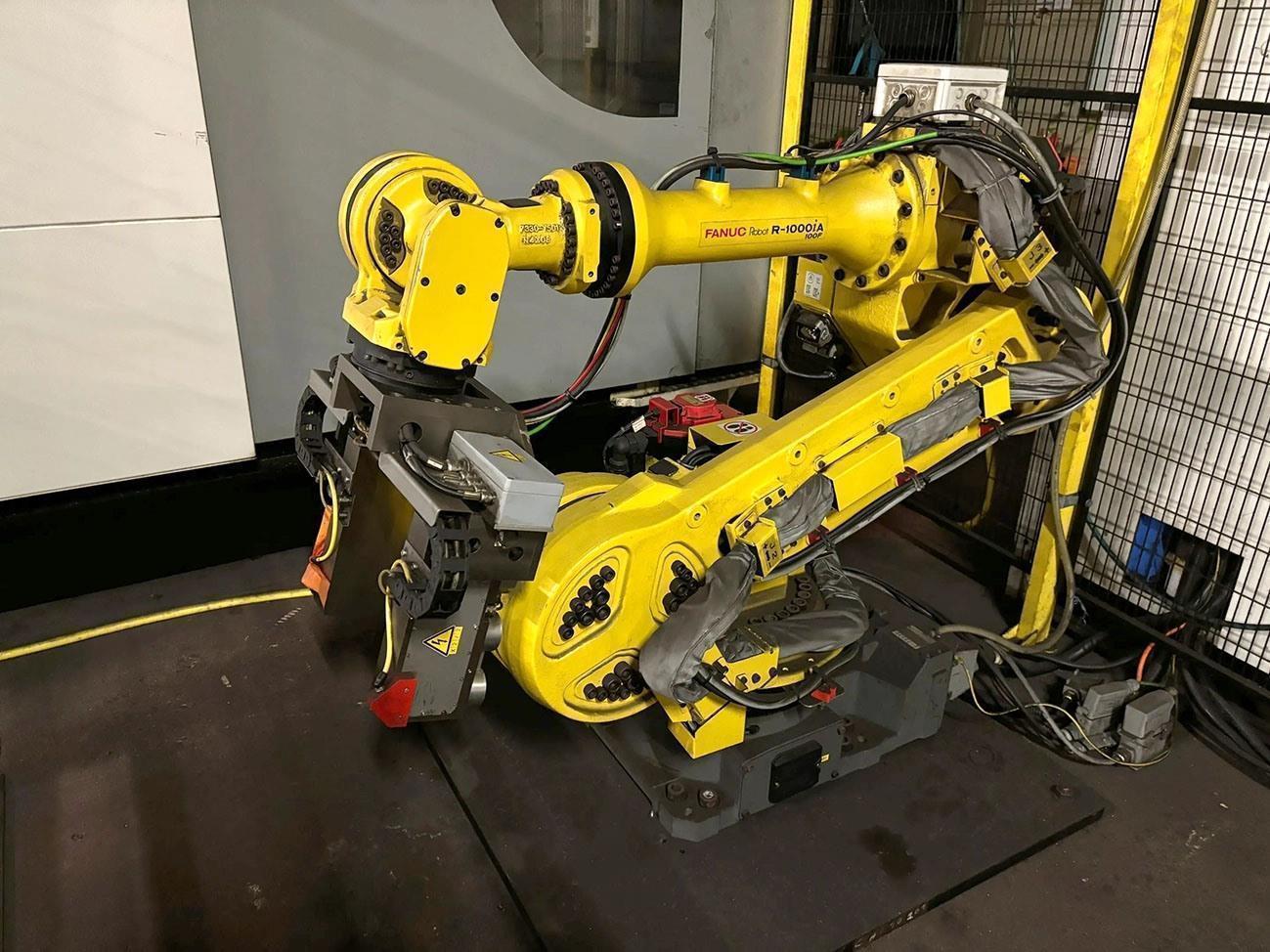

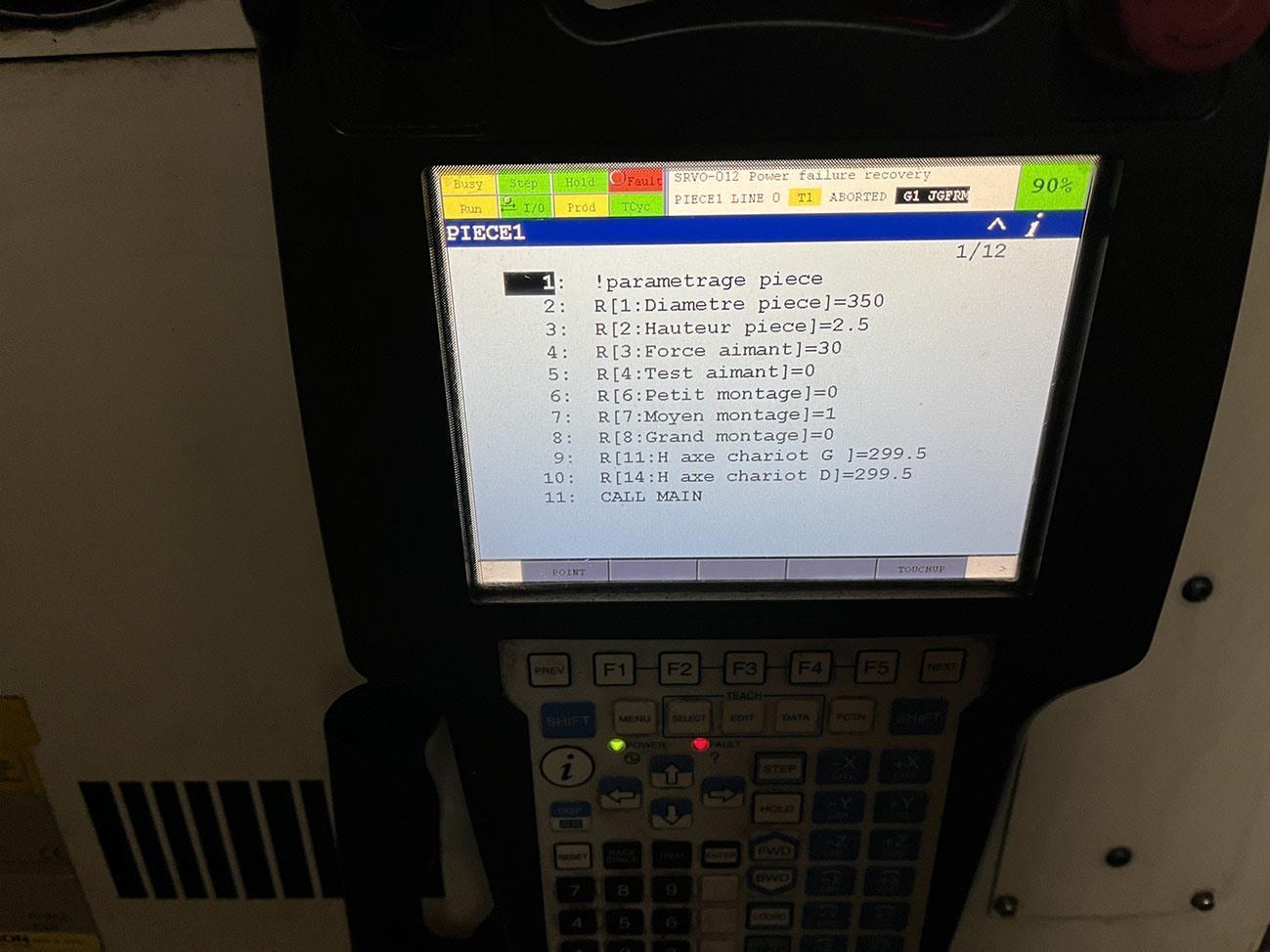

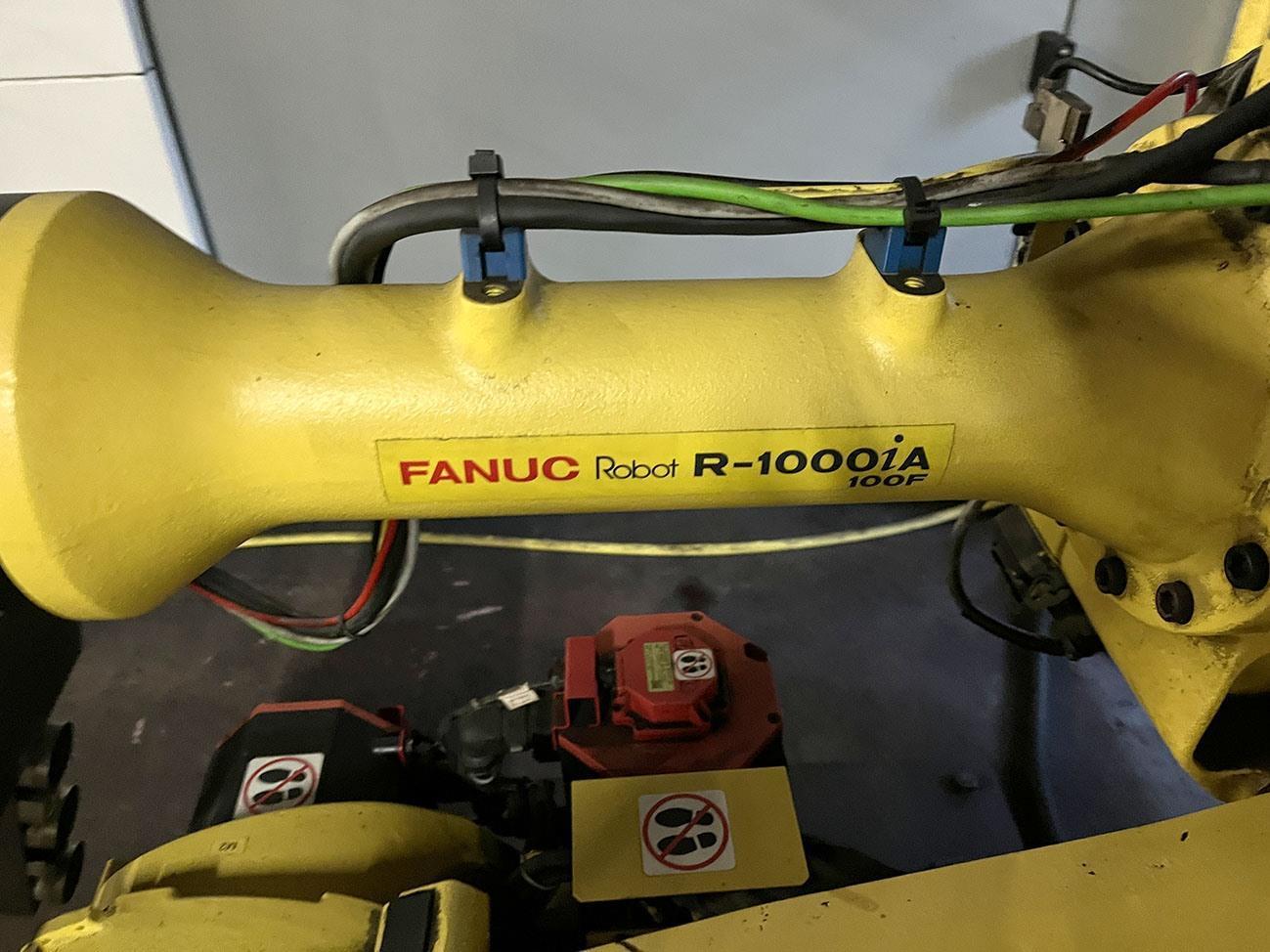

Robot: A05B-1330-B205 (Fanuc Robot R-1000iA/100F)

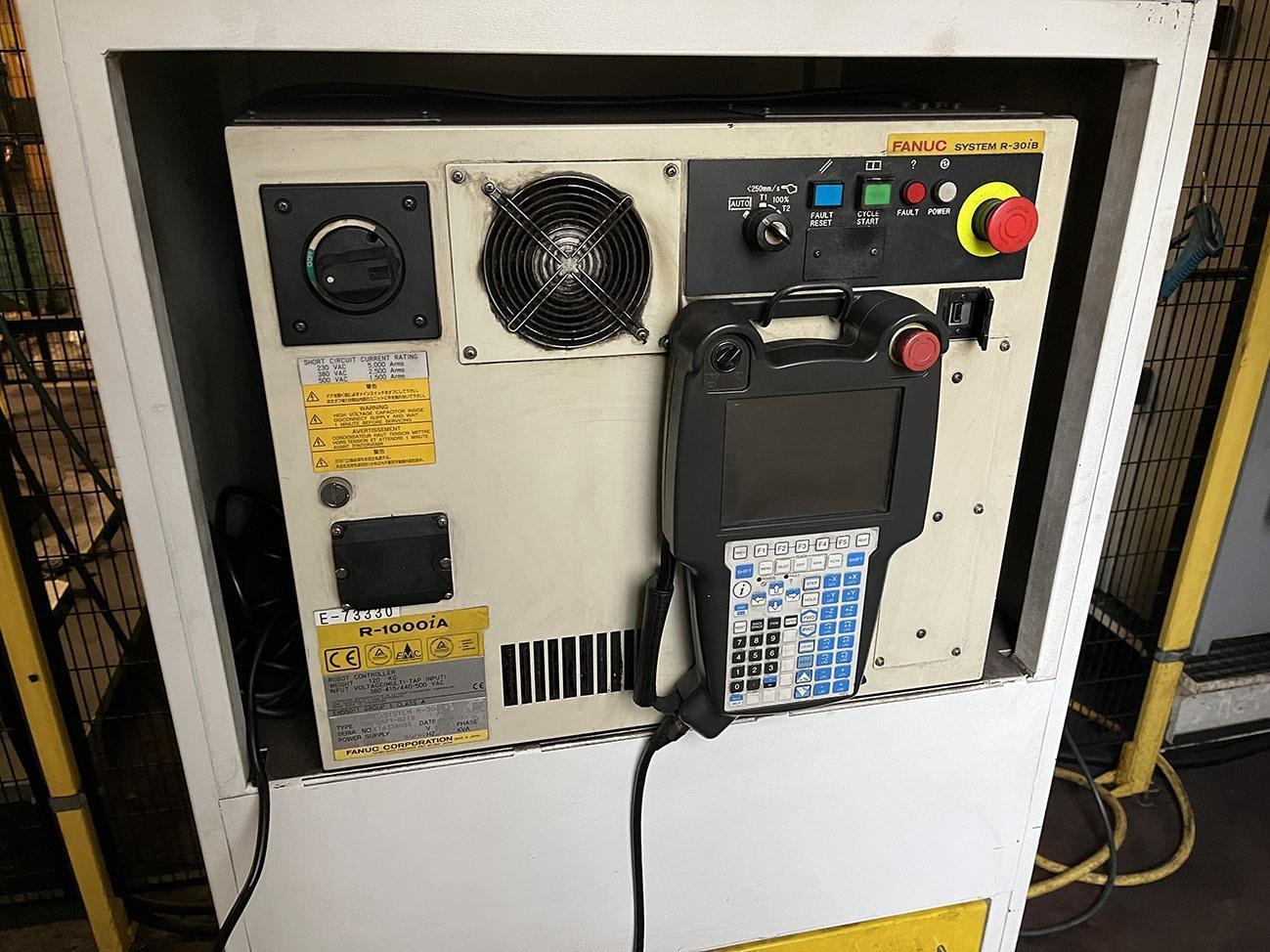

Controller: A05B-2601-B112 (Fanuc system R-30iB)
Tip/Model: X: 780 - Y: 700 - Z: 500 mm CNC
Stok numarası: B.01 15212
Kategori: [B] Freze makineleri
Alt kategori: [B.01] Universele freesmachines conventioneel & CNC
Marka: Huron K3X8F

» Kişisel fiyat talep edin

Stok numarası: B.01 15212

İş makinasının videosunu görüntüle

Huron K3X8F X: 780 - Y: 700 - Z: 500 mm CNC

ZIP formatındaki tüm fotoğrafları indirin
