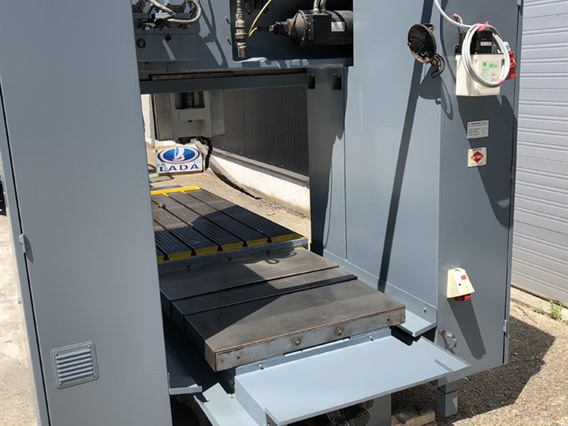

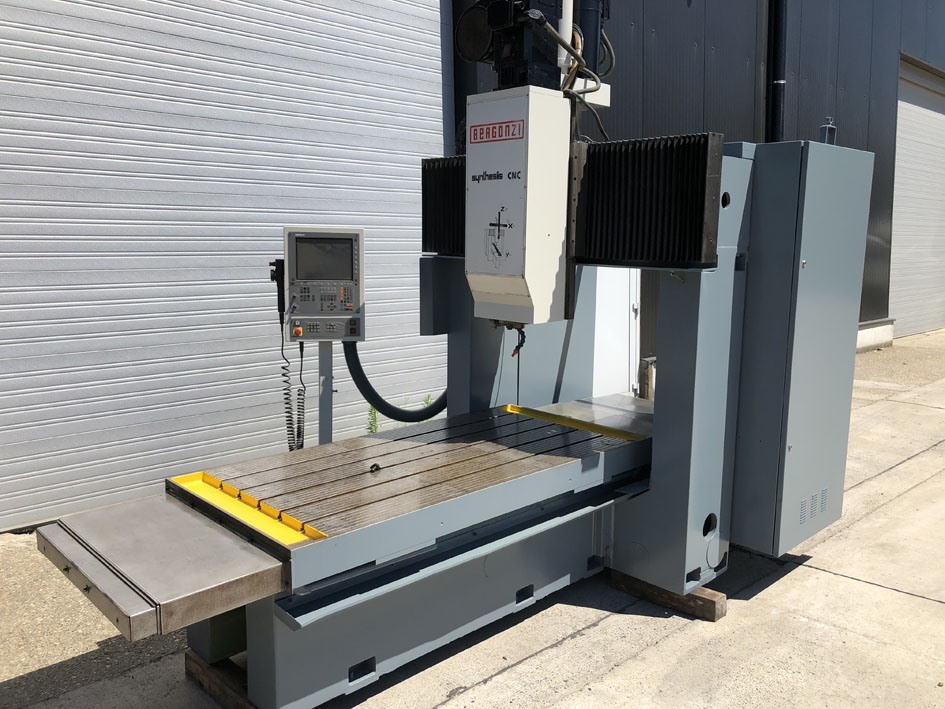

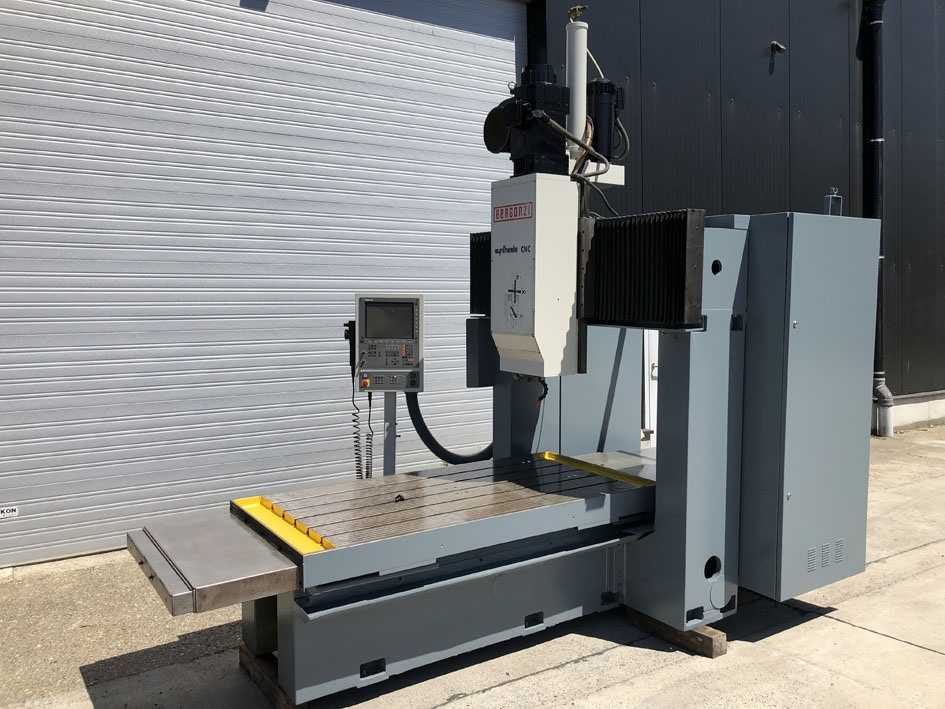

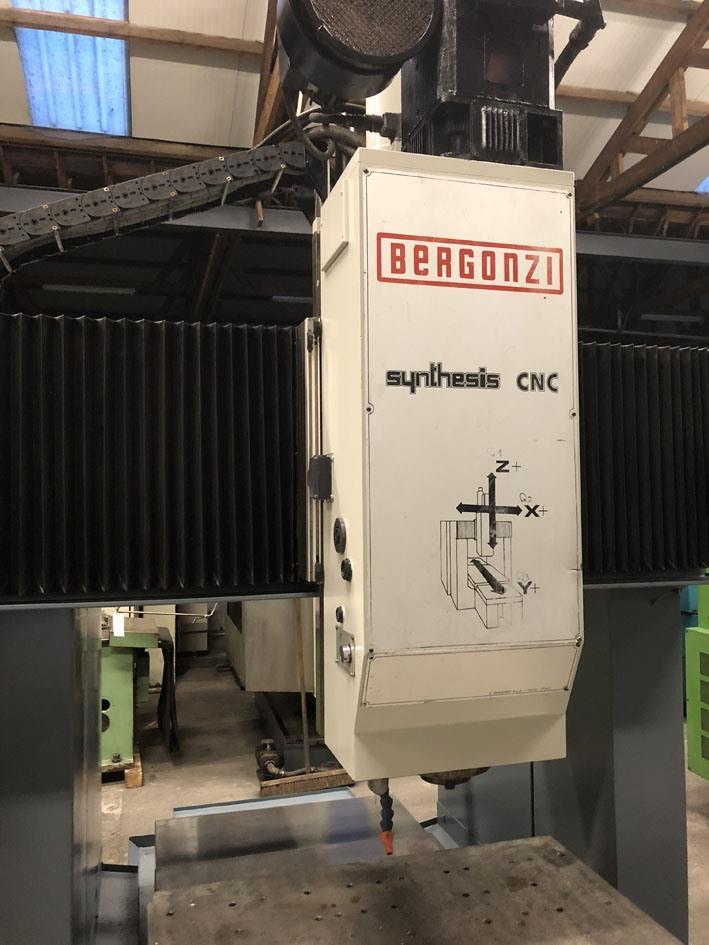

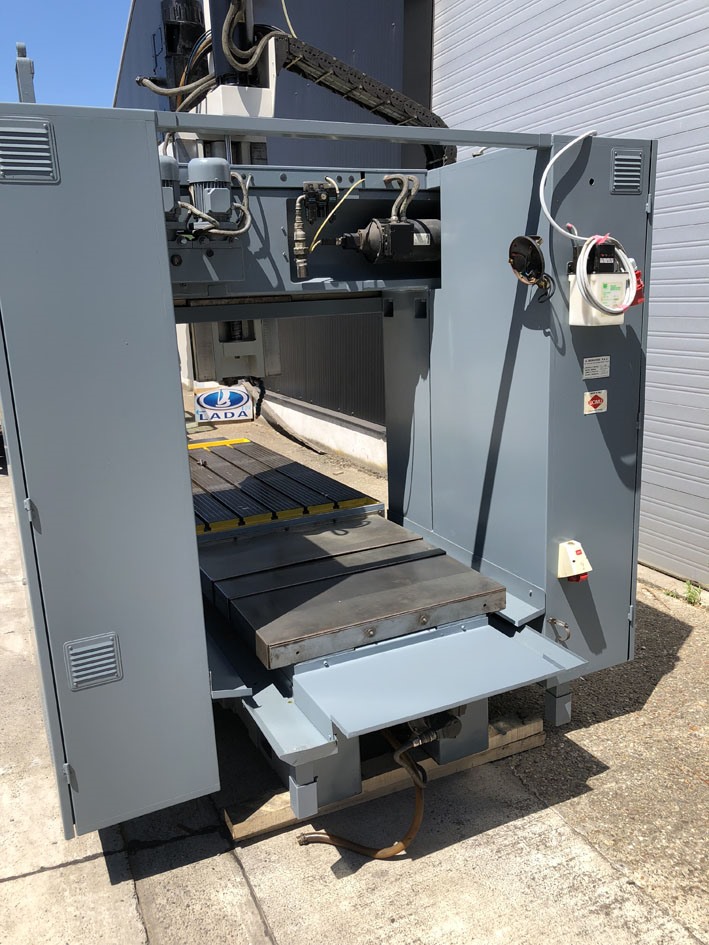

Bergonzi Synthesis - X: 2000 - Y: 1100 - Z: 450 mm

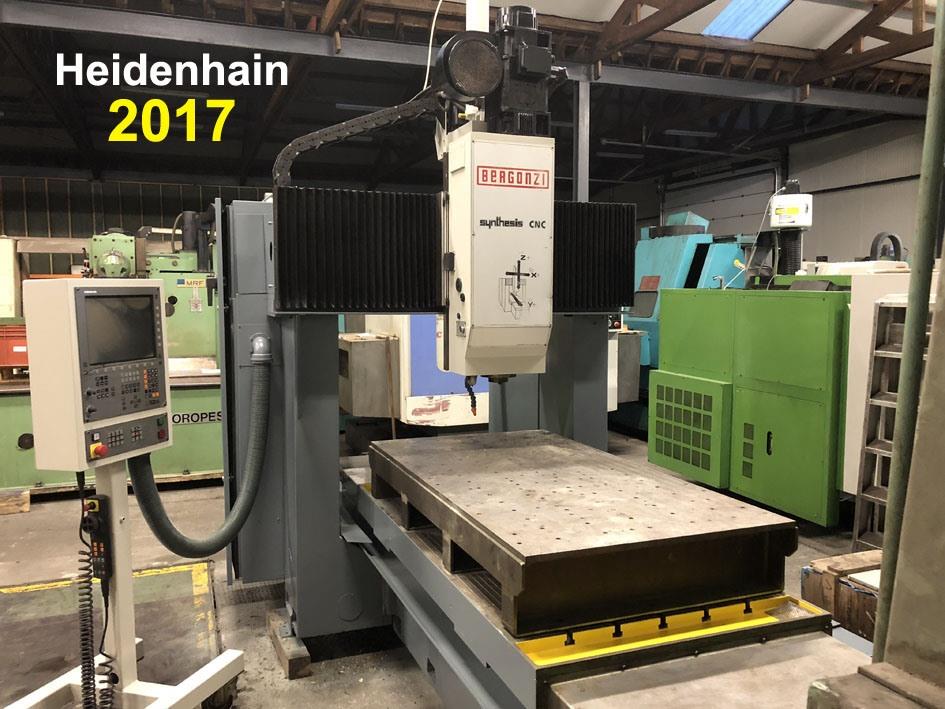

Bergonzi Synthesis X: 2000 - Y: 1100 - Z: 450 mm

Ürün favorilere eklendi

Teknik Bilgiler

Passage beween uprights1200 mm
Longitudinal travel X-axe2000 mm
Cross travel Y-axe1100 mm
Travel (height) Z-axe450 mm

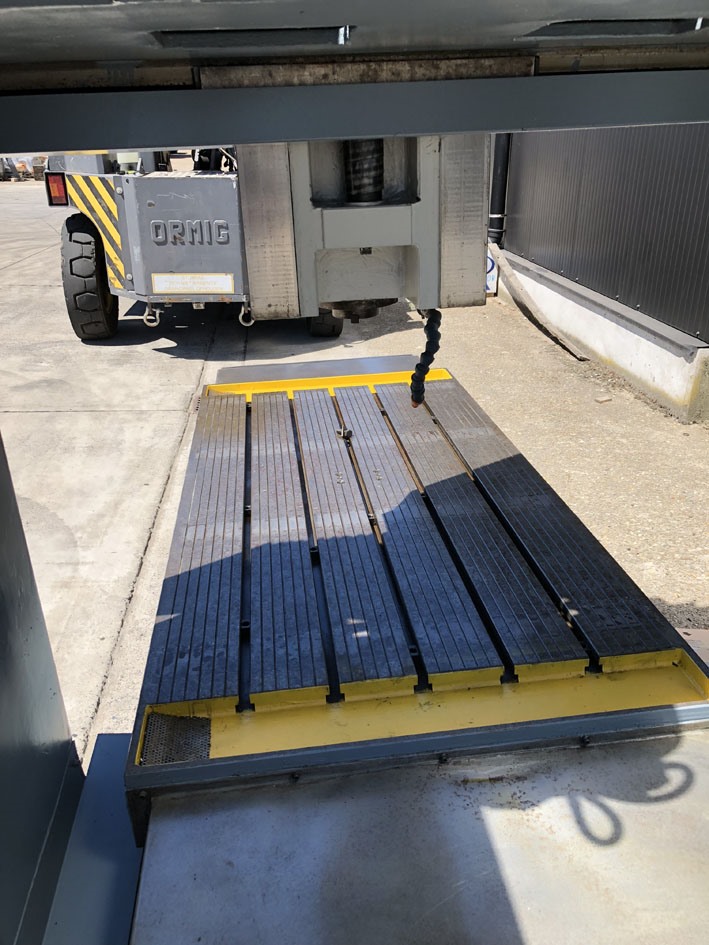

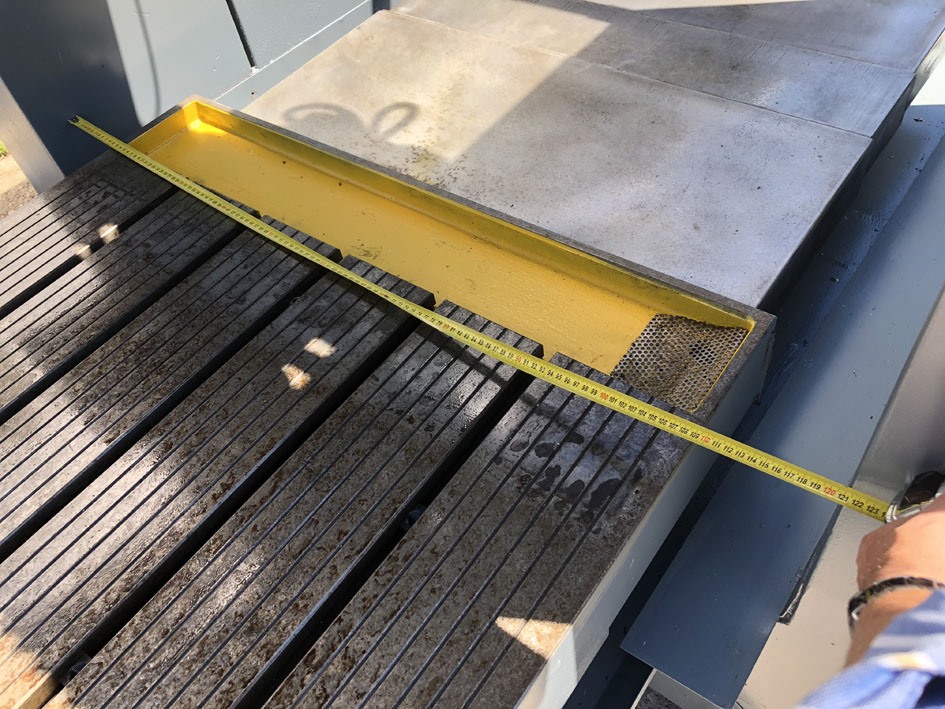

Dimensions Clamping space - table950 x 2000 mm

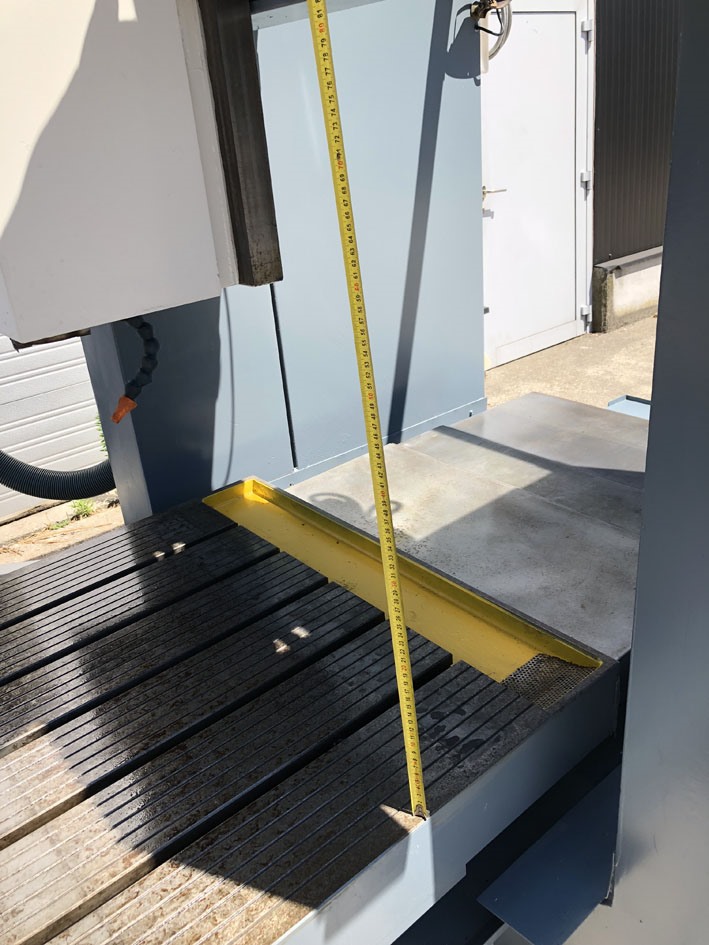

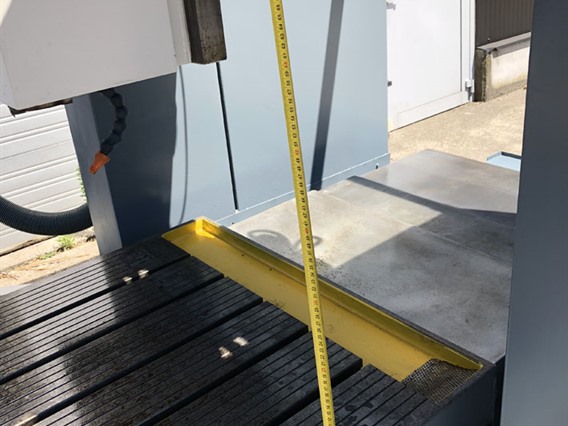

Max height of workpiece800 mm
Power on spindle13 kW
Admission in millingheadspindle (ISO)ISO 40
Max quill travel Z'450 mm
Max speedrange30 > 2500 rpm

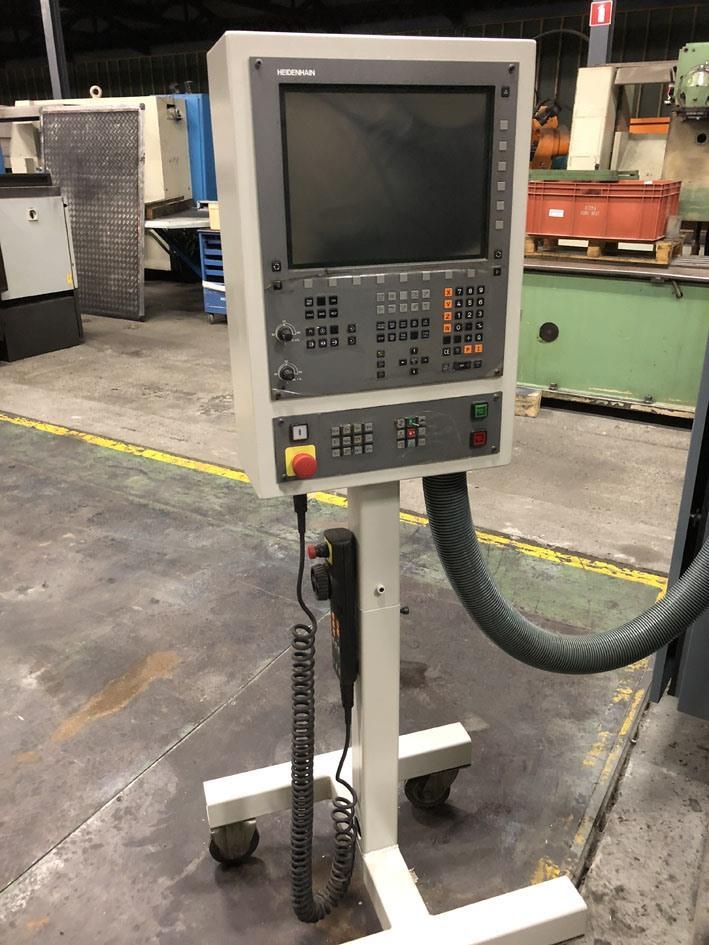

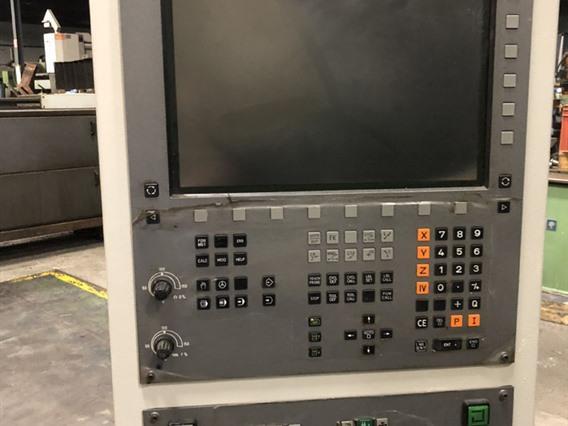

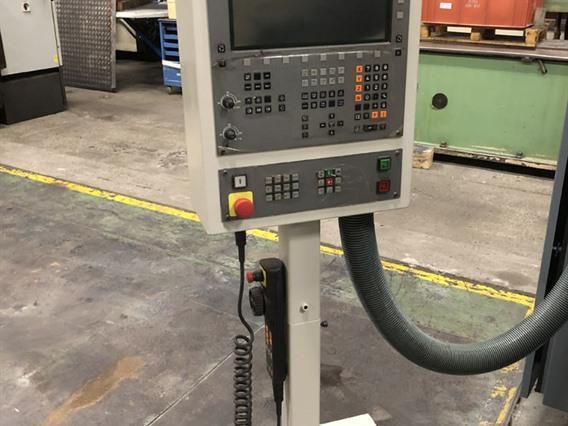

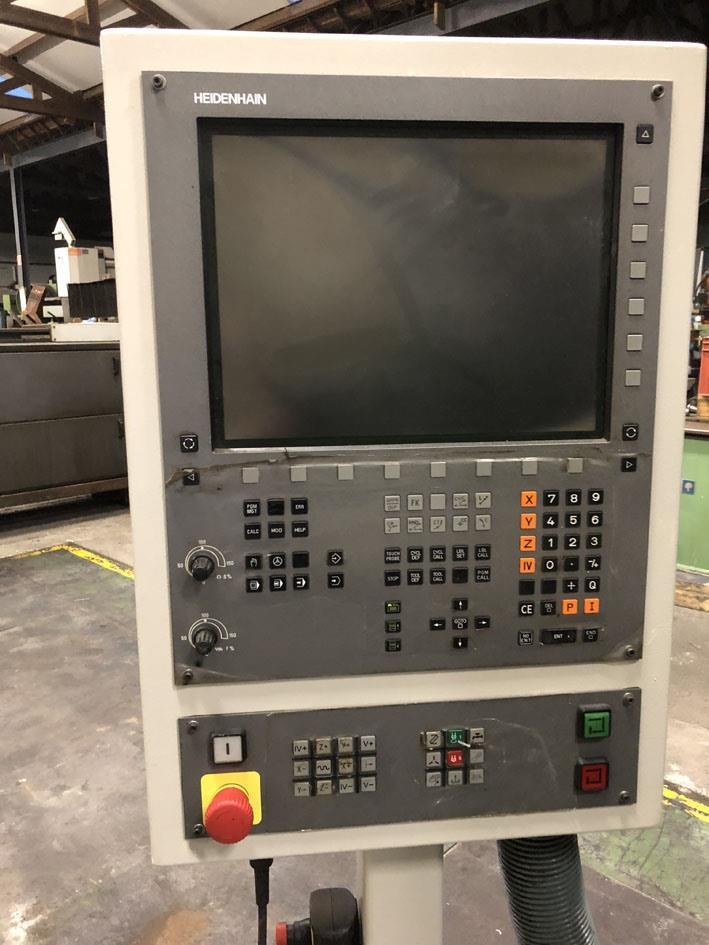

ControlHeidenhain
Length L -- R5100 mm
Depth Fw -- Bw2805 mm
Height3500 mm
Weight5,3 ton

Ek bilgi

Tip/Model: X: 2000 - Y: 1100 - Z: 450 mm
Stok numarası: B.06 10194
Kategori: [B] Freze makineleri
Alt kategori: [B.06] Portaal freesmachines & Gantry freesmachines conventioneel &CNC

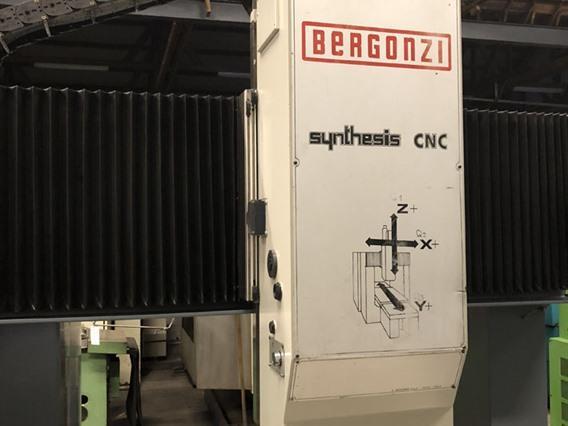

Marka: Bergonzi Synthesis

Stok numarası: B.06 10194
