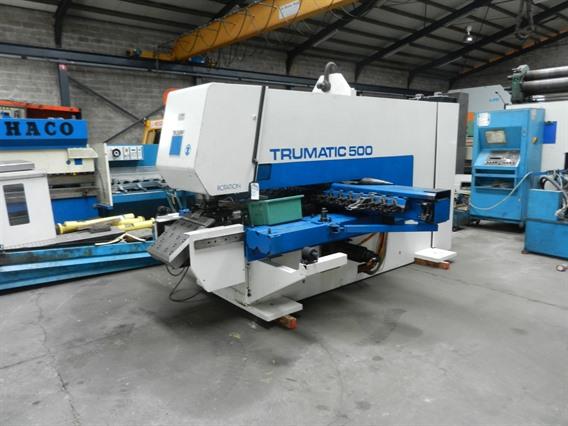

Trumpf Trumatic 500R-1300 CNC
Teknik Bilgiler
- Cutting pressure (kN)22 Ton
- Max sheet thickness by punching + nibbling8 mm
- Max punching dia76.2 mm
- Max weight workpiece200 kg
- Working range on cross-side (X-axes)2535 mm
- Working range along (Y-axes)1280 mm
- Positioning speed along X-axes90 m/min
- Positioning speed along Y-axes60 m/min
- ControlTrumagraph
- ToolchangerYes
- Number of toolpositioners18 positions (indexing)
- Power needed17 kVa
- Length L -- R6900 mm
- Depth Fw -- Bw5800 mm
- Height2200 mm
- Weight11000 kg
