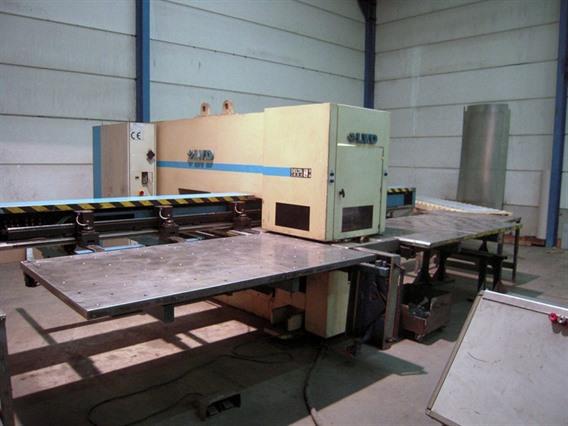

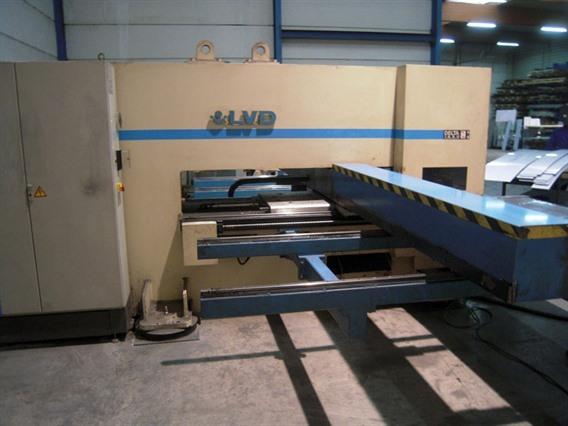

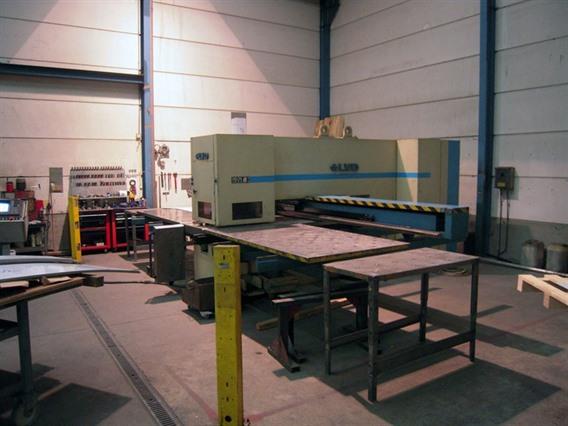

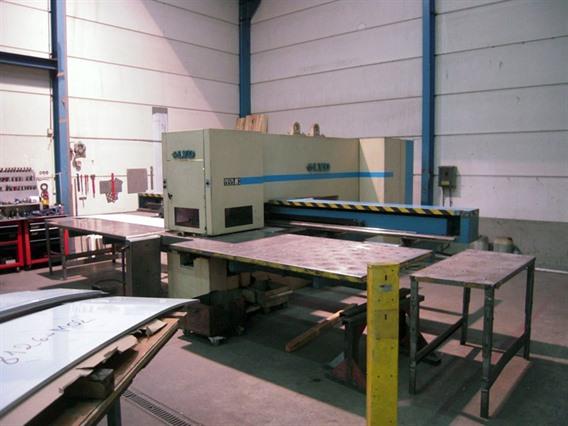

LVD Delta LB 1250 TN CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Cutting pressure (kN)20 ton
Max sheet thickness by punching + nibbling6,4 mm
Working range on cross-side (X-axes)5075 mm (with repositioning)
Working range along (Y-axes)1275 mm

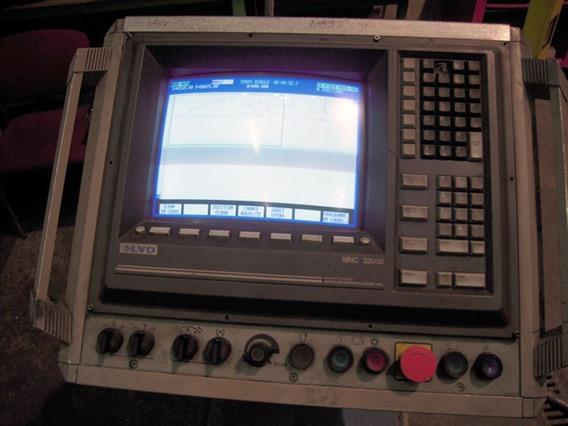

ControlFanuc MNC 32000
ToolchangerThin Turret
Number of toolpositioners22 postions
Changingtime2 sec
Length L -- R5100 mm
Depth Fw -- Bw5475 mm
Height2340 mm
Weight16 ton

Ek bilgi

LB = long beam = 2500 mm in one step
Thin Turret 22 Positions (standard):
- 8 x A-stations

- 8 x B-stations

- 2 x C-stations

- 2 x D-stations

- 2 x D-Index stations
Tip/Model: 1250 TN CNC
Stok numarası: O.19 8696
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.19] Ponsmachines & Ponsnibbelmachines
Marka: LVD Delta LB

» Kişisel fiyat talep edin

Stok numarası: O.19 8696

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
