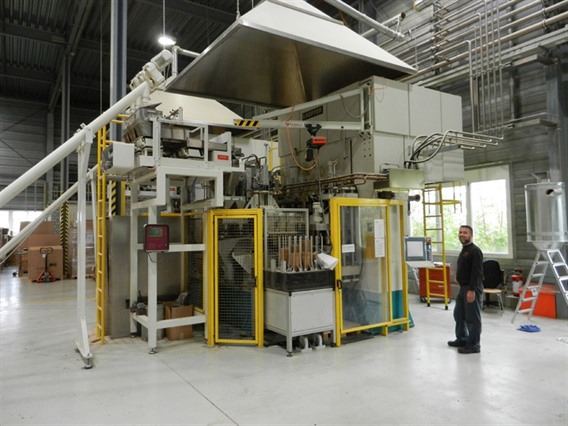

Laufer URA 500 ton for composite mat.
Ek bilgi

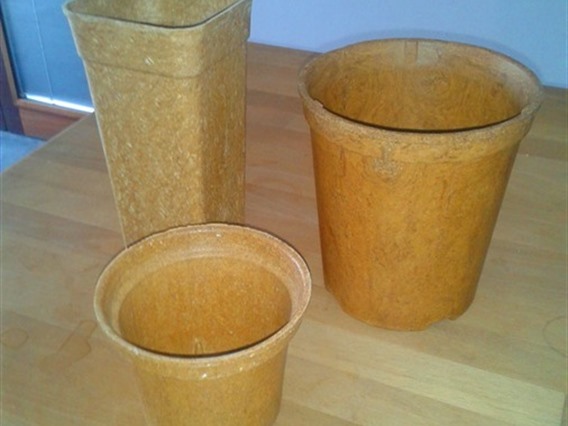

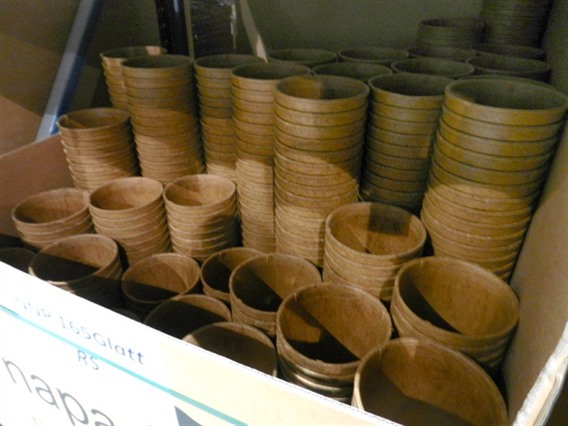

- Formerly used to manufacture flowerpots using composite materials.
> step 1: wood granules are heated in dia under high pressure

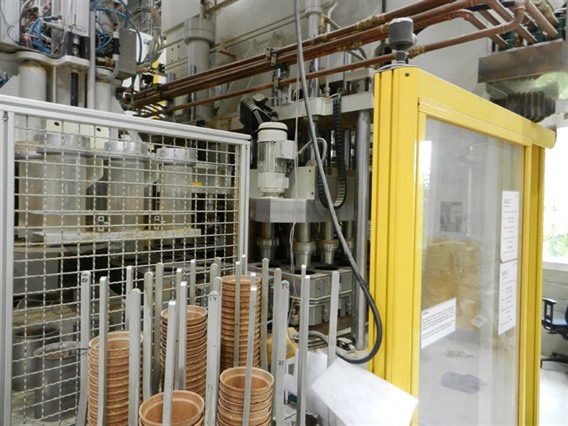

> step 2: flowerpots are pressed during heating cycle, cooled down afterwards and automatically unloaded
Can be used for composite materials / plastics with heating & cooling.

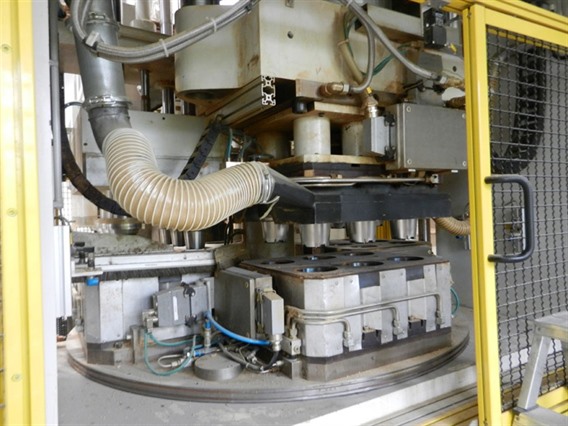

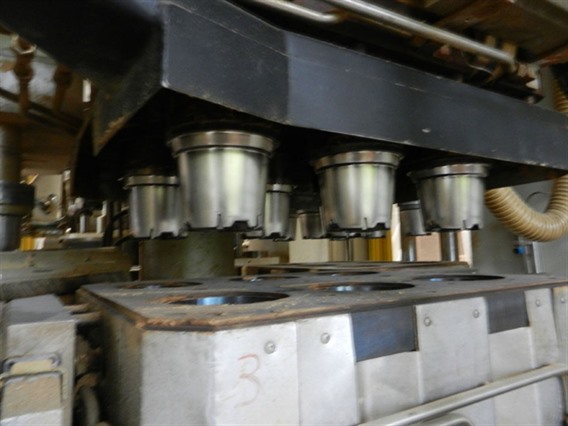

Equipped with auto turning tables for 4 die blocks
Original cyclus:
1 - filling
2 - pre pressing
3 - high pressure pressing at 300° C
4 - after pressing & cooling

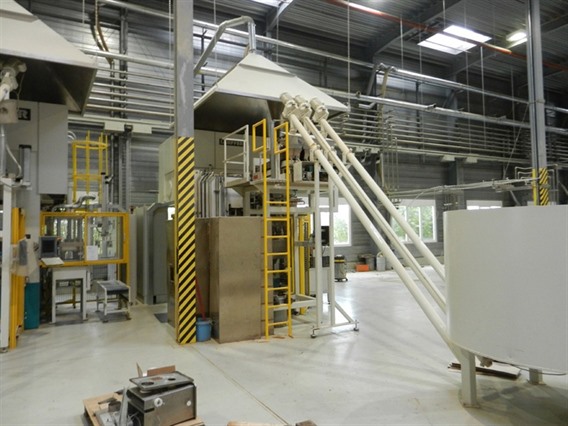

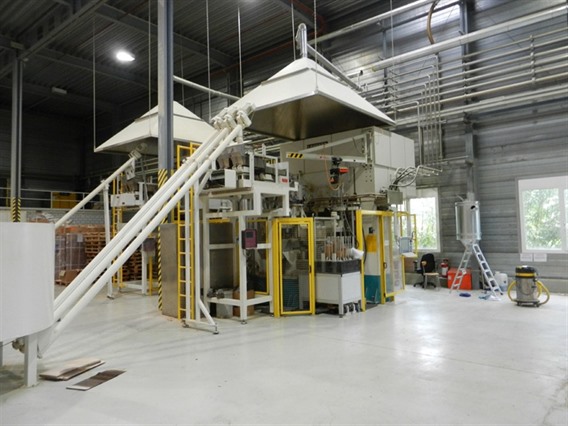

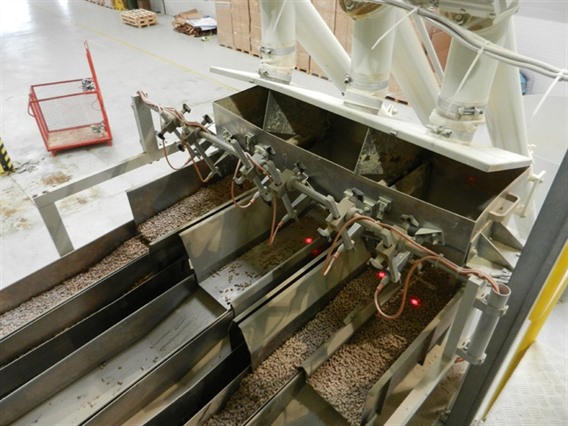

consisting of flow hopper
with 2 supply lines on Awema weighing system
max retracting force 25 kN
max lift: 400 mm
built-in height: 1000 mm
max pressure: 285 bar

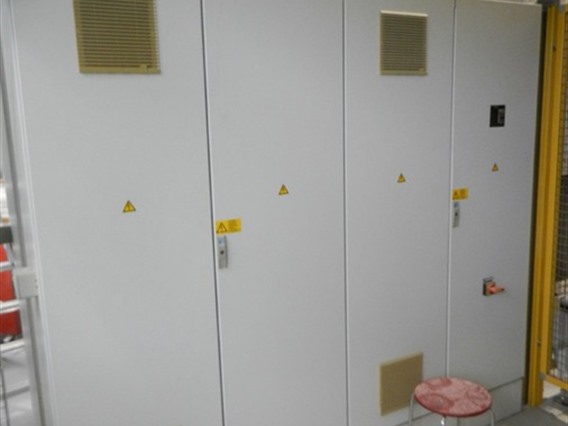

380V - 175 A - 114 kVa
with Rexroth hydrauliq aggregate and extraction hood
- Tip/Model: for composite mat.
- Stok numarası: M.19 7238
- Kategori: [M] Hidrolik basınç
- Alt kategori: [M.19] Koudvormpersen & Warmvormpersen
- Marka: Laufer URA 500 ton
