Mitsubishi MAF-S150A - Hor. boring mill for arm machining
Teknik Bilgiler
- Longitudinal travel X-axis8000 mm
- Vertical traverse Z-axis2000 mm
- Spindle traverse W-axis650 mm
- Milling spindle taper (ISO)ISO 50
- Spindle power22/26 kW
- Dia spindle -- Spindle bore150 mm
- Spindle speed range25 > 2500 rpm

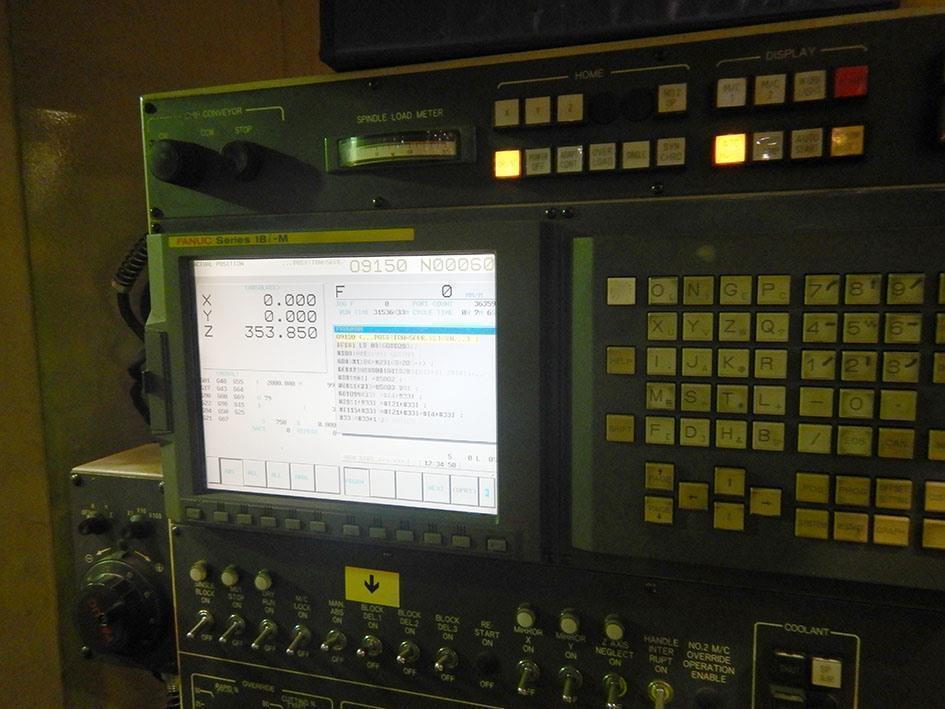

- Digital read-out (1) CNC(2)Fanuc 18i-MA
Ek bilgi
Type: MAF-S150A - Japanese high quality!

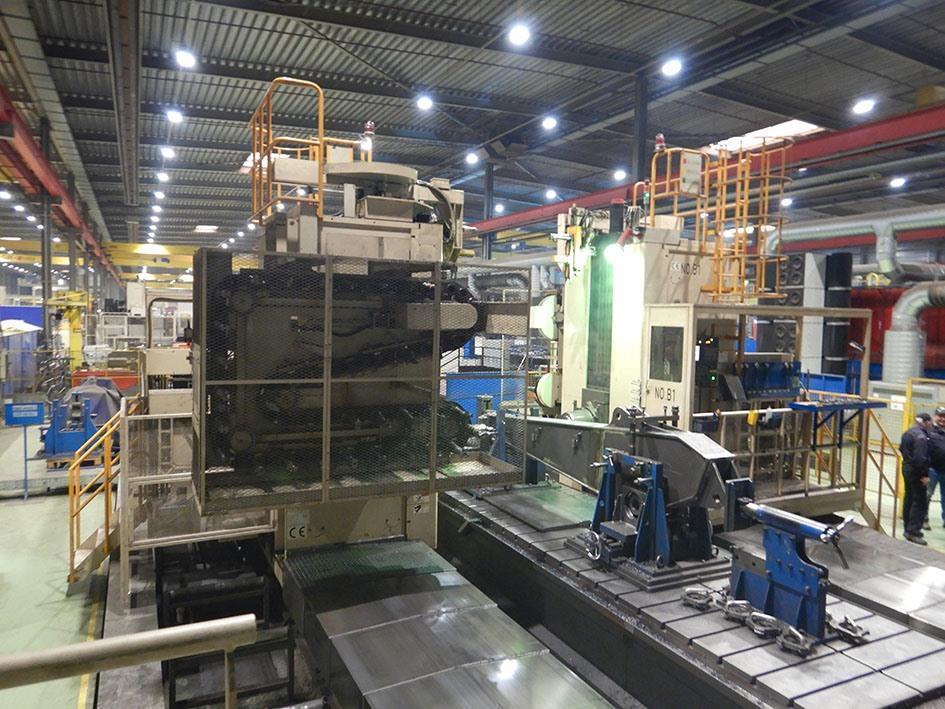

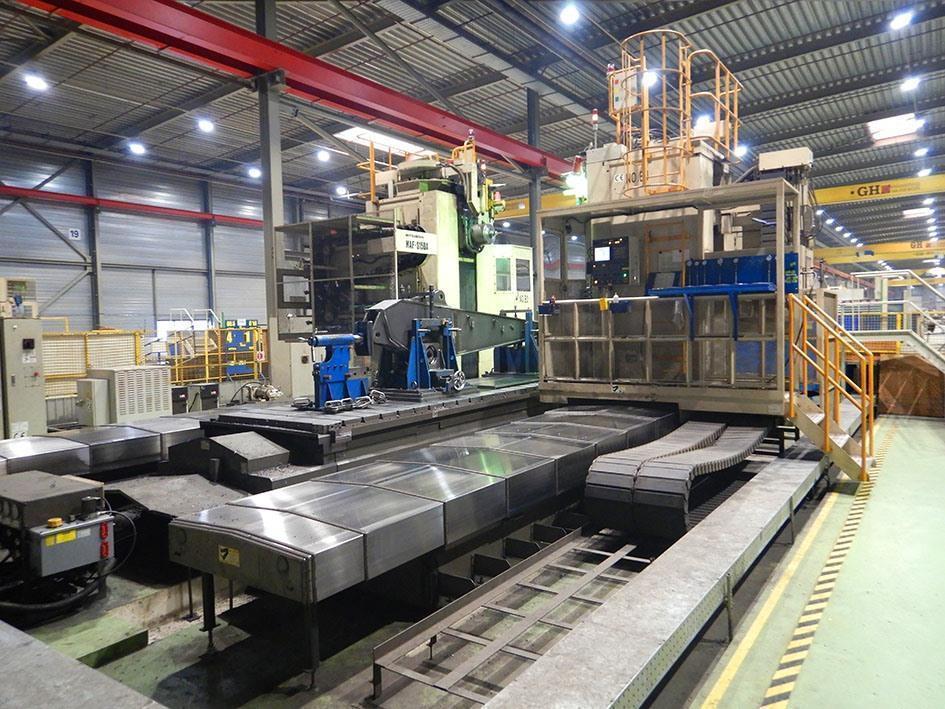

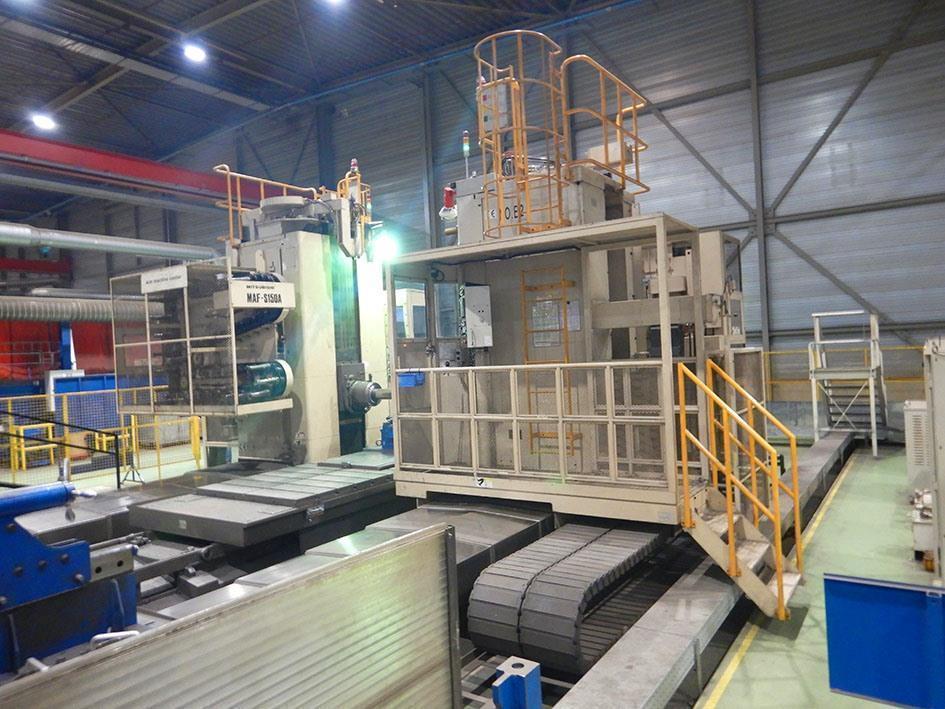

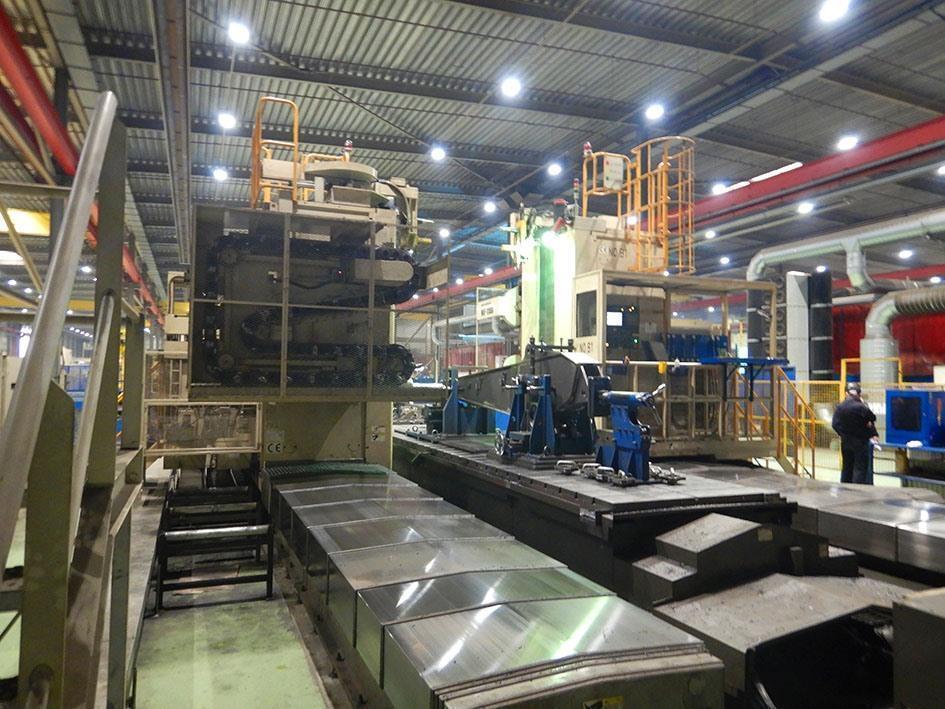

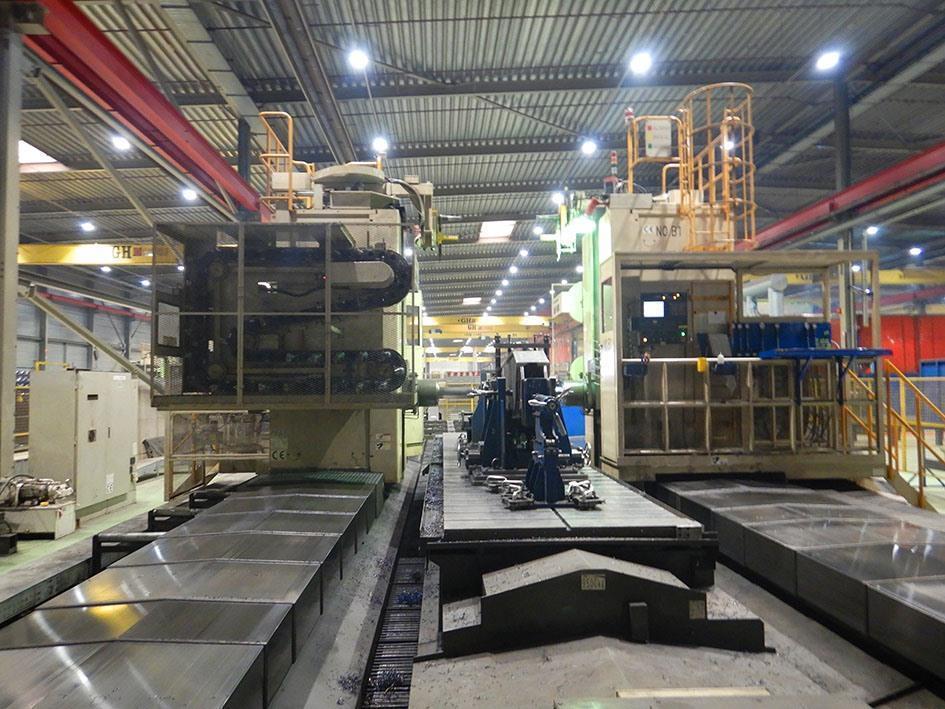

Horizontal boring mill with movable column for arm machining + automatic pallet changer

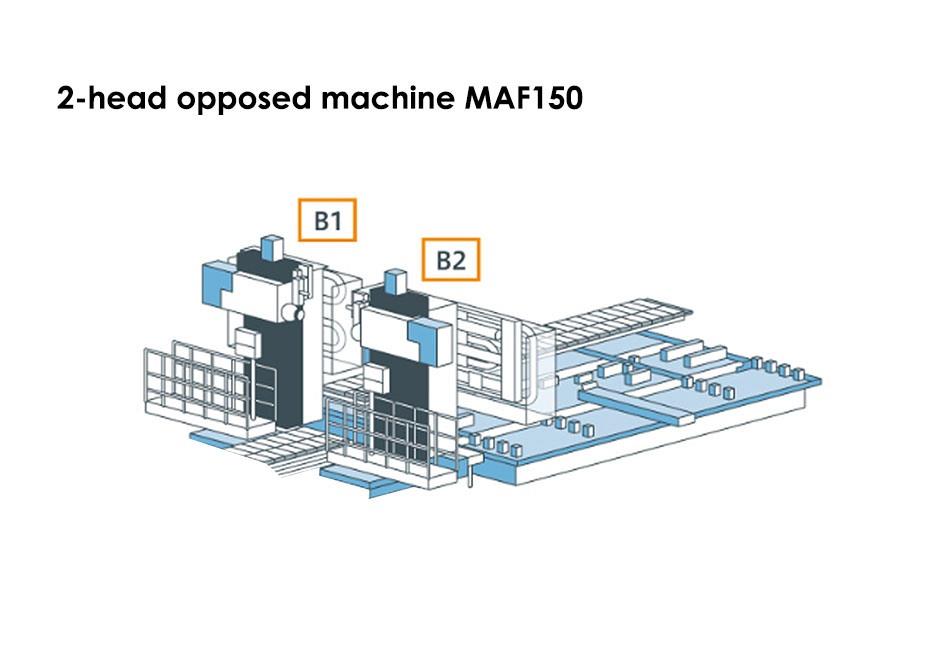

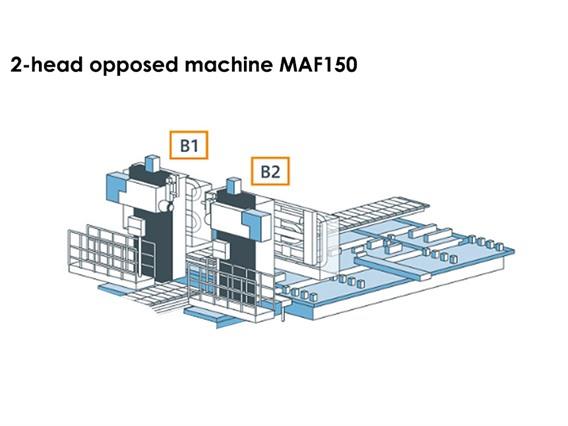

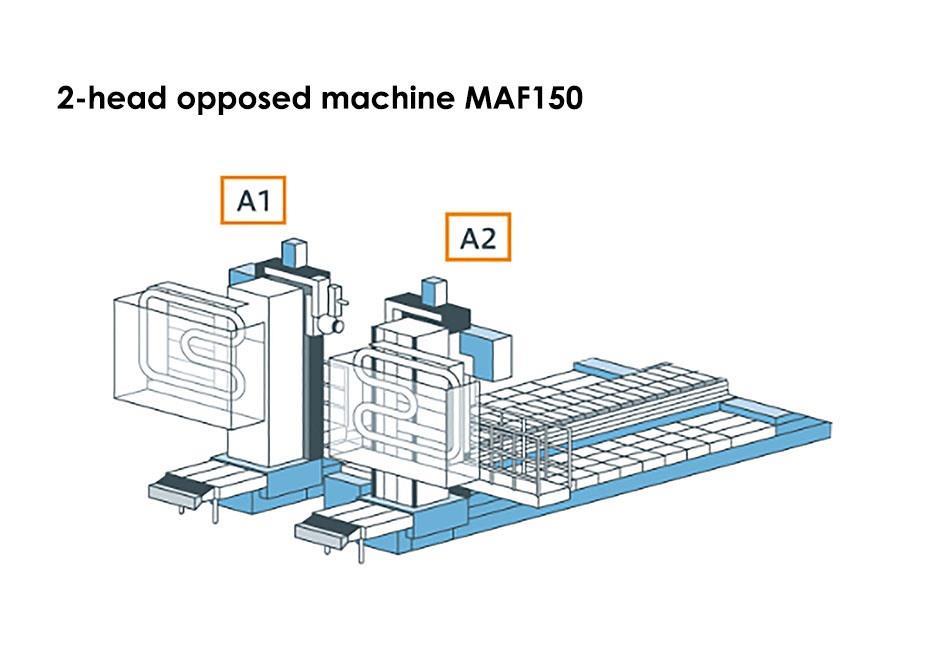

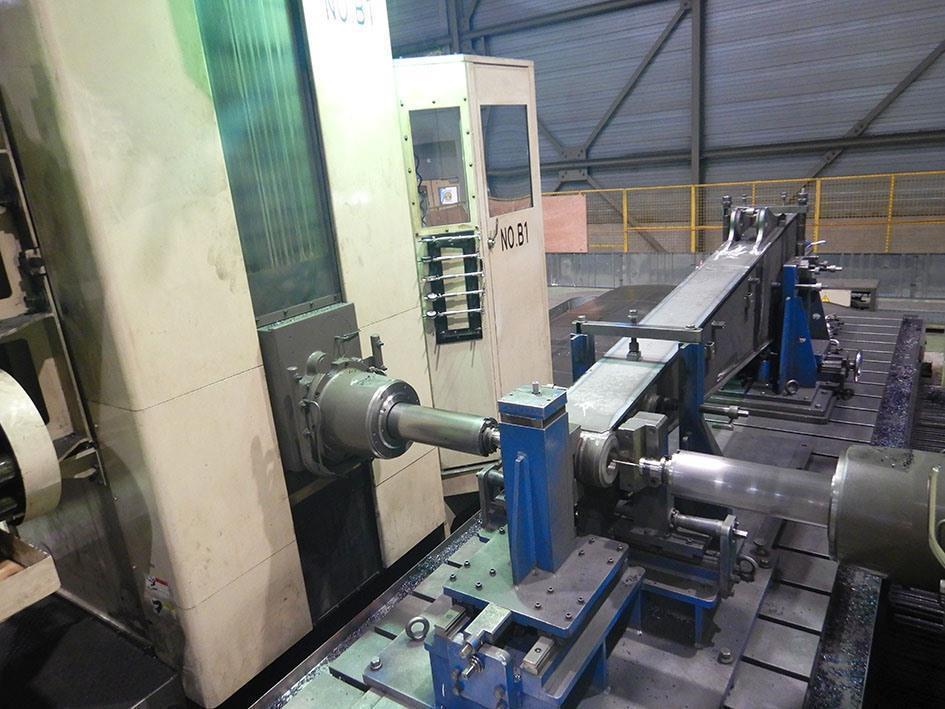

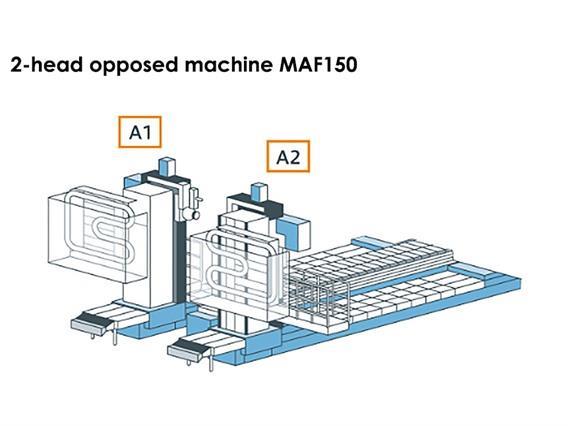

2 identical machines, opposed arrangement - face to face milling
both machines can work together or independently (master/slave)
when reinstalling the machines can be placed further apart in order to fit wider workpieces
all axes are simultaneous working (ie. thread milling)
650 mm extendable boring spindle
Secial milling unit with side milling cutter
- Spindle dia: 110 mm
- U axe: 500 mm
- W axe 300 mm
Feed rate axes: 1-5000 mm/min, rapid traverse: 1000 mm/min

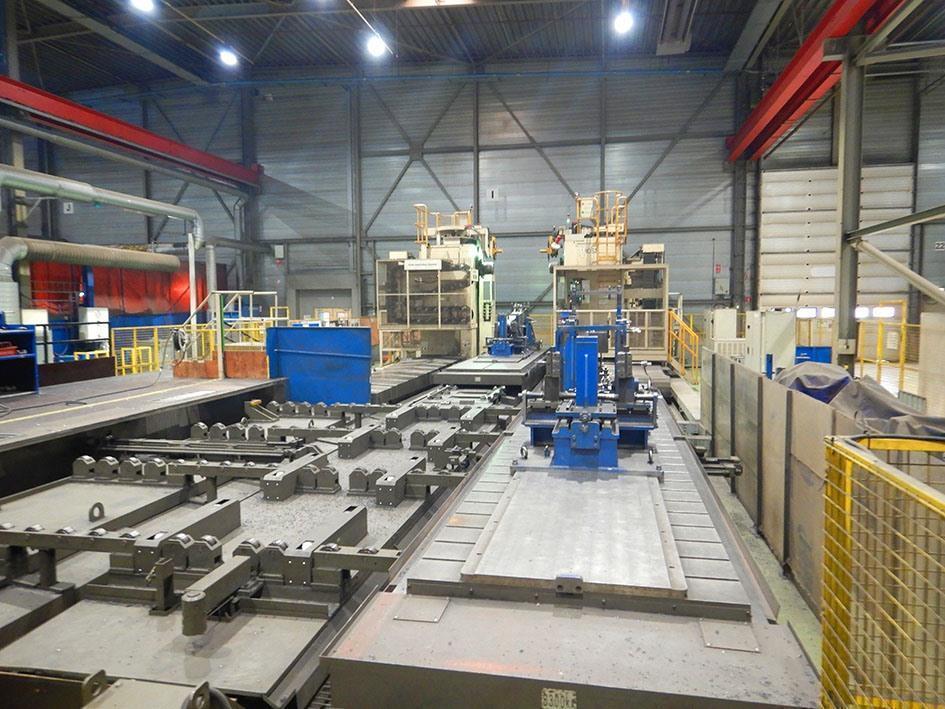

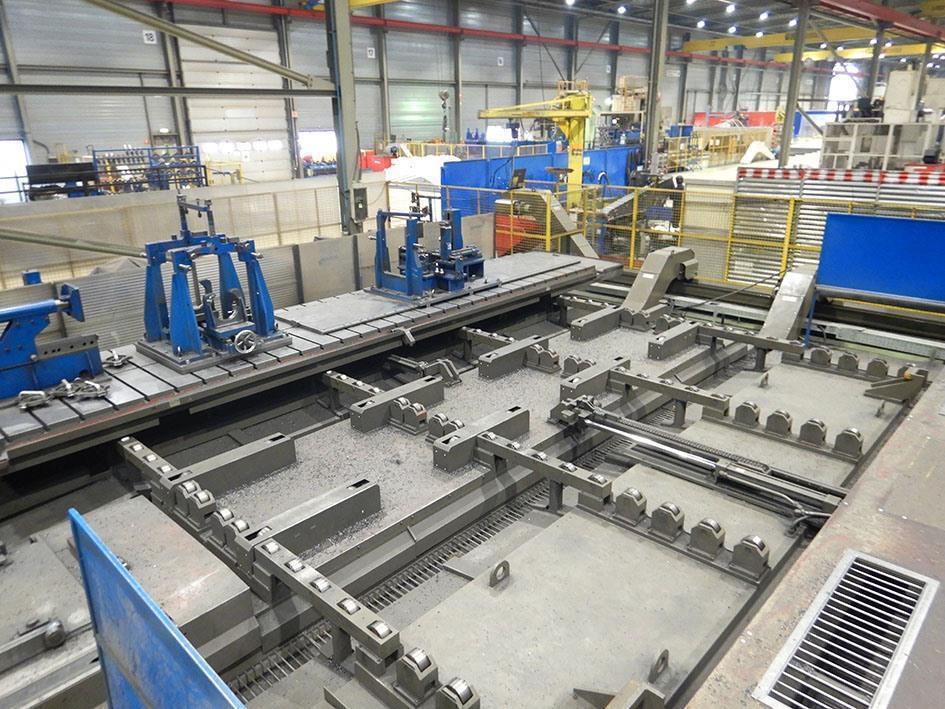

Automatic pallet changer
- 2 pallets
- pallet size: 8000 x 1500 mm
Automatic measuring & compensation system
Overload monitor by soft meter method
Tool life monitoring & spare tool replacement
Automatic workpiece measuring with Renishaw probe
> measuring functions: inside dia / outisde dia / center distance / groove width / thickness / depth / inclination angle / rectangular coordinates
Machining accuracy monitoring
Automatic power-off

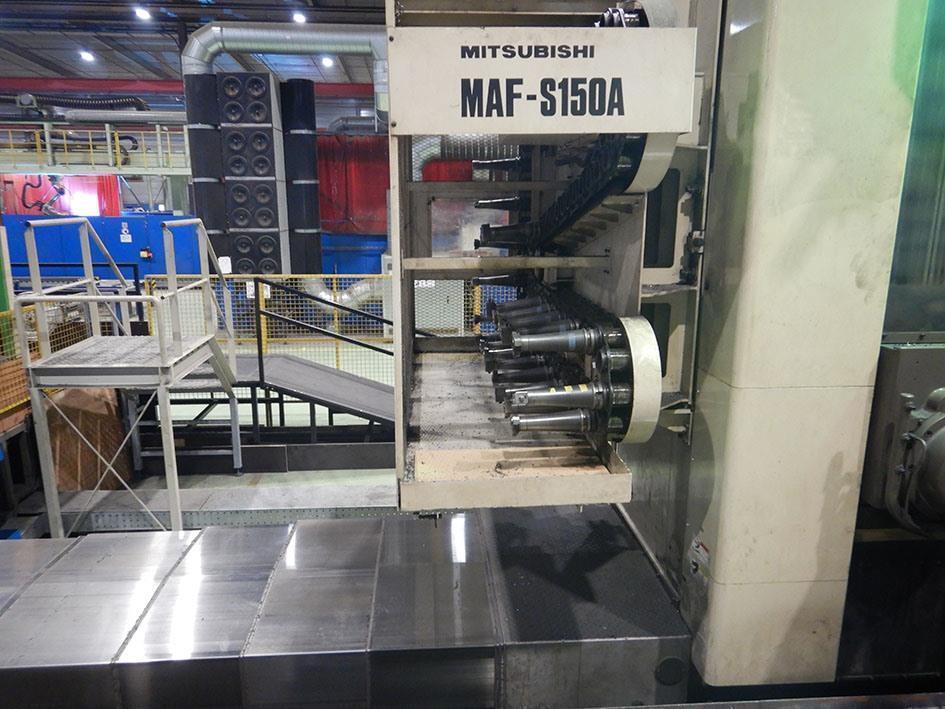

Automatic toolchanger with 80 positions for each machine (all tools stay with the machine)
2 chipconveyors
No foundation required, machine installed on top of floor
Original newprice in 2010 was 2,9 million euro

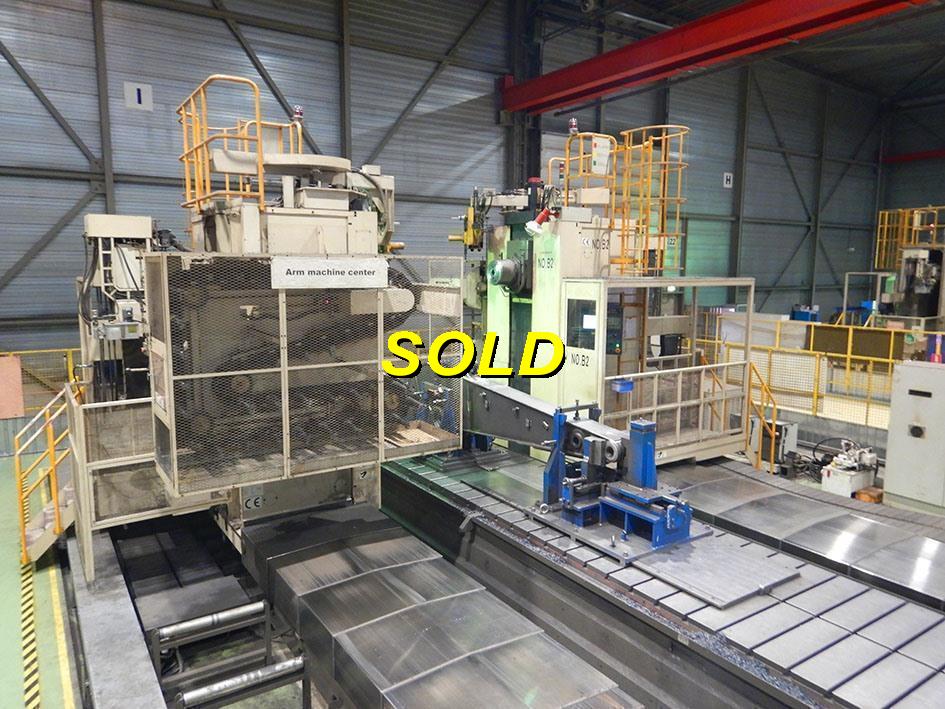

Machine still in production - will be sold as part of a reorganisation.
In excellent condition geometrically!
- Tip/Model: MAF-S150A - Hor. boring mill for arm machining
- Stok numarası: F.02 12523
- Kategori: [F] (cnc) Tezgahlar ve Torna tezgahları
- Alt kategori: [F.02] Kotterbanken met beweegbare kolom – Vloertype
- Marka: Mitsubishi
