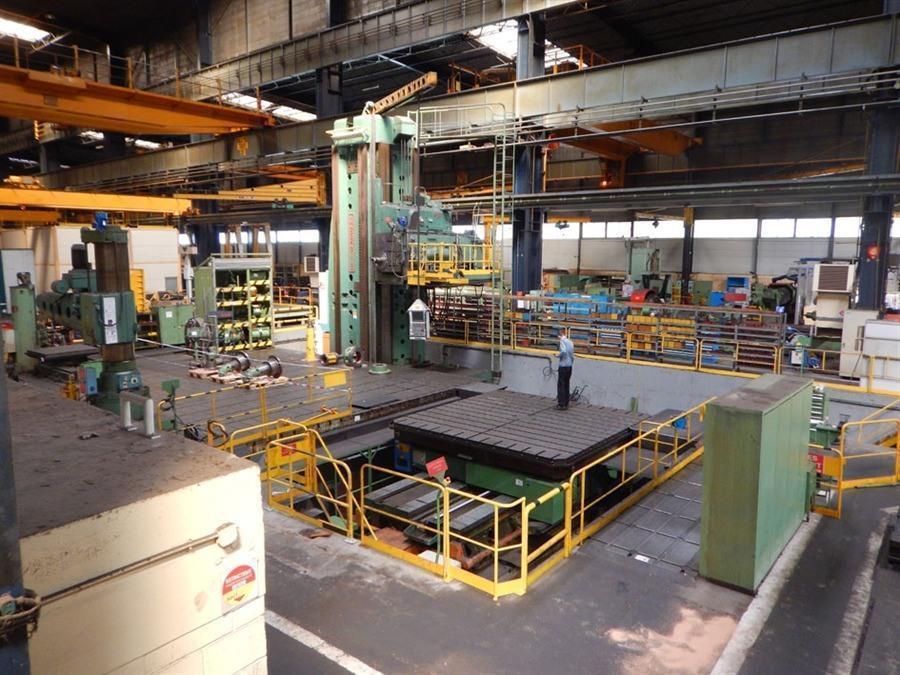

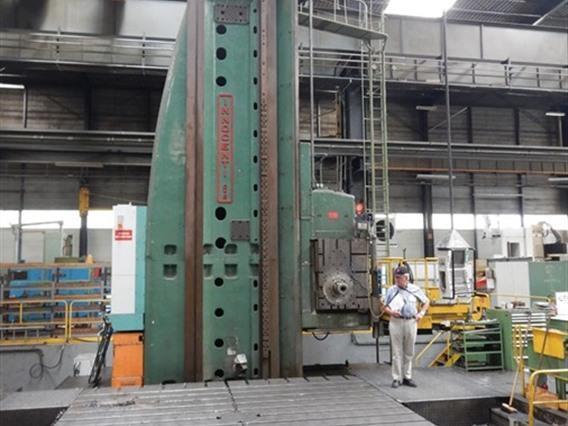

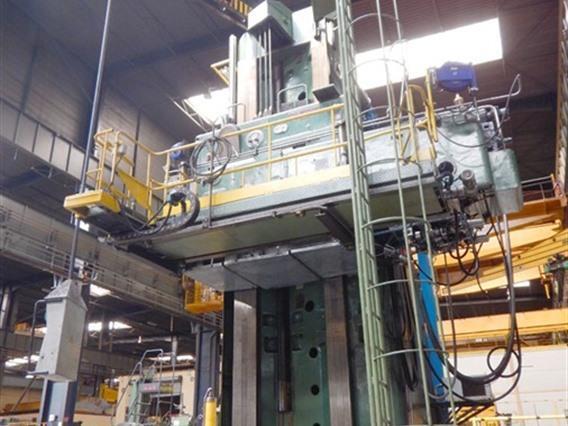

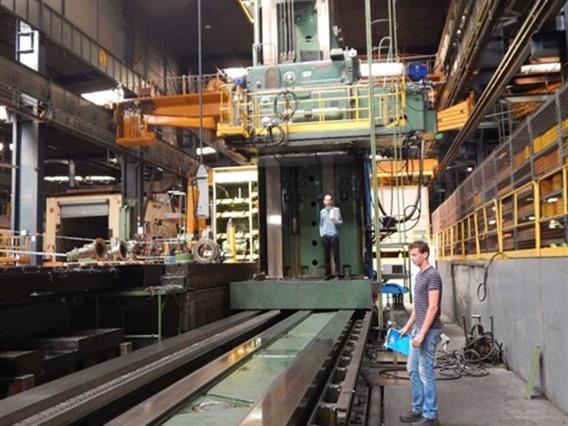

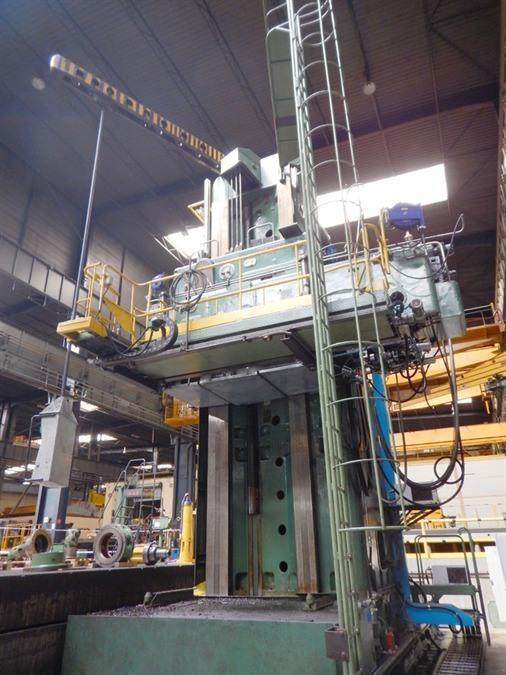

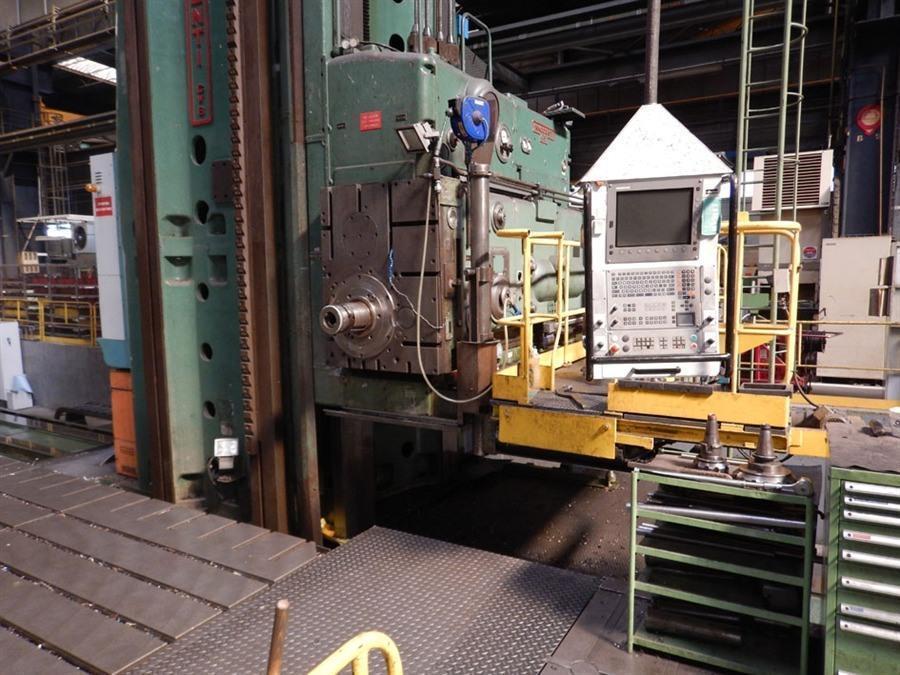

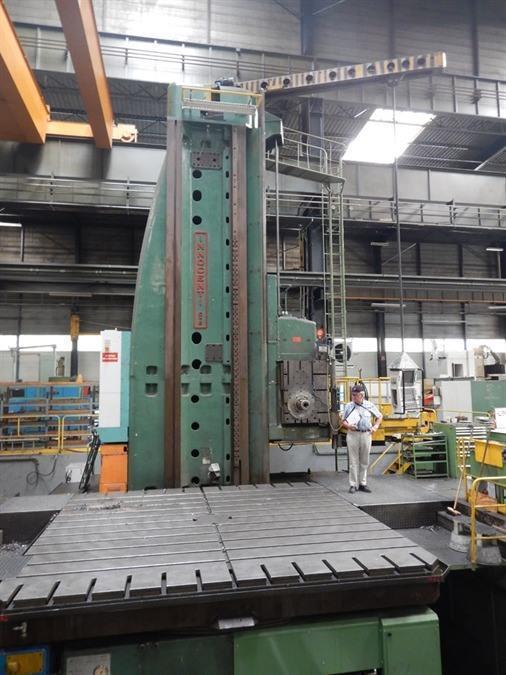

Mitsubishi / Innocenti X: 17 000 - Y: 4840 - Z: 2980 mm CNC
Teknik Bilgiler

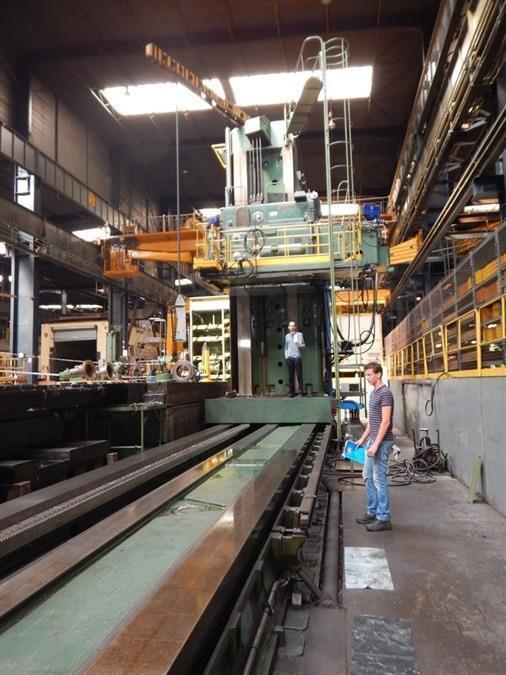

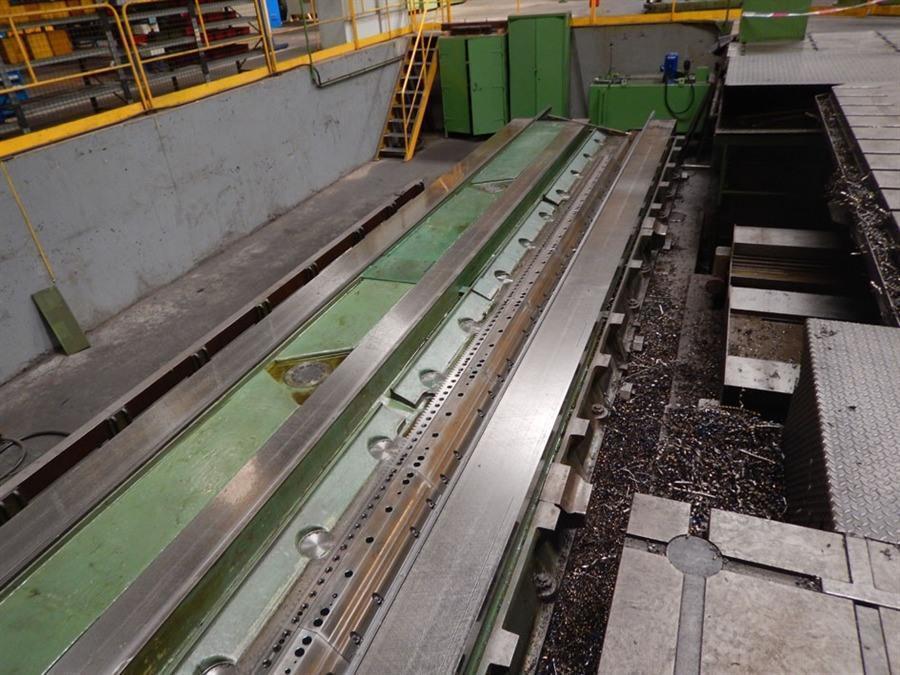

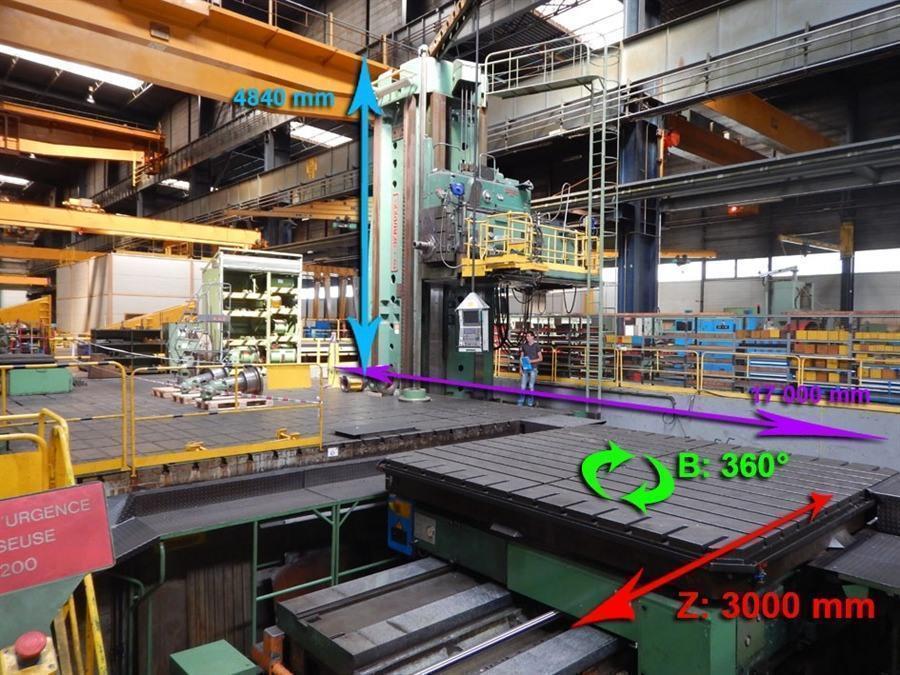

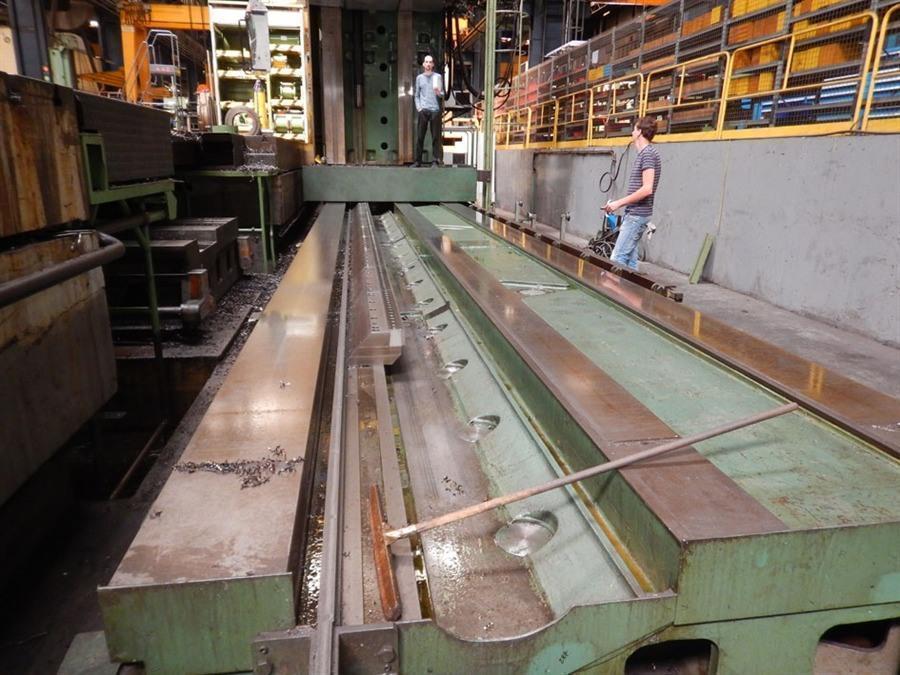

- Longitudinal travel X-axis17 000 mm
- Cross traverse Y-axis (table/column)1250 mm
- Vertical traverse Z-axis4840 mm
- Spindle traverse W-axis1740 mm
- Milling spindle taper (ISO)SA60
- Spindle power74 kW

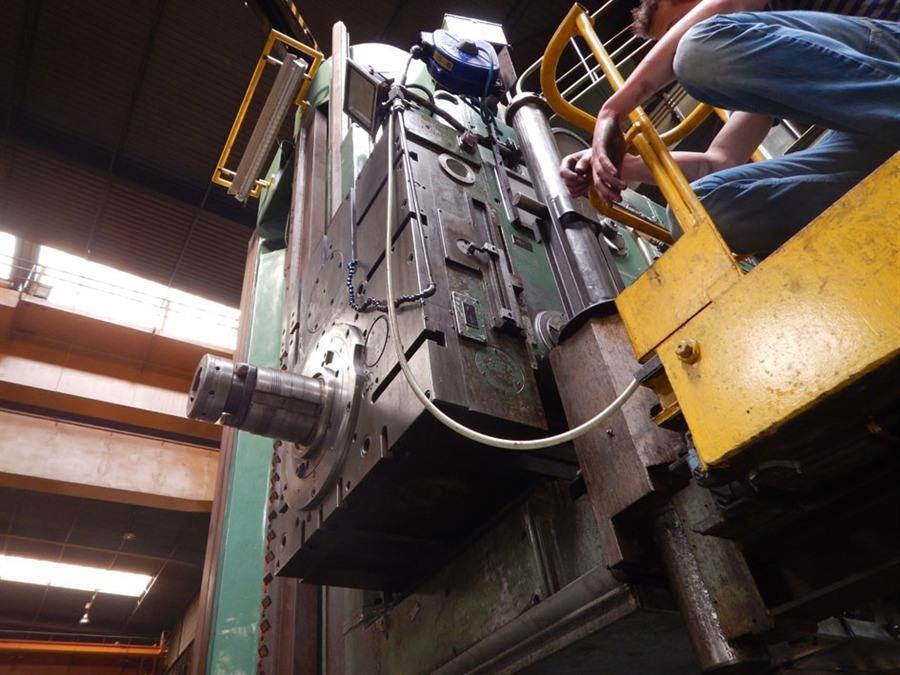

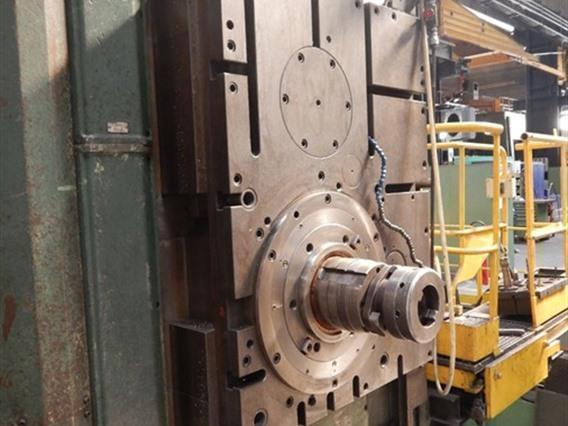

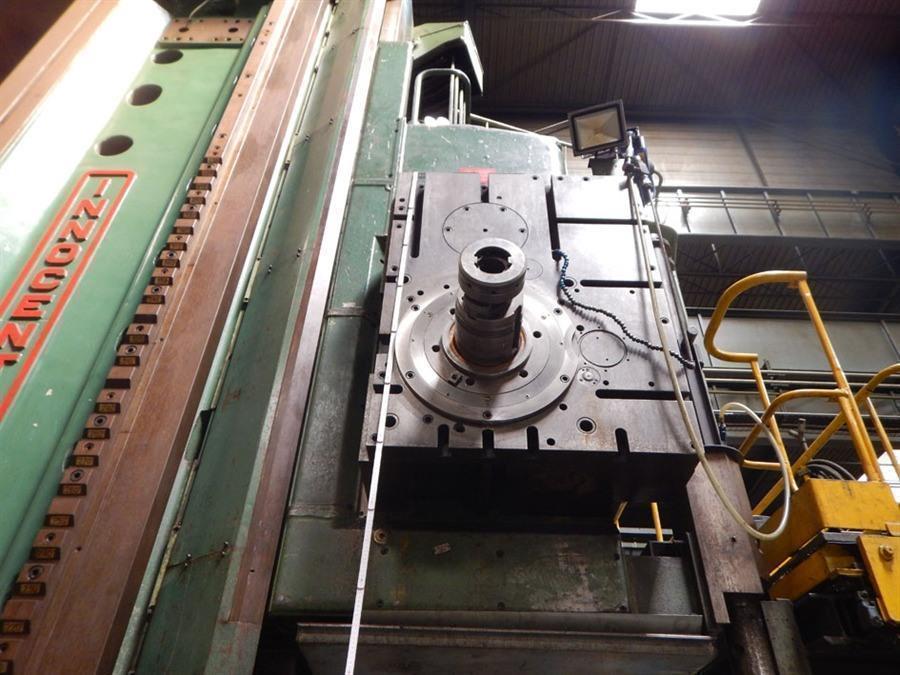

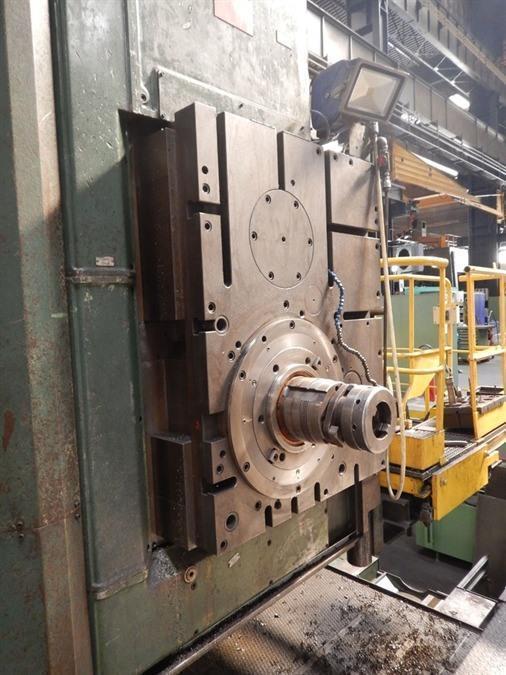

- Dia spindle -- Spindle bore200 mm
- Spindle speed range2 > 2200 rpm

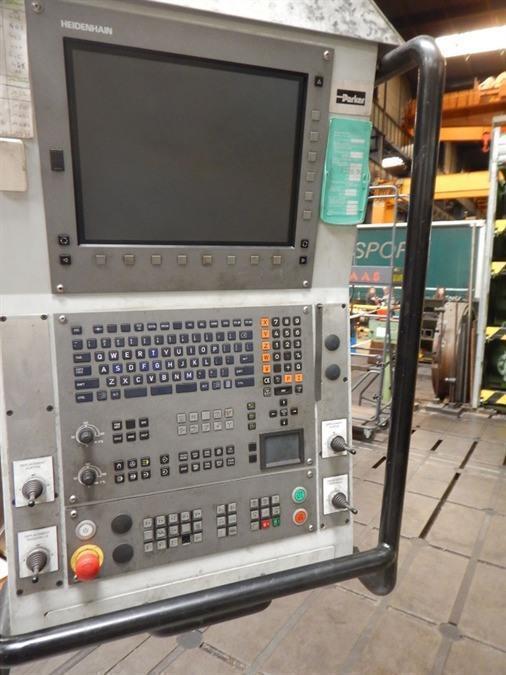

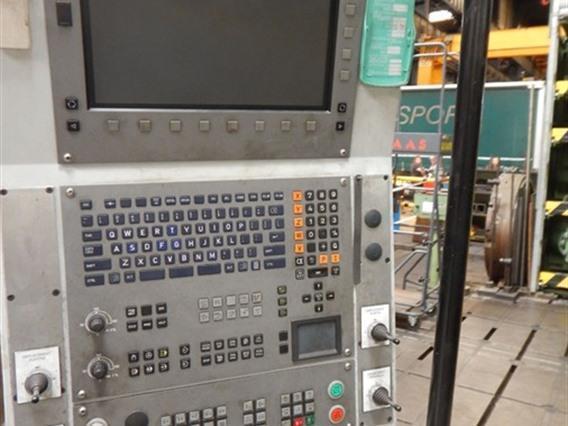

- Digital read-out (1) CNC(2)Heidenhain iTNC530

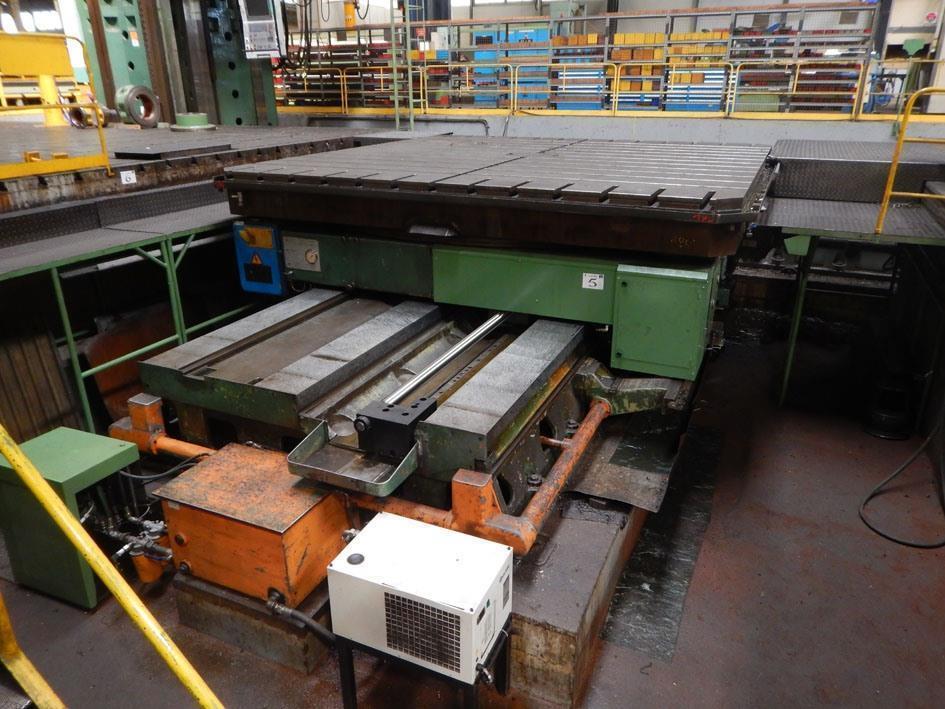

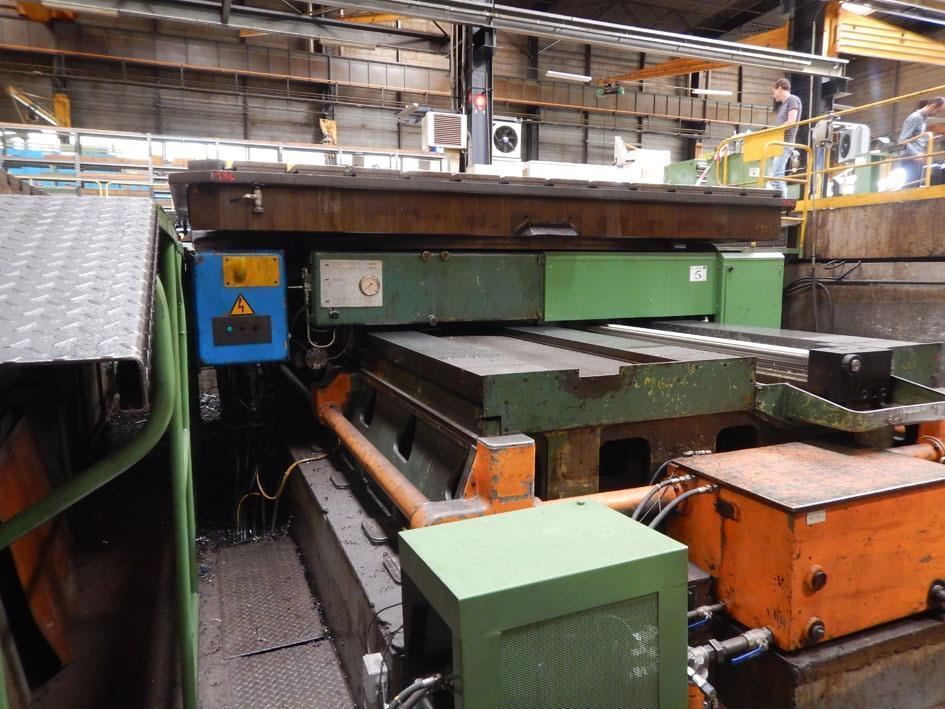

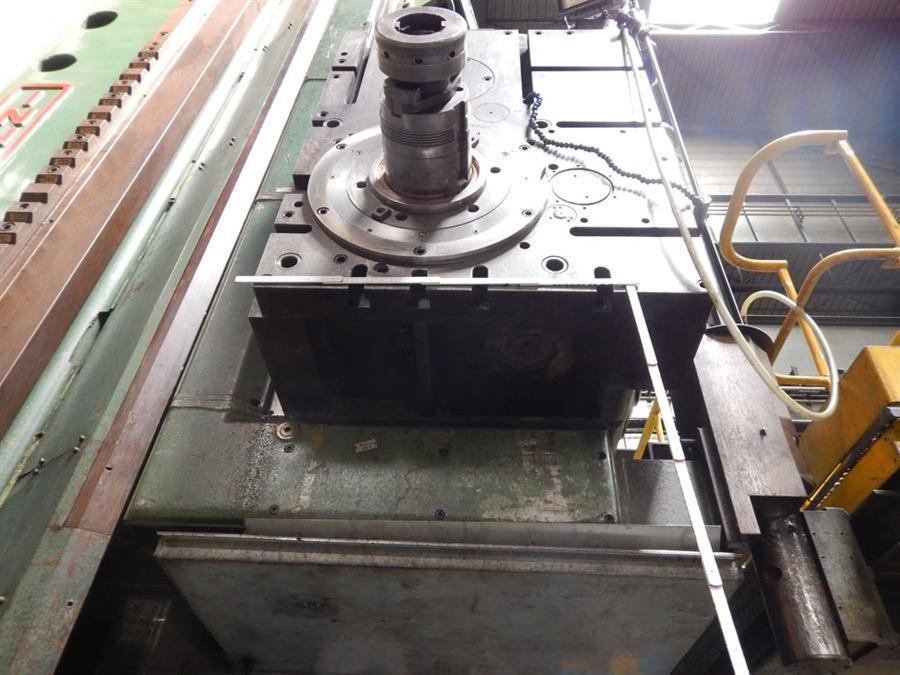

- Rotary table dimensions4250 x 4250 mm
- Max weight on table130 ton
- Weight179 ton
Ek bilgi
-
Type: CWB FAF 305/200
6 controlled axes

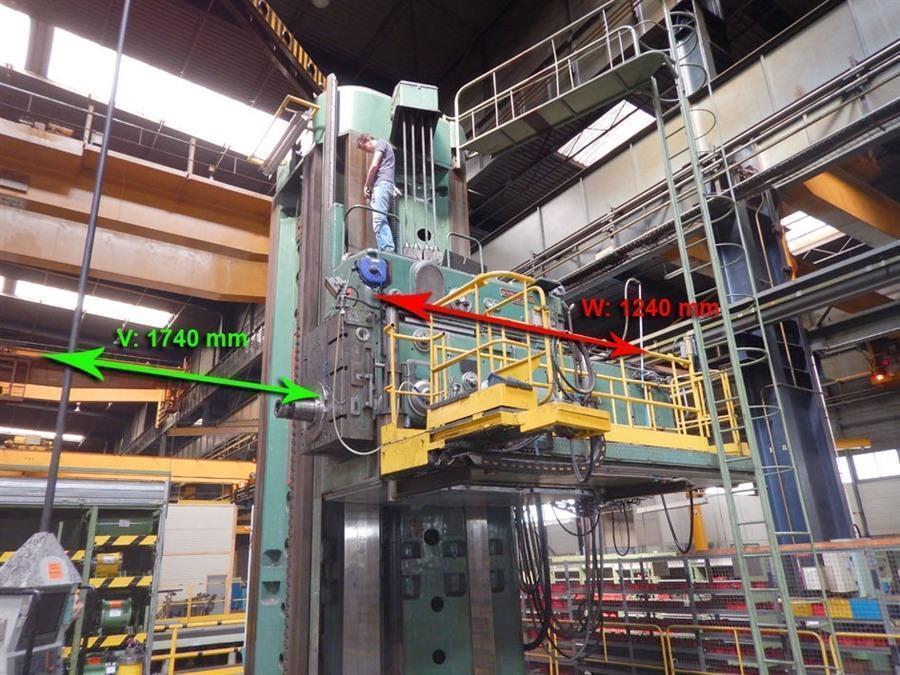

Ram travel: 1240 mm
Spindle travel: 1740 mm
Spindle dia: 200 mm
74 kW on spindle - 2 > 2200 rpm

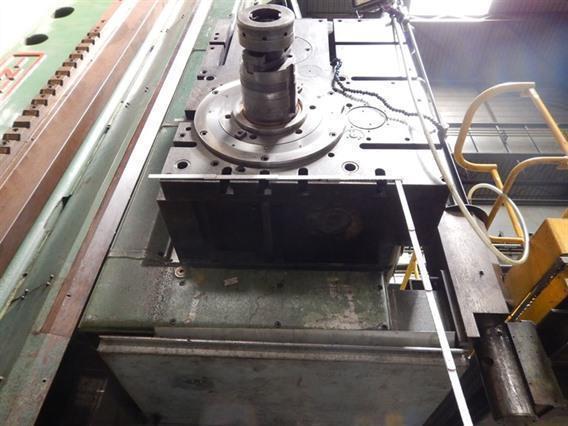

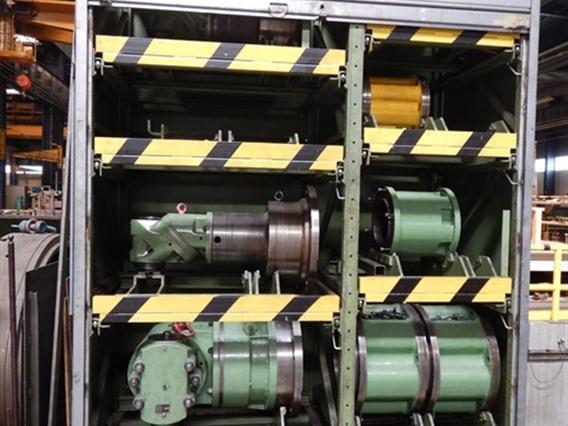

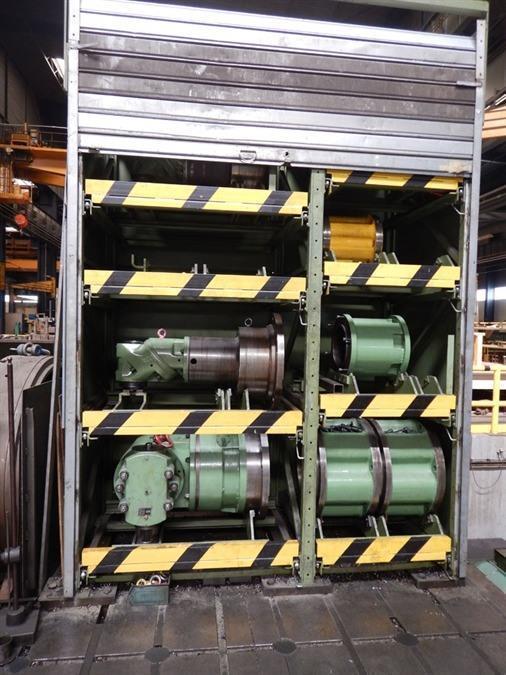

Including various milling heads
Linear milling:
> speed: 0,67 > 1600 mm/min
> max load: 130 ton
> motor: 100 HP
Turning:
> speed: 0,16 > 34,5 rpm
> max load: 100 ton
> motor: 100 HP
Optionally

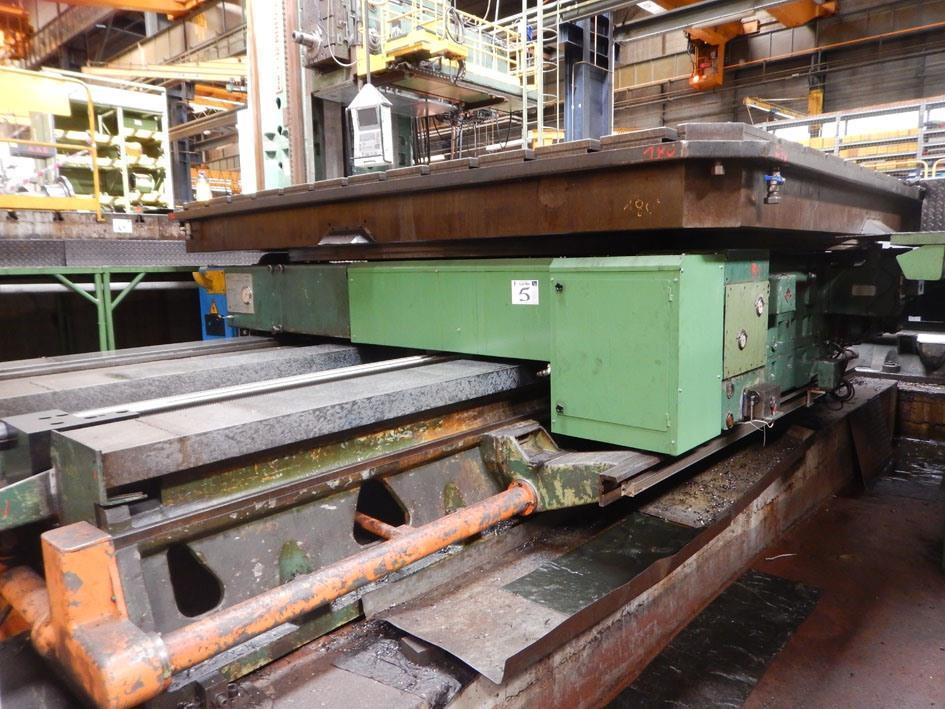

- CNC turntable

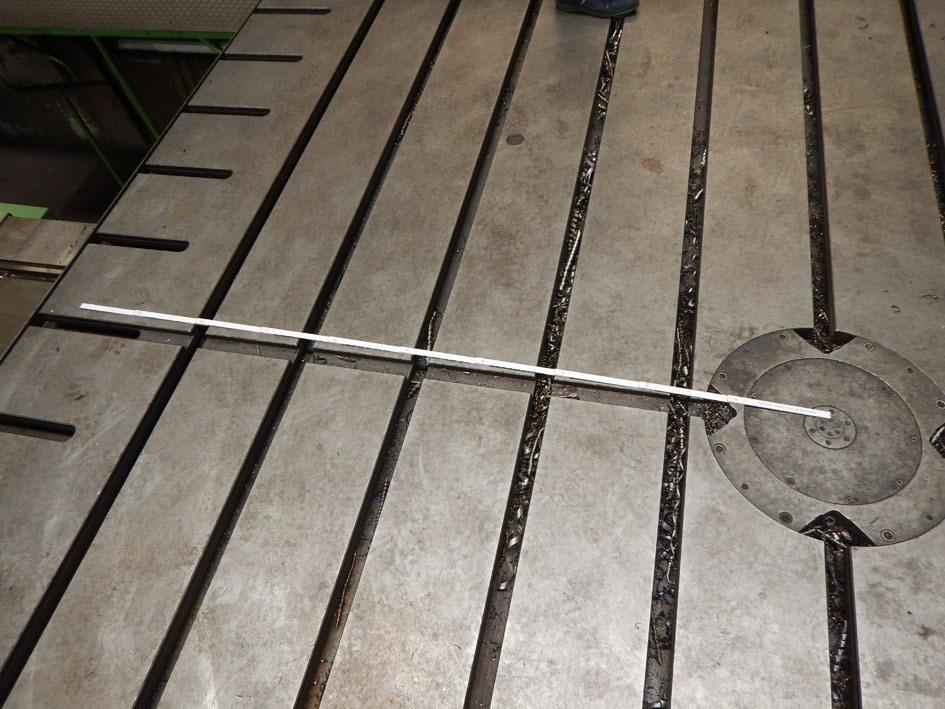

- T-slot tables: 20 145 x 7945 mm
- Tip/Model: / Innocenti X: 17 000 - Y: 4840 - Z: 2980 mm CNC
- Stok numarası: F.02 9807
- Kategori: [F] (cnc) Tezgahlar ve Torna tezgahları
- Alt kategori: [F.02] Kotterbanken met beweegbare kolom – Vloertype
- Marka: Mitsubishi
Stok numarası: F.02 9807
