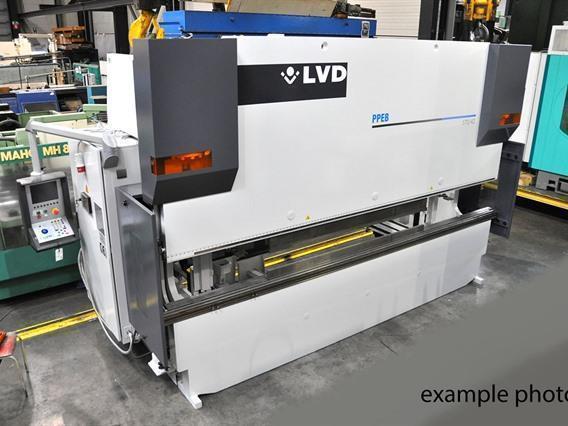

LVD - PPI 170 ton x 4100 mm CNC

LVD PPI 170 ton x 4100 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Capacity x Max length170 ton x 4100 mm
BackgaugeCNC
Control2D Touch
Passage between uprights3150 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat370 mm
Table width 180 mm
Locking speed100 mm/sec
Working speed8 mm/sec
Returning speed81 mm/sec
Electric motor (power)14 kW
Weight11 ton

Ek bilgi

Y1 / Y2 / X
Tip/Model: PPI 170 ton x 4100 mm CNC
Stok numarası: O.01 12926
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.01] Hydraulische kantbanken & Hydraulische plooibanken
Marka: LVD

» Kişisel fiyat talep edin

Stok numarası: O.01 12926

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
