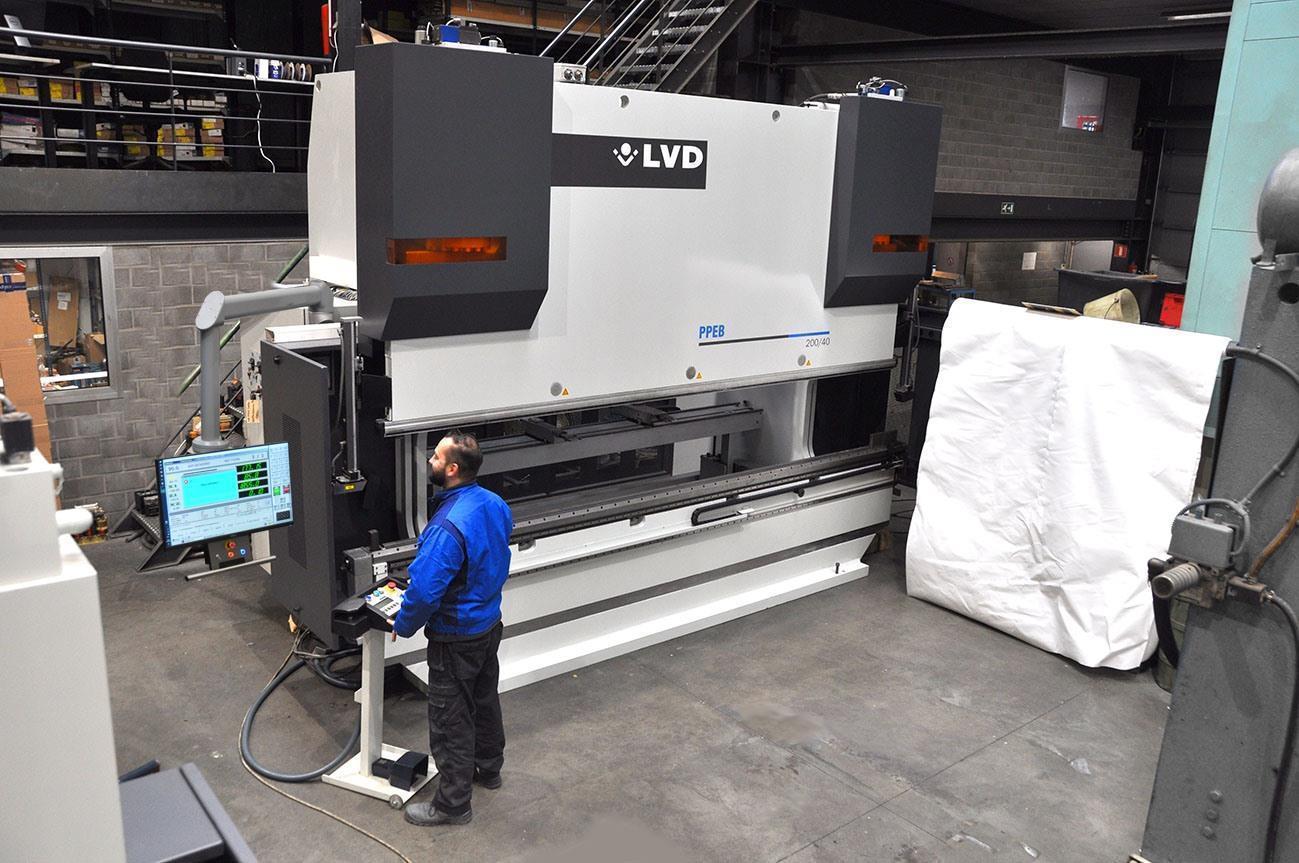

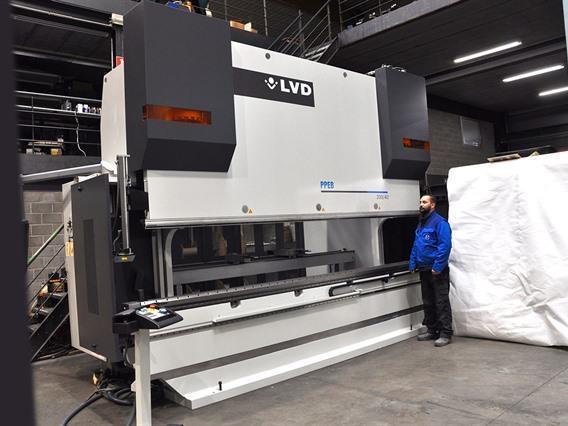

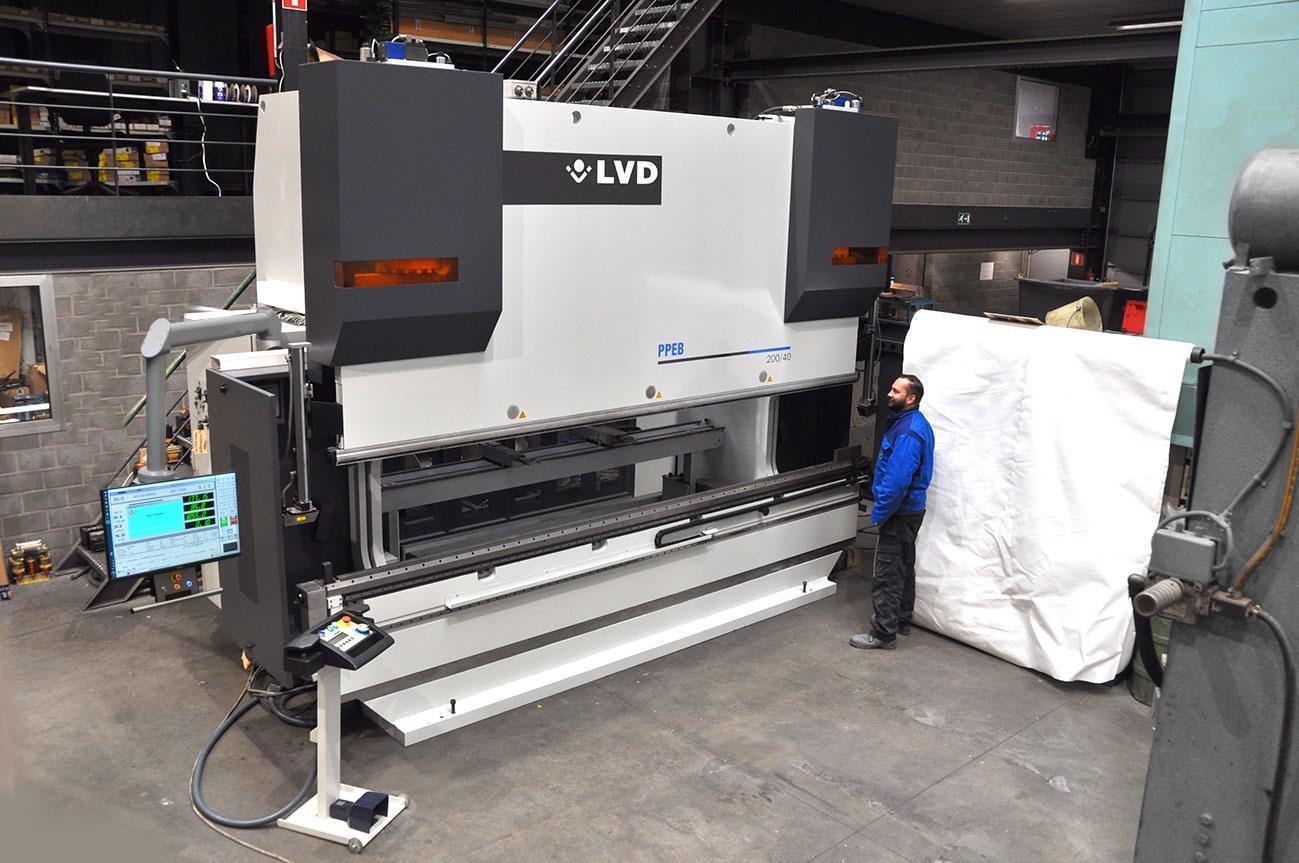

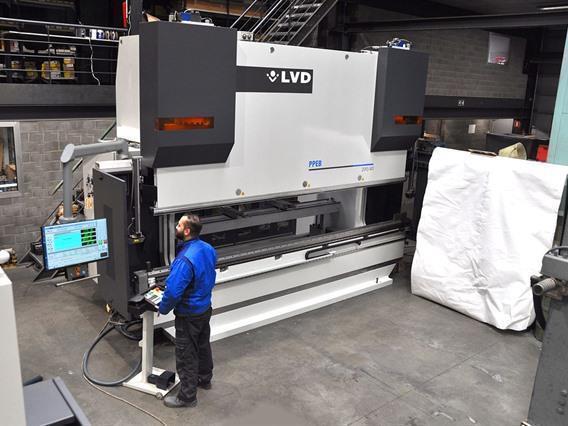

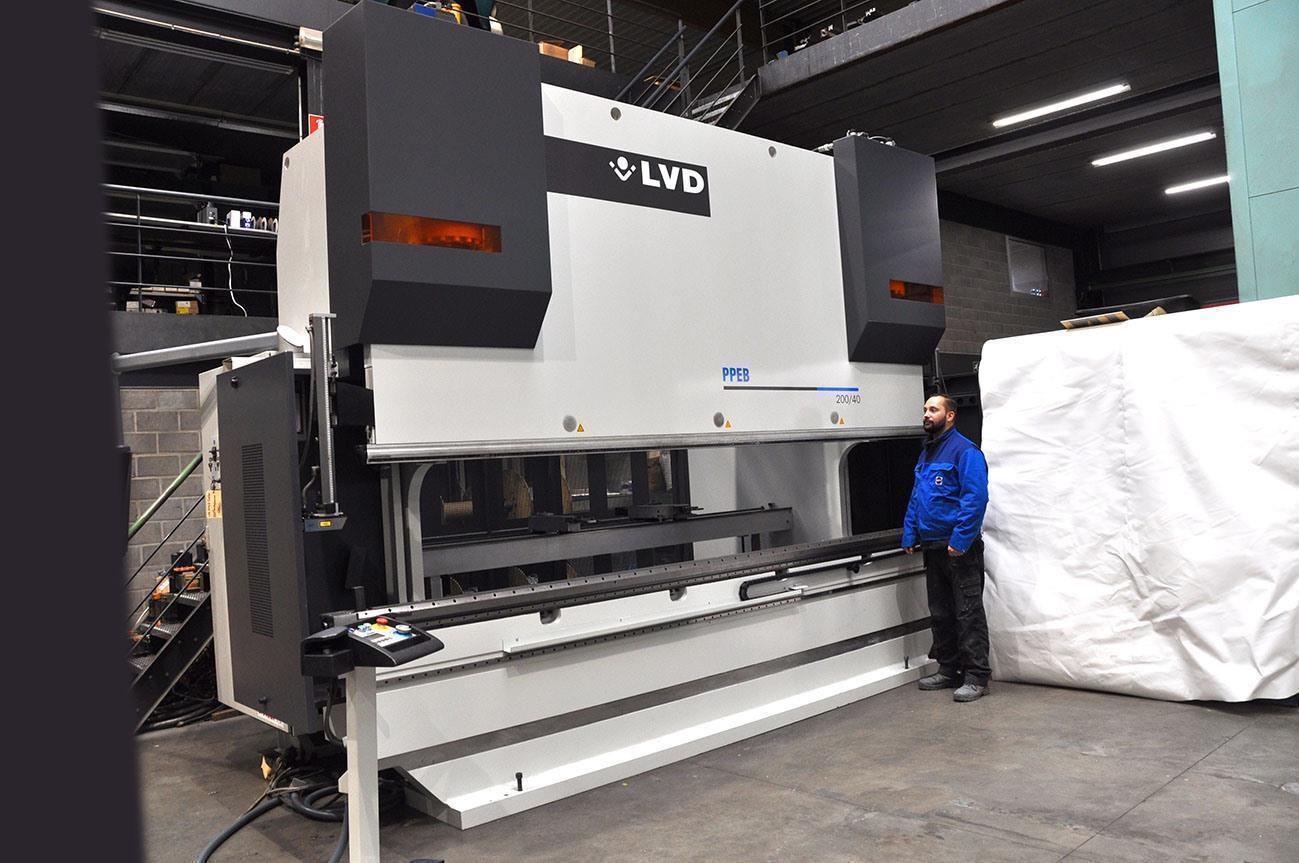

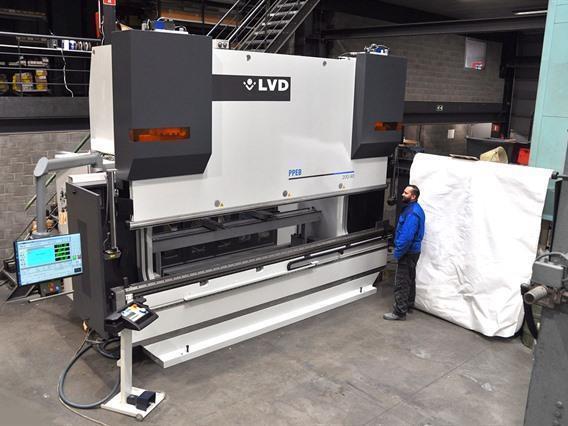

LVD PPEB - Turbo 220 ton x 4200 mm CNC

LVD PPEB Turbo 220 ton x 4200 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Capacity x Max length220 ton x 4200 mm

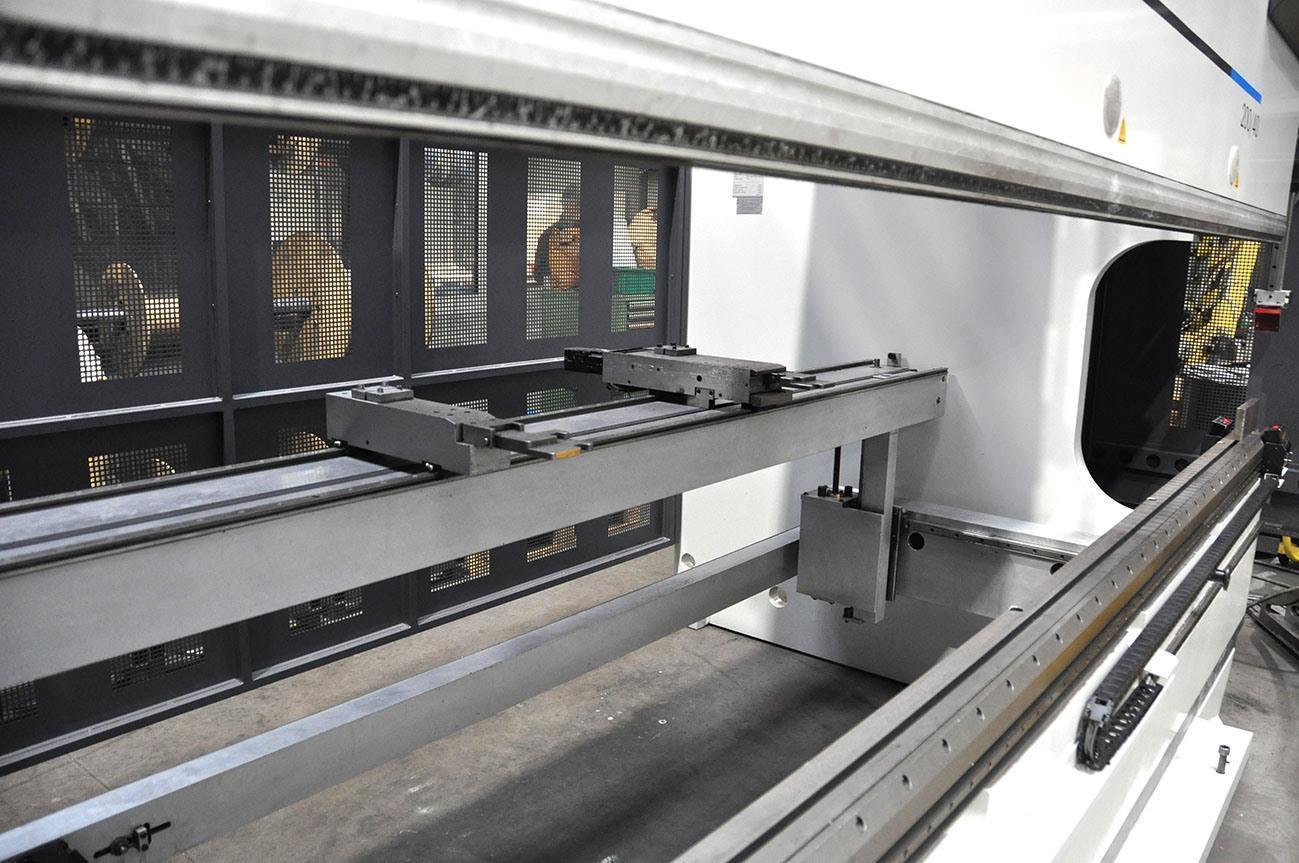

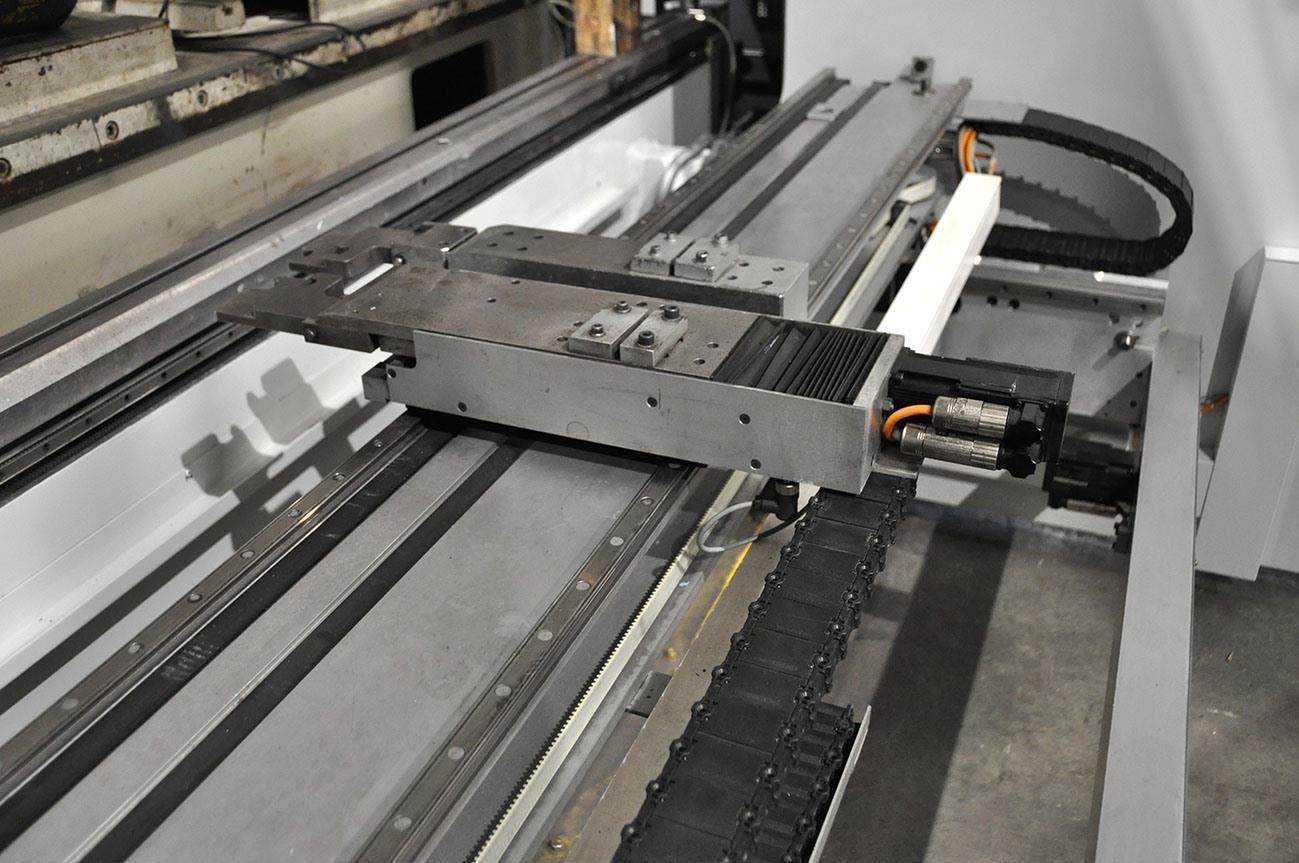

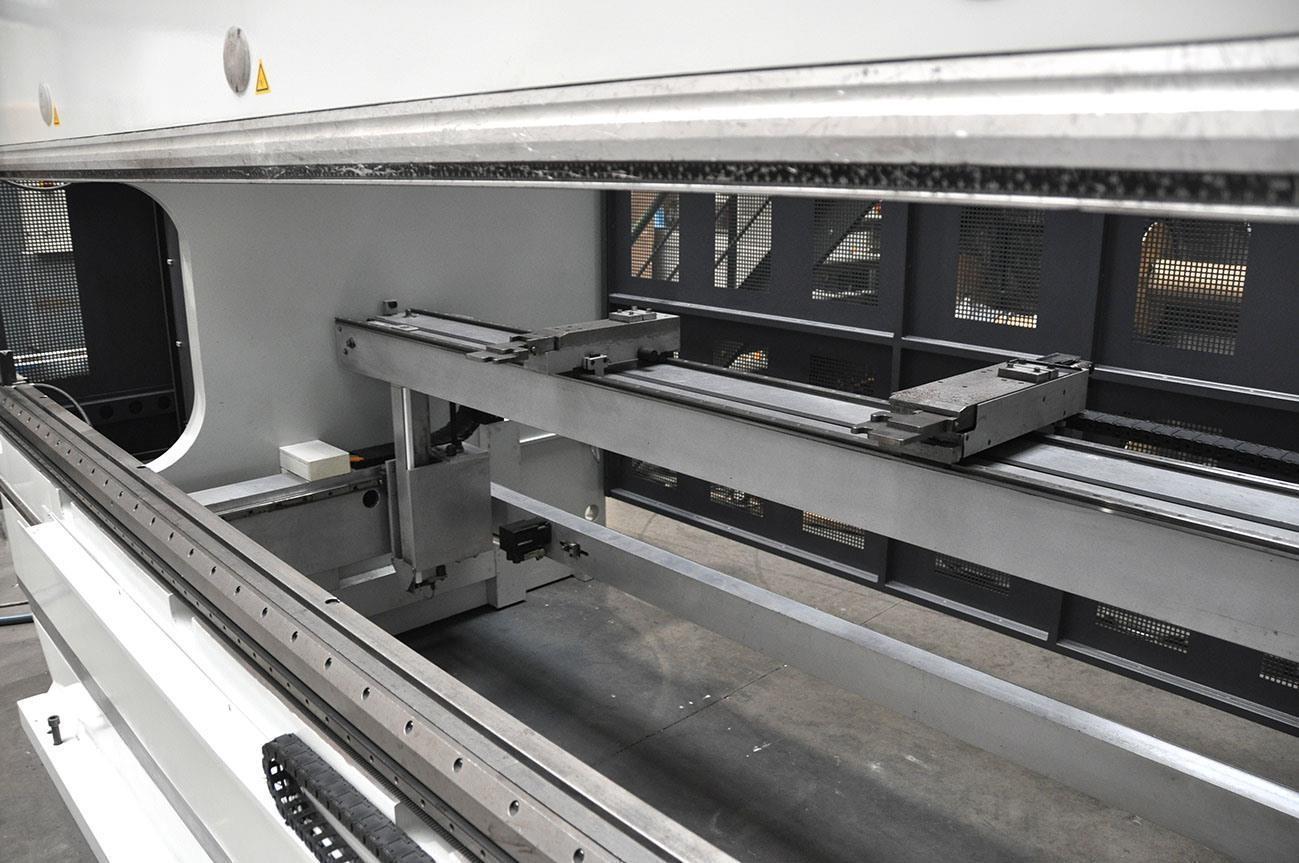

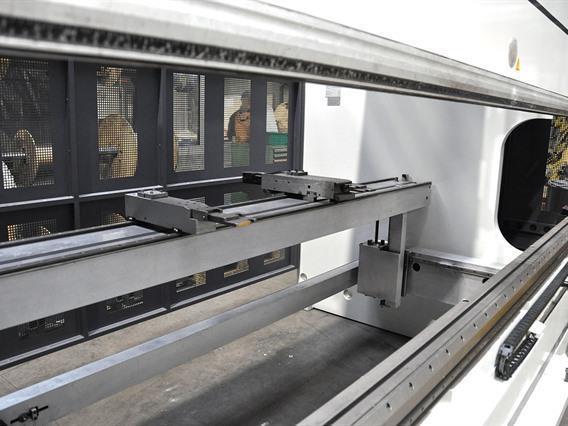

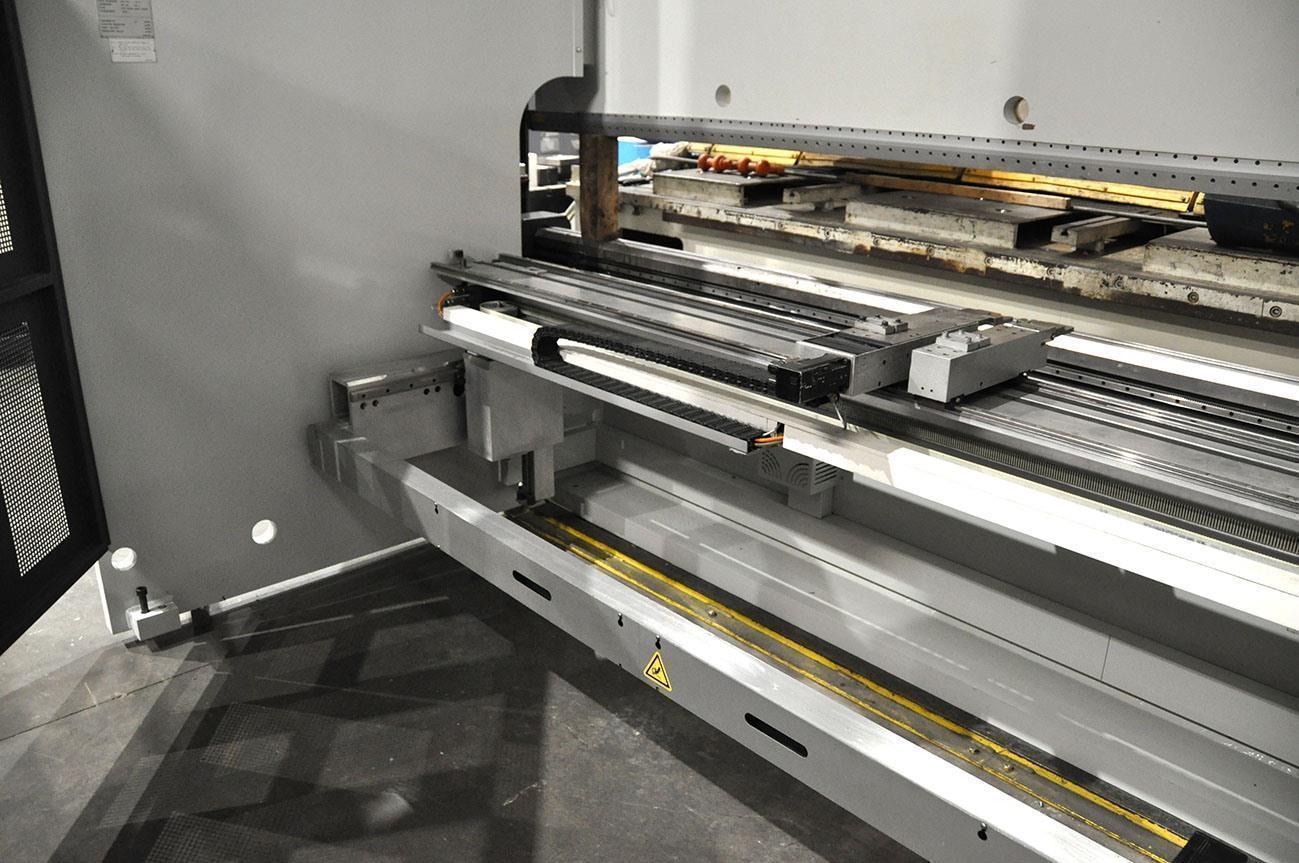

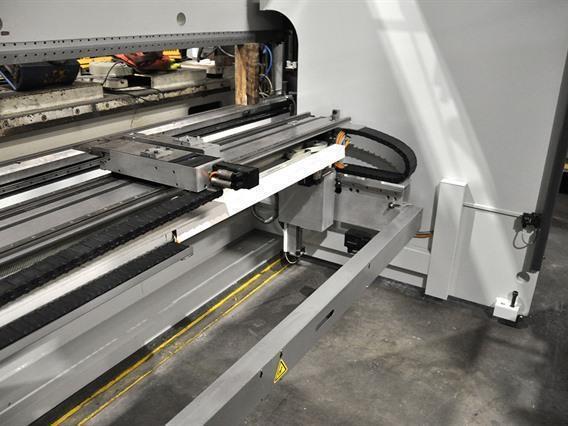

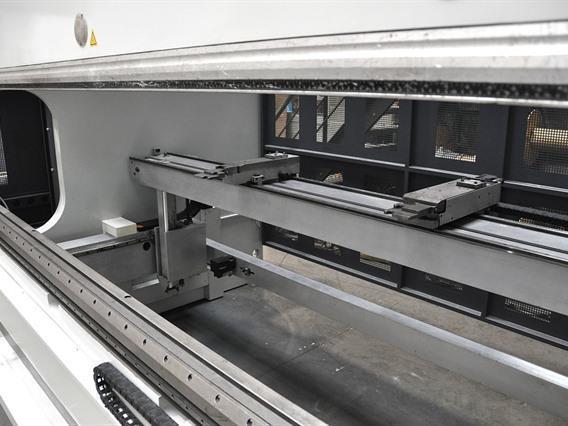

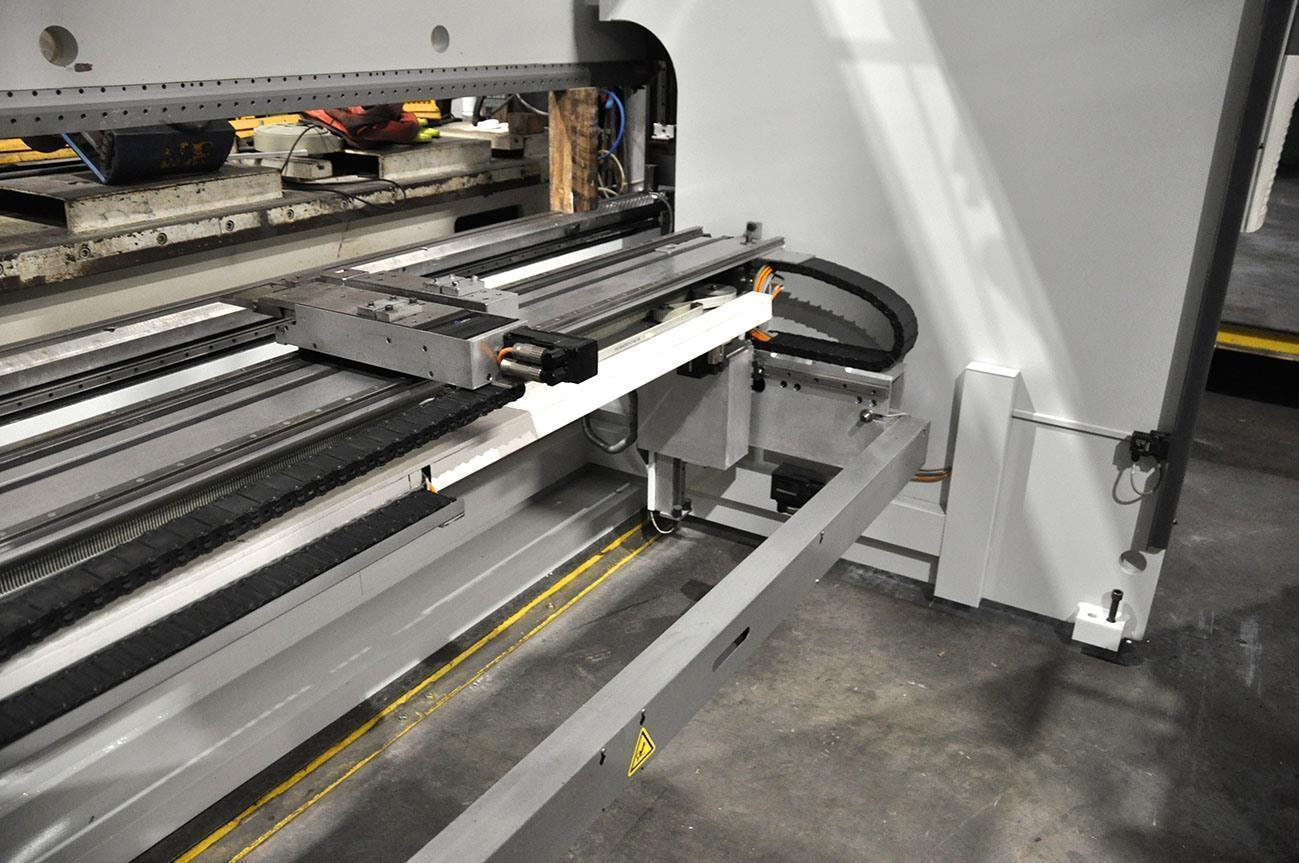

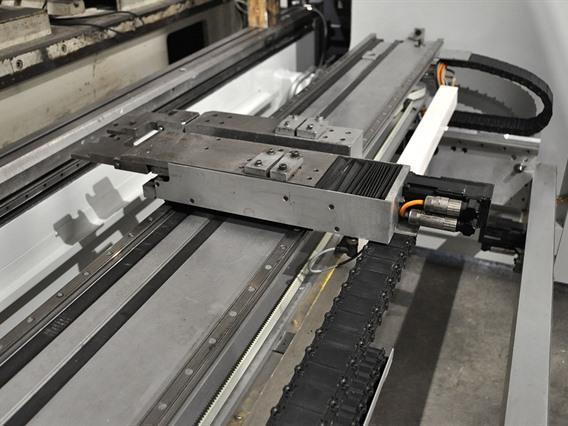

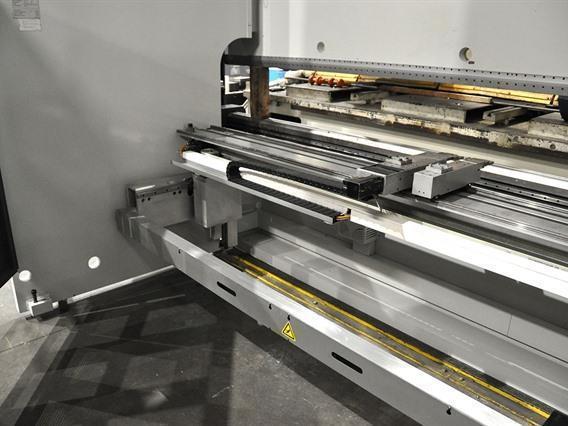

BackgaugeCNC

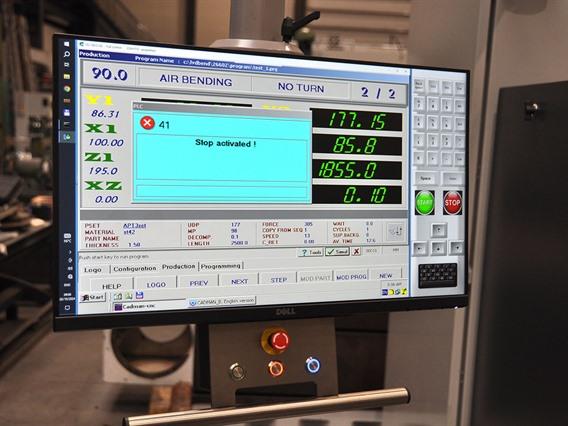

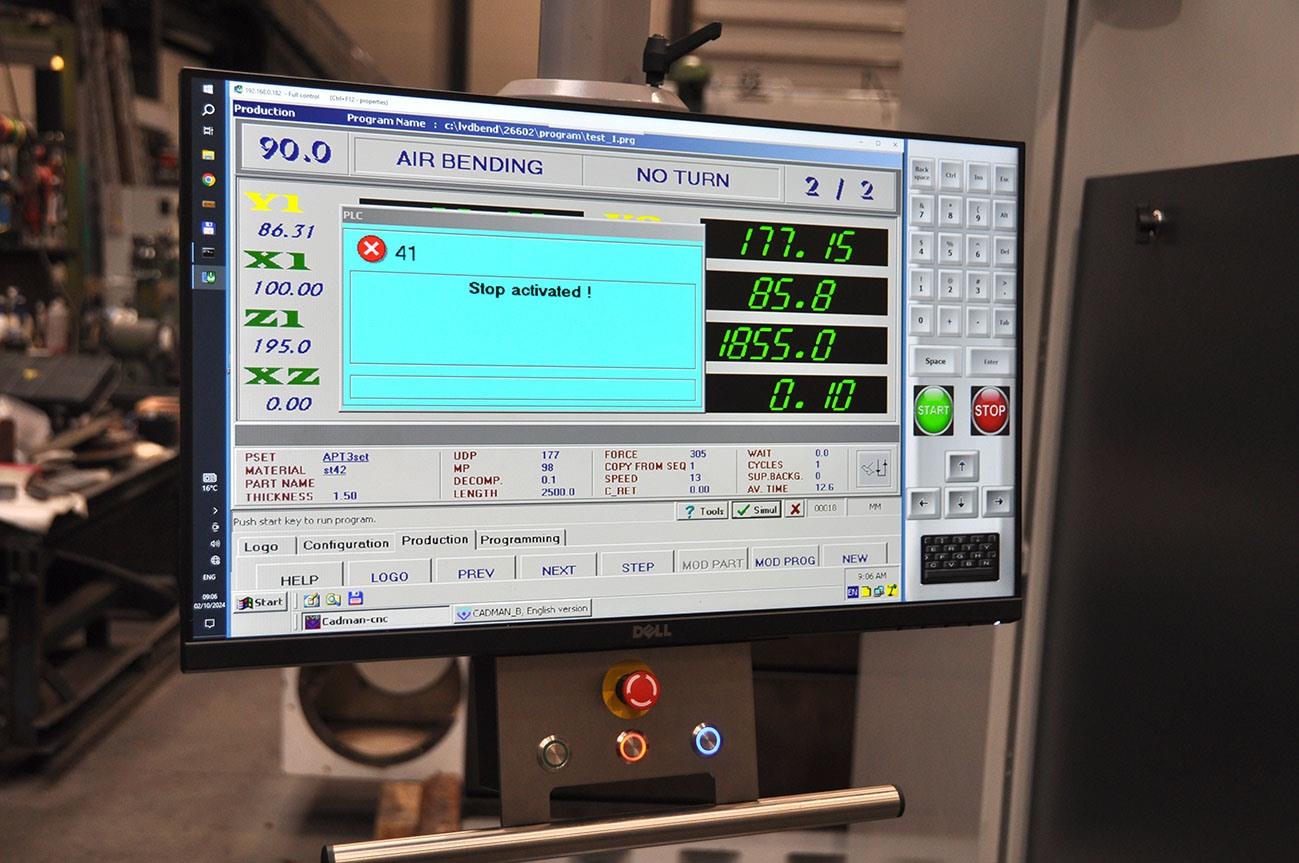

ControlCadman B + Touch
Passage between uprights3820 mm
Max stroke350 mm

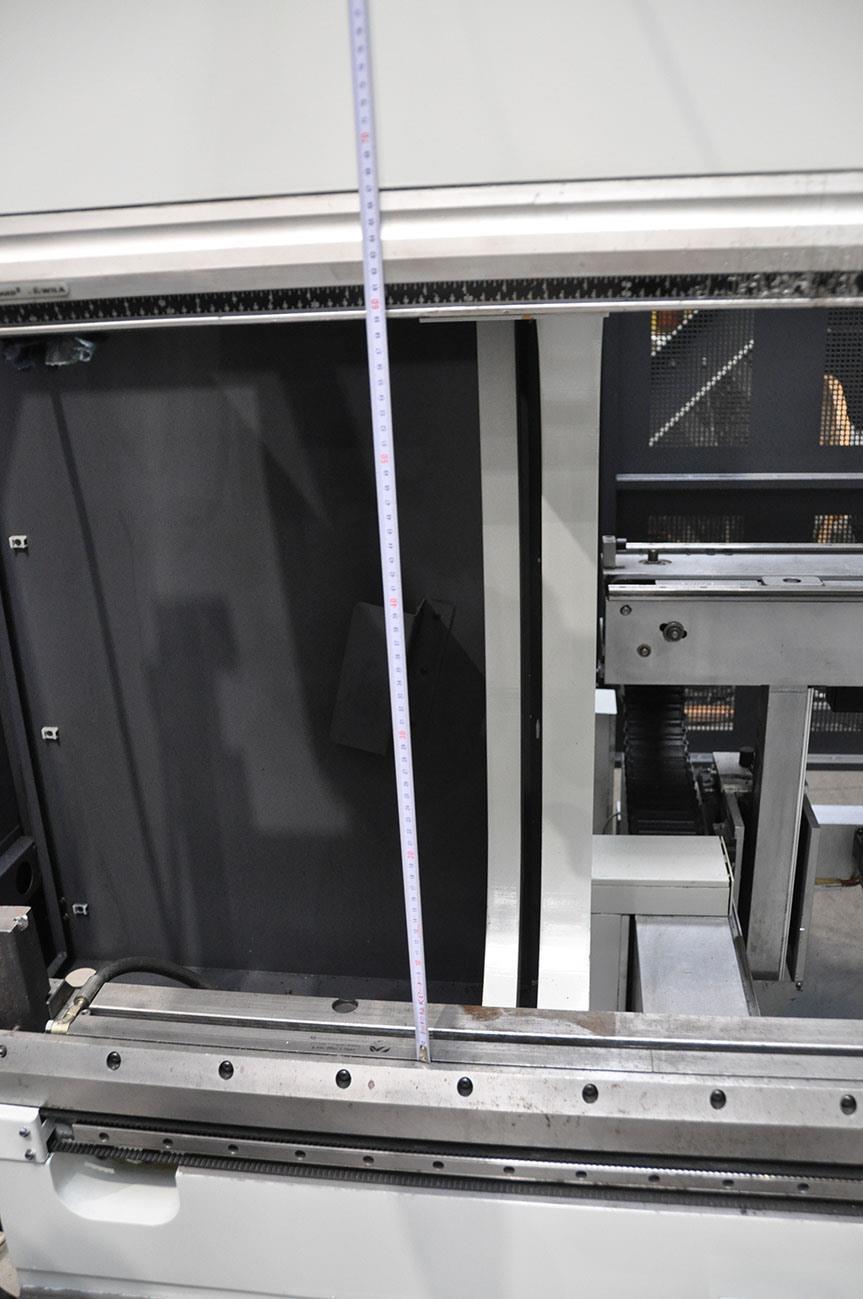

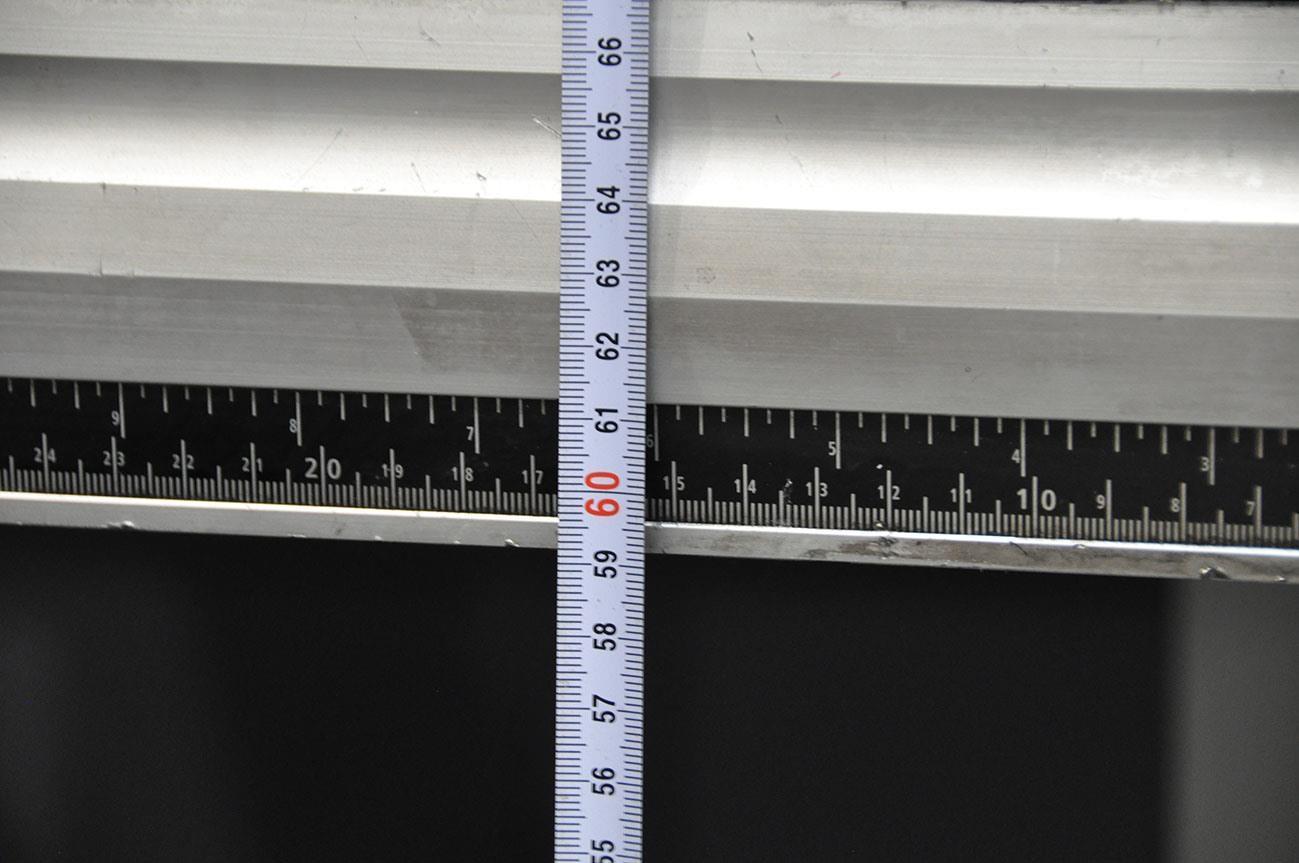

Max distance between table -- ram585 mm
Depth of throat405 mm
Table width 120 mm
Locking speed120 mm/sec
Working speed20 mm/sec
Returning speed200 mm/sec
Electric motor (power)42 kW
Length 6320 mm
Depth 2850 mm
Height3600 mm
Weight20.6 ton

Ek bilgi

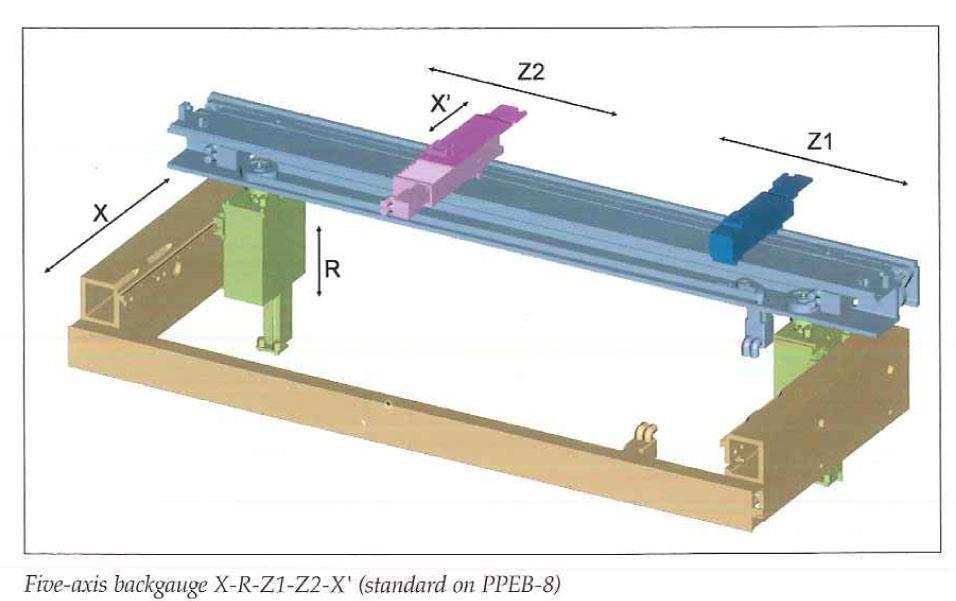

8 axes: Y1 / Y2 / X / R / Z1 / Z2 / X' / V

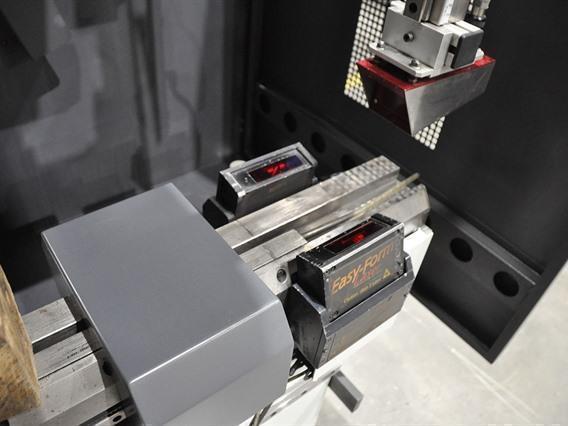

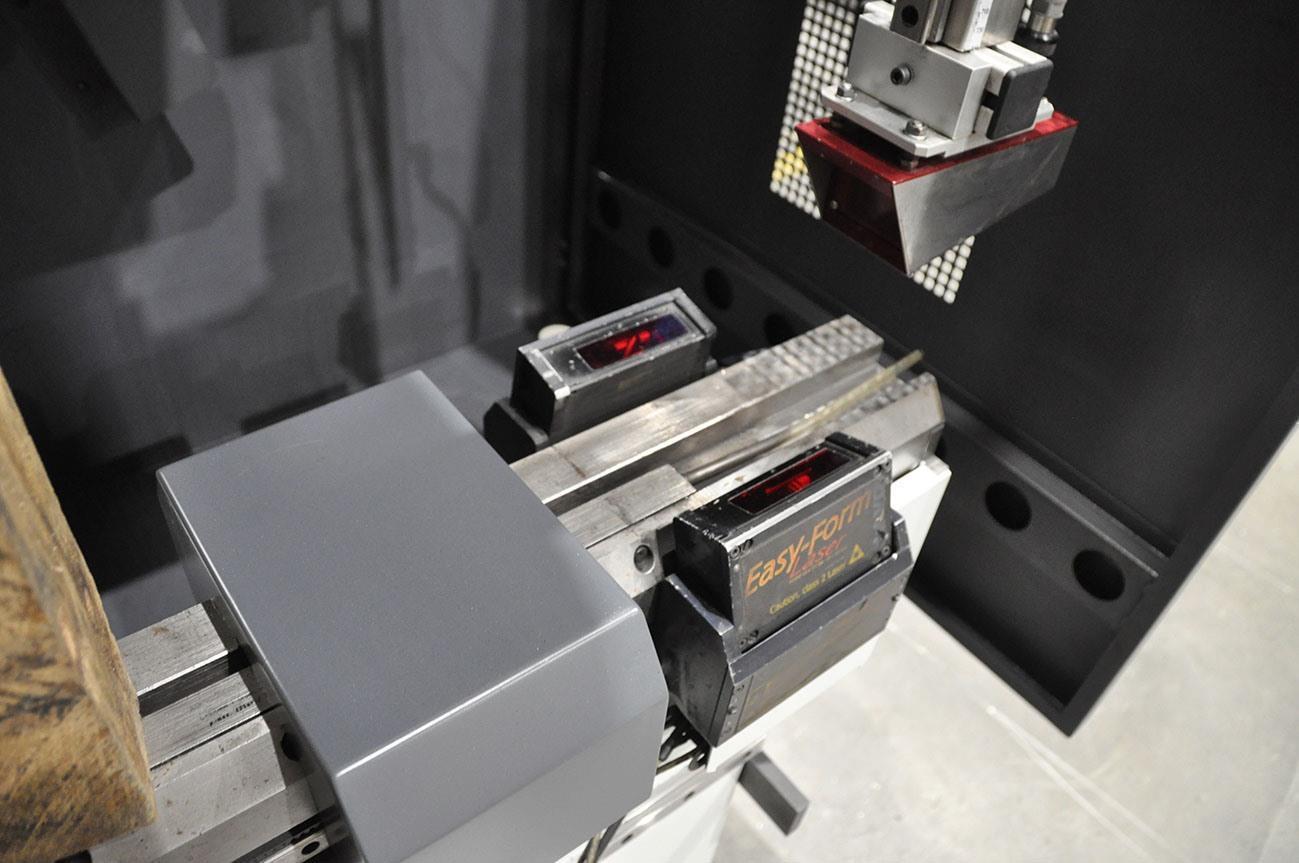

with Easy Form
with CNC bombation

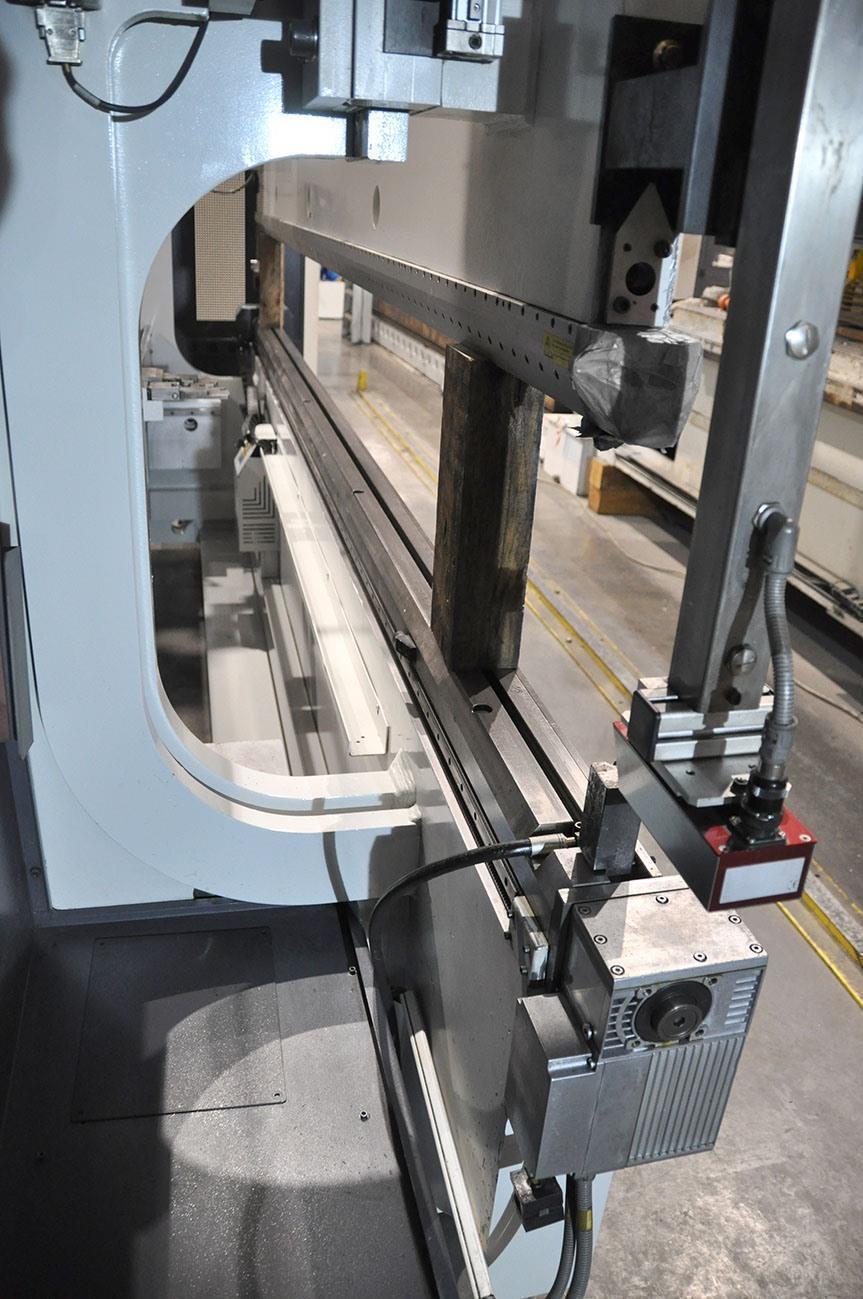

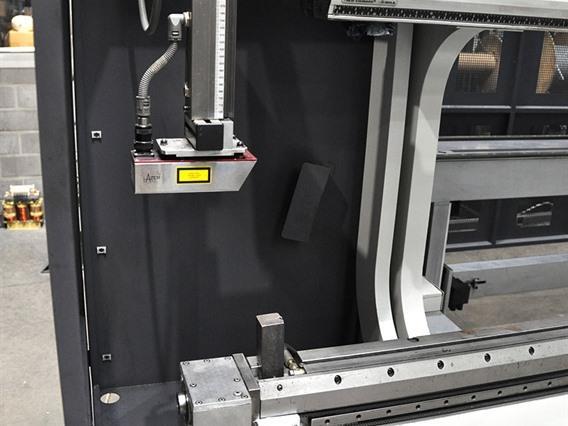

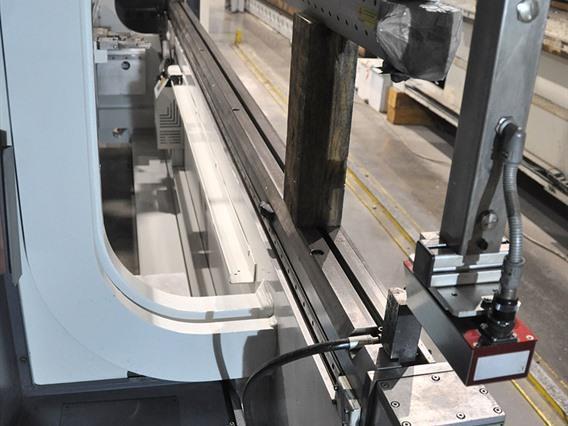

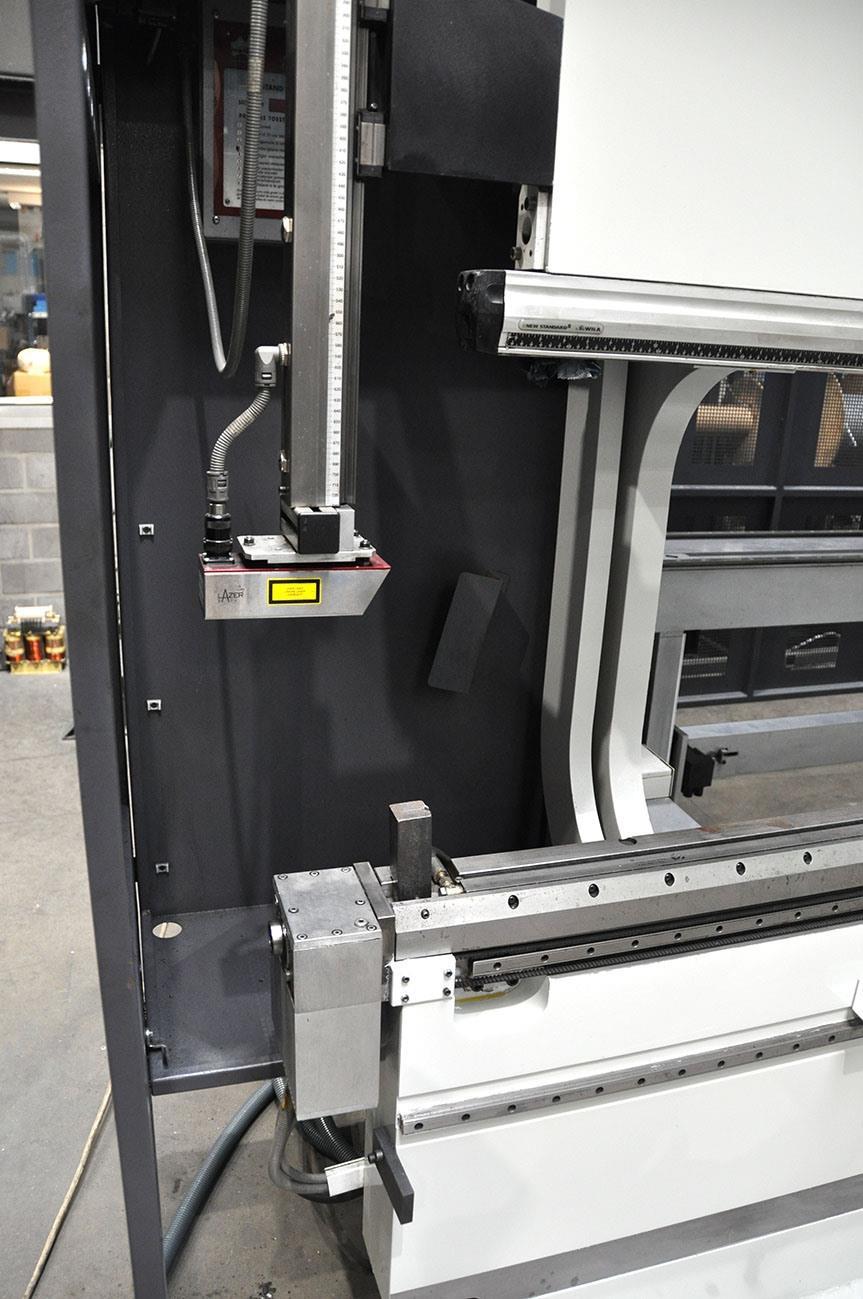

with Lazer Safe protection

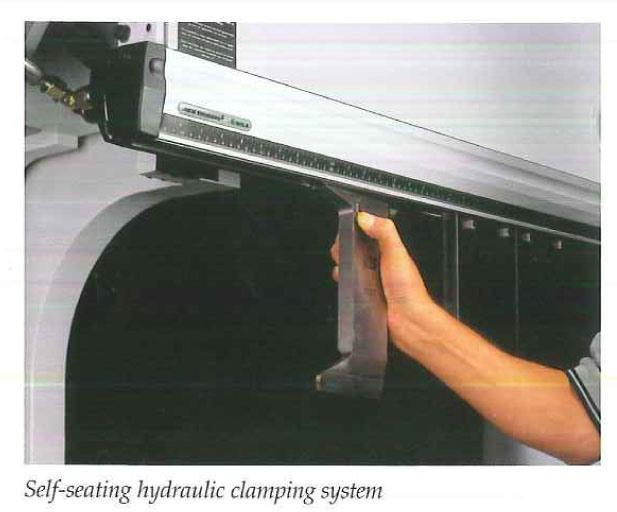

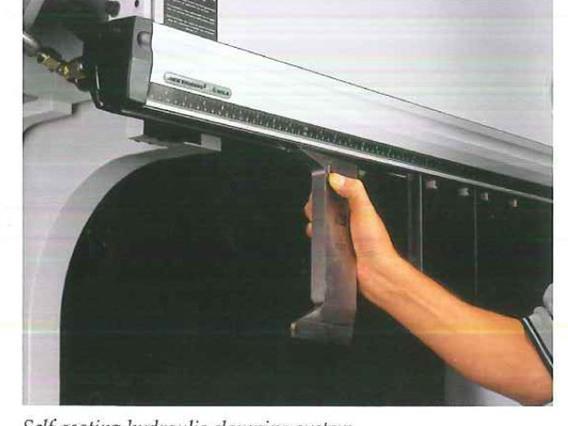

with Willa hydraulic clamping

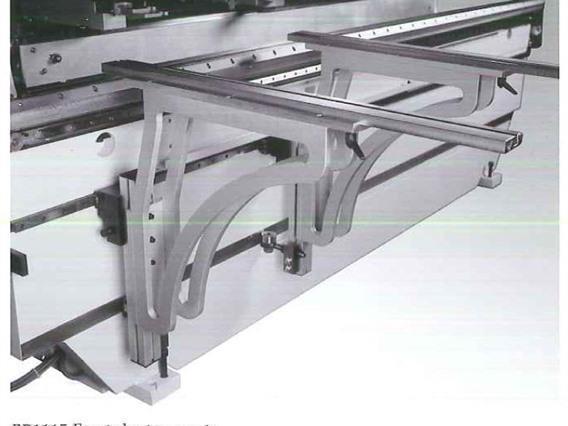

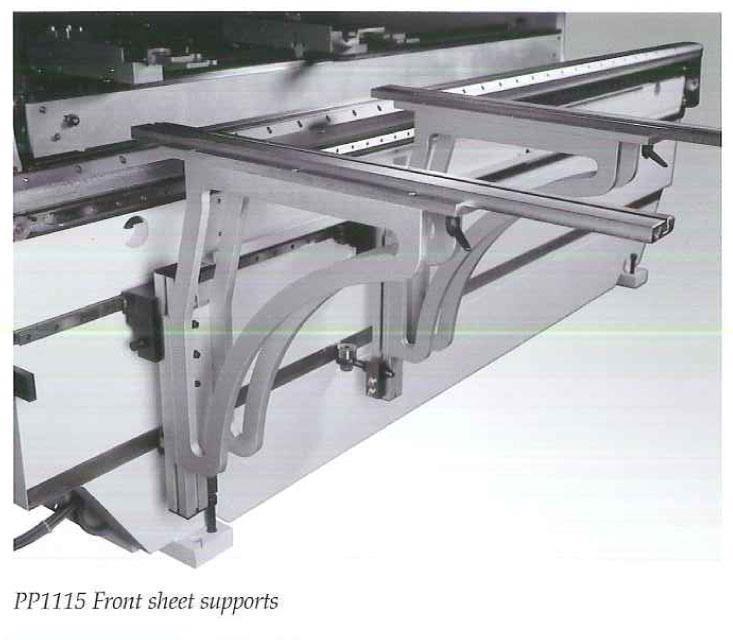

with 2 plate supports
Tip/Model: Turbo 220 ton x 4200 mm CNC
Stok numarası: O.01 13932
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.01] Hydraulische kantbanken & Hydraulische plooibanken
Marka: LVD PPEB

» Kişisel fiyat talep edin

Stok numarası: O.01 13932

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
