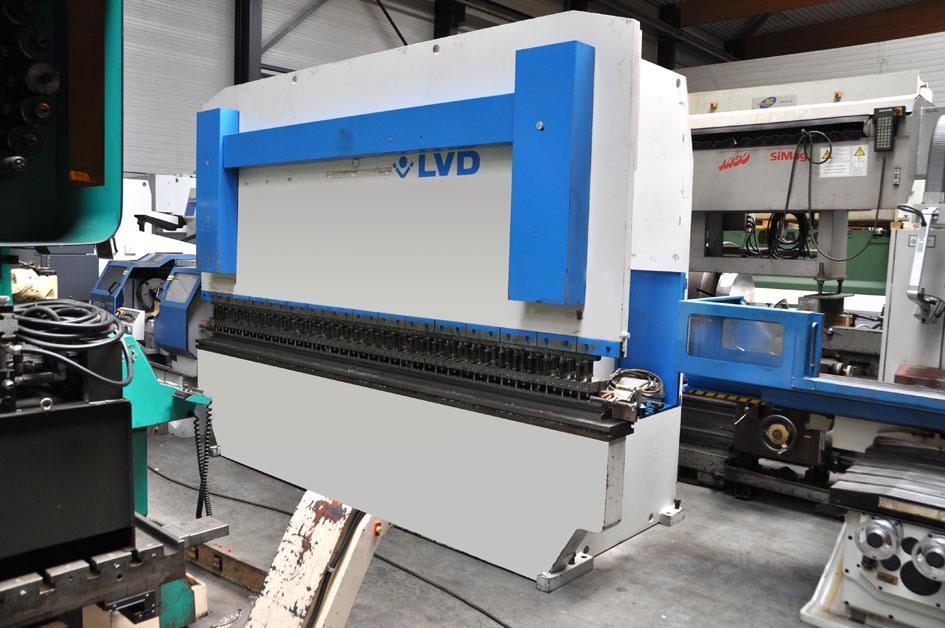

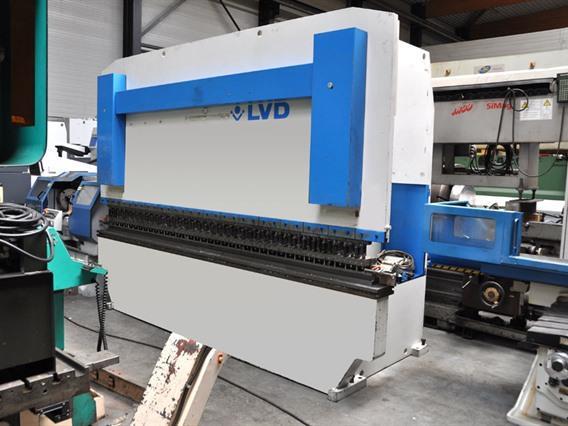

LVD PPBL 200 ton x 4100 mm
Teknik Bilgiler
- Capacity x Max length200 ton x 4100 mm
- Backgaugemanual
- Passage between uprights3150 mm
- Max stroke150 mm
- Max distance between table -- ram400 mm
- Depth of throat250 mm
- Table width 180 mm
- Locking speed80 mm/sec
- Working speed6,7 mm/sec
- Returning speed6,7 mm/sec
- Electric motor (power)11 kw
- Length 4150 mm
- Depth 1680 mm
- Height3000 mm
- Weight11 ton
