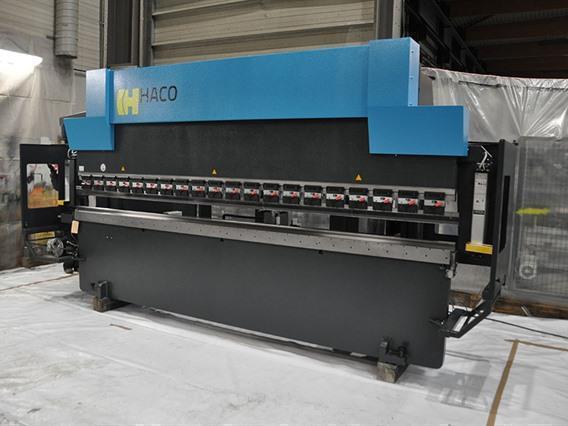

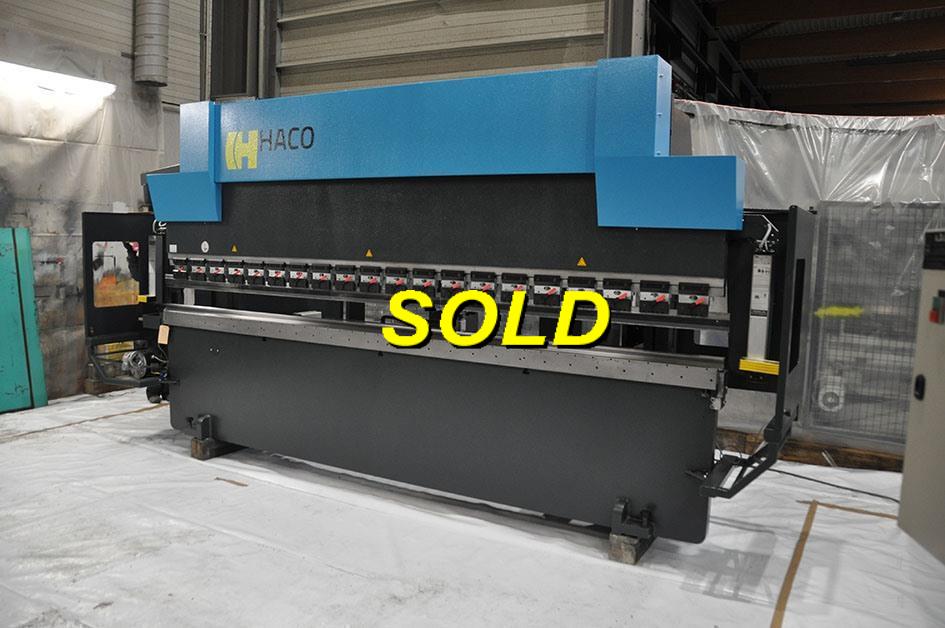

Haco ERM - 135 ton x 4100 mm CNC

Haco ERM 135 ton x 4100 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Capacity x Max length135 ton x 4100 mm

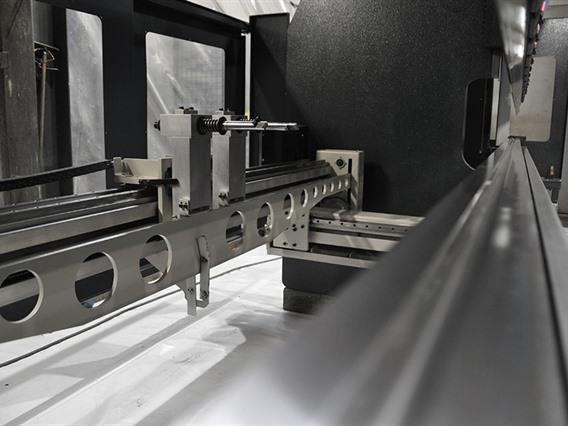

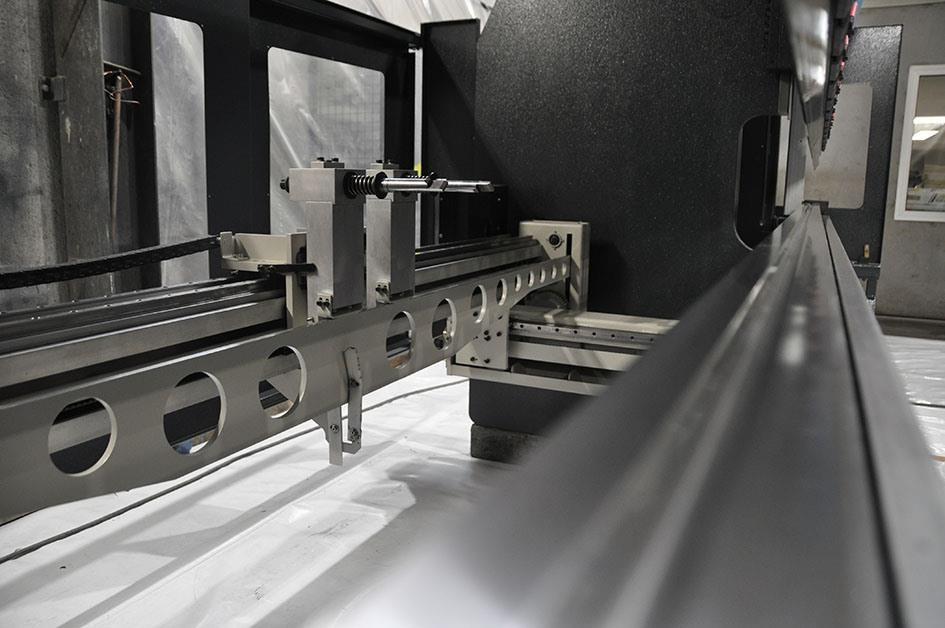

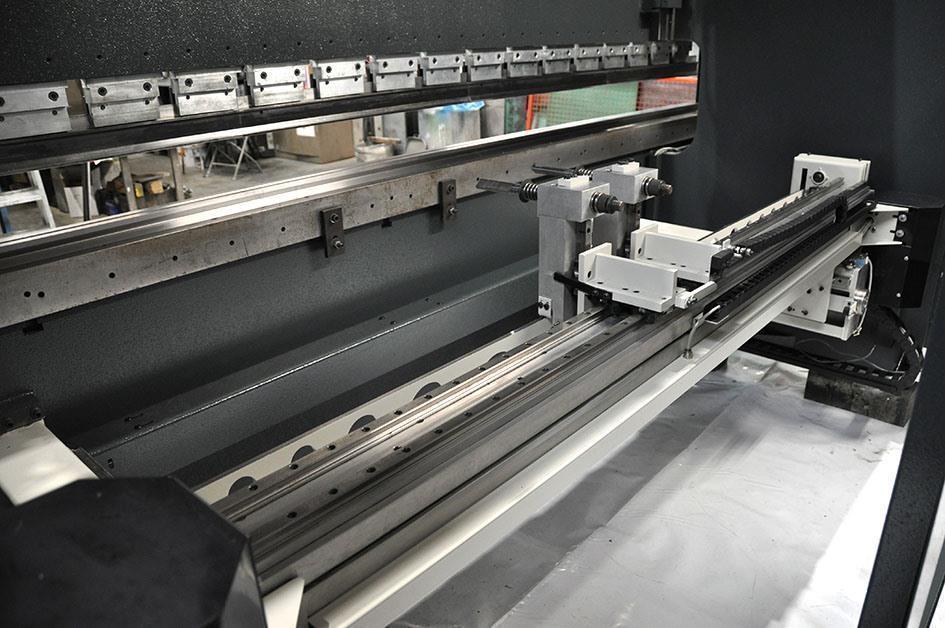

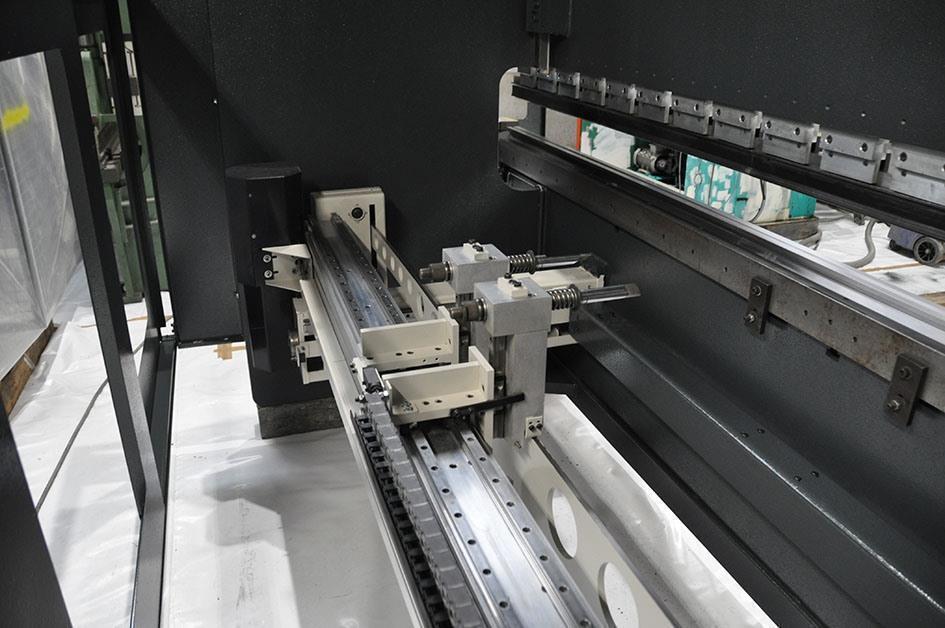

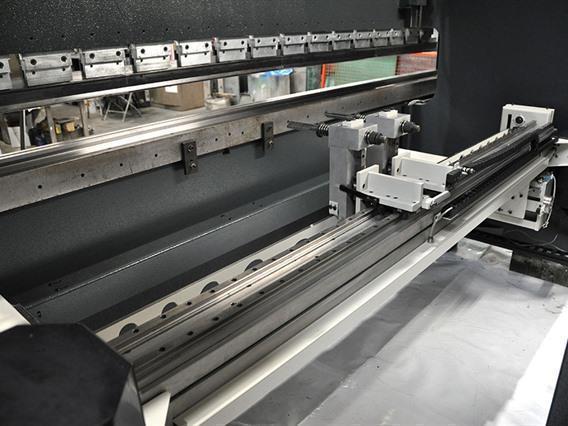

BackgaugeCNC

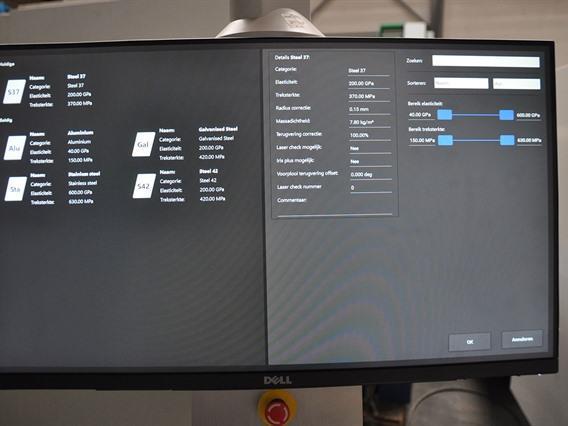

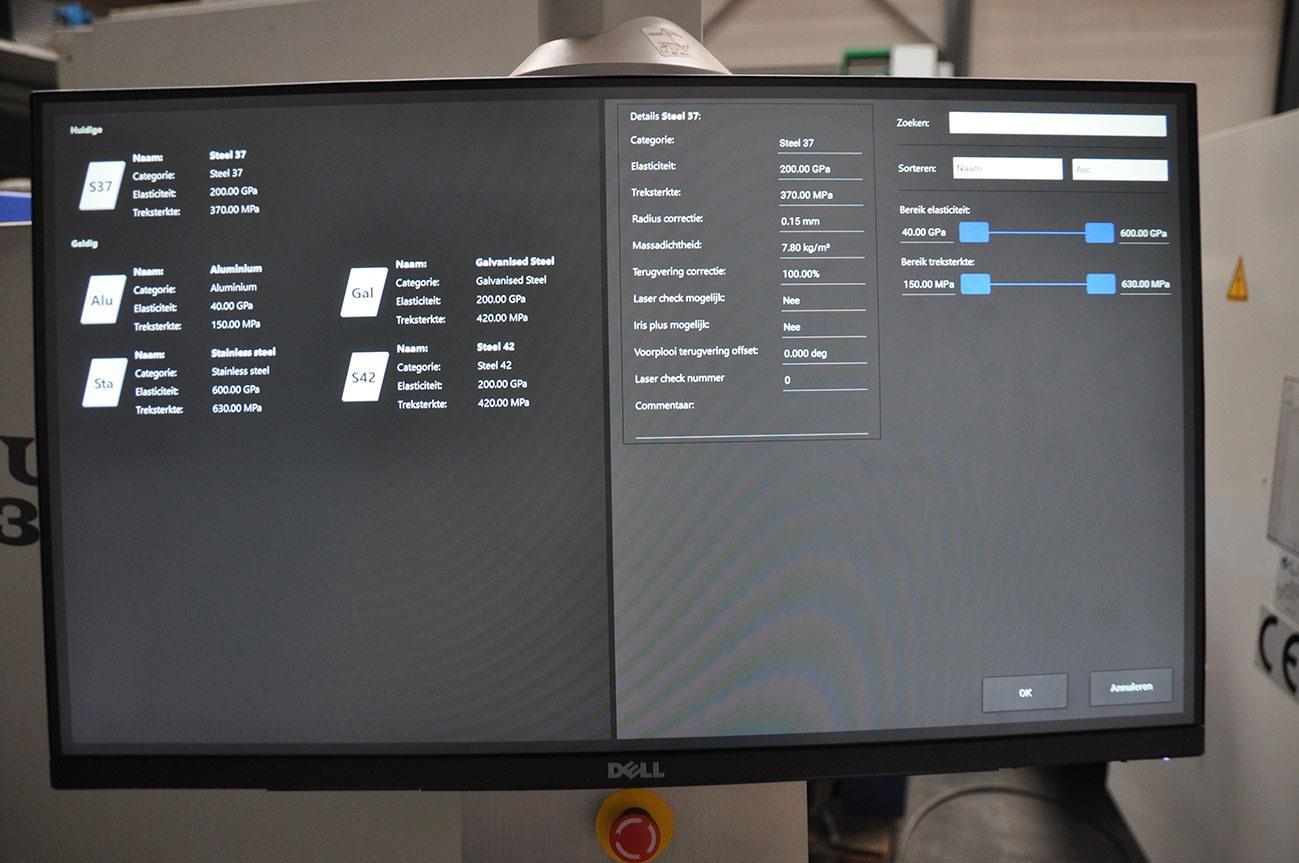

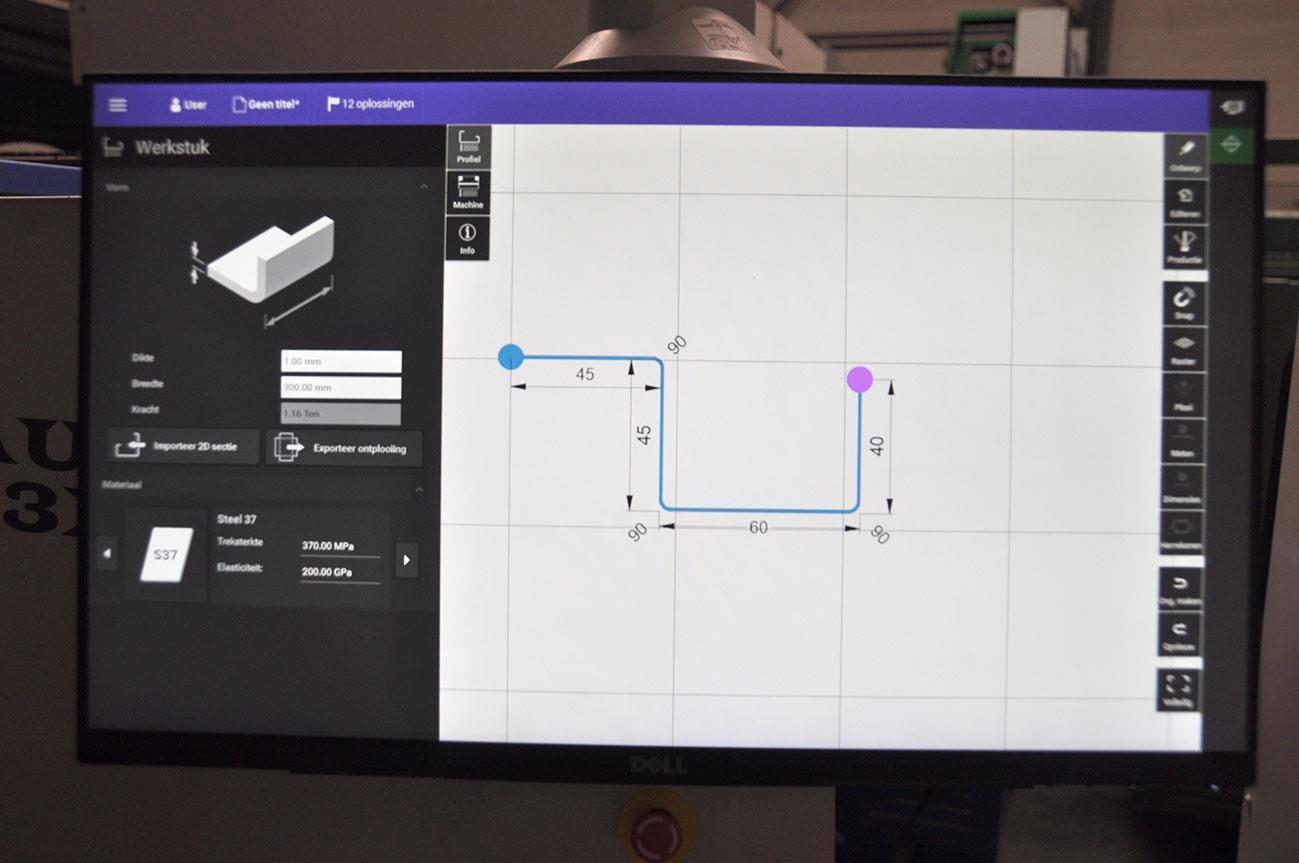

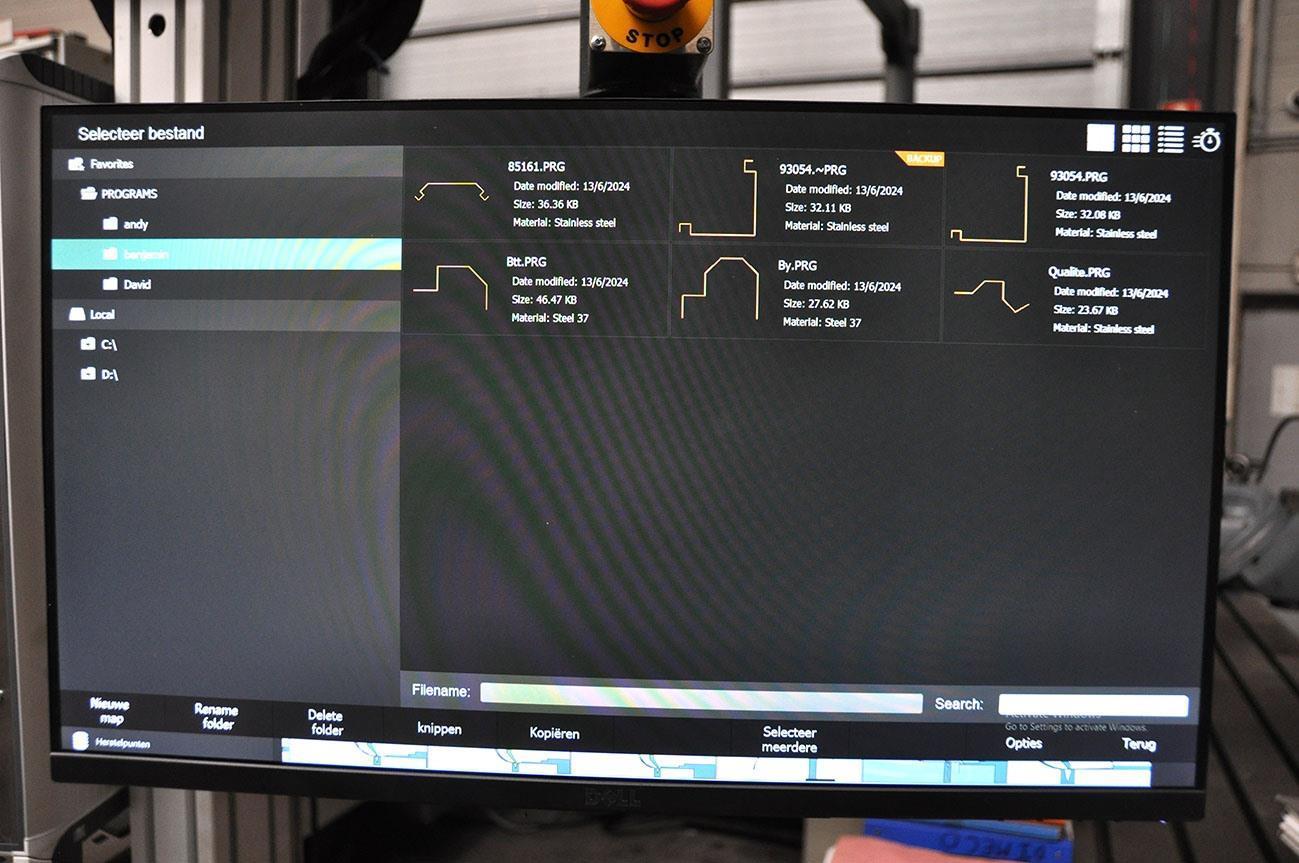

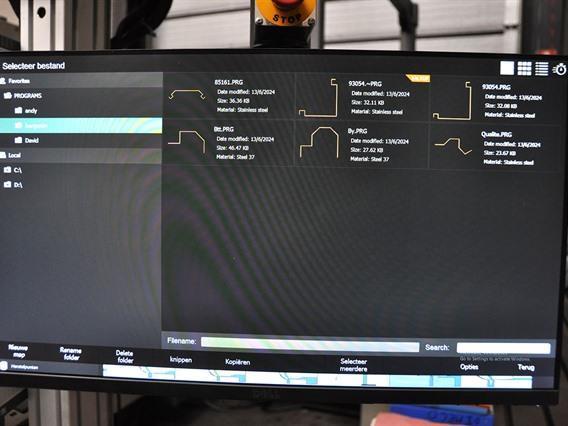

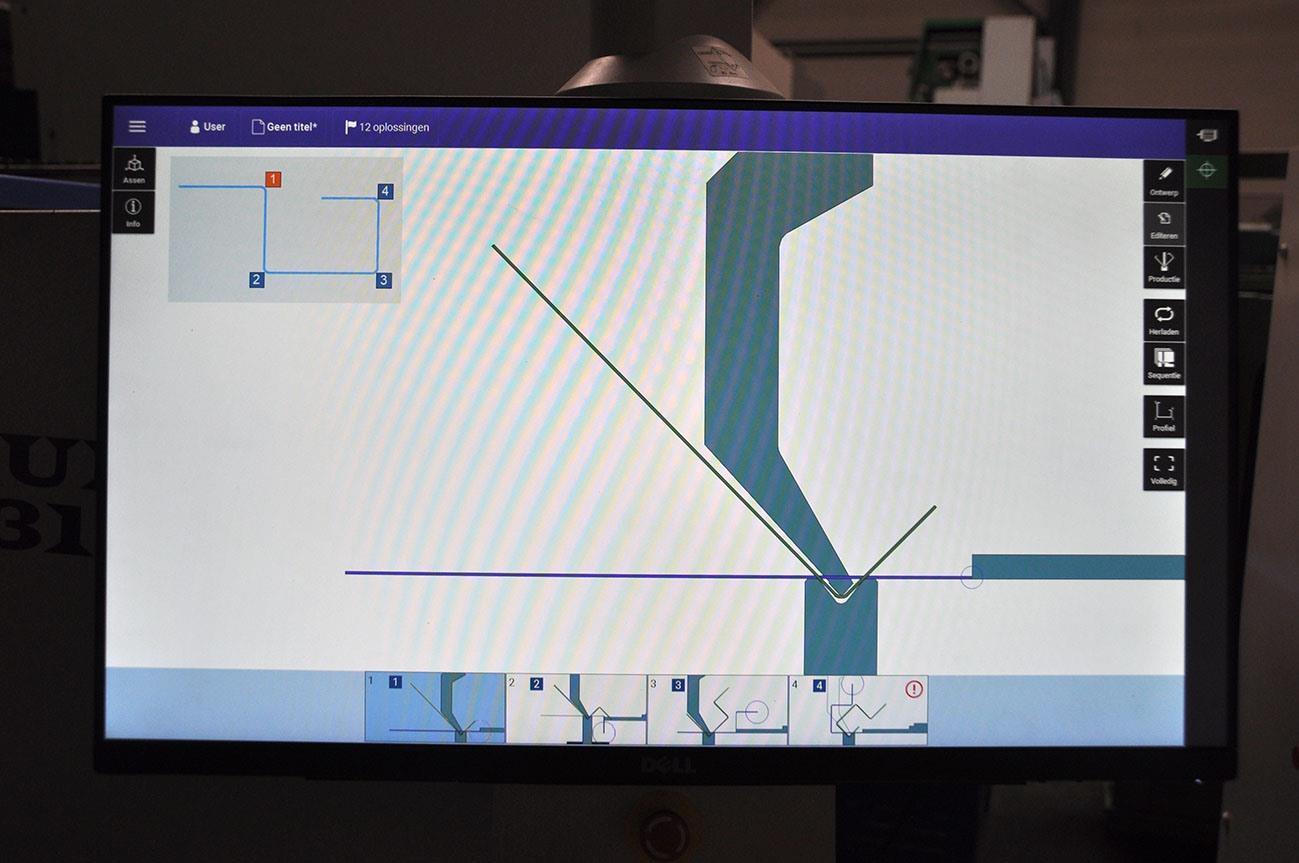

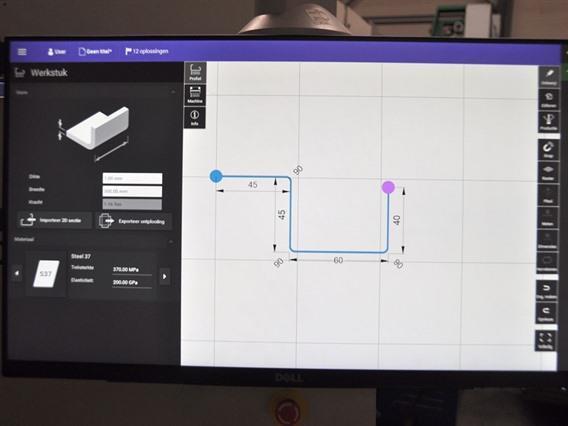

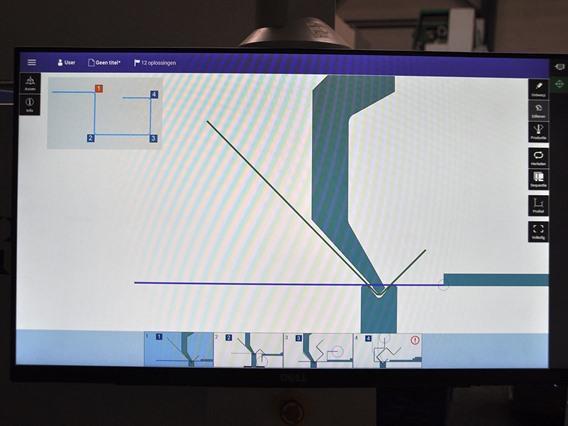

Control2D touch
Passage between uprights3150 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat250 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed100 mm/sec
Electric motor (power)15 kW
Length 4400 mm
Depth 1700 mm
Height2500 mm
Weight10 ton

Ek bilgi

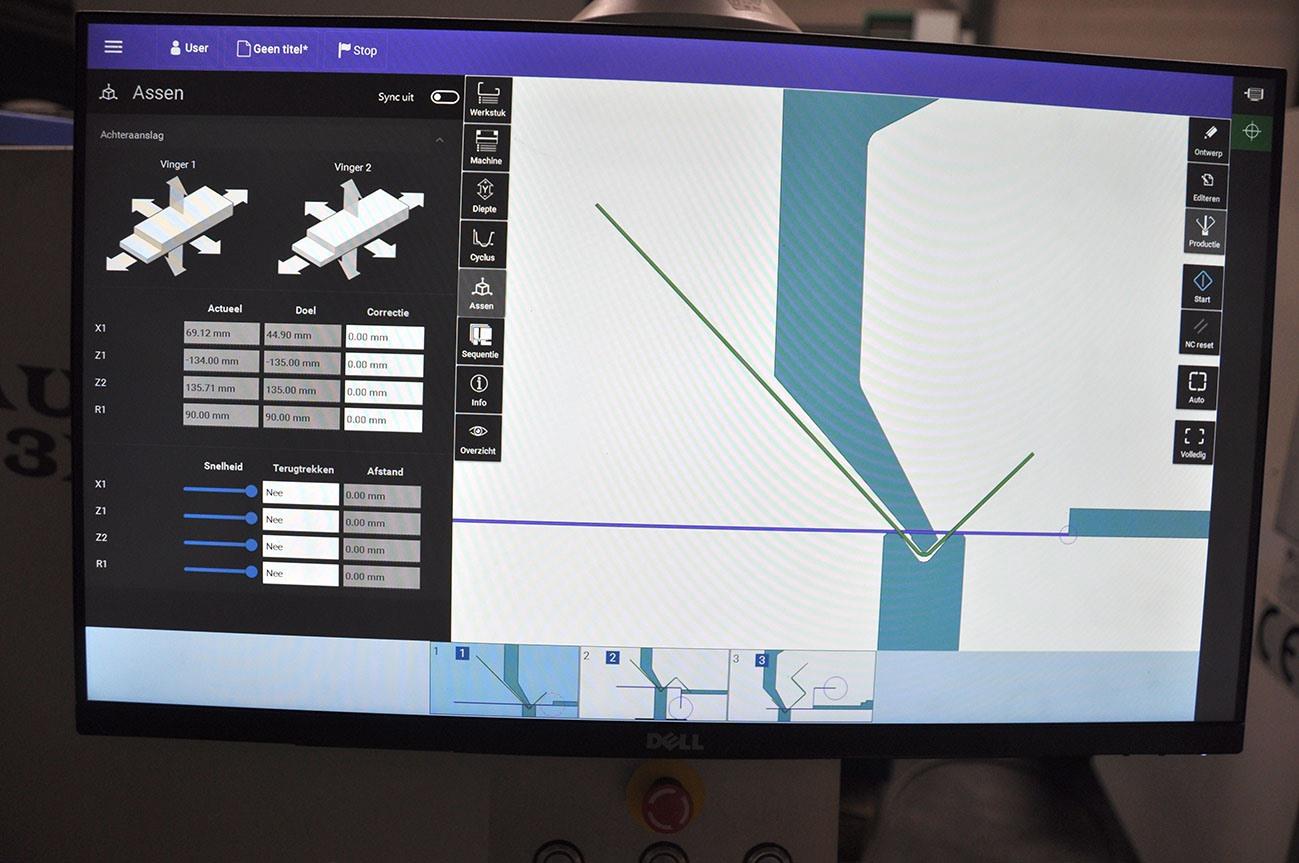

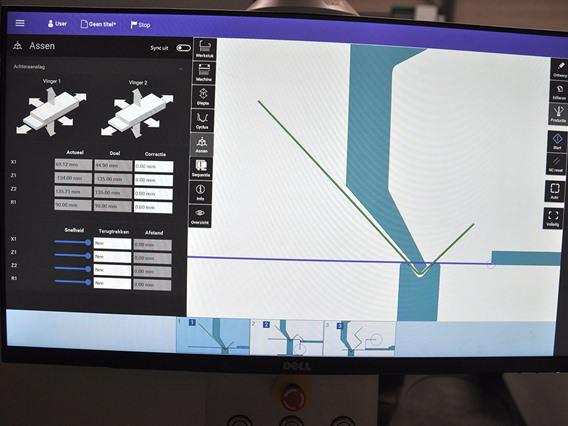

7 axes: Y1 / Y2 / X / R / Z1 / Z2 / V

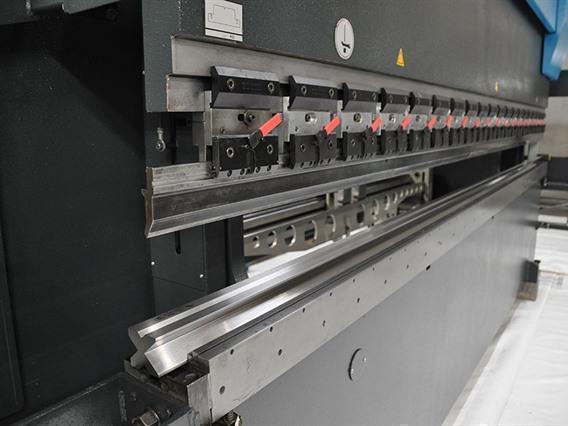

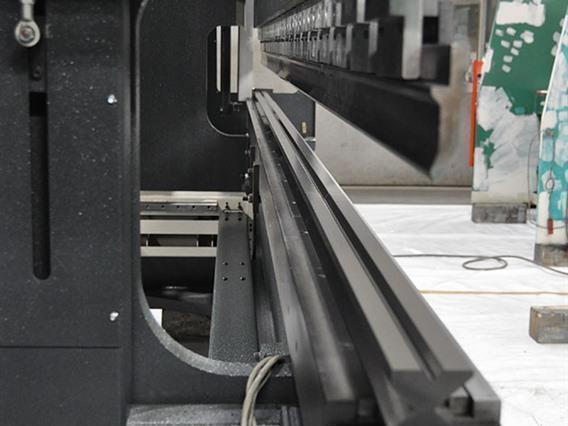

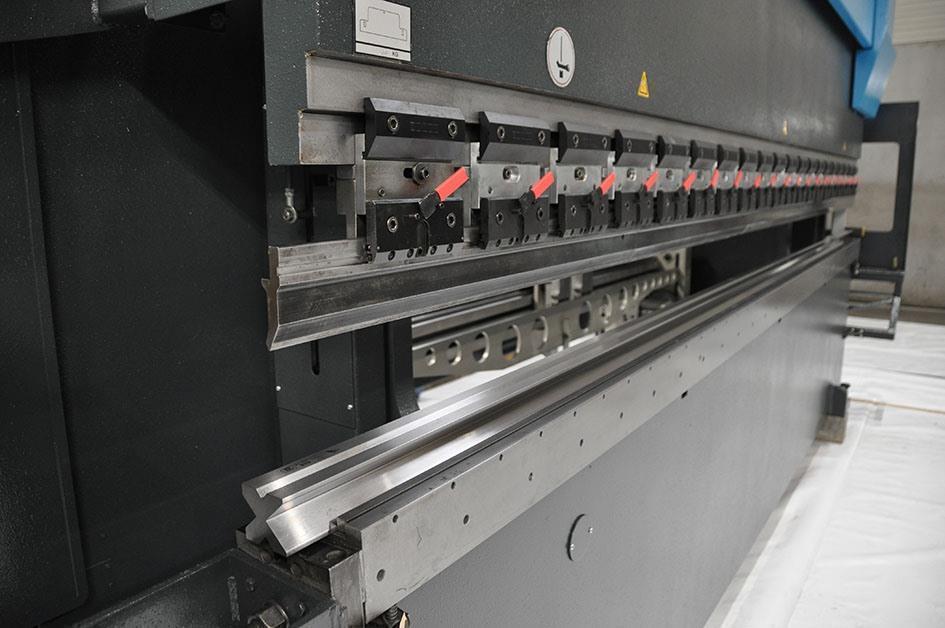

Systemtooling

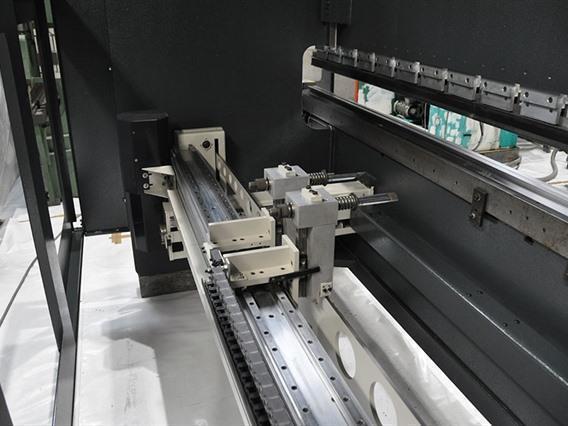

X-R-Z version with assymmetric fingerwidth

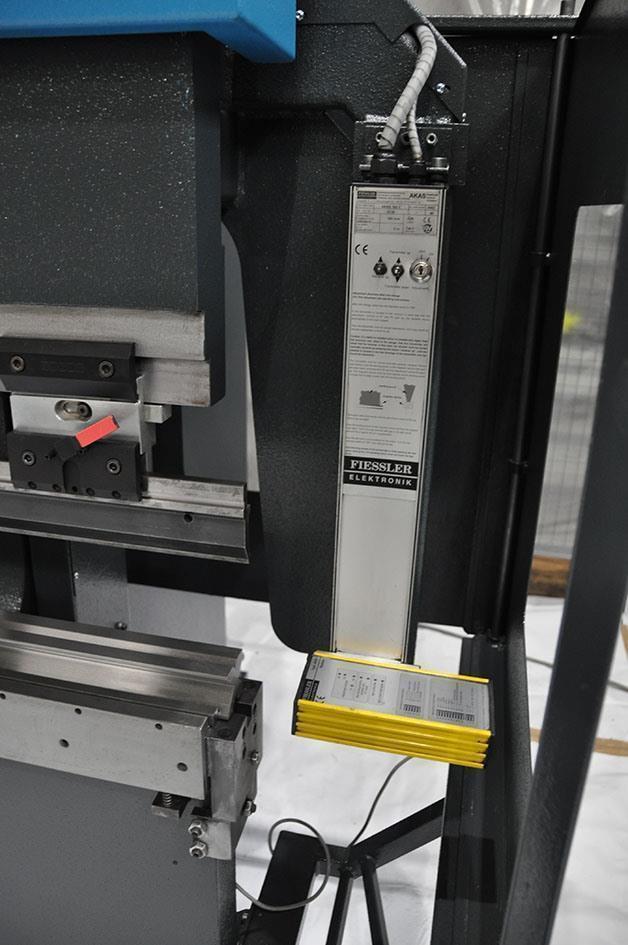

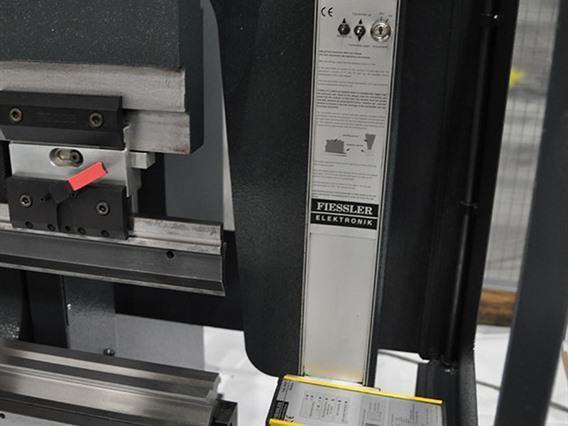

Fiessler BendGuard
Tip/Model: 135 ton x 4100 mm CNC
Stok numarası: O.01 12601
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.01] Hydraulische kantbanken & Hydraulische plooibanken
Marka: Haco ERM

» Kişisel fiyat talep edin

Stok numarası: O.01 12601

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
