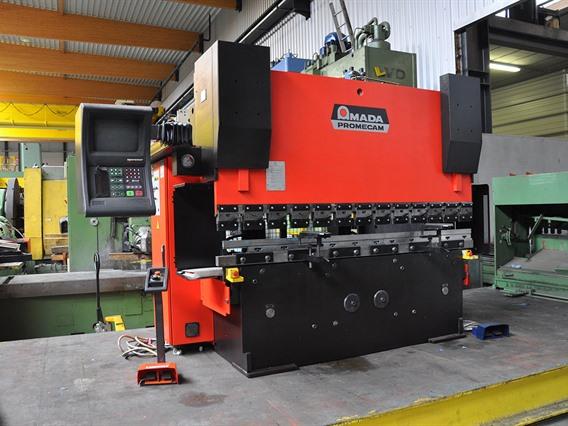

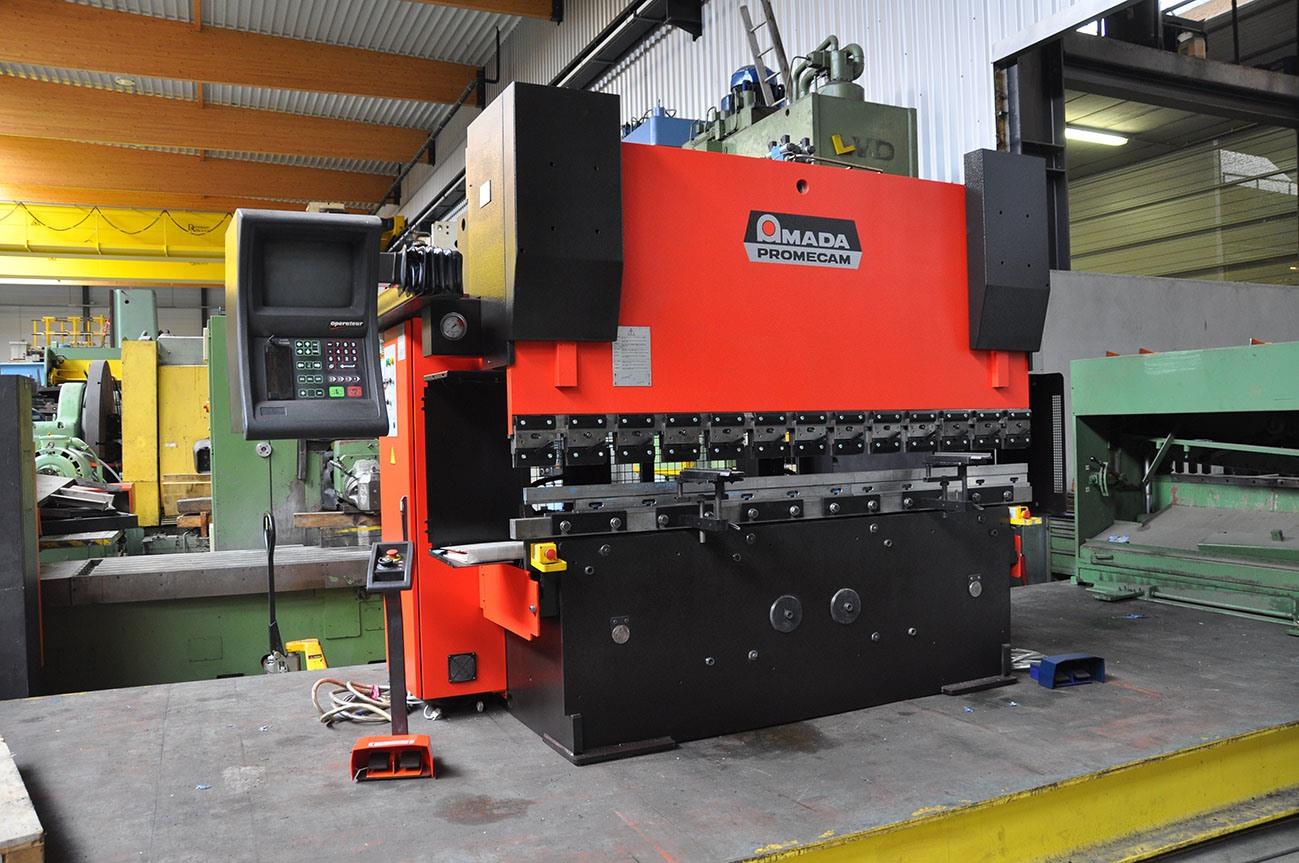

Amada Promecam HFB 80 ton x 2500 mm CNC
Teknik Bilgiler
- Capacity x Max length80 ton x 2550 mm

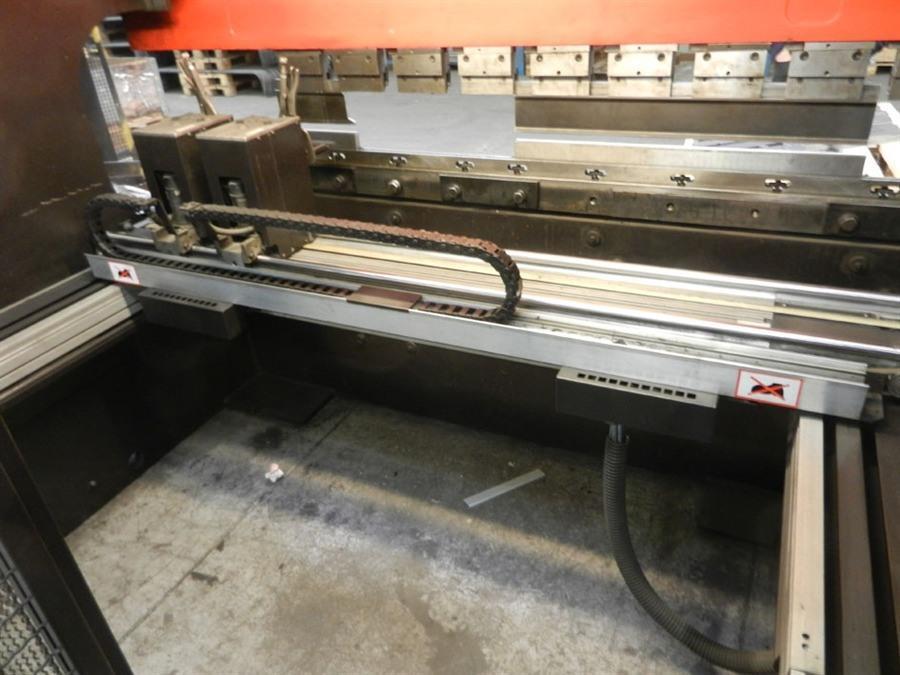

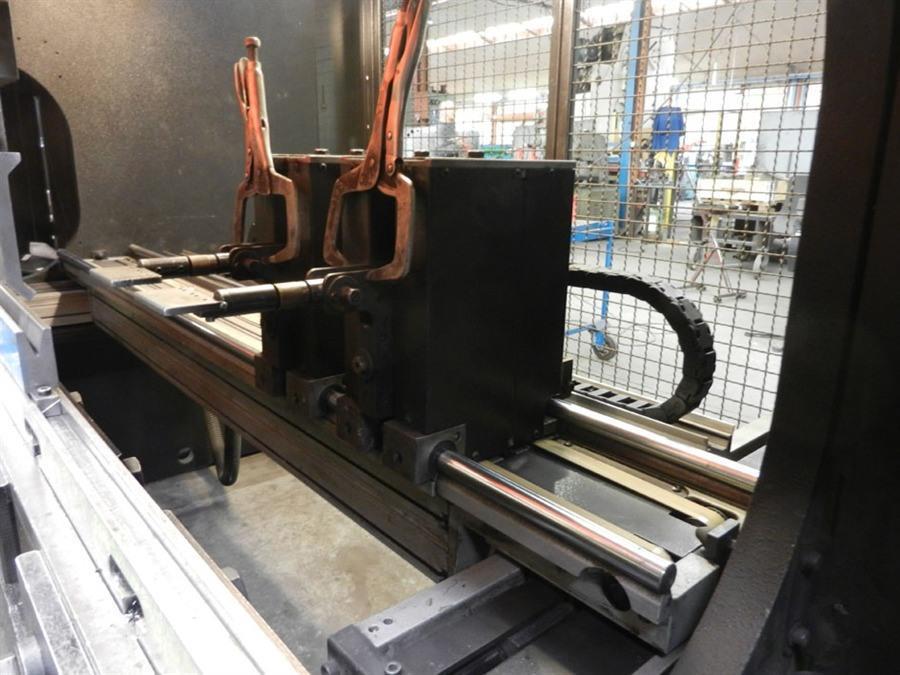

- BackgaugeCNC

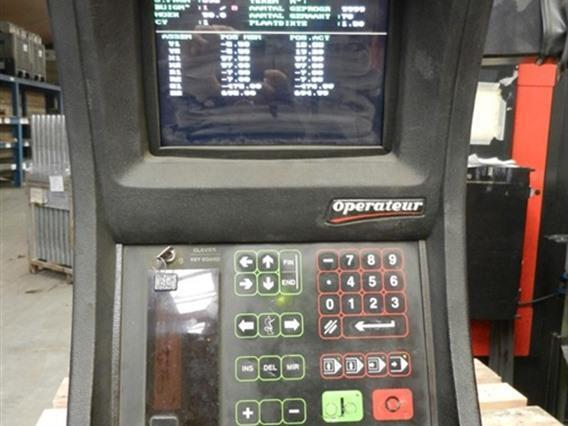

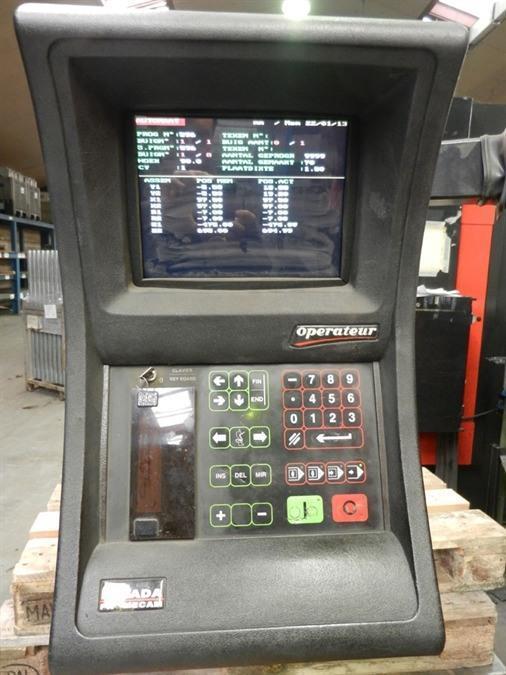

- ControlOperator Graphic
- Passage between uprights2100 mm
- Max stroke200 mm
- Max distance between table -- ram470 mm
- Depth of throat400 mm
- Table width 60 mm
- Locking speed100 mm/sec
- Working speed1>10 mm/sec
- Returning speed1>92 mm/sec
- Electric motor (power)9 kW
- Length 3100 mm
- Depth 2185 mm
- Height2485 mm
- Weight5450 kg
Ek bilgi
