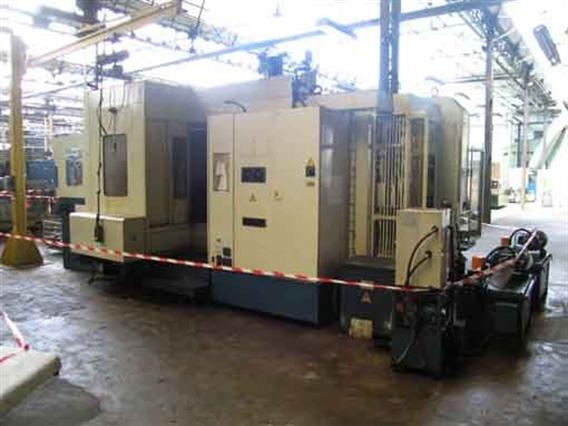

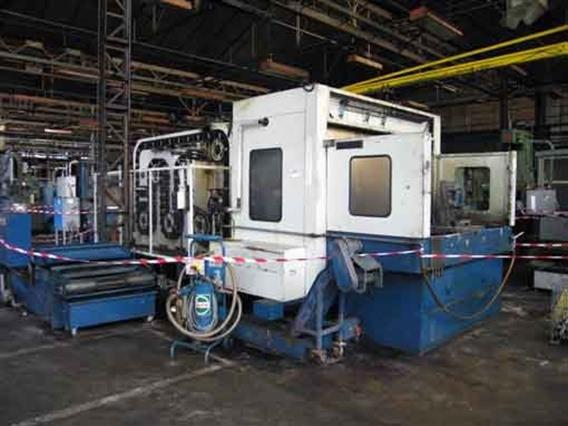

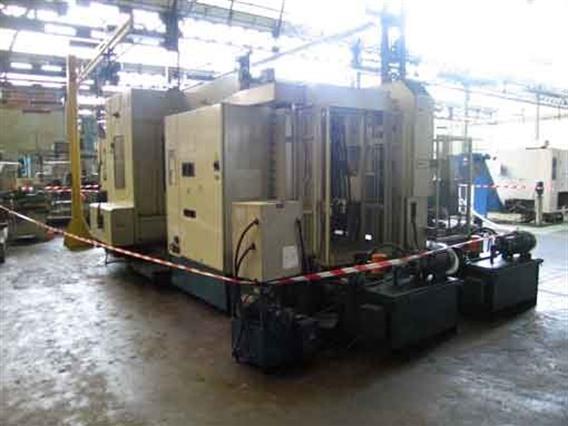

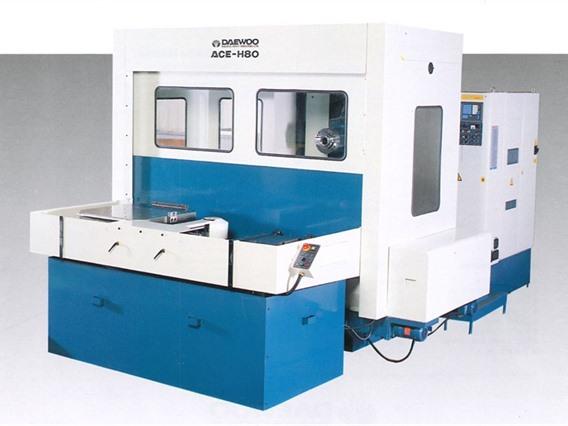

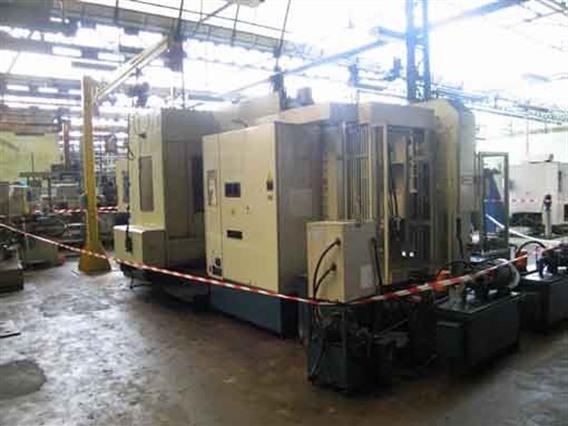

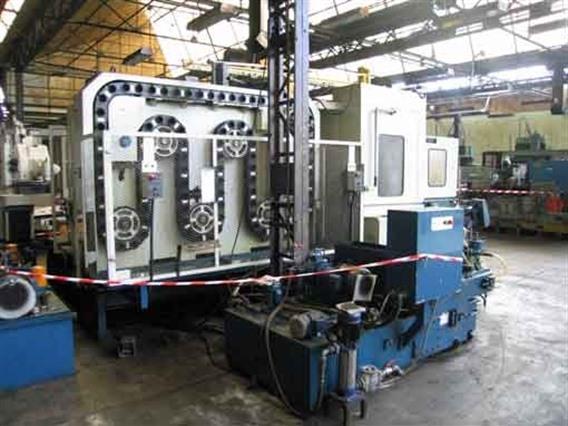

Horizontale bewerkingscentra conventioneel & CNC Daewoo ACE-H80 CNC
Teknik Bilgiler

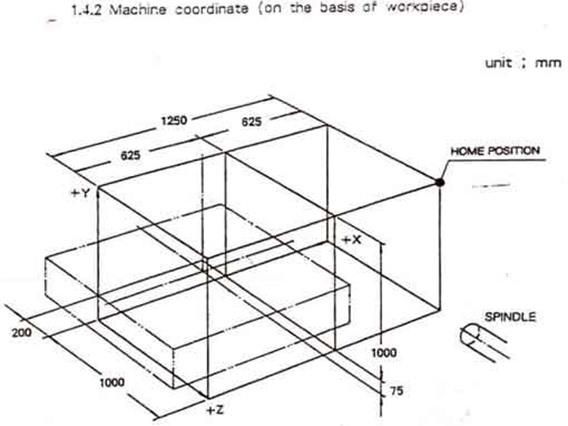

- Table longitudinal travel (X-axes)1250 mm
- Cross-travel head (Y-axes)1000 mm
- Height- travel head (Z-axes)1000 mm
- Table dimensions800 x 800 mm
- Max weight on the table2000 kg
- Admission in spindle (ISO)ISO 50
- Power on the spindle25 kW

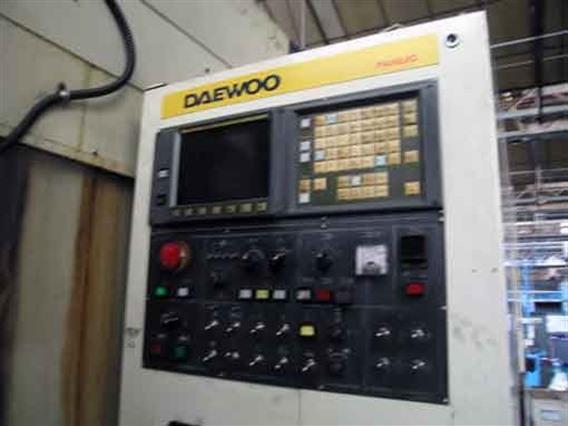

- Control (type)Fanuc OM
- Number of axes4 axes: X,Y,Z,B
- Toolstoreyes

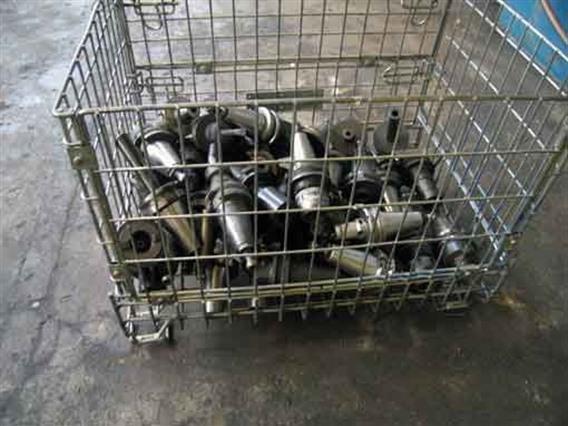

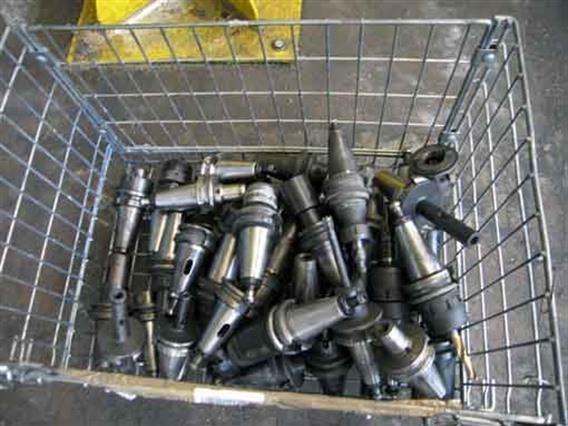

- Tools90 Toolplaces
- Frequency (from X tot Y rpm)20 -> 4500 rpm
- Number of pallets ( X of Lo x La)2
- Power principal motor70 kva

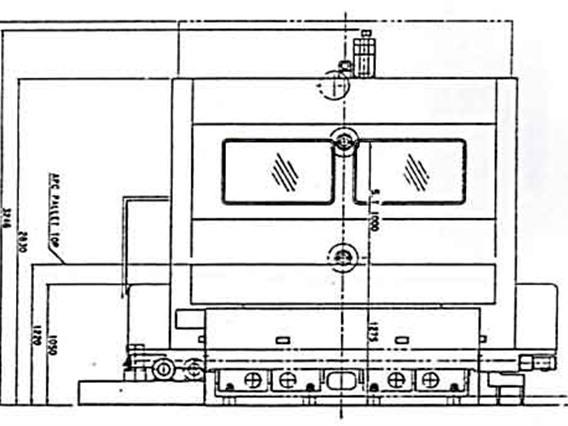

- Length L -- R4100 mm
- Depth Fw -- Bw6850 mm
- Height3240 mm
- Weight18000 kg
- Cooling-systemthrough spindle
