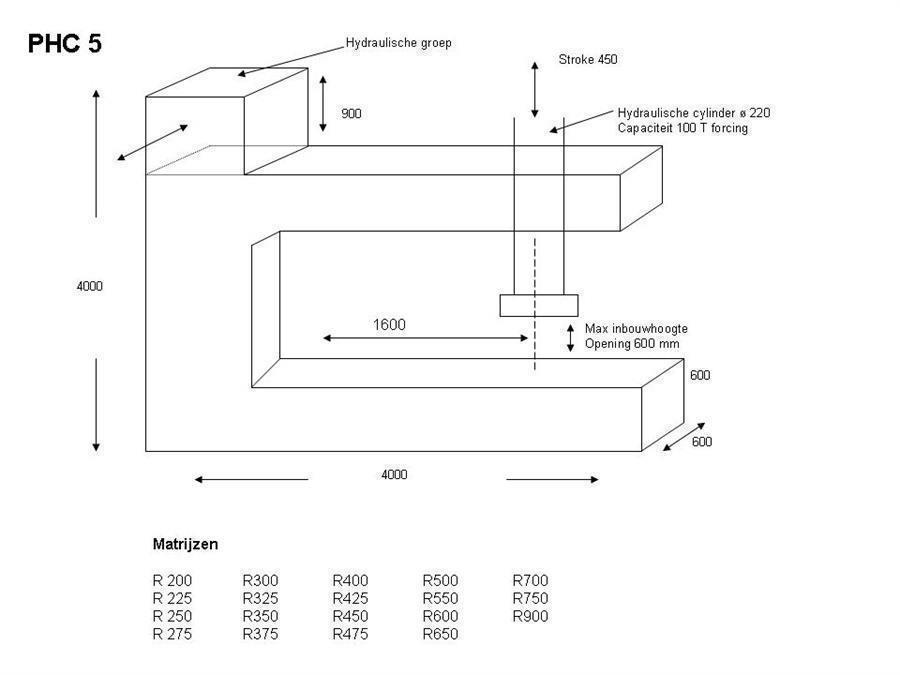

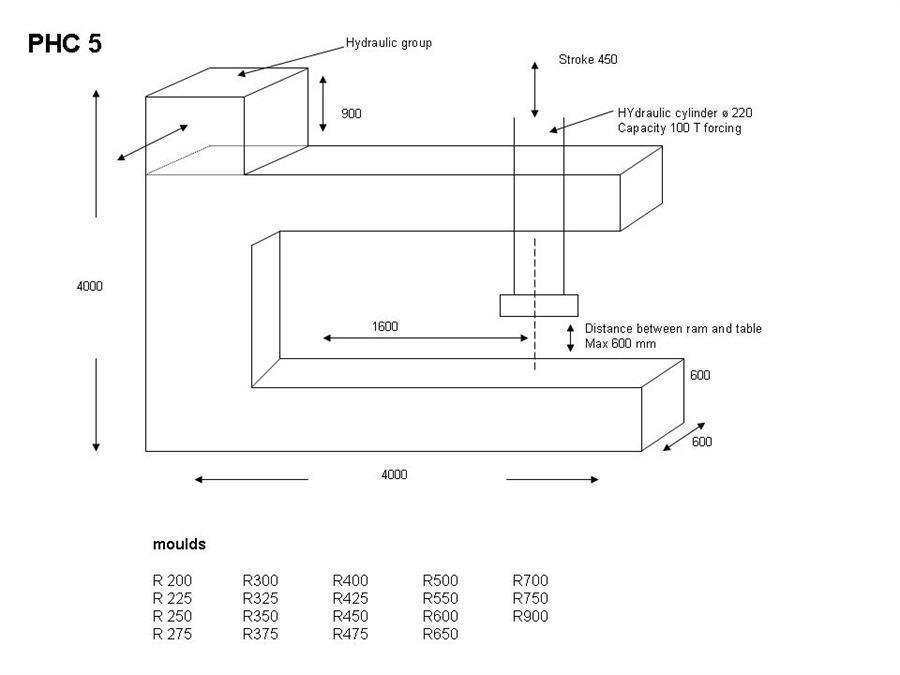

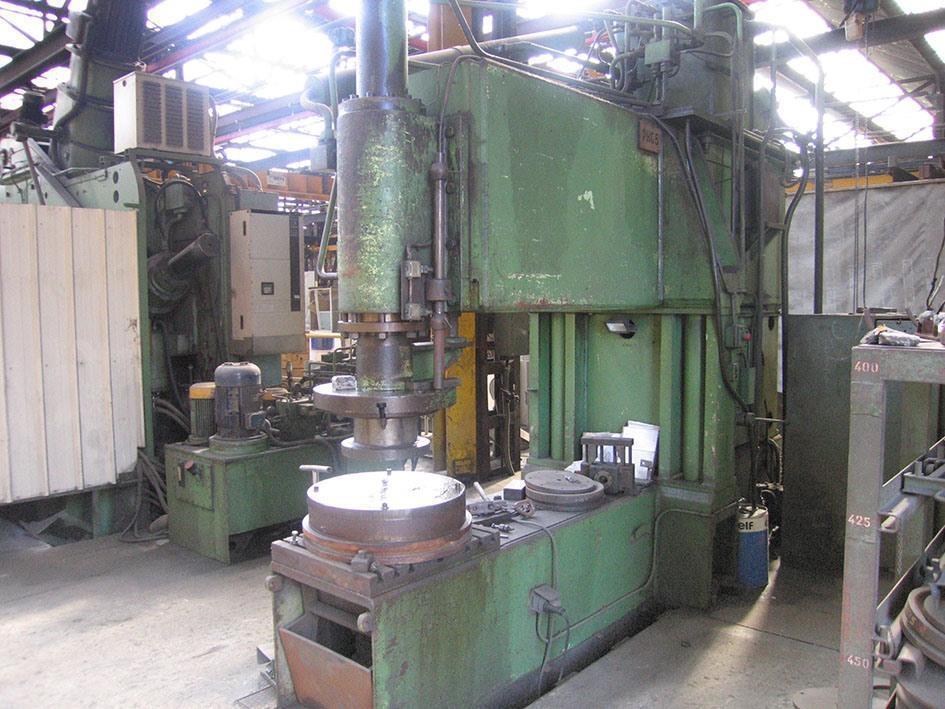

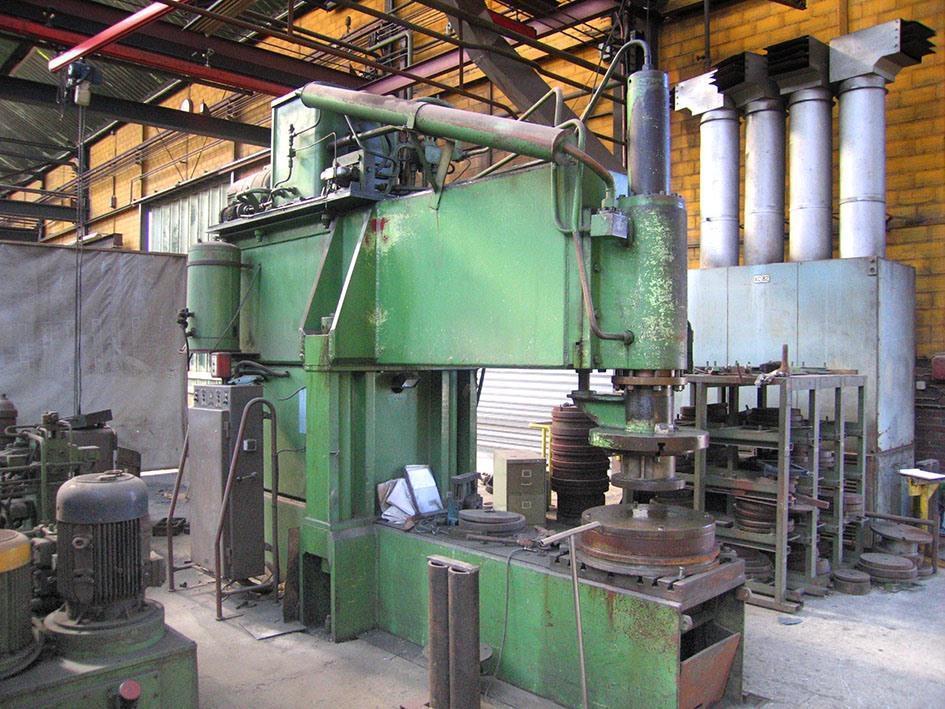

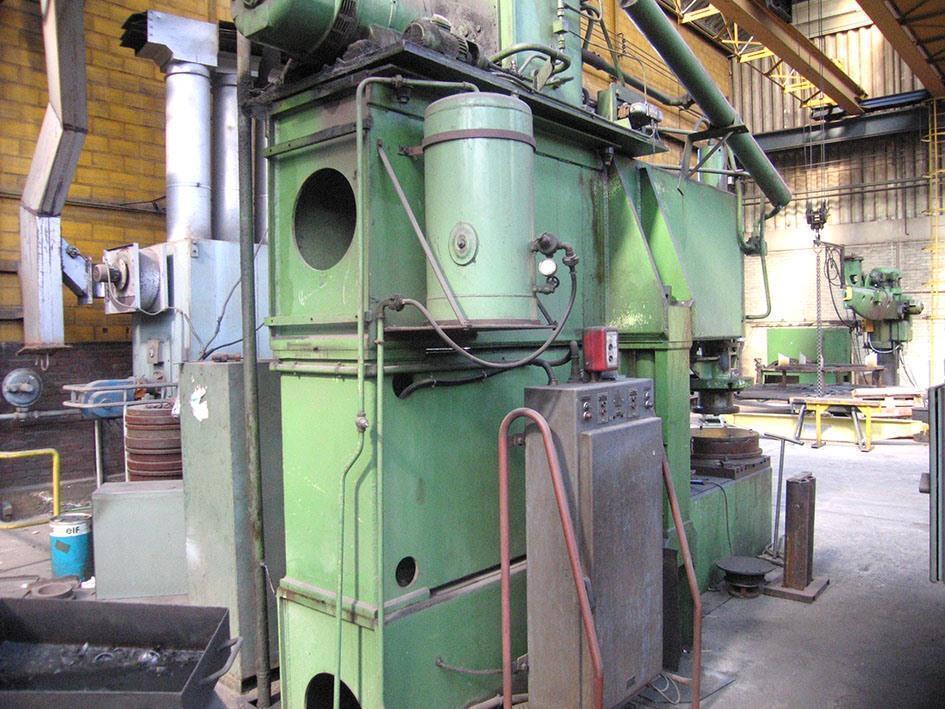

Bottompress PHC 5 100 ton
Teknik Bilgiler
Ek bilgi
Capacity: 100 Ton
Deph of throat - ramcentre: 1600 mm
Max ram adjustement: 450 mm
Drawning speed: 115 mm/s
Working speed: 22 mm/s
Returning speed: 105 mm/s
Distance between table - ram: 555 mm

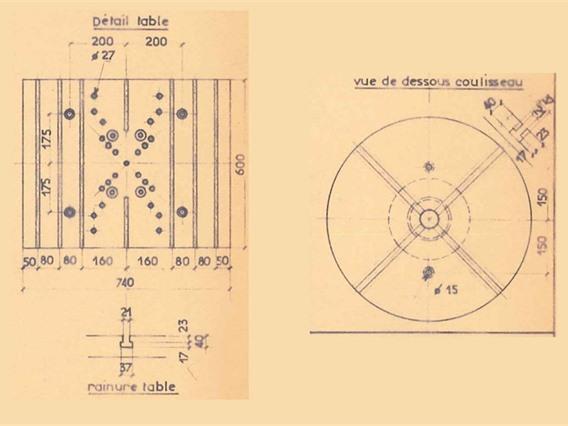

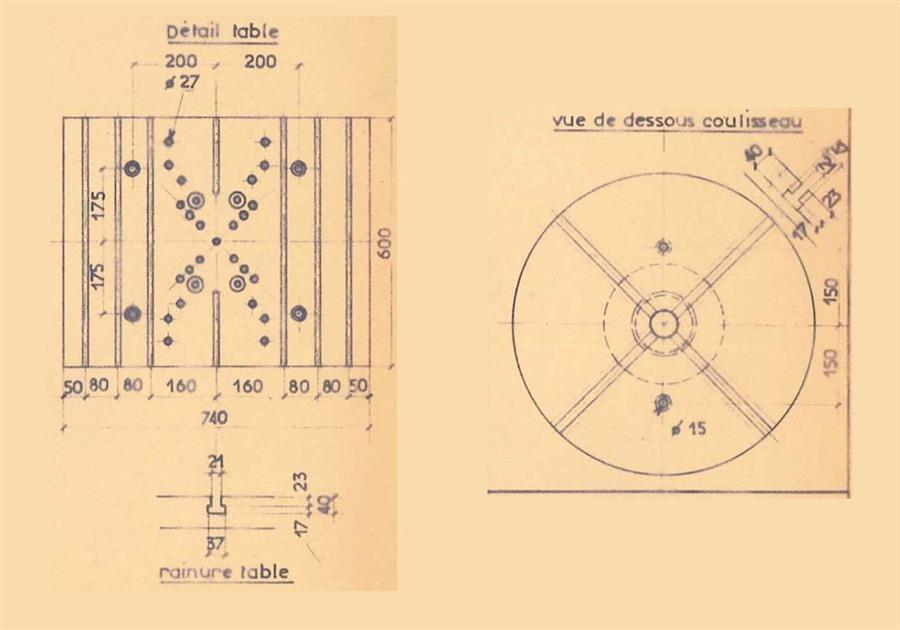

Table area: 600 x 740 mm
Ram area (L x D): Ø 580 mm
Punchholder dia: Ø 50 mm
Eletric motor (power): 30 HP
Length: 4170 mm
Depth: 1270 mm
Height: 3050 mm
Weight: +- 32 000 kg
- Tip/Model: 100 ton
- Stok numarası: M.12 2721
- Kategori: [M] Hidrolik basınç
- Alt kategori: [M.12] Flensbodemplaatpersen & Bodemplaatpersen
- Marka: Bottompress PHC 5
