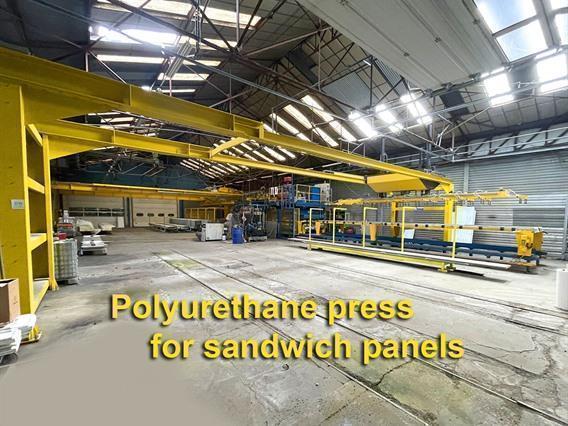

Manni / Cannon polyurethane press for sandwich panels
Ek bilgi
Panels for thermal insulation of industrial buildings

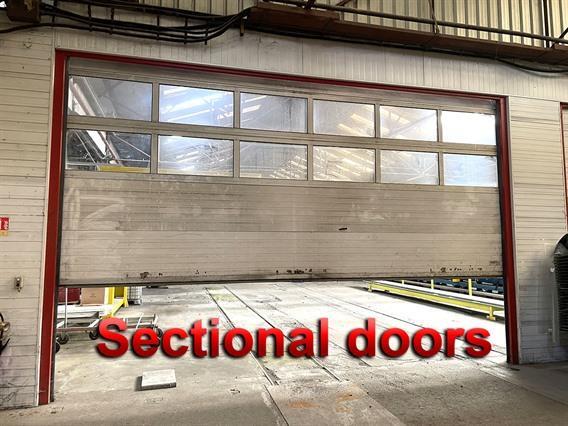

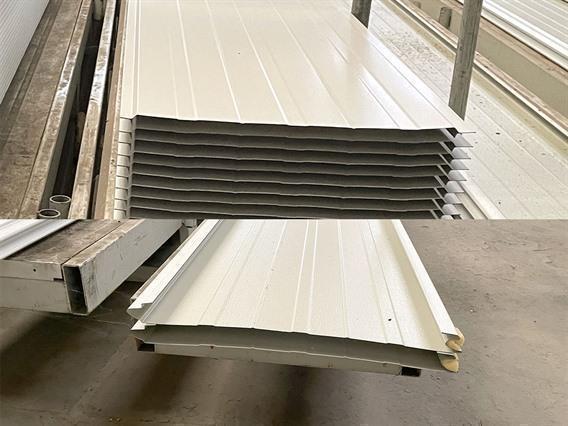

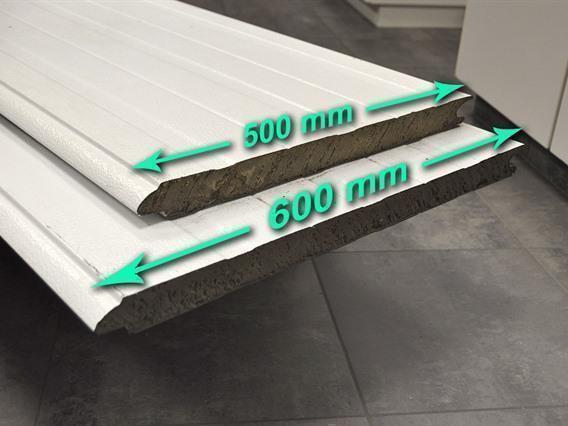

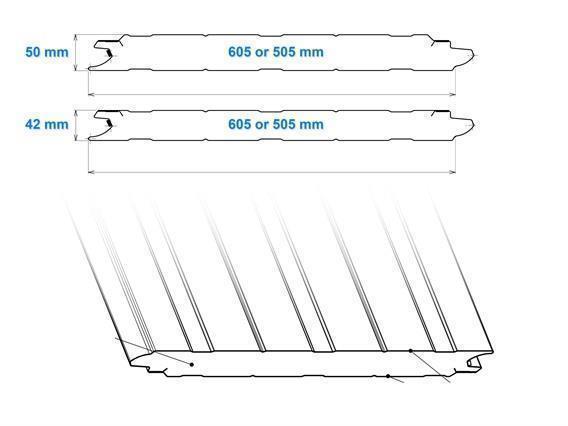

Panels for sectional doors (current configuration)
Panels for residential roof insulation

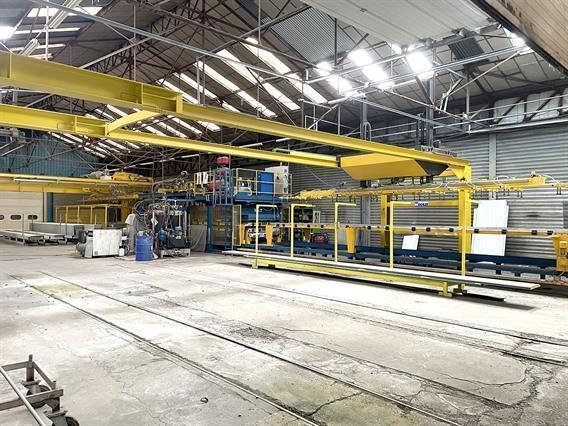

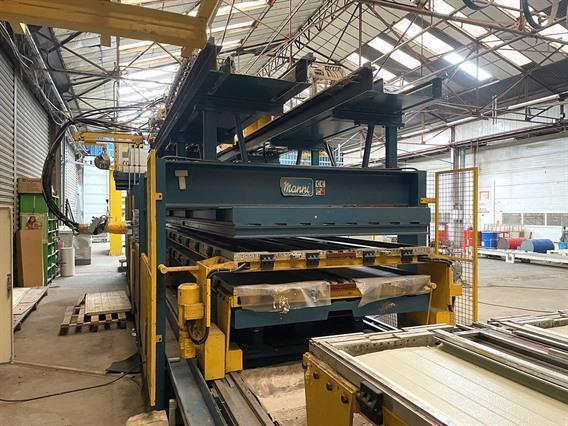

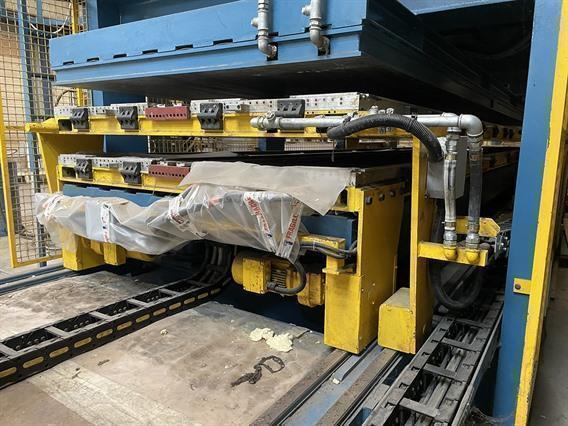

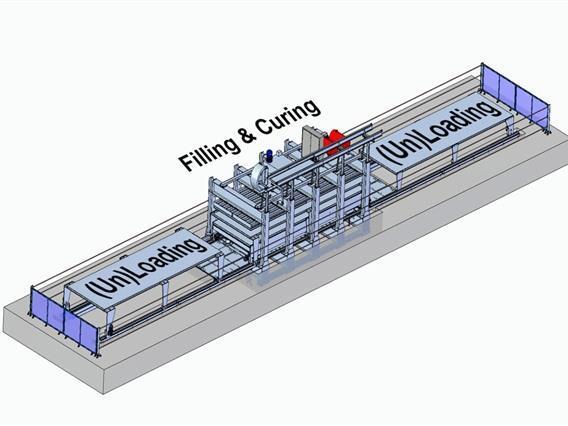

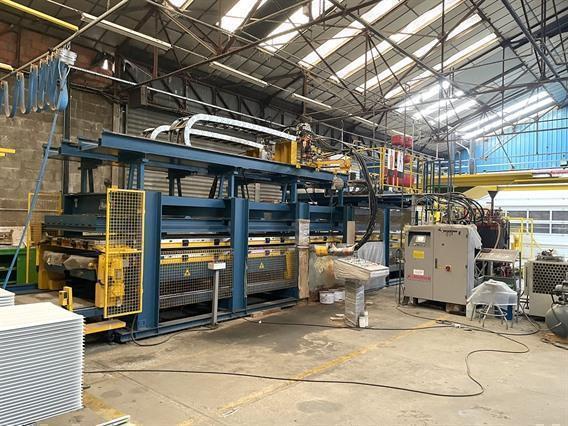

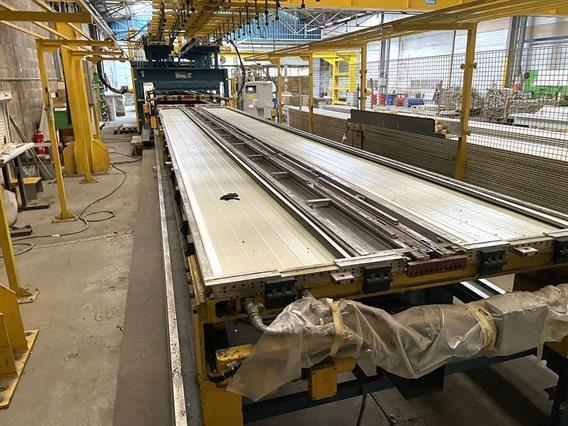

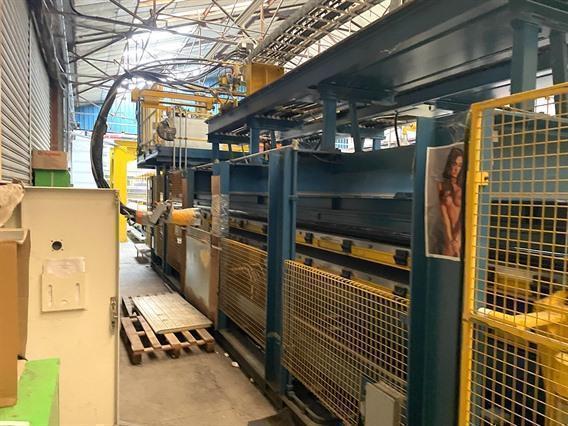

Manni trolley press 2+2
Hydraulic closed mould (2+2) trolley press is the optimal solution in
terms of productivity and factory layout. Independent motorized tables allow to
prepare one sandwich panel while another is curing in the press, reducing
dramatically the production dead times.

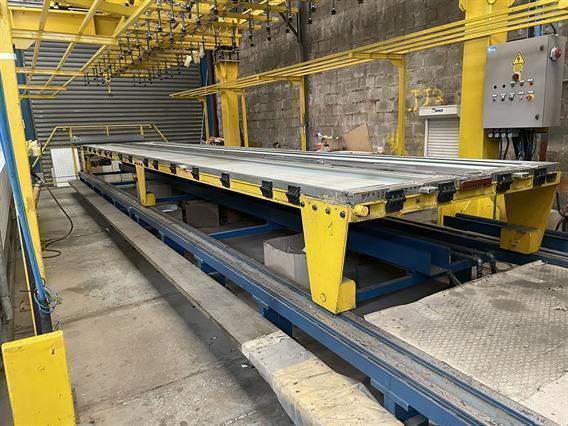

- 4 tables
- table size: 9500 x 1600 mm
- max opening: 150 mm
- each cycle produces 4 sandwich panels

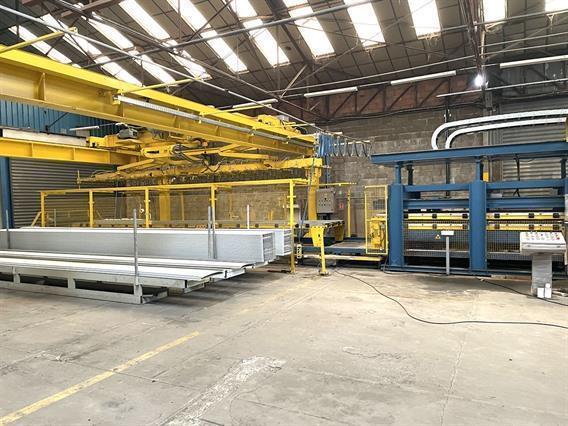

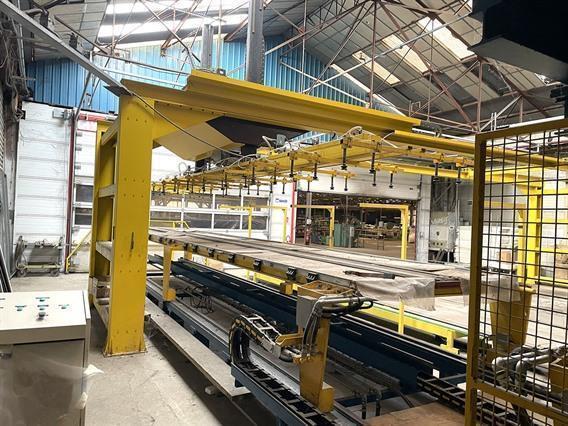

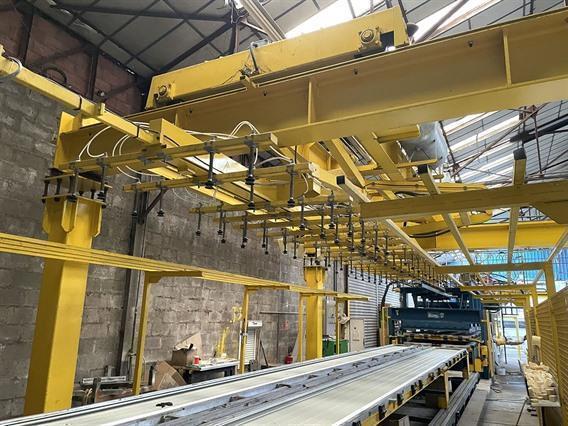

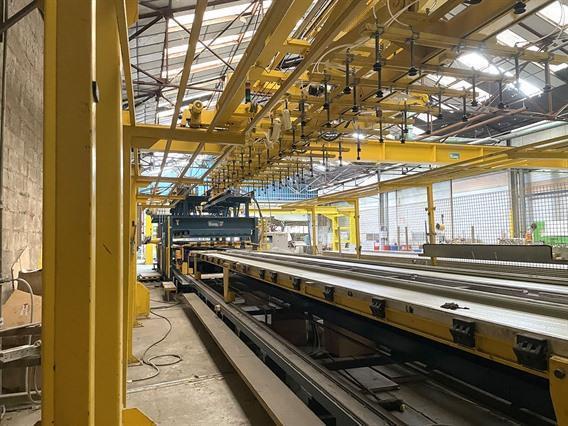

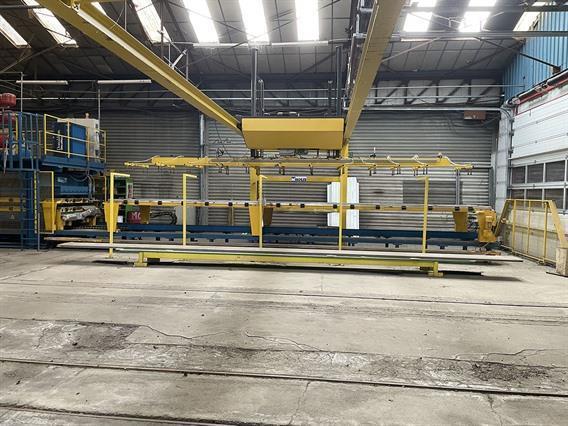

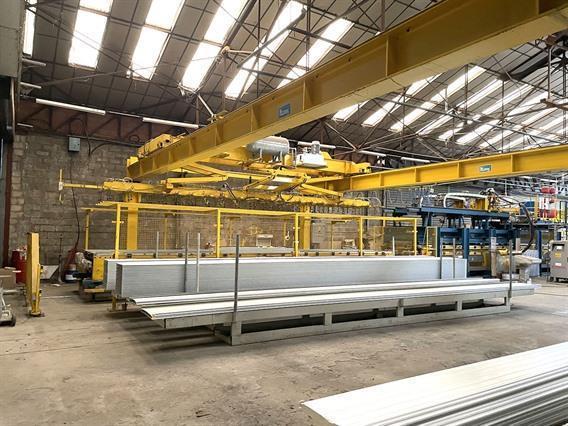

Manni manipulator for automatic loading & unloading + stacking finished panels
Max workpiece weight: 700 kg

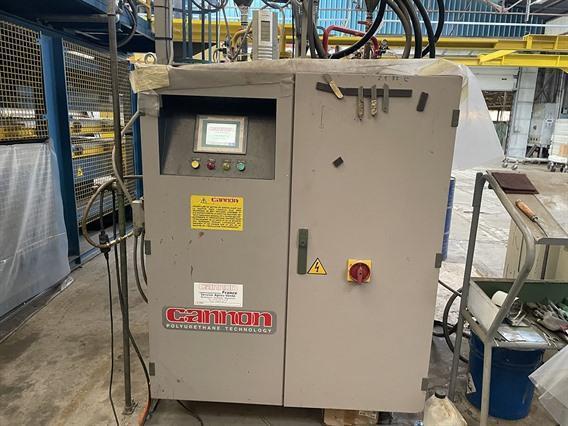

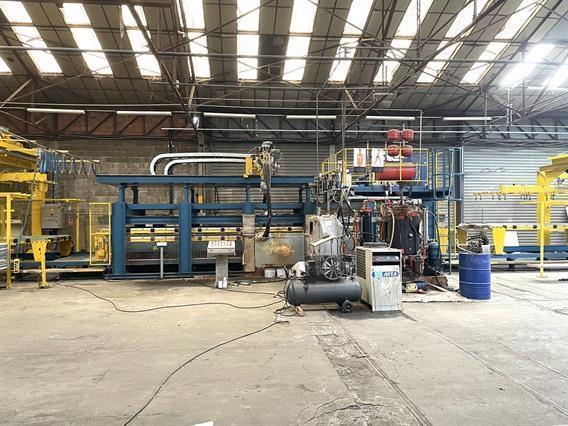

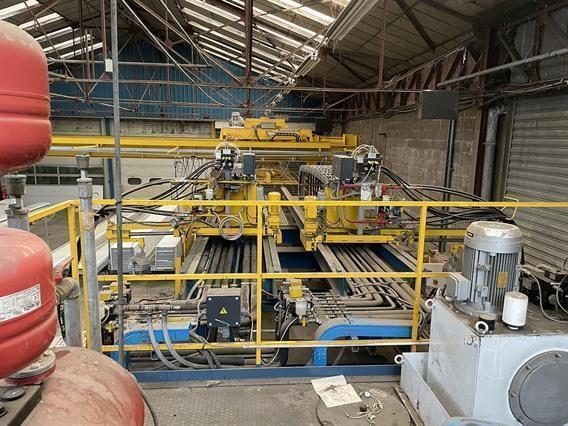

Polyurethane dosing unit Cannon A-Compact HF

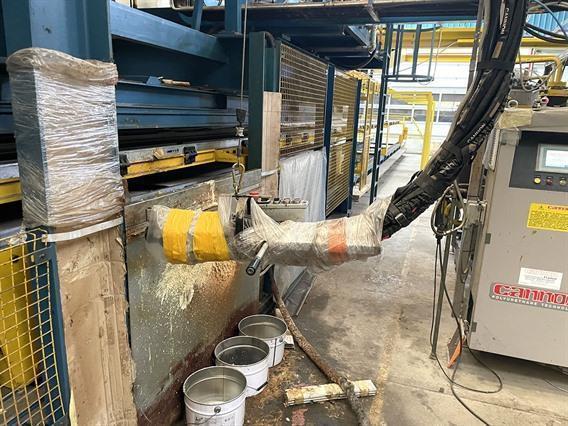

Injection
is done on both sides of the Manni press
Designed
for the processing of polyol blends with solid fillers (RRIM)
Jacketed
and insulated tanks with level control and automatic refilling with
special stirrer for solid fillers
Recycle stream distributors
Digital low/high pressure gauges
Hybrid
metering system: piston pump for isocyanate, hydraulic cylinder
specifically designed by Cannon for filled polyol
Automatic
output and ratio adjustment and control in close loop

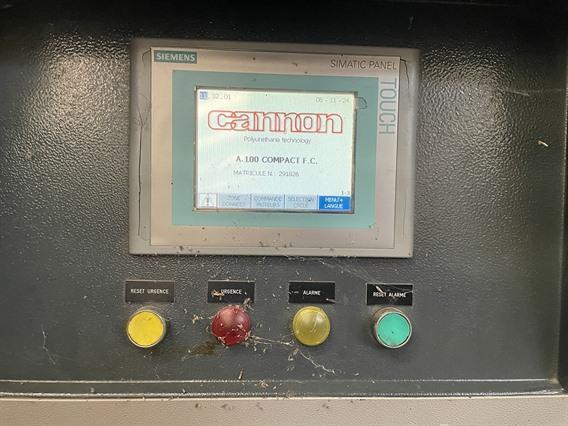

Touch screen operator panel
Calibration
of each component directly through the mixing head
400V
– 50Hz – 118 amp – 66 kW
Required space: 25 meter x 16 meter x 4,16 meter
CBM rollforming line for making sandwhich panels for sectional doors >> click here
Manni / Cannon PU press >> click here
Rollforming line for making different profiles for installation sectional doors >> click here
Bonnamy tubebender >> click here
- Tip/Model: polyurethane press for sandwich panels
- Stok numarası: Z.10k 14279
- Kategori: [Z] Komple tesis / aygıtlar ve tepegöz + kaldıraç (vinç) tesisleri / kompresörler ve enerji jeneratörleri/sıcak üfleyiciler/diğerleri
- Alt kategori: [Z.10k] Dak & Wand sandwichpaneellijn met PU-schuim-injectie
- Marka: Manni / Cannon
Stok numarası: Z.10k 14279
