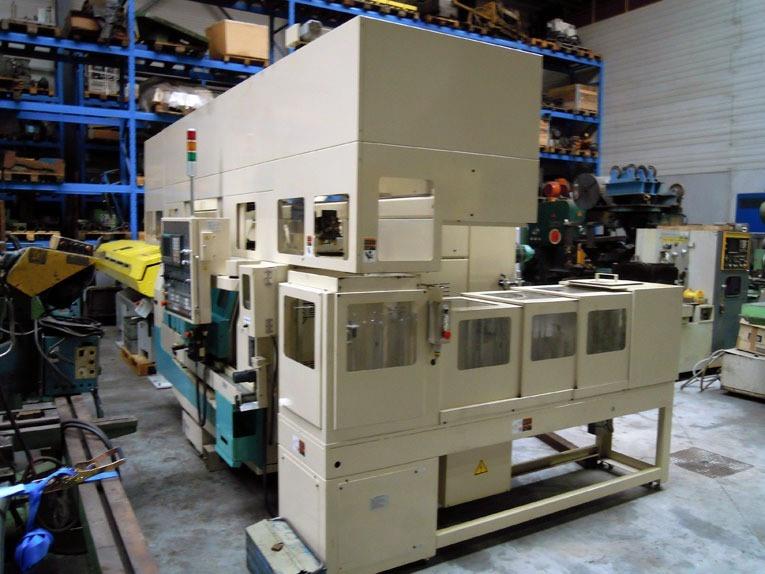

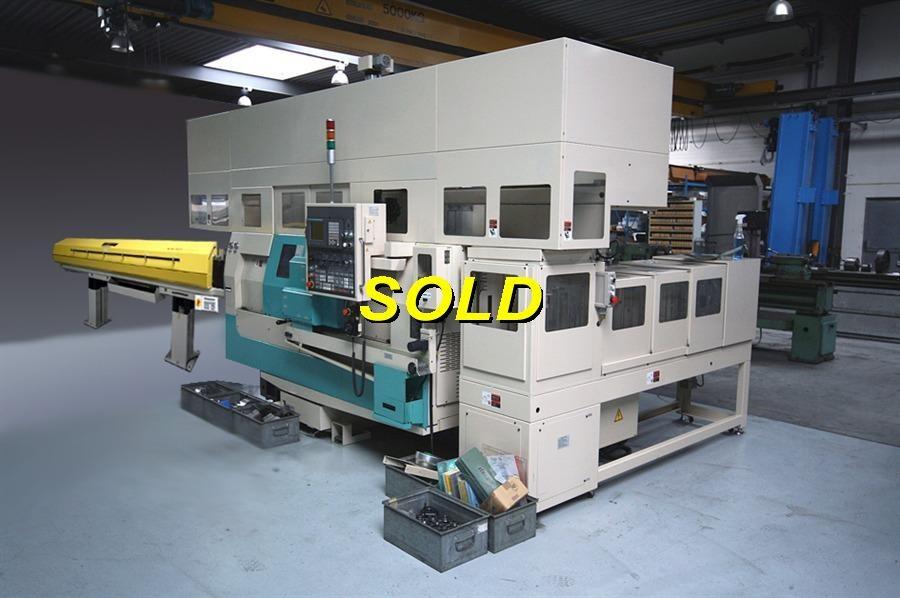

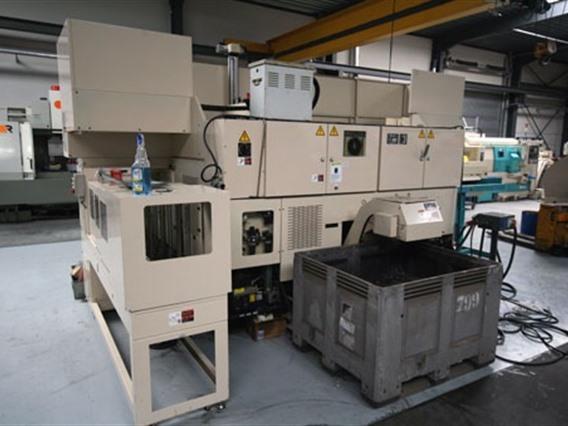

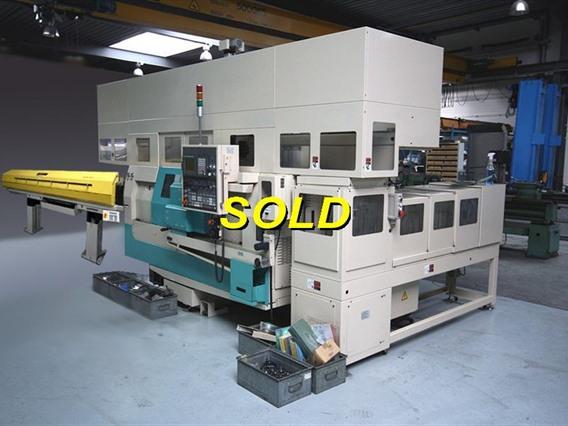

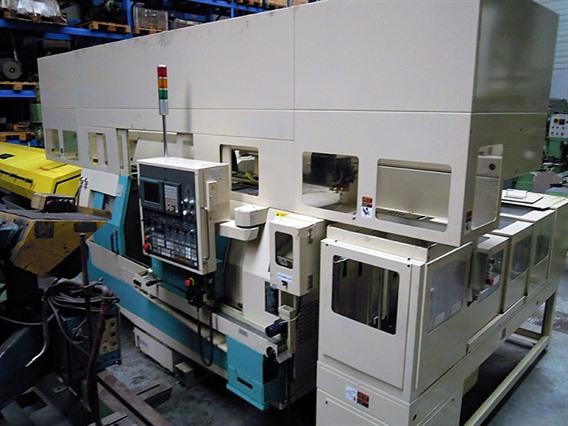

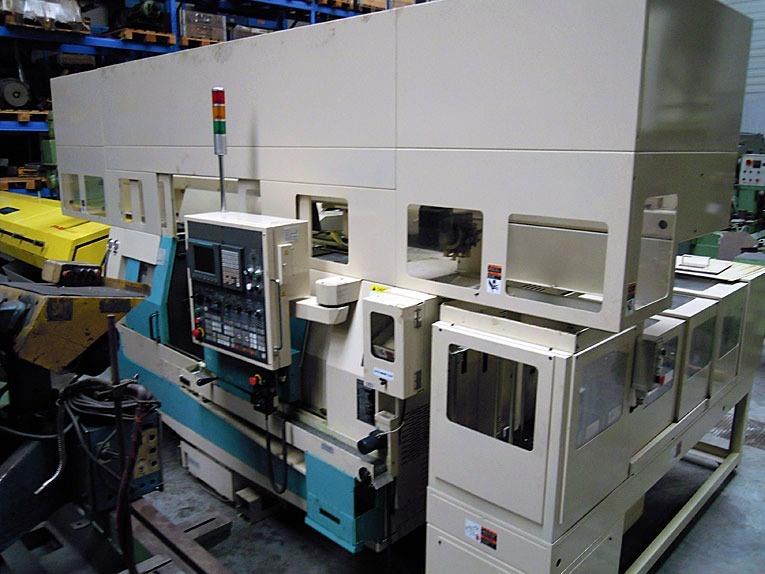

Muratec MT12 CNC twin spindle Ø 250 x 950 mm
Teknik Bilgiler
- Swing over bedØ 250 mm
- Swing over cross-slideØ 160 mm
- Distance centre tot centre950 mm
- Max longitudinal travel Z-axisZ1: 200mm / Z2: 650mm
- Max cross travel X-axis200 mm
- Dia of spindle boreØ 51 mm
- Power on the spindle11 kW
- Number of speedsmax 4500 rpm

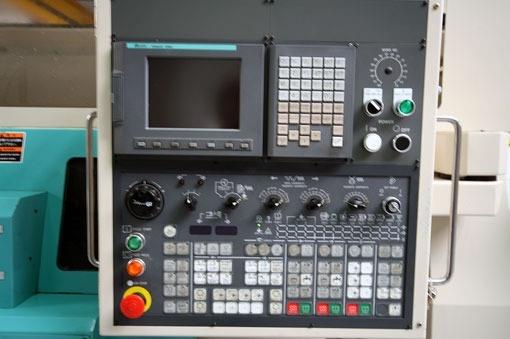

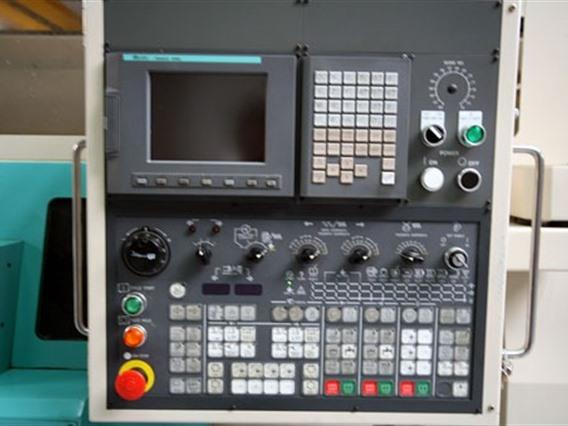

- CommandFanuc
- Length L -- R2700 mm
- Width Fw -- Bw1850 mm
- Weight5500 kg

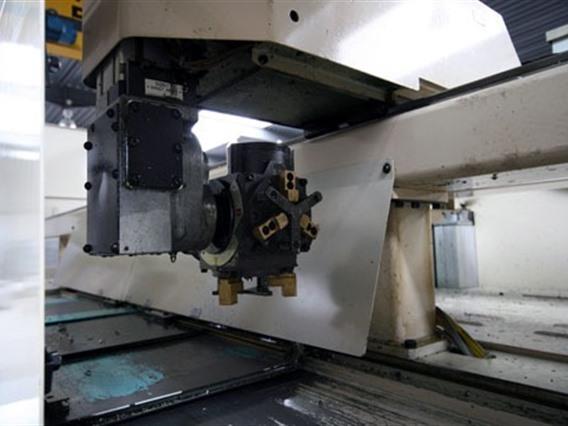

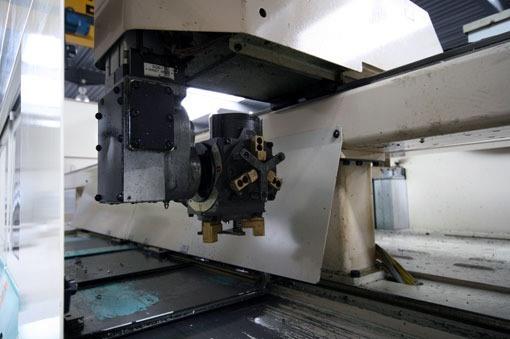

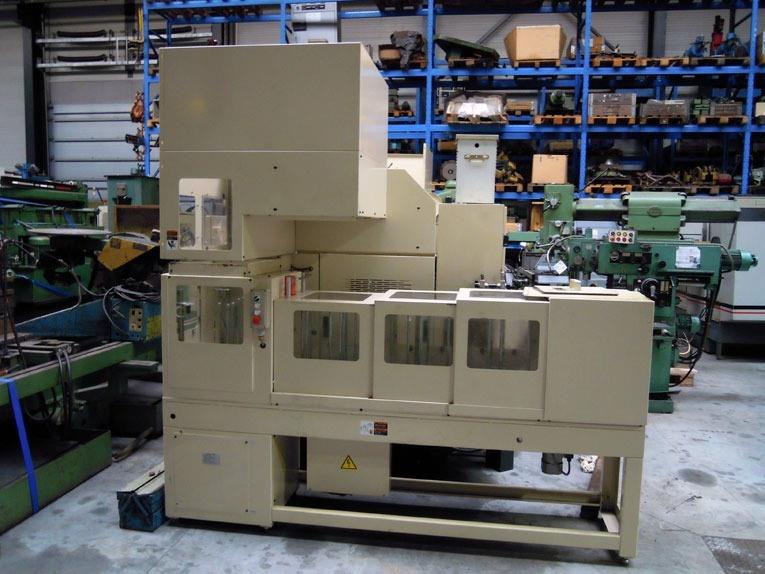

- ACCESORIES+gantry +18 pallets
- ChuckØ 165 mm
- Hydraulic +
- Sliding ring +
- Toolchanger 2 turrets
- Number of tools 15 + 15
Ek bilgi

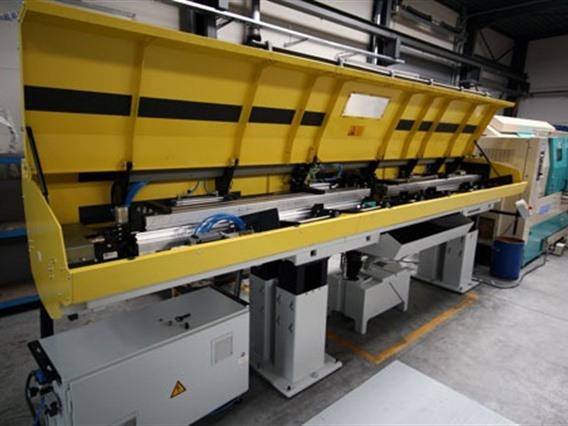

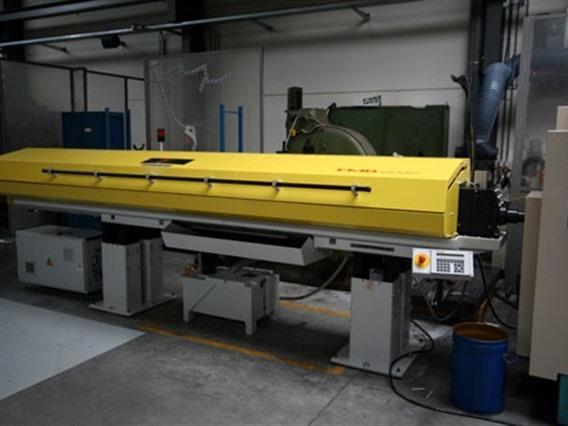

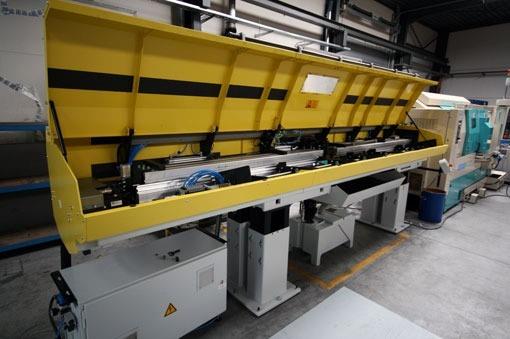

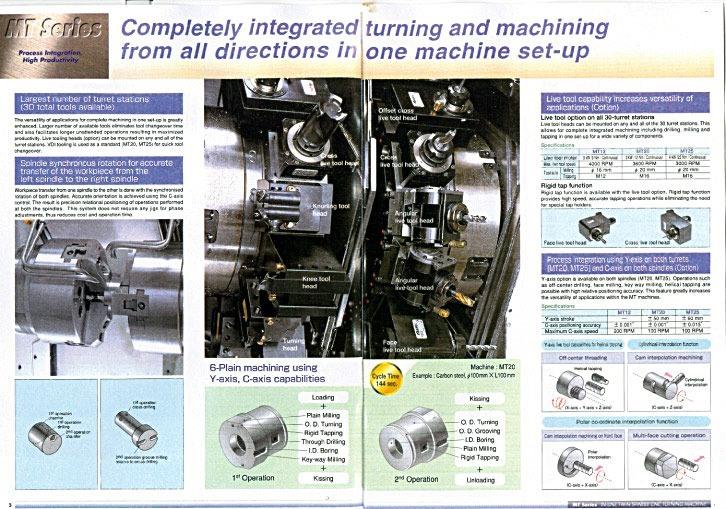

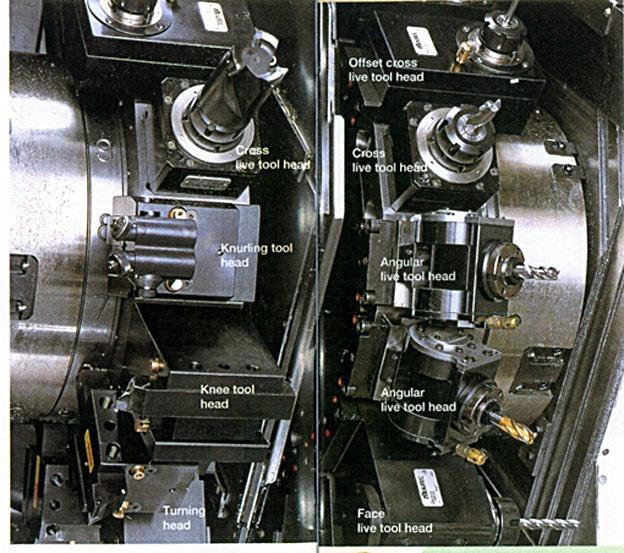

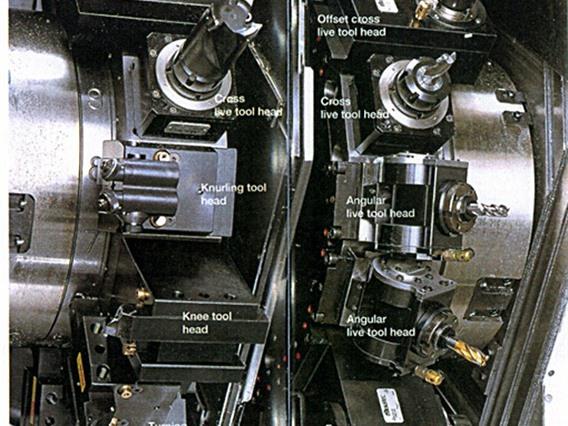

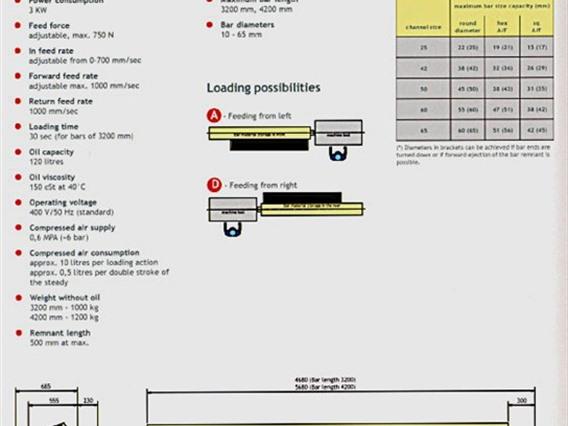

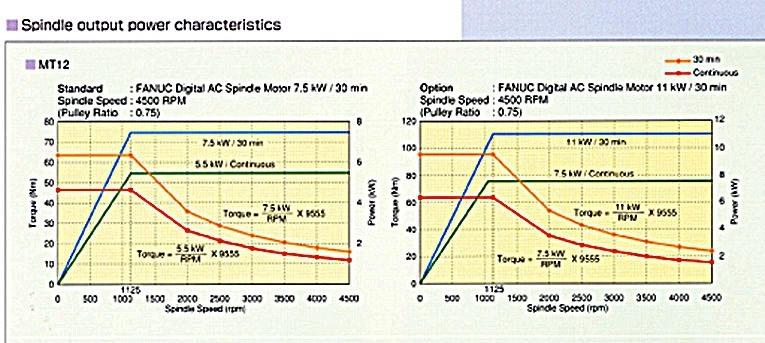

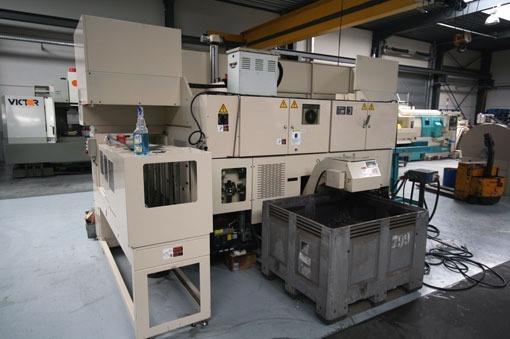

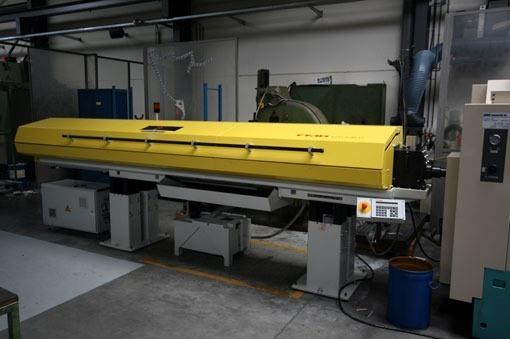

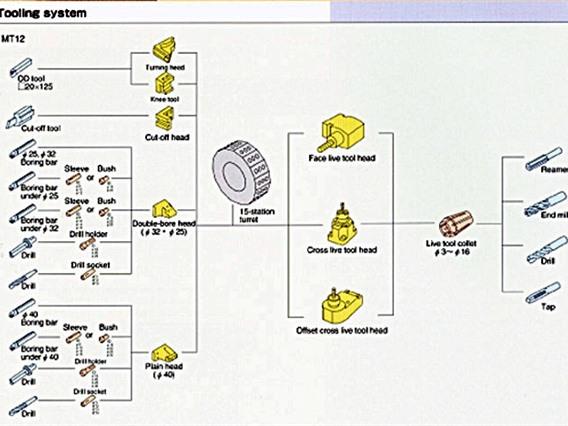

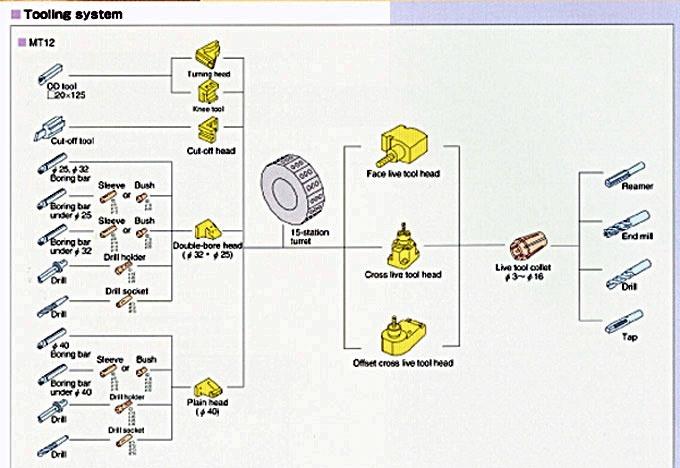

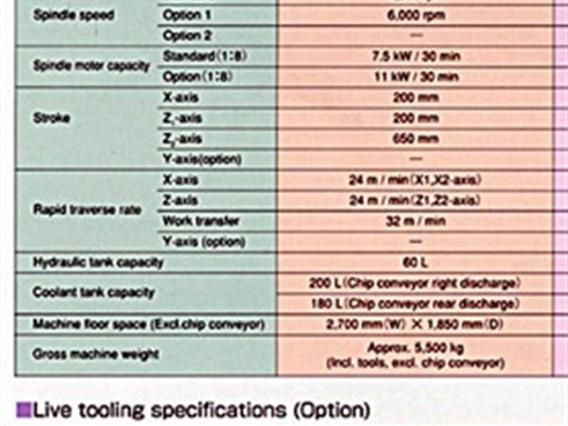

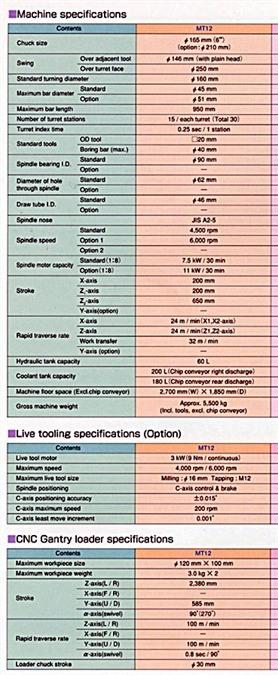

- 15-station turret on both sides , power-driven tool Live tool position available on all 30 turret stations C-axis control on both spindles. High precision spindle synchronization work transfer Gantry loader system for unattended production Compact design – Floor area 5.0 m2 Brief Specifications Chuck size: Standard: Dia. 165 mm Option: Dia. 210 mm Maximum turning diameter 240 mm Maximum bar diameter: Option: 51 mm Number of turret stations: 15 x 2 Spindle speed 4500 rpm Spindle AC motor: Standard: 7.5 kW/30 min Option: 11 kW/30 min Live Tool Specifications (Option) Live tool spindle motor 2.8 kW Live tool speed 4000 rpm Maximum live tool diameter: Milling - Dia. 16 mm Tapping - M12 + FMB Bar feeder 3000 mm
- Tip/Model: MT12 CNC twin spindle Ø 250 x 950 mm
- Stok numarası: A.07 5265
- Kategori: [A] Torna
- Alt kategori: [A.07] CNC Draaibanken
- Marka: Muratec
