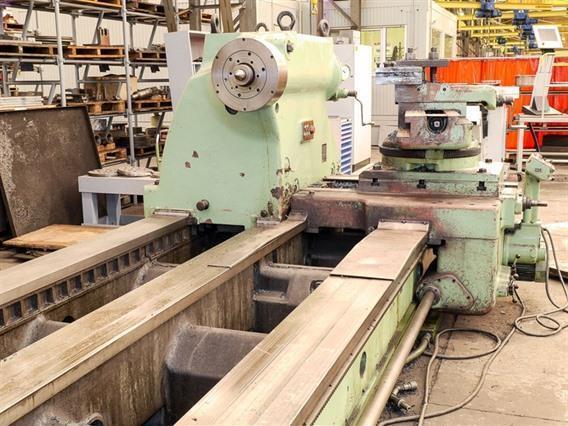

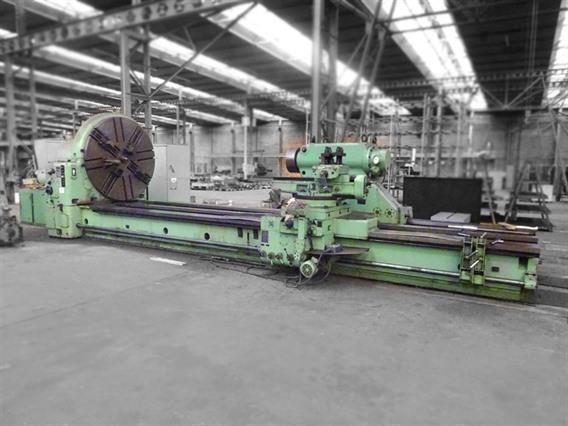

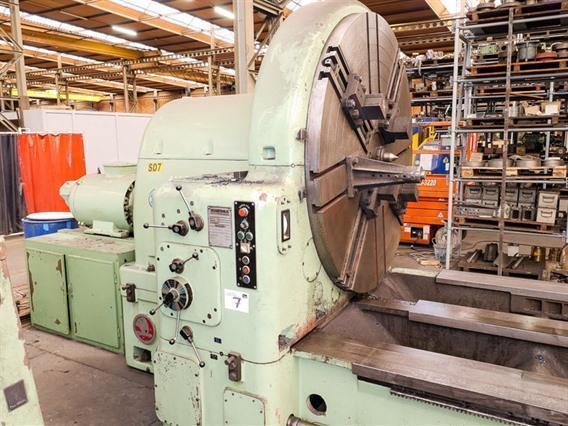

Skoda SR Ø 2000 x 6500 mm
Teknik Bilgiler
- Distance between centers6500 mm
- Swing over bed2000 mm
- Swing over cross-slide1600 mm
- Diametre of main spindle bore380 mm
- Power on main spindle100 kW
- Number of speeds1,4 > 280 rpm
- Total power needed110 kW
- Length L --R11 582 mm
- Width Fw - Bw3104 mm
- Height2816 mm
- Weight43,2 ton

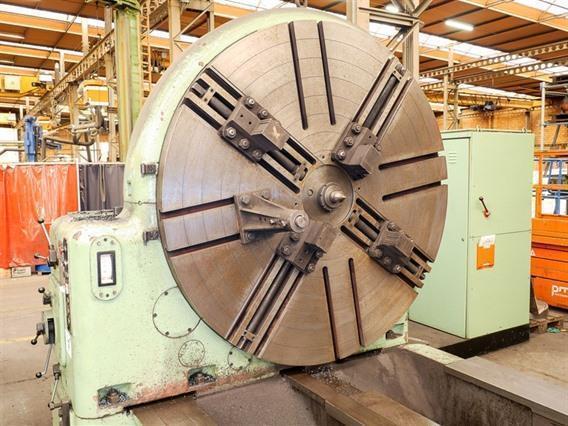

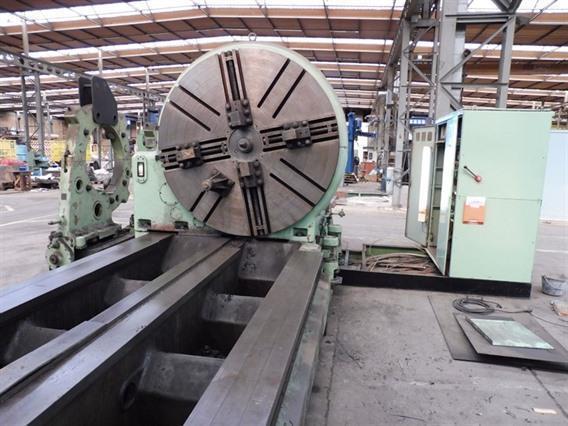

- Chuck (3/4 pinch) -- diametre1920 mm
- Max weight between centers50 ton
Ek bilgi
Model: SR 2000x6000
4 guideways

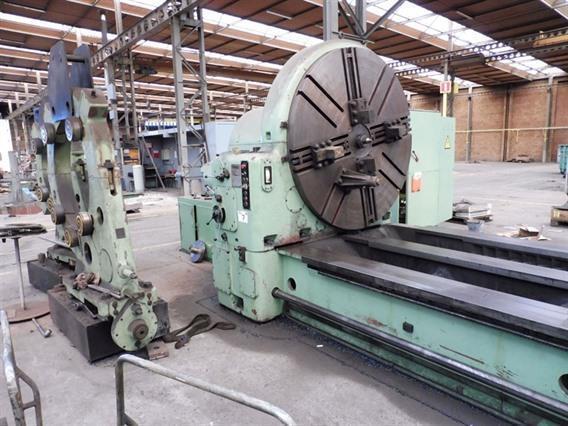

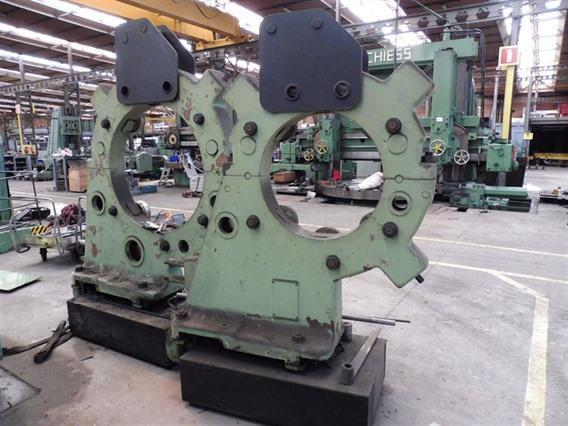

2 steadies included
smallest dia with smallest steadie: 275 mm
biggest dia with smallest steadie: 715 mm
smallest dia with biggest steadie: 570 mm
biggest dia with biggest steadie: 1015 mm
- Tip/Model: SR Ø 2000 x 6500 mm
- Stok numarası: A.01 8762
- Kategori: [A] Torna
- Alt kategori: [A.01] Centerdraaibanken Conventioneel
- Marka: Skoda
Stok numarası: A.01 8762
