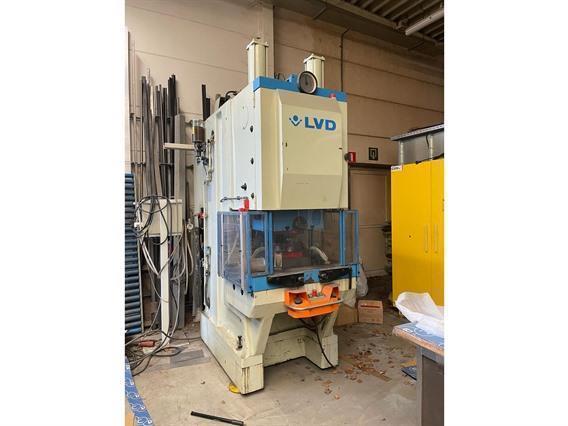

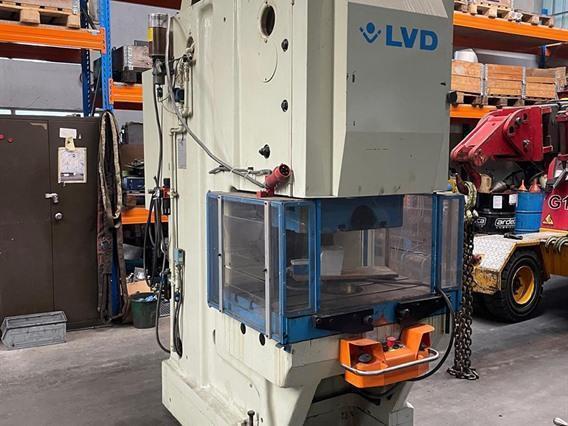

LVD DVDF 100 ton

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Capacity100 ton
Clutchairclutch
Deph of throat340 mm
Max ram adjustment10 > 130 mm
Passage between uprights400 mm
Distance between table -- ram300 mm

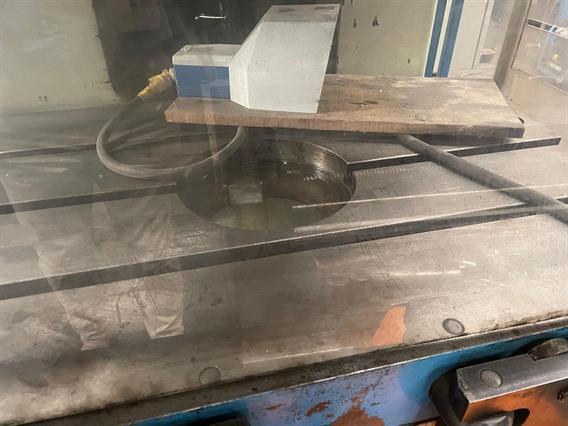

Table area950 x 630 mm
Dia table hole200 mm
Ram area (L x D)560 x 320 mm
Adjustable stroke10 > 130 mm
Electric motor (power)8,5 kW
Length L -- R1500 mm
Depth F -- B2380 mm
Hight2800 mm
Weight9,5 ton

Ek bilgi

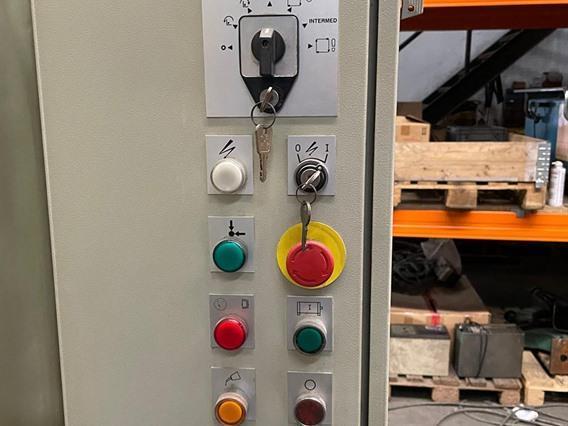

Doublehand control

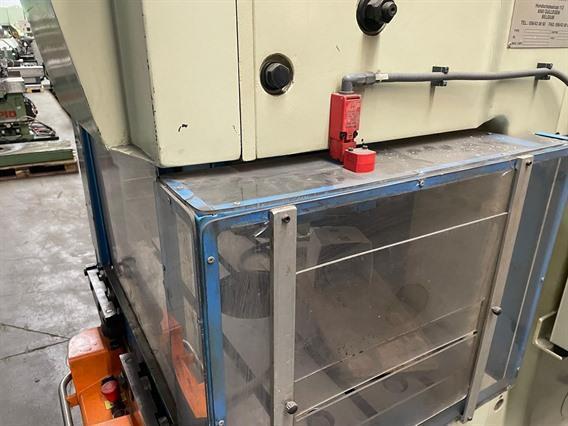

Automatic security screen
central lubrification
rupture disc

max dimensions of tooldie which can be fitted: 900 x 600 x 300 mm
Tip/Model: 100 ton
Stok numarası: N.05 14114
Kategori: [N] Mekanik basınç
Alt kategori: [N.05] C-Frame Excenterpersen & Mechanische persen
Marka: LVD DVDF

» Kişisel fiyat talep edin

Stok numarası: N.05 14114

ZIP formatındaki tüm fotoğrafları indirin
