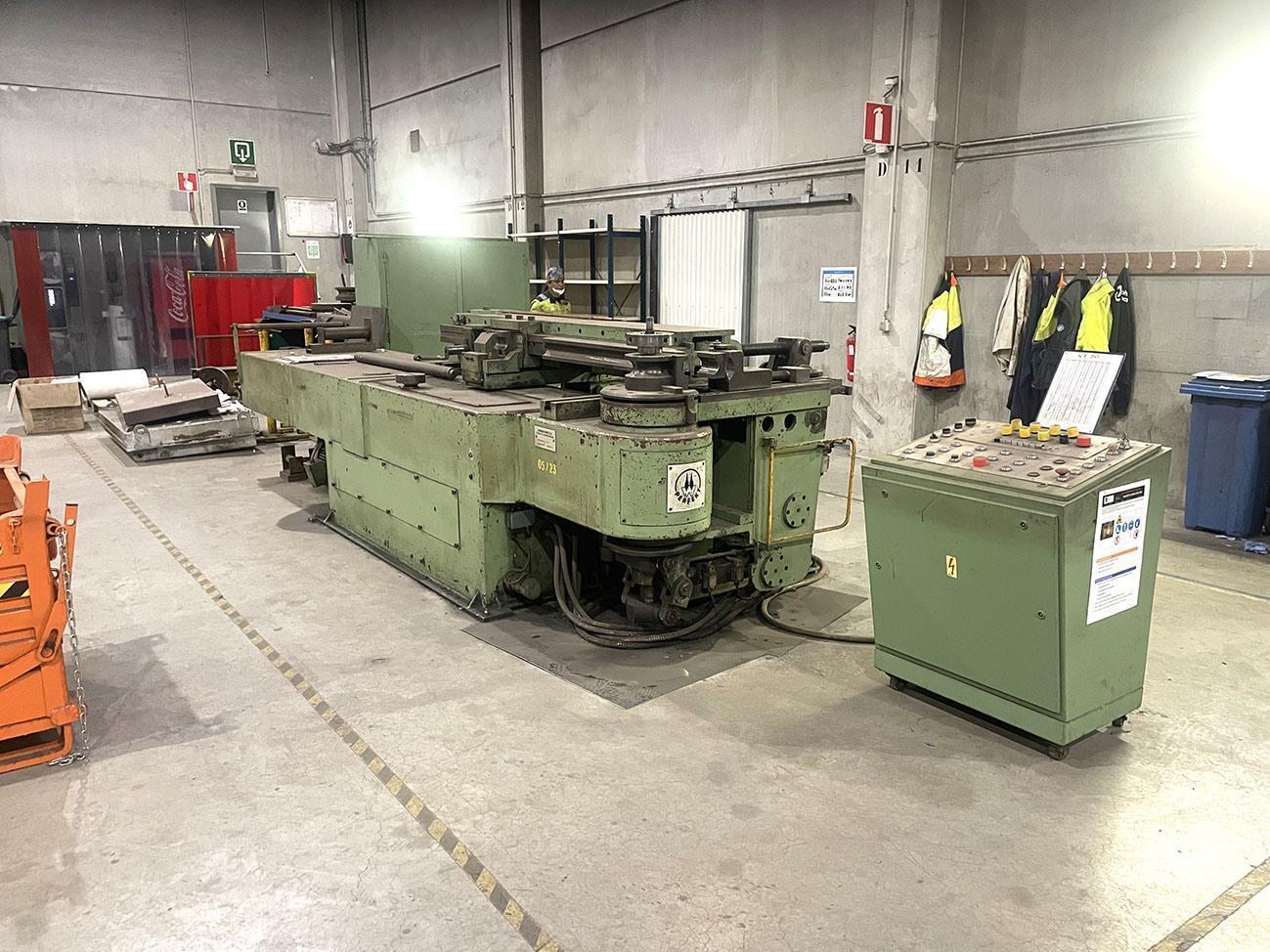

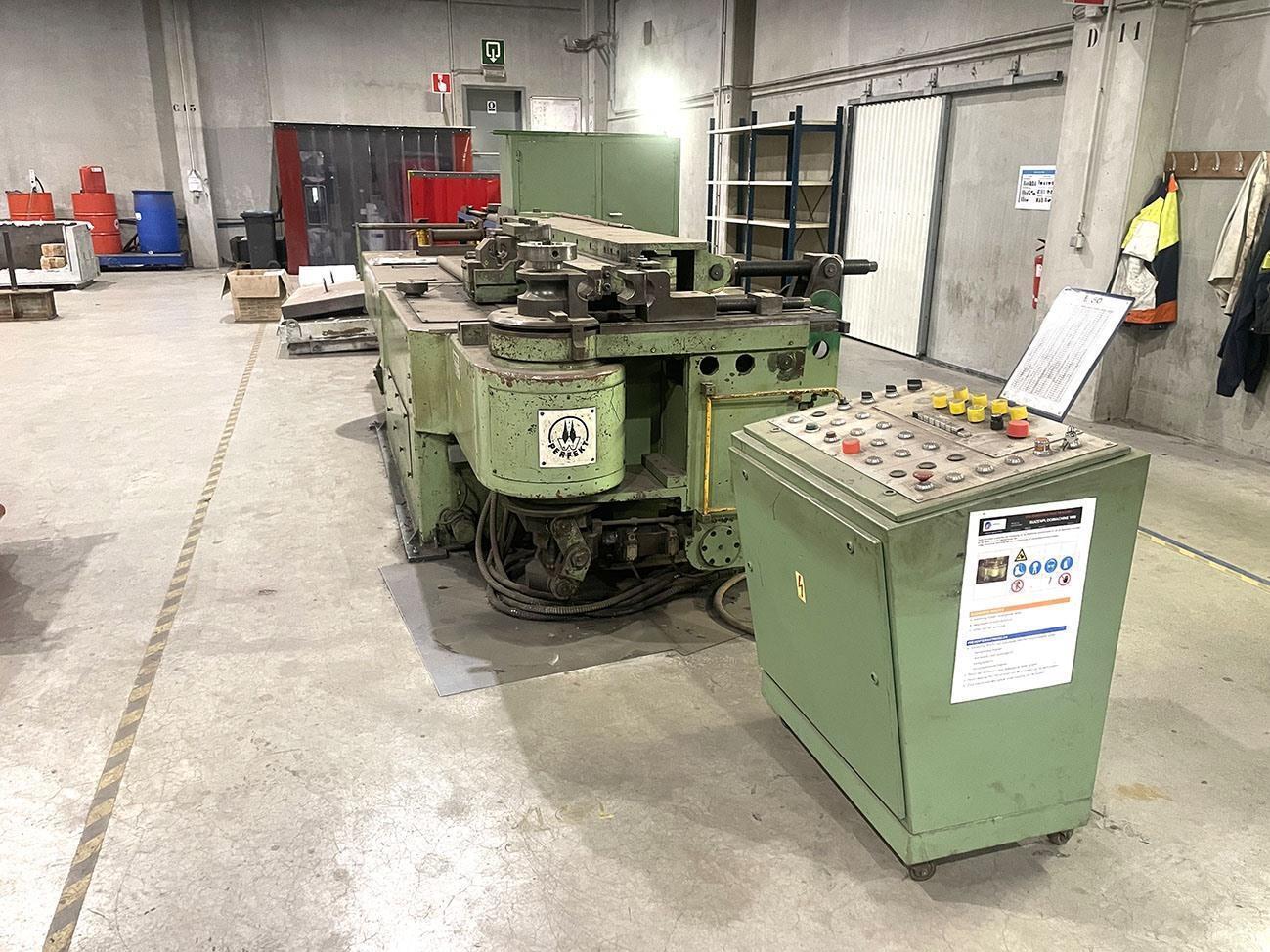

Buizenplooimachines met doorn Schwarze-Wirtz WE80 Ø 89 x 5 mm

Teknik Bilgiler

  • Max dia tube x thicknessØ 89 x 5 mm
  • Max bendingradius180°
  • Back stop max tubelength6000 mm
  • Bending dieyes

Ek bilgi

  • Pressure bending machine for tube bending with and without mandrel

    > Pressure bending enables the production of very tight bending radii (minimum radius 1 x D). This allows, for example, boiler systems with higher output to be manufactured in smaller dimensions.

    > Pressure bending also allows the use of very long tubes, as no mandrel is required. The tube lengths can be welded together behind the machine and bent into finished systems, eliminating the need for fitting work.

    > In addition, pressure bending guarantees compliance with the prescribed wall thickness tolerances in the pipe bends according to VGB. Compared to conventional bending with a mandrel, the reduction in wall thickness on the outside of the pipe is very small with mandrel-free pressure bending.

    > When using a bending mandrel, pressure bending enables the production of bends from thin-walled hollow alloy tubes with very tight bending radii (1 x D), as pressure bending relieves the outer wall of the bend

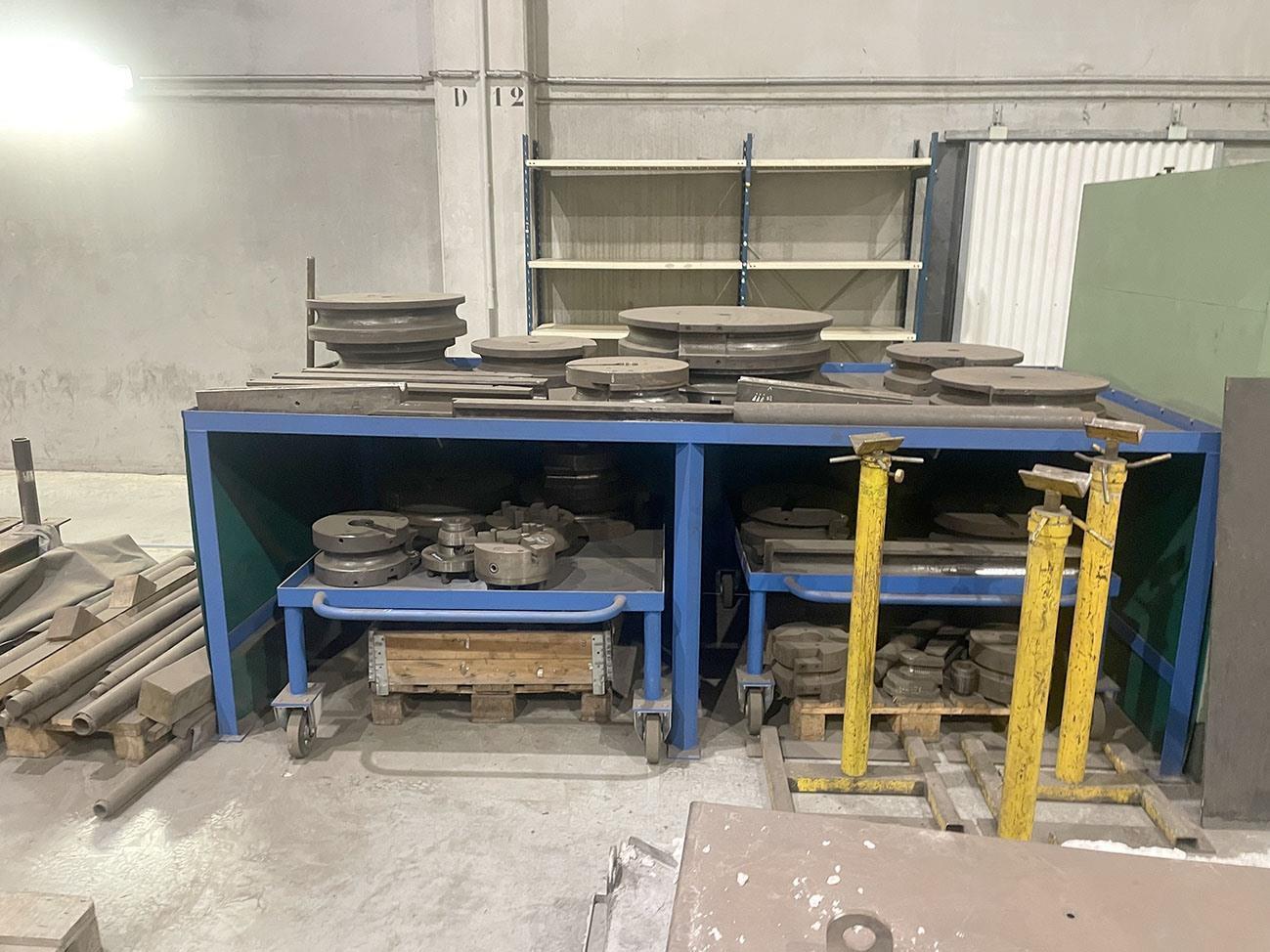

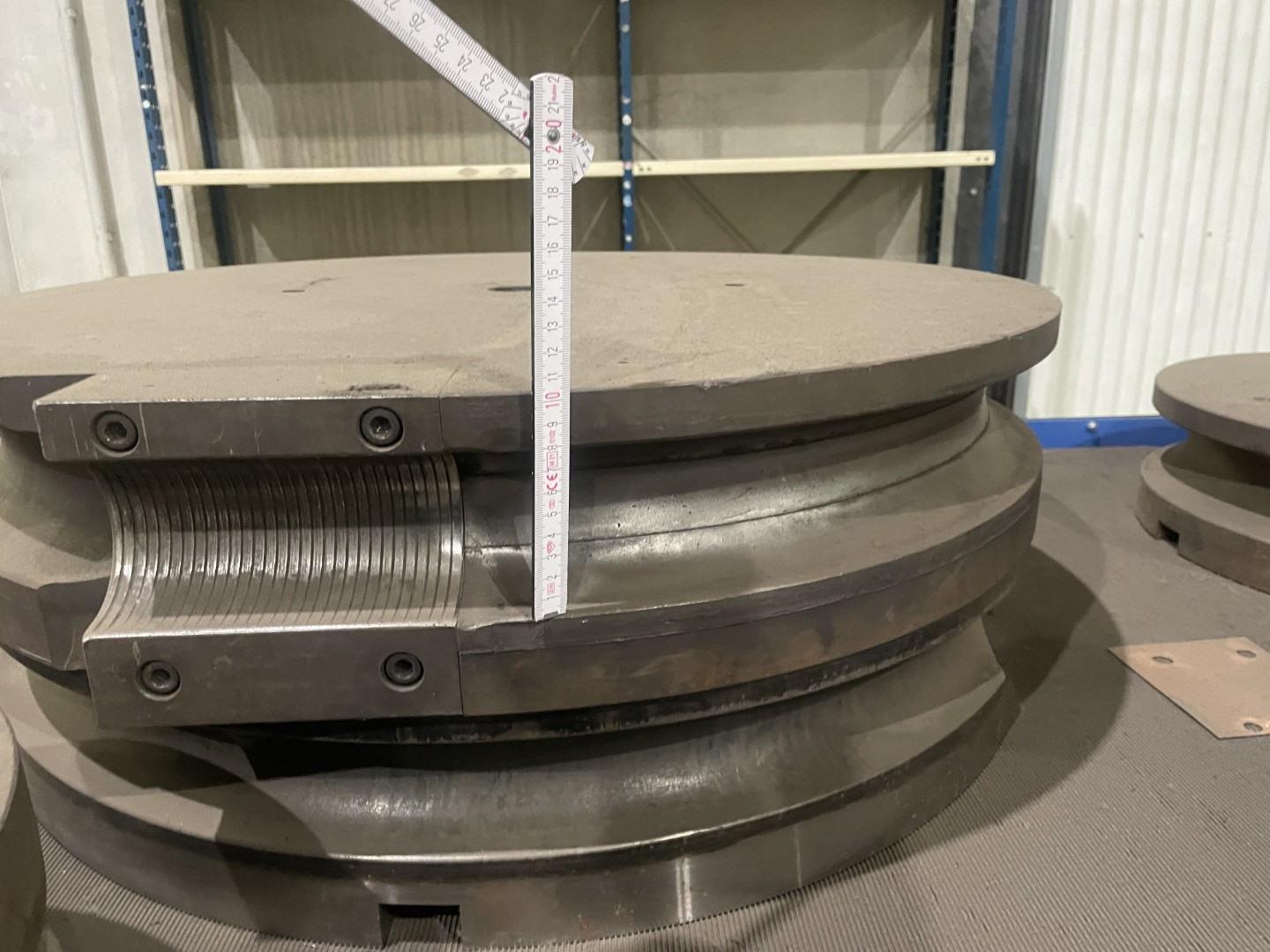

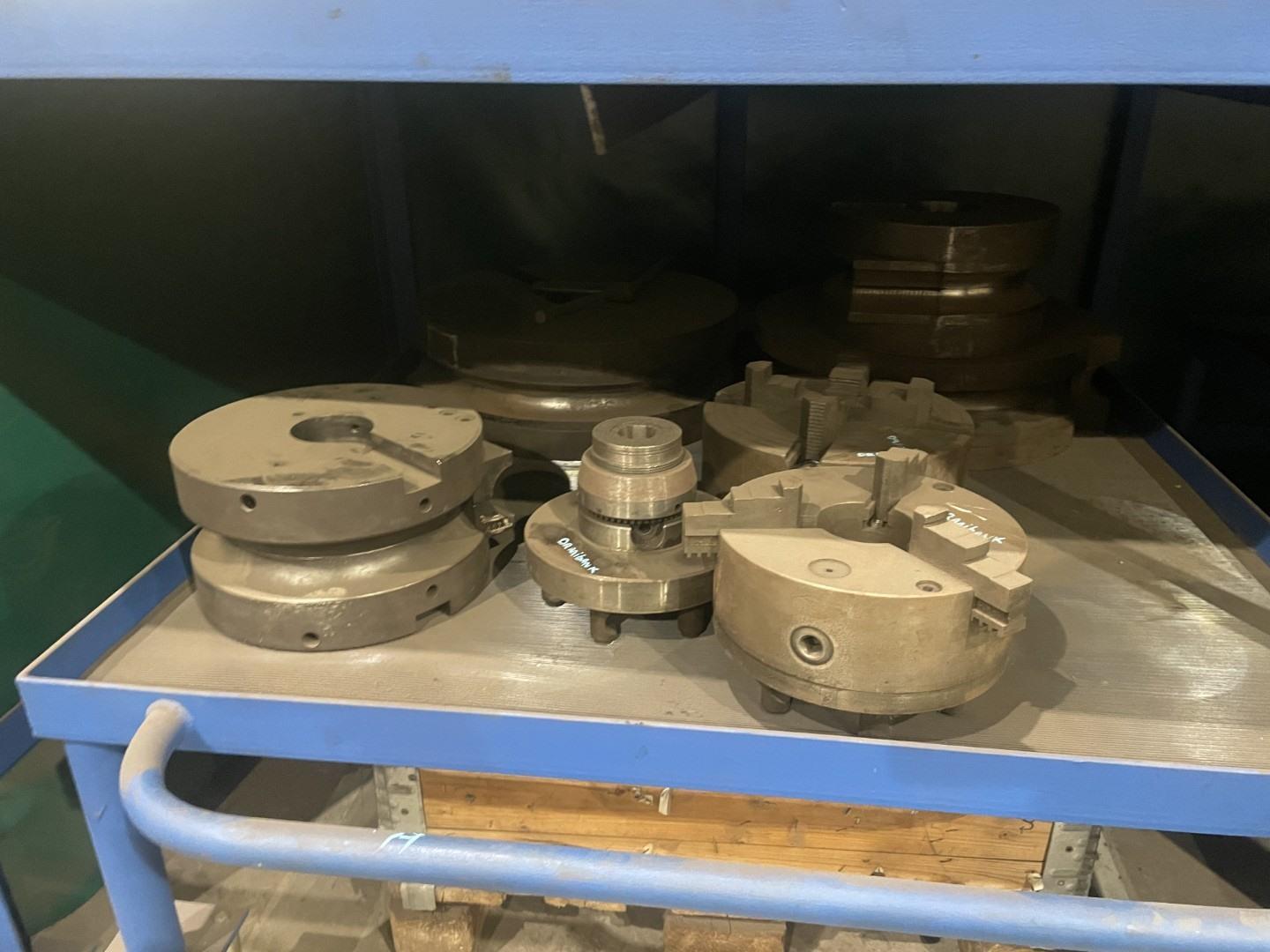

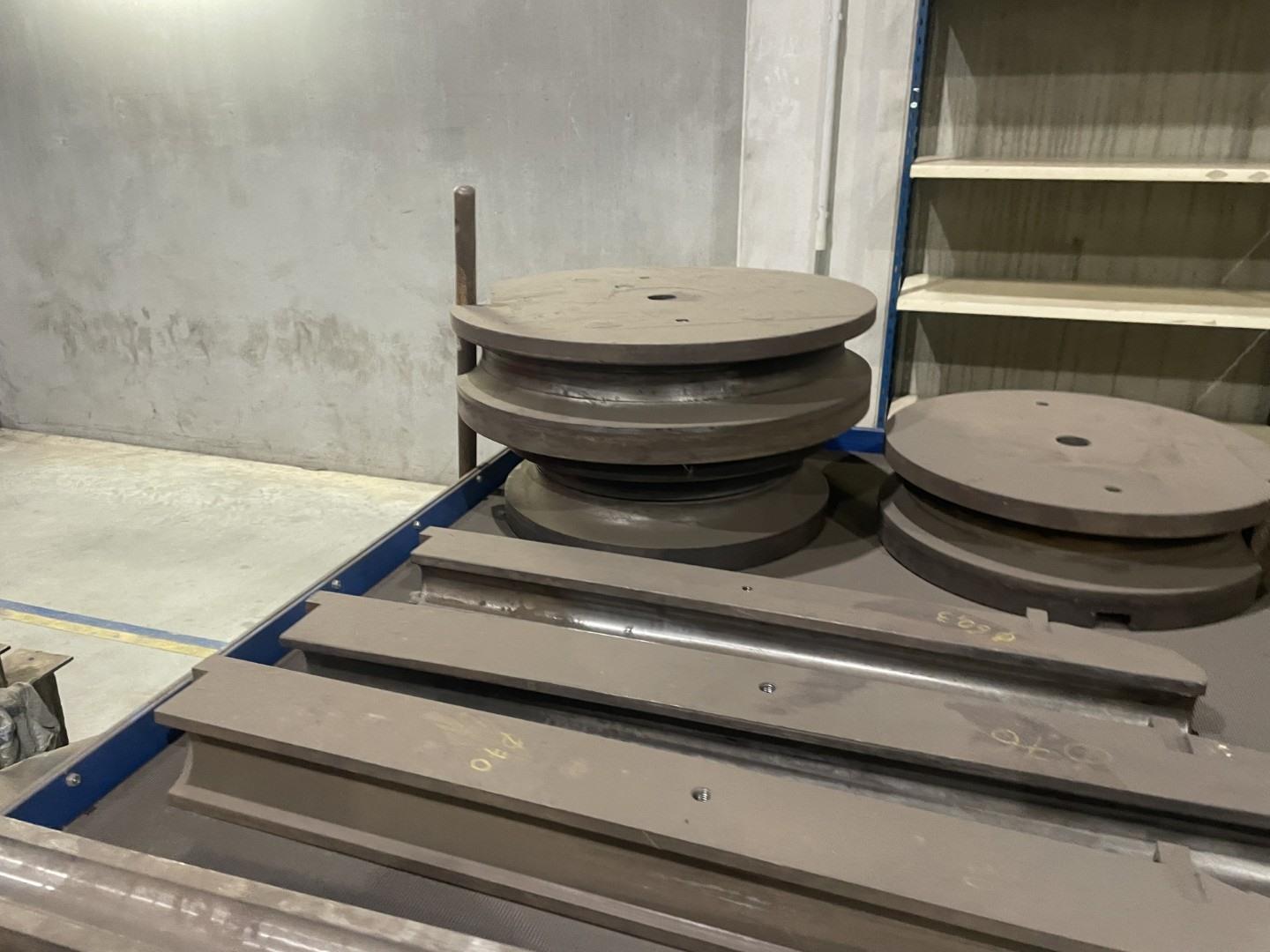

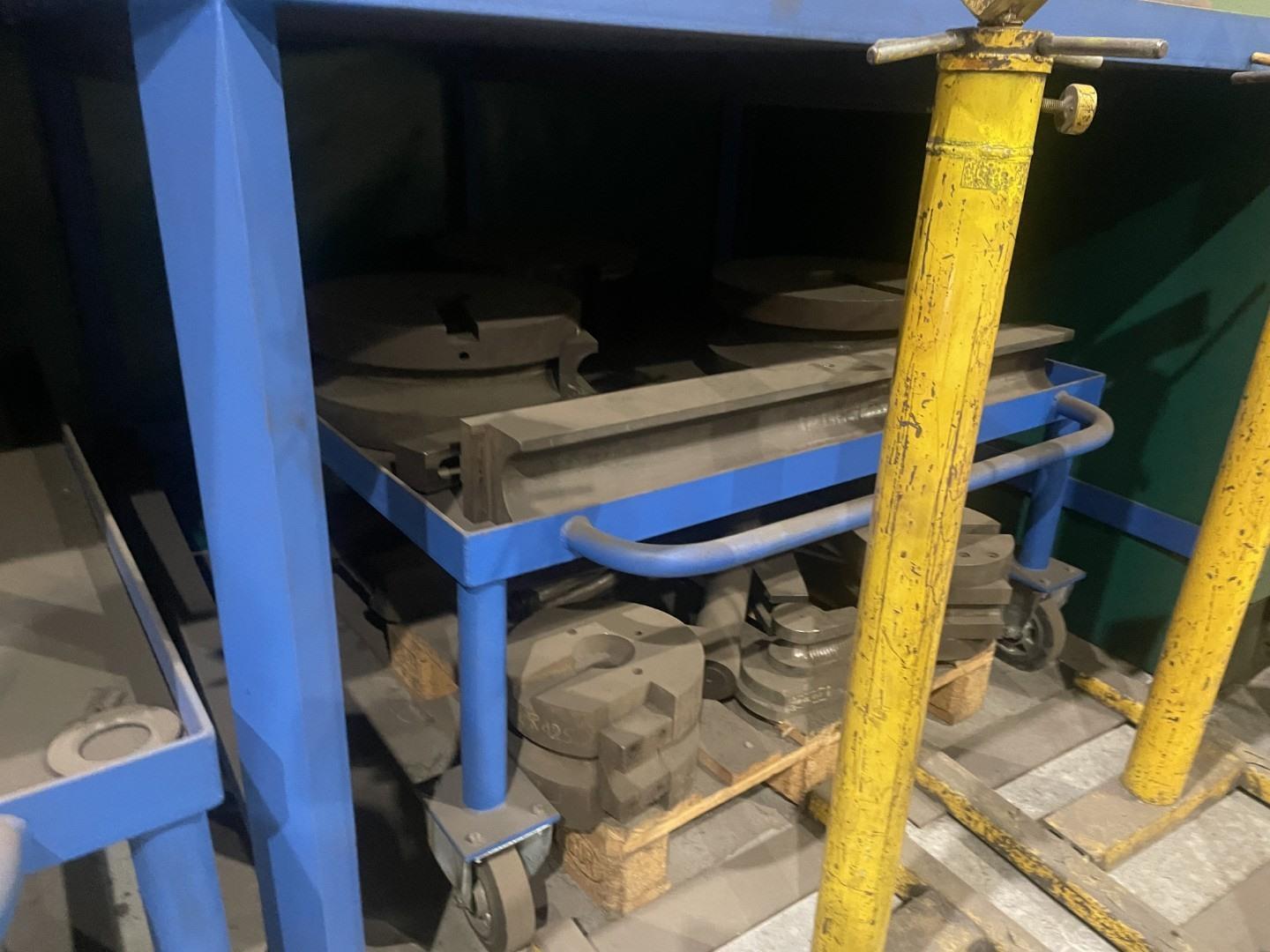

    Many tools are included

    Compression bending or pressure bending
    mandrel-free cold bending

  • Tip/Model: WE80 Ø 89 x 5 mm
  • Stok numarası: Q.01 15734
  • Kategori: [Q] Tüpler, çubuklar ve profiller için bükme ve hedefleme makineleri
  • Alt kategori: [Q.01] Buizenplooimachines met doorn
  • Marka: Schwarze-Wirtz

Stok numarası: Q.01 15734
