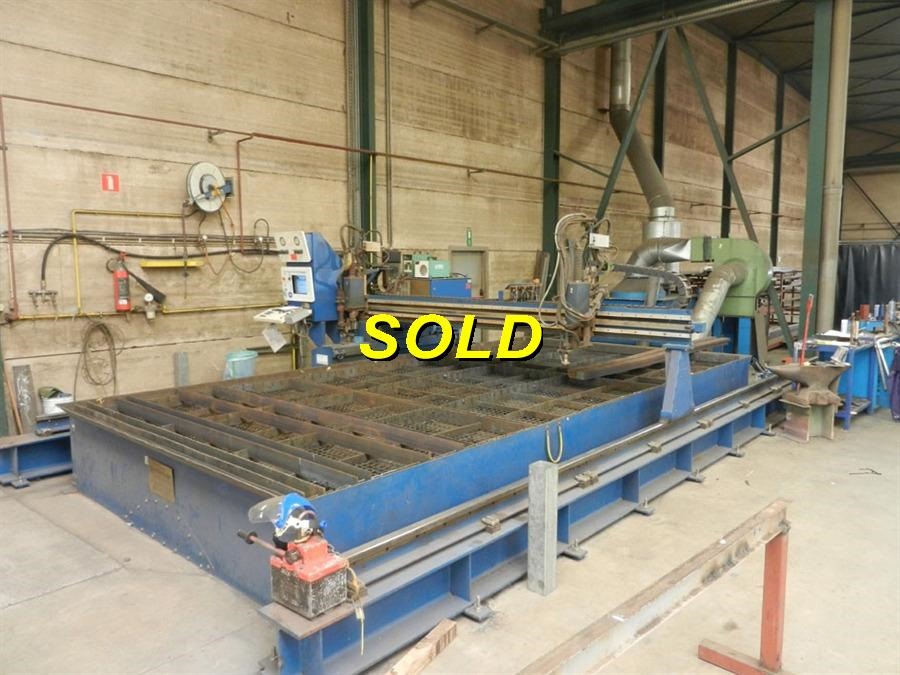

Messer Cortina 3100 x 6500 mm CNC gas+plasma

Ürün favorilere eklendi

Teknik Bilgiler

Longitudinal travel X-axis6500 mm
Cross travel Y-axis3100 mm
Cutting capacity25 mm (plasma)
Table dimensions(2x) 2000 x 3000 mm
Workhight700 mm
PlasmasourceHypertherm 100A

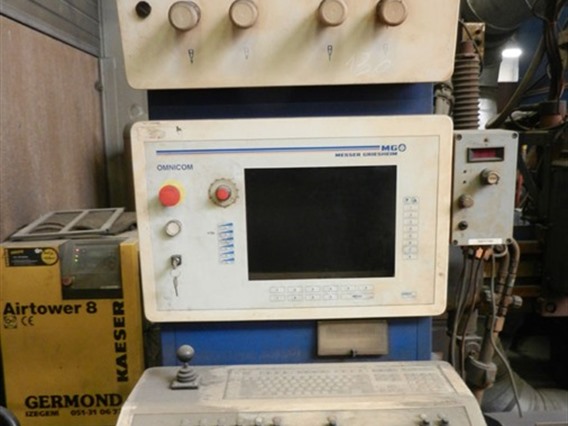

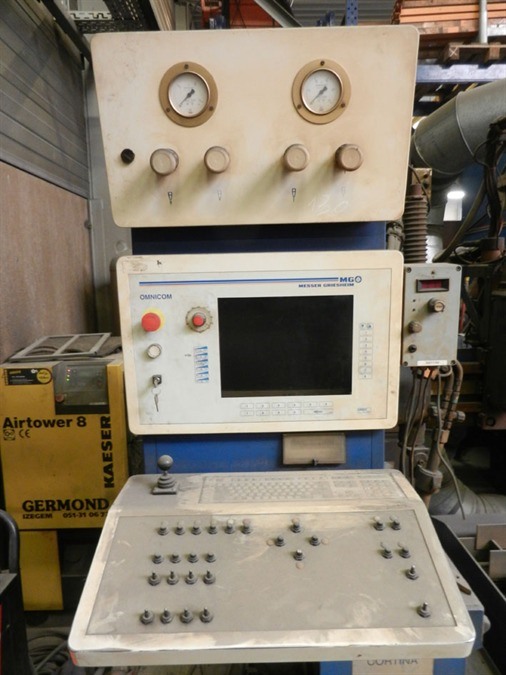

Read-out / ControlOmnicom

Ek bilgi

Combination 2 heads
> 1 head interchangable with plasmahead

> automatic ignition

C-C: 4000 mm

total length of rails: 7500 mm

max plasma cuttingthickness: 25 mm

max gas cuttingthickness: 300 mm

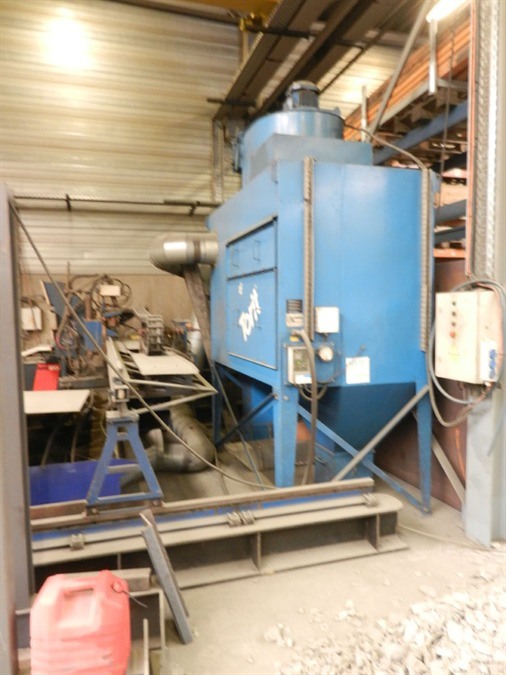

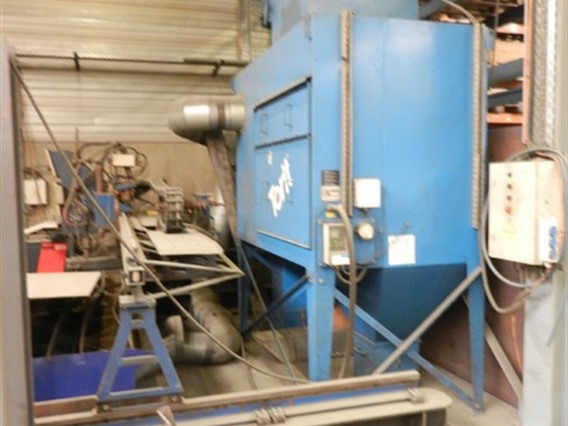

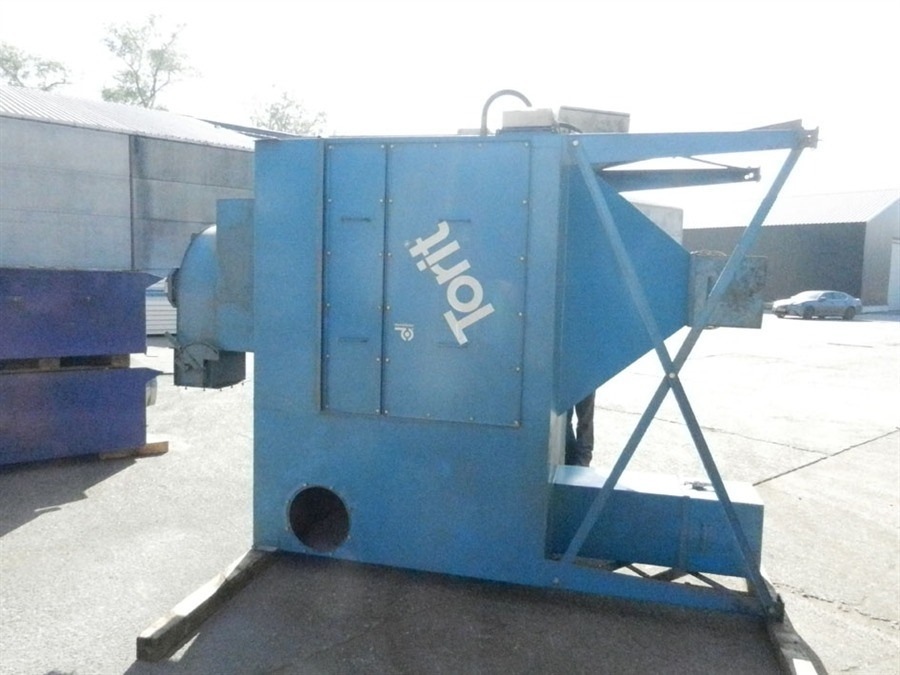

Torrit dustfilter recuperation system included

Sensomat Arc Height control

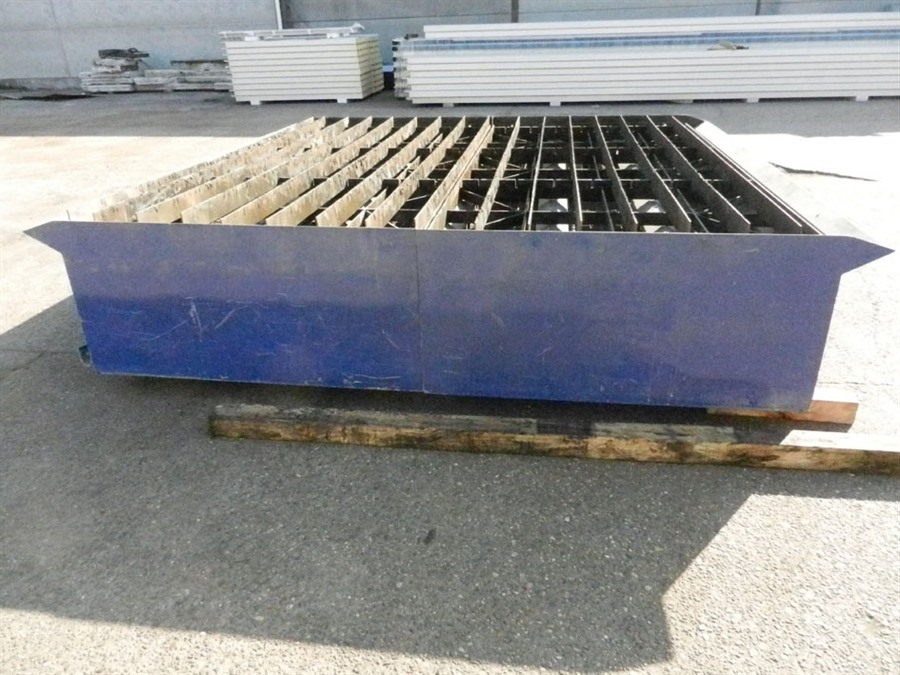

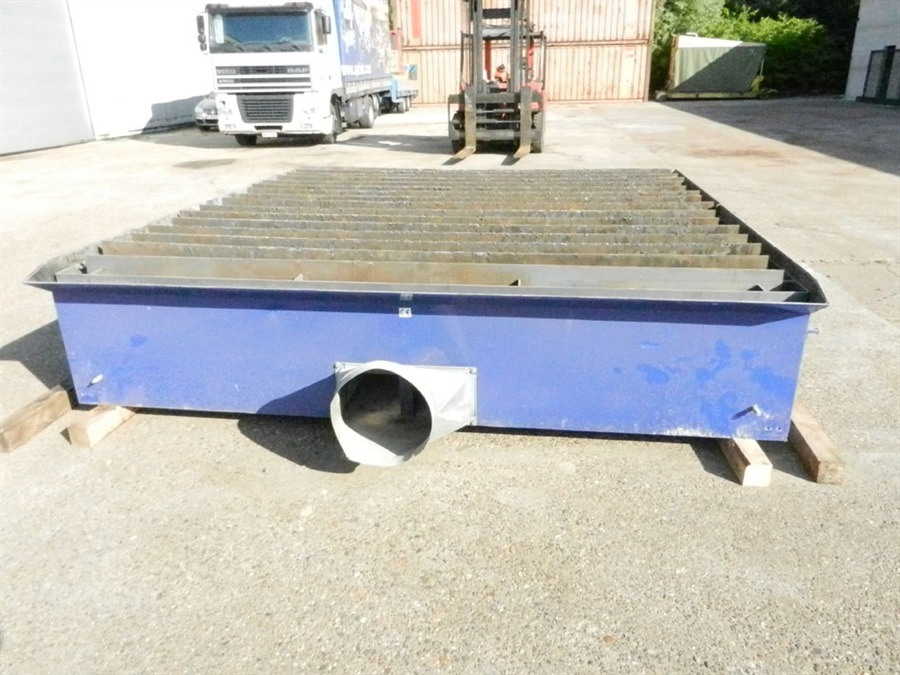

sectioned extractionvalves in Marlborough table
Tip/Model: 3100 x 6500 mm CNC gas+plasma
Stok numarası: O.16 7445
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.16] Brandsnijmachines - Gasbrandsnijmachines & Plasmabrandsnijmachines
Marka: Messer Cortina

Stok numarası: O.16 7445

Satılan
Satılan
Satılan
Satılan
Satılan
Satılan

İş makinasının videosunu görüntüle

Messer Cortina 3100 x 6500 mm CNC gas+plasma

ZIP formatındaki tüm fotoğrafları indirin
