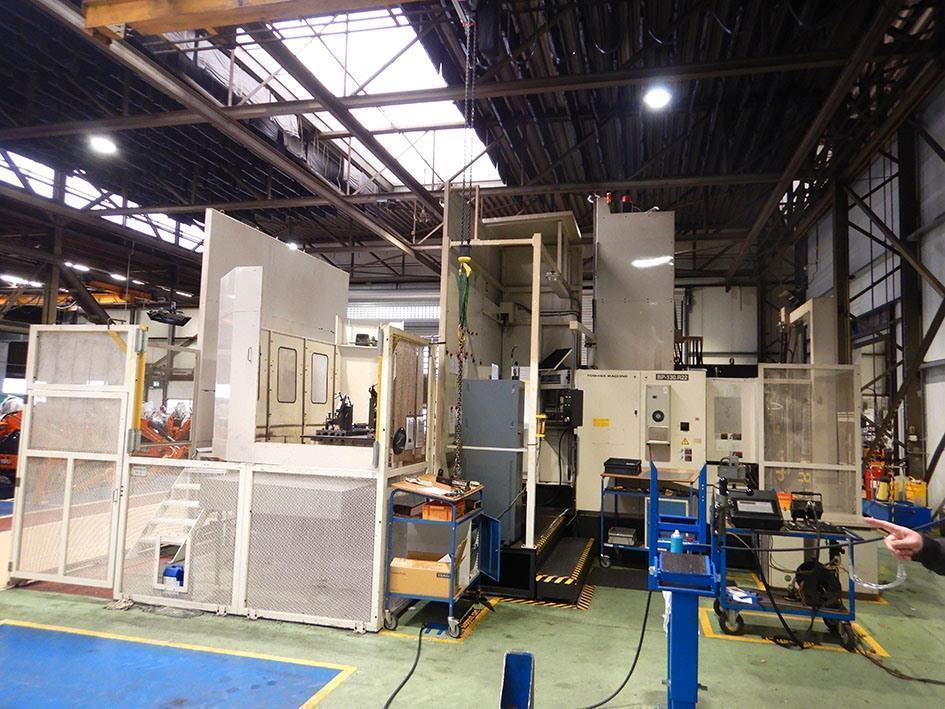

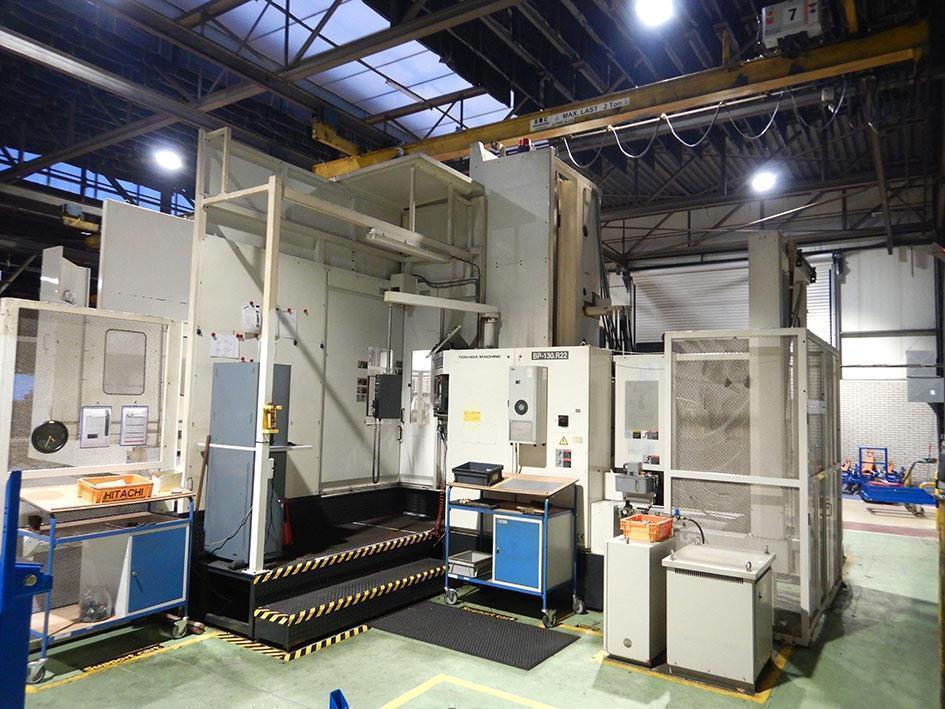

Toshiba/Shibaura BP-130R22 X: 4064 - Y: 2540 - Z: 1524 mm CNC

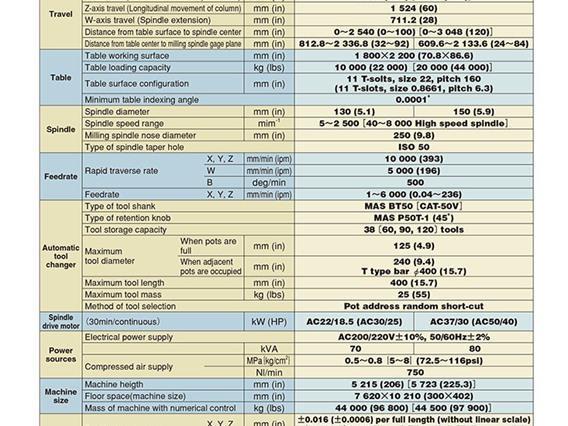

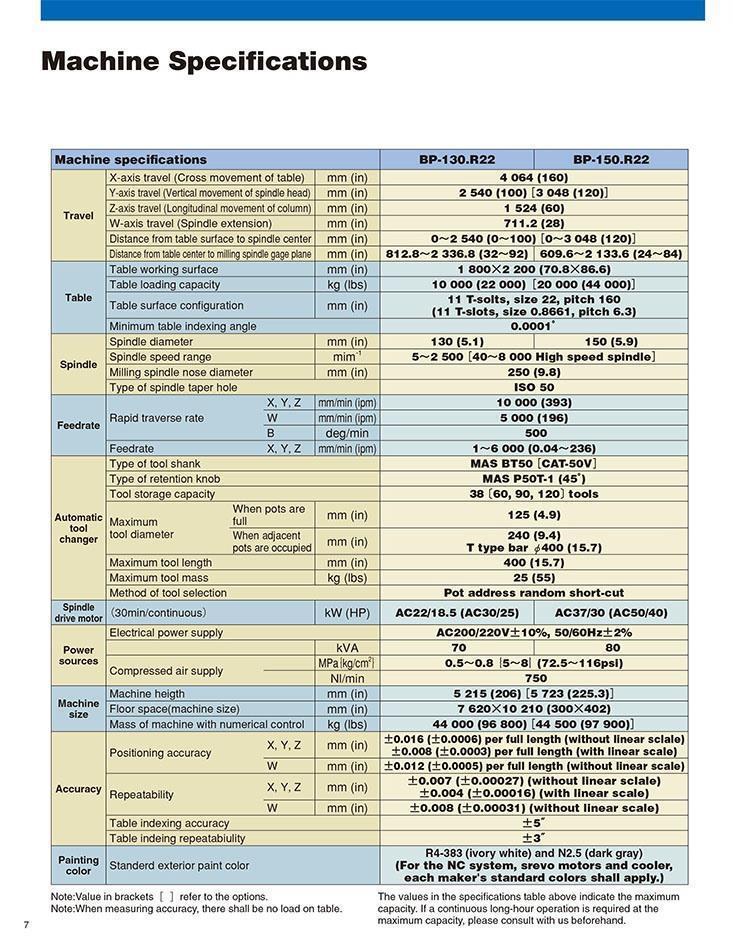

Teknik Bilgiler
- Longitudinal travel X-axe4064 mm
- Cross travel Y-axe1524 mm
- Travel Z-axe2540 mm
- Dimensions clamping space- table2200 x 1800 mm
- Power on spindle22 kW
- Admission in millinghead (ISO)ISO 50 (dia: 130 mm) BT50
- Max speedrange25 > 2500 rpm

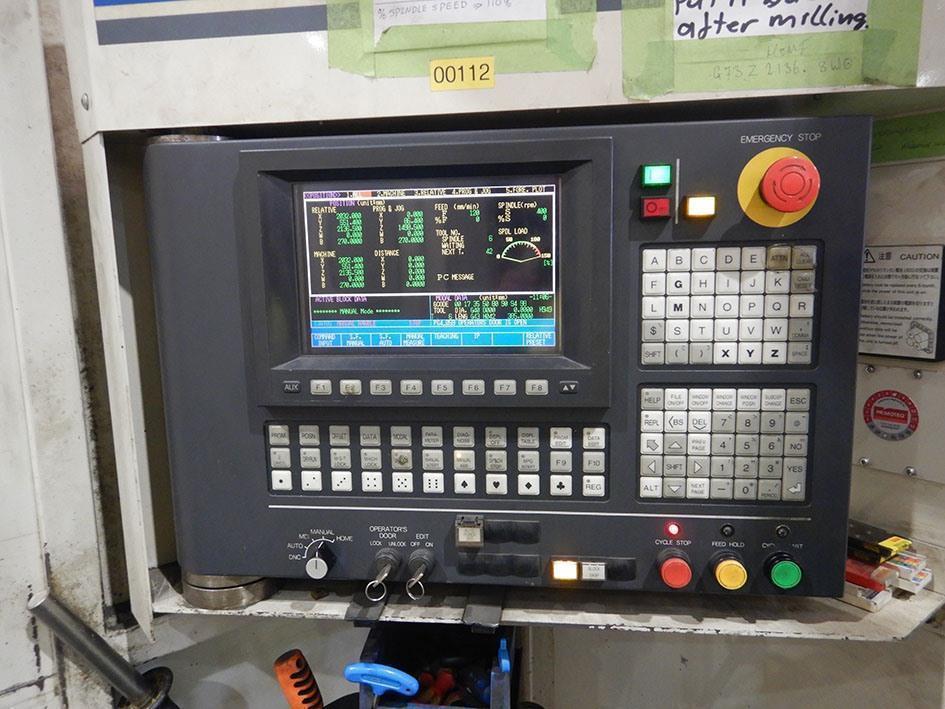

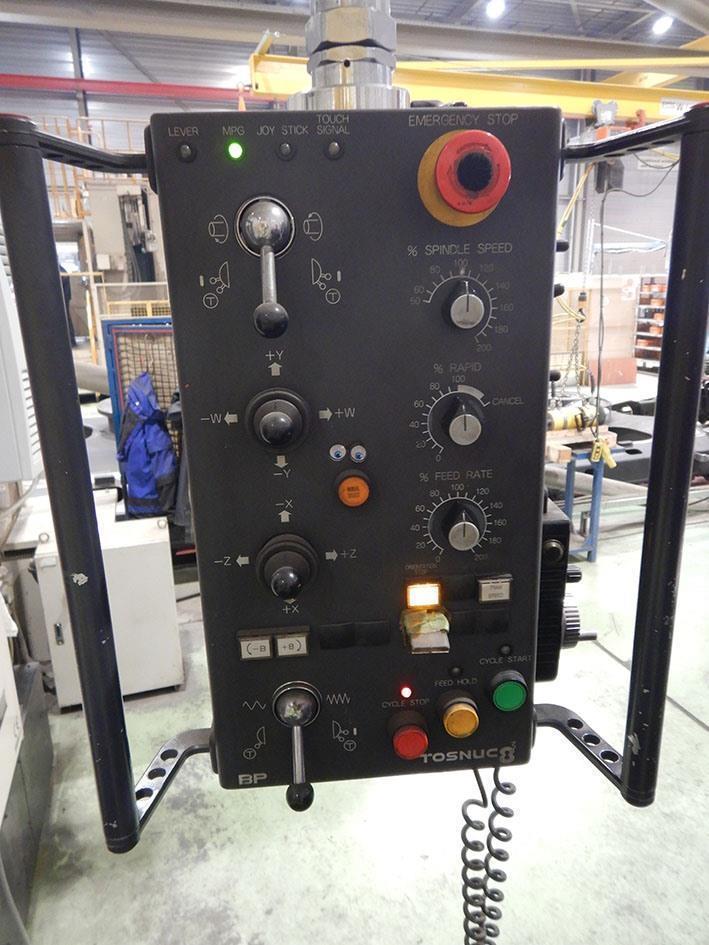

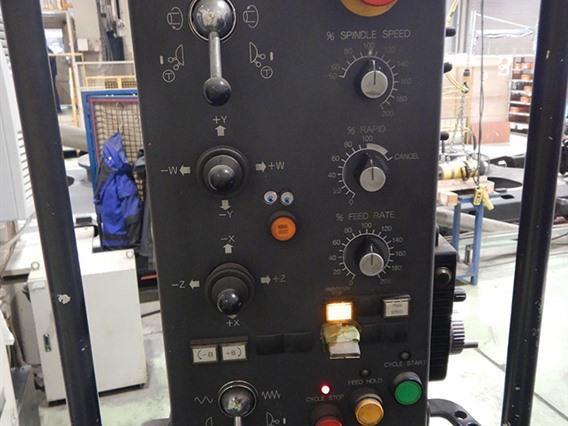

- ControlTosnuc 888
- Length L -- R10 210 mm
- Depth Fw -- Bw7620 mm
- Height5215 mm
- Weight44 ton
Ek bilgi
- Type: BP-130R22 - Japanese high quality!

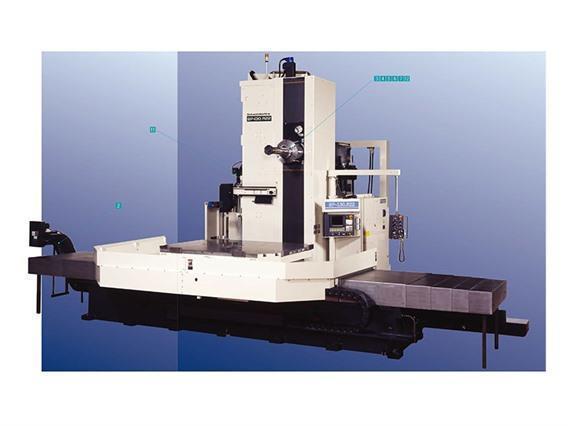

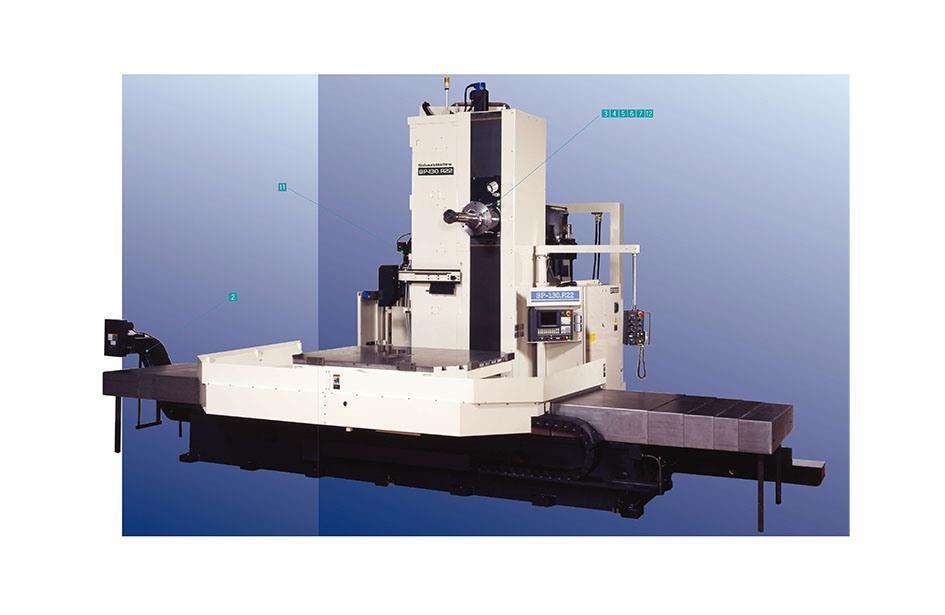

Planer type horizontal boring and milling machine + rotary table + automatic toolchanger

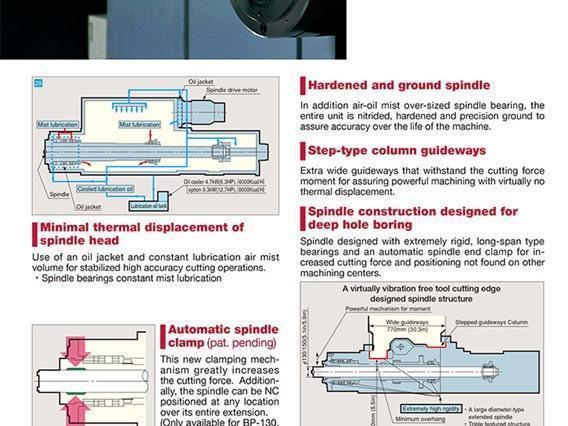

Hydrostatic guides!!

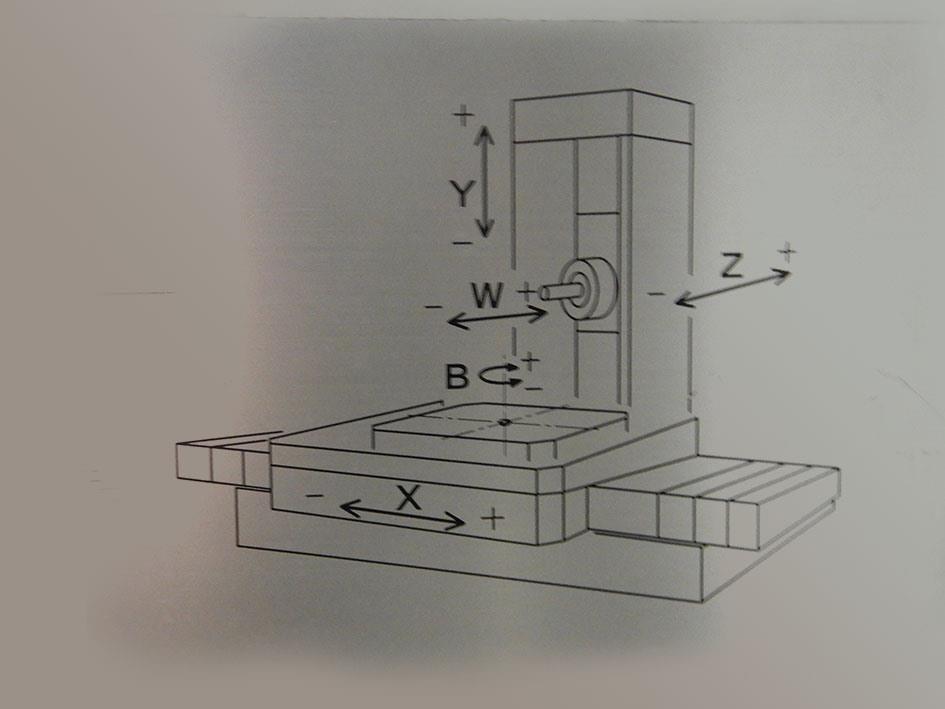

5 axes simultaneous
711 mm extendable boring spindle (W-axis)

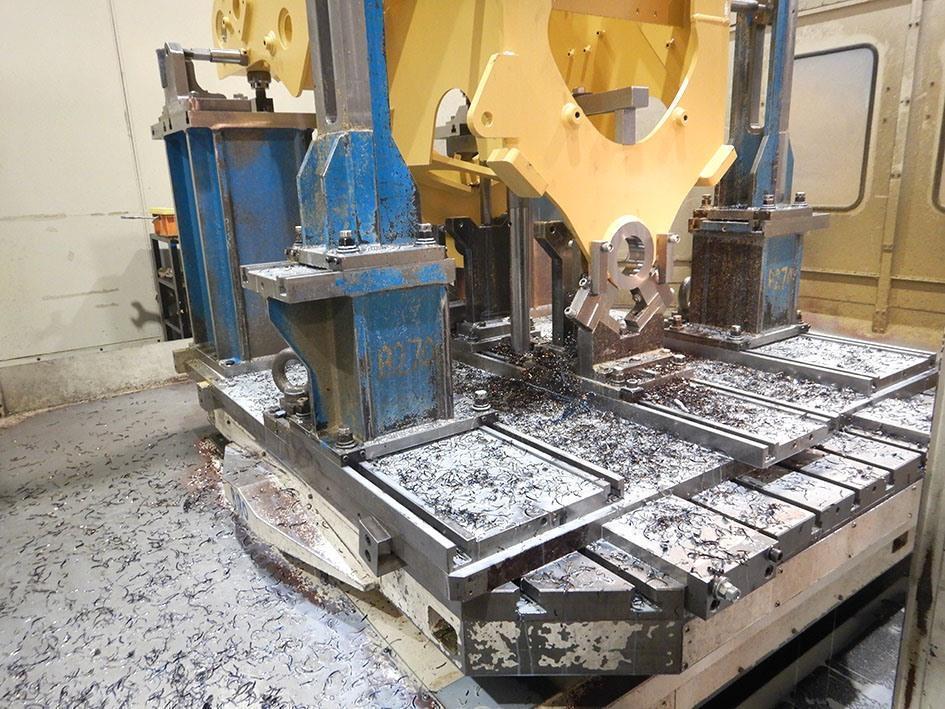

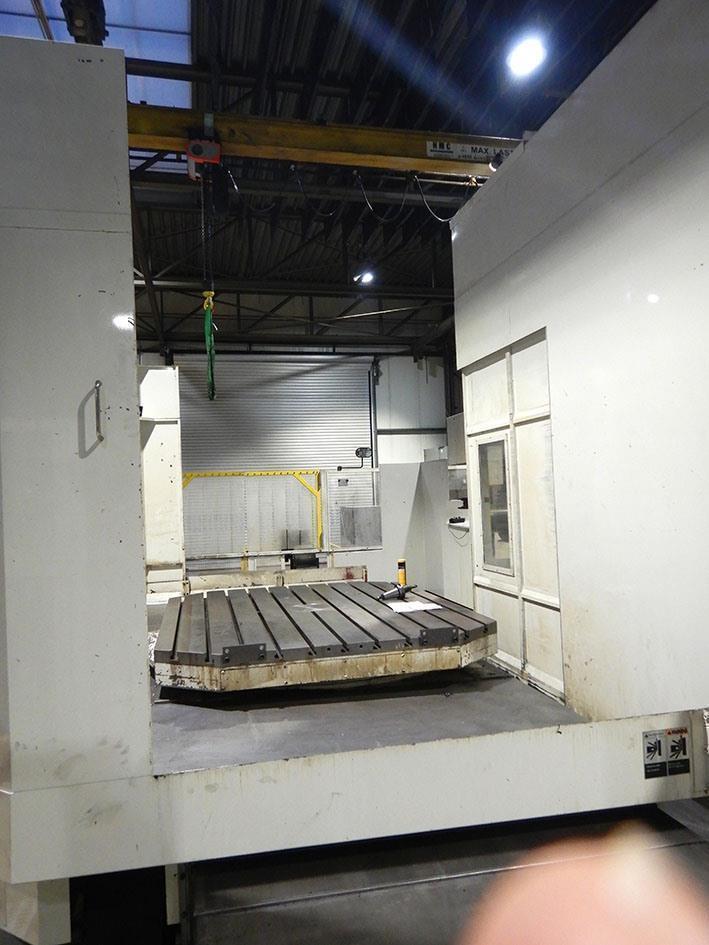

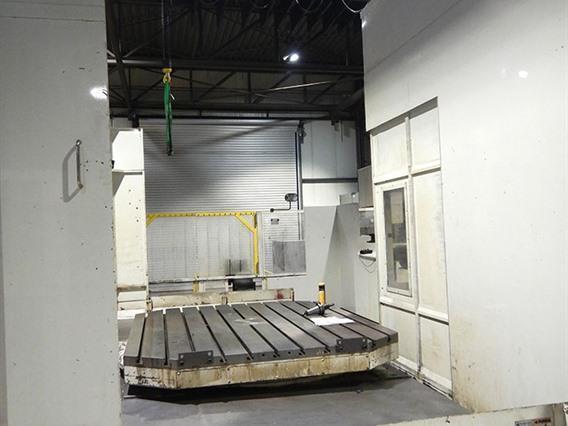

cont. indexing rotary table - every 0,0001 degrees (B-axis)

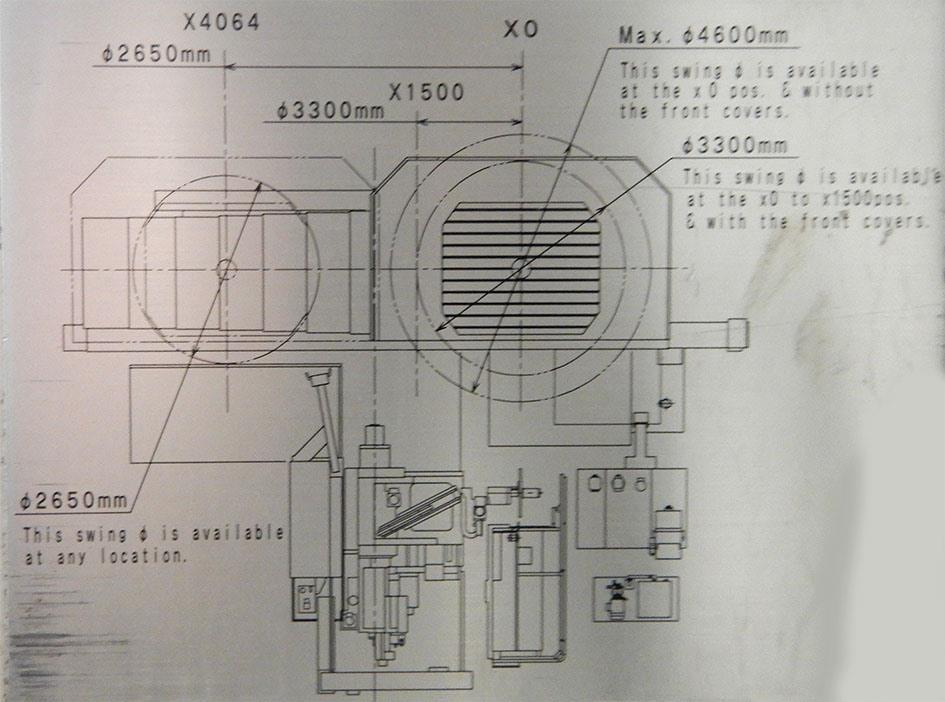

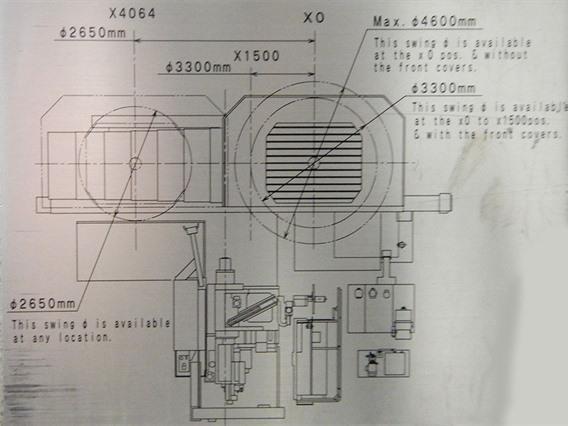

> movement of table: 4064 mm
> max swing of 4600 mm is possible with no front covers at zero position
> max swing of 3300 mm is possible with front covers at zero position
> max swing of 2650 mm is possible at anyposition

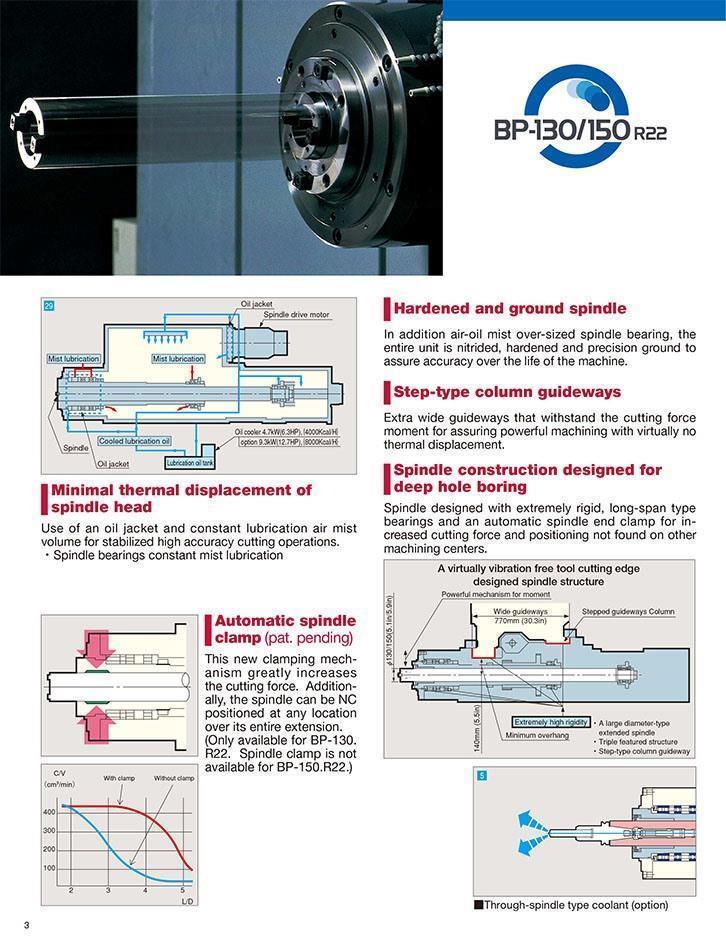

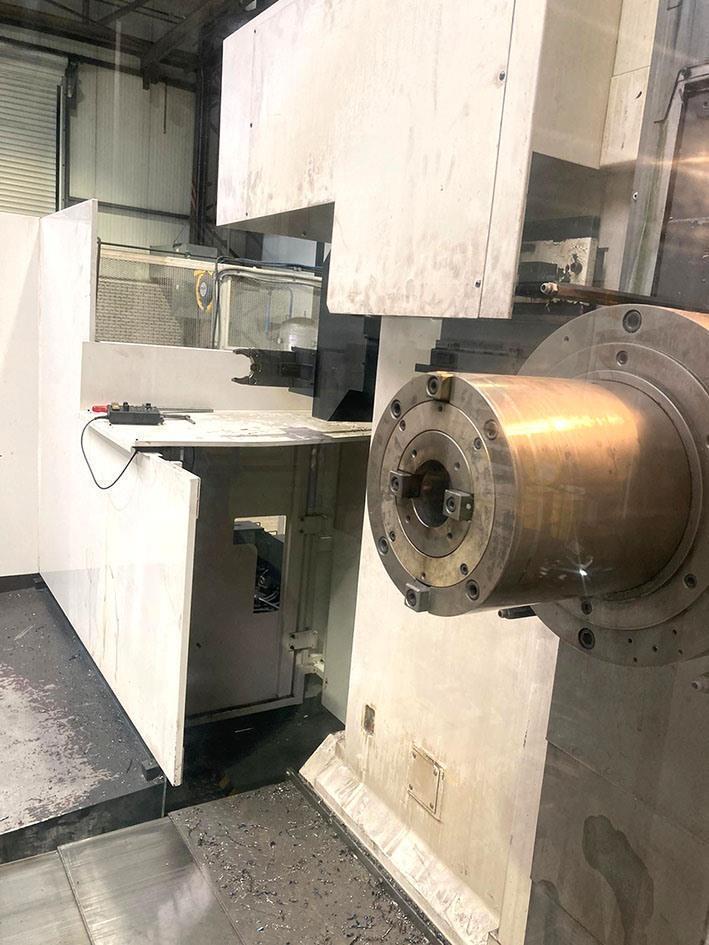

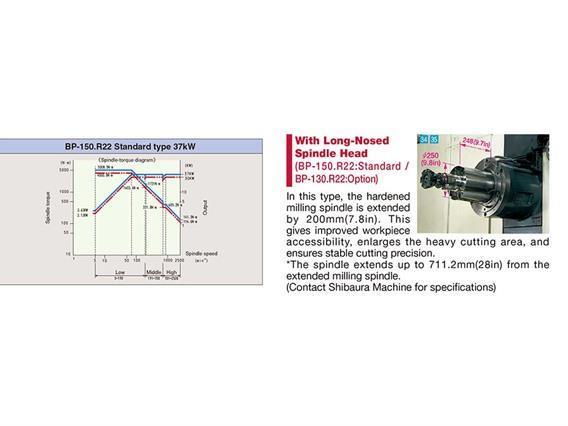

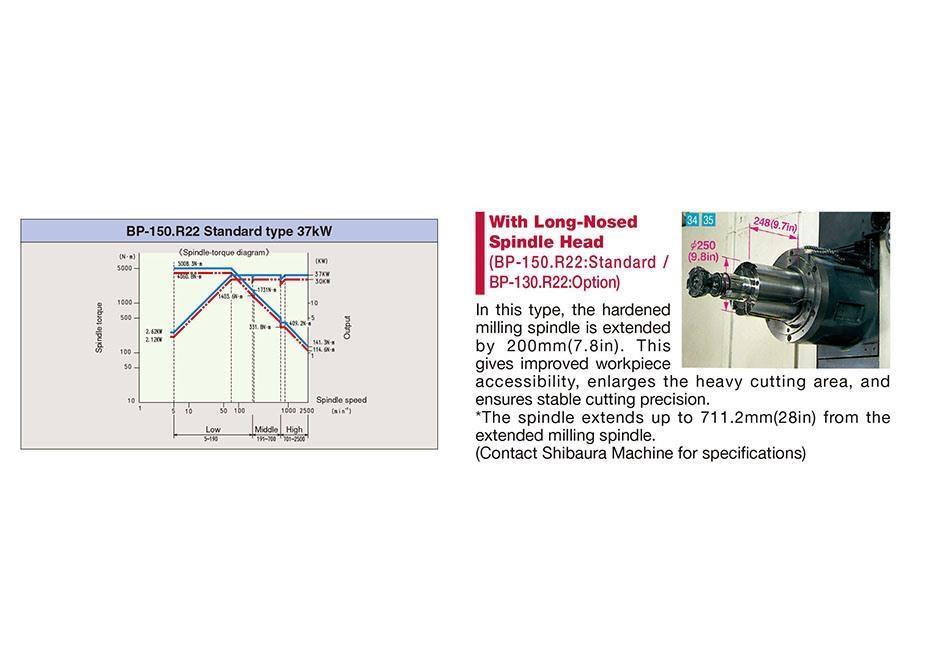

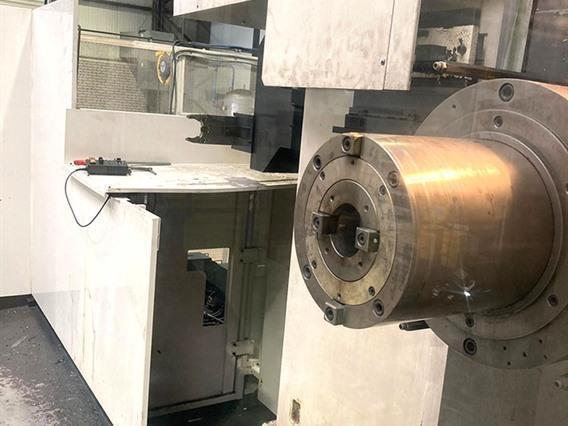

Long-nosed spindle head

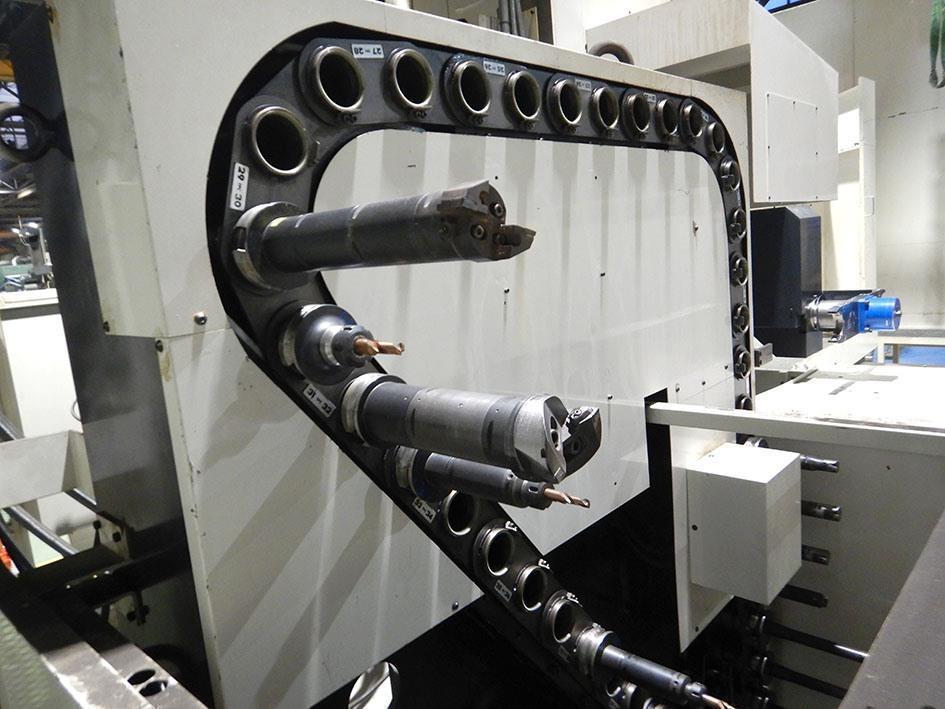

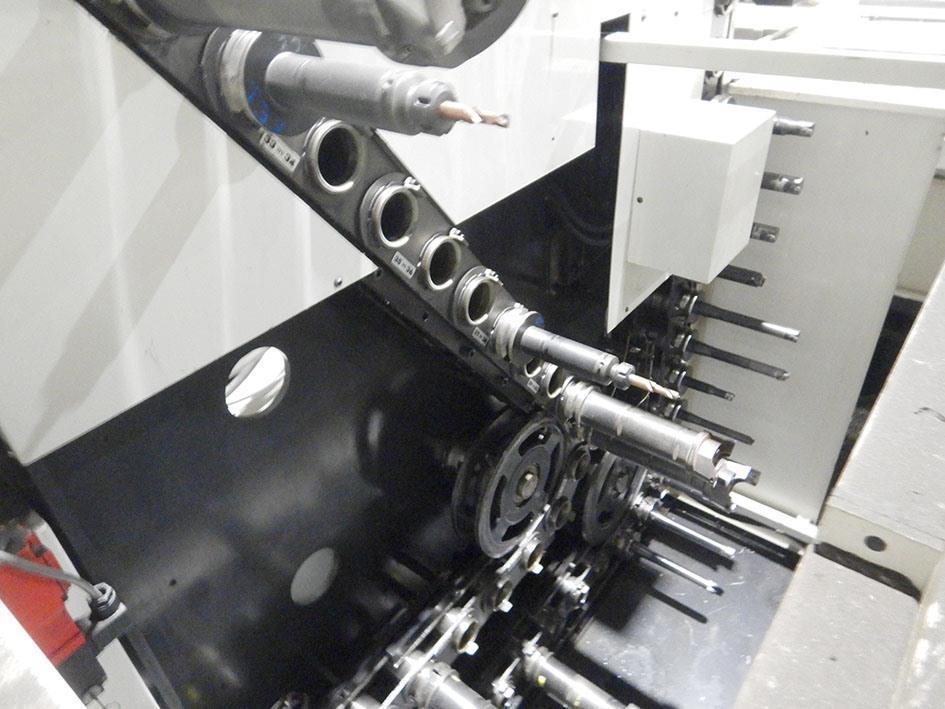

Automatic toolchanger with 60 positions (all tools included with machine)
High pressure cooling through spindle
Renishaw measuring system for workpiece
Overload protection
Coolant filtration
Chipconveyor
No foundation required, machine installed on top of floor
- Tip/Model: BP-130R22 X: 4064 - Y: 2540 - Z: 1524 mm CNC
- Stok numarası: B.03 12524
- Kategori: [B] Freze makineleri
- Alt kategori: [B.03] Bedfreesmachines / Beweegbare tafel conventioneel & CNC
- Marka: Toshiba/Shibaura
