APT International
Machinery stock
Freze makineleri
Bedfreesmachines / Beweegbare tafel conventio...
Correa - CF 22/20 X: 2000 - Y: 800 - Z: 800 mm CNC

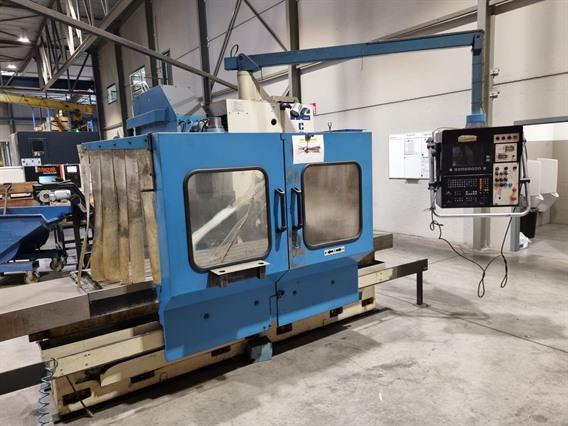

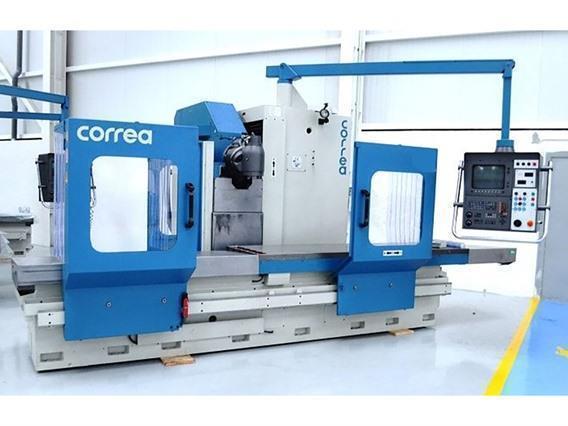

Correa CF 22/20 X: 2000 - Y: 800 - Z: 800 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Longitudinal travel X-axe2000 mm
Cross travel Y-axe800 mm
Travel Z-axe800 mm
Dimensions clamping space- table2000 x 700 mm
Power on spindle22 kW
Type of millingheadU22
Admission in millinghead (ISO)ISO 50
Max speedrange20 > 4000 rpm
ControlHeidenhain TNC 426
Length L -- R5200 mm
Depth Fw -- Bw2900 mm
Height2760 mm
Weight10 ton

Ek bilgi

U22 universal milling head
Tip/Model: CF 22/20 X: 2000 - Y: 800 - Z: 800 mm CNC
Stok numarası: B.03 13956
Kategori: [B] Freze makineleri
Alt kategori: [B.03] Bedfreesmachines / Beweegbare tafel conventioneel & CNC
Marka: Correa

» Kişisel fiyat talep edin

Stok numarası: B.03 13956

Correa CF 22/20 X: 2000 - Y: 800 - Z: 800 mm CNC

ZIP formatındaki tüm fotoğrafları indirin
