Parpas ML120-1 -8 axes X: 12 000- Y: 3500- Z: 1250 mm CNC

Teknik Bilgiler

  • Longitudinal travel X-axe12 000 mm
  • Crosstravel Y -axe1250 mm (ram-travel)
  • Travel Z-axe (Height)3500 mm
  • Power on spindle37 kW
  • Admission in millingheadspindle (ISO)ISO 50
  • Max quill travel Z'1250 + 650 mm
  • Max speedrange6 > 2000 rpm
  • ControlHeidenhain

Ek bilgi


  • Type: ML120-12000
    6 axes simult. (X / Y / Z / W / B / V) + 2 axes indexing milling head (2,5°)
    8 axes simult. (X / Y / Z / W / B / V) + continuous orthogonal milling head (A: +-120° / C: +-180°)

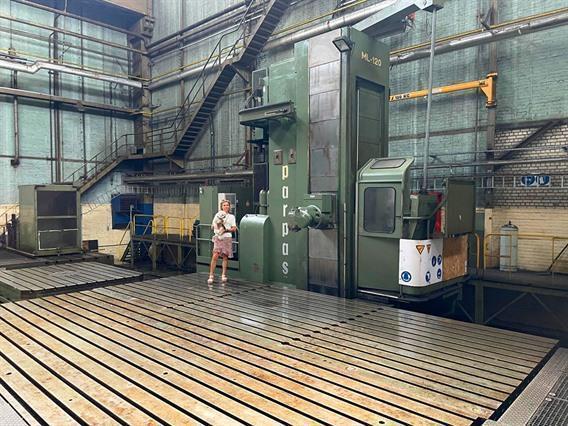

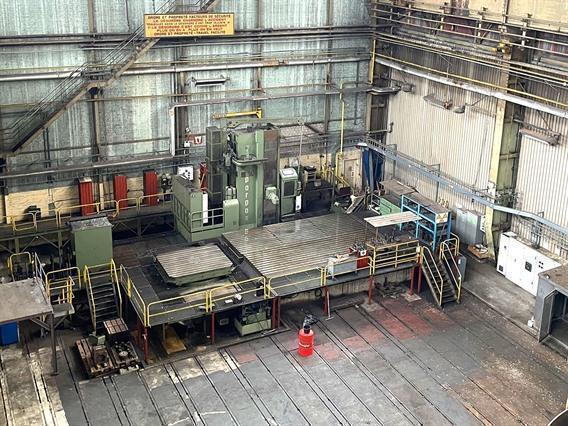

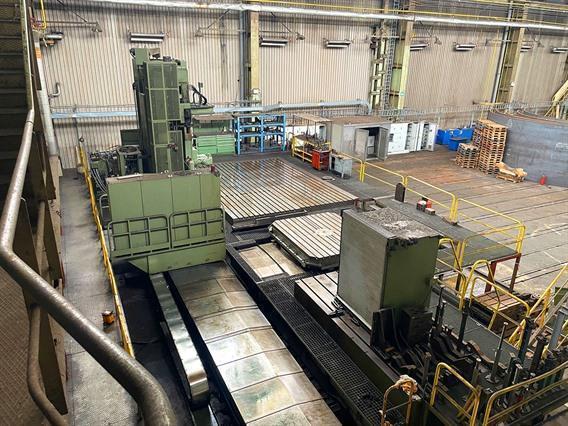

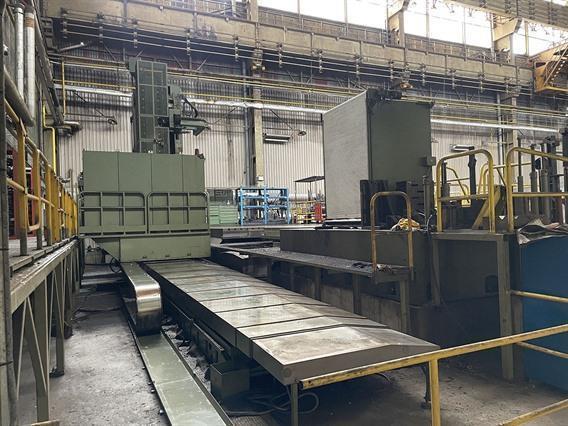

    Heavy duty CNC milling & boring machine / CNC floor type borer & floor type milling

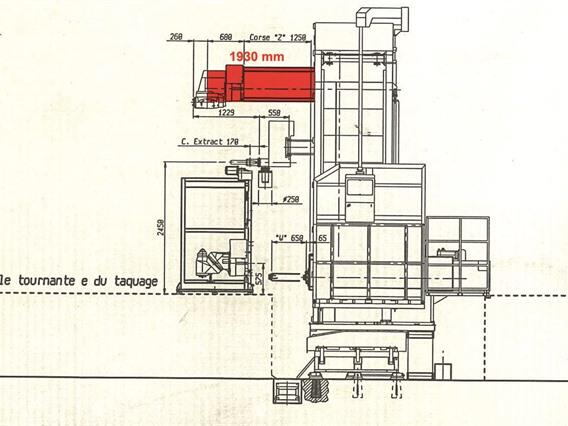

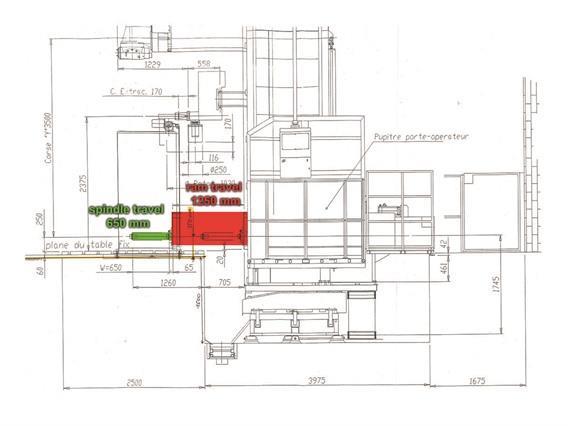

    ram size: 630 x 500 mm - ram-travel: 1250 mm
    spindle dia 130 mm - travel: 650 mm - without milling head you can use as borer

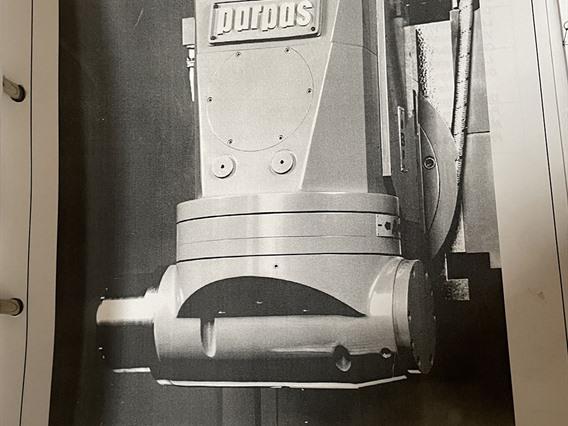

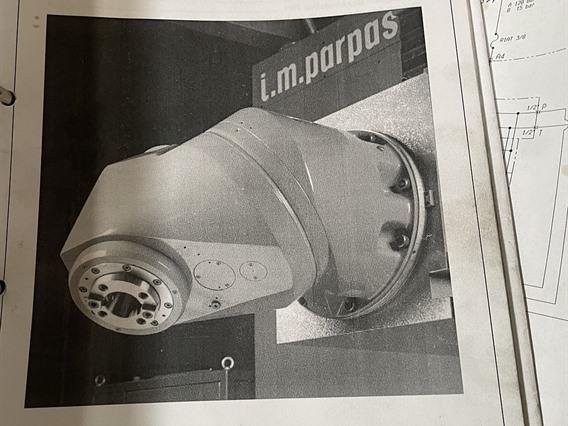

    CNC continuous orthogonal milling head  (A: +-120° / C: +-180°)
    CNC indexing milling head (2,5°)
    toolchanger for automatic changing two milling heads
    cooling through spindle

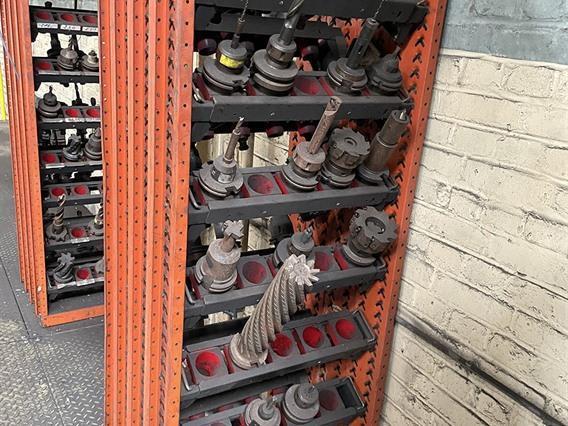

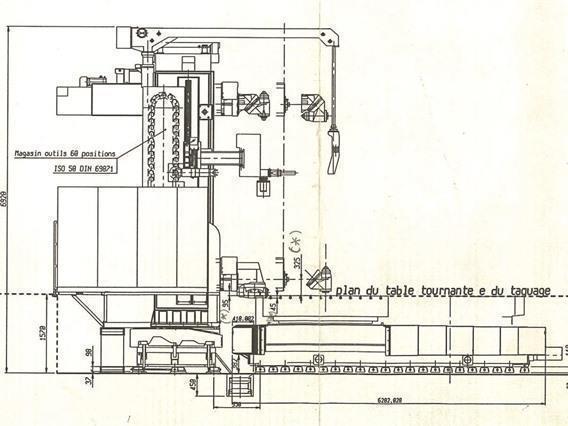

    toolchanger with 60 positions
    chipconveyor
    Siemens drives & motors

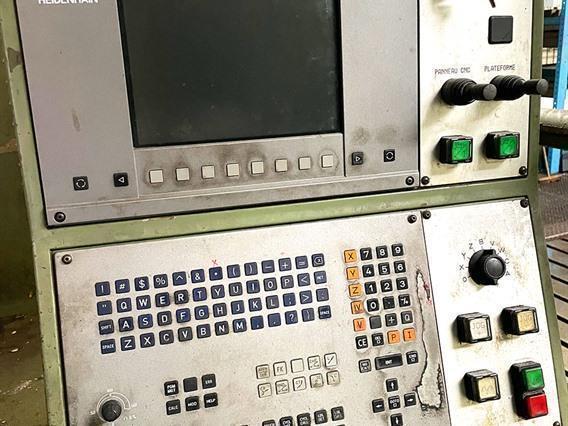

    Heidenhain control & measuring rulers
    weight of machine: 60 ton

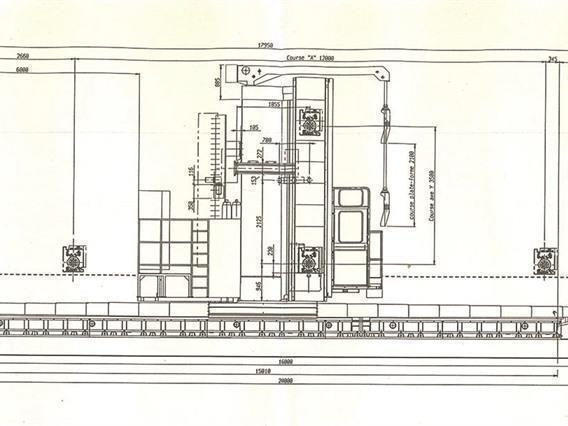

    dimensions of machine: 19 meter x 12 meter x 6,65 meter

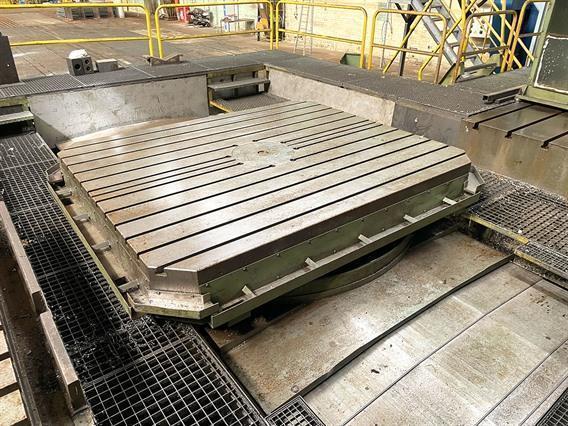

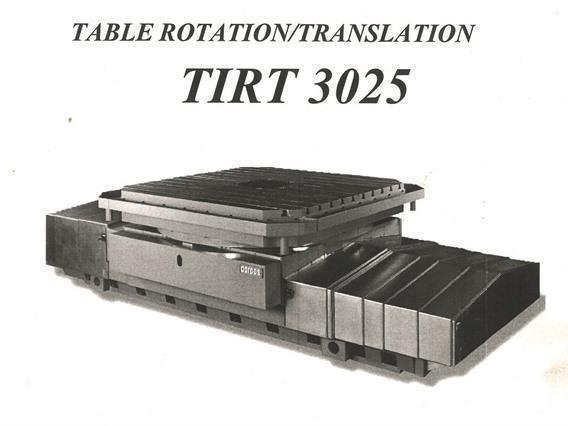

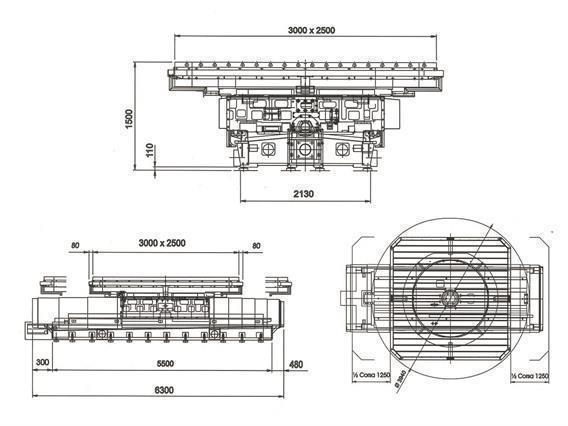

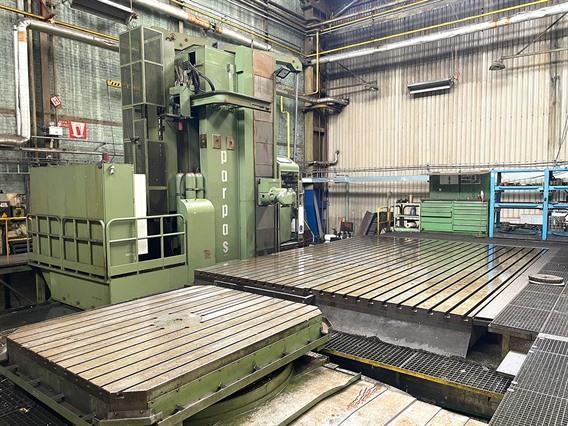

    TIRT3025 CNC-turntable continuous:
    - max 60 ton workpiece weight
    - dimensions: 3000 x 2500 mm
    - travel of turntable: 2500 mm
    - max 2 rpm
    - weight of table: 37 ton
    - dimensions: 6500 x 2500 x 1500 mm

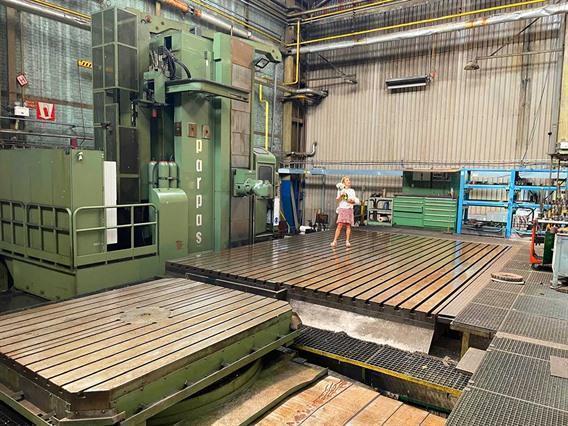

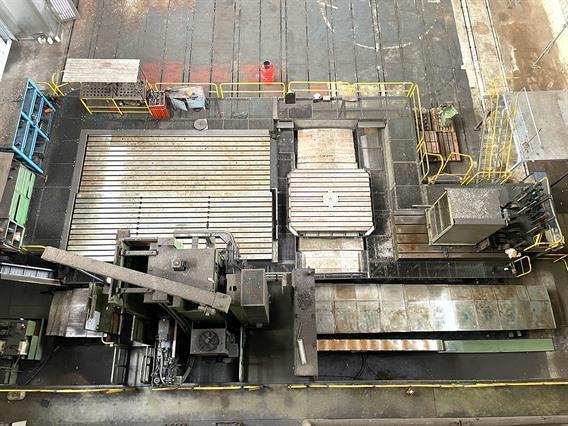

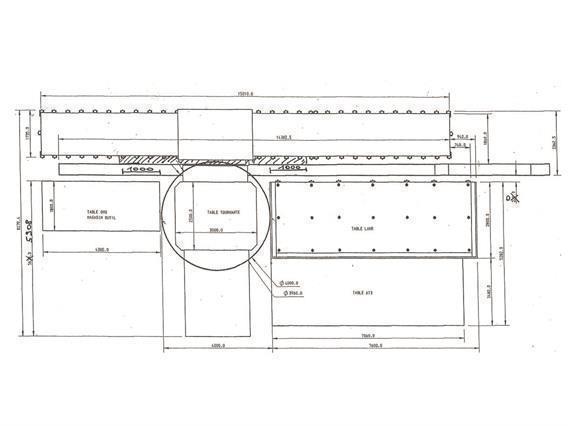

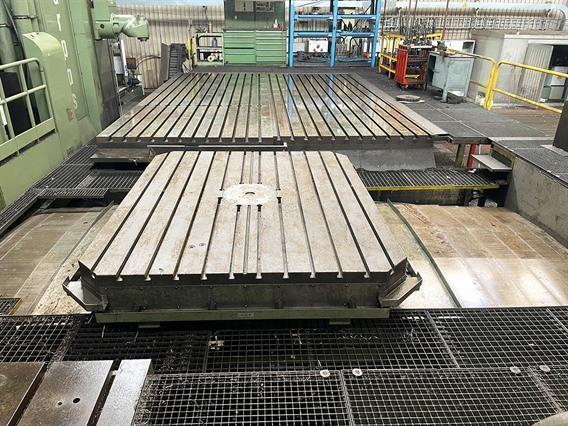

    T-slot tables 7600 x 5282 mm
    - weight of tables: 50 ton

    Fresatrice a montante mobile - Milling machine with mobile column - Fraiseuse-aleseuse avec montant mobile - Fräs-Bohrmaschine mit beweglichem Ständer



  • Tip/Model: ML120-1 -8 axes X: 12 000- Y: 3500- Z: 1250 mm CNC
  • Stok numarası: B.04 14131
  • Kategori: [B] Freze makineleri
  • Alt kategori: [B.04] Bedfreesmachines / Beweegbare kolom conventioneel & CNC
  • Marka: Parpas
