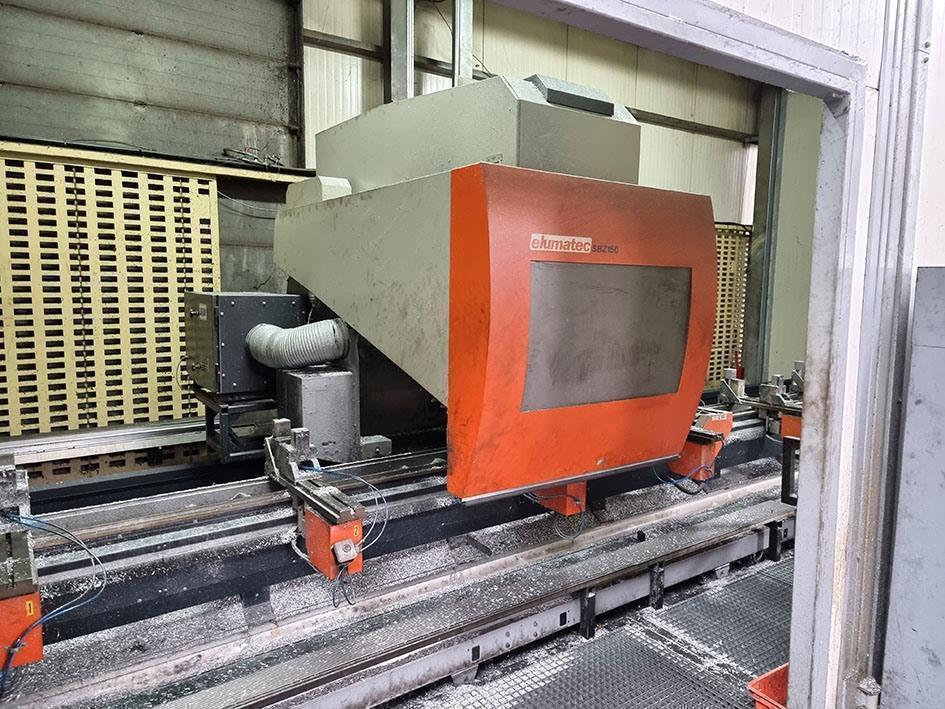

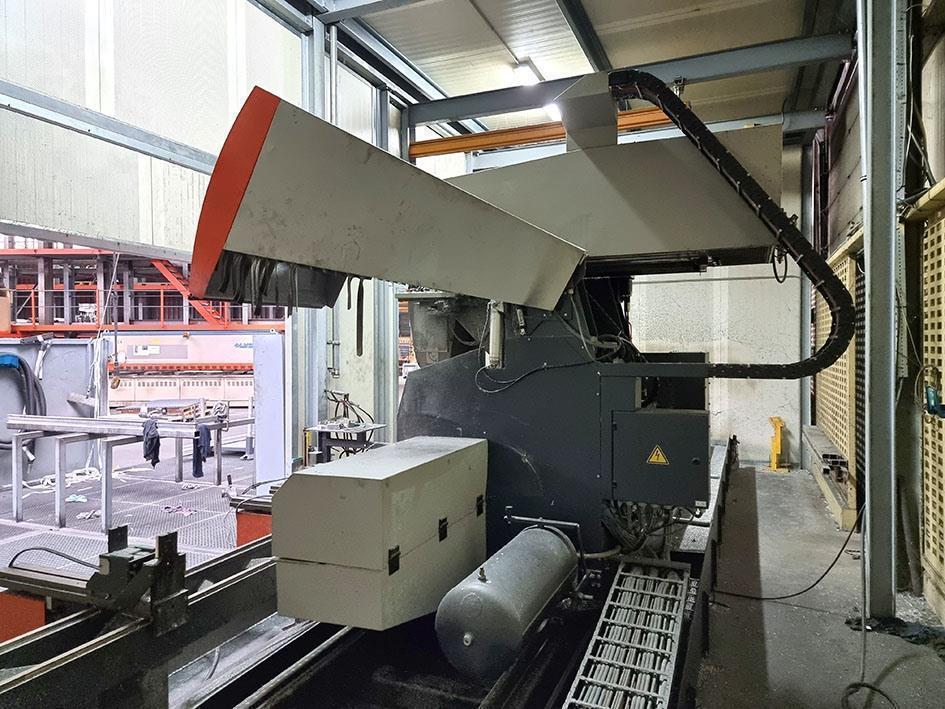

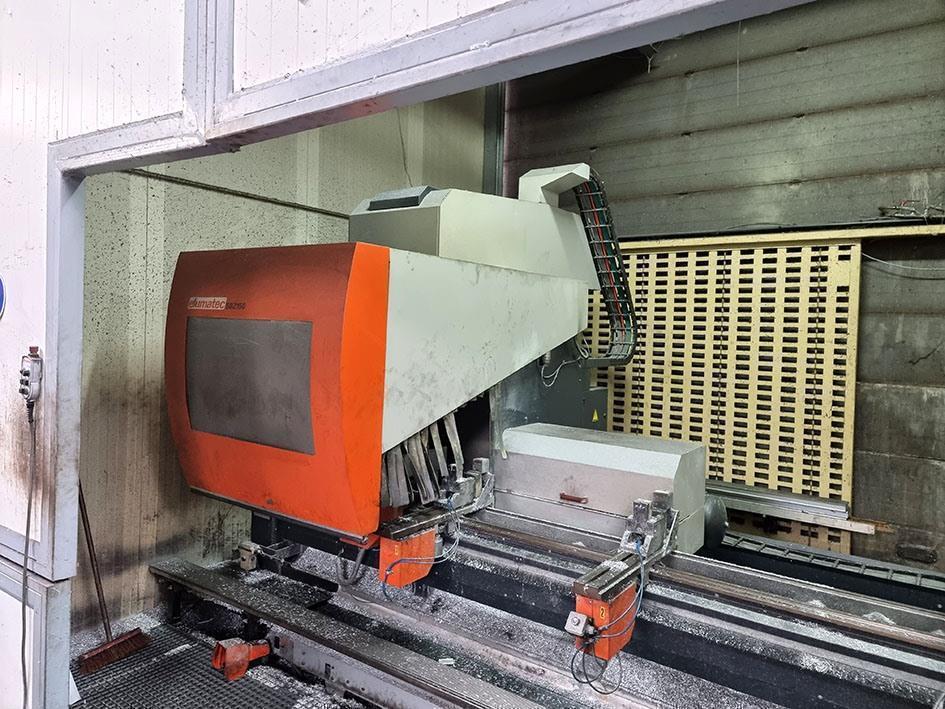

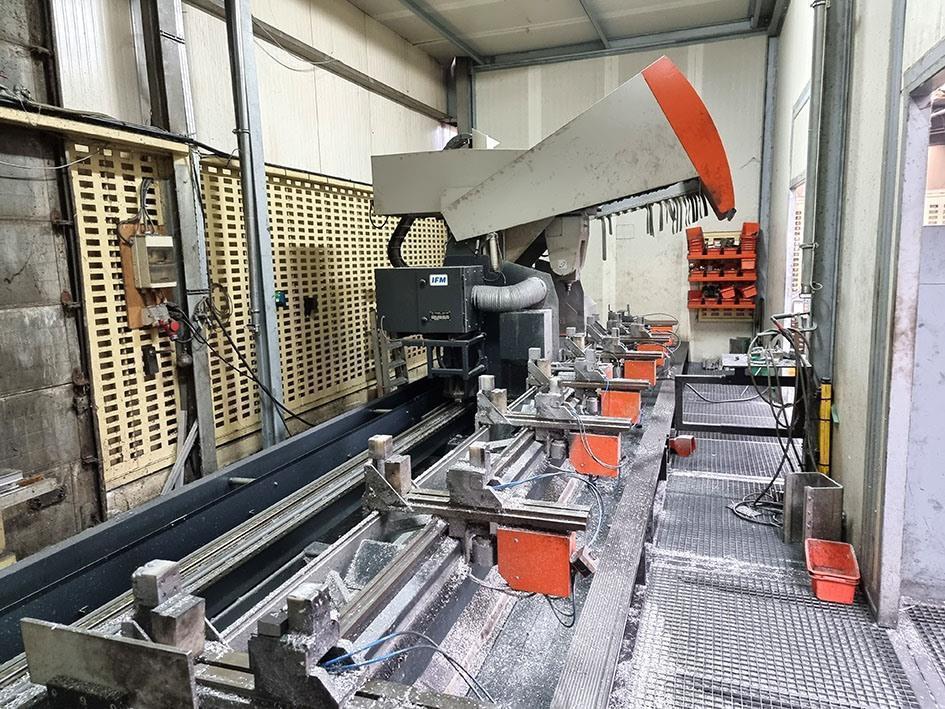

Elumatec SBZ 150 7540 mm CNC
Teknik Bilgiler
- Longitudinal travel X-axe7540 mm
- Crosstravel Y -axe1000 mm
- Travel Z-axe (Height)635 mm
- Power on spindle15 kW
- Admission in millingheadspindle (ISO)HSK 63
- Max speedrange24 000 rpm

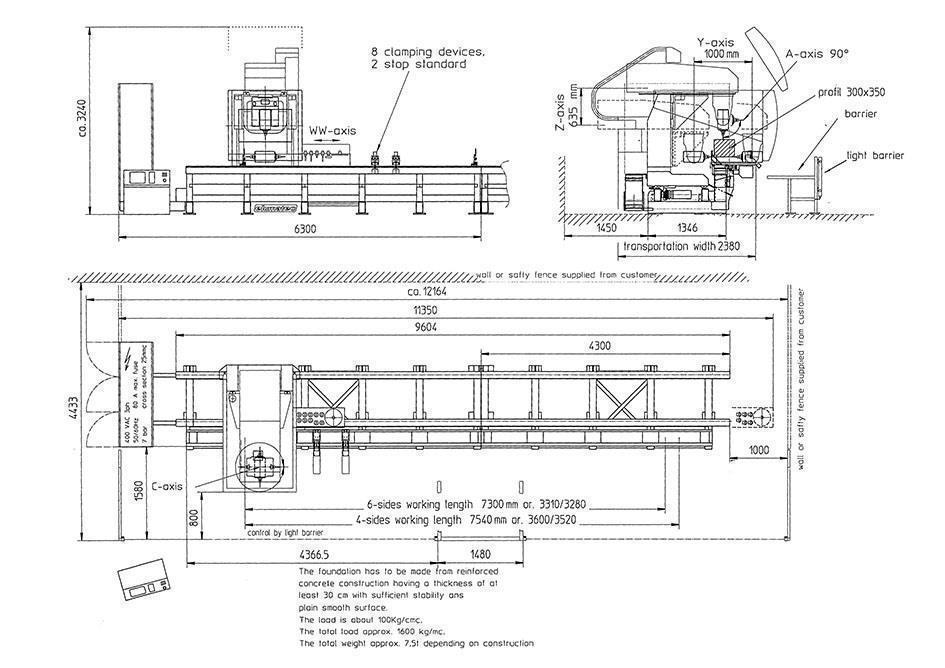

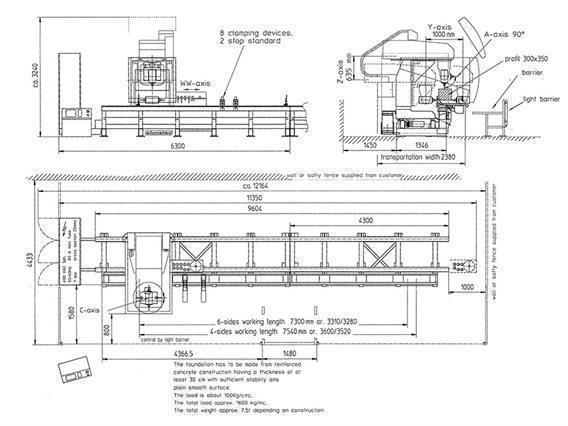

- Length L -- R11 350 mm
- Depth Fw -- Bw2633 mm
- Height3240 mm
- Weight7500 kg
Ek bilgi

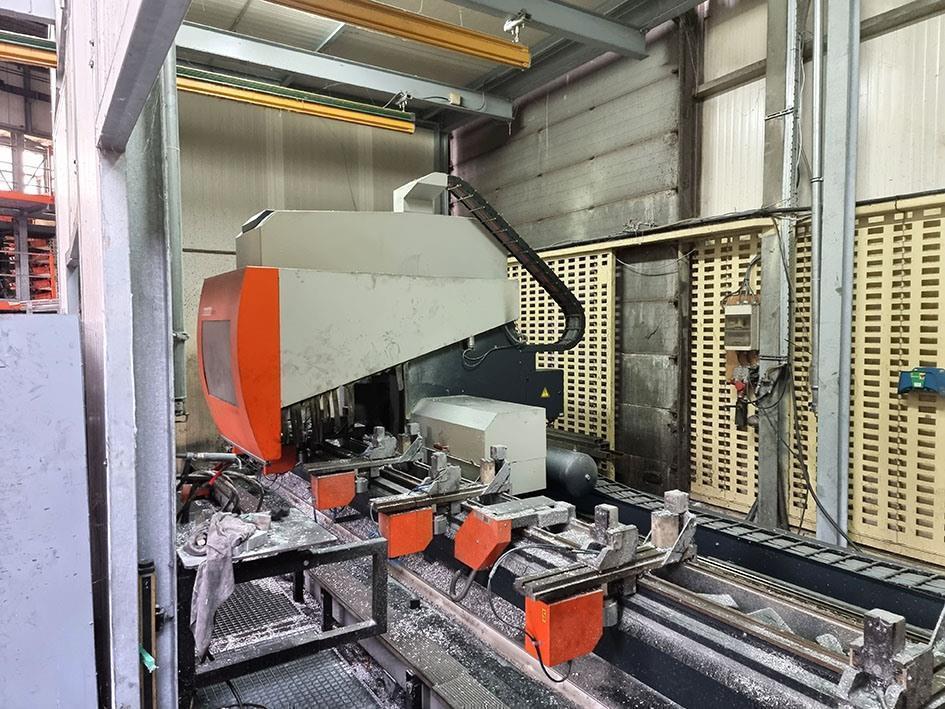

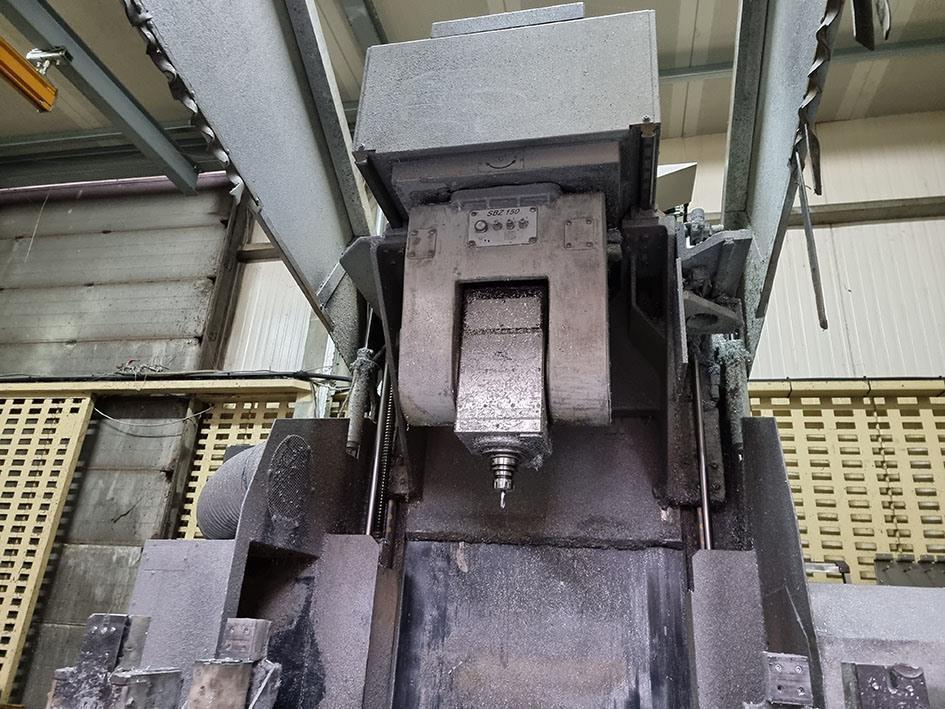

- 5-axis profile machining centre 6-side processing
workarea can be divided into two sections, machine has got two zero points

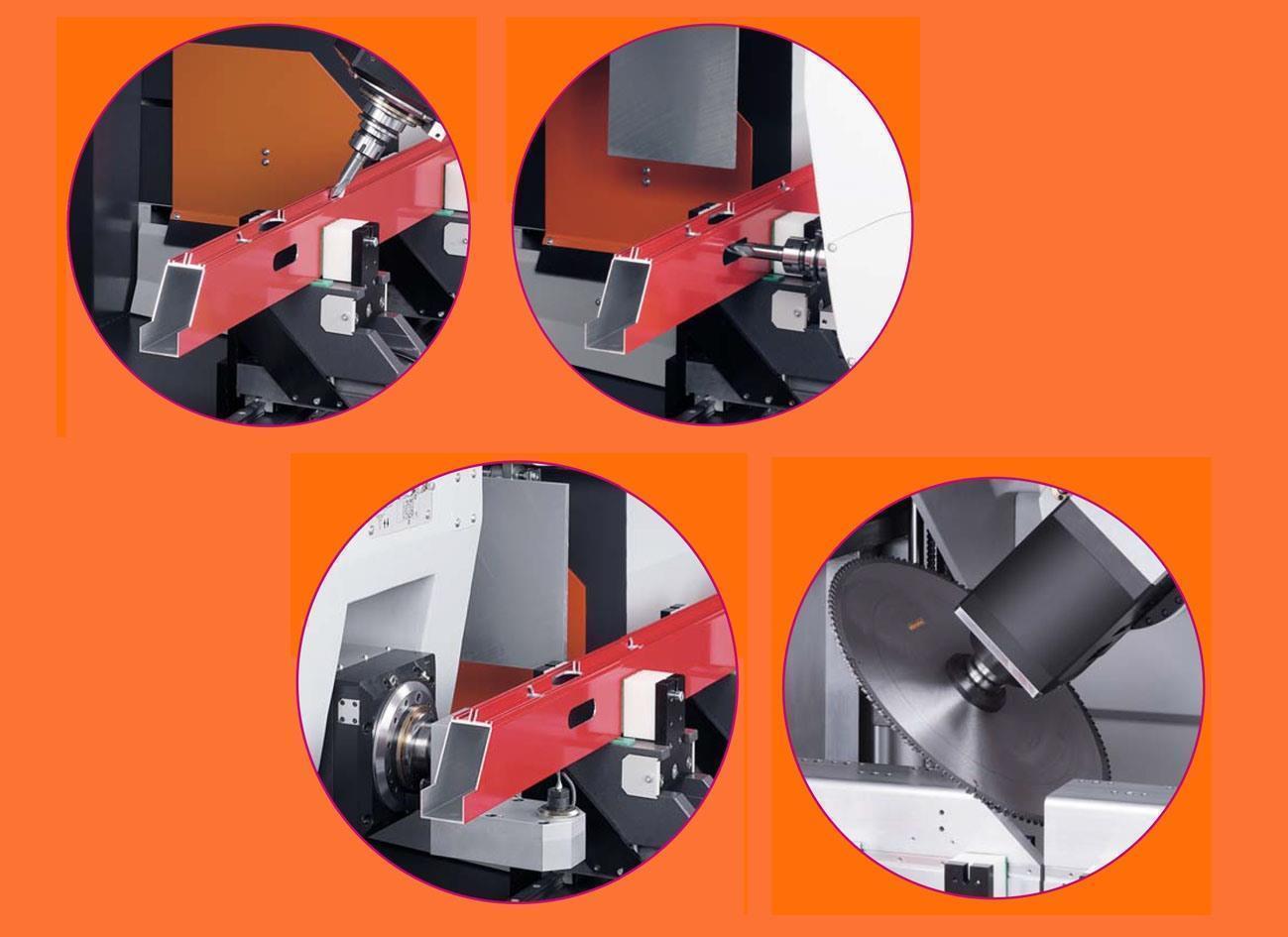

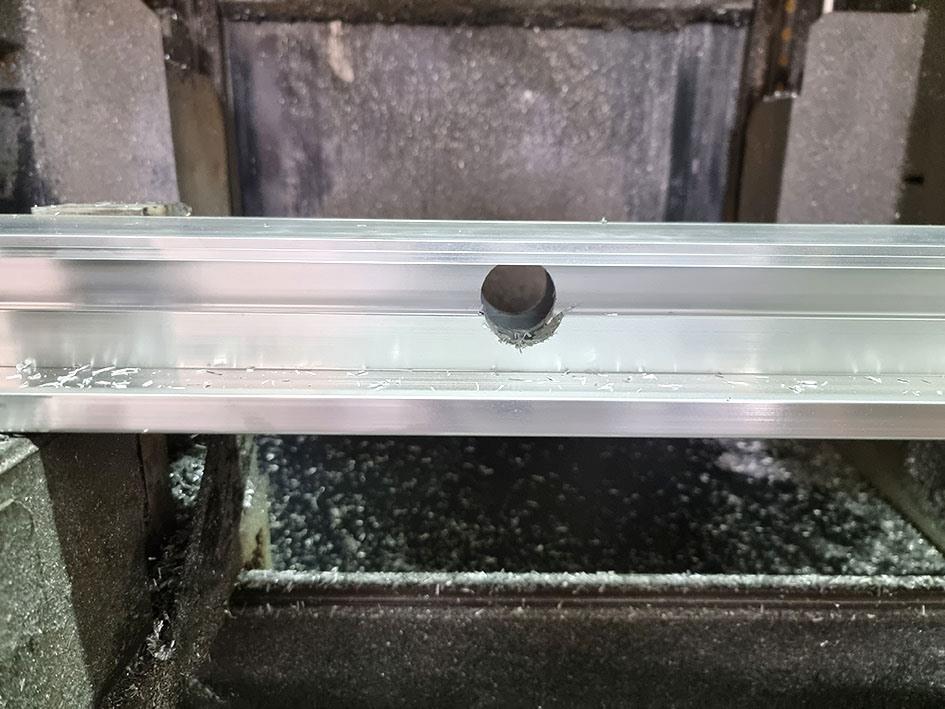

Processing in aluminium: Drilling, routing, taping, cutting and notching
Processing in steel: Drilling, routing, taping.
Automatic tool changer with 8 standard tools and 3 special tools Travelling capacity X-axis V.max: 60m/min
Travelling capacity Y-axis V.max: 36m/min
Travelling capacity Z-axis V.max: 36m/min
Pivoting Angels A-axis: 0° - 90° free programmable in 1/10° steps
Pivoting Angels C-axis: 0° - 350° free programmable in 1/10° steps
Angle router head for processing from below.

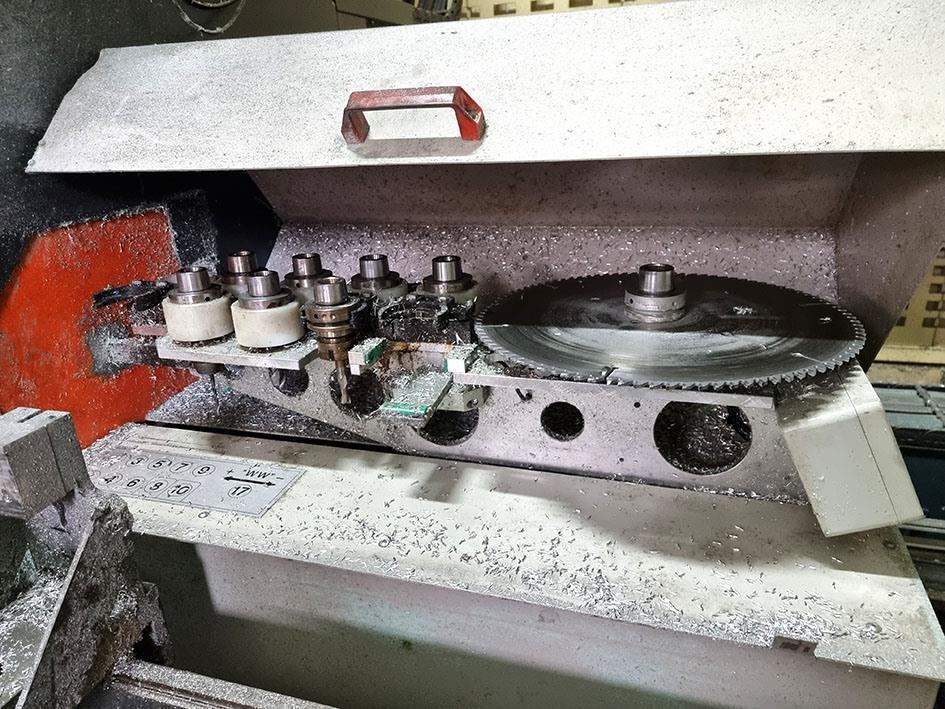

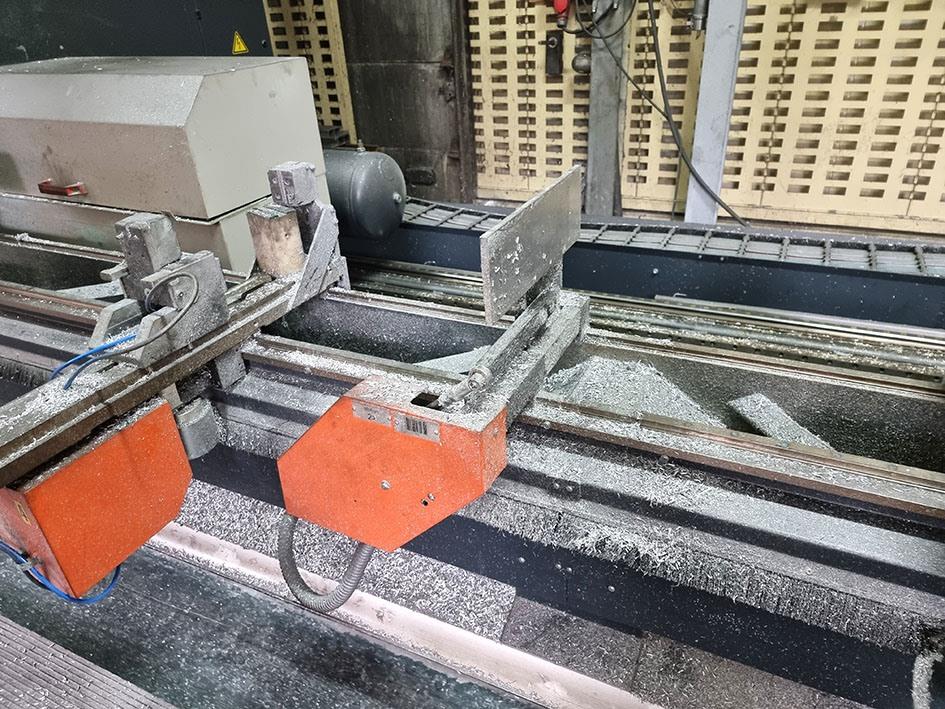

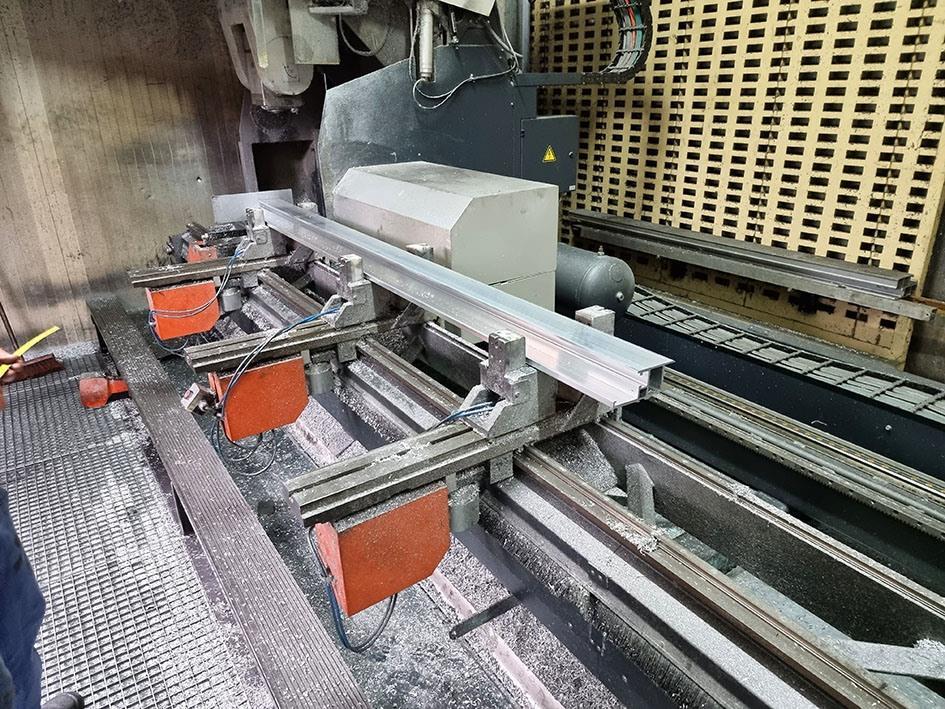

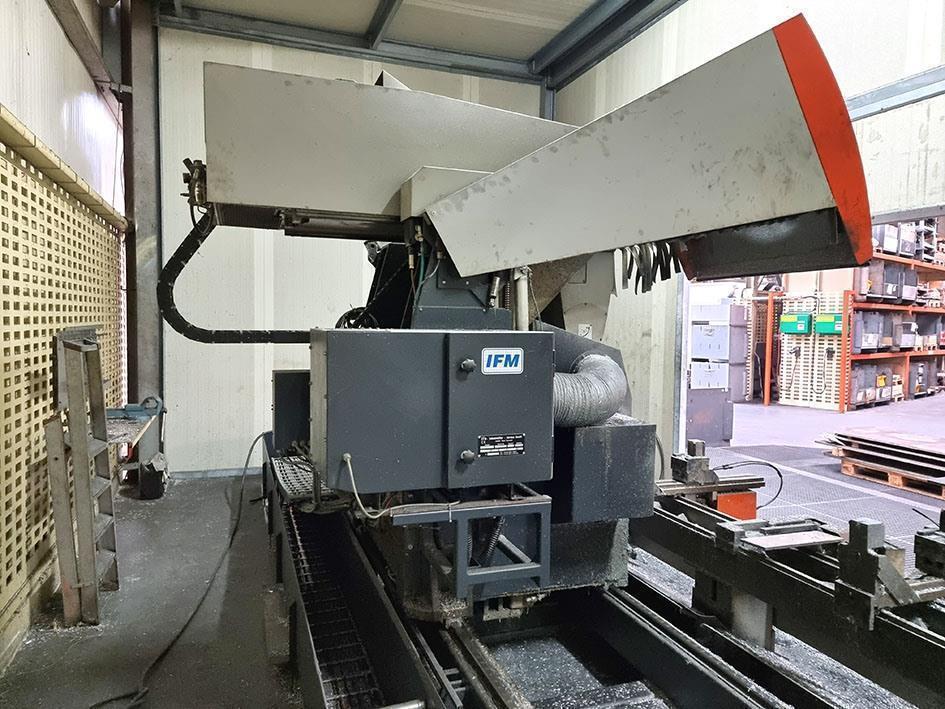

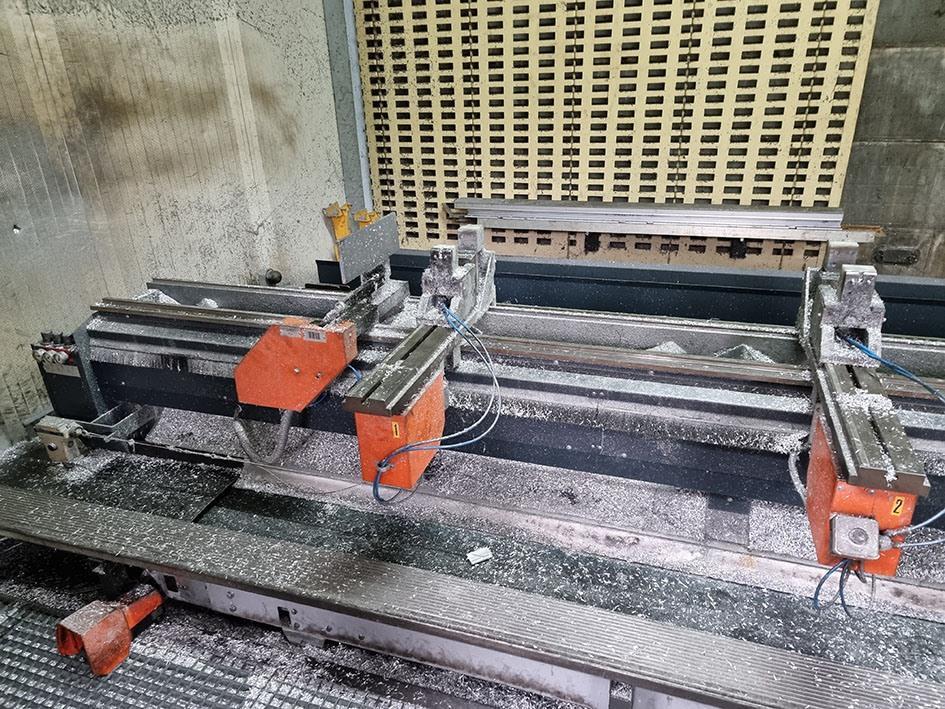

1 Sawmodule Ø 500 mm automatic clamping automatic movement of the clamps automatic profile measuring system
- Tip/Model: SBZ 150 7540 mm CNC
- Stok numarası: B.04 12522
- Kategori: [B] Freze makineleri
- Alt kategori: [B.04] Bedfreesmachines / Beweegbare kolom conventioneel & CNC
- Marka: Elumatec
