CME X: 8000 - Y: 1500 - Z: 1500 mm CNC
Teknik Bilgiler
- Longitudinal travel X-axe8000 mm

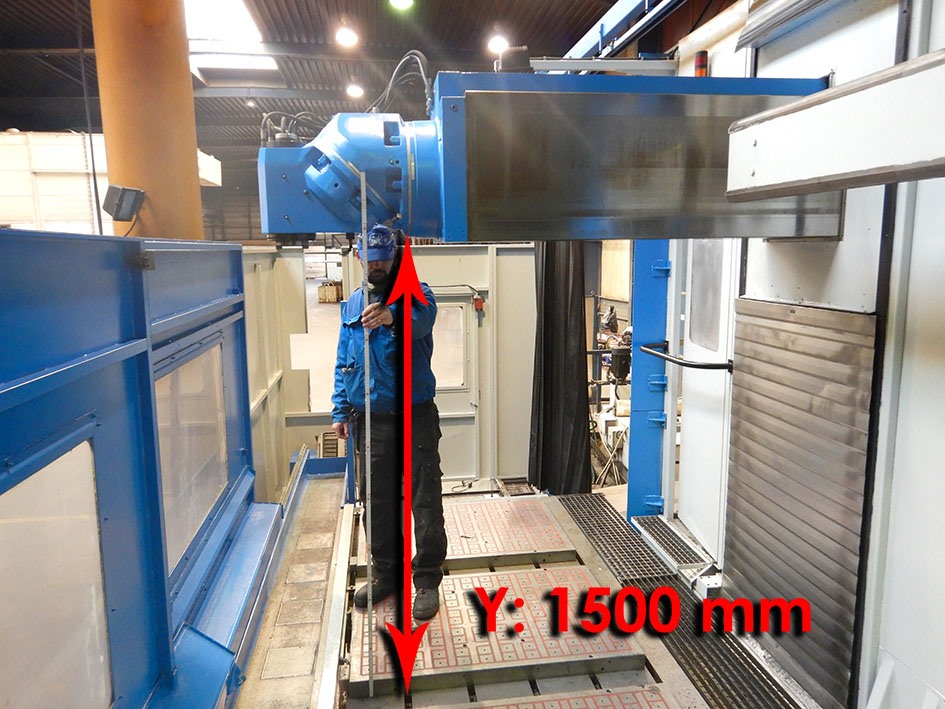

- Crosstravel Y -axe1500 mm

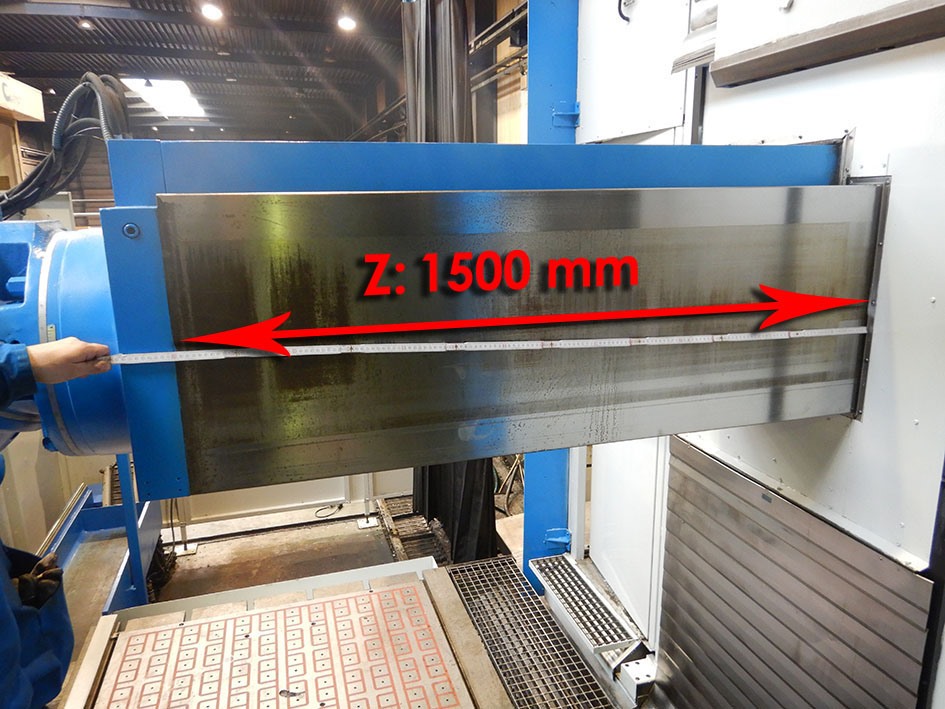

- Travel Z-axe (Height)1500 mm

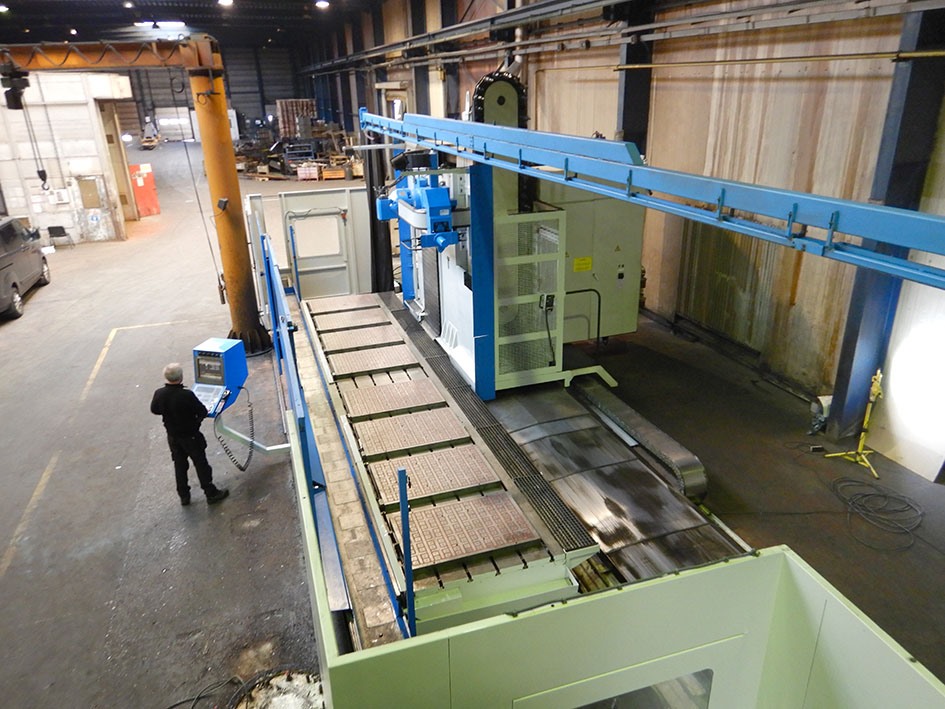

- Dimensions clamping space - table8500 x 1500 mm
- Power on spindle30 kW
- Admission in millingheadspindle (ISO)ISO 50
- Max speedrange50 > 4000 rpm

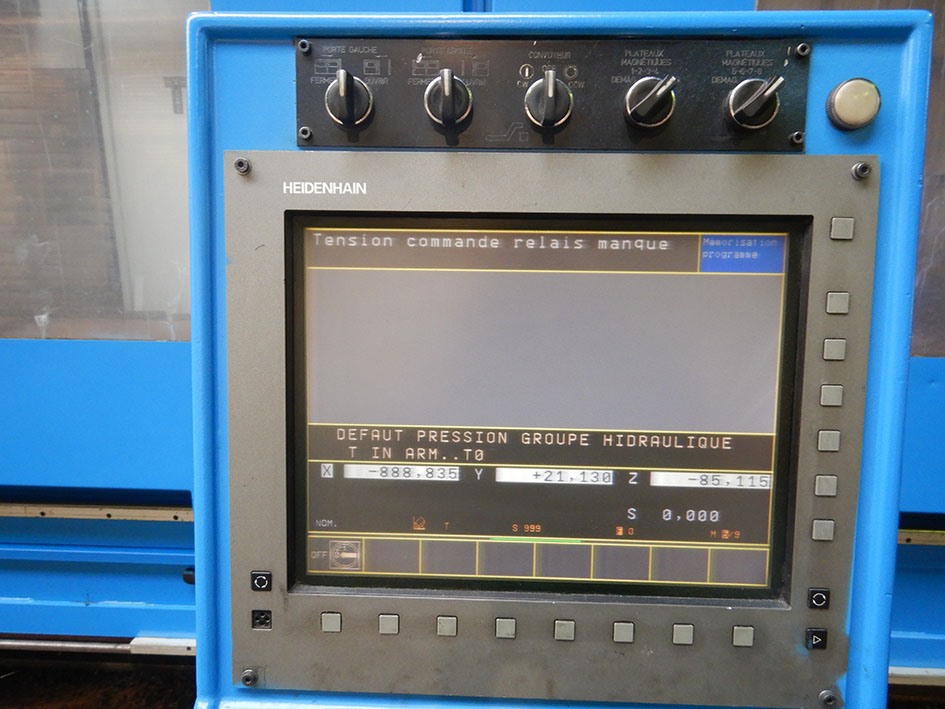

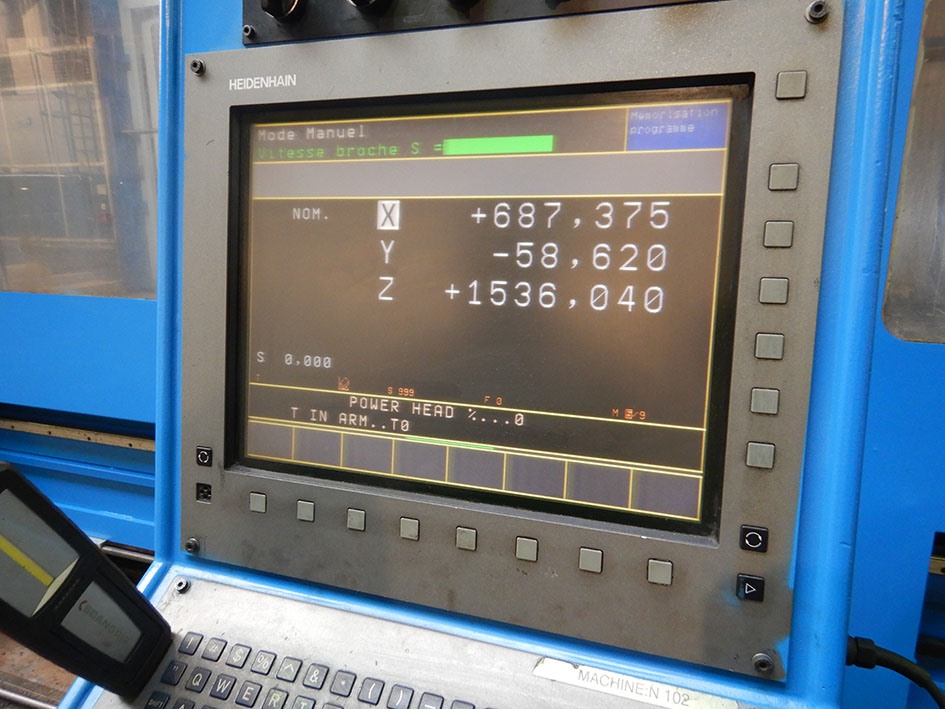

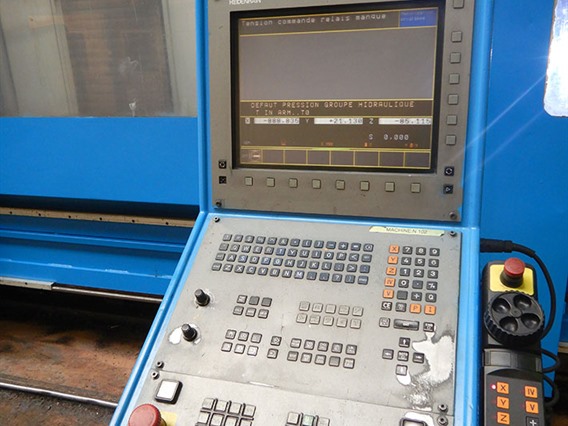

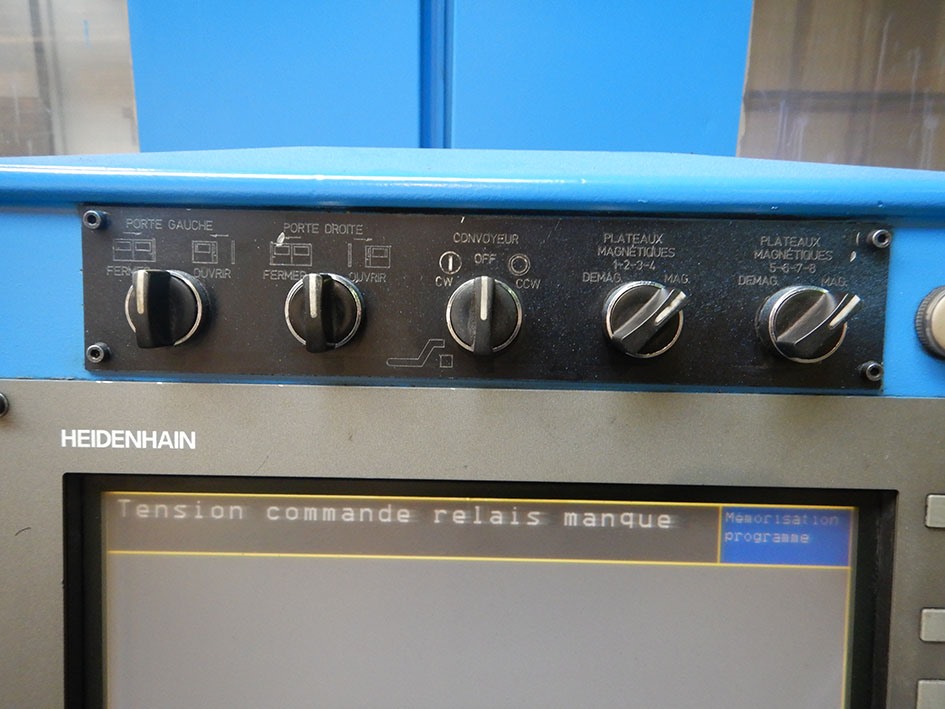

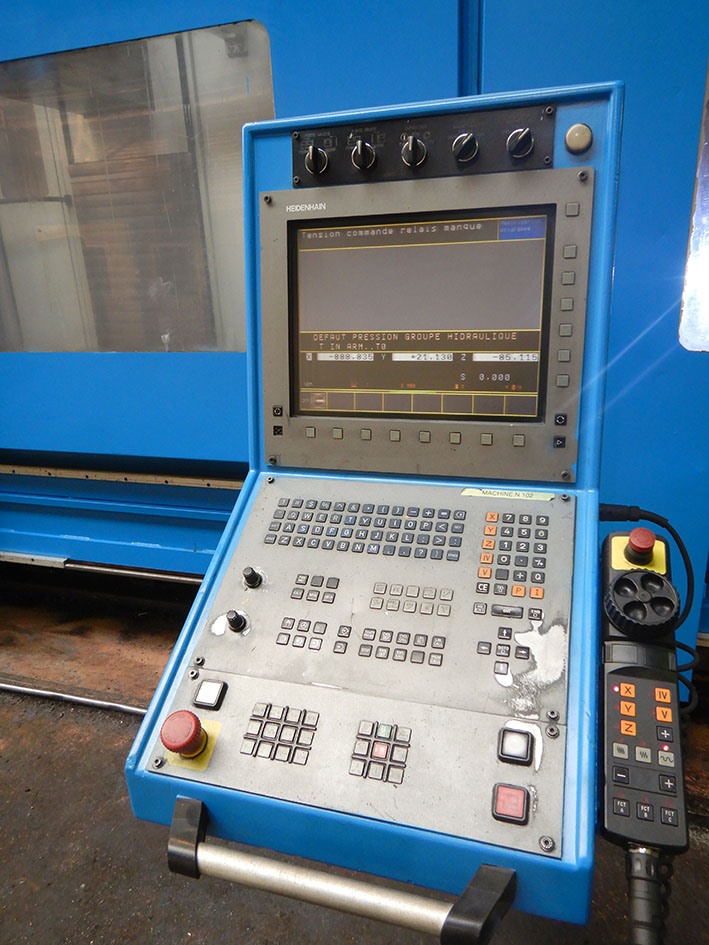

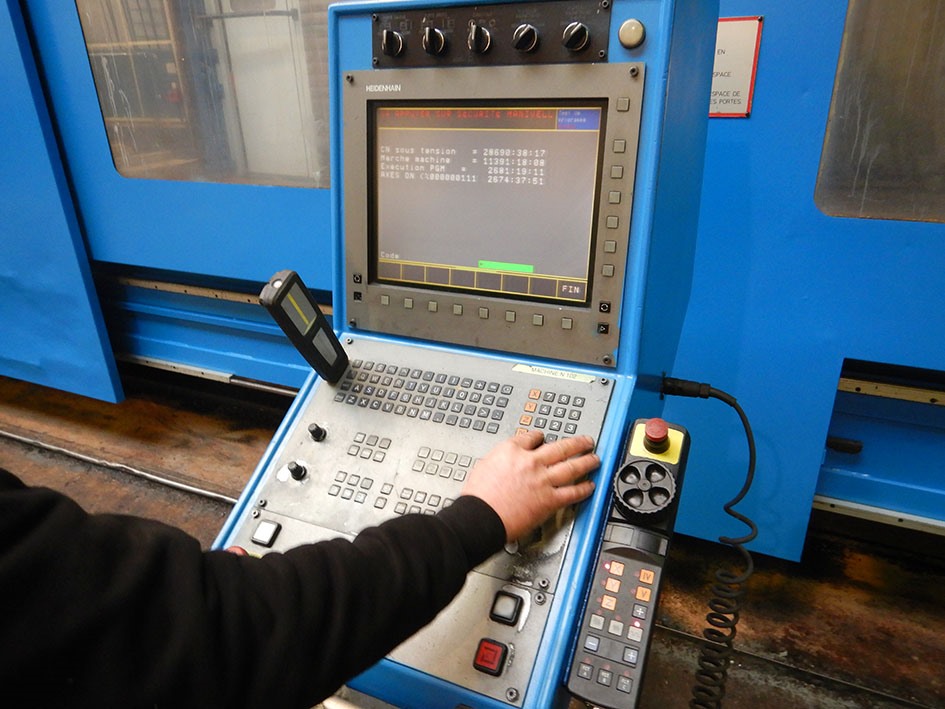

- ControlHeidenhain TNC 430
- Length L -- R17 380 mm
- Depth Fw -- Bw5934 mm
- Height4900 mm
- Weight70,5 ton
Ek bilgi

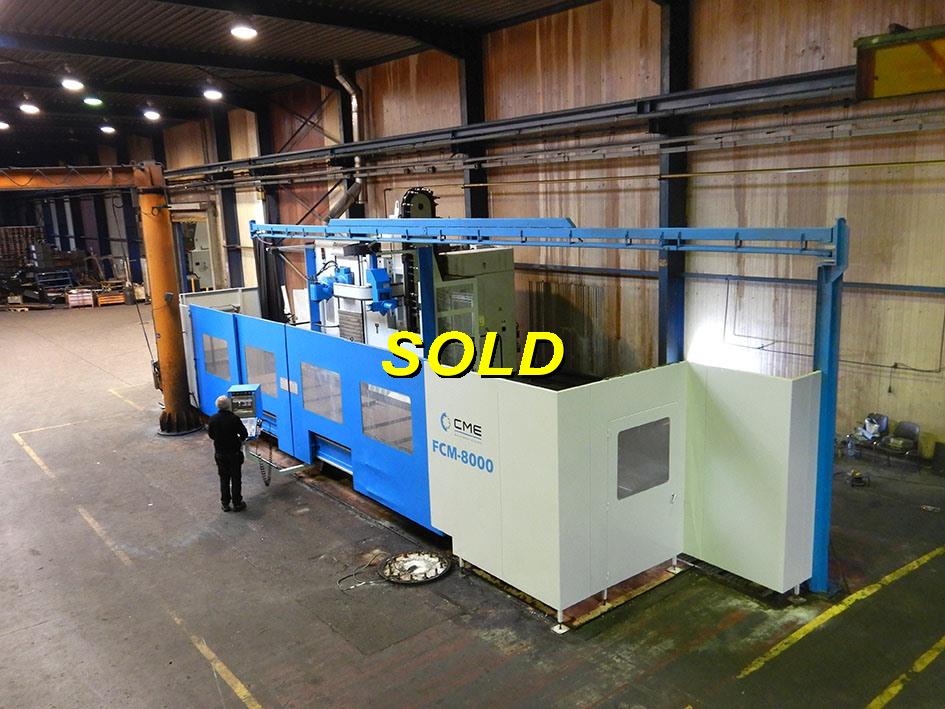

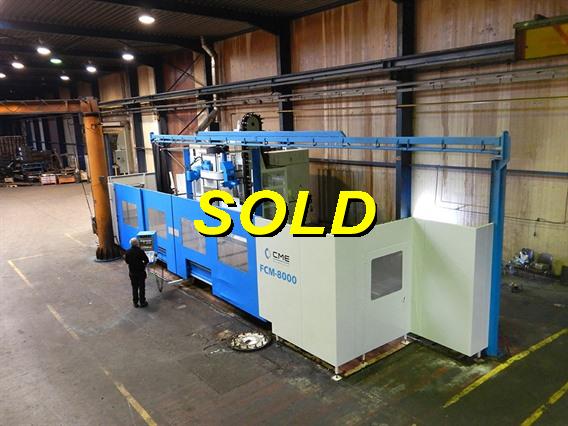

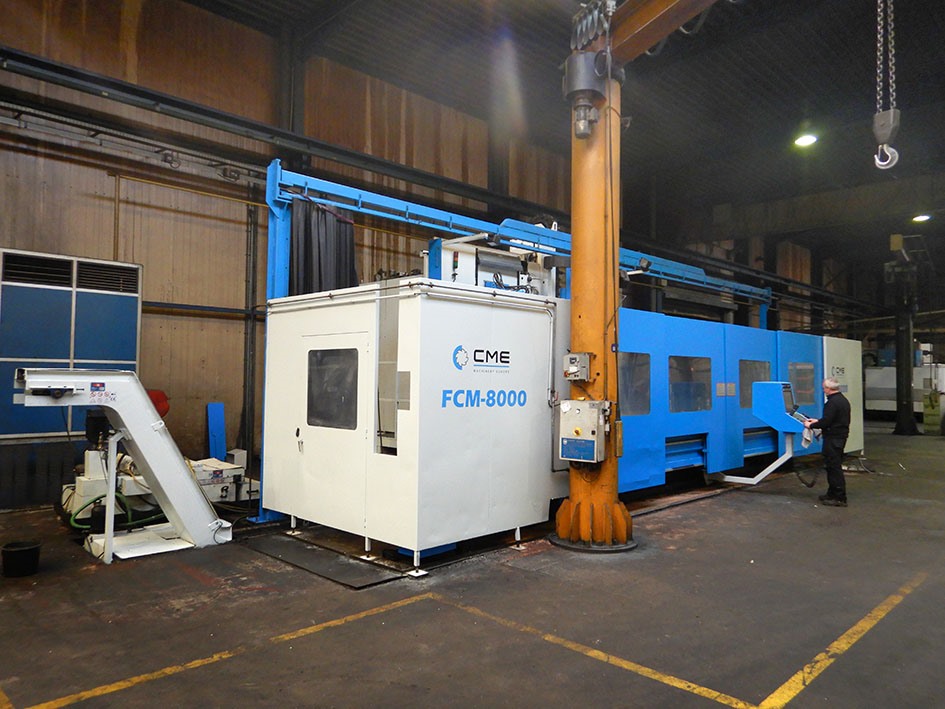

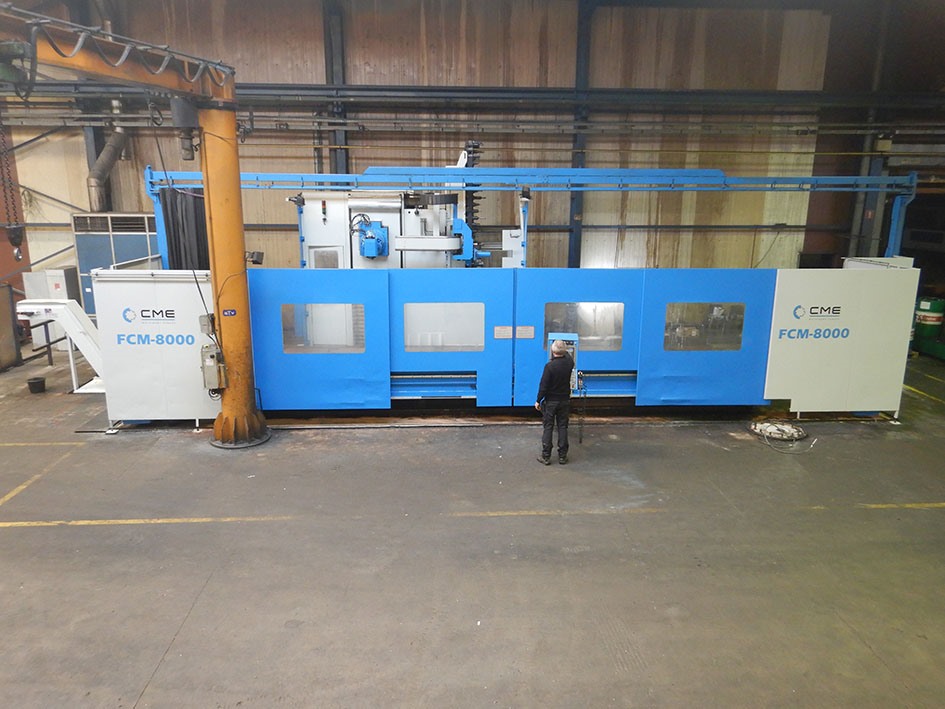

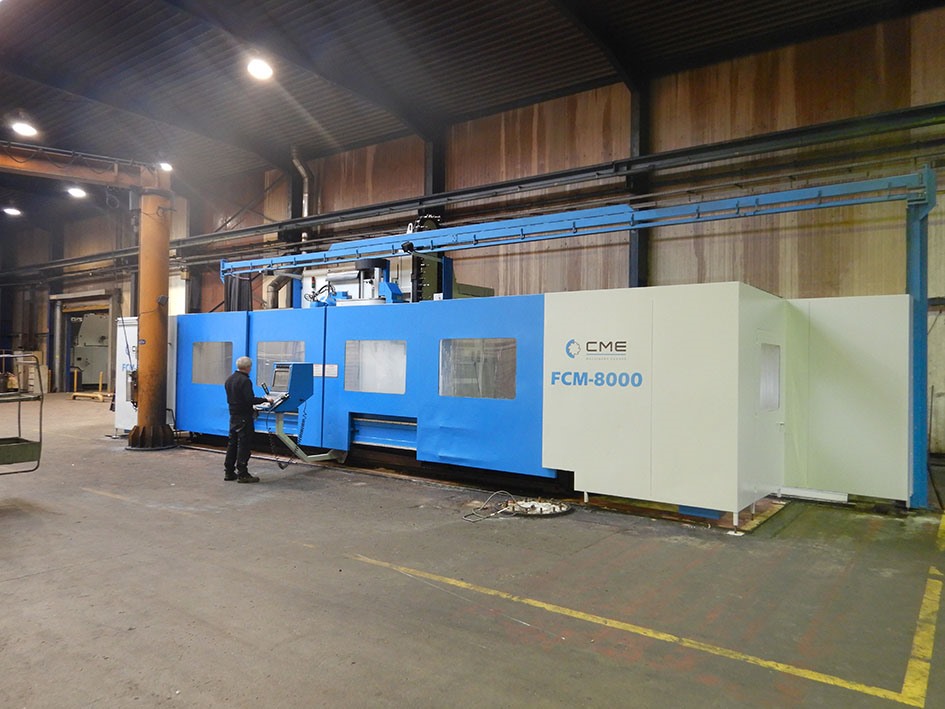

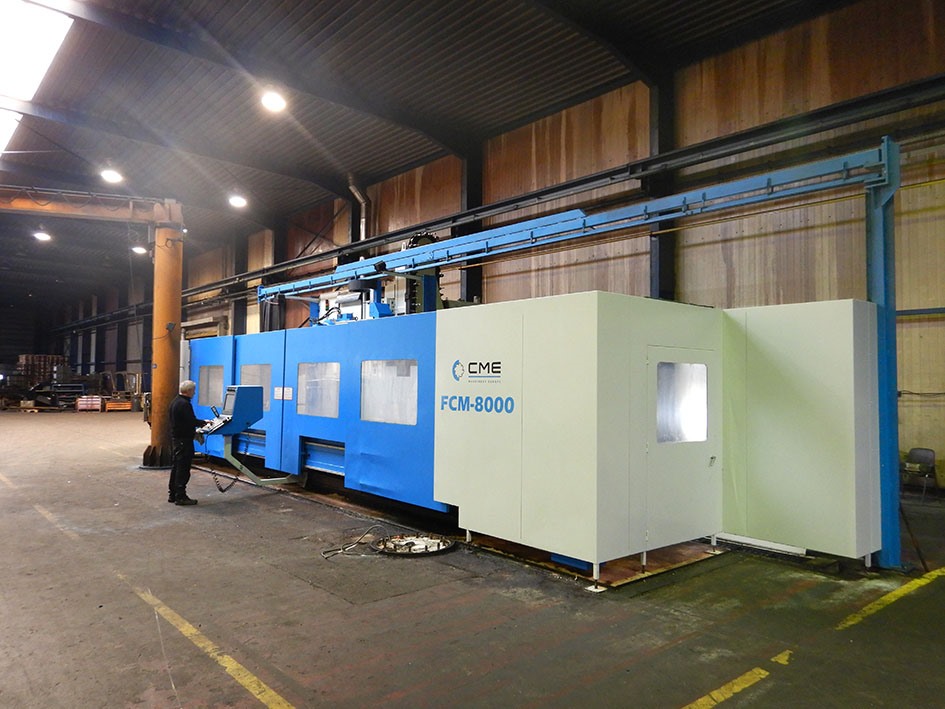

Type: FCM-8000

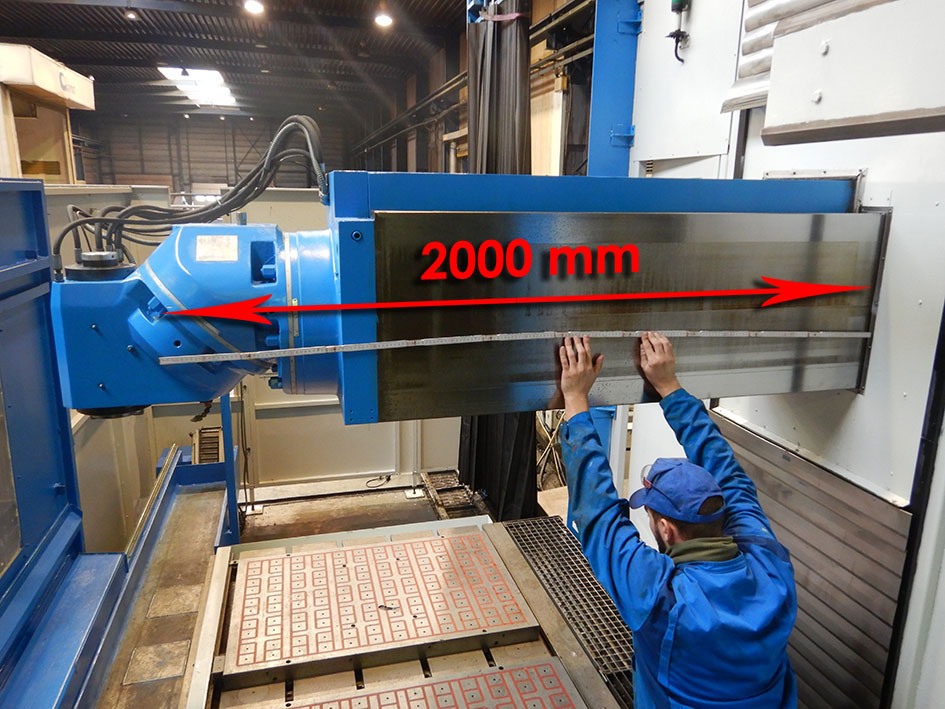

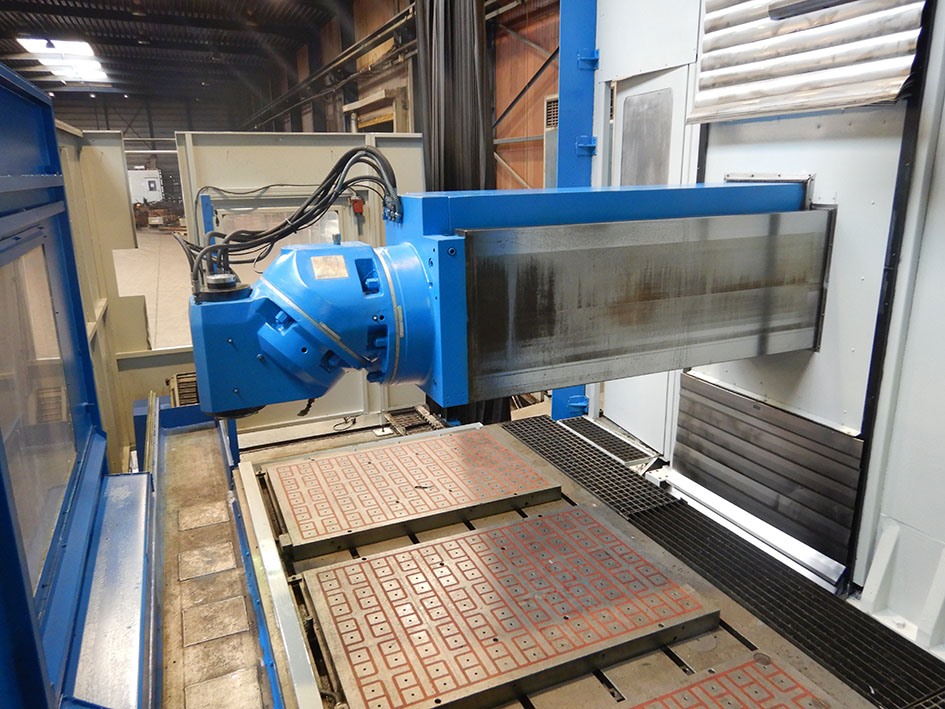

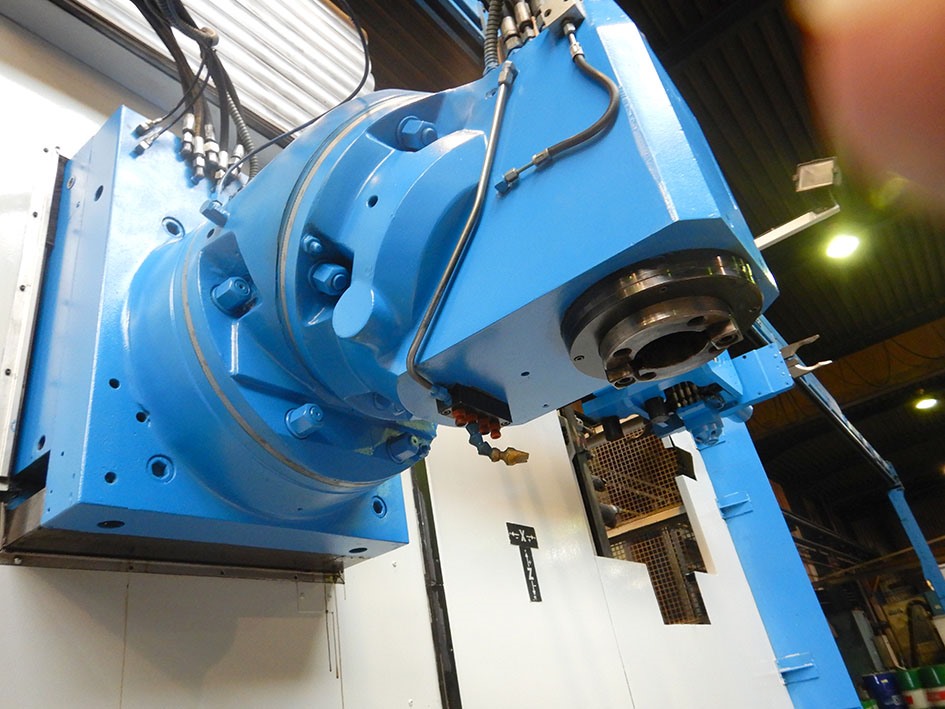

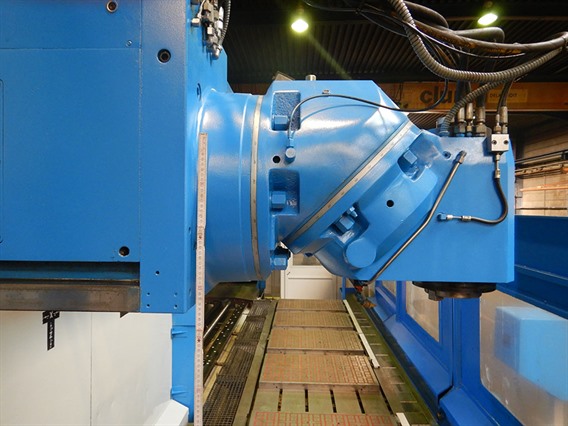

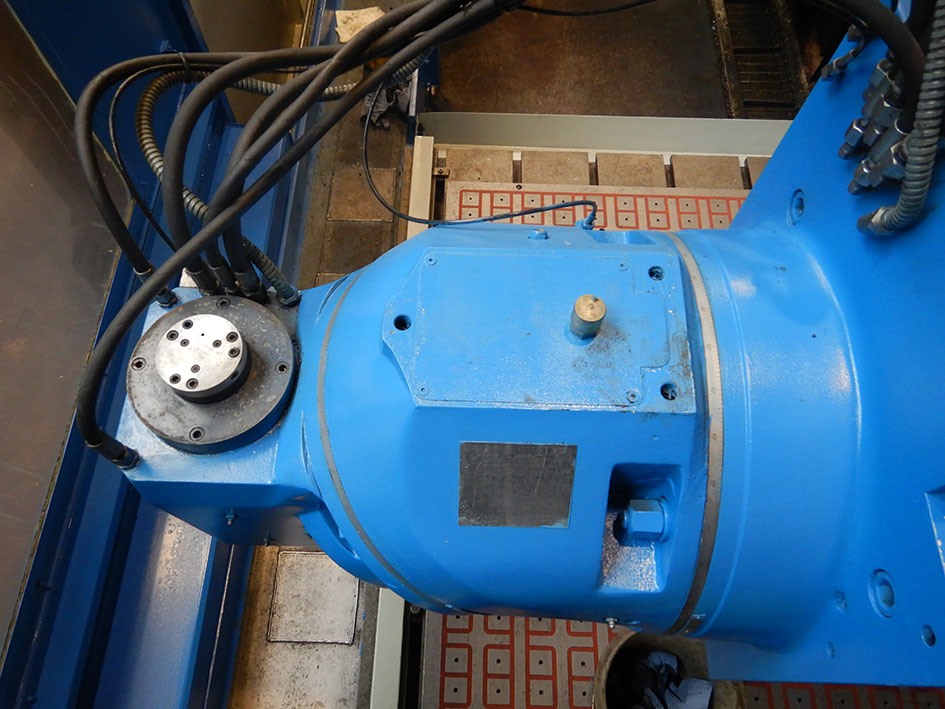

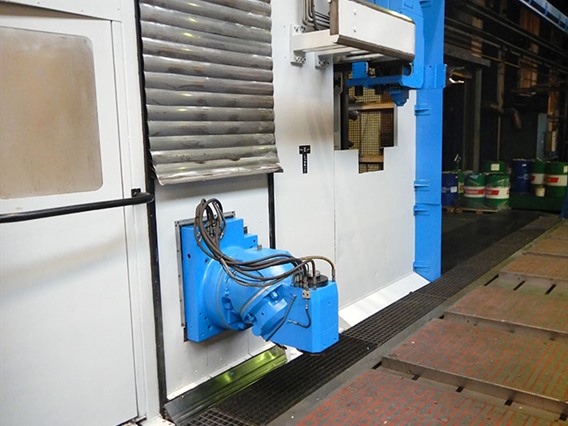

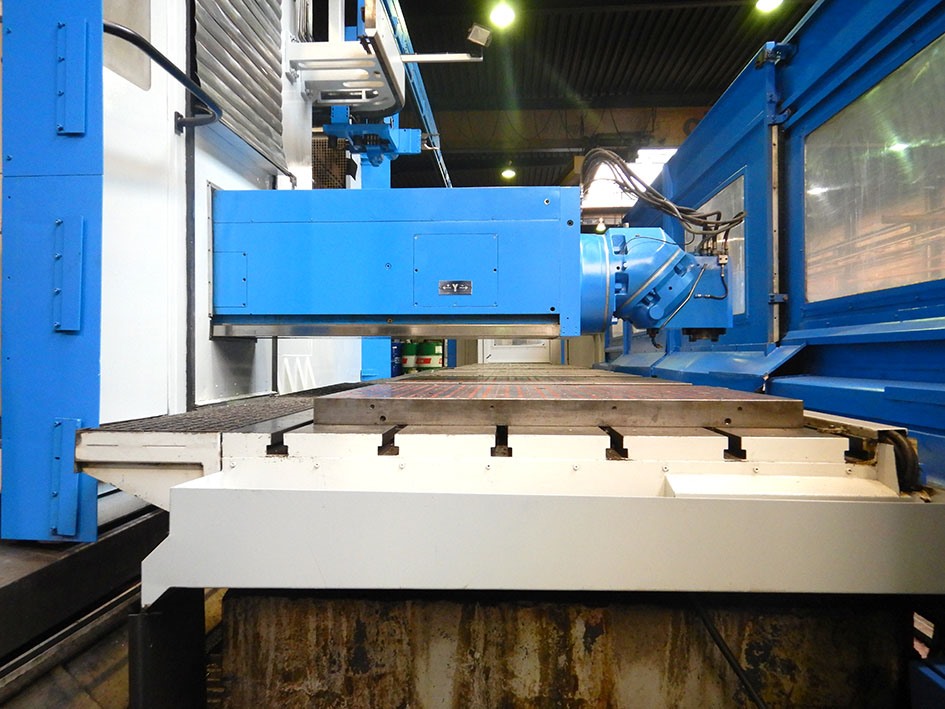

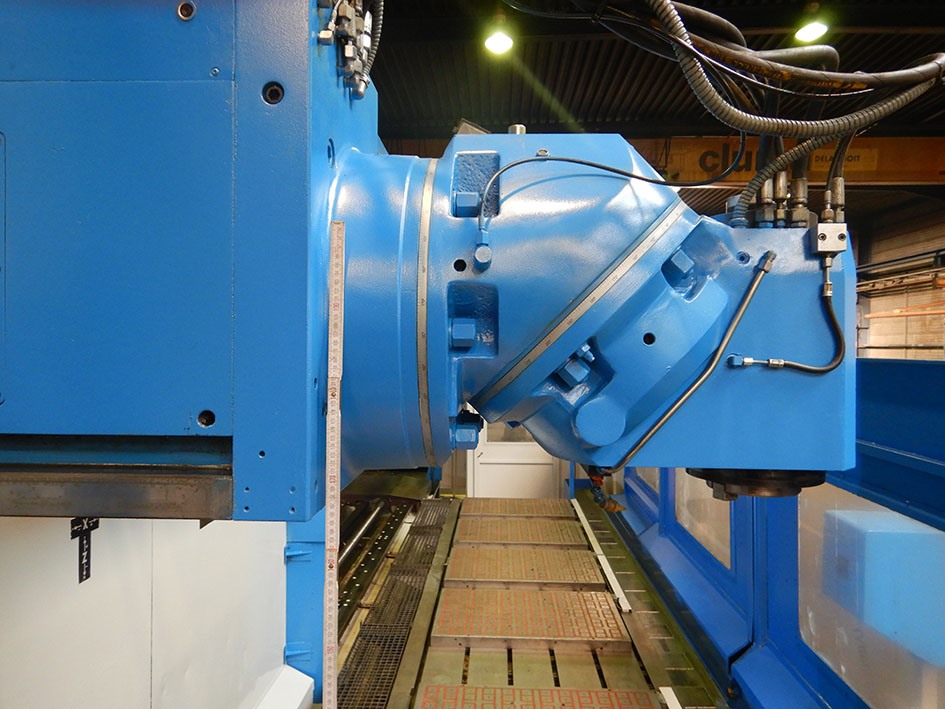

Universal milling head with auto positioning (1° x 2.5°)

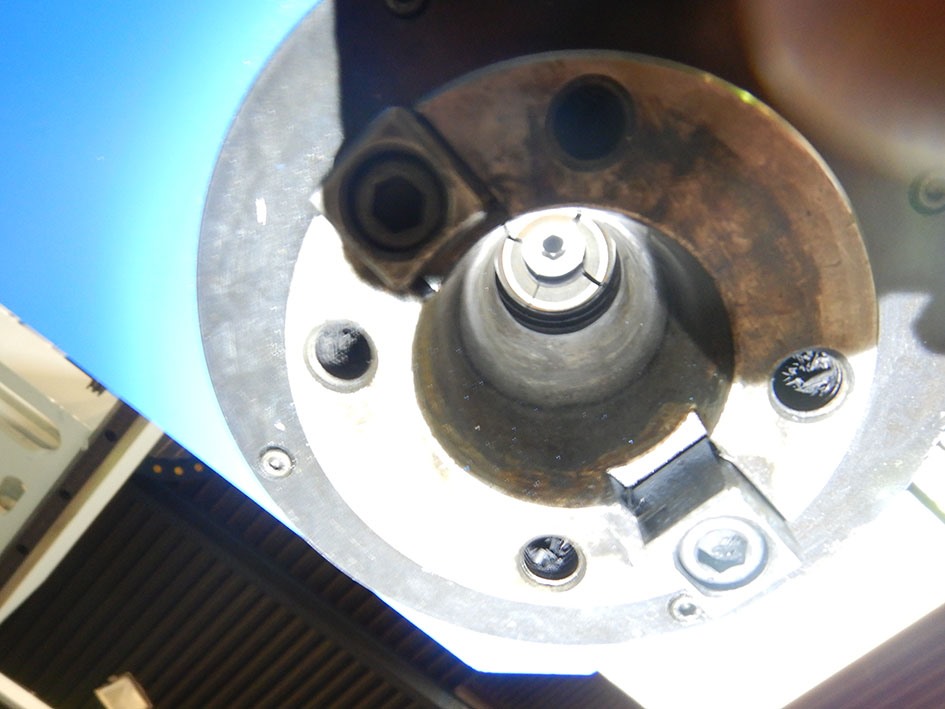

Hydraulic toolclamping
Hardened guideways
Cooling through spindle 15 bar
Measurement system by linear scales

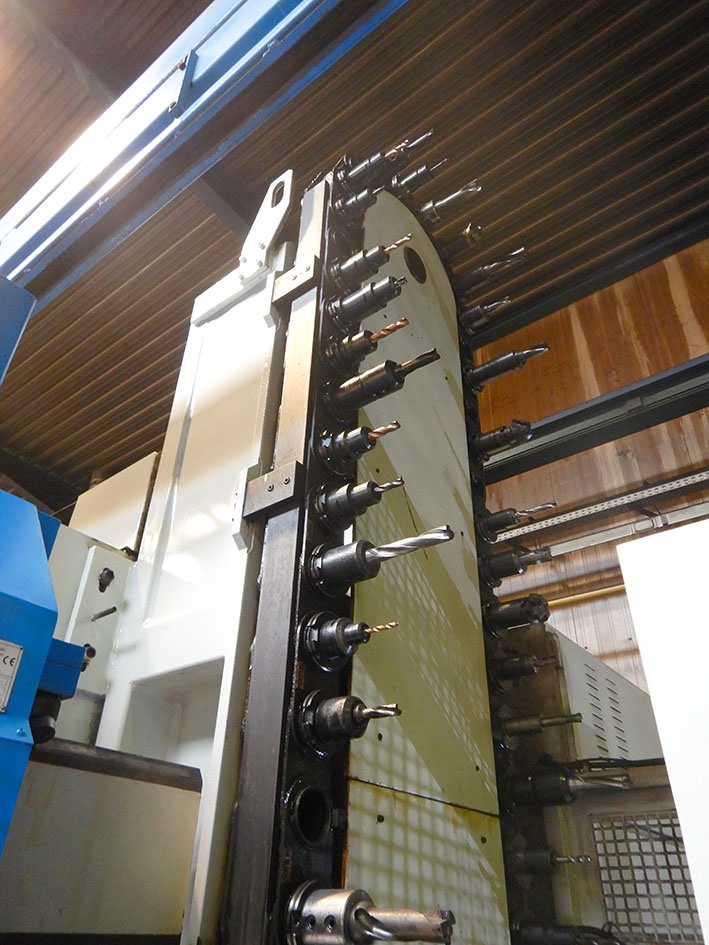

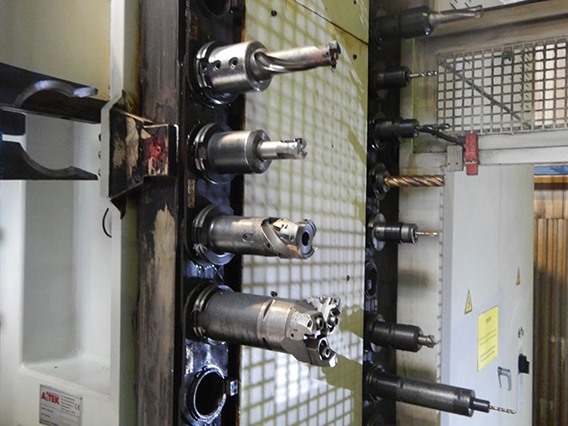

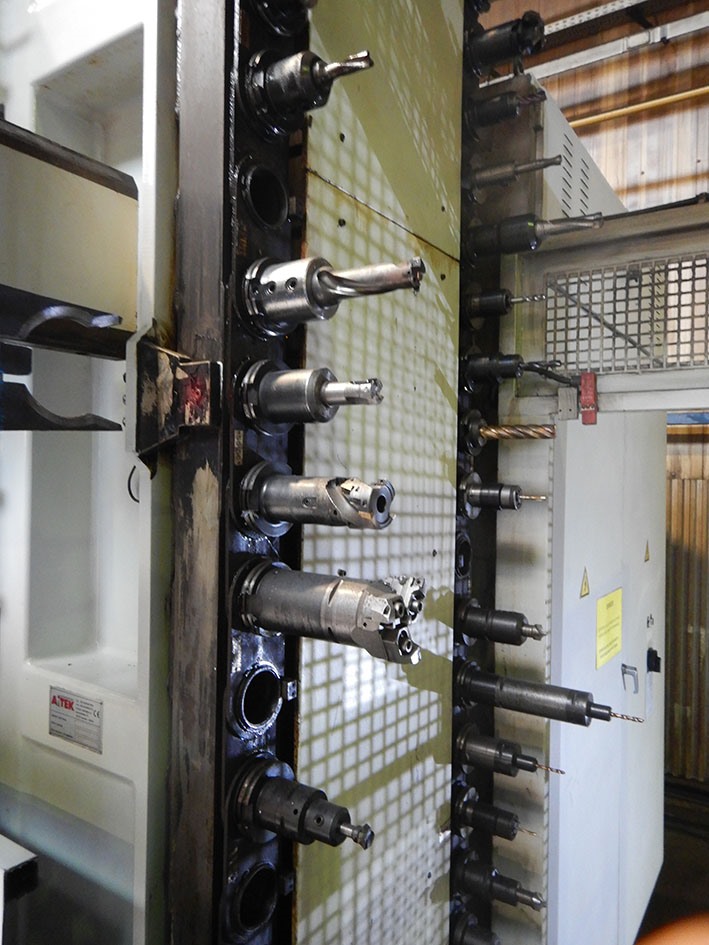

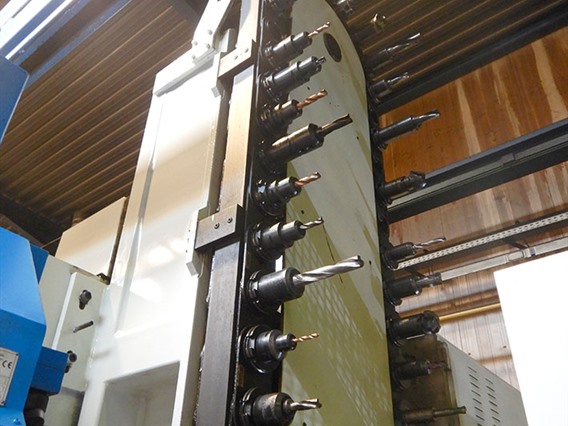

Toolchanger with 60 positions

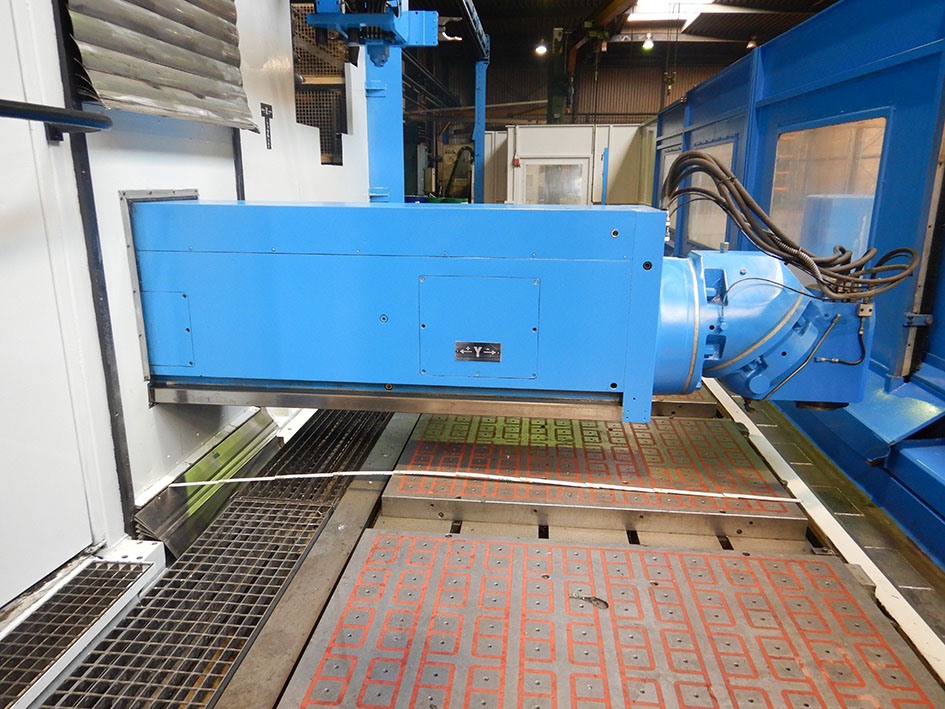

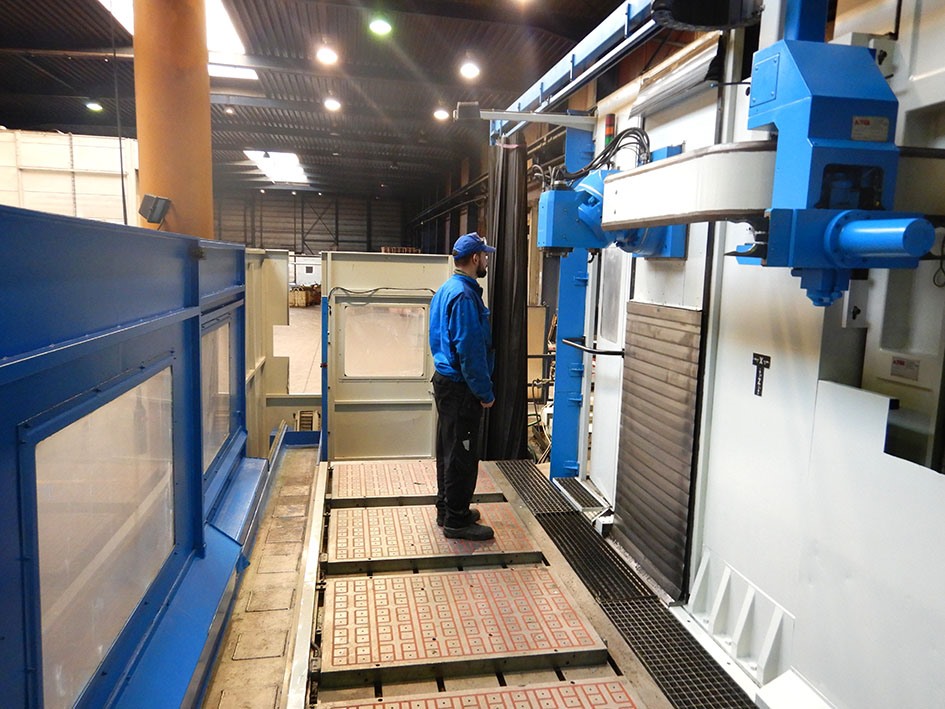

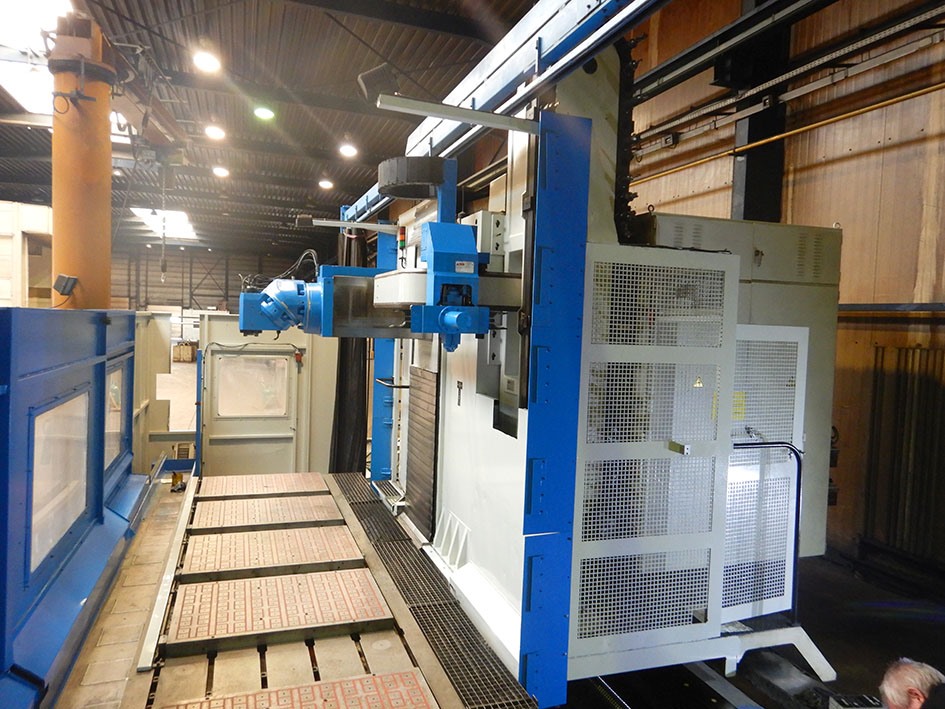

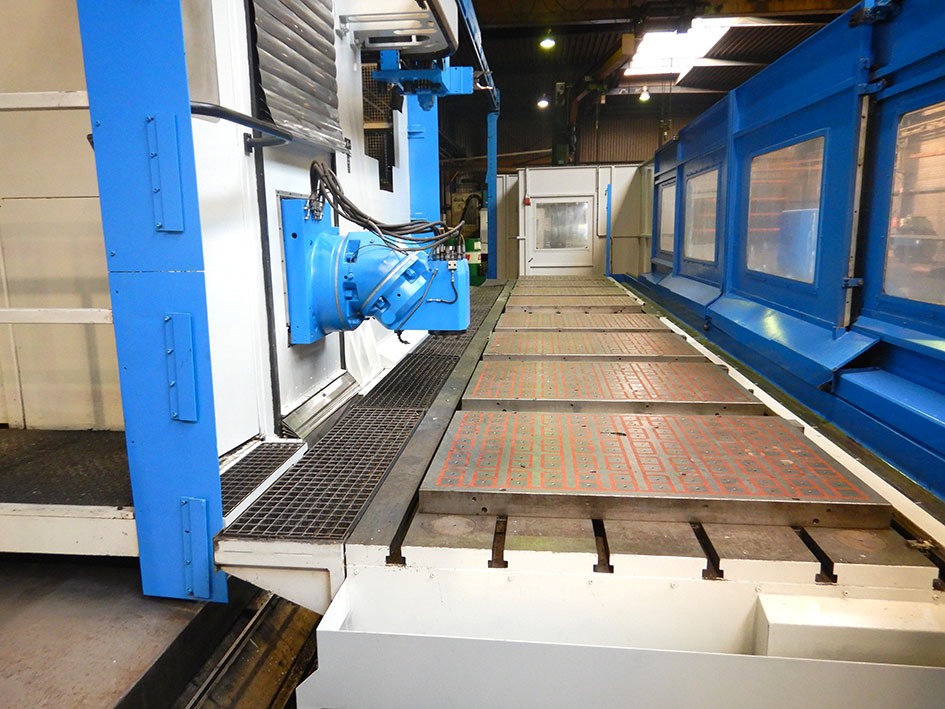

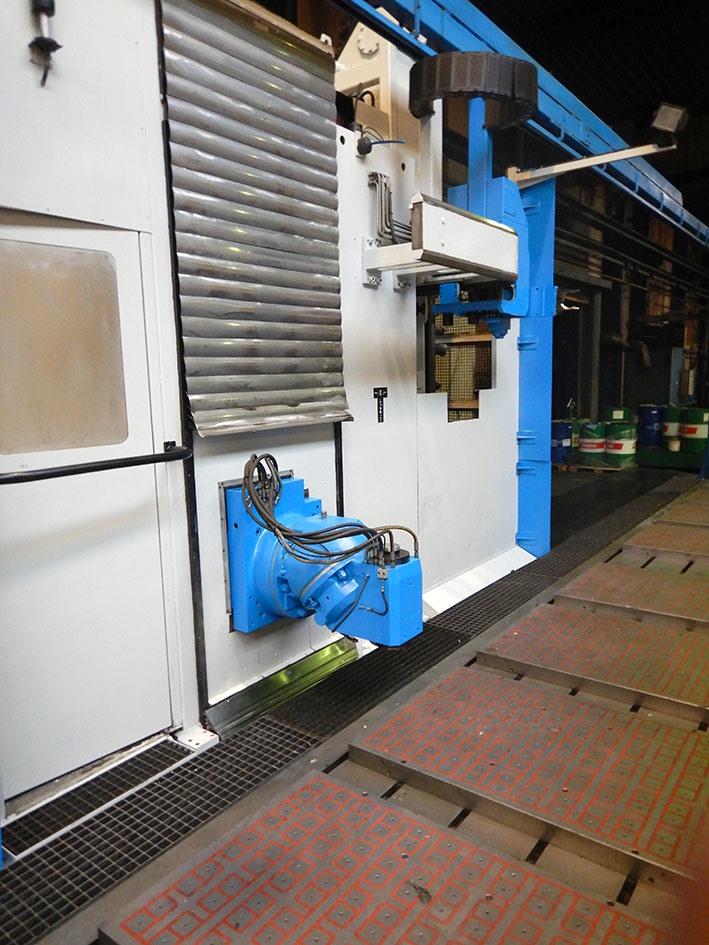

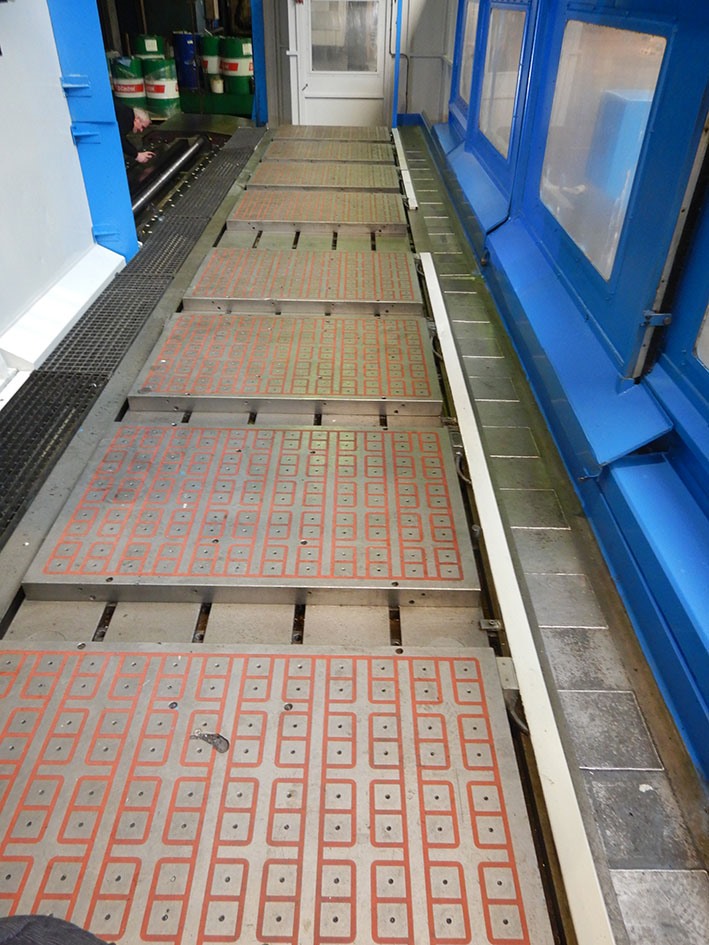

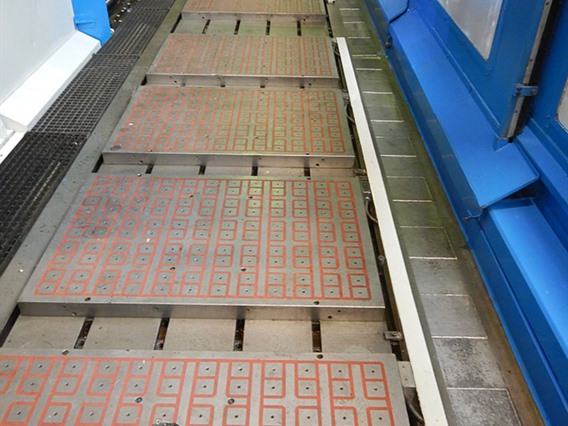

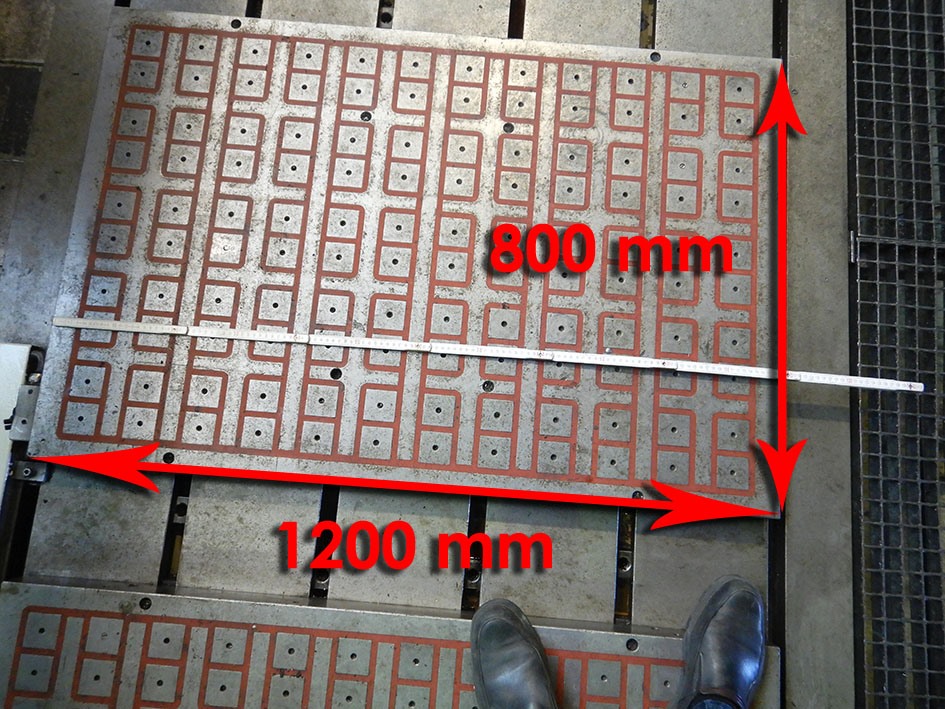

8 magnetic fixingtables (1200 x 800 mm) fitted to the table of the machine
2 chip conveyors

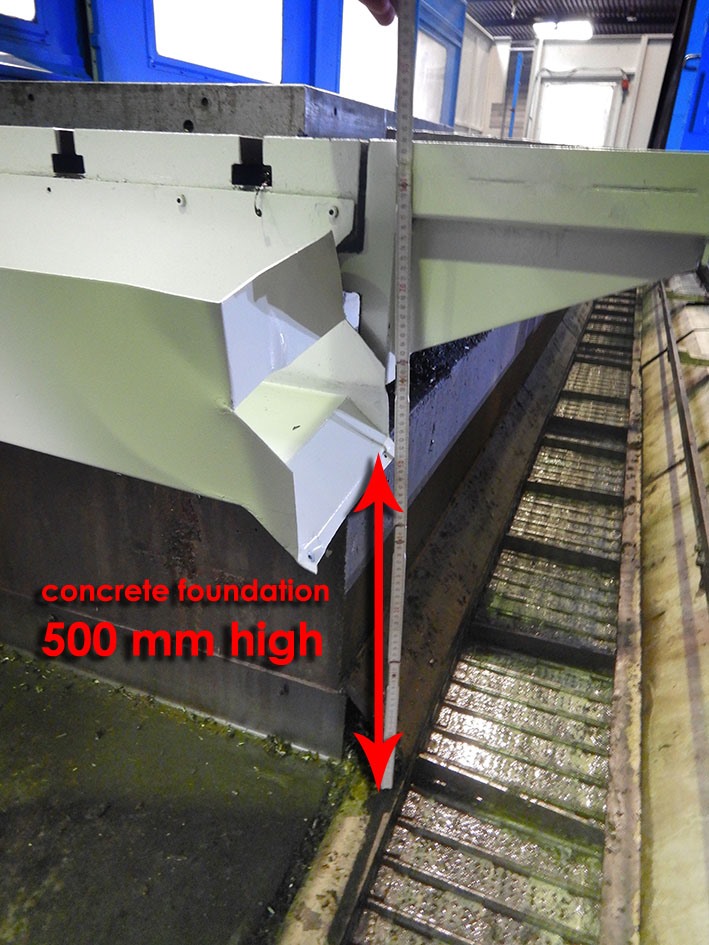

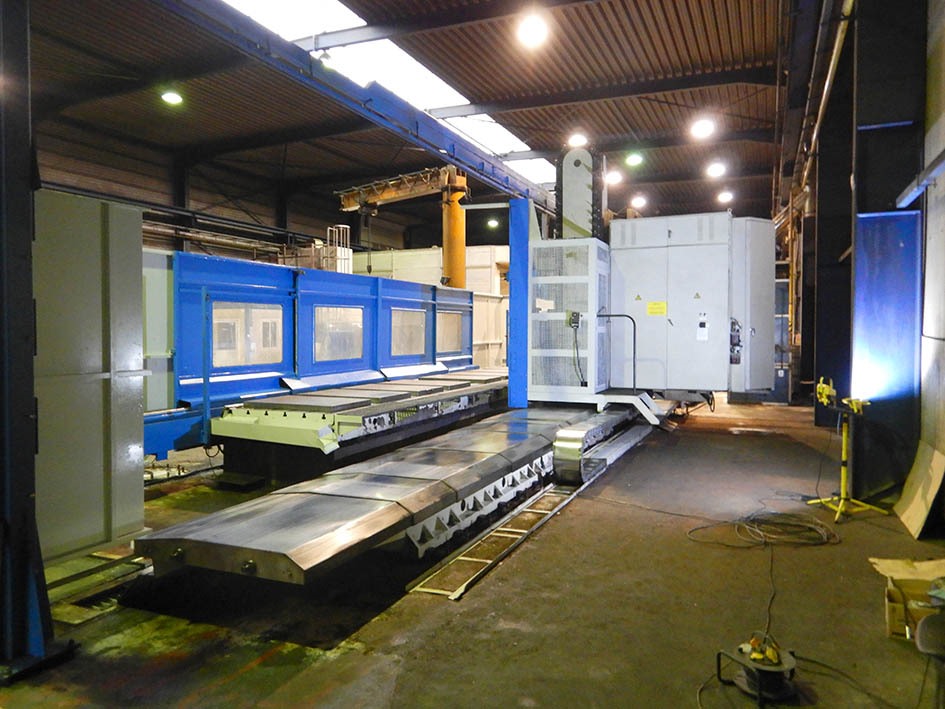

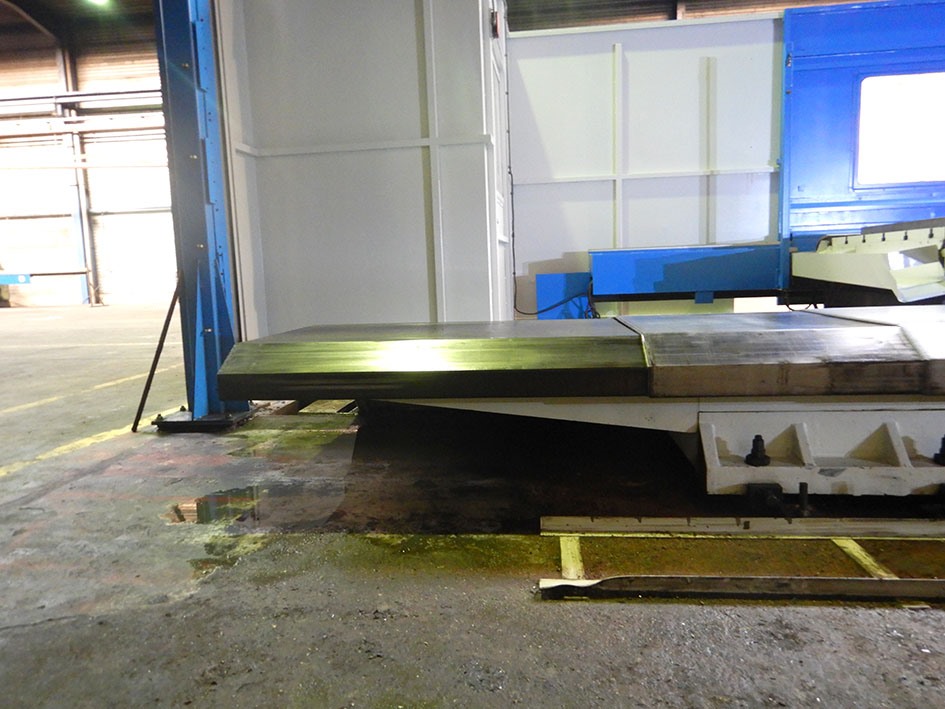

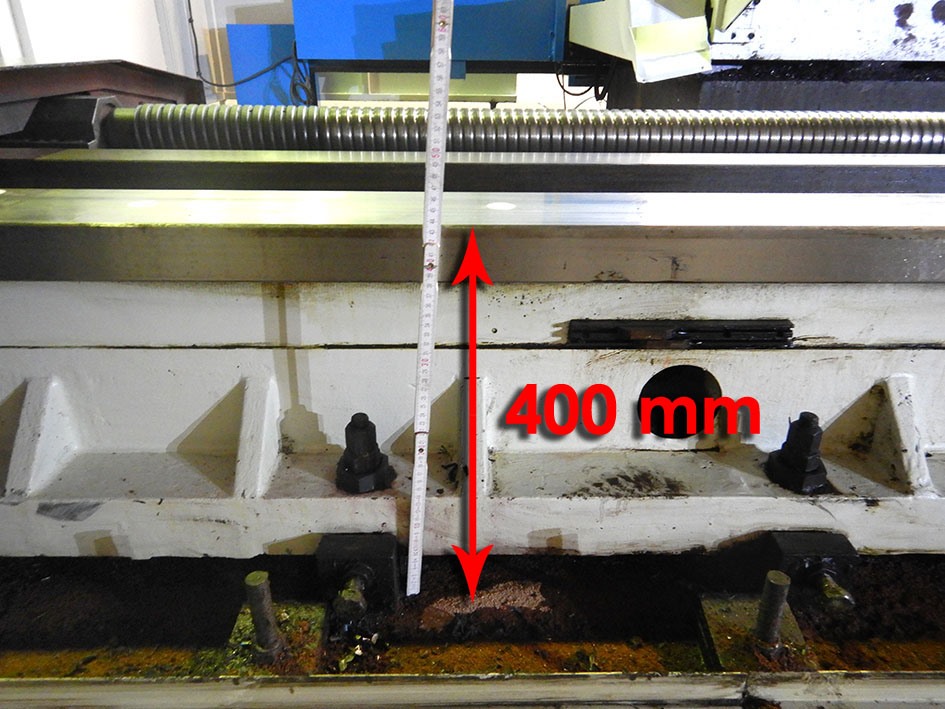

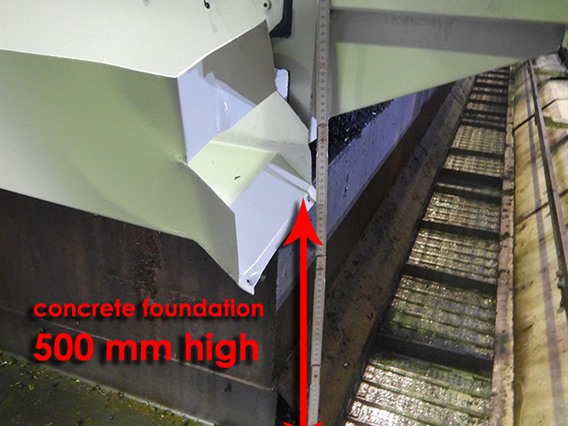

The table is currently sitting on top of a concrete foundation of 500 mm high.

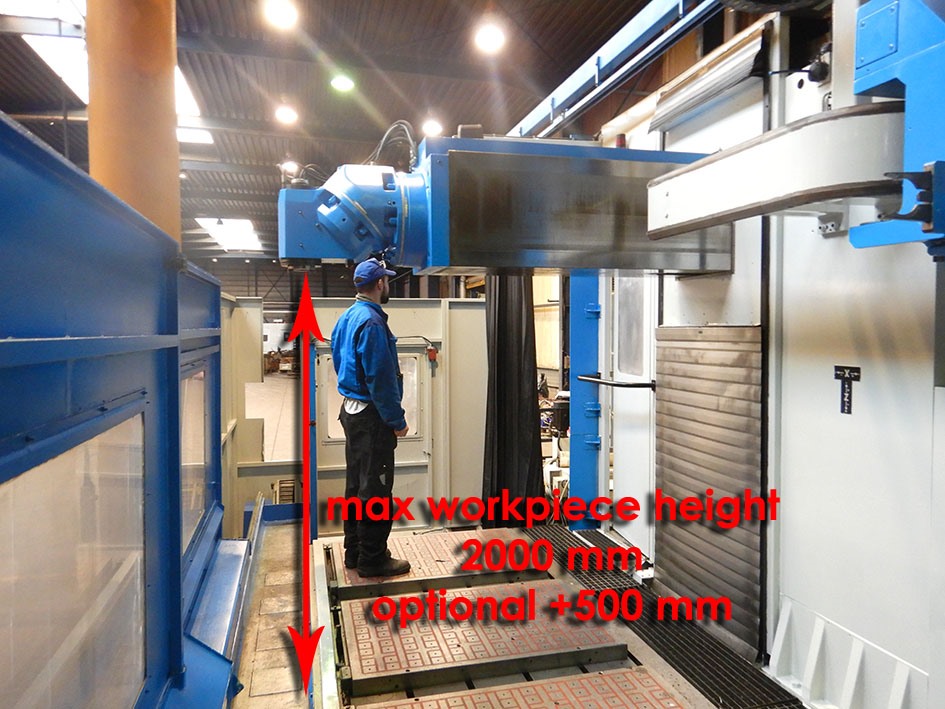

In the current configuration the max workpiece height is 2000 mm
However if the table was to be found on the floor level (without a concrete foundation) the max workpiece height would be 2500 mm.
- Tip/Model: X: 8000 - Y: 1500 - Z: 1500 mm CNC
- Stok numarası: B.04 11089
- Kategori: [B] Freze makineleri
- Alt kategori: [B.04] Bedfreesmachines / Beweegbare kolom conventioneel & CNC
- Marka: CME
