Polypal Rollforming line for pallet racks (2)
Ek bilgi

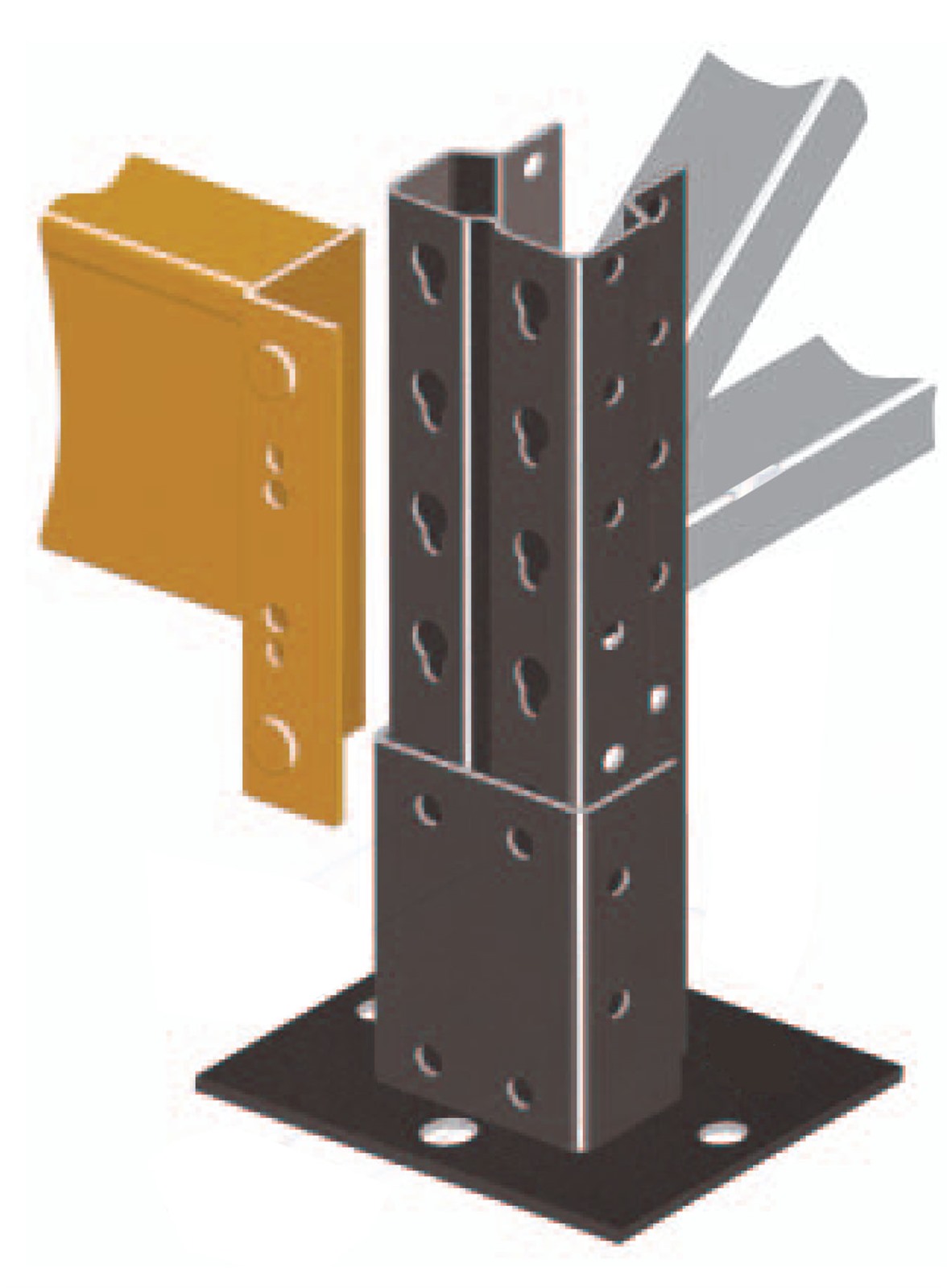

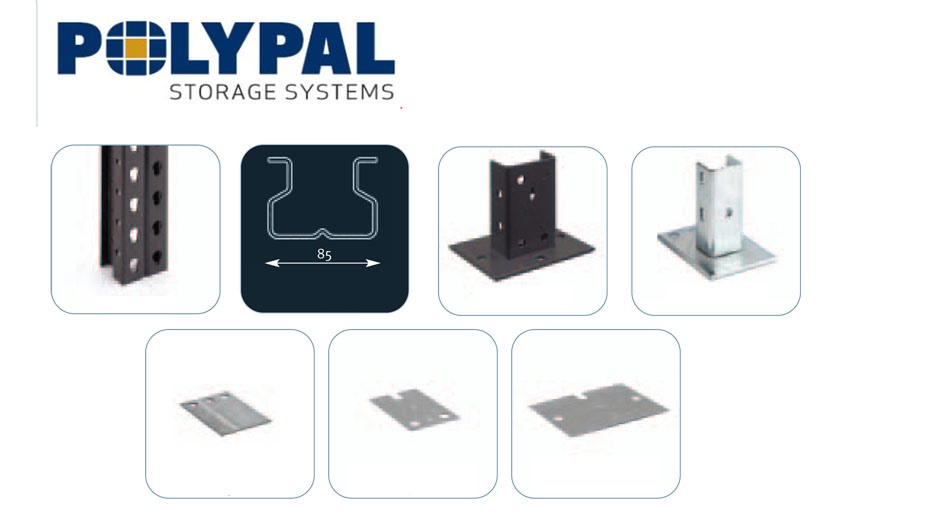

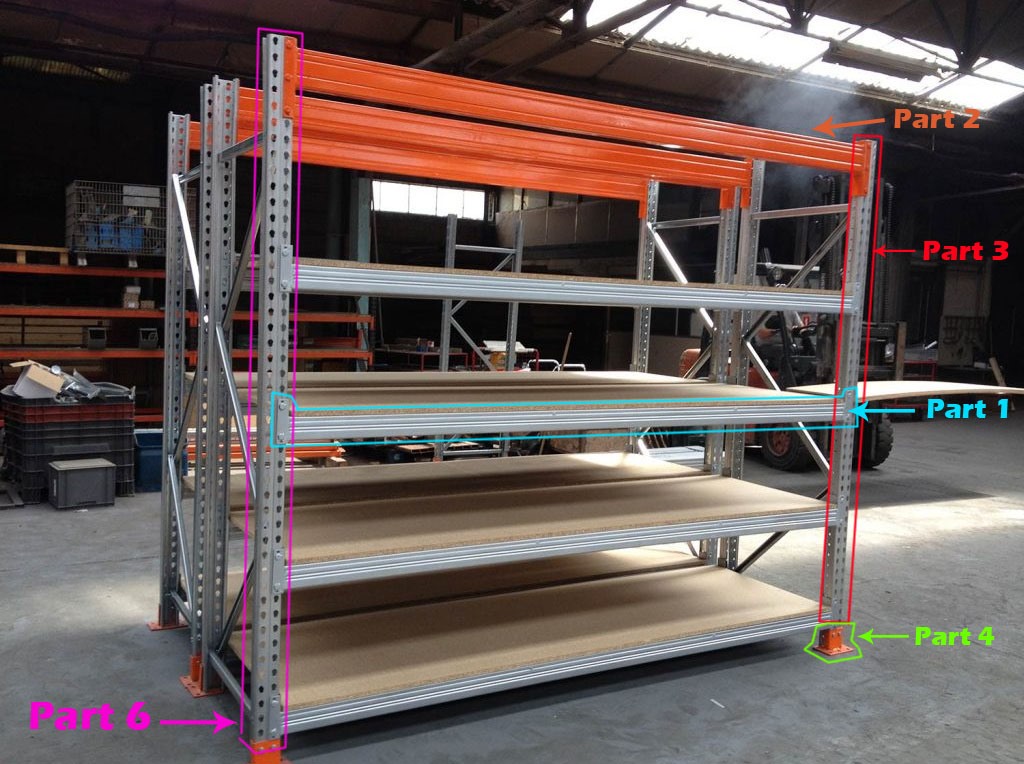

Used for manufacturing:

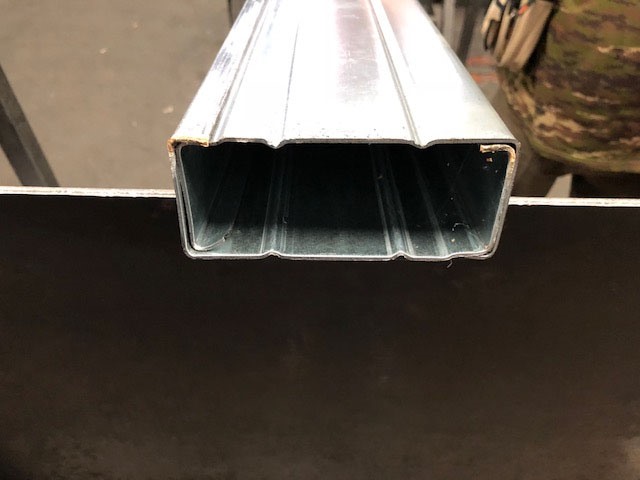

> part 2: the horizontal support, heavy version with two hooks on each side: 250 x 1,5 mm

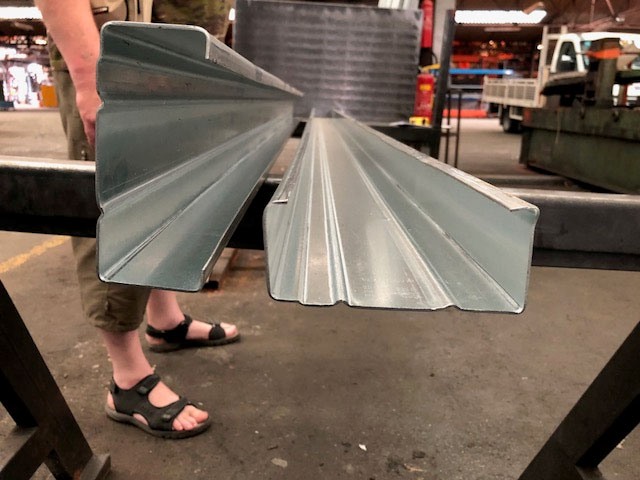

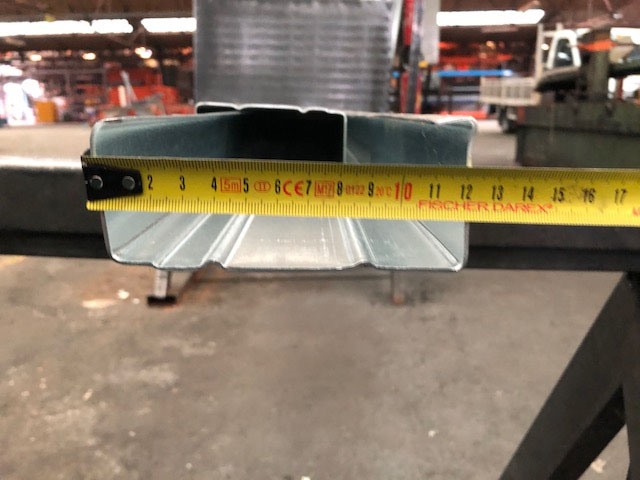

> part 3: the vertical C-profile, light version: 2 & 1 mm

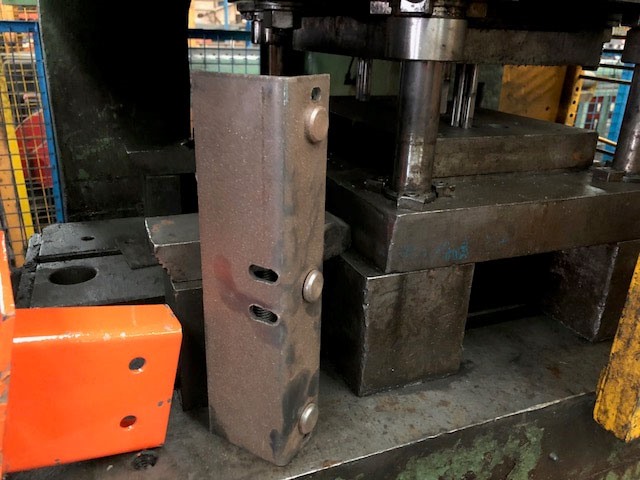

> part 4: the baseplates for each rack, light and heavy version
> part 5: the safetypin
Line consists out of:

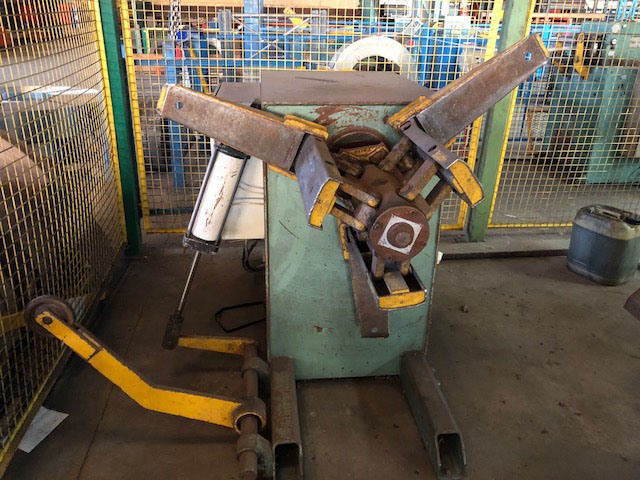

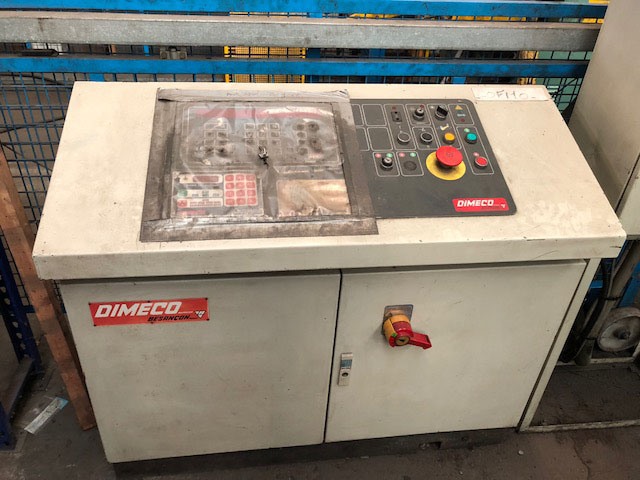

1 - Dimeco decoiler:
> 3 ton
> width: 420 mm

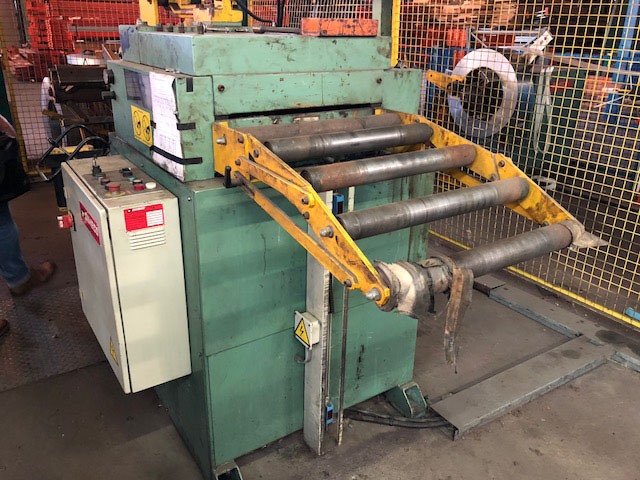

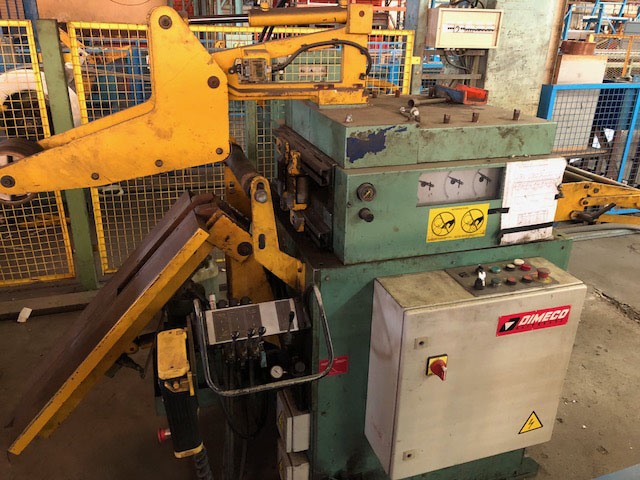

2 - Dimeco straightener:
> width: 500 mm
> min/max cap: 0,8/4,2 mm
> 7+4 rolls, rolldia: 80 mm

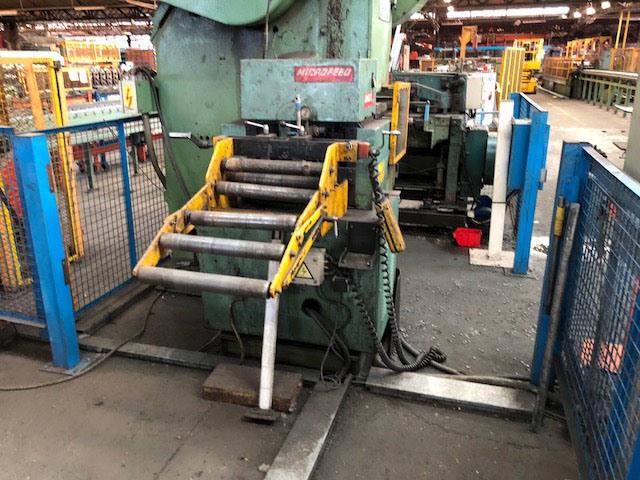

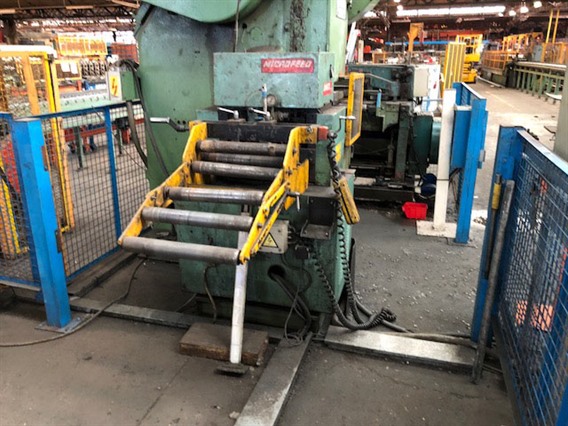

3 - Dimeco feeder

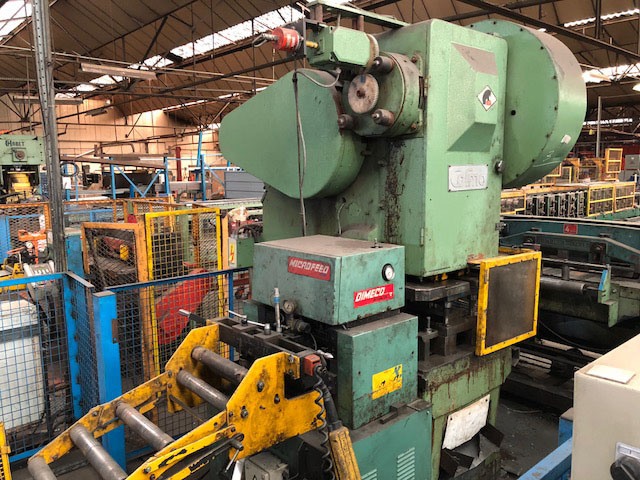

4 - Cofmo press 100 ton

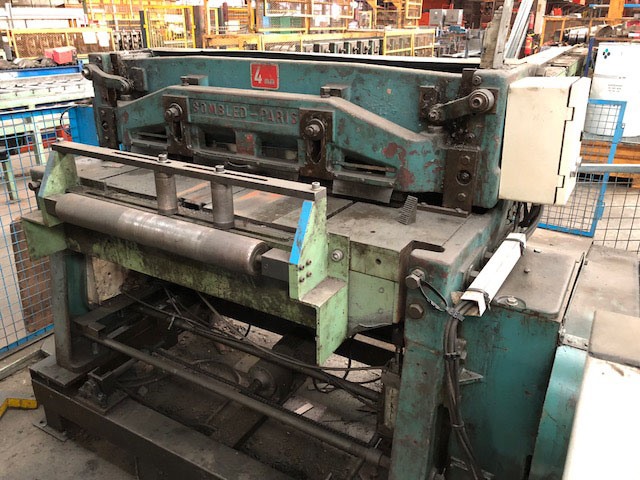

5 - Bombled mechanical shear

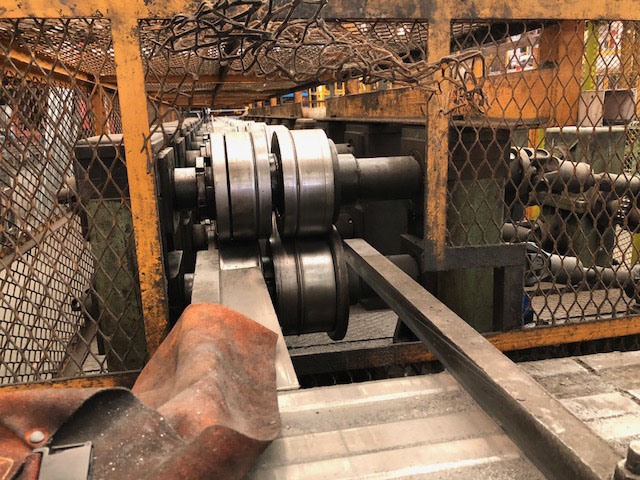

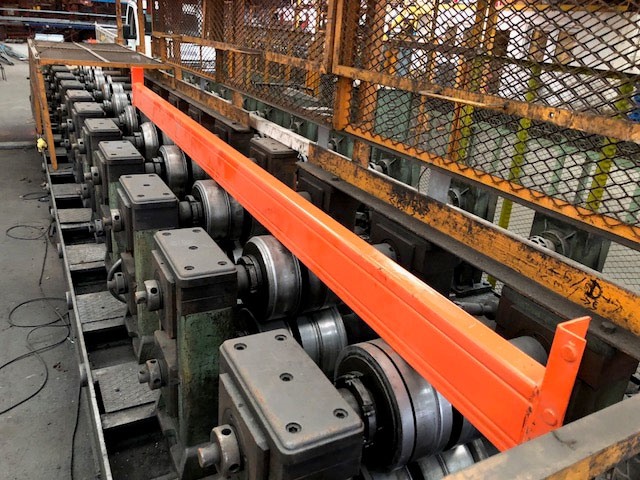

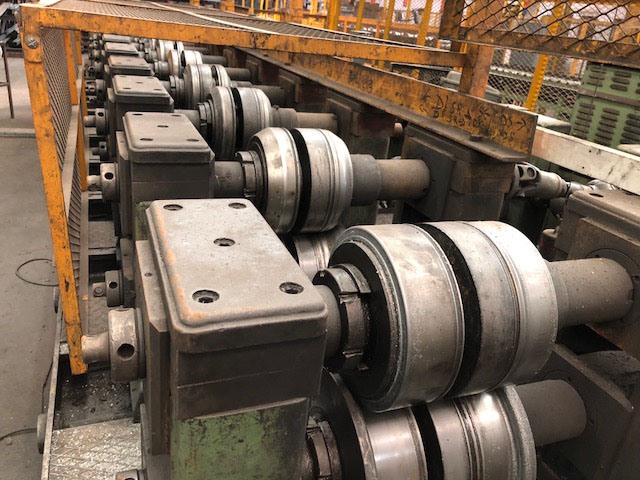

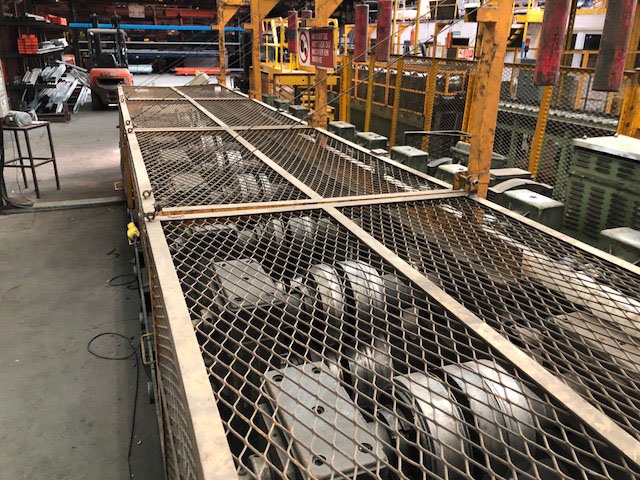

6 - Techni Profil rollforming line with 14 stations:
> vertical adjustment of rolls: 160 > 280 mm
> dia of axle: 100 mm
Is part of complete production plant:
click here to see the first roll forming line
click here to see the second roll forming line
click here to see the third roll forming line
Palletstelling
- Tip/Model: Rollforming line for pallet racks (2)
- Stok numarası: O.27 10342
- Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
- Alt kategori: [O.27] Afrollijnen & Decoileerlijnen & Profileerlijnen
- Marka: Polypal
Stok numarası: O.27 10342
İş makinasının videosunu görüntüle
