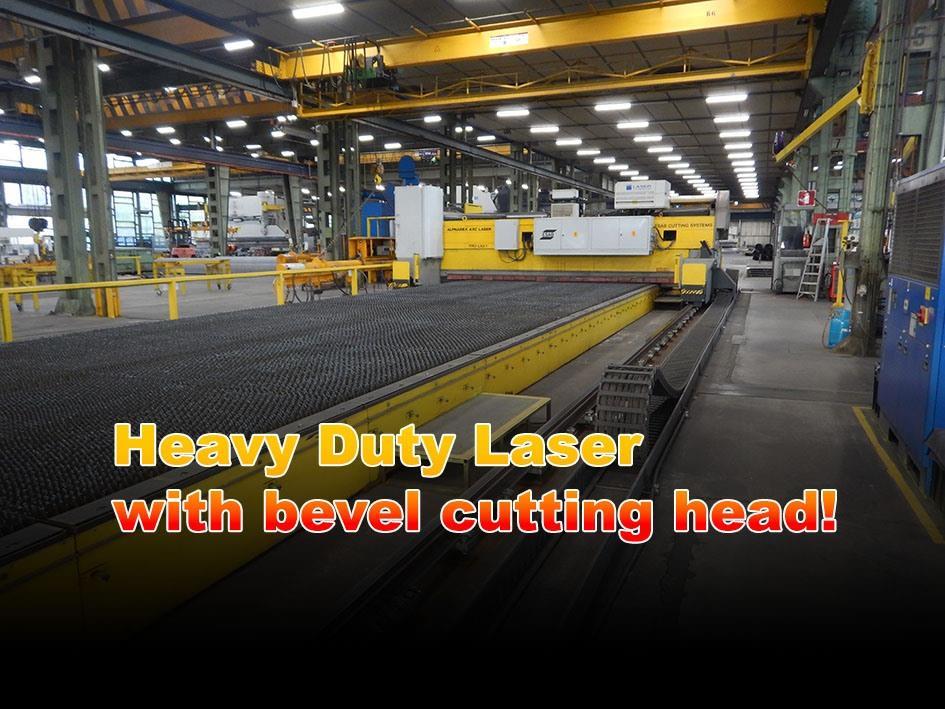

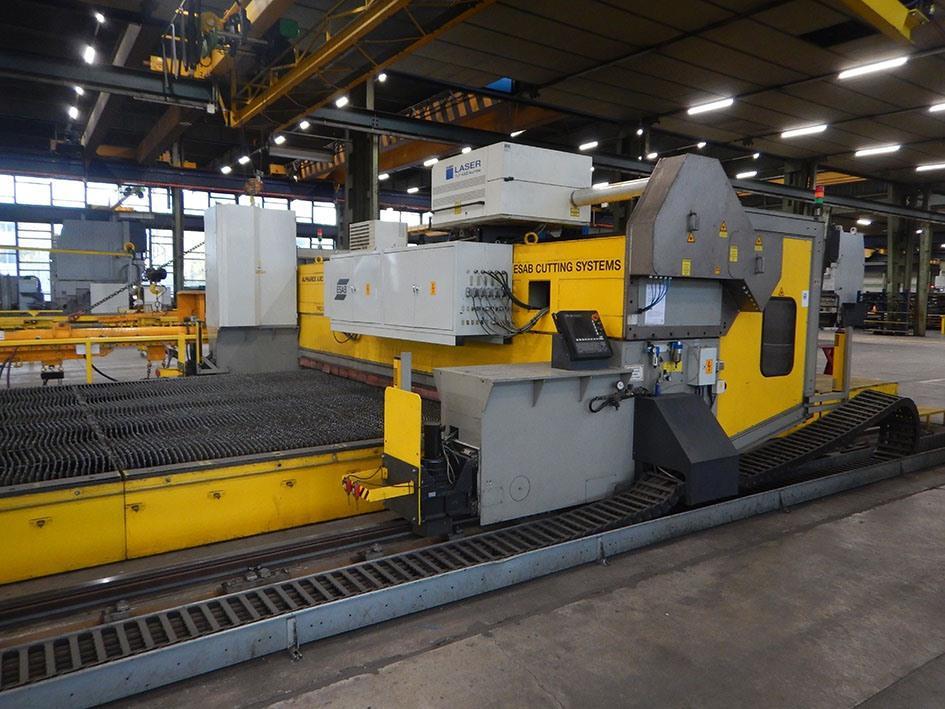

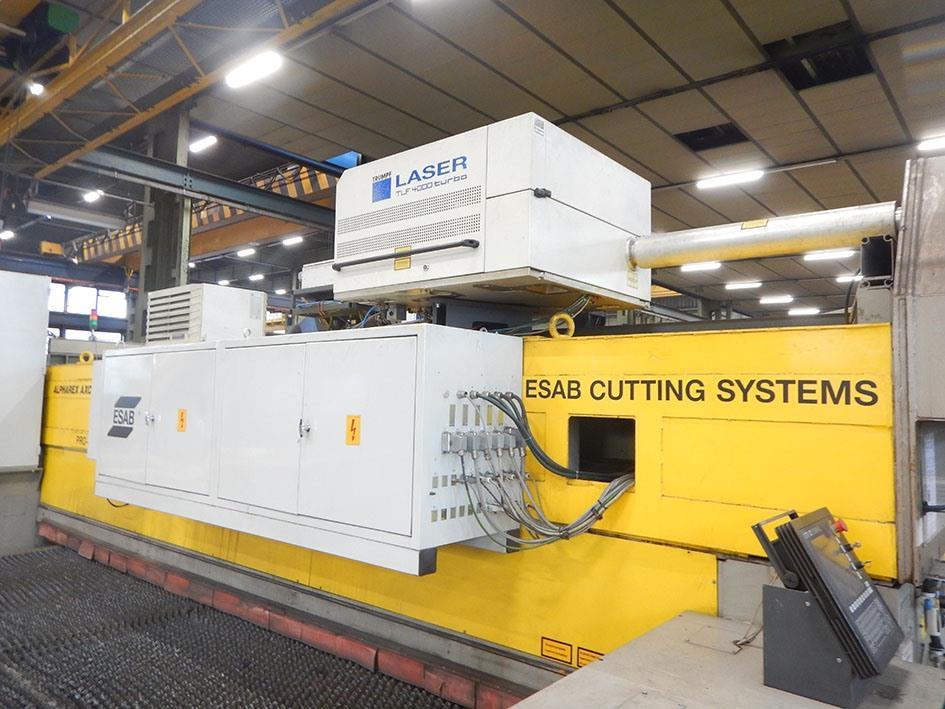

Esab Trumpf Heavy Duty bevelcut laser 24 x 6,3 meter
Технические характеристики:
- Тип лазераTLF 4000 Turbo
- Мощность4000 Watt

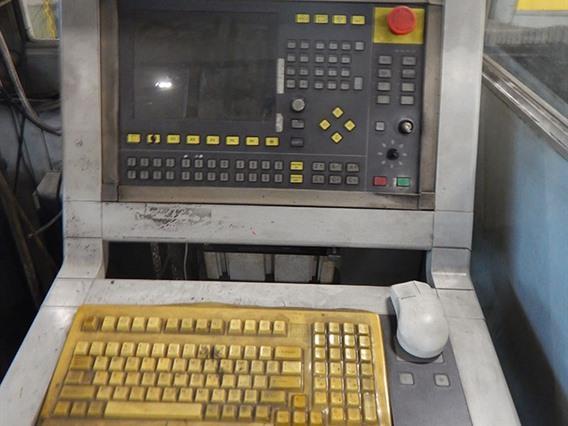

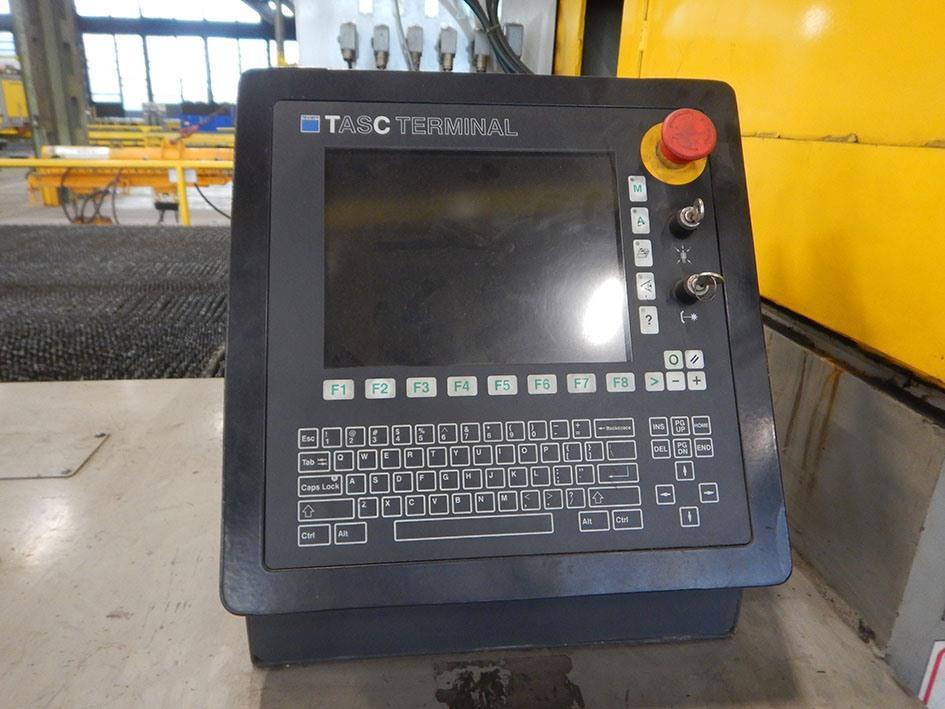

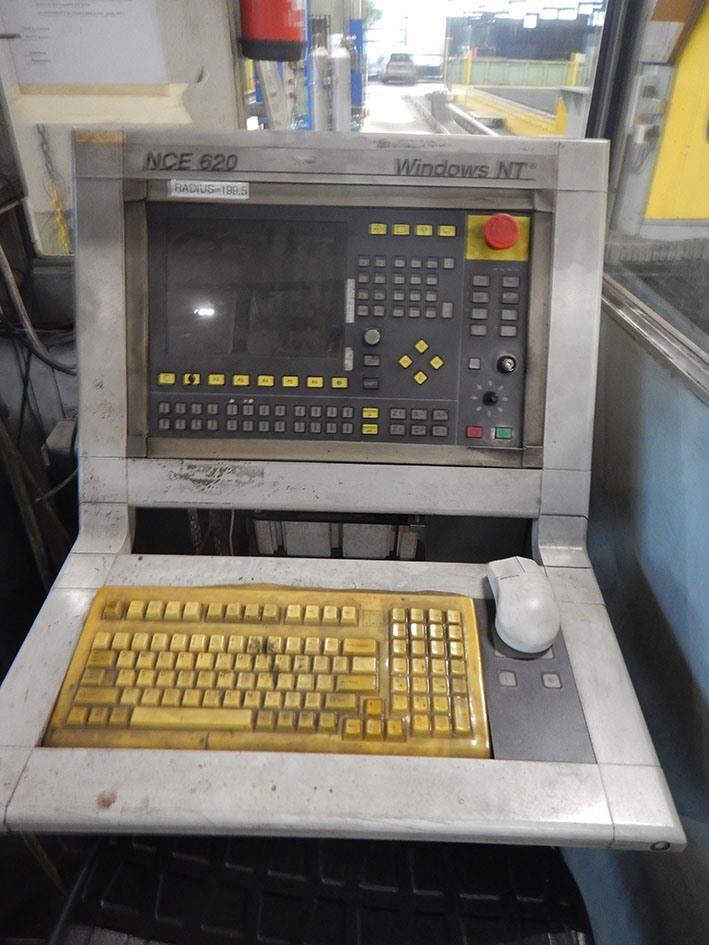

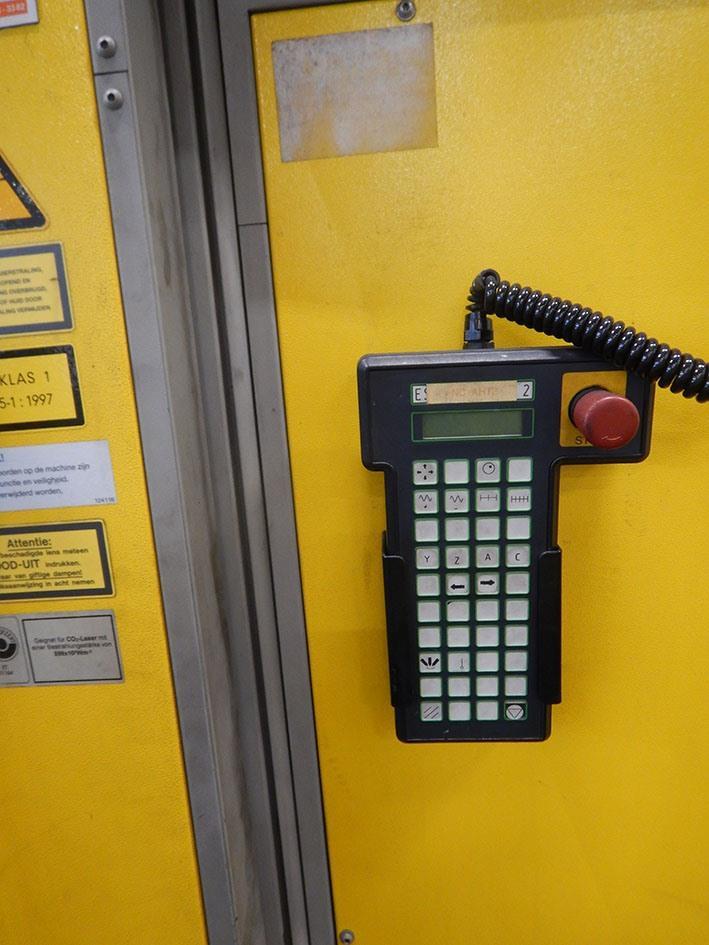

- УправлениеEsab NCE 620 + Trumpf Tasc
- Ось - X24 000 mm
- Ось - Y7000 mm
- Ось - Z260 mm
- Макс толщина стали20 mm
- Макс толщина нержавеющей стали15 mm
- Требуемое питание3x 400V
Дополнительная информация

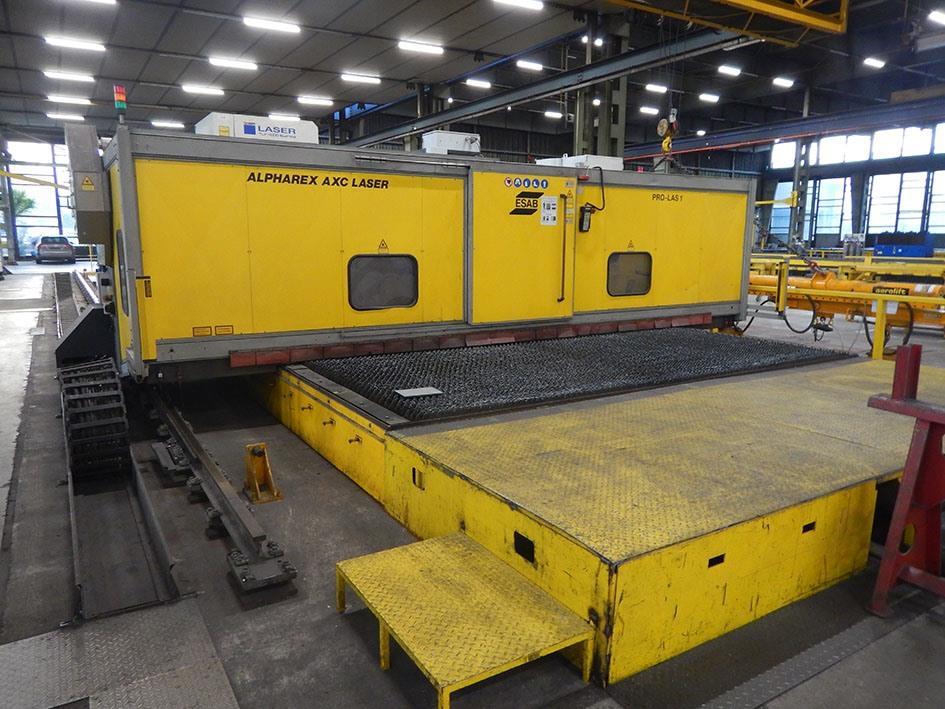

- Type: Alpharex AXC 7000
Trumpf TLF 4000 Turbo

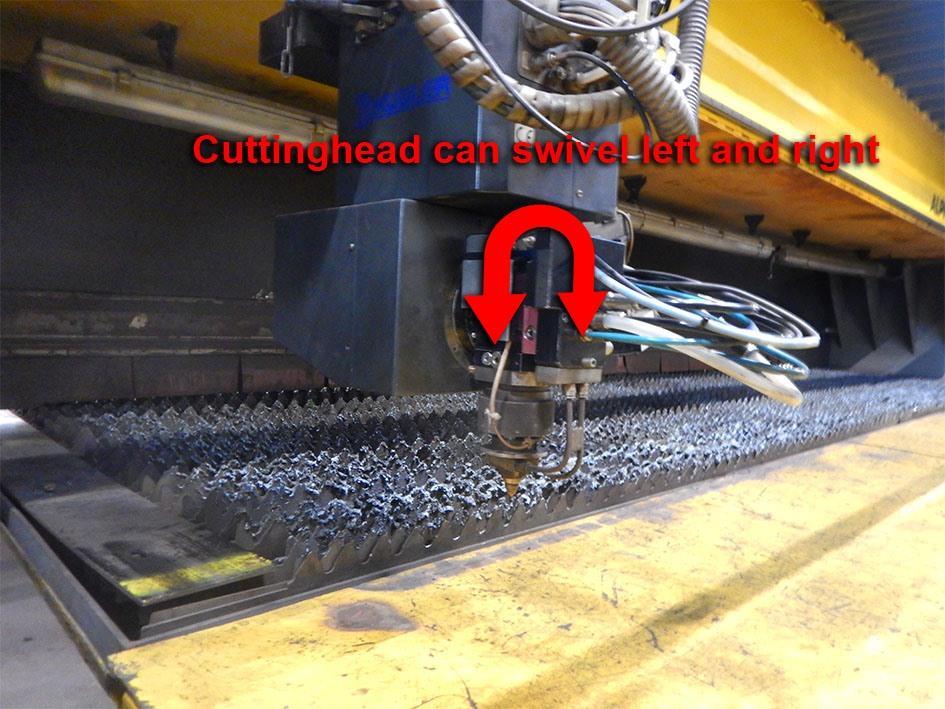

Cutting head can swivel and can make bevel cuts!!
including Columbus software with all options

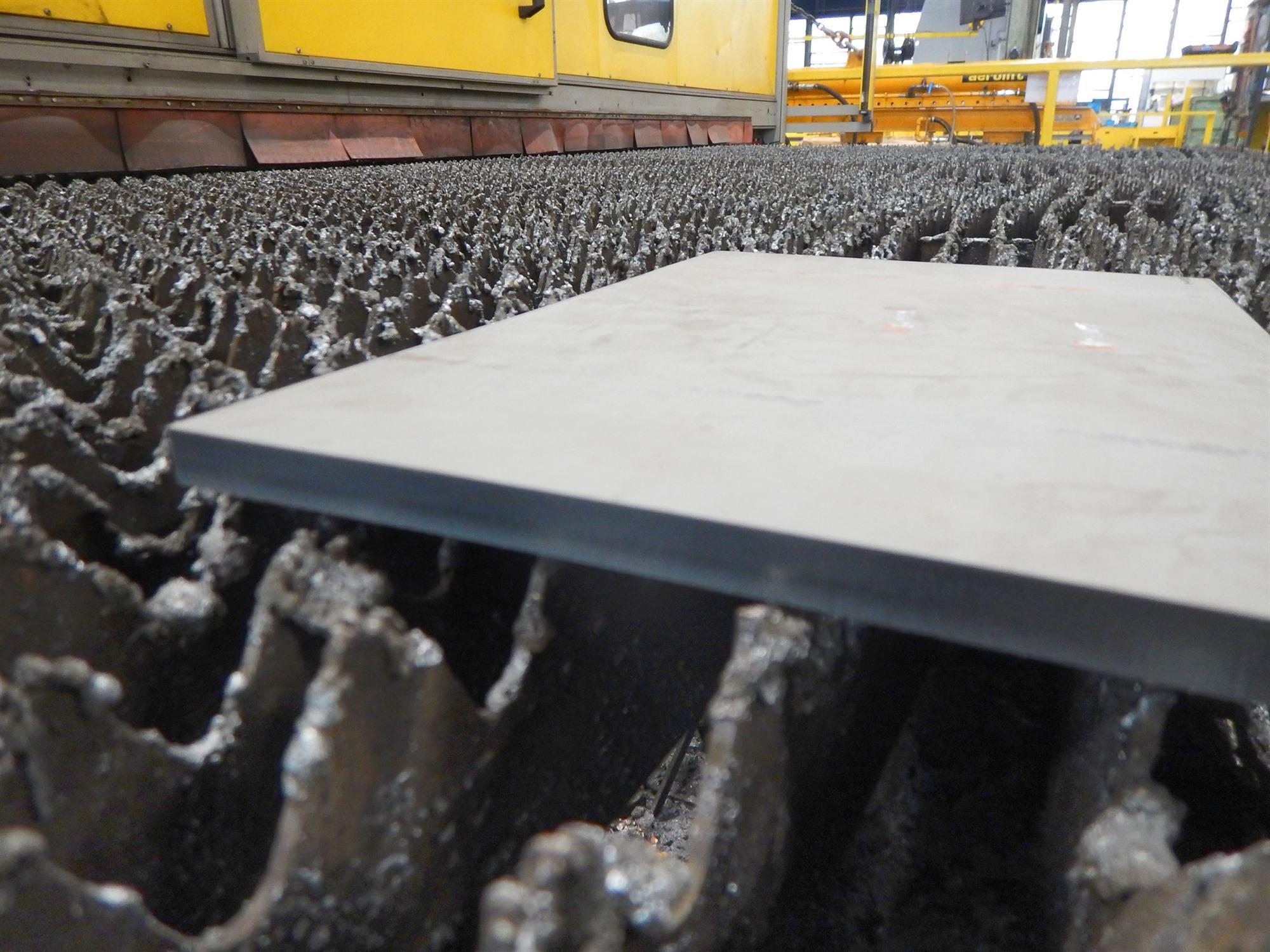

Ezeclean cutting tables with integrated dust extraction
Pro-Las laser guard system = allows for operating times of up to 8 hours without the need of permanent supervision

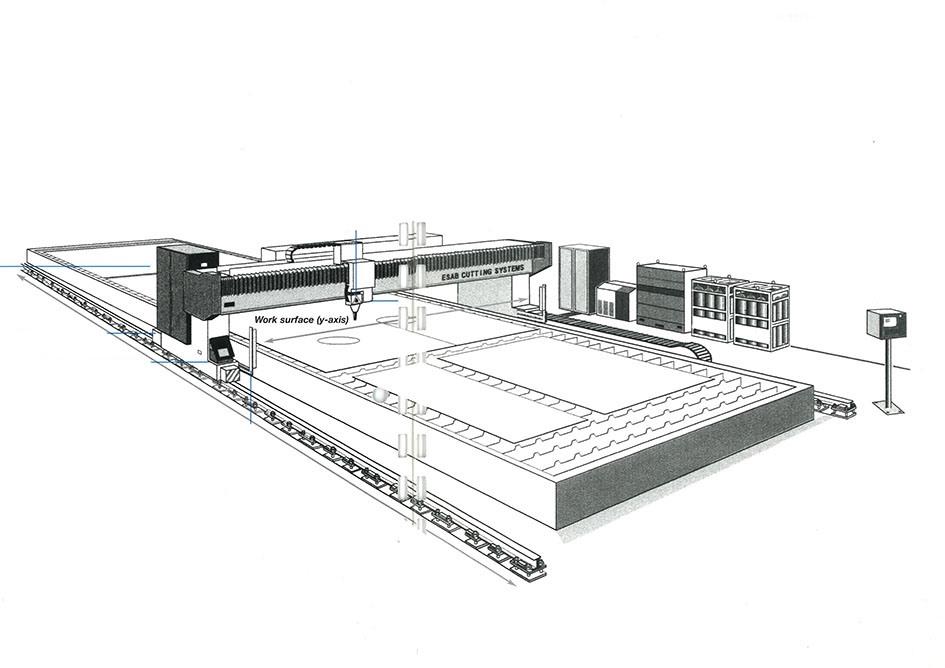

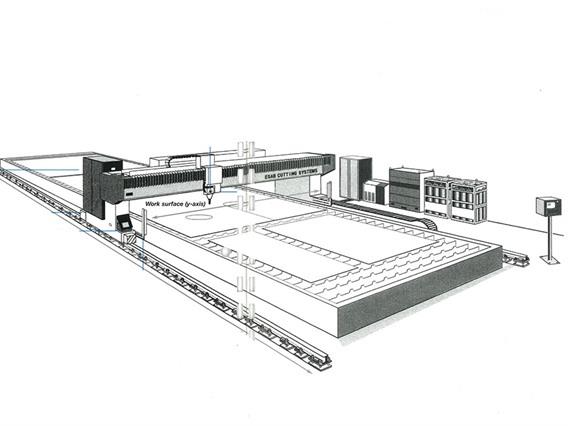

- Trackwidth: 7000 mm
- Cuttingwidth: 6300 mm
- Height travel of cutting head: max 260 mm

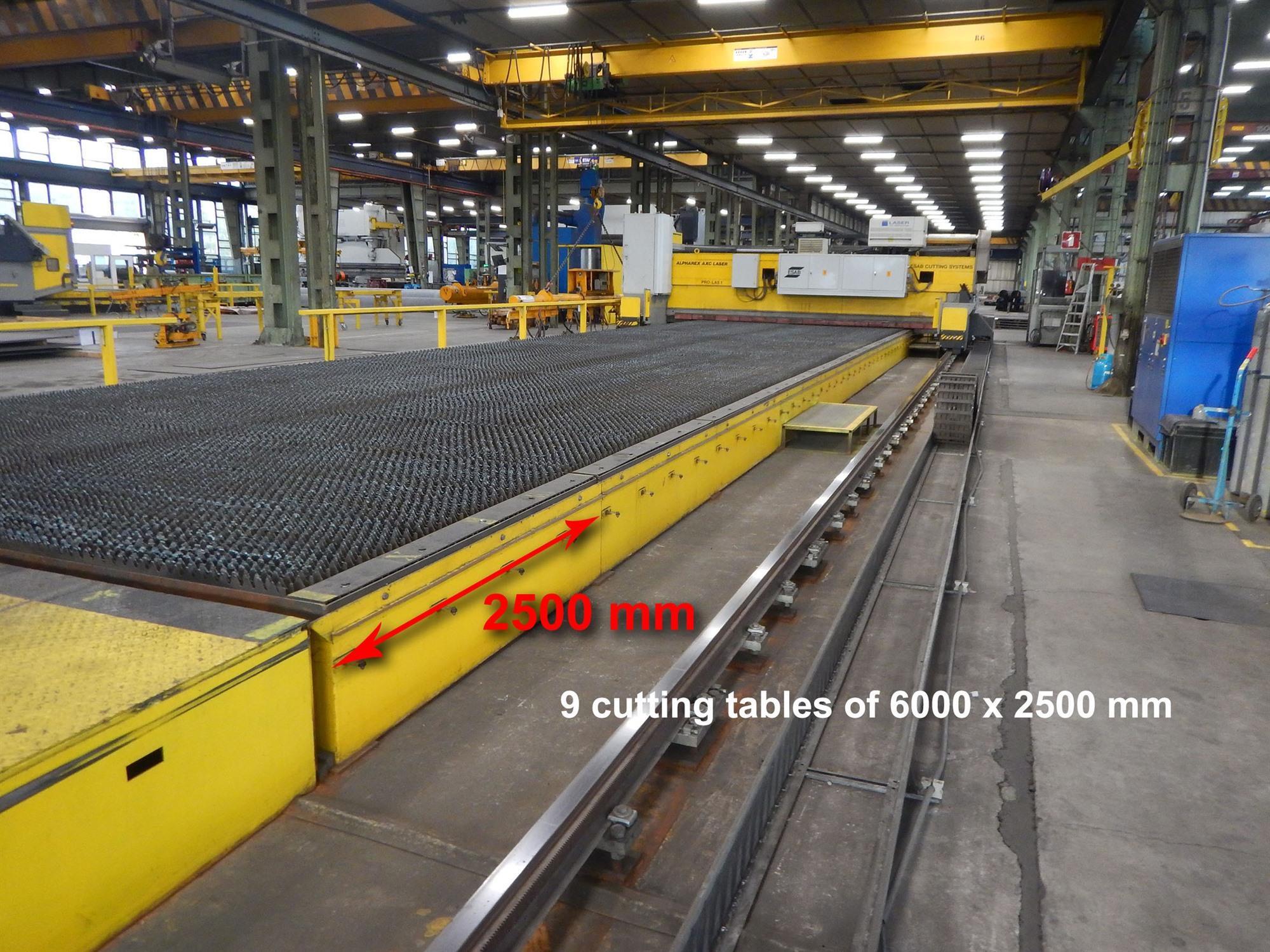

- 9 cutting tables of 6300 x 2500 mm
- Video camera for monitoring cuttinghead

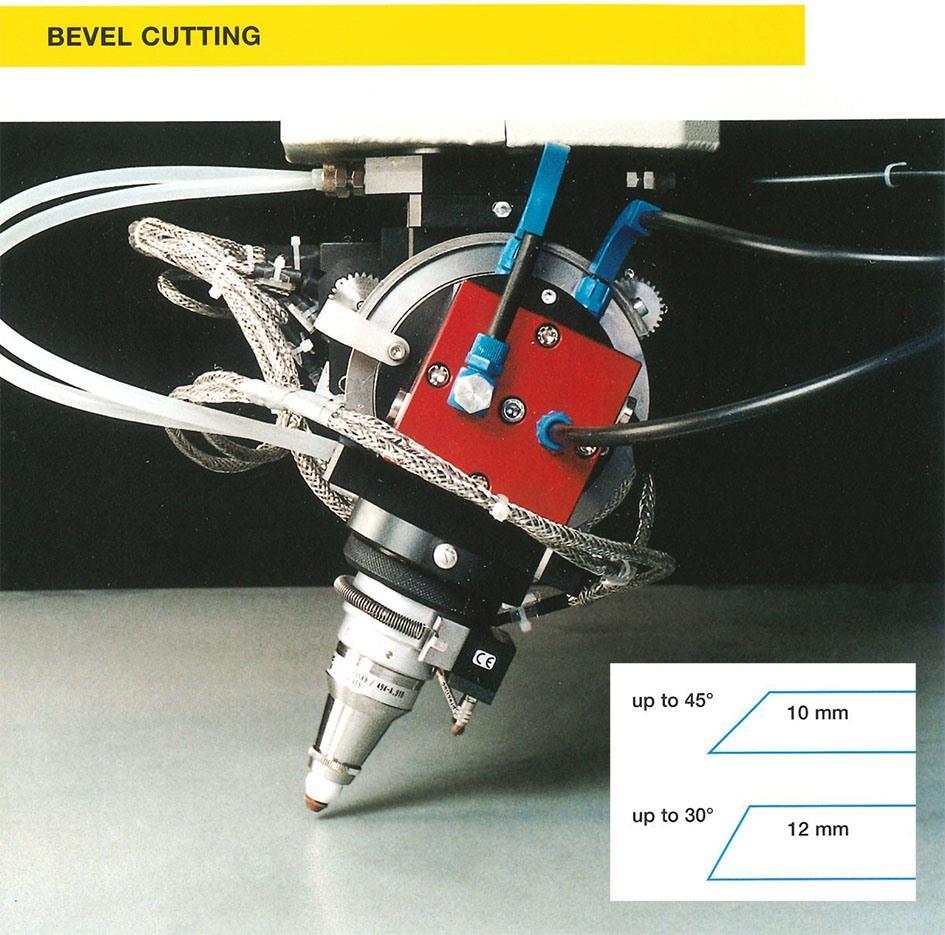

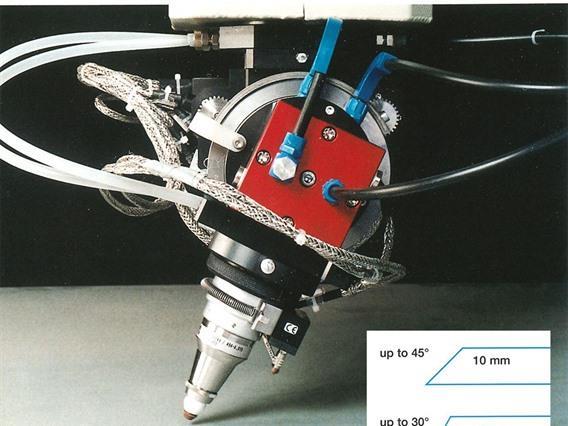

Laser cutting head for vertical and bevel cutting on flat plates in horizontal position

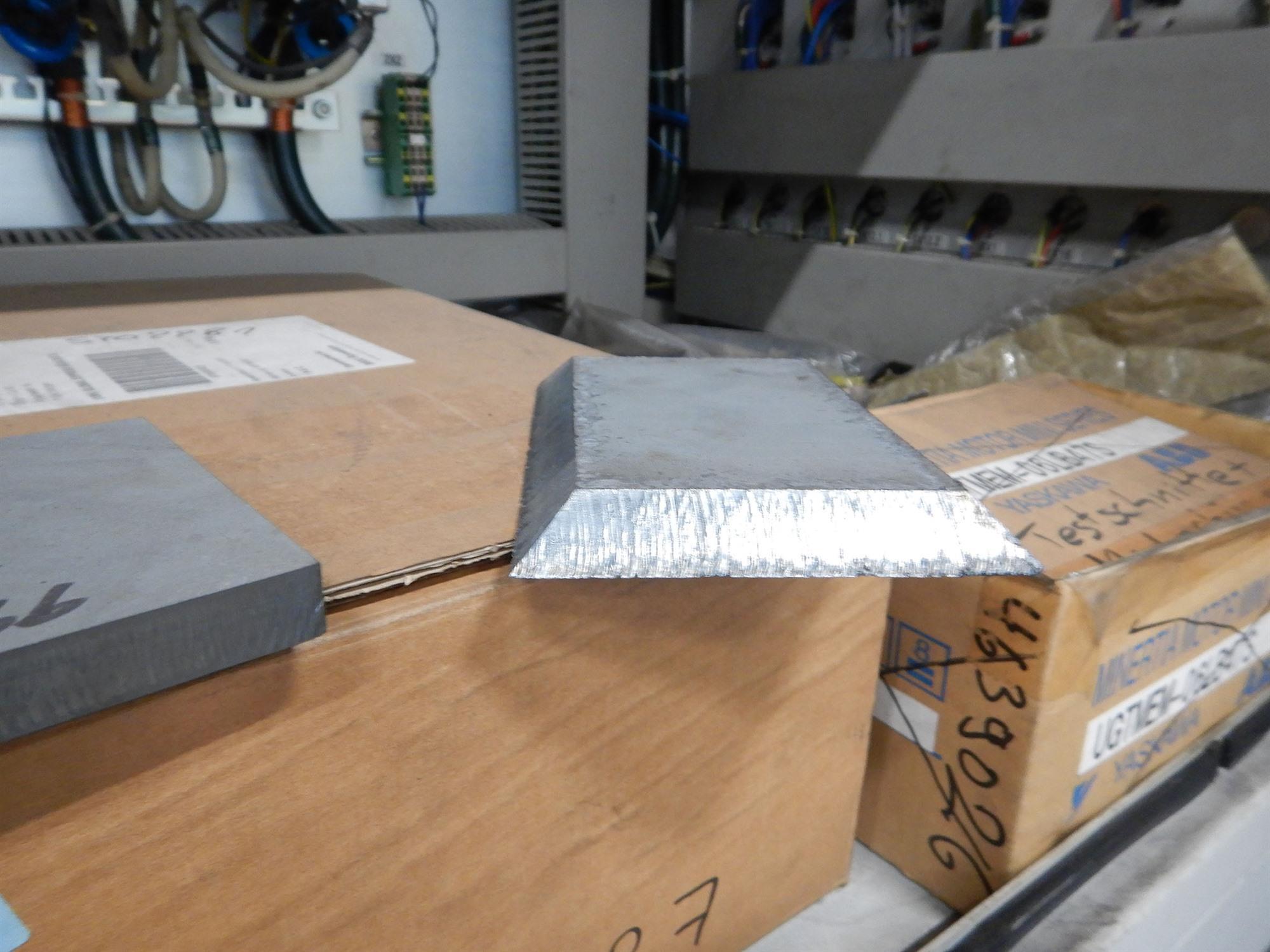

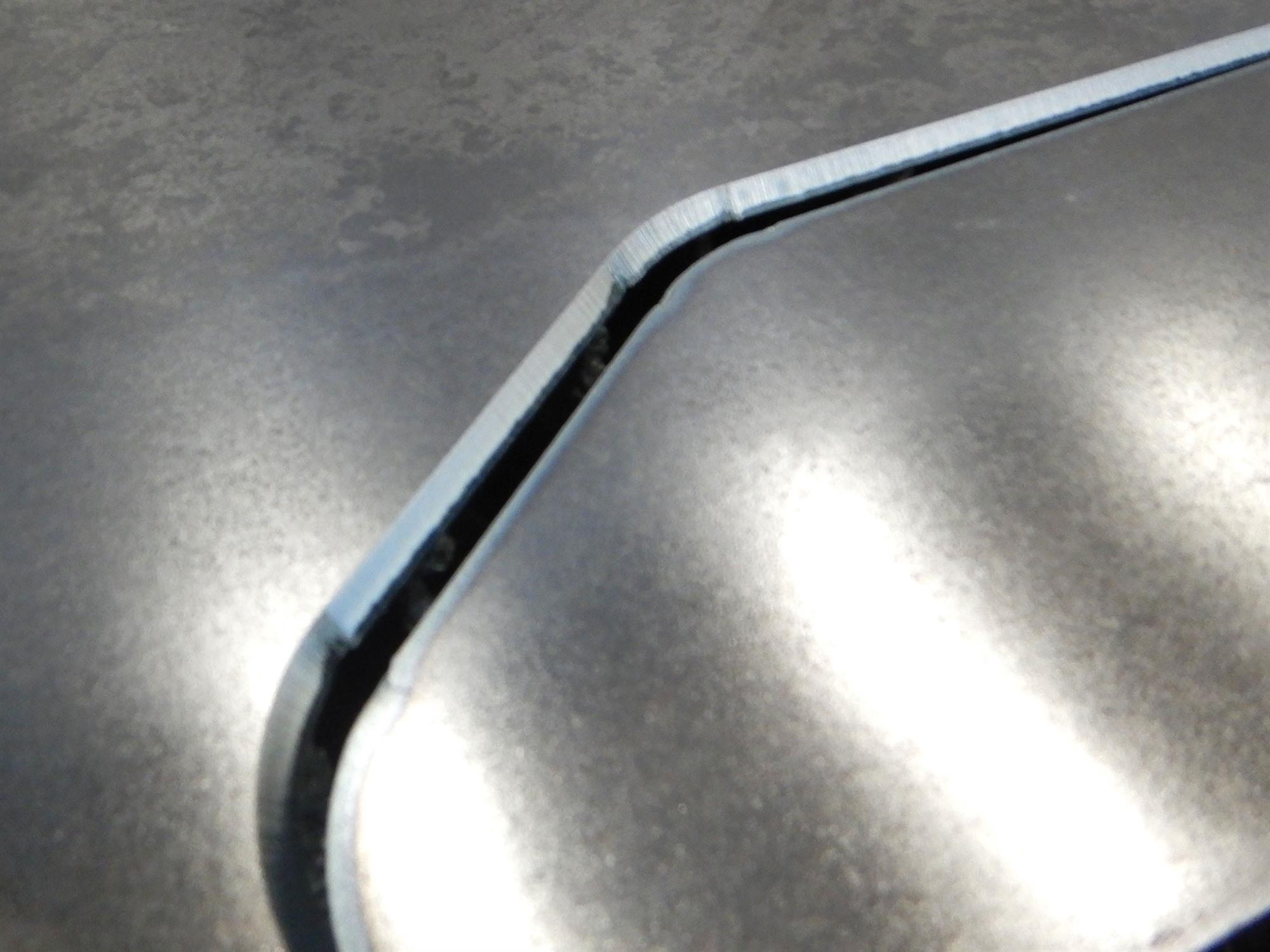

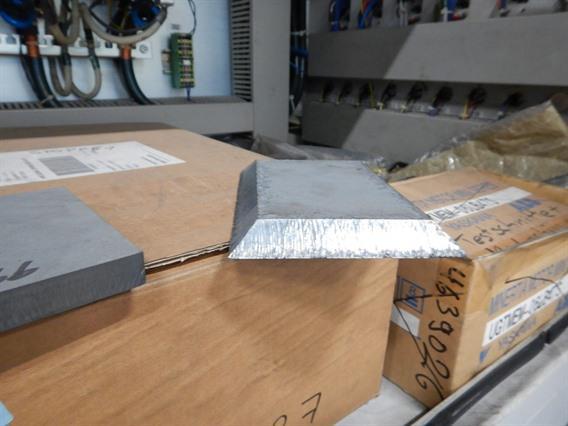

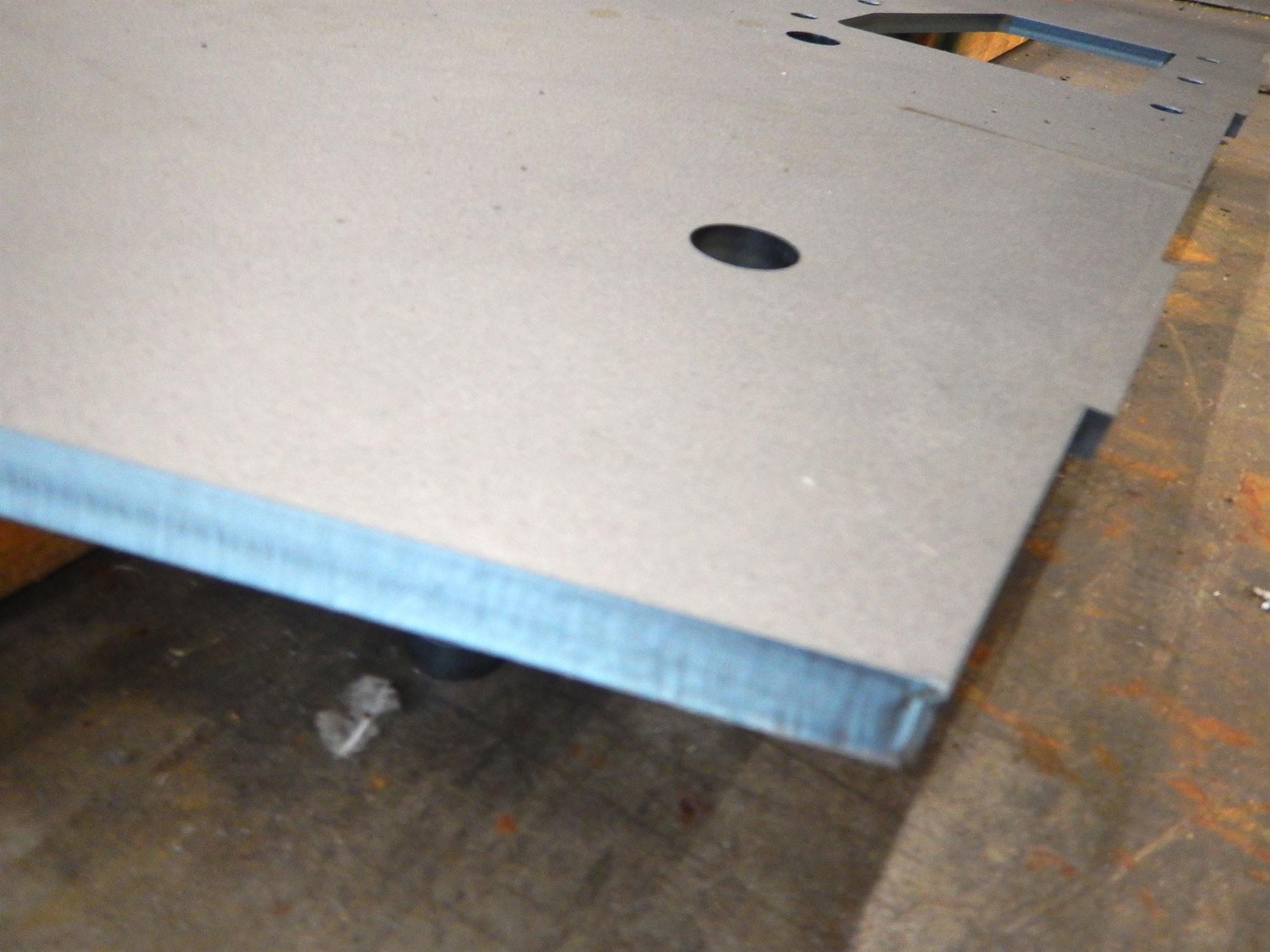

Up to 20° bevel angle laser quality cuts are possible, with larger bevel angles serrations and burrs must be expected

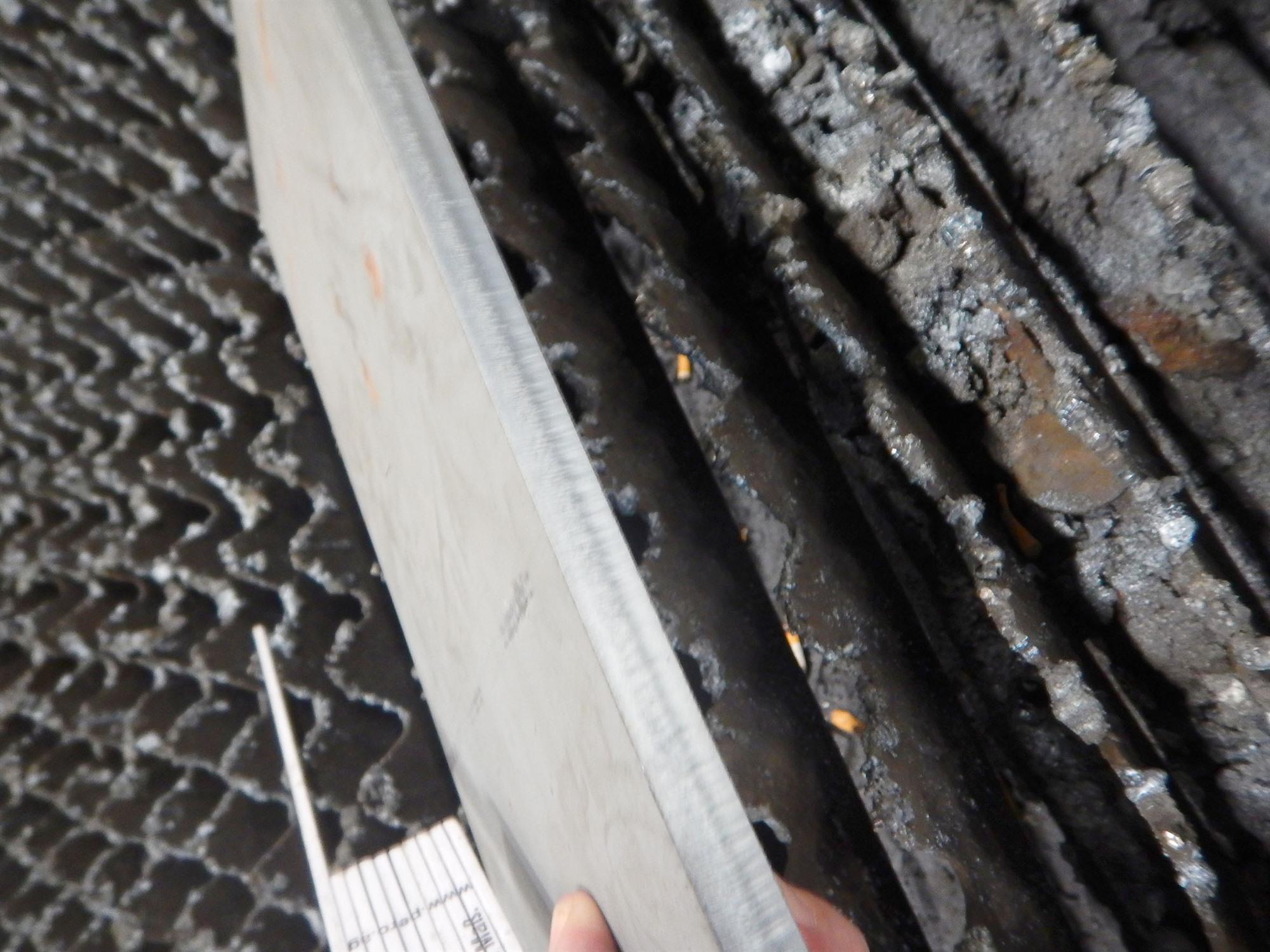

Max vertical cutting steel: 20 mm
Max vertical cutting stainless steel: 12 mm
Max vertical cutting alu: 8 mm
Max bevel cutting steel: 15 mm
Max bevel cutting stainless steel: 10 mm
Max bevel cutting alu: 6 mm
Columbus software:
> Basic module comprises various functions which enable the convenient generation of machine programs from part information.
> Including the modules integrated Cad-system, 65 standard shapes and DXF-convertor
> Marking tool module
> Bevel unit module
> Data management module, for the organization and administration of the parts to be processed
> Date information module, calculation of layouts
> Plate management module
> Automatic nesting module, fully auto nesting of any kind of contour
- Тип модели: Trumpf Heavy Duty bevelcut laser 24 x 6,3 meter
- Номер каталога: O.12 11132
- Главная категория : [O] Листогибочные прессы, вальцы, лазерные станки, плазменные станки, кординатно-пробивные прессы, линии профилирования, правильные станки
- Подкатегория: [O.12] Лазерные станки
- Производитель: Esab
Номер каталога: O.12 11132
