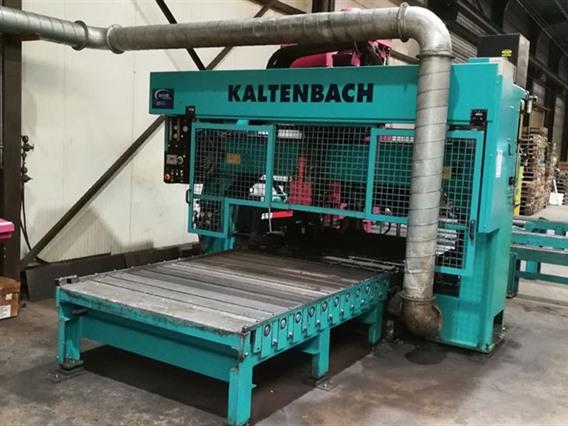

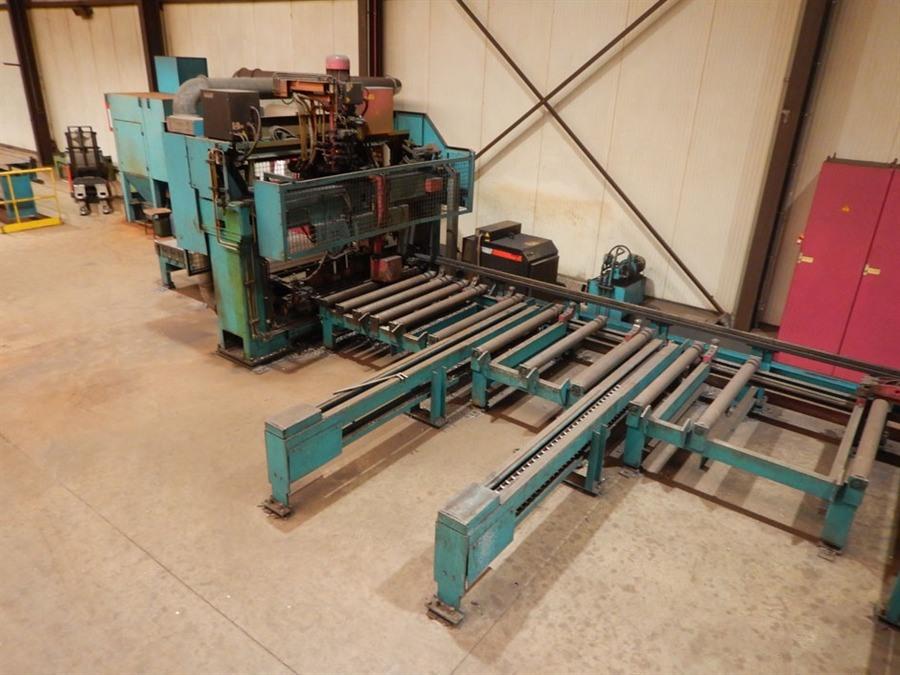

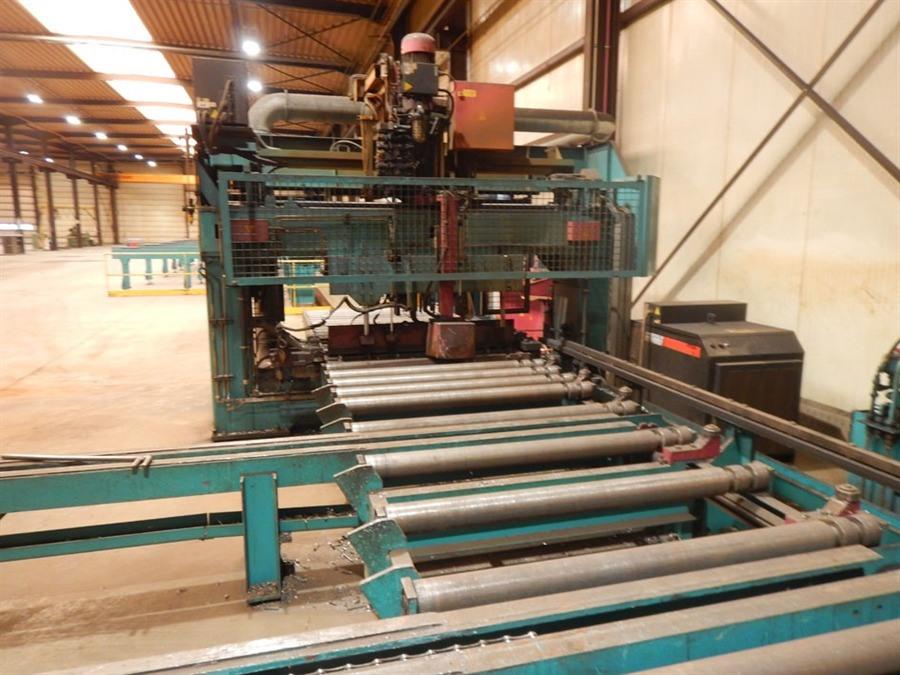

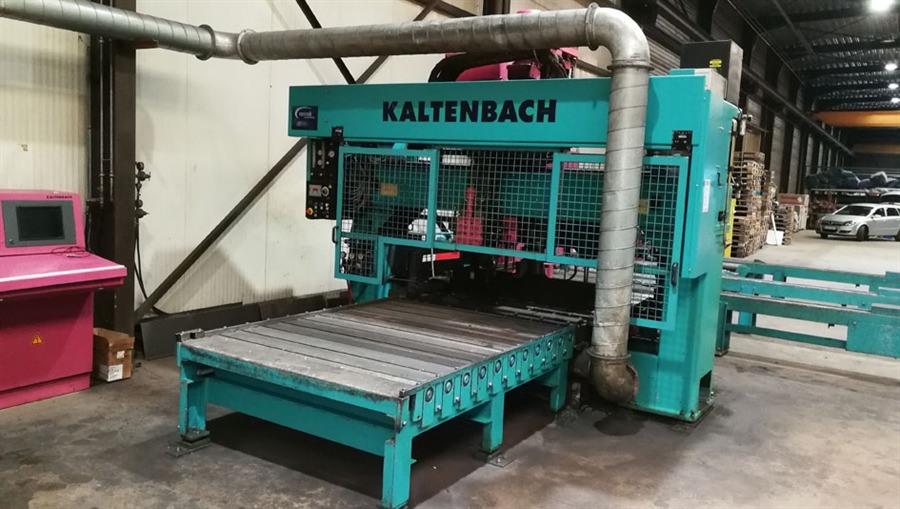

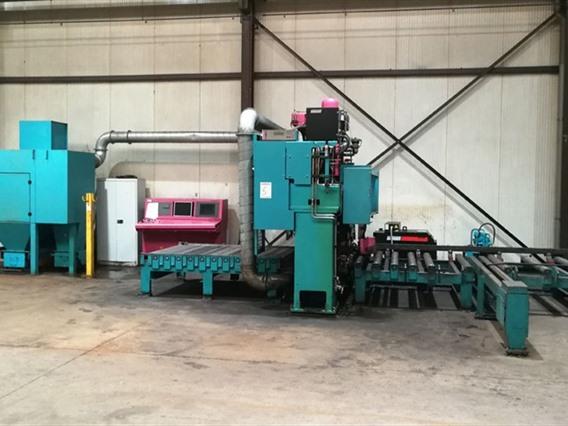

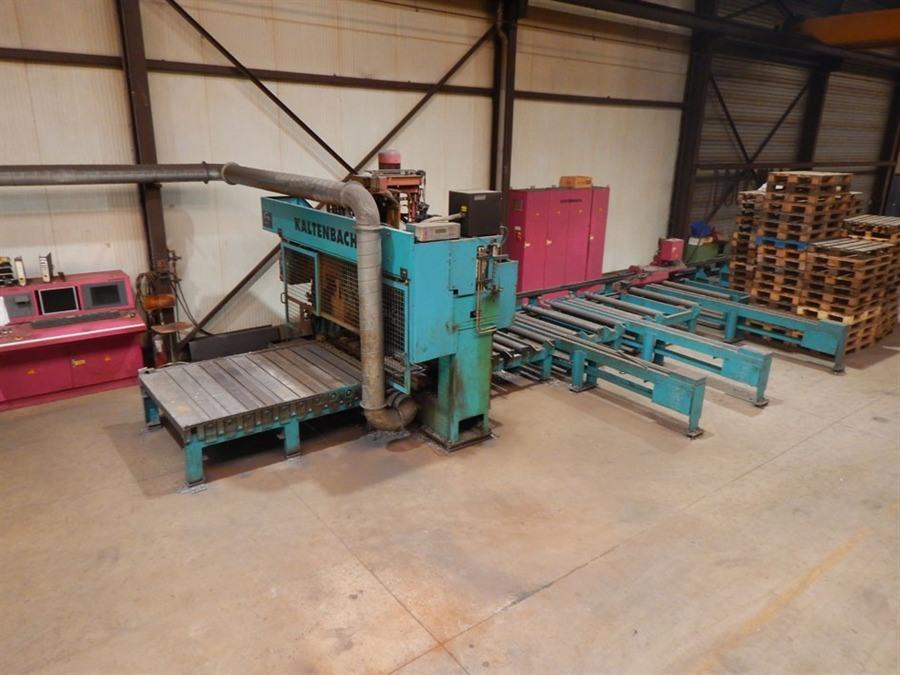

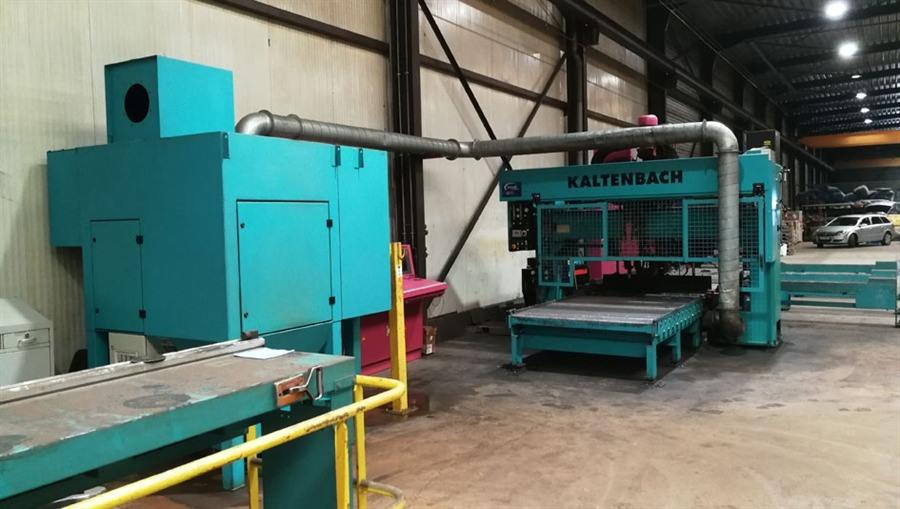

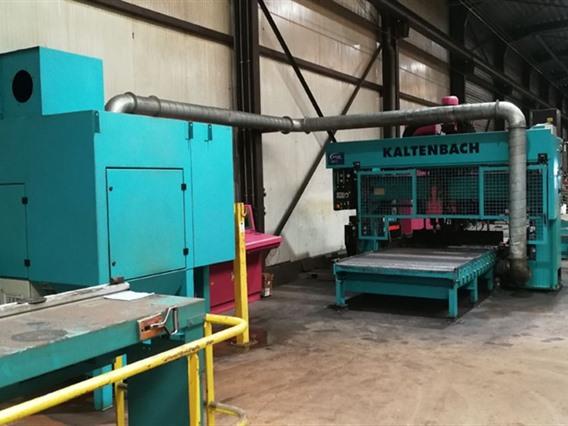

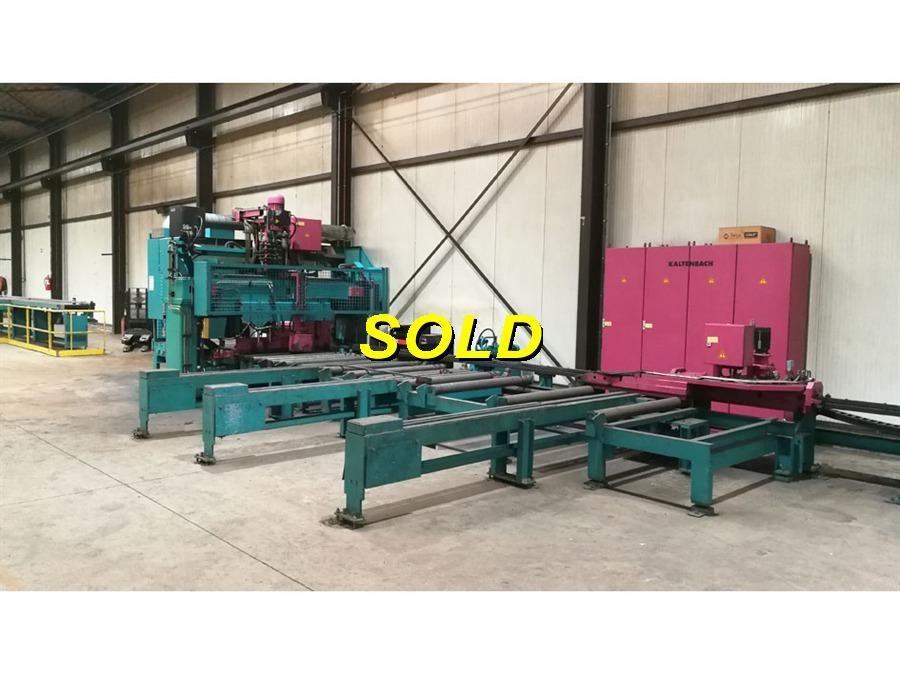

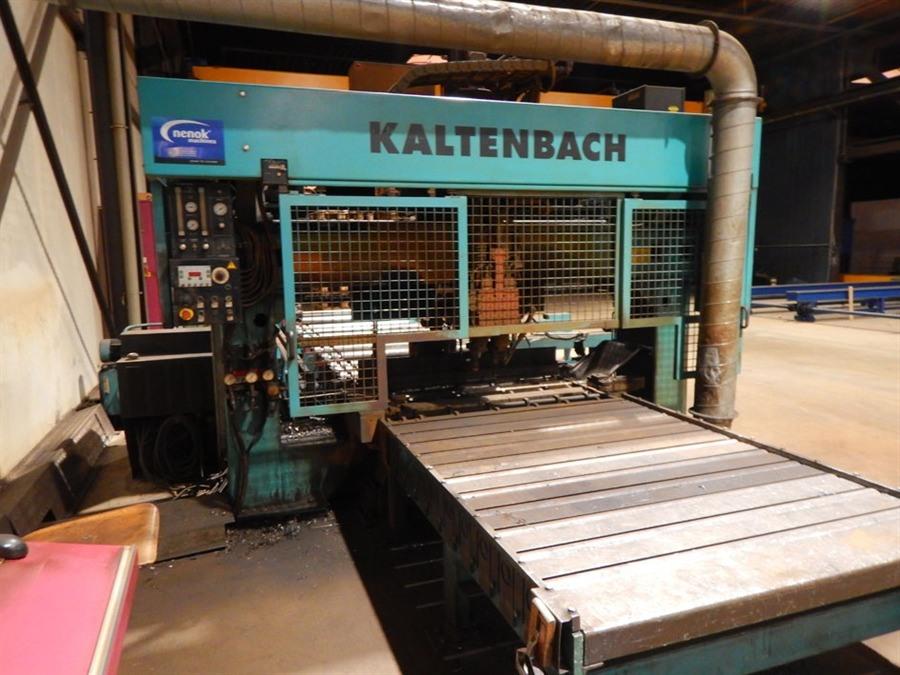

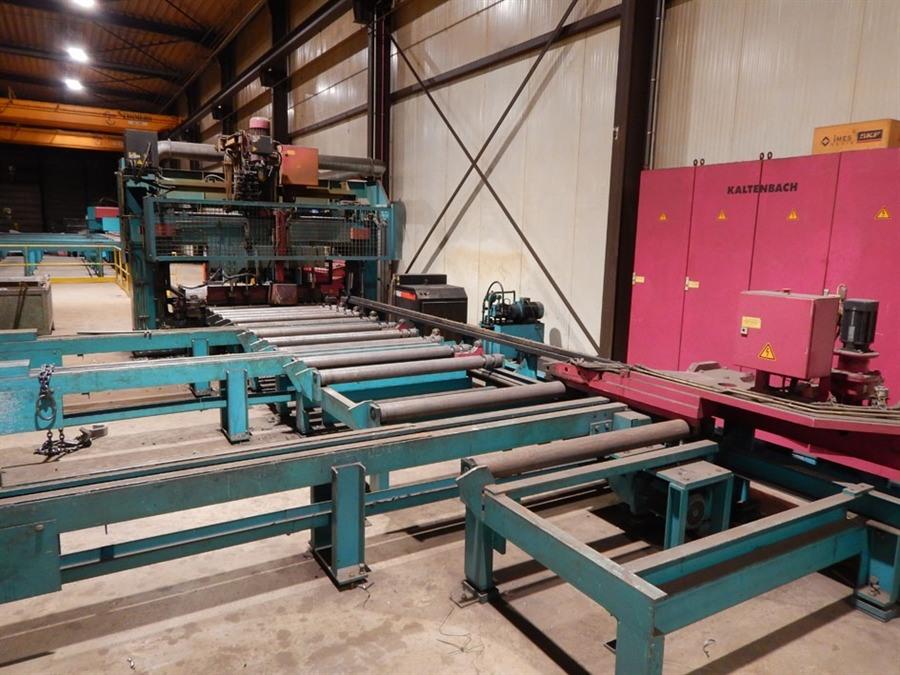

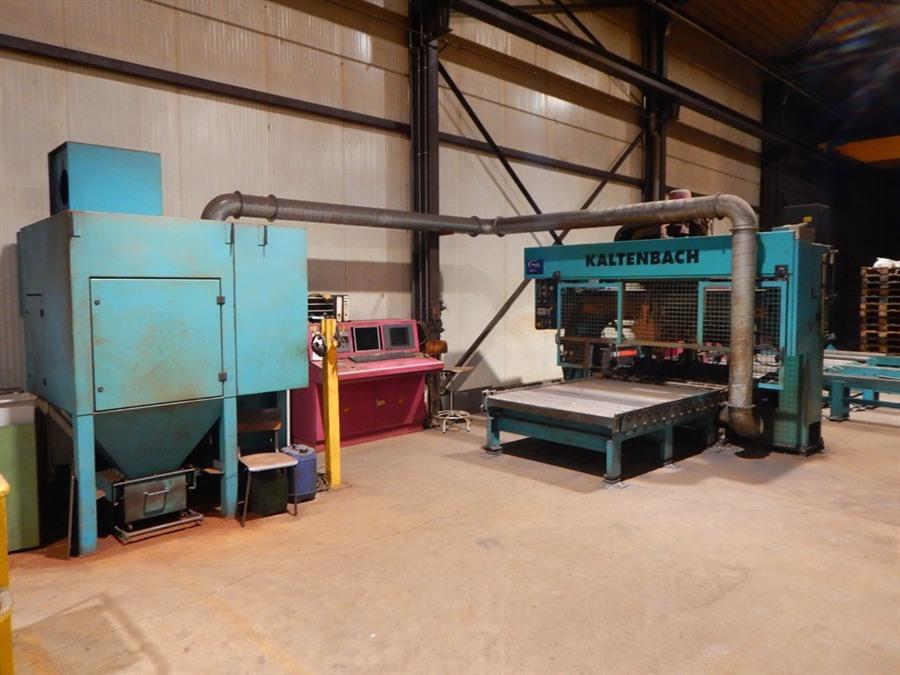

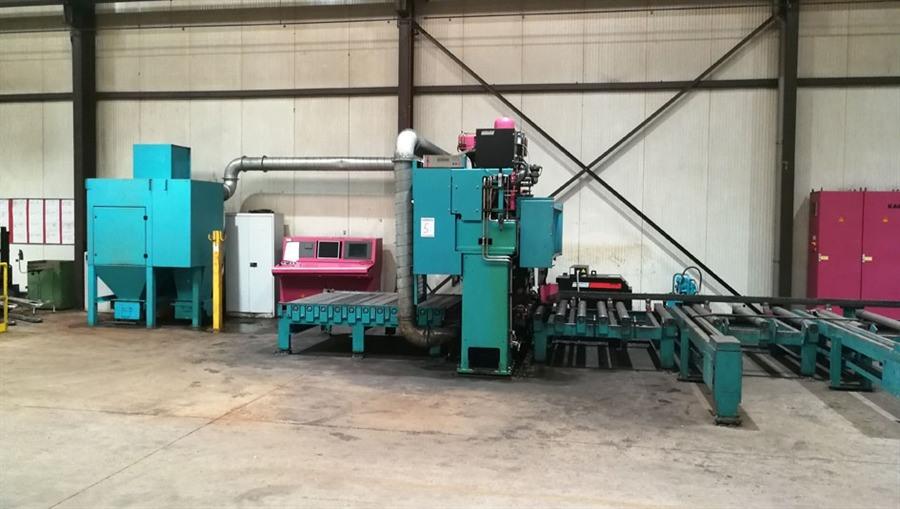

Kaltenbach Drilling & Plasma cutting CNC
Дополнительная информация
Type: WBZ 1500 CNC
Drilling & Plasma cutting for steelcontruction (foot plates, gussets, head plates,...)

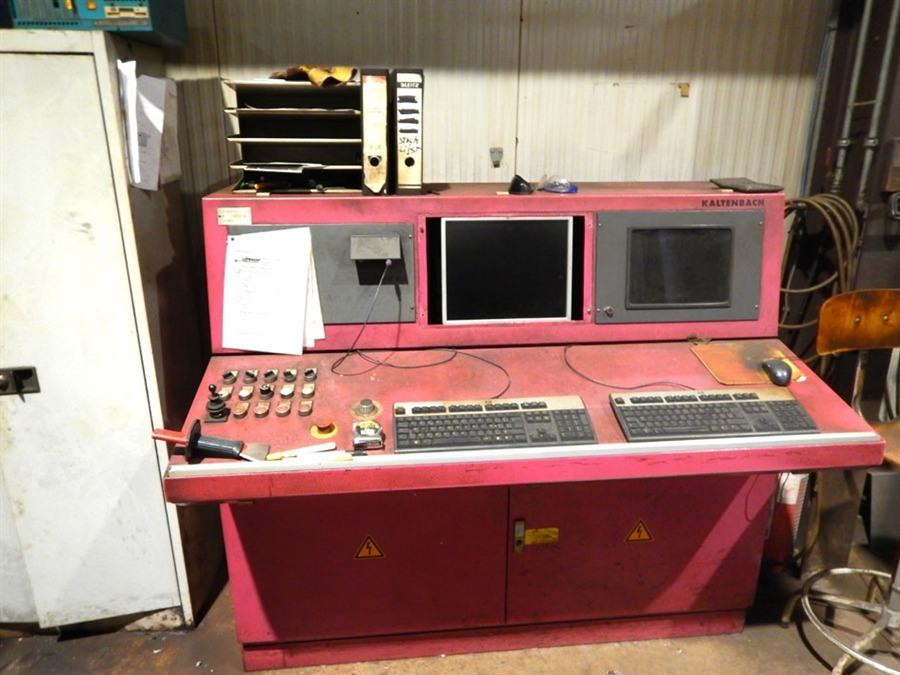

- CNC Leukhardt2 axes
- width: 150 > 1500 mm
- length: 500 > 6000 mm
- thickenss: 8 > 50 mm
- max finished workpiece dimensions: 2000 x 1500 mm
- min finished workpiece dimensions: 220 x 50 mm

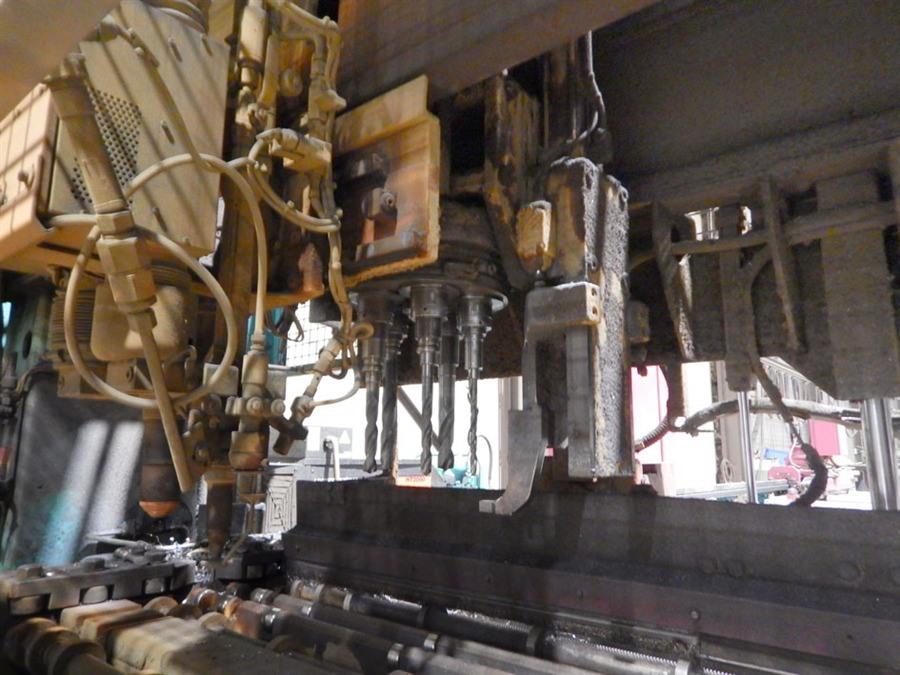

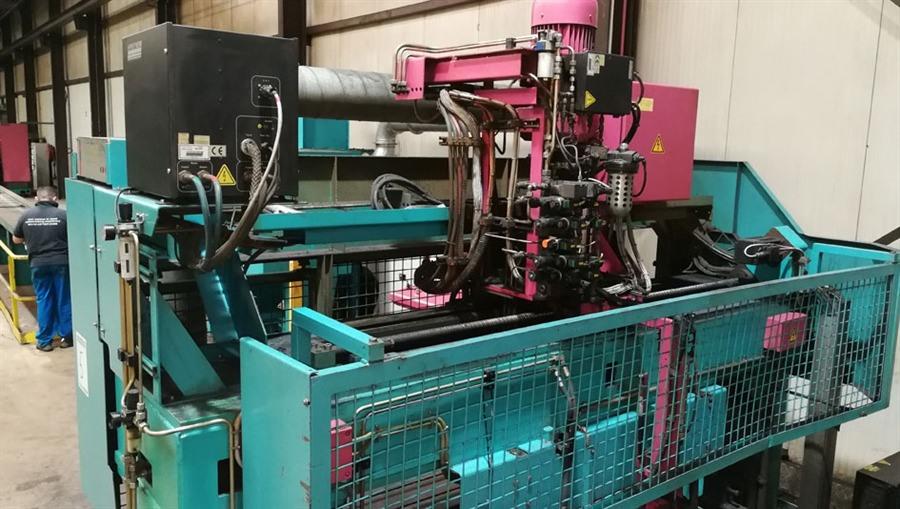

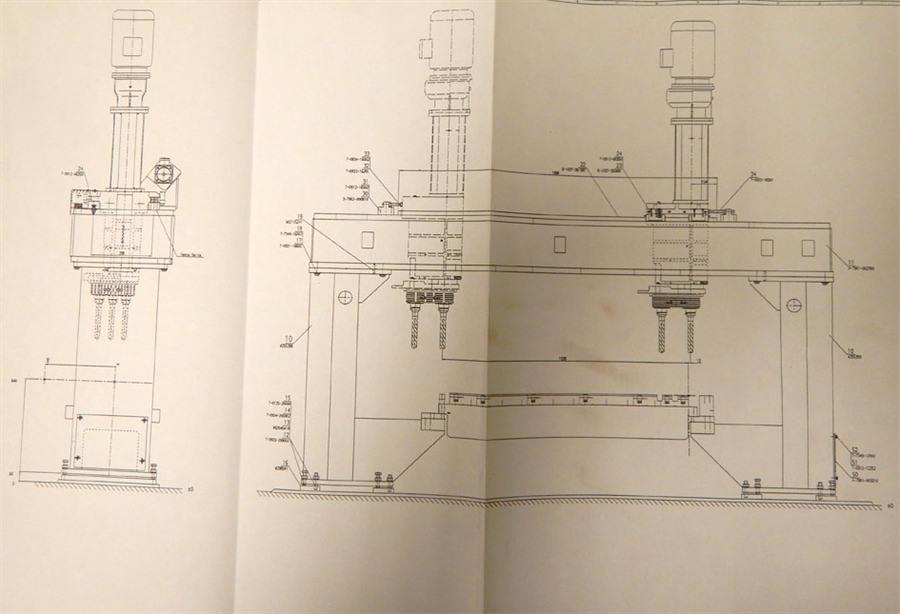

Drilling:
- max dia: 40 mm
- speed: 120 > 720 rpm
- stroke: 350 mm
- 5 tools

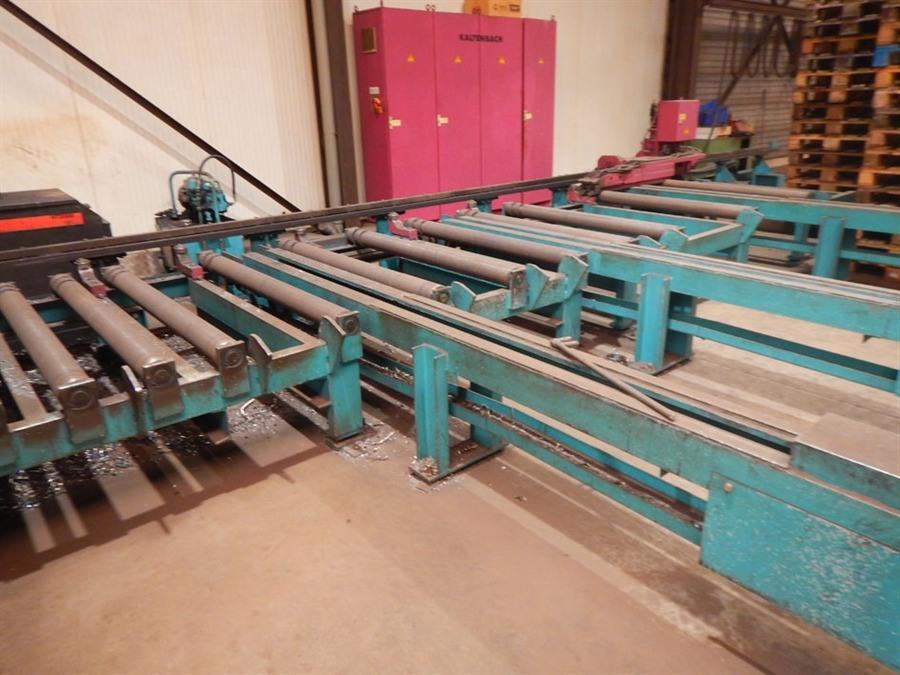

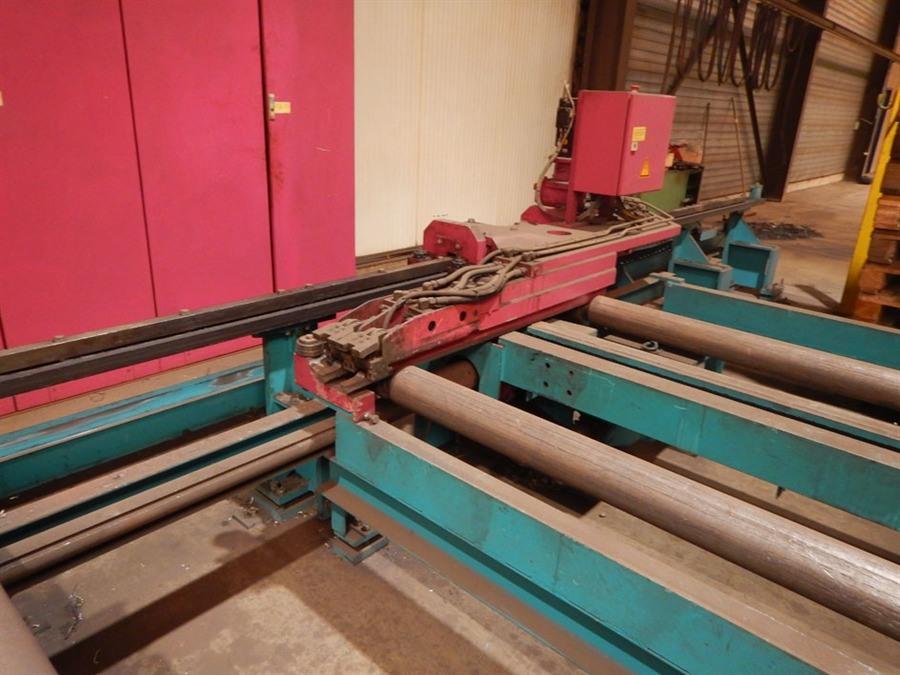

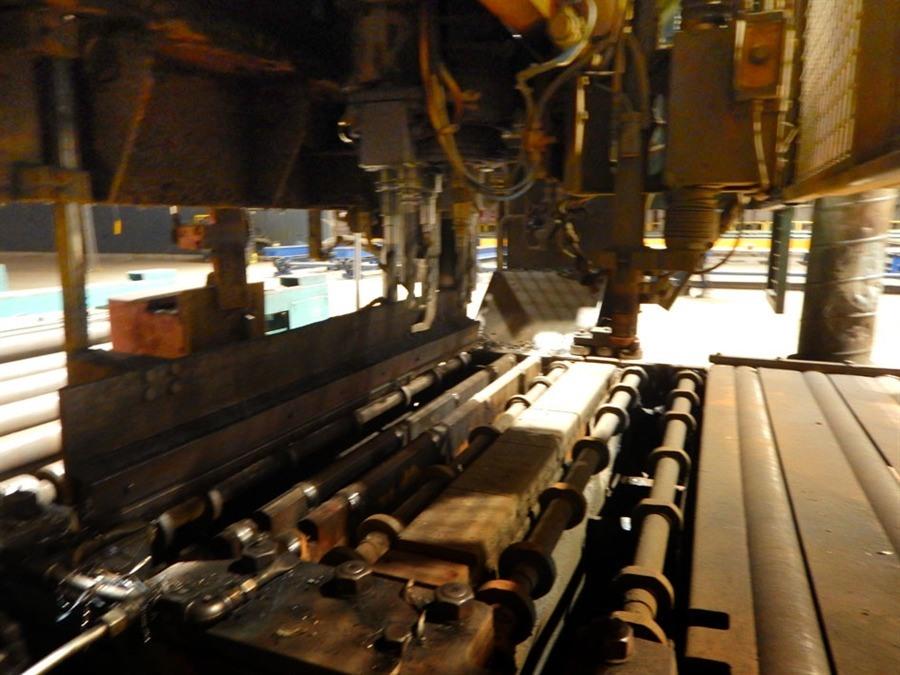

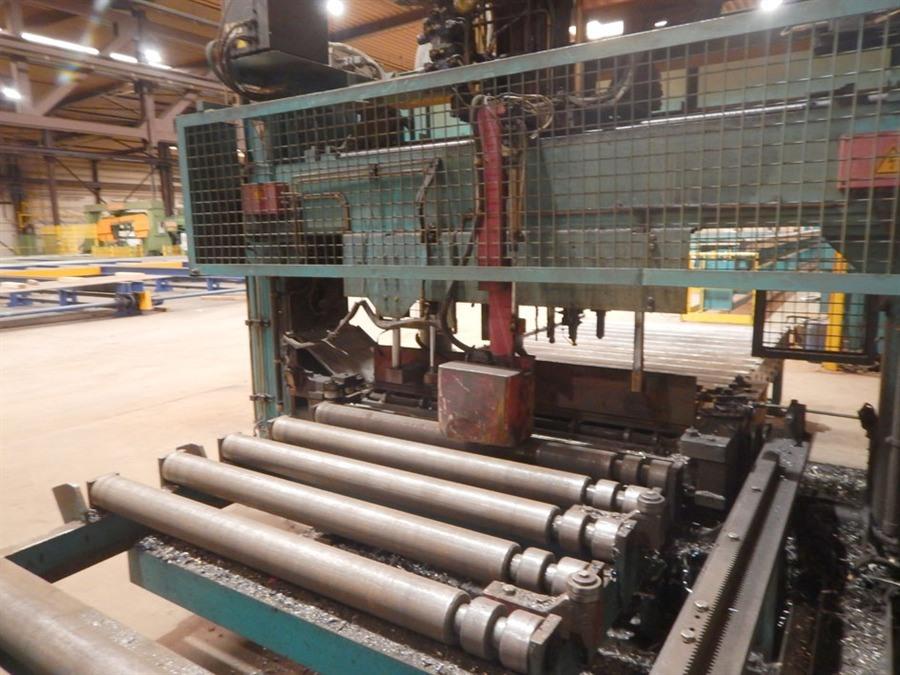

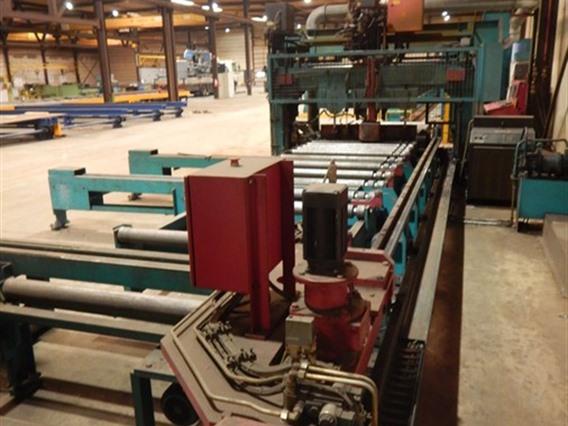

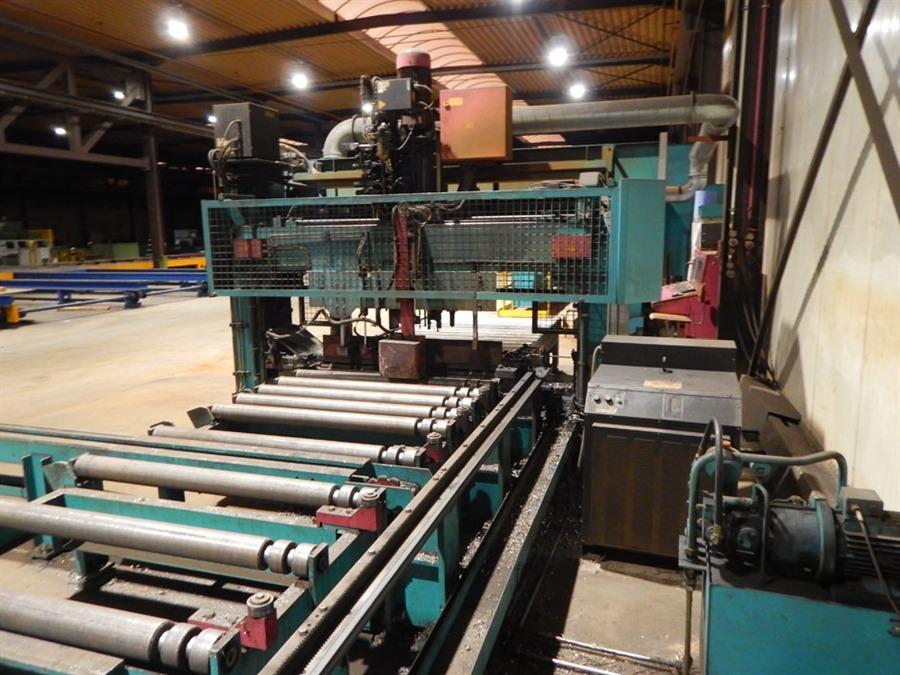

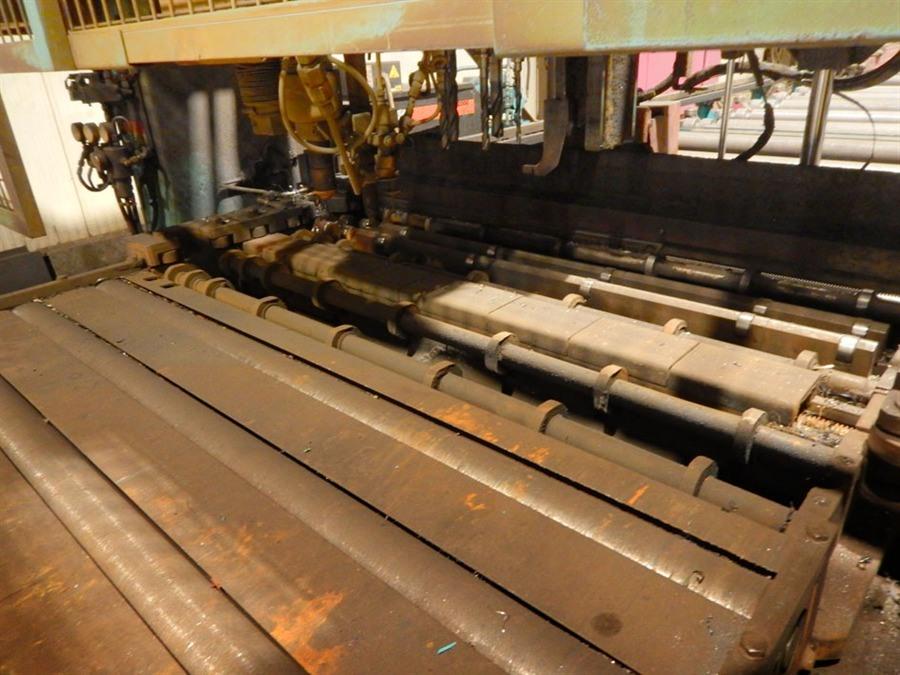

Feed-in unit with gripper:
- stroke: 6000 mm
- gripforce: 14 kN

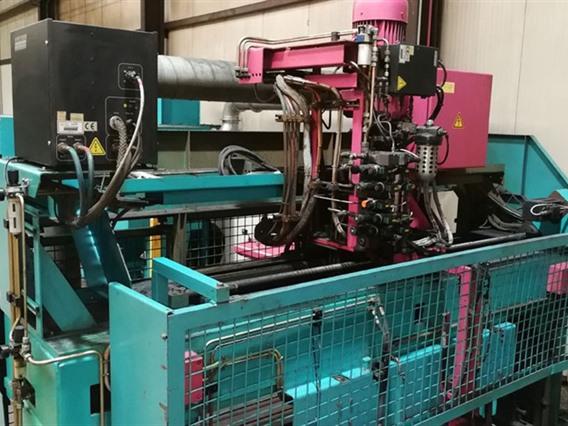

Autogenous plasmacutting unit:
- Y-movement: 1530 mm
- burner height adjustment: 200 mm

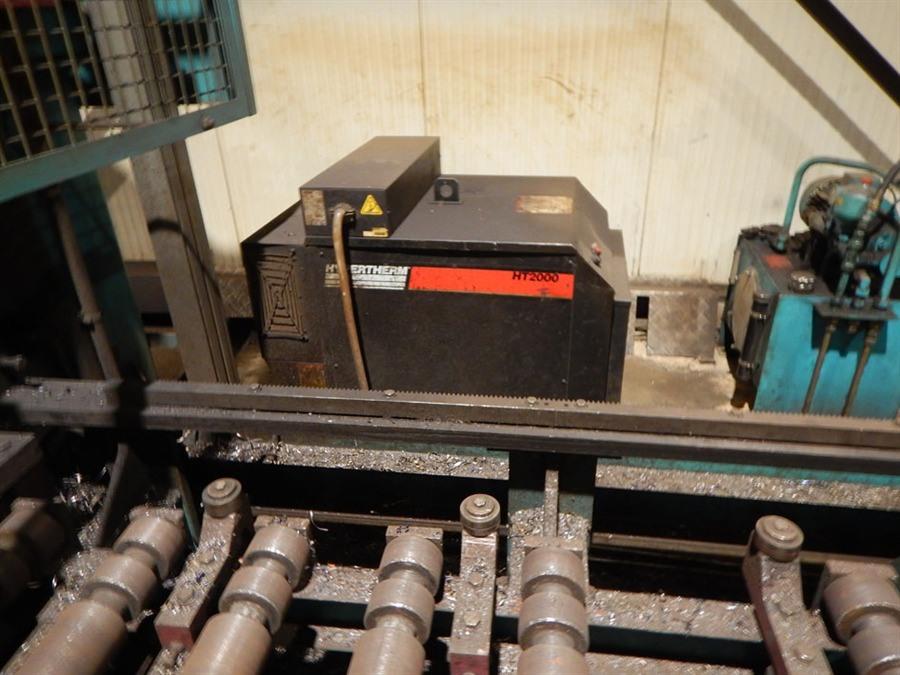

- Hypertherm plasmascource
- Welding suction unit
Marking unit:
Markator Version 5
Power: 40 kVa
- Тип модели: Drilling & Plasma cutting CNC
- Номер каталога: C.05 9791
- Главная категория : [C] Сверлильные станки
- Подкатегория: [C.05] Координатно-расточно-фрезерные станки
- Производитель: Kaltenbach
