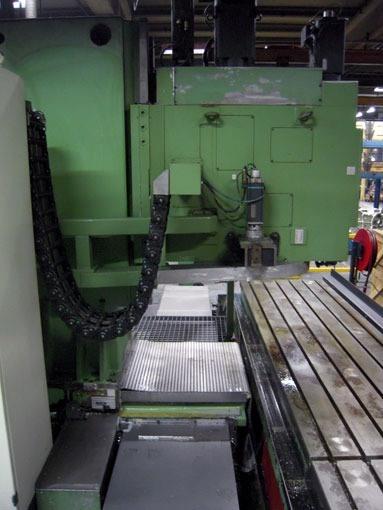

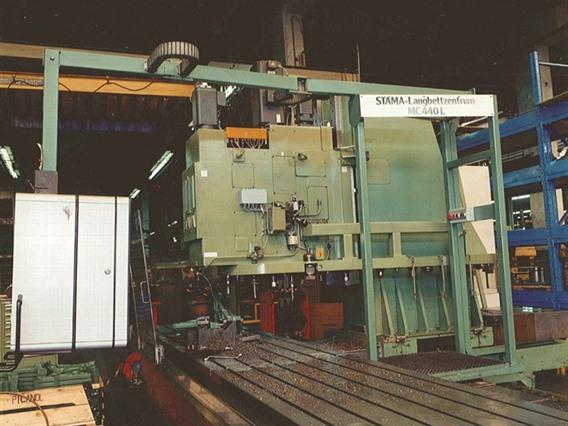

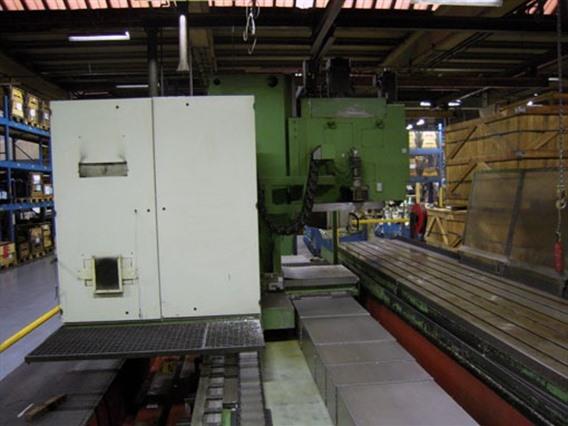

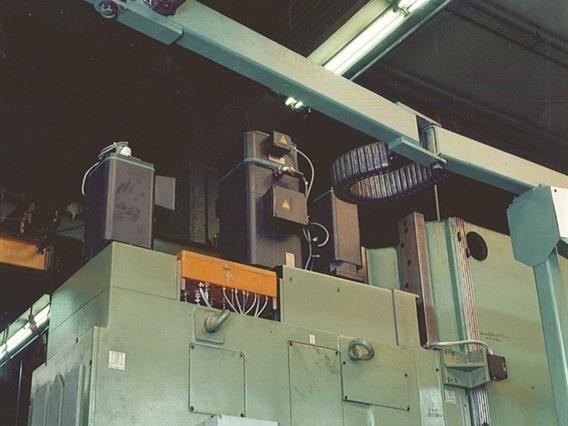

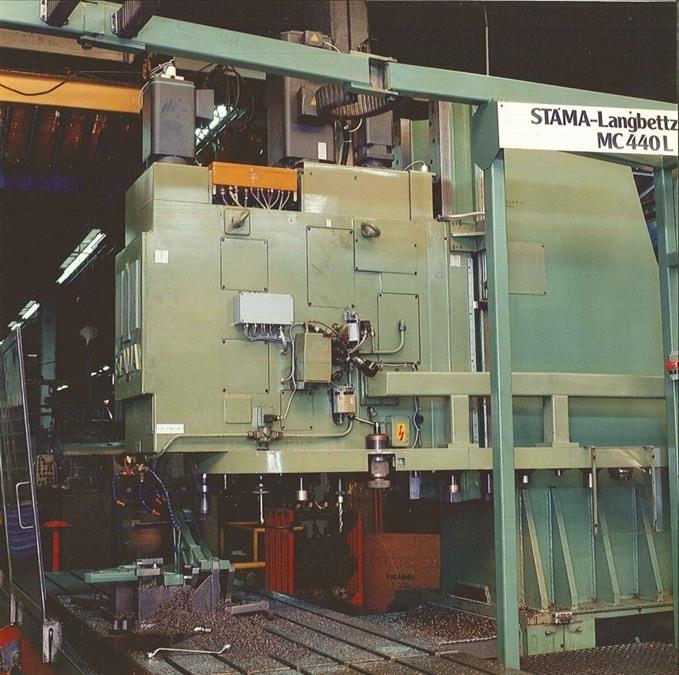

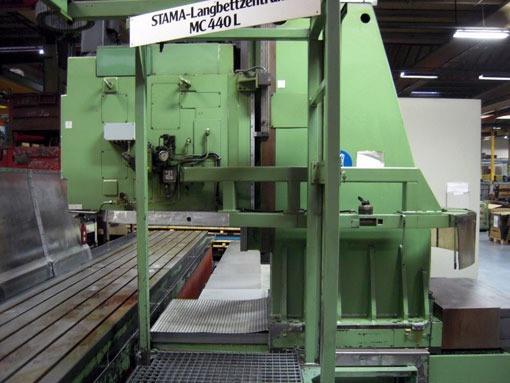

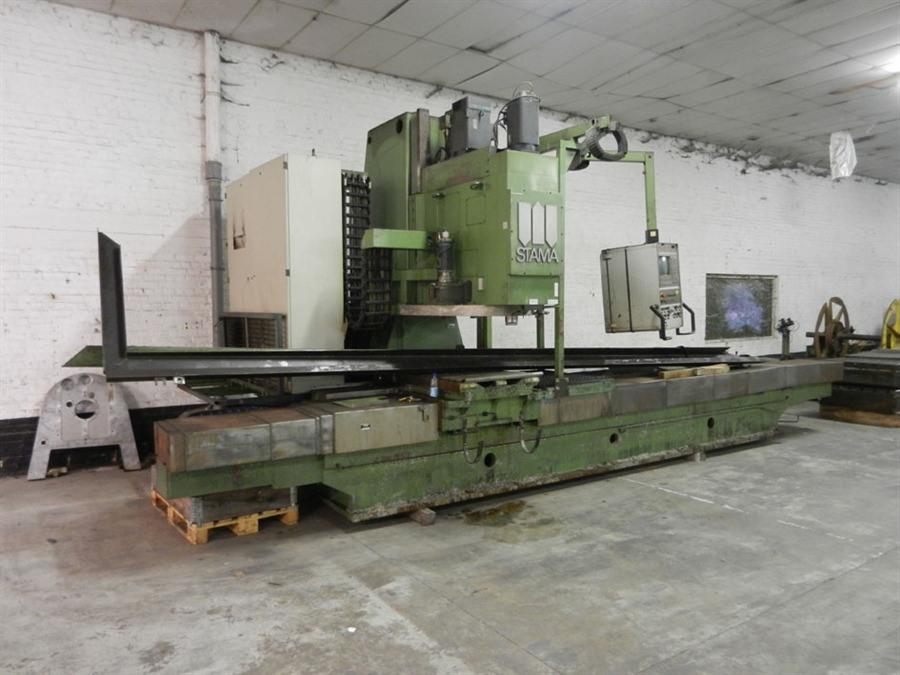

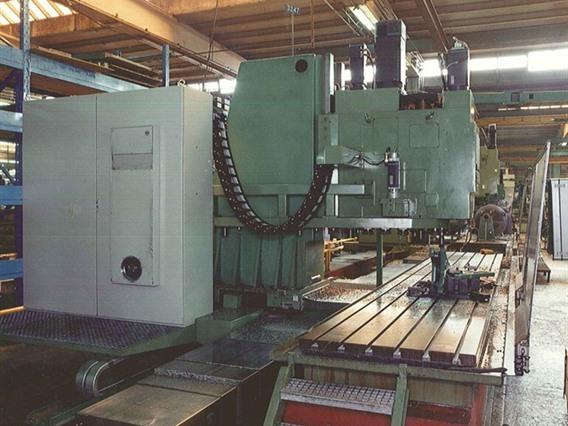

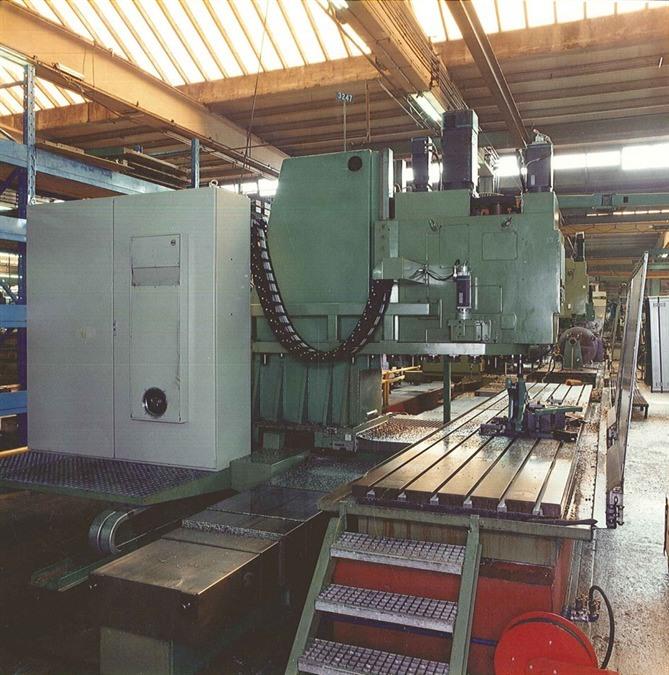

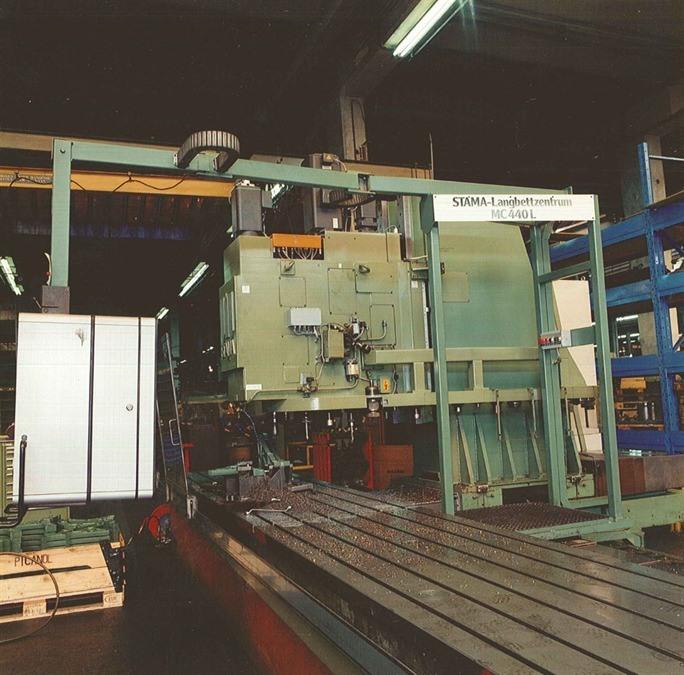

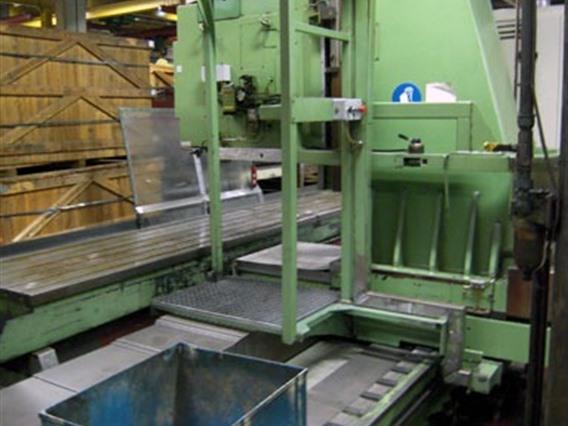

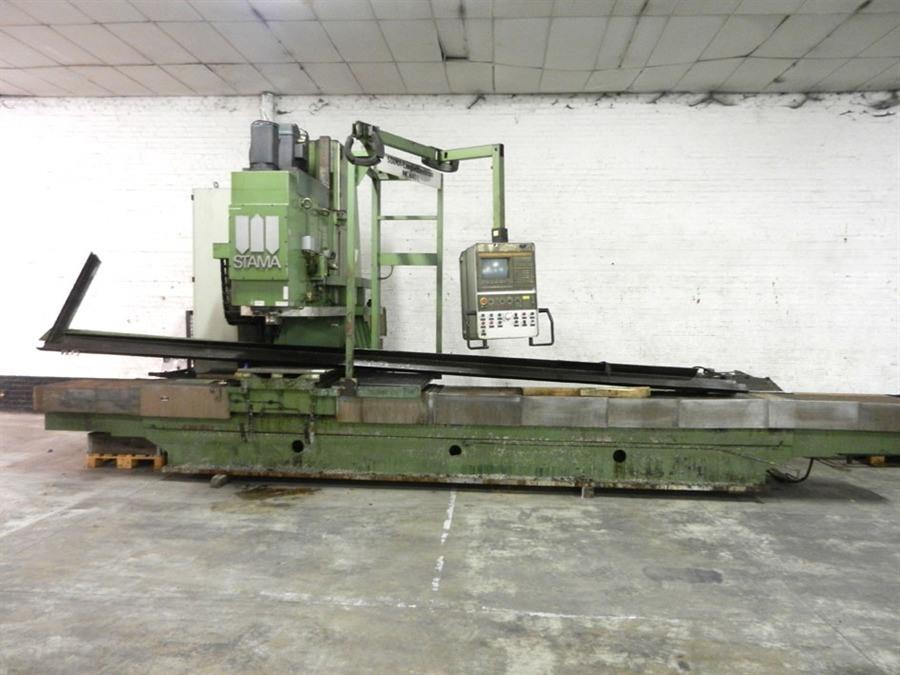

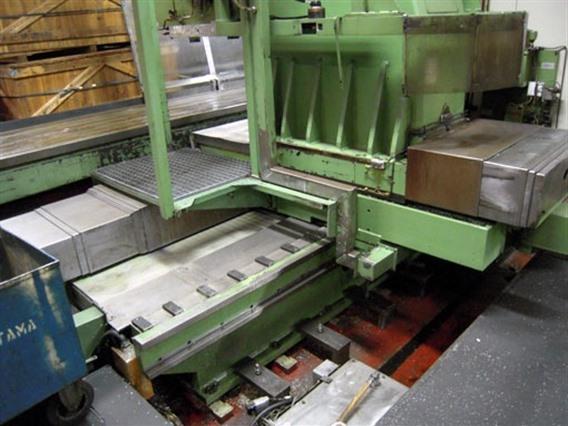

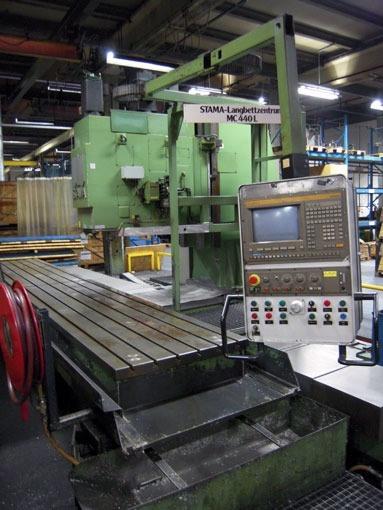

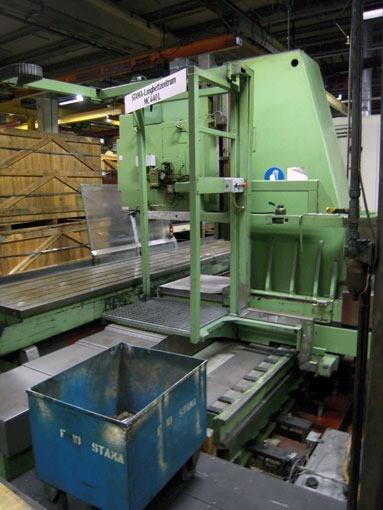

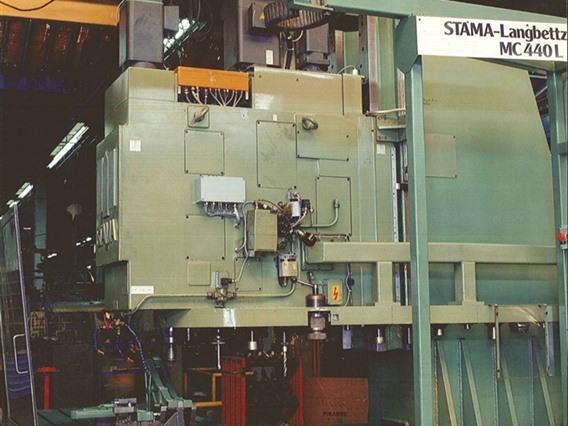

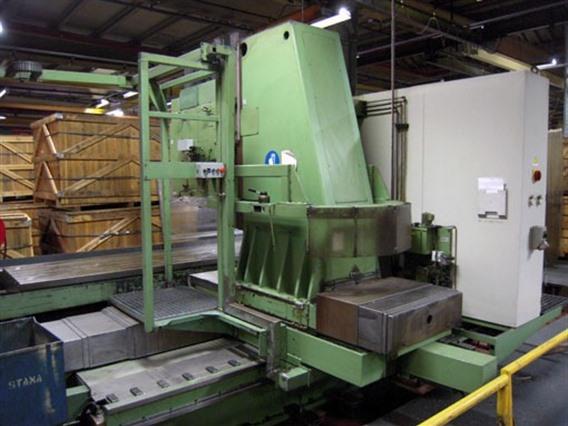

Współrzędnościowe wytaczarki i frezarki Stama MC 440 L

Produkt dodany do ulubionych

» Poprosić o indywidualną wycenę

Specyfikacja

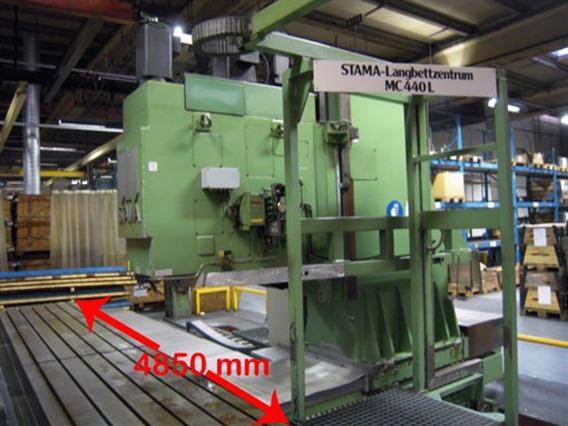

Longitudinal table-travel (X-axis)4850 mm
Drillinghead travel (Y-axis)1100 mm
Travel : up--down arm (Z-axis)1200 mm

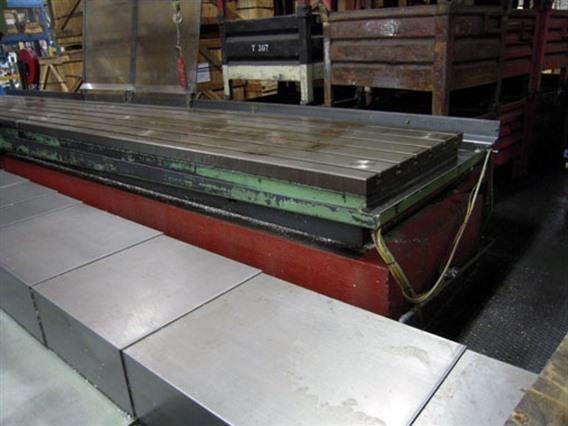

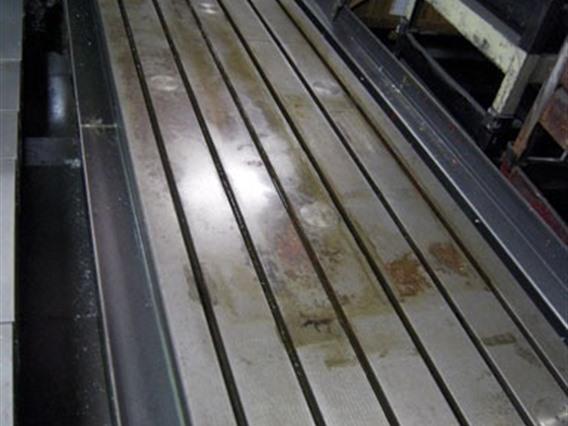

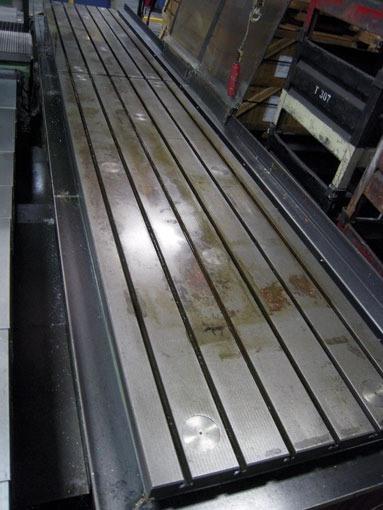

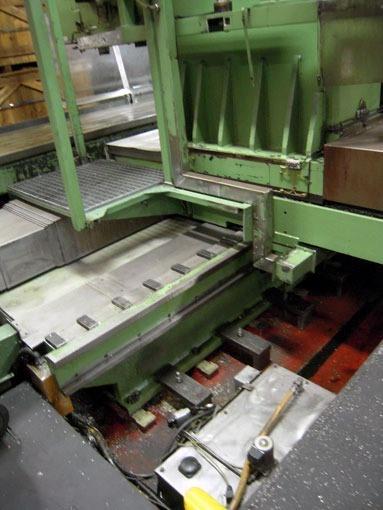

Table dimensions6000 x 1000 mm
Admission in spindle (cone x)ISO 50
Max drillingdepth300 mm
Max drillingcapacityØ 100 mm
THROAT DEPTH DRILLING-SPINDLE1050 mm
Speeds28 -> 2800 rpm
Motor power18 kW (on spindle)

Dodatkowe informacje

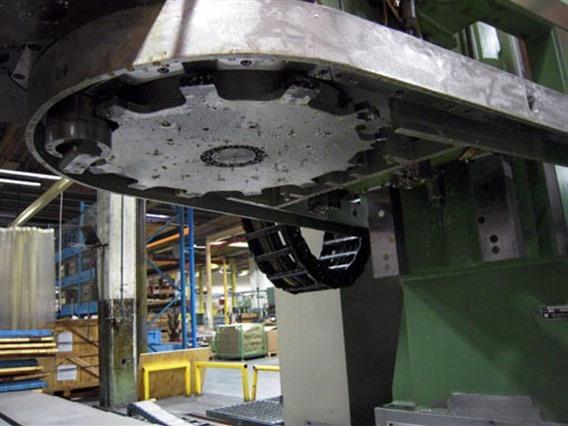

Toolchanger: 40 positions

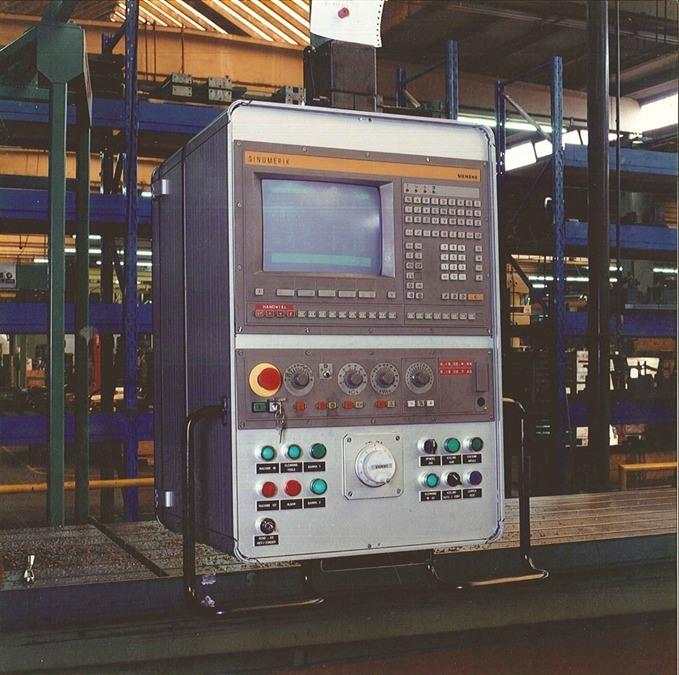

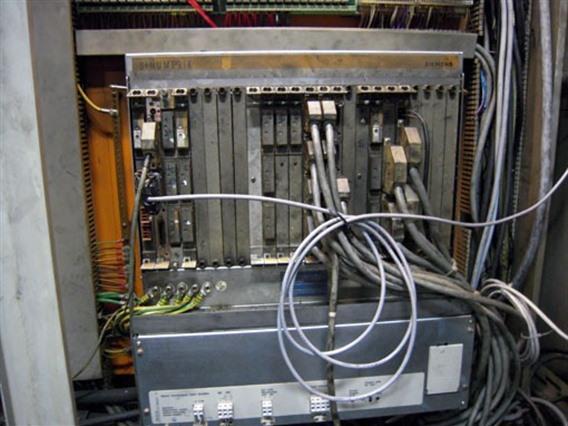

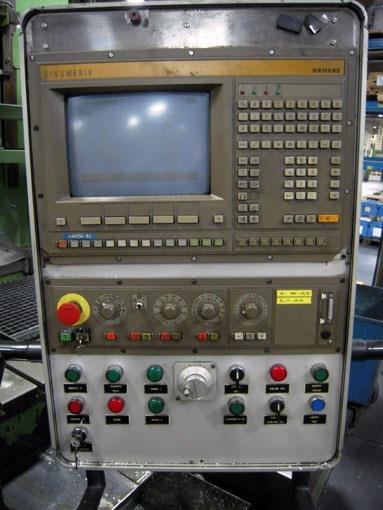

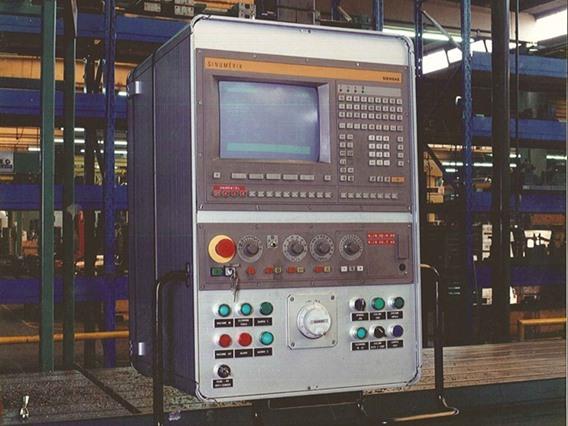

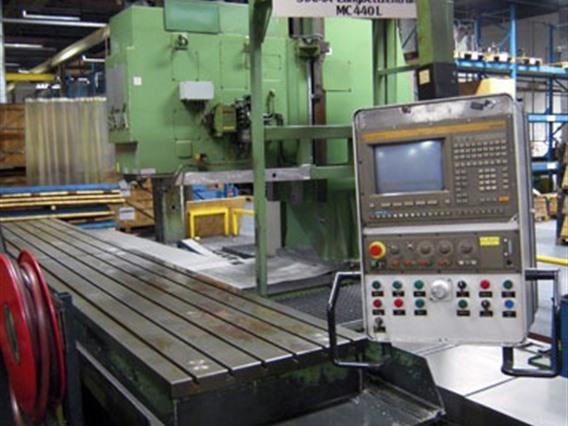

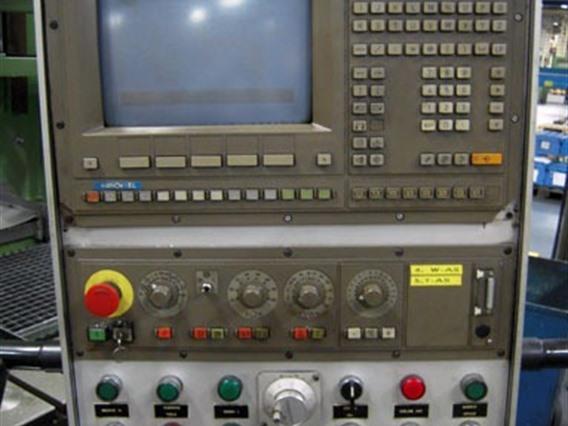

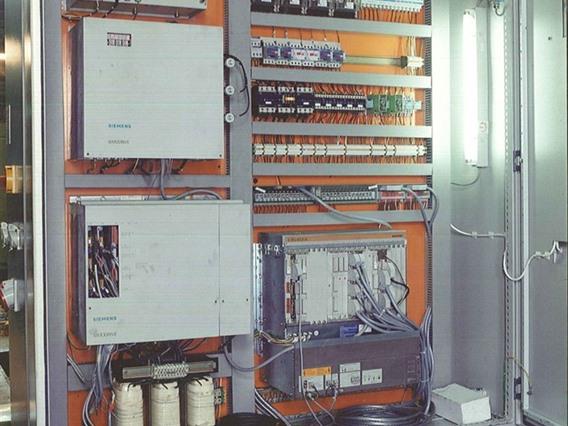

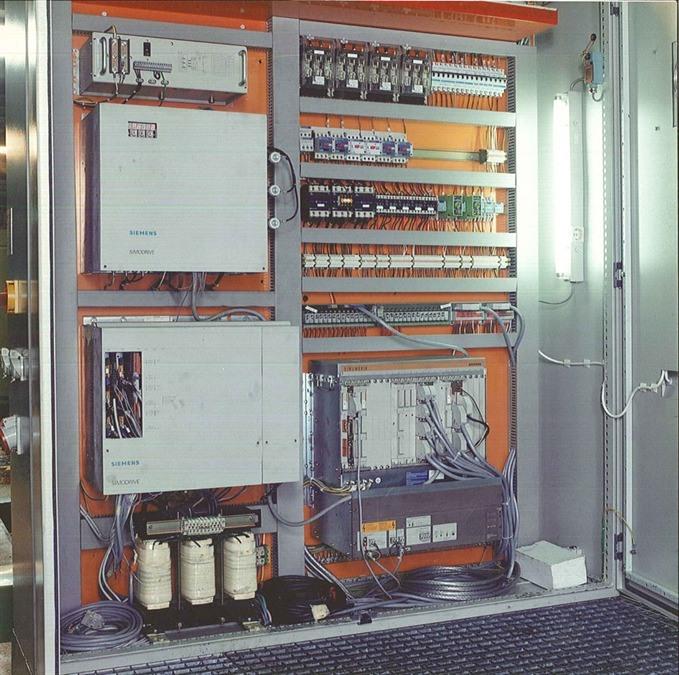

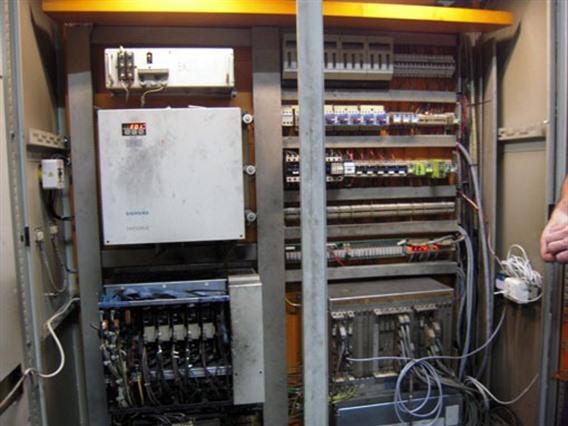

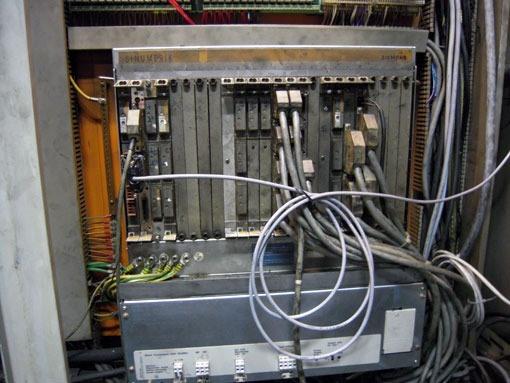

Renewed Siemens control (1998)

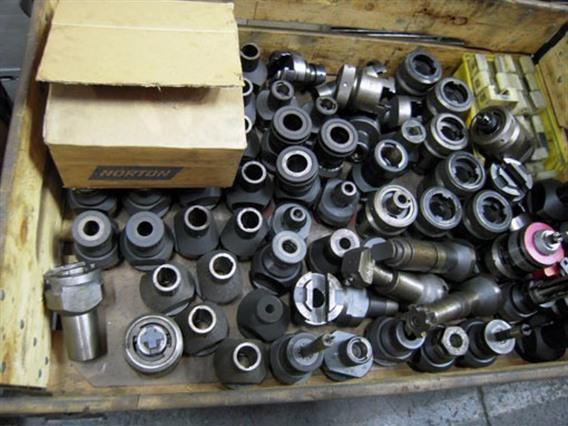

Including many tools
spindledia: 100 mm

distance spindle-column: 1250 mm

distance spindlenose-table min/max: 150/950 mm

max workpieceweight: 3000 kg

clampingdimensions: 1600 x 800 mm

6 T-slots - width: 18 mm

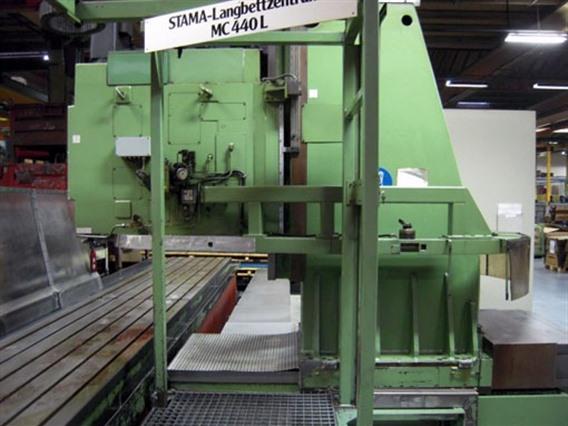

Typ/Model: MC 440 L
Stocknumber: C.05 4966
Kategoria główna: [C] Wiertarki
Sub kategorii: [C.05] Współrzędnościowe wytaczarki i frezarki
Marka: Stama

» Poprosić o indywidualną wycenę

Stocknumber: C.05 4966
