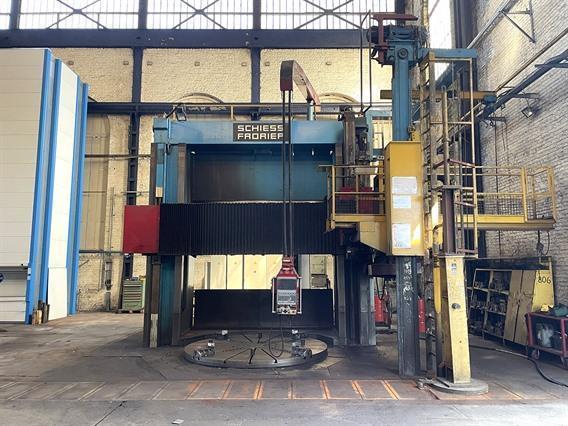

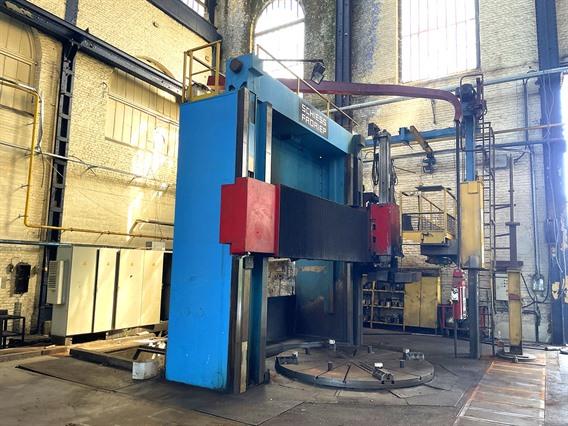

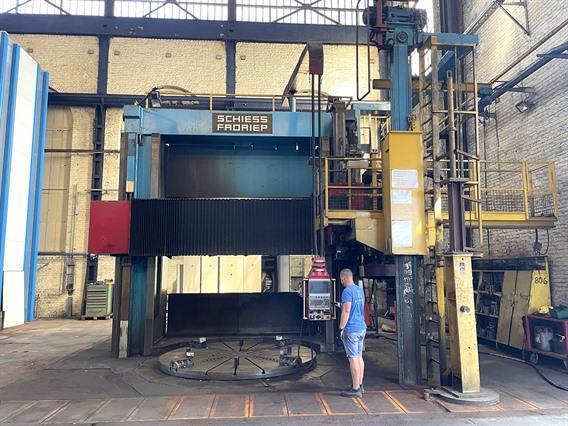

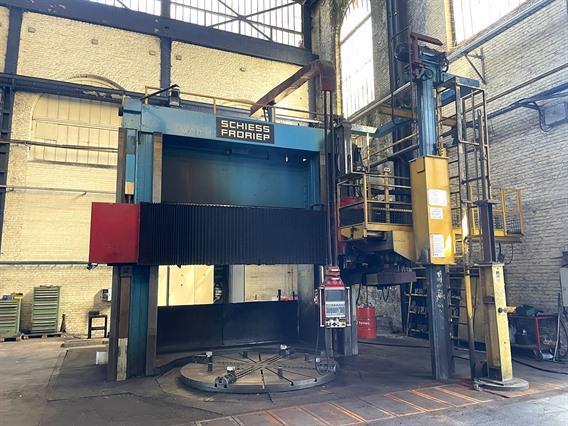

Schiess 32 DZ Ø 4020 x 3420 mm CNC

Produkt dodany do ulubionych

» Poprosić o indywidualną wycenę

Dodatkowe informacje

Schiess 32 DZ
Type: 32 DZ 300/350-325/160

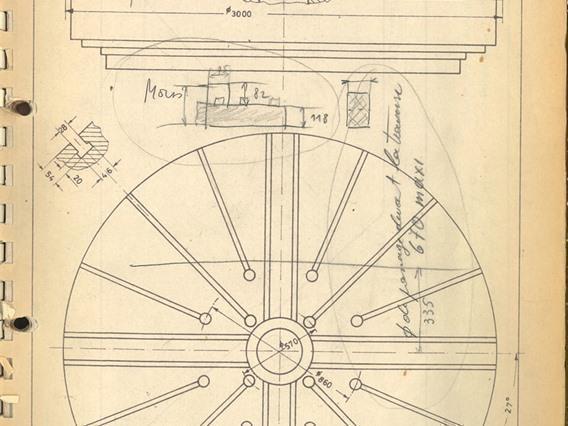

Table diameter: 3000 mm
Max load: 44 ton
Speed: 1 > 10 rpm

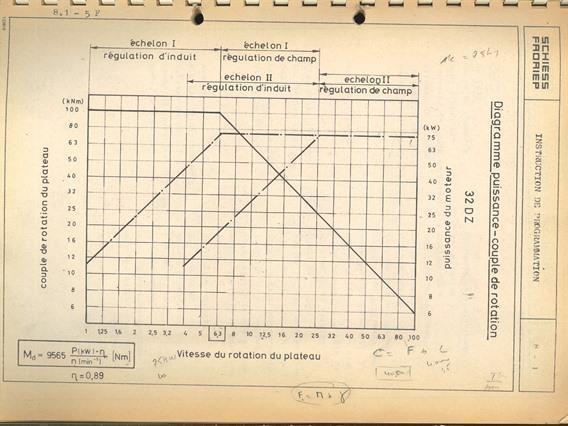

Max rotational torque: 10000 kgm
Power: 75 kW

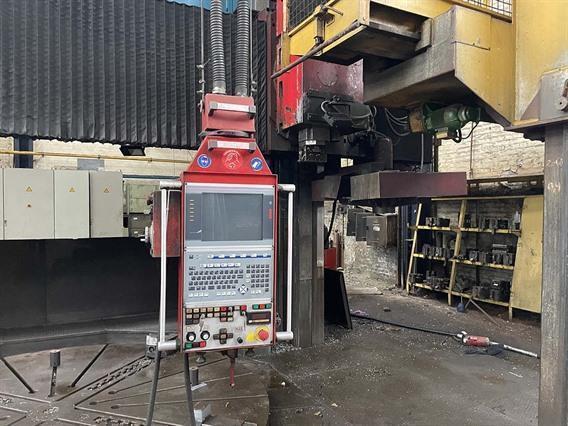

CNC control: BOSCH

Horizontal travel of toolholder from center of table: 2510 mm
Vertical travel of cross-beam: 1600 mm
Vertical travel of toolholder: 1600 mm
Toolholder can tilt left and right 30°
Max height of workpiece: 3420 mm
Max diameter of workpiece: 4020 mm

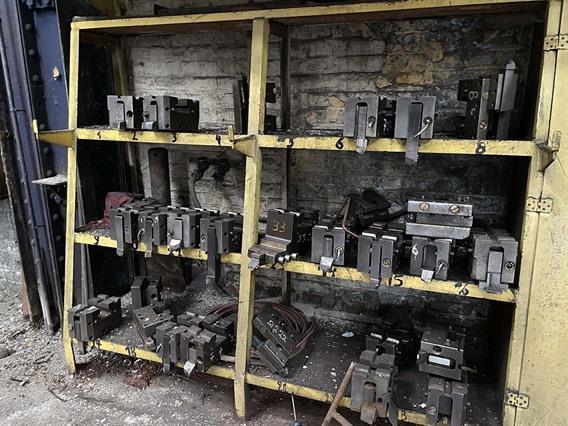

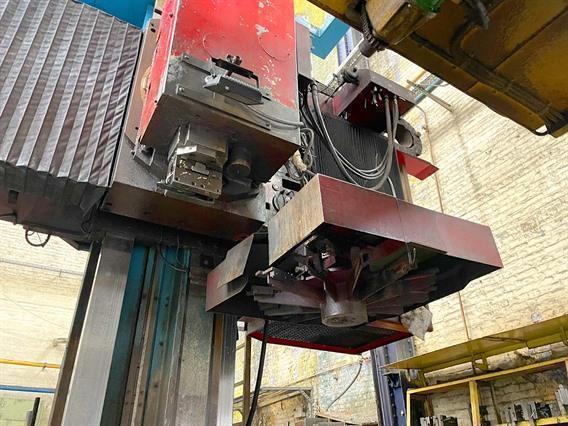

Toolchanger with 12 toolpositions
Typ/Model: Ø 4020 x 3420 mm CNC
Stocknumber: A.12 14135
Kategoria główna: [A] Tokarki
Sub kategorii: [A.12] Tokarki pionowe konwencjonalne i CNC
Marka: Schiess 32 DZ

» Poprosić o indywidualną wycenę

Stocknumber: A.12 14135
