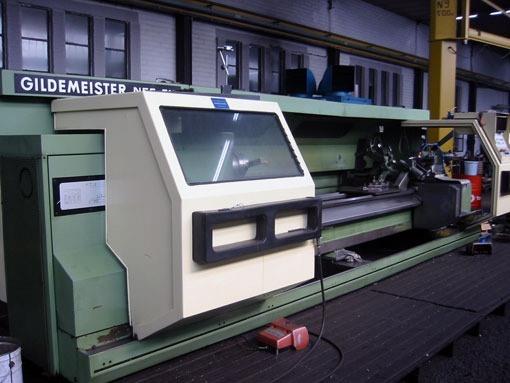

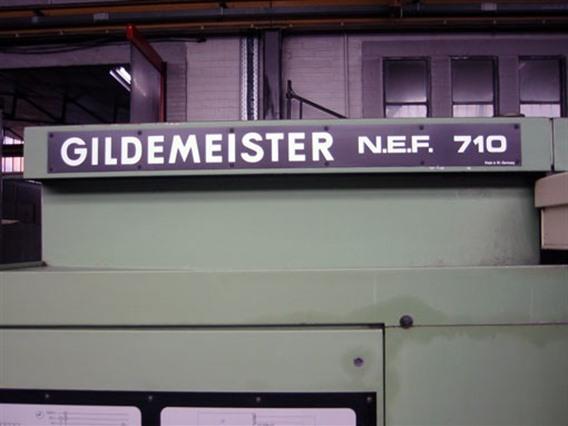

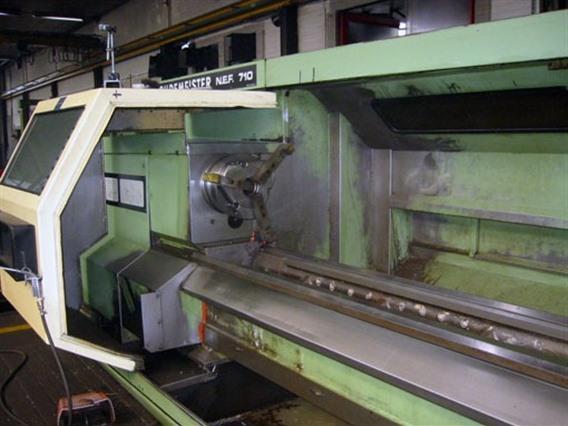

Tokarki CNC Gildemeister NEF 710 CNC
Specyfikacja
- Swing over bed710 mm
- Swing over cross-slide350 mm
- Distance centre tot centre3250 mm
- Max longitudinal travel Z-axis6000 mm/min
- Max cross travel X-axis8000 mm/min
- Spindle coneMC-5
- Dia of spindle bore103 mm
- Number of speeds0 -> 1800 rpm

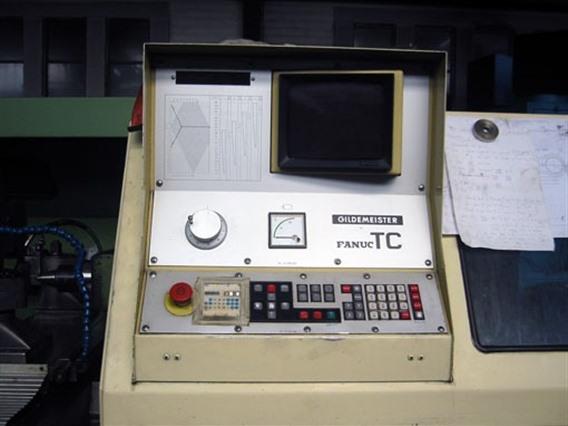

- CommandFanuc
- Total power needed30 kW
- Length L -- R5845 mm
- Width Fw -- Bw2160 mm
- Height1895 mm
- Weight5900 kg
- ACCESORIES*
