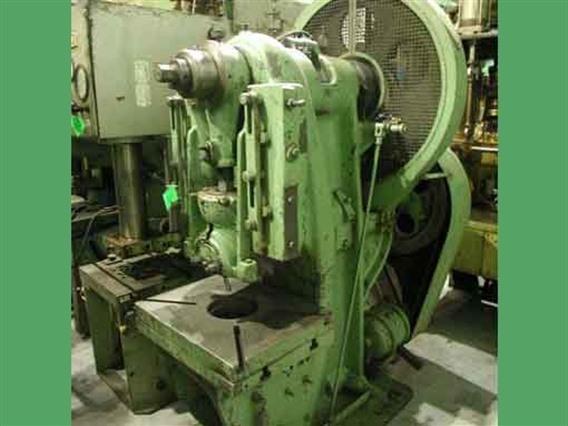

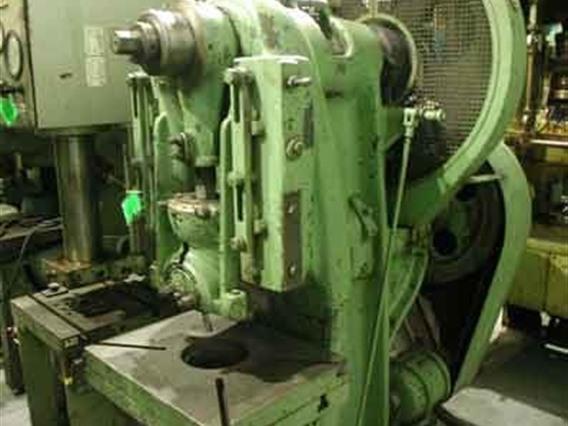

Raskin 90 ton

Produkt dodany do ulubionych

» Poprosić o indywidualną wycenę

Specyfikacja

Capacity90 Ton
ClutchClavet
Deph of throat300 mm
Max ram adjustment13 -> 127 mm
Workingspeed80 str/min
Passage between uprights400 mm
Controlfoot
Distance between table -- ram200 mm
Table area880 x 605 x 70 mm
Dia table hole300mm
Table fixed / sliding945 mm
Ram area (L x D)480 x 310 mm
Punchholder dia50 mm
Electric motor (power)10 pk
Length L -- R1400 mm
Depth F -- B1700 mm
Hight2400 mm

Dodatkowe informacje

Type 80 RM
Typ/Model: 90 ton
Stocknumber: N.05 0168
Kategoria główna: [N] Prasy mechaniczne
Sub kategorii: [N.05] Prasy mimośrodowe typu-C
Marka: Raskin

» Poprosić o indywidualną wycenę

Stocknumber: N.05 0168

Pobierz wszystkie zdjęcia w pocztowy
