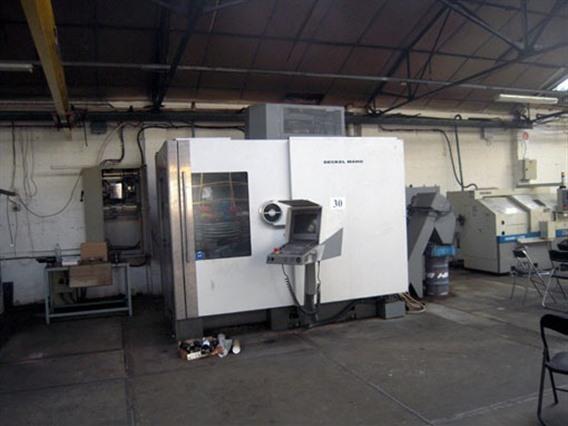

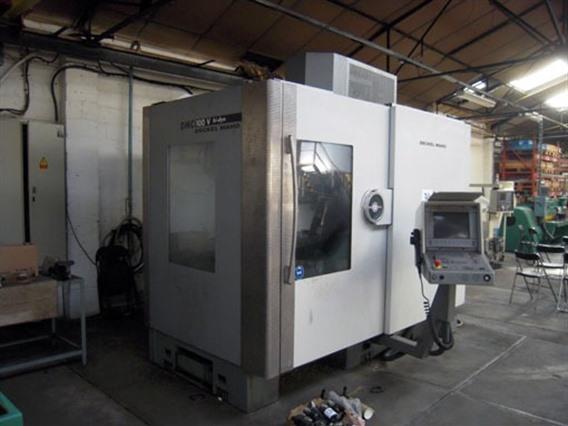

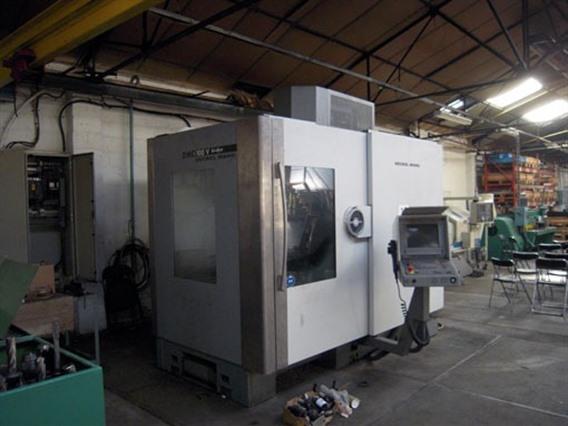

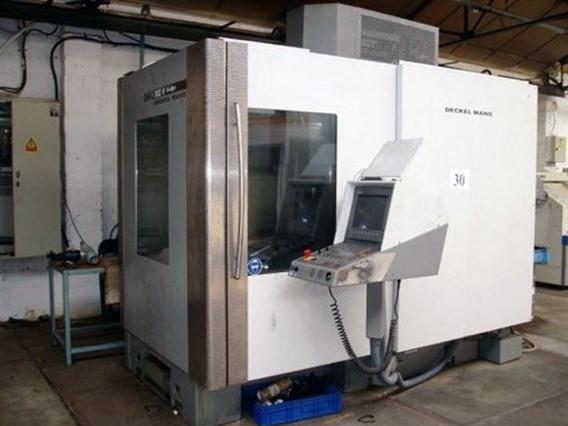

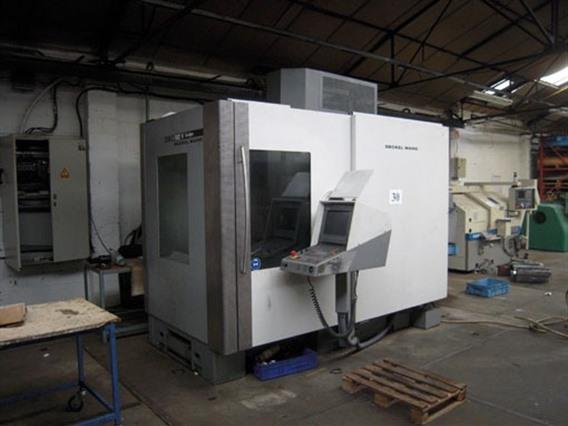

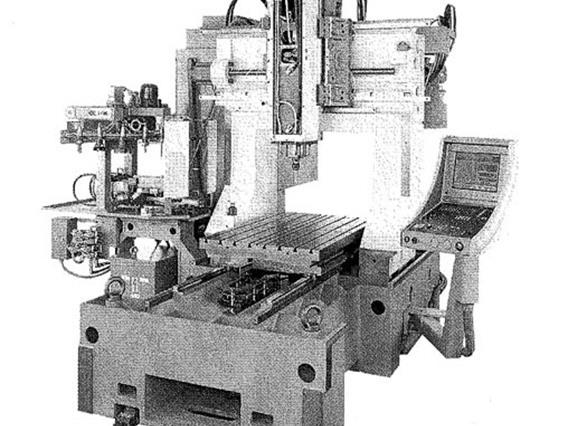

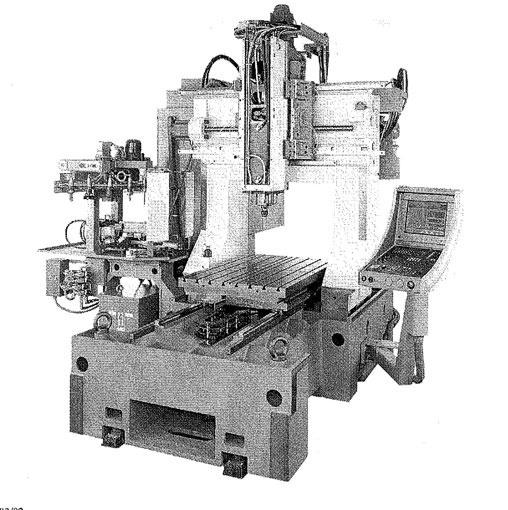

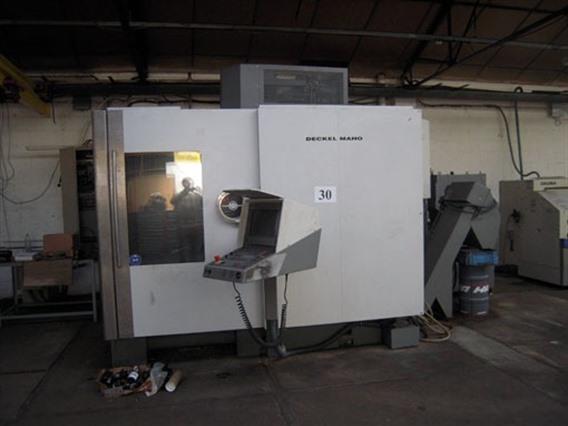

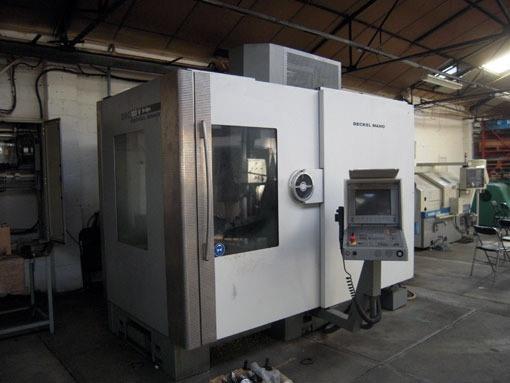

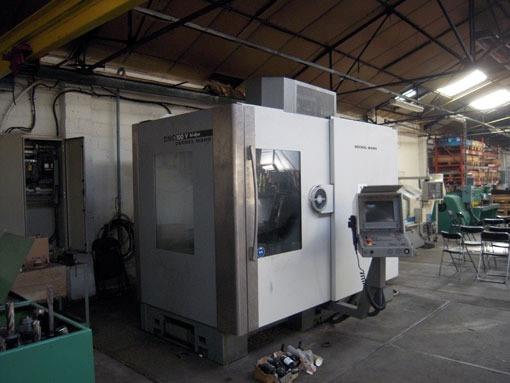

Pionowe centra frezarskie Deckel-Maho DMG DMC 100 V Hi-Dyn

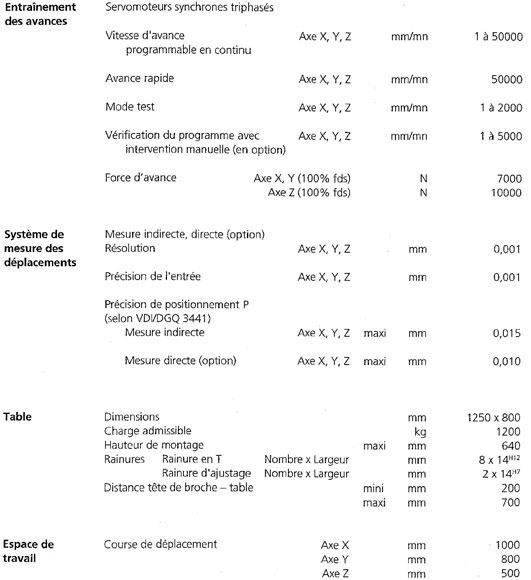

Specyfikacja

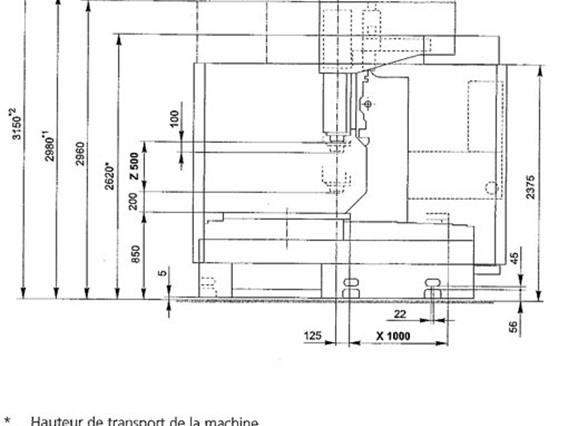

- Table longitudinal travel (X-axis)1000 mm
- Cross travel head (Y-axis)800 mm
- Height travel head (Z-axis)500 mm

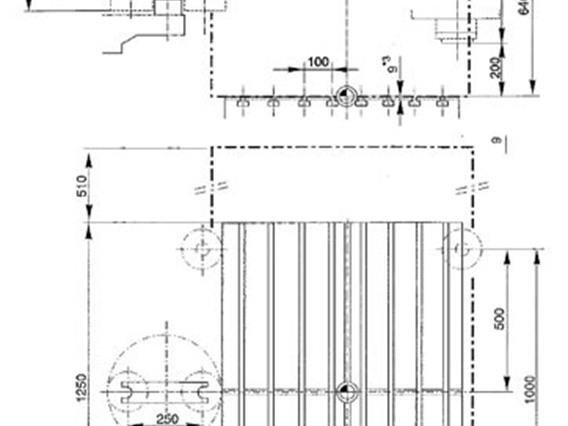

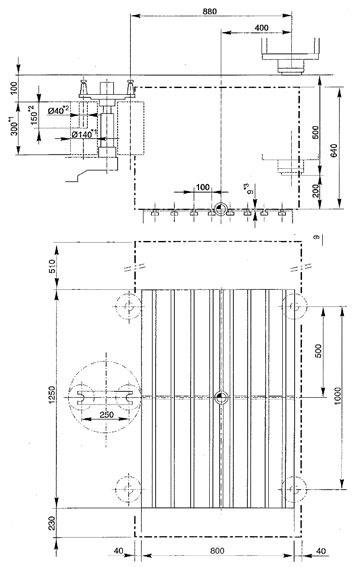

- Table dimensions1250 x 800 mm
- Max weight on the table1200 kg
- Depth of throat (uprights-spindlecenter)700 mm

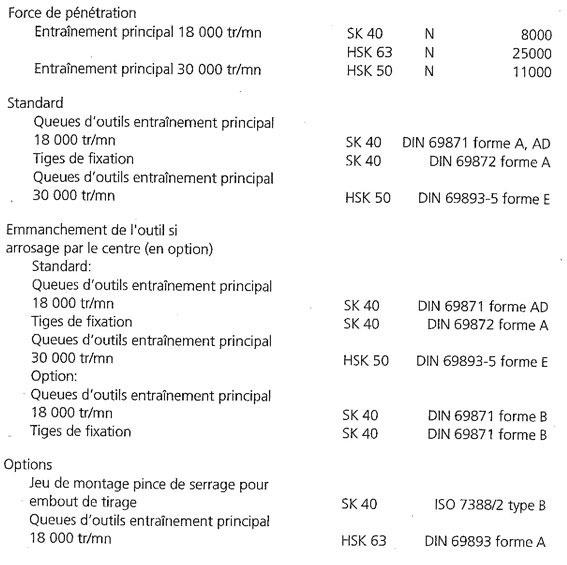

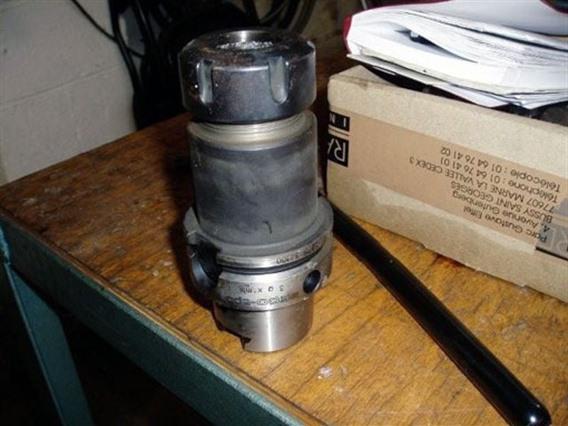

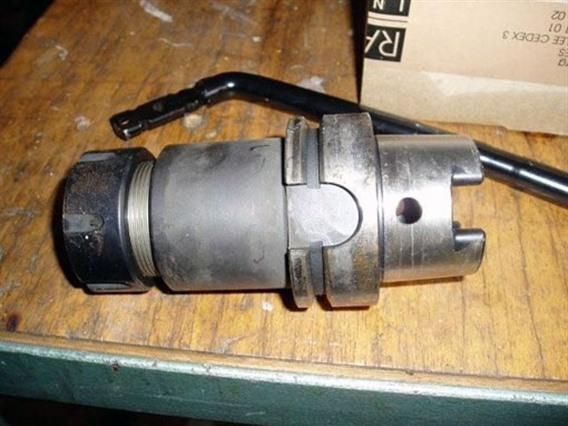

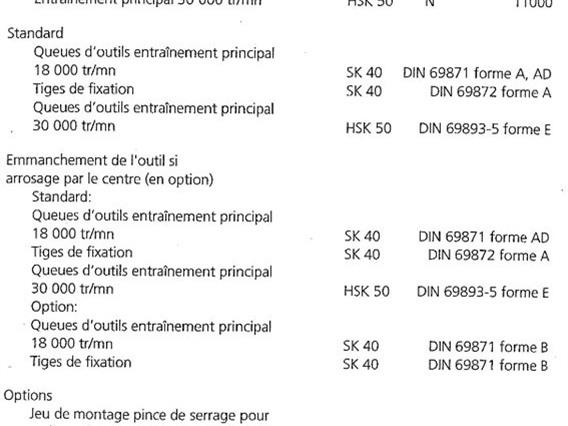

- Admission in spindle (ISO)HSK-A 63
- Power on the spindle15 kW

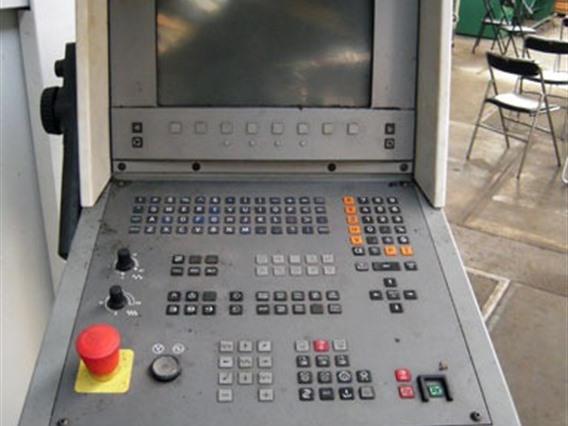

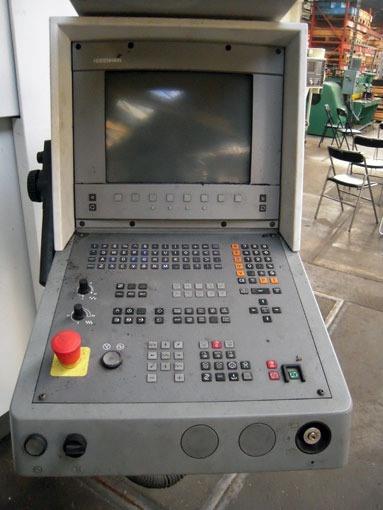

- Control (type)Heidenhain TNC 426

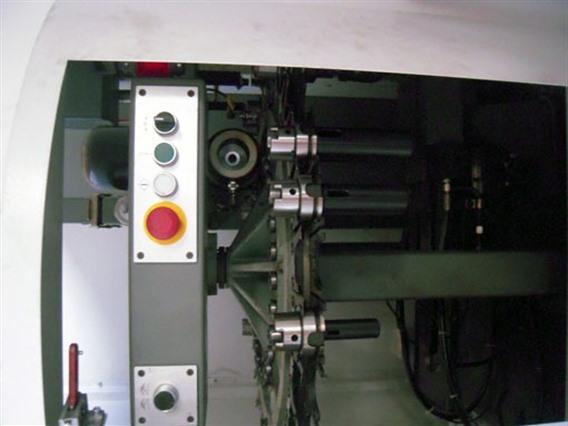

- Toolchangeryes

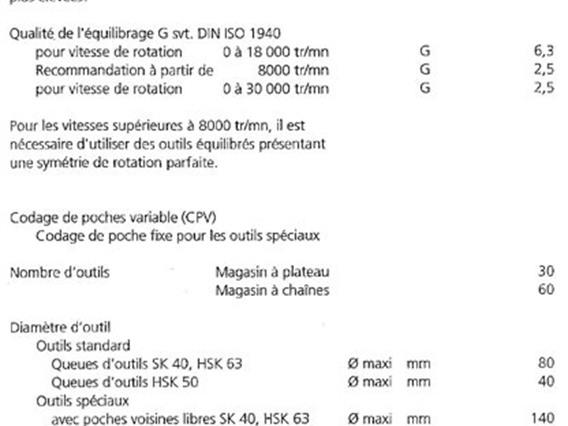

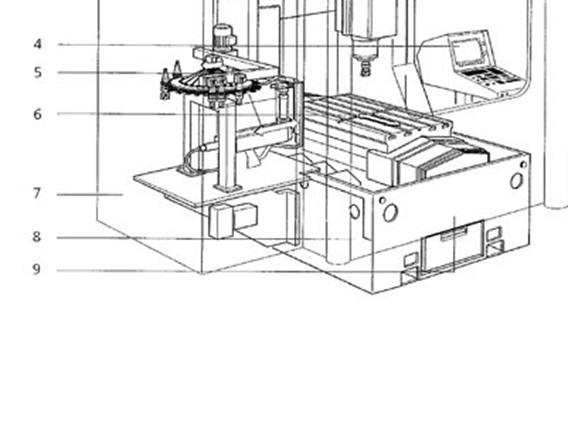

- Number of toolholders30
- Number of rotations (from X to Y rpm)max 18000 rpm

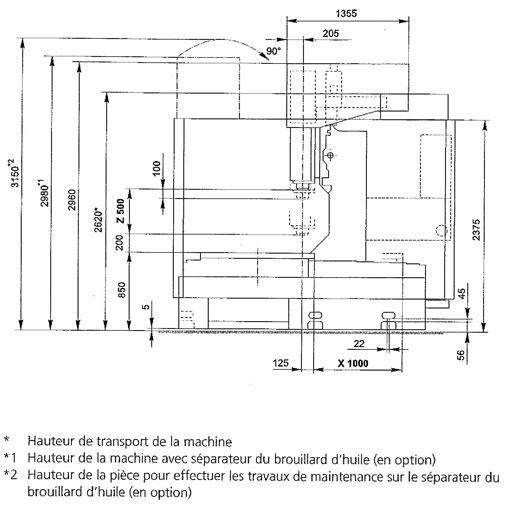

- Length L -- R3100 mm
- Depth Fw -- Bw2400 mm
- Height2600 mm

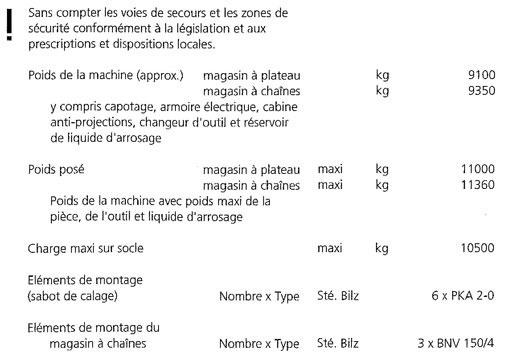

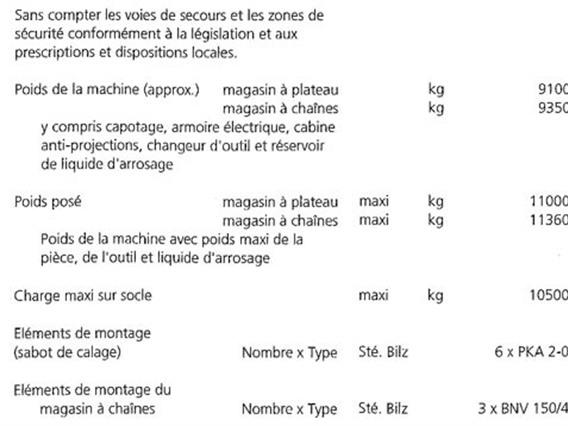

- Weight9100 kg
Dodatkowe informacje

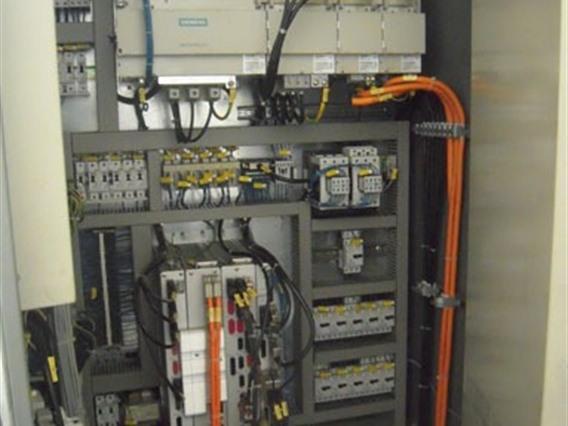

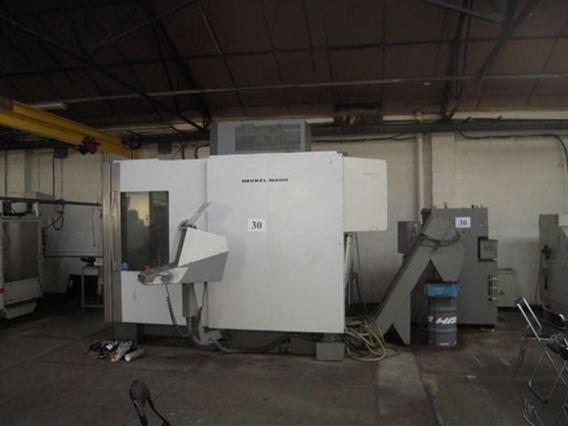

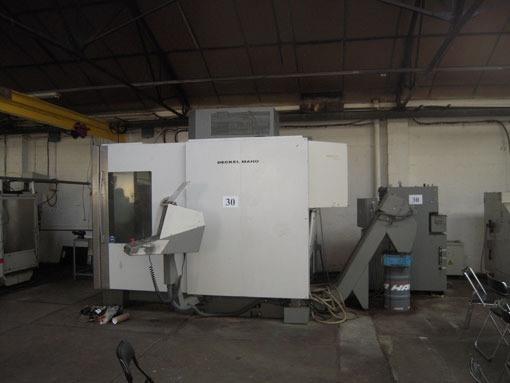

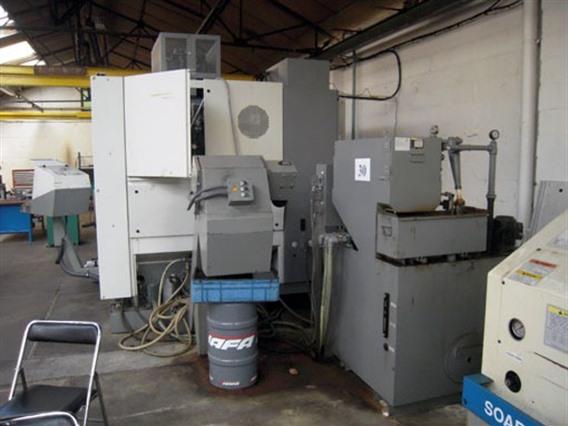

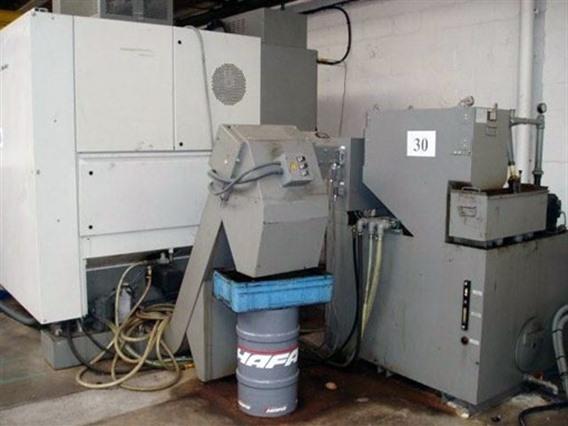

- Splash guard with Top Top Splash guard cabin closed Direct path measuring system External air blast cooling External air blast cooling through 2 pipes, selectable by M-function or softkey (coolant or air selectable) Internal coolant supply through the centre of spindle form A-D, (23 l/min at 40 bar / 6.1 gal/min at 580 psi), total tank capacity 940 l / 248.3 gal Spray gun with bed flushing Rotoclear inspection window Oil mist separator Machine working space extraction Manual control panel Chip conveyor Ethernet Interface TNC 3 x 380 V - 90A

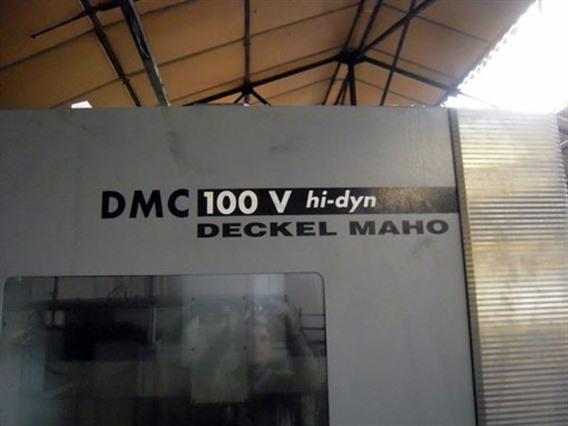

- Typ/Model: DMC 100 V Hi-Dyn
- Stocknumber: D.01 4772 *08
- Kategoria główna: [D] Centra frezarskie
- Sub kategorii: [D.01] Pionowe centra frezarskie
- Marka: Deckel-Maho DMG
