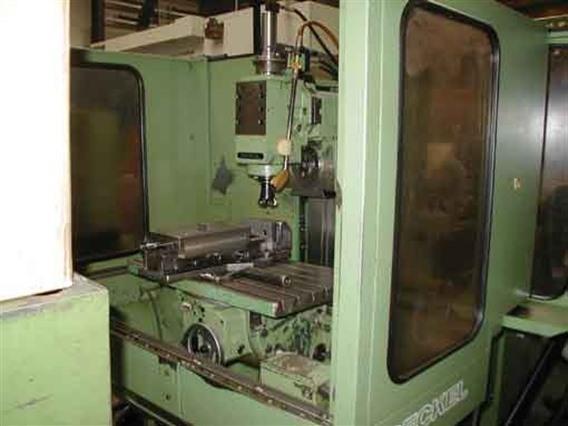

Pionowe centra frezarskie Deckel FP 4 ATC
Specyfikacja
- Table longitudinal travel (X-axis)560 mm
- Cross travel head (Y-axis)500 mm
- Height travel head (Z-axis)450 mm
- Table dimensions530 x 900 mm
- Max weight on the table300 kg
- Admission in spindle (ISO)SK 40 (M 16)
- Power on the spindle2 -- 4 kW
- Control (type)dialoog 3
- Toolchanger20 tools
- Number of rotations (from X to Y rpm)21/ 40-4000rpm
- Power principal motor 19 kVA
- Length L -- R4400 mm
- Depth Fw -- Bw4300 mm
- Height2150 mm
- Weight2970 kg
