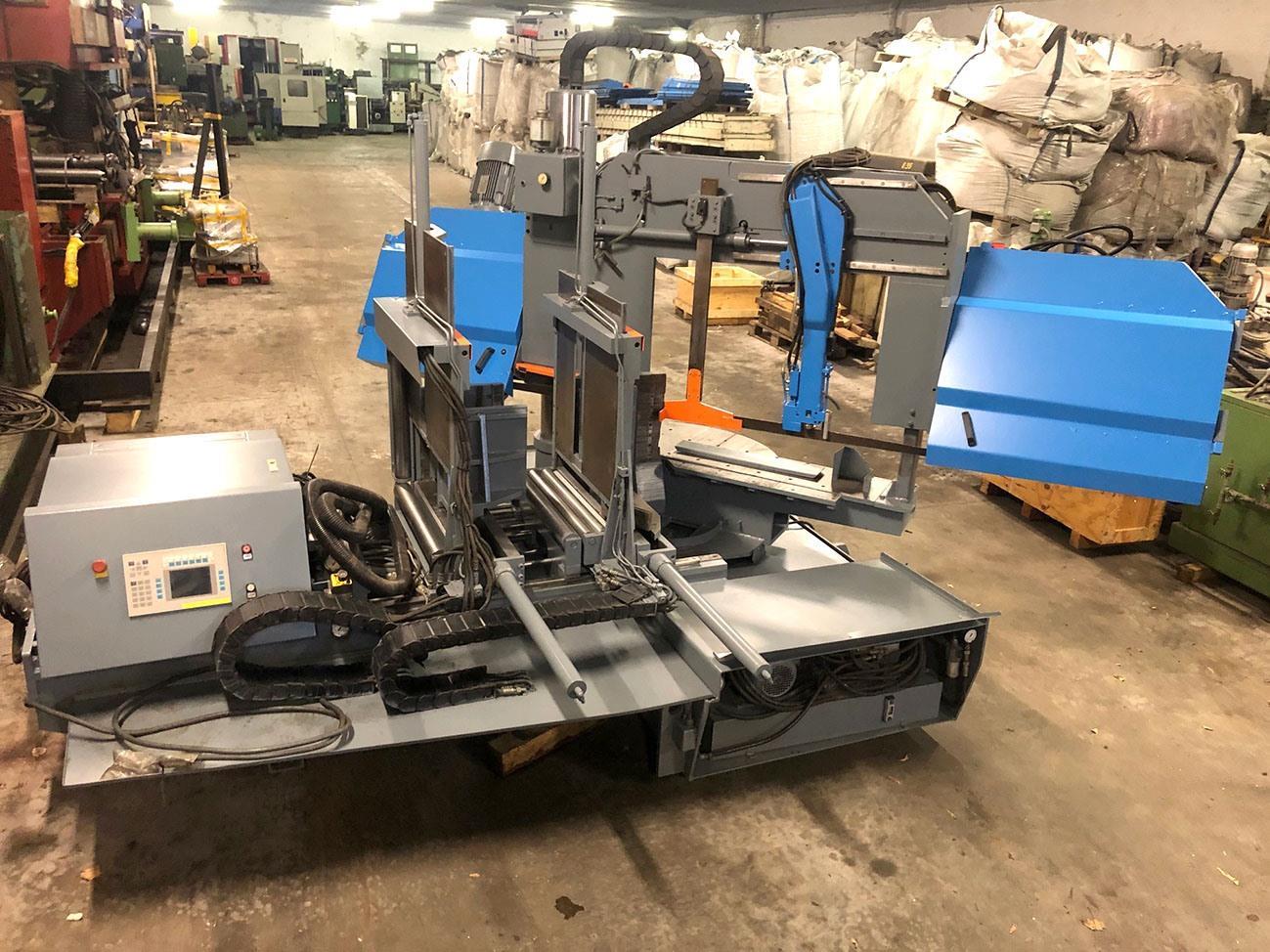

Meba 560 DGA-700 CNC

Produkt dodany do ulubionych

» Poprosić o indywidualną wycenę

Specyfikacja

Max height of workpiece560 mm
Sawspeed15 > 150 m/min
Length of band saw8500 x 54 x 1.6 mm
Power needed7,5 kW
Length L -- R4250 mm
Depth Fw -- Bw4400 mm
Height2700 mm
Weight6,4 ton

Dodatkowe informacje

Capacities:
90°: round Ø 560 mm / square 700 x 560 mm
45°/ right: round Ø 540 mm / square 540 x 560 mm
30°/ left: round Ø 280 mm / square 280 x 560 mm
45°/ left: round Ø 560 mm / square 580 x 560 mm

- With stepless mitre adjustment and automatic movement of vices in conjunction with digital adjustment of the mitre angle.
- CNC Corner programmation.
- Hydraulic bundle clamping, CNC automatic going through (one or more steps)

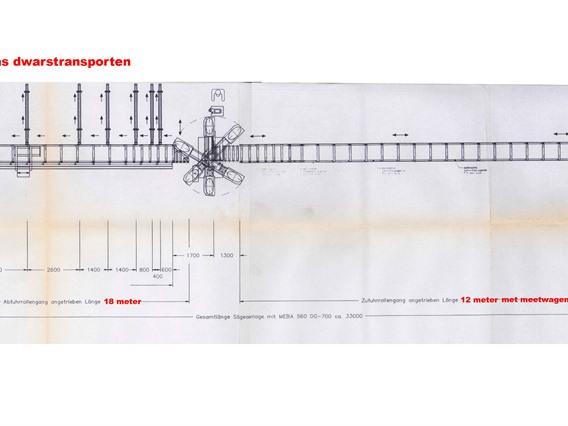

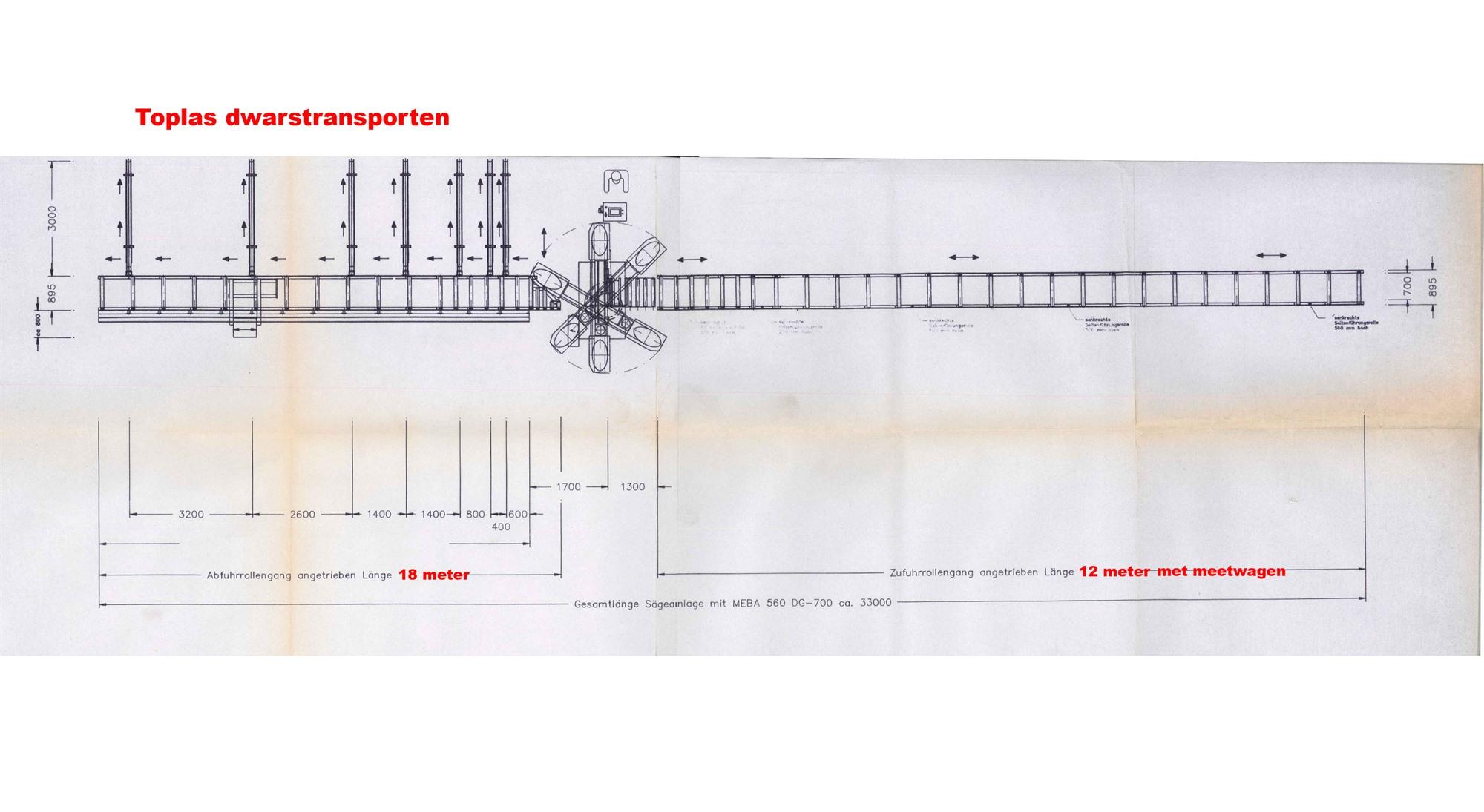

- CNC removal system of 12 meter with PEHU CNC length stop
- Electrical supply conveyor rolls L 18 m with 5 transversal transports L 4000 mm
Typ/Model: 560 DGA-700 CNC
Stocknumber: L.03 11047
Kategoria główna: [L] Piły, Pilnikarki i Obcinarki
Sub kategorii: [L.03] Piły taśmowe
Marka: Meba

» Poprosić o indywidualną wycenę

Stocknumber: L.03 11047

Pobierz wszystkie zdjęcia w pocztowy
