CBM sandwich panel line / Manni & Cannon
Dodatkowe informacje
Rollforming line for making panels:
- for thermal insulation of industrial buildings
- for sectional doors (current configuration)
- for residential roof insulation
Equipment consists out of:
1 - Decoiler 10 ton 1350 mm
2 - Straightener 1350 mm + embossing roll
3 - Rollerconveyor 15 meters
4 - CBM rollforming line with variable width:
> min/max width: 300 > 1300 mm
> min/max thickness: 0,5 > 1 mm
> first section: 15 rollstands
> second section: 20 rollstands
Current configuration (for sectional doors) consists out of 4 different tooling rollsets (which don't require dismantling)

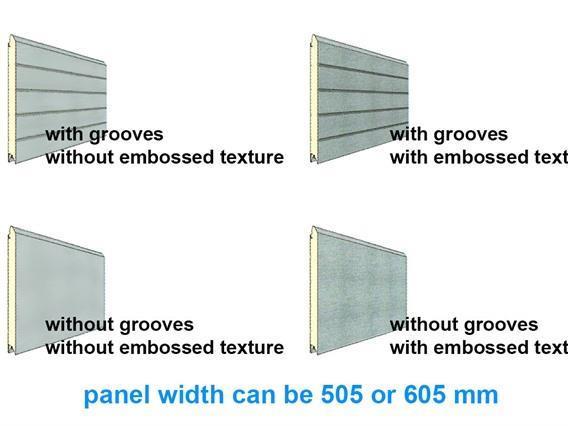

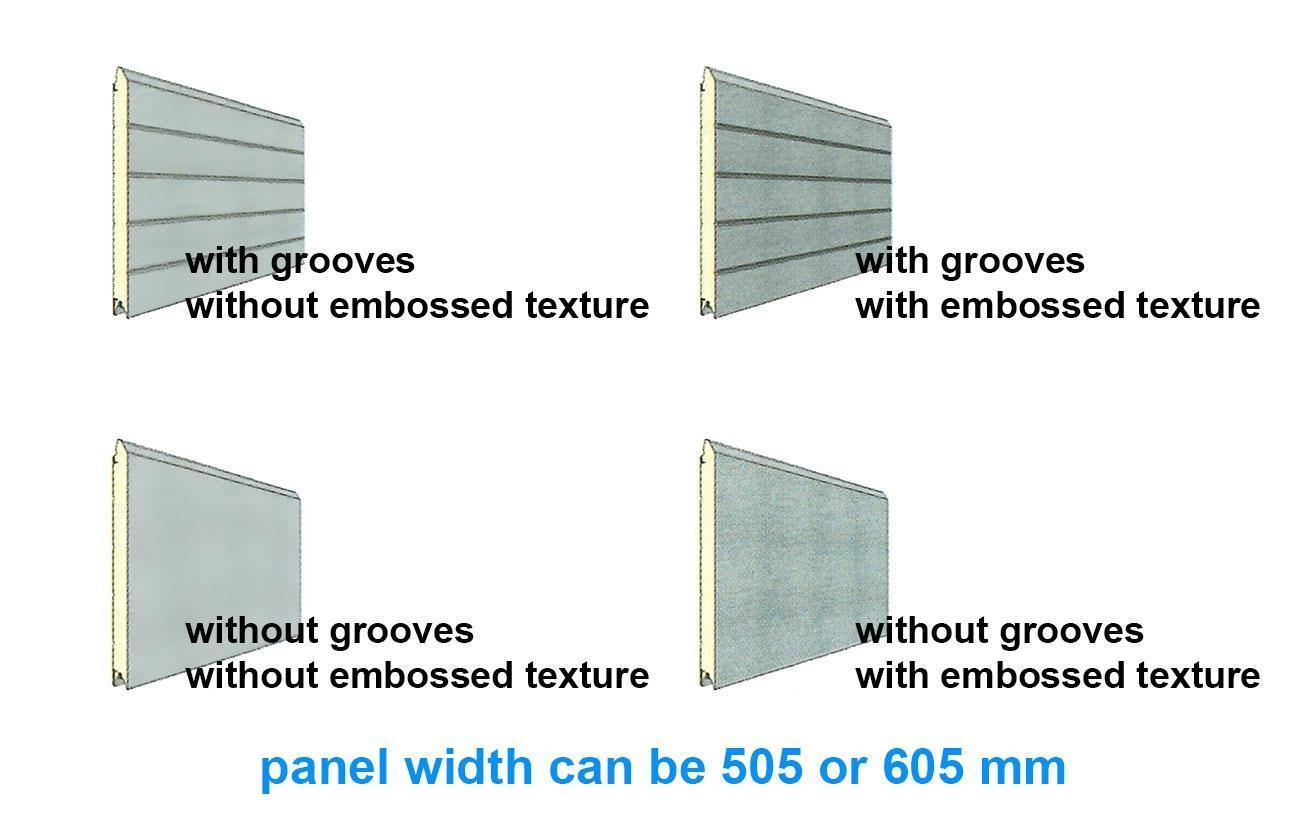

4 different panels can be made (for two thicknesses; 50 & 42 mm):
- 1 > panel with grooves, with embossed texture
- 2 > panel without grooves,with embossed texture
- 3 > panel with grooves, without embossed texture
- 4 > panel without grooves, without embossed texture
CBM rollforming line for making sandwhich panels for sectional doors >> click here
Manni / Cannon PU press >> click here
Rollforming line for making different profiles for installation sectional doors >> click here
Bonnamy tubebender >> click here
- Typ/Model: sandwich panel line / Manni & Cannon
- Stocknumber: O.27 14280
- Kategoria główna: [O] Giętarki, Prostownice, Wycinarki, Maszyny do cięcia laserowego, Maszyny do cięcia gazowego i Linie walcujące
- Sub kategorii: [O.27] Linie walcujące +/lub rozwijające
- Marka: CBM
Stocknumber: O.27 14280
