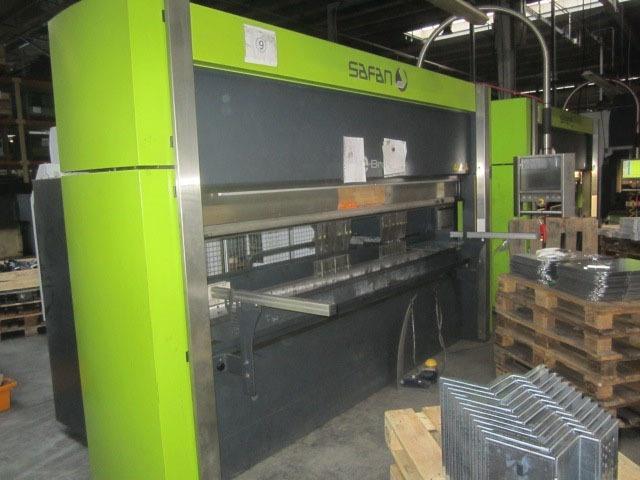

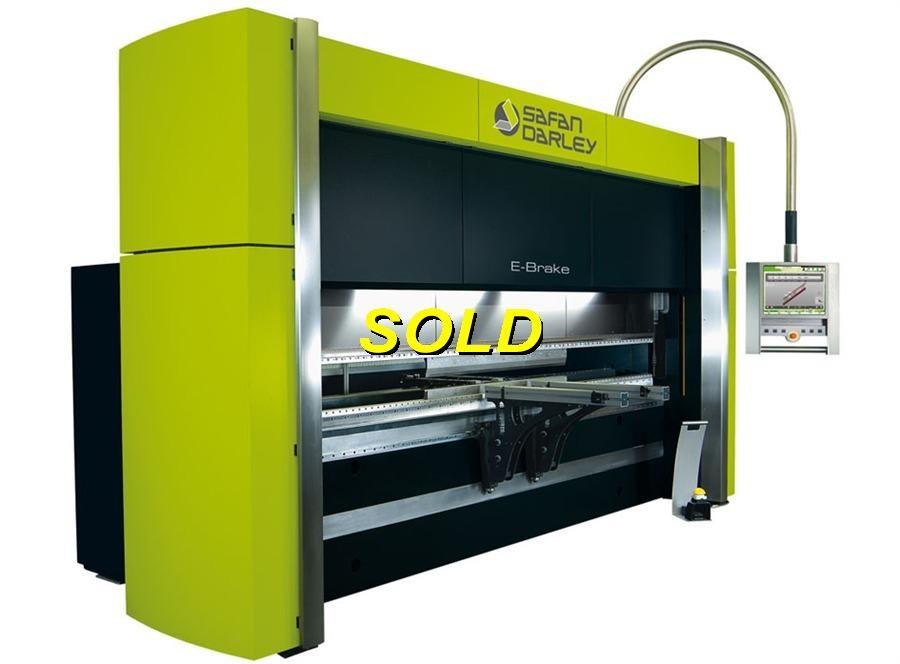

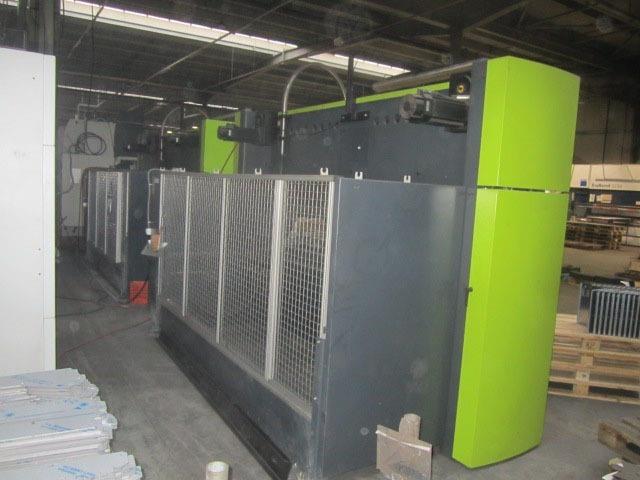

Safan E-brake 100 ton x 3060 mm CNC
Specyfikacja
- Capacity x Max length100 ton x 3060 mm
- BackgaugeCNC
- ControlTS touchscreen (9.12)
- Passage between uprights3060 mm
- Max stroke300 mm
- Max distance between table -- ram475 mm
- Locking speed75 mm/sec
- Working speed10 mm/sec
- Returning speed75 mm/sec
- Electric motor (power)11 kW
- Length 4080 mm
- Depth1775 mm
- Height2975 mm
- Weight6,5 ton
